NHNDSC90301500NZSerial Digital Still Camera

Safety & Compliance Consulting 29 Sweetman Lane West Milford, NJ 07480-2932 Tel/Fax (973) 728-5141 December 7, 1999 QTK99-F038 Confirmation Number: EA96190 Federal Communications Commission Equipment Approval Services P.O. Box 358315 Pittsburgh, PA 15251-5315 Subject:Original Application for Certification of Class B Computing Device Peripheral FCC ID: NHNDSC90301500NZ / Digital Still Camera, Model DC-1500 Gentlemen: Enclosed, please find Premier Camera Taiwan, Ltd.’s application for equipment authorization dated December 7, 1999. The subject device is in compliance with Part 15, Subpart B of the FCC Rules. The subject device is a Digital Still Camera with RS-232 Serial, USB and Baseband NTSC Video Output interface jacks, compact flash card slot and DC input jack. This device is provided with: (1) Color LCD with 640x480 image resolution; (2) 2 MB compact flash memory; (3) various internal clock frequencies; (4) detachable baseband video cable, USB and RS-232 serial interface cables with bonded ferrite core; and (5) AC Adaptor by Potrans type UP01811070 or by Kentex type MB15-070, both provided with DC cable with bonded ferrite core. This EUT was multimedia system tested in both USB and Serial configurations with both AC Adaptors and in accordance with ANSI C63.4-1992 to show compliance with CISPR Pub 22 Class B limits. Should you have any questions or comments, please contact the undersigned. Thank you for your attention and cooperation in this matter. Sincerely yours, Richard Mullen Manager Safety & Compliance Consulting

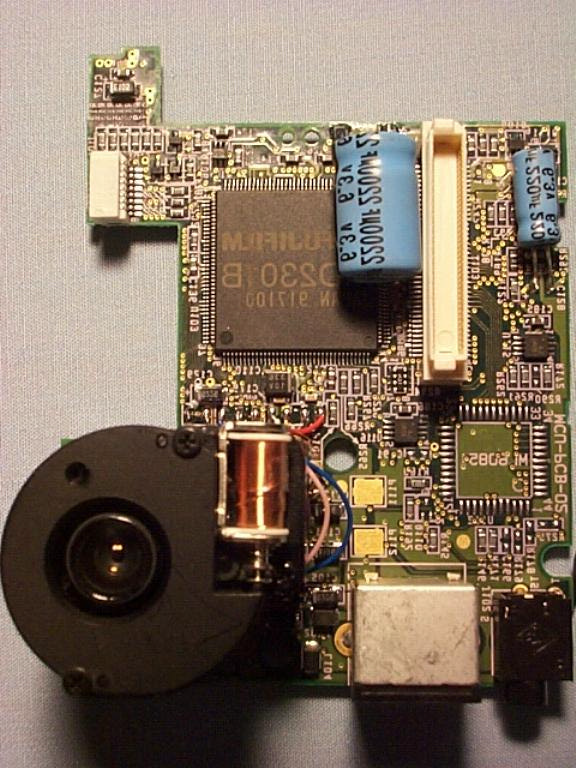

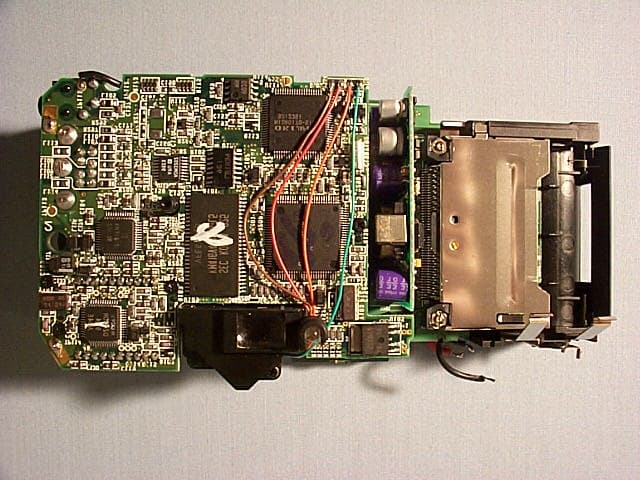

QuieTek Corporation Page: 1 of 19 FCC Report No.: 999H010FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 Attachment 3 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo QuieTek Corporation Page: 2 of 19 FCC Report No.: 999H010FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 M/N: CD-1500 (3) EUT Photo (4) EUT Photo QuieTek Corporation Page: 3 of 19 FCC Report No.: 999H010FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 M/N: DC-1501 (5) EUT Photo (6) EUT Photo QuieTek Corporation Page: 4 of 19 FCC Report No.: 999H010FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 M/N: CDS-4100 (7) EUT Photo (8) EUT Photo QuieTek Corporation Page: 5 of 19 FCC Report No.: 999H010FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (9) EUT Photo (10) EUT Photo QuieTek Corporation Page: 6 of 19 FCC Report No.: 999H010FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (11) EUT Photo (12) EUT Photo QuieTek Corporation Page: 7 of 19 FCC Report No.: 999H010FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (13) EUT Photo (14) EUT Photo QuieTek Corporation Page: 8 of 19 FCC Report No.: 999H010FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (15) EUT Photo QuieTek Corporation Page: 9 of 19 FCC Report No.: 999H010FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (16) EUT Photo QuieTek Corporation Page: 10 of 19 FCC Report No.: 999H010FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (17) EUT Photo QuieTek Corporation Page: 11 of 19 FCC Report No.: 999H010FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (18) EUT Photo (19) EUT Photo QuieTek Corporation Page: 12 of 19 FCC Report No.: 999H010FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (20) EUT Photo (21) EUT Photo QuieTek Corporation Page: 13 of 19 FCC Report No.: 999H010FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (22) EUT Photo QuieTek Corporation Page: 14 of 19 FCC Report No.: 999H010FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 ADAPTER (1) (23) EUT Photo (24) EUT Photo QuieTek Corporation Page: 15 of 19 FCC Report No.: 999H010FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (25) EUT Photo (26) EUT Photo QuieTek Corporation Page: 16 of 19 FCC Report No.: 999H010FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (27) EUT Photo QuieTek Corporation Page: 17 of 19 FCC Report No.: 999H010FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 ADAPTER (2) (28) EUT Photo (29) EUT Photo QuieTek Corporation Page: 18 of 19 FCC Report No.: 999H010FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (30) EUT Photo (31) EUT Photo QuieTek Corporation Page: 19 of 19 FCC Report No.: 999H010FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 (32) EUT Photo

QuieTek Corporation Page: 1 of 15 FCC Report No.: 999H010FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 Test Report For Applicant : PREMIER CAMERA TAIWAN, LTD. Equipment Type : Digital Camera Model : DC-1500, DC-1501, CDS-4100 FCC ID : NHNDSC90301500NZ Report No. : 999H010FI QuieTek Corporation Page: 2 of 15 FCC Report No.: 999H010FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 Test Report Certification QuieTek Corporation No.75-1, Wang-Yeh Valley, Yung-Hsing, Chiung-Lin, Hsin-Chu County, Taiwan, R.O.C. Tel : 886-3-592-8858, Fax: 886-3-592-8859 E-Mail : [email protected] Accredited by NIST(NVLAP), VCCI, BSMI, DNV, TUV Applicant : PREMIER CAMERA TAIWAN, LTD. Address : 7F, No. 123, Sec. 1, Nei-hu Rd., Nei-hu, Taipei, Taiwan, R.O.C. Equipment Type : Digital Camera Model : DC-1500, DC-1501, CDS-4100 Measurement Standard : CISPR 22/1994 Measurement Procedure : ANSI C63.4 /1992 FCC ID : NHNDSC90301500NZ Operation Voltage : 120VAC/60Hz Classification : Class B Test Result : Complied Test Date : Sep. 9, 1999 Report No. : 999H010FI The Test Results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Documented by: Kim Hung Test Engineer: Warren Lin Approved: Gene Chang QuieTek Corporation Page: 3 of 15 FCC Report No.: 999H010FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION............................................................................................................................4 1.1 EUT Description.................................................................................................................................................4 1.2 Tested System Details..........................................................................................................................................5 1.3 EUT Configuration..............................................................................................................................................7 1.4 EUT Exercise Software.......................................................................................................................................8 1.5 Test performed....................................................................................................................................................8 1.6 Test Facility........................................................................................................................................................9 2. CONDUCTED EMISSION.............................................................................................................................10 2.1 Test Equipment List...........................................................................................................................................10 2.2 Test Setup.........................................................................................................................................................10 2.3 Limits...............................................................................................................................................................10 2.4 Test Procedure...................................................................................................................................................11 2.5 Test Results.......................................................................................................................................................11 3. RADIATED EMISSION.................................................................................................................................12 3.1 Test Equipment.................................................................................................................................................12 3.2 Test Setup.........................................................................................................................................................12 3.3 Limits...............................................................................................................................................................13 3.4 Test Procedure...................................................................................................................................................13 3.5 Test Results.......................................................................................................................................................13 4. EMI REDUCTION METHOD DURING COMPLIANCE TESTING..........................................................14 5. ATTACHMENT..............................................................................................................................................15 ATTACHMENT 1: SUMMARY OF TEST RESULTS ATTACHMENT 2: EUT TEST PHOTOGRAPHS ATTACHMENT 3: EUT DETAIL PHOTOGRAPHS QuieTek Corporation Page: 4 of 15 FCC Report No.: 999H010FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 1. General Information 1.1 EUT Description Applicant : PREMIER CAMERA TAIWAN, LTD. Address : 7F, No. 123, Sec. 1, Nei-hu Rd., Nei-hu, Taipei, Taiwan, R.O.C. Equipment Type : Digital Camera Model : DC-1500, DC-1501, CDS-4100 FCC ID : NHNDSC90301500NZ Operation Voltage : 120VAC/60Hz Data Cable (S) : Shielded, 1.8m, a ferrite core bonded, 2pcs Data Cable (AV) : Shielded, 1.8m, a ferrite core bonded. Power Adapter : PORTRANS, M/N: UP01811070, Shielded, 1.8m Cable Out: Power Cord: Shielded, 1.5m Power Adapter : Kentex, M/N: MB15-070, Shielded, 1.8m Cable Out: Power Cord: Shielded, 1.5m Remark: 1. The EUT is a digital camera with two kinds of power adapter. The electrical circuit, camera feature and perf…

Text truncated - open the document above for the full version.

QuieTek Corporation Page: 1 of 9 FCC Report No.: 999H010FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 Attachment 1 : Summary of Test Results The test results in the emission was performed according to the requirements of measurement standard and process. QuieTek Corporation is assumed full responsibility for the accuracy and completeness of these measurements. The test data of the emission is listed as the attached data. All the tests were carried out with the EUT in normal operation, which was defined as: Mode 1: PORTRAN (Adapter) Mode 2: Kentex (Adapter) The EUT passed all the tests. The uncertainty is calculated in accordance with NAMAS NIS 81, The total uncertainty for this test is as follows: ÿÿ Emission Test • Uncertainty in the Conducted Emission Test: < ± 2.0 dB • Uncertainty in the field strength measured: < ± 4.0 dB QuieTek Corporation Page: 2 of 9 FCC Report No.: 999H010FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 CONDUCTED EMISSION DATA Date of Test : Sep. 9, 1999 EUT : Digital Camera Test Mode : Mode 1 Detect Mode : Quasi-Peak & Average Frequency Cable LISN Reading Level Measurement Level Limits Loss Factor Line1 Line1 MHz dB dB dBuV dBuV dBuV ======================================================================== 0.154 0.00 0.10 47.46 47.56 65.77 *0.190 0.01 0.10 46.47 46.58 64.05 0.321 0.04 0.10 32.39 32.53 59.69 0.431 0.06 0.10 35.02 35.18 57.23 0.774 0.09 0.10 24.41 24.60 56.00 2.204 0.15 0.13 31.51 31.79 56.00 Average: 0.154 0.00 0.10 23.20 23.30 55.78 0.189 0.01 0.10 28.00 28.11 54.08 0.321 0.04 0.10 4.80 4.94 49.68 0.431 0.06 0.10 8.70 8.86 47.23 0.774 0.09 0.10 8.00 8.19 46.00 2.200 0.15 0.13 20.30 20.58 46.00 Remarks : 1. “ * ” means that this data is the worst emission level. QuieTek Corporation Page: 3 of 9 FCC Report No.: 999H010FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 CONDUCTED EMISSION DATA Date of Test : Sep. 9, 1999 EUT : Digital Camera Test Mode : Mode 1 Detect Mode : Quasi-Peak & Average Frequency Cable LISN Reading Level Measurement Level Limits Loss Factor Line2 Line2 MHz dB dB dBuV dBuV dBuV ======================================================================== *0.191 0.01 0.10 48.96 49.07 64.00 0.222 0.02 0.10 40.21 40.33 62.76 0.284 0.03 0.10 34.14 34.27 60.71 0.729 0.08 0.10 39.75 39.93 56.00 1.113 0.11 0.10 37.73 37.94 56.00 1.271 0.11 0.11 36.98 37.21 56.00 Average: 0.191 0.01 0.10 30.40 30.51 53.99 0.222 0.02 0.10 16.40 16.52 52.74 0.284 0.03 0.10 10.80 10.93 50.70 0.729 0.08 0.10 31.20 31.38 46.00 1.110 0.11 0.10 21.80 22.01 46.00 1.270 0.11 0.11 22.90 23.13 46.00 Remarks : 1. “ * ” means that this data is the worst emission level. QuieTek Corporation Page: 4 of 9 FCC Report No.: 999H010FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 CONDUCTED EMISSION DATA Date of Test : Sep. 9, 1999 EUT : Digital Camera Test Mode : Mode 2 Detect Mode : Quasi-Peak & Average Frequency Cable LISN Reading Level Measurement Level Limits Loss Factor Line1 Line1 MHz dB dB dBuV dBuV dBuV ======================================================================== *0.165 0.01 0.10 54.43 54.54 65.21 0.208 0.02 0.10 48.12 48.24 63.29 0.250 0.03 0.10 42.56 42.69 61.77 0.289 0.03 0.10 37.48 37.61 60.55 2.279 0.15 0.14 31.12 31.41 56.00 8.692 0.26 0.19 47.17 47.63 60.00 Average: 0.165 0.01 0.10 44.40 44.51 55.21 0.208 0.02 0.10 38.20 38.32 53.28 0.250 0.03 0.10 32.50 32.63 51.76 0.289 0.03 0.10 28.30 28.43 50.55 2.280 0.15 0.14 23.00 23.29 46.00 8.690 0.26 0.19 43.40 43.86 50.00 Remarks : 1. “ * ” means that this data is the worst emission level. QuieTek Corporation Page: 5 of 9 FCC Report No.: 999H010FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 CONDUCTED EMISSION DATA Date of Test : Sep. 9, 1999 EUT : Digital Camera Test Mode : Mode 2 Detect Mode : Quasi-Peak & Average Frequency Cable LISN Reading Level Measurement Level Limits Loss Factor Line2 Line2 MHz dB dB dBuV dBuV dBuV ======================================================================== 0.164 0.00 0.10 52.25 52.35 65.25 0.207 0.02 0.10 46.49 46.61 63.33 0.248 0.03 0.10 41.38 41.51 61.82 0.290 0.03 0.10 37.80 37.93 60.52 0.332 0.04 0.10 35.96 36.10 59.41 *8.693 0.26 0.19 47.43 47.89 60.00 Average: 0.164 0.00 0.10 42.80 42.90 55.26 0.207 0.02 0.10 37.80 37.92 53.32 0.248 0.03 0.10 35.00 35.13 51.82 0.290 0.03 0.10 32.80 32.93 50.52 0.332 0.04 0.10 31.00 31.14 49.40 8.693 0.26 0.19 43.60 44.06 50.00 Remarks : 1. “ * ” means that this data is the worst emission level. QuieTek Corporation Page: 6 of 9 FCC Report No.: 999H010FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 RADIATED EMISSION DATA Date of Test : Sep. 9, 1999 EUT : Digital Camera Test Mode : Mode 1 Test Site : No.1 Open Test Site Freq. Cable Probe PreAMP Reading Measurement Margin Limit Ant Turn Loss Factor Level Horizontal MHz dB dB/m dB dBuV dBuV/m dB dBuV/m cm deg ======================================================================== 85.910 1.69 8.88 0.00 7.50 18.08 11.92 30.00 394 93 122.729 2.05 11.93 0.00 6.42 20.40 9.60 30.00 394 107 159.547 2.40 10.32 0.00 9.77 22.49 7.51 30.00 394 1 184.092 2.64 9.18 0.00 7.97 19.78 10.22 30.00 394 63 *208.637 2.87 9.56 0.00 10.16 22.59 7.41 30.00 394 159 220.910 2.99 9.53 0.00 6.39 18.91 11.09 30.00 394 13 233.183 3.11 10.71 0.00 6.76 20.58 16.42 37.00 394 189 Remarks: 1. All Readings below 1GHz are Quasi-Peak, above are average value. 2. “ * ”, means this data is the worst emission level. 3. Emission Level = Reading Level + Antenna Factor + Cable loss QuieTek Corporation Page: 7 of 9 FCC Report No.: 999H010FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 RADIATED EMISSION DATA Date of Test : Sep. 9, 1999 EUT : Digital Camera Test Mode : Mode 1 Test Site : No.1 Open Test Site Freq. Cable Probe PreAMP Reading Measurement Margin Limi…

Text truncated - open the document above for the full version.

QuieTek Corporation Page: 1 of 4 FCC Report No.: 999H010FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 Attachment 2: EUT Test Setup Photos Front View of Conducted Test (Mode 1) Back View of Conducted Test (Mode 1) QuieTek Corporation Page: 2 of 4 FCC Report No.: 999H010FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 Front View of Conducted Test (Mode 2) Back View of Conducted Test (Mode 2) QuieTek Corporation Page: 3 of 4 FCC Report No.: 999H010FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 Front View of Radiated Test (Mode 1) Back View of Radiated Test (Mode 1) QuieTek Corporation Page: 4 of 4 FCC Report No.: 999H010FI Accredited Lab. of NVLAP(NIST) NVLAP Lab. Code : 200347-0 EMC Test Laboratory Rev.1 Front View of Radiated Test (Mode 2) Back View of Radiated Test (Mode 2)
