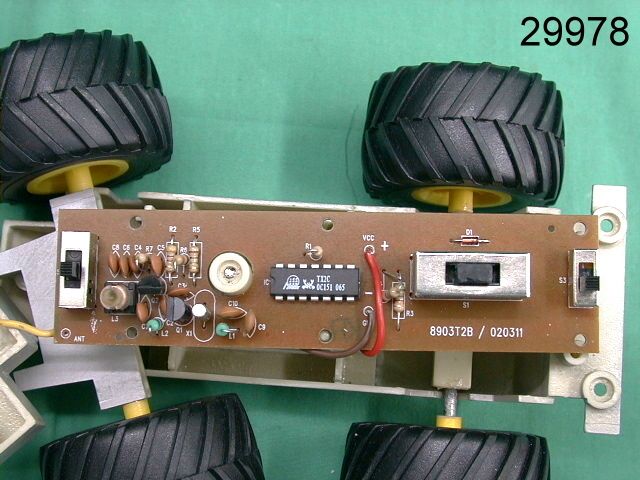

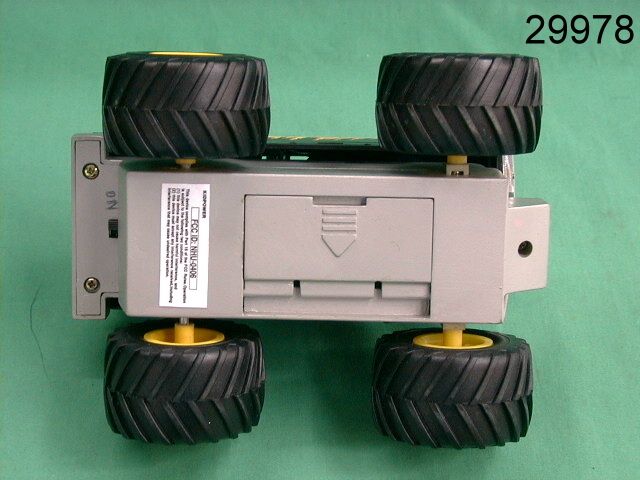

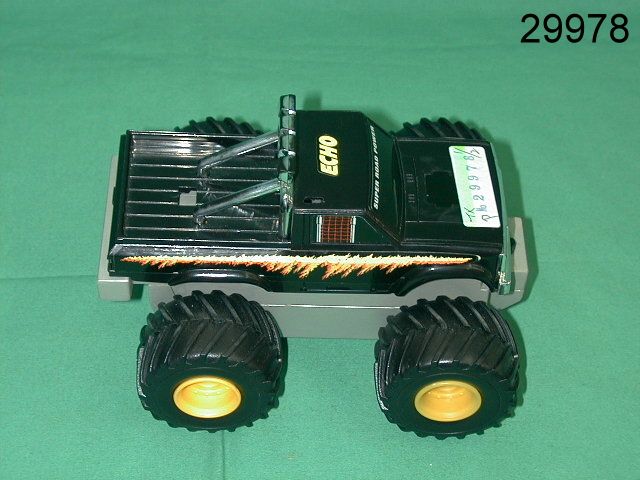

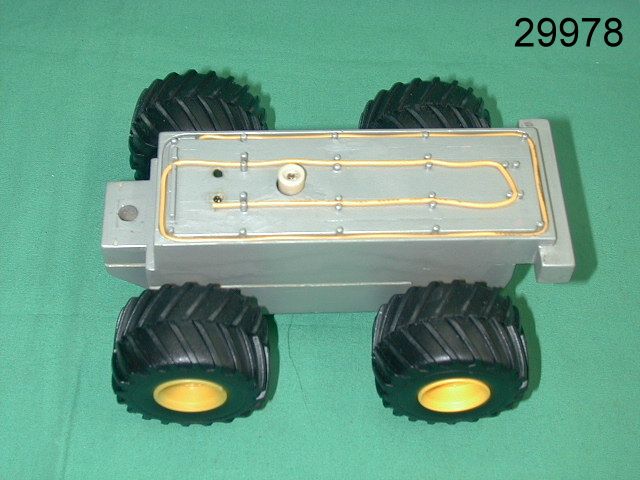

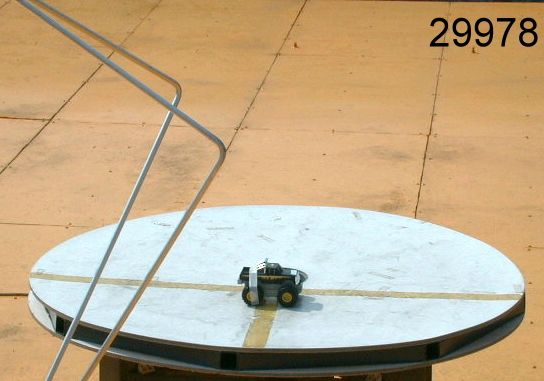

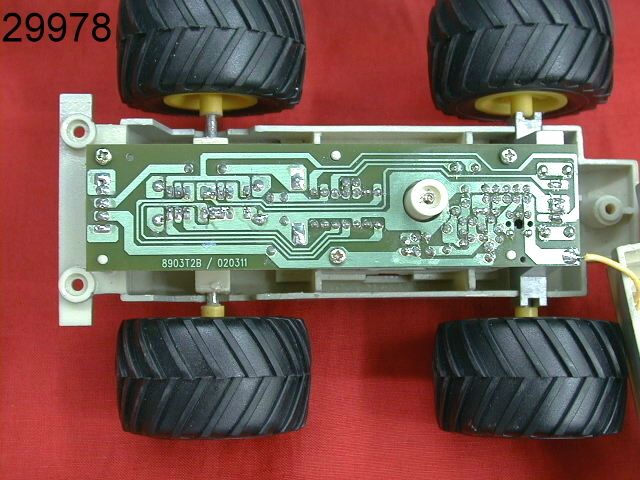

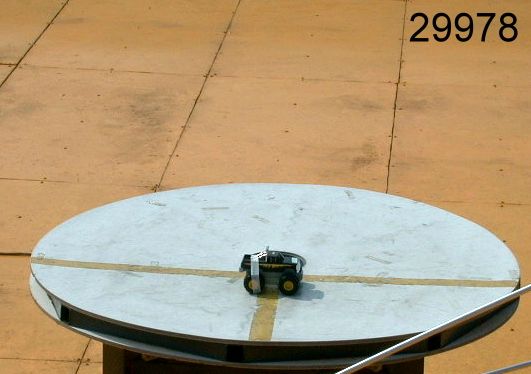

F F C C C C - - T T E E S S T T R R E E P P O O R R T T REPORT NO.: 29978/2/400F FCC – Test Report No. 29978/2/400F Date: 2002-04-16 Page 2 of 12 FCC listed testlab acc. to Section 2.948 of the FCC - Rules in compliance with the requirements of ANSI C63.4 - 1992 Product : Mighty Movers Product Class : Low Power Communication Device Transmitter Model : 8903 Applicant : KIDPOWER INC. FCC – Test Report No. 29978/2/400F Date: 2002-04-16 Page 3 of 12 TABLE OF CONTENTS 1. Cover sheet 2. Introduction 3. Table of Contents 4. Laboratory Report 5. Summary of Testresults 6. Test Equipment List 7. Radiated Emission Testprocedure (> 30MHz) 8. Radiated Emission Testprocedure (9kHz-30MHz) 9. Interference Radiation (Datasheet) 10. Notes for Radiation Measurement (acc. to ANSI C63.4 - 1992) 11. Measurement of Emissions within Band Edges (Band Edges Plot) 12. Notes for Measurement of Emissions within Band Edges FCC – Test Report No. 29978/2/400F Date: 2002-04-16 Page 4 of 12 LABORATORY - REPORT APPLICANT: ADDRESS: KIDPOWER INC. 8005 Church Street East, Brentwood, Tennessee TN 37027, USA DATE OF SAMPLE RECEIVED: 2002-03-28 DATE OF TESTING: 2002-04-01 to 2002-04-02 DESCRIPTION OF SAMPLE: Product:Mighty Movers Product class:Low Power Communication Device Transmitter Model number:8903 Rating:DC 9V ('6F22' Size Battery x 1) Country of Origin:P.R. CHINA INVESTIGATIONS REQUESTED: Measurements to the relevant clauses of F.C.C. Rules and Regulations Part 15 Subpart C - Intentional Radiators RESULTS: See the attached test sheets CONCLUSIONS From the measurement data obtained, the tested sample was considered to have COMPLIED with the requirements for the relevant clauses of Federal Communications Commission Rules as specified above. _____________________________ Authorized Signature Remark : Purpose of those tests in this report is to provide the applicant with the necessary test data of their device for the submission to FCC with application for Equipment Authorization under the FCC Equipment Authorization Program. The tests themselves are not Approval Tests FCC – Test Report No. 29978/2/400F Date: 2002-04-16 Page 5 of 12 Summary of Test Results Interference Radiation: Test result:O.K. Test data:See attached data sheet Interference Voltage: Test result:N.A. Test data:N.A. Measurement of Emissions within Band Edges Test result:O.K. Test data:See attached data sheet PHOTOGRAPH OF THE SAMPLE FCC – Test Report No. 29978/2/400F Date: 2002-04-16 Page 6 of 12 TEST EQUIPMENT LIST EquipmentManufacturerModelSerial No.Remark Test ReceiverRohde & Schwarz ESH 3863497/01510KHz – 30MHz Test ReceiverRohde & Schwarz ESVP860688/02225MHz – 1,300 MHz Artificial Mains Network (LISN) SchwarzbeckNSLK 8127-- 2 x 10A, 50Ω, 50μH 10KHz-30MHz Antenna SystemSchwarzbeckBBA 9106 / UHALP 9107 --30MHz – 1000MHz Antenna Mast System SchwarzbeckAM9104--Max. 4 meters height Spectrum Analyzer with Q. Peak Tektronix2712B0230069KHz – 1.8GHz Interface for Spectrum 2712 TektronixTD3F14A-- Loop AntennaRohde & Schwarz HFH2-Z2871336/489KHz-30MHz Test ReceiverRohde & Schwarz ESH 3892580/00610KHz – 30MHz Test ReceiverRohde & Schwarz ESVP863512/01225MHz – 1,300 MHz Impulse LimiterRohde & Schwarz ESH-3-Z2-- Antenna SystemSchwarzbeckBBA 9106 / UHALP 9107 --30MHz – 1000MHz Signal GeneratorRohde & Schwarz SWS 2879113/42100KHz – 1040 MHz Digital MultimeterTektronixDM2510GDM- 2510GTW10555 10KHz – 30MHz Turntable with Controller DrehtischDT312-- φ120 cm FCC – Test Report No. 29978/2/400F Date: 2002-04-16 Page 7 of 12 Radiated Emission Test Procedure (> 30MHz) Equipment under test (on turntable) Test receiver ESVP R & S Required test distance: 3m Antenna system Schwarzbeck BBA 9106/ UHALP 9107 FCC – Test Report No. 29978/2/400F Date: 2002-04-16 Page 8 of 12 Radiated Emission Test Procedure ( 9kHz – 30MHz) Test distance : 3 m Loop antenna HFH2-Z2 Rohde & Schwarz Equipment under test (on turntable) Test Receiver ESH3 Rohde & Schwarz 92Interference RadiationDate : 2002-04-16 Page: 9 of 12 Measurement of Radiated Emissions Acc: FCC Part 15 Subpart C IECC Ref:29978/2/400F Test Equipment Model:8903 Receiver: ESVP Rohde & Schwarz Applicant:KIDPOWER INC. Antenna: Schwarzbeck BBA 9106 and UHALP 9107 Ser.Nr.:1 Set under test:Mighty Movers Connected sets: - Operating mode:Power "On" A. Radiation Measurement below 30MHz 1. Fundamental Frequency Frequency (MHz) Maximum Test Result (dB(μV/m)) FCC Limit (dB(μV/m)) PeakAveragePeakAverage 27.1455144.510080 2. The measured radiation outside the operation band were negliginle B. Radiation Measurement over 30MHz Frequency (MHz) Horz. Reading dB(μV) Vert. Reading dB(μV) Antenna Factor (dB) Horiz. Test Result dB(μV/m) Vert. Test Result dB(μV/m) Limit dB(μV/m) Harm.254.29<16<1610.2< 26.226.240.0 Harm.381.44<16<167.1< 23.123.140.0 Harm.4108.58<16<1611.6 27.6 < 27.643.5 Harm.5135.73<16<1614.3< 30.3 < 30.343.5 Harm.6162.8720<1615.6 35.6 < 31.643.5 Harm.7190.02<16<1616.3< 32.3 < 32.343.5 Harm.8217.16<16<1616.9< 32.9 < 32.946.0 Harm.9244.31<16<1617.6< 33.6 < 33.646.0 Harm. 10271.45<16<1618.5< 34.5 < 34.546.0 Harm. 11298.60<16<1619.9< 35.9 < 35.946.0 Harm. 12325.74<16<1616.8< 32.8 < 32.846.0 Harm. 13352.89<16<1617.5< 33.5 < 33.546.0 Harm. 14380.03<16<1618.0< 34.0 < 34.046.0 Harm. 15407.18<16<1618.4< 34.4 < 34.446.0 Harm. 16434.32<16<1618.8< 34.8 < 34.846.0 Harm. 17461.47<16<1619.2< 35.2 < 35.246.0 Harm. 18488.61<16<1619.5< 35.5 < 35.546.0 Harm. 19515.76<16<1619.9< 35.9 < 35.946.0 Harm. 20542.90<16<1620.1< 36.1 < 36.146.0 Harm. 21570.05<16<1620.5< 36.5 < 36.546.0 Harm. 22597.19<16<1620.9< 36.9 < 36.946.0 Harm. 23624.34<16<1621.2< 37.2 < 37.246.0 Harm. 24651.48<16<1621.6< 37.6 < 37.646.0 Harm. 25678.63<16<1622.1< 38.1 < 38.146.0 Harm. 26705.77<16<1622.5< 38.5 < 38.546.0 Harm. 27732.92<16<1622.8< 38.8 < 38.846.0 Harm. 28760.06<16<1623.2< 39.2 < 39.246.0 Harm. 29787.21<16<1623.5< 39.5 < 39.546.0 Harm. 30814.35<16<1623.9< 39.9 < 39.946.0 Harm. 31841.50<16<1624.3< 40.3 < 40.346.0 Harm. 32868.64<16<1624.6< 40.6 < 40.646.0 Harm. 33895.79<16<1624.9< 40.9 <…
