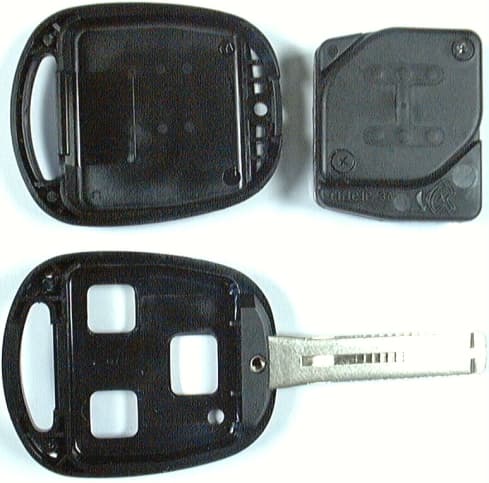

NI412BBBWireless Key

ATTESTATION STATEMENT FCC ID: NI412BBB Wireless key, Model 12BBB SUMMARY: All tests according to FCC Part Subpart C Paragraph 15.231 ! - Performed The equipment under test ! - Fulfills the general approval requirements of FCC Part Subpart C Paragraph 15.231 - MIKES BABT PRODUCT SERVICE GmbH - Responsible Engineer _____________________________ Klaus Gegenfurtner Dipl.-Ing.(FH)

Please replace the confidentiality letter sent in May 15 with the attached. Judy Evans Technical Writer TUV Product Service [email protected]

FCC ID: NI412BBB Attachment E2 File-No. T 18173-09 KG MIKES PRODUCT SERVICE GmbH, Ohmstrasse 2-4, 94342 Strasskirchen,Tel.: +49 9424-94070, Fax: +49 9424-940760 Wireless Key 12BBB FCC ID: NI412BBB Attachment E3 File-No. T 18173-09 KG MIKES PRODUCT SERVICE GmbH, Ohmstrasse 2-4, 94342 Strasskirchen,Tel.: +49 9424-94070, Fax: +49 9424-940760 Wireless Key 12BBB

FCC ID: NI412BBB TTI - P-G 009 / 98-00 TTI - P-G 089 / 94-50 File No. T18173-1-09KG , Page 1 of 17 MIKES BABT PRODUCT SERVICE GmbH Ohmstrasse 2-4 94342 Strasskirchen Tel:+9424-9407-0 Fax:+9424-9407-60 Rev.No. 8.5 E M I S S I O N -- T E S T R E P O R T Testreport file no. : T18173-1-09KG ______________ Date : March 21, 2000 of issue _________________ Model : Wireless key 12BBB ______________________________________________ Type : TOYOTA Electronic key System TMEL-1 ______________________________________________ Applicant : TPS Japan Ltd. ______________________________________________ Manufacturer : Toyota Motor Corporation ______________________________________________ Licence holder : Toyota Motor Corporation ______________________________________________ Address : 1, Toyota-cho, Toyota ______________________________________________ Aichi, 471-8572 Japan ______________________________________________ Test result accrdg. to the regulation(s) at page 3 : POSITIVE This testreport with appendix consists of 29 pages. The testresult only responds to the tested sample. It is not allowed to copy this report even partly without the allowance of the testlaboratory. FCC ID: NI412BBB File No. T18173-1-09KG , Page 2 of 17 MIKES BABT PRODUCT SERVICE GmbH Ohmstrasse 2-4 94342 Strasskirchen Tel:+9424-9407-0 Fax:+9424-9407-60 Rev.No. 8.5 D I R E C T O R Y Page A) Documentation Directory2 ________ Testregulations3 ________ General information4-5 ________ Discovery of worst case condition 6 ________ Equipment under Test16 ________ Summary17 ________ B) Testdata Conducted emissions 10/150 kHz - 30 MHz 7 ________ Spurious emissions (magnetic field) 10 kHz - 30 MHz 8-9 ________ Spurious emissions (electric field) 30 MHz - 1000 MHz 10-11 ________ Spurious emissions (electric field) 1 GHz - 18 GHz 12-13 ________ Raiated power of the fundamental wave 14 ________ Conducted power of the fundamental wave measured on 15 the antenna terminals ________ Attachment A) TestdataA1-A4 ________ B) List of Test Equipment B1 ________ C) Photos of the test setup C1-C4 ________ D) Technical description of the test sample -- (e.g.CDF, Declaration) ________ E) Photos of the EuTE1-E3 ________ F) Measurement Protocol for FCC, VCCI and AUSTEL -- ________ FCC ID: NI412BBB File No. T18173-1-09KG , Page 3 of 17 MIKES BABT PRODUCT SERVICE GmbH Ohmstrasse 2-4 94342 Strasskirchen Tel:+9424-9407-0 Fax:+9424-9407-60 Rev.No. 8.5 T E S T R E G U L A T I O N S The tests were performed according to following regulations : o - EN 50081-1 / 2.1991 o - EN 50081-2 / 7.1993 -------------------------------------------------------------------------------- o - EN 55011 / 3.1991 o - Group 1 o - Group 2 o - class A o - class B o - EN 55014 / 4.1993 o - Household appliances and similar o - tools o - Semiconductor devices o - EN 55014 / A2:1990 o - EN 55104 / 5.1995 Category: o - EN 55015 / A1:1990 o - EN 55015 / 12.1993 o - EN 55022 / 5.1995 o - class A o - class B o - prEN 55103-1/ 3.1995 o - prEN 50121-3-2 / 3.1995 o - EN 60601-1-2 / 4.1994 o - VCCI o - class 1 o - class 2 ! - Part 15 Subpart C (15.231) FCC ID: NI412BBB File No. T18173-1-09KG , Page 4 of 17 MIKES BABT PRODUCT SERVICE GmbH Ohmstrasse 2-4 94342 Strasskirchen Tel:+9424-9407-0 Fax:+9424-9407-60 Rev.No. 8.5 A D D R E S S O F T H E T E S T L A B O R A T O R Y ! - MIKES PRODUCT SERVICE GmbH Ohmstrasse 2-4 D - 94342 Strasskirchen o - ______________________________________ ______________________________________ ______________________________________ E N V I R O N M E N T A L C O N D I T I O N S Temperature: 15-35 ° C ______ Humidity 45-60 % ______ Atmospheric pressure 860-1060 mbar _________ POWER SUPPLY SYSTEM UTILIZED Power supply system : Battery Unom = 3 V DC STATEMENT OF MEASUREMENT UNCERTAINTY The data and results referenced in this document are true and accurate. The reader is cautioned that there may be errors within the calibration limits of the equipment and facilities that can account for a nominal measurement error of ± 4dB. Furthermore, component and process variability of devices similar to that tested may result in additional deviation. The manufacturer has the sole responsibility of continued compliance of the device. SHORT DESCRIPTION OF THE EQUIPMENT UNDER TEST (EUT) The Electronic key is part of a vehicle security system. The key is for lock and unlock the doors and the trunk by remote control. Number of received/tested samples: 2/2 DEFINITIONS FOR SYMBOLS USED IN THIS TEST REPORT ! - Black box indicates that the listed condition, standard or equipment is applicable for this Report. o - Blank box indicates that the listed condition, standard or equipment was not applicable for this Report. FCC ID: NI412BBB File No. T18173-1-09KG , Page 5 of 17 MIKES BABT PRODUCT SERVICE GmbH Ohmstrasse 2-4 94342 Strasskirchen Tel:+9424-9407-0 Fax:+9424-9407-60 Rev.No. 8.5 M E A S U R E M E N T P R O T O C O L F O R F C C , V C C I A N D A U S T E L Test Methodology Conducted and radiated emission testing is performed according to the procedures in International Special Committee on Radio Interference (CISPR) Publication 22 (1993), European Standard EN 55022 and Australian Standard AS 3548 (which are based on CISPR 22). The Japanese standard, "Voluntary Control Council for Interference (VCCI) by Data Processing Equipment and Electronic Office Machines, Technical Requirements" is technically equivalent to CISPR 22 (1993). For official compliance, a conformance report must be sent to and accepted by the VCCI. In compliance with FCC Docket 92-152, "Harmonization of Rules for Digital Devices Incorporate International Standards", testing for FCC compliance may be done following the ANSI C63.4-1992 procedures and using the FCC limits or the CISPR 22 Limits. Measurement Error The test system for conducted emissions is defined as the LISN, tuned receiver and coaxial cable. The test system for spurious emissions is defined as the antenna, the pre-amplifier, the tuned receiver and the coaxial cable. Thes…

Text truncated - open the document above for the full version.

FCC ID: NI412BBB Page A1 of A2 Pages MIKES BABT PRODUCT SERVICE GmbH 94340 Strasskirchen Tel.: +49 9424/94070 Fax: +49 9424/940760 Radiation-Test accdg. FCC Part 15 Typ: 12BBB Testdistance: 3 m Manufacturer: Toyota Motor Corporation Testreceiver: ESVP / FSEM Client: Toyota Motor Corporation Antenna: BBA/ UHALP/ Model 3115 Regulation: FCC Part 15 Testengineer: KG Order No.: T18173-1-12KG Date 28.-10-2000 Operation Mode: Tx Remarks: The limits are kept. Result Frequency [MHz] Reading PK [dBuV/m] Korr [dB] Duty Cycle [dB] Final [dBuV/m ] Limit [dBuV/m ] DLimit [dBuV/m ] Polarisa tion 314.0 35.7 20.7 -6.0 50.4 75.5 25.1 Ver 314.0 55.0 20.7 -6.0 69.7 75.5 5.8 Hor 628.0 -- 30.7 -6.0 -- 55.5 -- 942.0 -- 33.3 -6.0 -- 55.5 -- 1253 50.5 -15.5 -6.0 29.0 54.0 25.0 Hor 1577 60.3 -15.0 -6.0 39.3 54.0 14.7 Hor 1890 51.4 -12.8 -6.0 32.6 55.5 22.9 Hor 2205 53.0 -11.2 -6.0 35.8 54.0 18.2 Hor FCC ID: NI412BBB Page A2 of A2 Pages MIKES BABT PRODUCT SERVICE GmbH 94340 Strasskirchen Tel.: +49 9424/94070 Fax: +49 9424/940760
