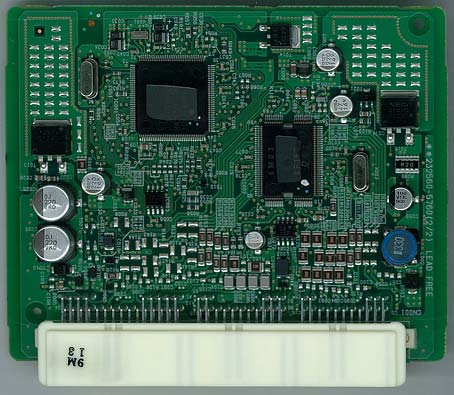

TMLF10-18 (1/3) Photographs of Smart LF Oscillator Model TMLF10-18 ○ Computer Assy, Smart Key (Representative) Appearance Rear View Front View Top View Side View Bottom View TMLF10-18 (2/3) Printed Circuit Board Front View Rear View Front View Appearance ○ Door Antenna (Representative) Rear View Side View Printed Circuit Board Front View Appearance Rear View TMLF10-18 (3/3) ○ Trunk Antenna (Representative) Appearance Front View Rear View Side View Appearance ○ Room Antenna/Luggage Antenna (Representative) Front View Rear View Top View Side View - end -

Approval Label （Note） The layout and design of the approval label may be changed. The location of FCC ID code and Canadian approval number may be changed. Smart LF Oscillator TMLF10-18

TMLF10-18 (2/3) Printed Circuit Board Front View Rear View Front View Appearance ○ Door Antenna (Representative) Rear View Side View Printed Circuit Board Front View Appearance Rear View

Test report No. : 32IE0037-HO Page : 1 of 28 Issued date : April 19, 2012 FCC ID : NI4TMLF10-18 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 RADIO TEST REPORT Test Report No. : 32IE0037-HO Applicant : Toyota Motor Corporation Type of Equipment : Smart LF Oscillator Model No. : TMLF10-18 FCC ID : NI4TMLF10-18 Test regulation : FCC Part 15 Subpart C: 2012 Section 15.207, Section 15.209 Test Result : Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with above regulation. 4. The test results in this report are traceable to the national or international standards. 5. This test report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. Date of test: _____________________________ Representative test engineer: ______________________________ Keisuke Kawamura Engineer of WiSE Japan, UL Verification Service Approved by : ______________________________ Shinya Watanabe Leader of WiSE Japan, UL Verification Service 13-EM-F0429 NVLAP LAB CODE: 200572-0 This laboratory is accredited by the NVLAP LAB CODE 200572-0, U.S.A. The tests reported herein have been performed in accordance with its terms of accreditation. *As for the range of Accreditation in NVLAP, you may refer to the WEB address, http://www.ul.com/japan/jpn/pages/services/emc/about/ma rk1/index.jsp#nvlap June 27 to July 2, 2010 Test report No. : 32IE0037-HO Page : 2 of 28 Issued date : April 19, 2012 FCC ID : NI4TMLF10-18 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ..................................................................................................... 3 SECTION 2: Equipment under test (E.U.T.) ........................................................................................ 3 SECTION 3: Test specification, procedures & results ........................................................................ 4 SECTION 4: Operation of E.U.T. during testing ................................................................................. 8 SECTION 5: Radiated emission (Fundamental and Spurious Emission) .......................................... 9 SECTION 6: -26dB Bandwidth ............................................................................................................ 11 SECTION 7: 99% Occupied Bandwidth ............................................................................................. 11 APPENDIX 1: Photographs of test setup ............................................................................................ 12 Radiated emission .............................................................................................................................. 12 Worst Case Position .......................................................................................................................... 15 APPENDIX 2: Data of EMI test ........................................................................................................... 17 Radiated Emission below 30MHz (Fundamental and Spurious Emission) ................................. 17 Radiated Emission above 30MHz (Spurious Emission) ................................................................. 21 -26dB Bandwidth and 99% Occupied Bandwidth ......................................................................... 25 APPENDIX 3: Test instruments .......................................................................................................... 28 Test report No. : 32IE0037-HO Page : 3 of 28 Issued date : April 19, 2012 FCC ID : NI4TMLF10-18 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : Toyota Motor Corporation Address : 1, Toyota-Cho, Toyota, Aichi, 471-8572 Japan Telephone Number : +81-565-94-1007 Facsimile Number : +81-565-94-1192 Contact Person : Tetsuya Matsuo SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Smart LF Oscillator Model No. : TMLF10-18 Serial No. : Refer to Section 4, Clause 4.2 Rating : DC12.0V (Max 0.5A) Receipt Date of Sample : June 16, 2010 Country of Mass-production : Japan Condition of EUT : Production model or Production prototype or Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product Description Smart LF Oscillator, model: TMLF10-18 is a transmitter that is installed in a motor vehicle and is used as part of Smart System. Radio Specification Radio Type : Transmitter Frequency of Operation : 134.2kHz Modulation : ASK Method of Frequency Genenration : Crystal Antenna type : Coil Antenna Duty Cycle : up to 100 % Smart LF Oscillator (model: TMLF10-18) consists of the following parts: - Computer Assy, Smart Key (ECU) - Door Antenna - Trunk Antenna - Room Antenna / Luggage Antenna Test report No. : 32IE0037-HO Page : 4 of 28 Issued date : April 19, 2012 FCC ID : NI4TMLF10-18 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part 15 Subpart C: 2012, final revised on February 1, 2012 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted Emission Section 15.209 Radiated emission limits, general requirements *The revision on February 1, 2012 does not affect the test specification applied to the EUT.…

Text truncated - open the document above for the full version.

Test report No. : 32IE0037-HO Page : 12 of 28 Issued date : April 19, 2012 FCC ID : NI4TMLF10-18 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 1: Photographs of test setup Radiated emission Door Antenna Photo 1 Photo 2 Test report No. : 32IE0037-HO Page : 13 of 28 Issued date : April 19, 2012 FCC ID : NI4TMLF10-18 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Radiated emission Trunk Antenna Photo 1 Photo 2 Test report No. : 32IE0037-HO Page : 14 of 28 Issued date : April 19, 2012 FCC ID : NI4TMLF10-18 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Radiated emission Room Antenna / Luggage Antenna Photo 1 Photo 2 Test report No. : 32IE0037-HO Page : 15 of 28 Issued date : April 19, 2012 FCC ID : NI4TMLF10-18 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Worst Case Position Door Antenna Below 30MHz:X-axis Above 30MHz(Hori:X-axis /Vert:X-axis) Trunk Antenna Below 30MHz:X-axis Above 30MHz(Hori:X-axis /Vert:X-axis) X-axis X-axis Y-axis Y-axis Z-axis Z-axis Test report No. : 32IE0037-HO Page : 16 of 28 Issued date : April 19, 2012 FCC ID : NI4TMLF10-18 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Worst Case Position Room Antenna / Luggage Antenna Below 30MHz:Z-axis Above 30MHz(Hori:X-axis /Vert:X-axis) ECU Below 30MHz:X-axis Above 30MHz(Hori:X-axis /Vert:X-axis) X-axis X-axis Y-axis Y-axis Z-axis Z-axis
