NI4TMLF8-15Smart LF Oscillator

Subject: Compliance Statement in Car manual For vehicles sold in U.S.A.: NOTE This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

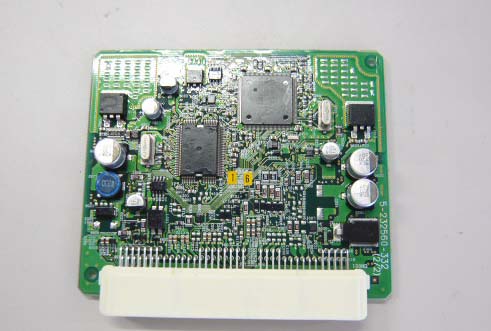

(1/4) Photograph of Smart LF Oscillator Model TMLF8-15 (Representative) ¾ Computer Assy, Smart Key (ECU) Front View Rear View To p V i e w Side View Bottom View (2/4) ¾ ¾ Printed Circuit Board Front View Rear View ¾ Door Antenna Front View Rea View Side View Printed Circuit Board Front View Rear View (3/4) ¾ Trunk Antenna Front View Rear View Side View ¾ Room Antenna/Luggage Antenna(8RA) Front View Rear View To p V i e w Side View Bottom View (4/4) ¾ Room Antenna/Luggage Antenna(8RB) Front View Rear View To p V i e w Side View Bottom View

Smart LF Oscillator Model: TMLF8-15 Approval Label （Note） The layout and design of the approval label may be changed. The location of FCC ID code may be changed.

(2/4) ¾ ¾ Printed Circuit Board Front View Rear View ¾ Door Antenna Front View Rea View Side View Printed Circuit Board Front View Rear View

FCC ID:NI4TMLF8-15 mikes-testingpartners gmbh File No. T32902-00-02KG, page 1 of 20 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1, 23.7.2008 EMI -- T E S T R E P O R T - FCC Part 15.209 - Test Report No. : T32902-00-02KG 16. November 2008 ______________________________________________________________________________________________ Date of issue Type / Model Name : TMLF8-15 Product Description : Smart LF Oscillator Applicant : Toyota Motor Corporation Address : 1, Toyota-Cho Toyota, Aichi, 471-8572 Japan Manufacturer : Toyota Motor Corporation Address : 1, Toyota-Cho Toyota, Aichi, 471-8572 Japan Licence holder : Toyota Motor Corporation Address : 1, Toyota-Cho Toyota, Aichi, 471-8572 Japan Test Result according to the standards listed in clause 1 test standards: POSITIVE The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test results without the written permission of the test DAT-P-207/05-00 laboratory. Registration No. DAT-P-207/05 FCC ID:NI4TMLF8-15 mikes-testingpartners gmbh File No. T32902-00-02KG, page 2 of 20 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1, 23.7.2008 Contents 1 TEST STANDARDS 3 2 SUMMARY 4 3 EQUIPMENT UNDER TEST 5 3.1 POWER SUPPLY SYSTEM UTILISED 5 3.2 SHORT DESCRIPTION OF THE EQUIPMENT UNDER TEST (EUT) 5 4 TEST ENVIRONMENT 6 4.1 ADDRESS OF THE TEST LABORATORY 6 4.2 ENVIRONMENTAL CONDITIONS 6 4.3 STATEMENT OF THE MEASUREMENT UNCERTAINTY 6 4.4 MEASUREMENT PROTOCOL FOR FCC, VCCI AND AUSTEL 6 4.5 DETERMINATION OF WORST CASE MEASUREMENT CONDITIONS 7 5 TEST CONDITIONS AND RESULTS 8 5.1 CONDUCTED EMISSIONS 8 5.2 FIELD STRENGTH OF THE FUNDAMENTAL WAVE 9 5.3 SPURIOUS EMISSIONS (MAGNECTIC FIELD) 9 KHZ – 30 MHZ 12 5.4 RADIATED EMISSIONS (ELECTRIC FIELD) 30 MHZ – 1 GHZ 16 5.5 EMISSION BANDWIDTH 18 6 USED TEST EQUIPMENT AND ACCESSORIES 20 PHOTO DOCUMENTATION OF THE EUT ATTACHMENT A FCC ID:NI4TMLF8-15 mikes-testingpartners gmbh File No. T32902-00-02KG, page 3 of 20 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1, 23.7.2008 1 TEST STANDARDS The tests were performed according to following standards: FCC Rules and Regulations Part 15 Subpart C- Intentional Radiators (October 01, 2007) Part 15, Subpart C, Section 15.209 Radiated emissions, general requirements FCC ID:NI4TMLF8-15 mikes-testingpartners gmbh File No. T32902-00-02KG, page 4 of 20 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1, 23.7.2008 2 SUMMARY GENERAL REMARKS: None FINAL ASSESSMENT: The equipment under test fulfills the EMI requirements cited in clause 1 test standards. Date of receipt of test sample : acc. to storage records Testing commenced on : September 03, 2008 Testing concluded on : September 09, 2008 Checked by: Tested by: Thomas Weise Dipl.-Ing.(FH) Laboratory Manager Klaus Gegenfurtner Dipl.-Ing.(FH) FCC ID:NI4TMLF8-15 mikes-testingpartners gmbh File No. T32902-00-02KG, page 5 of 20 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1, 23.7.2008 3 EQUIPMENT UNDER TEST 3.1 Power supply system utilised Power supply voltage : 12 V / DC 3.2 Short description of the Equipment under Test (EuT) The Smart LF Oscillator TMLF8-15 is a transmitter installed in a motor vehicle and is used as part of the Smart System. In the System, the Smart LF Oscillator has mainly following functions: - Smart Door Unlocking Door anntenas transmit a low frequency at 134.2 kHz intermittently. An electronic key, carried by the driver, will transmit a high radio wave when recognized the signal. - Smart Trunk Unlocking The trunk antenna provides the signal for the electronic key to open the trunk. - Detection of Electronic Key inside Trunk. If the driver tries to close the trunk, the inside trunk antenna transmit a radio wave of 134.2 KHz. The key left inside the trunk will recognize the signal and transmits a high radio frequency back to alarm the driver. - Smart Engine Start When the driver is inside the car the inside Room Antenna transmits a radio wave of 134.2 kHz. If the electronic key recognize the signal it transmits a high radio frequency back to trigger the engine start mechanism. The tests were performed on three antenna types in conjunction with Computer Assy (ECU): 1. Door antenna 2. Room antenna / Luggage antenna 3. Trunk antenna Number of tested samples: 1 EuT operation mode: The equipment under test was operated during the measurement under the following conditions: - Transmit mode CW (unmodulated) - Transmit mode modulated EuT configuration: (The CDF filled by the applicant can be viewed at the test laboratory.) The following peripheral devices and interface cables were connected during the measurements: - Test box Model : Supplied by the manufacturer - Door antenna Model : - Room antenna Model : 8RA and 8RB - Trunk antenna Model : 8TA - Model : FCC ID:NI4TMLF8-15 mikes-testingpartners gmbh File No. T32902-00-02KG, page 6 of 20 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1, 23.7.2008 4 TEST ENVIRONMENT 4.1 Address of the test laboratory mikes-testingpartners gmbh Ohmstrasse 2-4 94342 STRASSKIRCHEN GERMANY 4.2 Environmental conditions During the measurement the environmental conditions were within the listed ranges: Temperature: 15-35 ° C Humidity: 30-60 % Atmospheric pressure: 86-106 kPa 4.3 Statement of the measurement uncertainty The data and results referenced in this document are true and accurate. The reader may notice that tolerances within the calibration of the equipment and facilities may cause additional uncertainty. The measurement uncertainty is calculated for all measurements listed in this test report acc. to CISPR 16-4-2 „Uncertainties, statistics and limit modelling – Uncertainty in EMC measurement“ and docu…
