NI4TMLF8-6Smart LF Oscillator

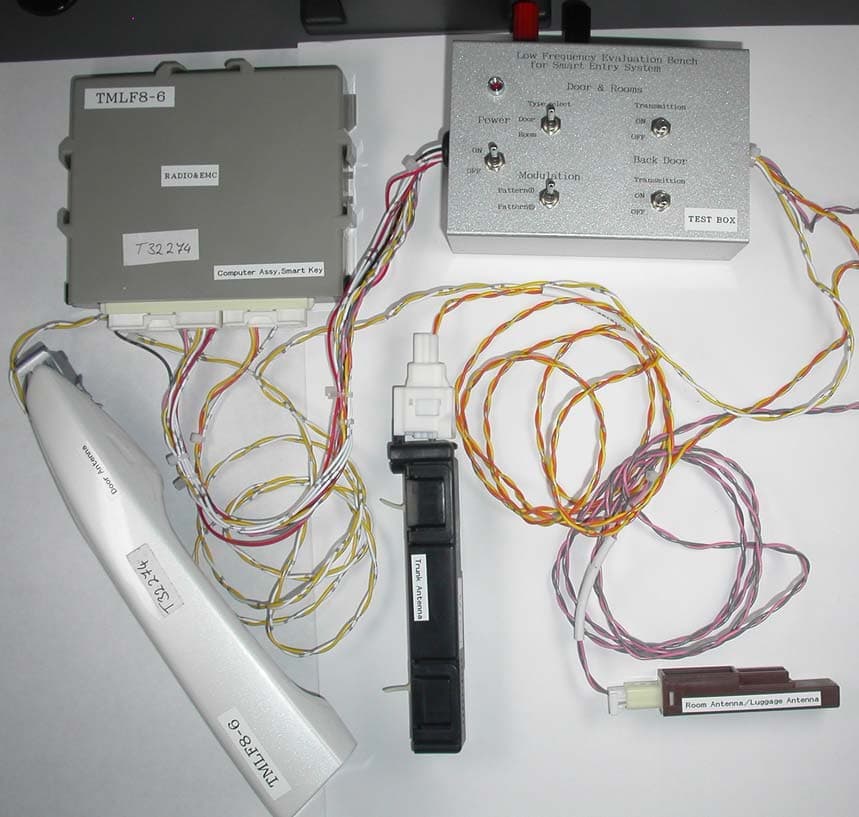

mikes-testingpartners gmbh ‹ Ohmstrasse 2-4 ‹ D-94342 Strasskirchen ‹ Tel:+49-9424-9481-0 ‹ Fax:+49-9424-9481-240 ‹ Rev. No 1.0 ATTACHMENT A to File No. T32274-00-02KG Photo documentation of the EuT Model: TMLF8-6 mikes-testingpartners gmbh ‹ Ohmstrasse 2-4 ‹ D-94342 Strasskirchen ‹ Tel:+49-9424-9481-0 ‹ Fax:+49-9424-9481-240 ‹ Rev. No 1.0 ATTACHMENT A to File No. T32274-00-02KG External Photos ECU mikes-testingpartners gmbh ‹ Ohmstrasse 2-4 ‹ D-94342 Strasskirchen ‹ Tel:+49-9424-9481-0 ‹ Fax:+49-9424-9481-240 ‹ Rev. No 1.0 ATTACHMENT A to File No. T32274-00-02KG External Photos antennas Door antenna mikes-testingpartners gmbh ‹ Ohmstrasse 2-4 ‹ D-94342 Strasskirchen ‹ Tel:+49-9424-9481-0 ‹ Fax:+49-9424-9481-240 ‹ Rev. No 1.0 ATTACHMENT A to File No. T32274-00-02KG External Photos antennas Trunk antenna mikes-testingpartners gmbh ‹ Ohmstrasse 2-4 ‹ D-94342 Strasskirchen ‹ Tel:+49-9424-9481-0 ‹ Fax:+49-9424-9481-240 ‹ Rev. No 1.0 ATTACHMENT A to File No. T32274-00-02KG External Photos antennas Room anntenna

Approval Label （Note） The layout and design of the approval label may be changed. The location of FCC ID code and Canadian approval number may be changed. Smart LF Oscillator TMLF8-6

mikes-testingpartners gmbh ‹ Ohmstrasse 2-4 ‹ D-94342 Strasskirchen ‹ Tel:+49-9424-9481-0 ‹ Fax:+49-9424-9481-240 ‹ Rev. No 1.0 ATTACHMENT A to File No. T32274-00-02KG Internal Photos ECU mikes-testingpartners gmbh ‹ Ohmstrasse 2-4 ‹ D-94342 Strasskirchen ‹ Tel:+49-9424-9481-0 ‹ Fax:+49-9424-9481-240 ‹ Rev. No 1.0 ATTACHMENT A to File No. T32274-00-02KG Internal Photos ECU mikes-testingpartners gmbh ‹ Ohmstrasse 2-4 ‹ D-94342 Strasskirchen ‹ Tel:+49-9424-9481-0 ‹ Fax:+49-9424-9481-240 ‹ Rev. No 1.0 ATTACHMENT A to File No. T32274-00-02KG Internal Photos Antennas Door antenna mikes-testingpartners gmbh ‹ Ohmstrasse 2-4 ‹ D-94342 Strasskirchen ‹ Tel:+49-9424-9481-0 ‹ Fax:+49-9424-9481-240 ‹ Rev. No 1.0 ATTACHMENT A to File No. T32274-00-02KG Internal Photos Antennas Room antenna mikes-testingpartners gmbh ‹ Ohmstrasse 2-4 ‹ D-94342 Strasskirchen ‹ Tel:+49-9424-9481-0 ‹ Fax:+49-9424-9481-240 ‹ Rev. No 1.0 ATTACHMENT A to File No. T32274-00-02KG Internal Photos Antennas Trunk antenna

Smart LF Oscillator FCC ID: NI4TMLF8-6 Components List For Computer Assy, Smart Key 4.0000MHz oscillatorX002 4.0000MHz resonator X001 4.2944MHz oscillator X003 transistor T013,T016,T017 1Ω～20Ω resistorR125,R126,R127,R128,R129,R130, R131,R132,R133,R134,R135,R136, R149,R150,R151,R152,R153,R154, R155,R156,R157,R158,R159,R160, R161,R162,R163,R164 0.1Ω～100Ω Resistor resistorR04 7,R100,R103,R104,R105 1kΩ～100kΩ R046,R048,R099,R101,R102, IcIC001 ,IC002 DiodeD003 ,D004 connectorCN001 16～26 pF capacitorC050, C051,C069, C070 1000pF～0.1μF capacitor C027,C028,C029,C031,C060,C062, C077,C078,C079,C085,C086,C087, C088 6.8μF～680μF ca pacitorC025,C026,C030,C032,C059,C061 C089,C090 DESCRIPTION PARTS NAMESYMBOL 100 pF～0.1uF ca pacitor C100,C101,C102,C103,C104,C105, 33μH L002 Inductor Smart LF Oscillator FCC ID: NI4TMLF8-6 Component Lists Door Antenna SYMBOL PARTS NAME DESCRIPTION QTY IC1 IC Operated in Sensor mode 1 C1 Capacitor 1 - 10μF 1 C2,9,10 Capacitor 0.1μF 3 C3 Capacitor 0.47 - 2.2μF 1 C4,5,6 Capacitor 0.01 - 0.047μF 3 C7 Capacitor 0 - 47pF 1 C8 Capacitor 0 - 47pF 1 C11 Capacitor 0.015 - 0.068μF 1 L1,2 Inductor 0 - 10μH 2 R1 Resistor 0 - 1KΩ 1 R2,3 Resistor 0 - 10kΩ 2 R4,5 Resistor 0 - 100Ω 2 R6 Resistor 1k - 100kΩ 1 R7 Resistor 10K - 470kΩ 1 ZD1,2,3 Zenner Diode 3 ANT Coiled Antenna 45 - 62μH 1 Trunk Antenna PARTS NAME DESCRIPTION Coiled Antenna 59 – 67μH

FCC ID:NI4TMLF8-6 mikes-testingpartners gmbh File No. T32274-00-02KG, page 1 of 20 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 EMI -- T E S T R E P O R T Test Report No. : T32274-00-02KG 25. January 2008 ______________________________________________________________________________________________ Date of issue Type / Model Name : TMLF8-6 Product Description : Smart LF Oscillator Applicant : Toyota Motor Corporation Address : 1, Toyota-Cho Toyota, Aichi, 471-8572 Japan Manufacturer : Toyota Motor Corporation Address : 1, Toyota-Cho Toyota, Aichi, 471-8572 Japan Licence holder : Toyota Motor Corporation Address : 1, Toyota-Cho Toyota, Aichi, 471-8572 Japan Test Result according to the standards listed in clause 1 test standards: POSITIVE The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test results without the written permission of the test DAT-P-207/05-00 laboratory. Registration No. DAT-P-207/05 FCC ID:NI4TMLF8-6 mikes-testingpartners gmbh File No. T32274-00-02KG, page 2 of 20 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 Contents 1 TEST STANDARDS 3 2 SUMMARY 4 3 EQUIPMENT UNDER TEST 5 3.1 POWER SUPPLY SYSTEM UTILISED 5 3.2 SHORT DESCRIPTION OF THE EQUIPMENT UNDER TEST (EUT) 5 4 TEST ENVIRONMENT 6 4.1 ADDRESS OF THE TEST LABORATORY 6 4.2 ENVIRONMENTAL CONDITIONS 6 4.3 STATEMENT OF THE MEASUREMENT UNCERTAINTY 6 4.4 MEASUREMENT PROTOCOL FOR FCC, VCCI AND AUSTEL 6 5 TEST CONDITIONS AND RESULTS 8 5.1 CONDUCTED EMISSIONS 8 5.2 FIELD STRENGTH OF THE FUNDAMENTAL WAVE 9 5.3 SPURIOUS EMISSIONS (MAGNECTIC FIELD) 9 KHZ – 30 MHZ 12 5.4 RADIATED EMISSIONS (ELECTRIC FIELD) 30 MHZ – 1 GHZ 16 5.5 EMISSION BANDWIDTH 18 6 USED TEST EQUIPMENT AND ACCESSORIES 20 PHOTO DOCUMENTATION OF THE EUT ATTACHMENT A FCC ID:NI4TMLF8-6 mikes-testingpartners gmbh File No. T32274-00-02KG, page 3 of 20 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 1 TEST STANDARDS The tests were performed according to following standards: FCC Rules and Regulations Part 15 Subpart C- Intentional Radiators (October 01, 2007) Part 15, Subpart C, Section 15.209 Radiated emissions, general requirements FCC ID:NI4TMLF8-6 mikes-testingpartners gmbh File No. T32274-00-02KG, page 4 of 20 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 2 SUMMARY GENERAL REMARKS: None FINAL ASSESSMENT: The equipment under test fulfills the EMI requirements cited in clause 1 test standards. Date of receipt of test sample : acc. to storage records Testing commenced on : January 10, 2008 Testing concluded on : January 16, 2008 Checked by: Tested by: Thomas Weise Dipl.-Ing.(FH) Laboratory Manager Klaus Gegenfurtner Dipl.-Ing.(FH) FCC ID:NI4TMLF8-6 mikes-testingpartners gmbh File No. T32274-00-02KG, page 5 of 20 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 3 EQUIPMENT UNDER TEST 3.1 Power supply system utilised Power supply voltage : 12 V / DC 3.2 Short description of the Equipment under Test (EuT) The Smart LF Oscillator TMLF8-6 is a transmitter installed in a motor vehicle and is used as part of the Smart System. In the System, the Smart LF Oscillator has mainly following functions: - Smart Door Unlocking Door anntenas transmit a low frequency at 134.2 kHz intermittently. An electronic key, carried by the driver, will transmit a high radio wave when recognized the signal. - Smart Trunk Unlocking The trunk antenna provides the signal for the electronic key to open the trunk. - Detection of Electronic Key inside Trunk. If the driver tries to close the trunk, the inside trunk antenna transmit a radio wave of 134.2 KHz. The key left inside the trunk will recognize the signal and transmits a high radio frequency back to alarm the driver. - Smart Engine Start When the driver is inside the car the inside Room Antenna transmits a radio wave of 134.2 kHz. If the electronic key recognize the signal it transmits a high radio frequency back to trigger the engine start mechanism. The tests were performed on three antenna types in conjunction with Computer Assy (ECU): 1. Door antenna 2. Room antenna / Luggage antenna 3. Trunk antenna Number of tested samples: 1 EuT operation mode: The equipment under test was operated during the measurement under the following conditions: - Transmit mode CW (unmodulated) - Transmit mode modulated EuT configuration: (The CDF filled by the applicant can be viewed at the test laboratory.) The following peripheral devices and interface cables were connected during the measurements: - Test box Model : Supplied by the manufacturer - Door antenna Model : - Room antenna Model : - Trunk antenna Model : - Model : FCC ID:NI4TMLF8-6 mikes-testingpartners gmbh File No. T32274-00-02KG, page 6 of 20 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 4 TEST ENVIRONMENT 4.1 Address of the test laboratory mikes-testingpartners gmbh Ohmstrasse 2-4 94342 Strasskirchen Germany 4.2 Environmental conditions During the measurement the environmental conditions were within the listed ranges: Temperature: 15-35 ° C Humidity: 30-60 % Atmospheric pressure: 86-106 kPa 4.3 Statement of the measurement uncertainty The data and results referenced in this document are true and accurate. The reader is cautioned that there may be errors within the calibration limits of the equipment and facilities. The measurement uncertainty was calculated for all measurements listed in this test report acc. to CISPR 16-4-2 /11.2003 „Uncertainties, statistics and limit modelling – Uncertainty in EMC measurements“ and is documented in the quality system acc. to DIN EN ISO/IEC 17025. Furthermore, component and process variability of devices similar to that tested may result in additional deviation. The manufacturer has the sole responsibility of continued…
