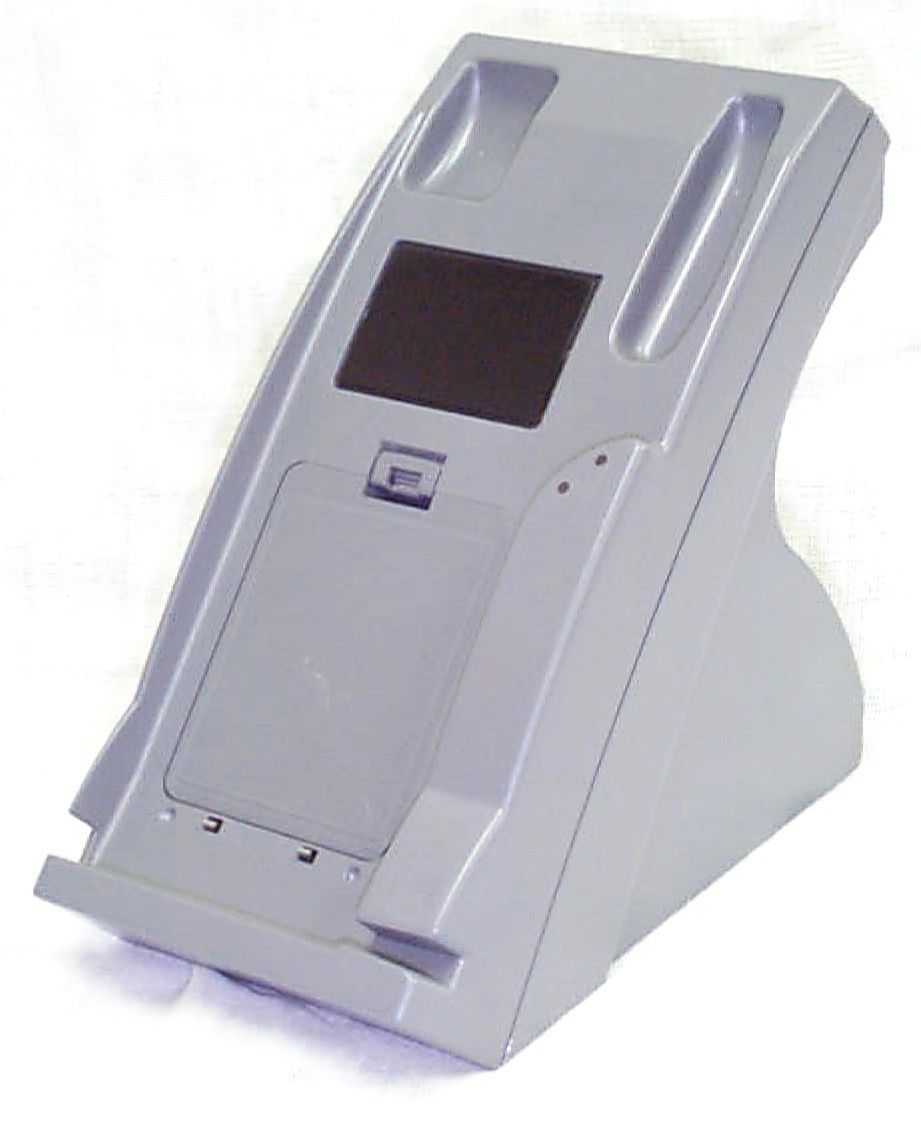

NIQM9KRFBASEPortable Electronic Payment Terminal

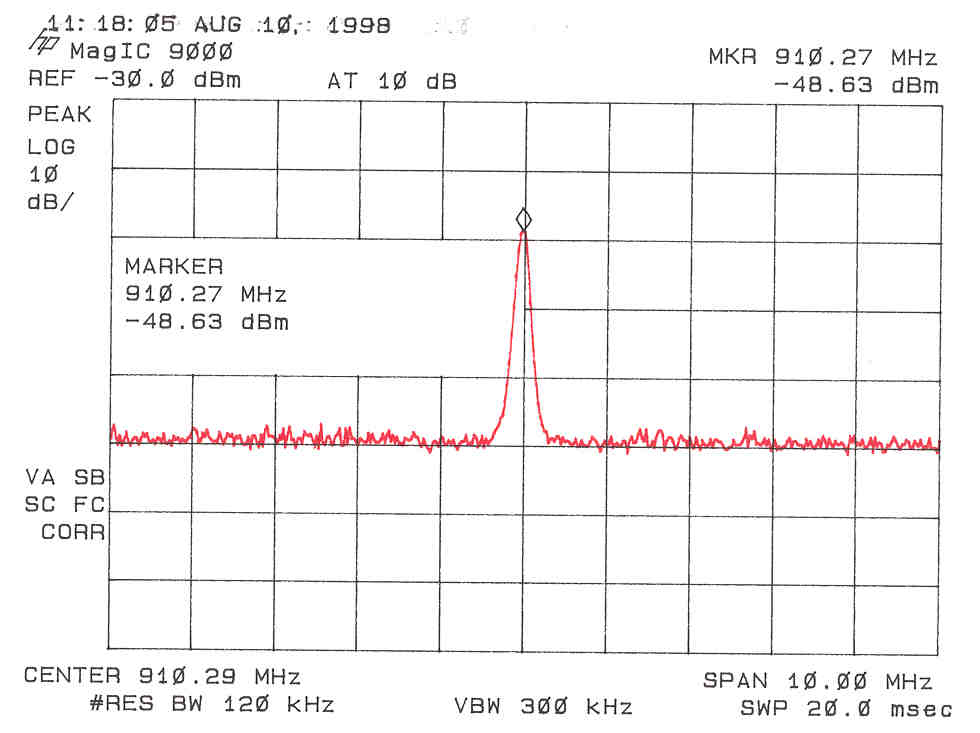

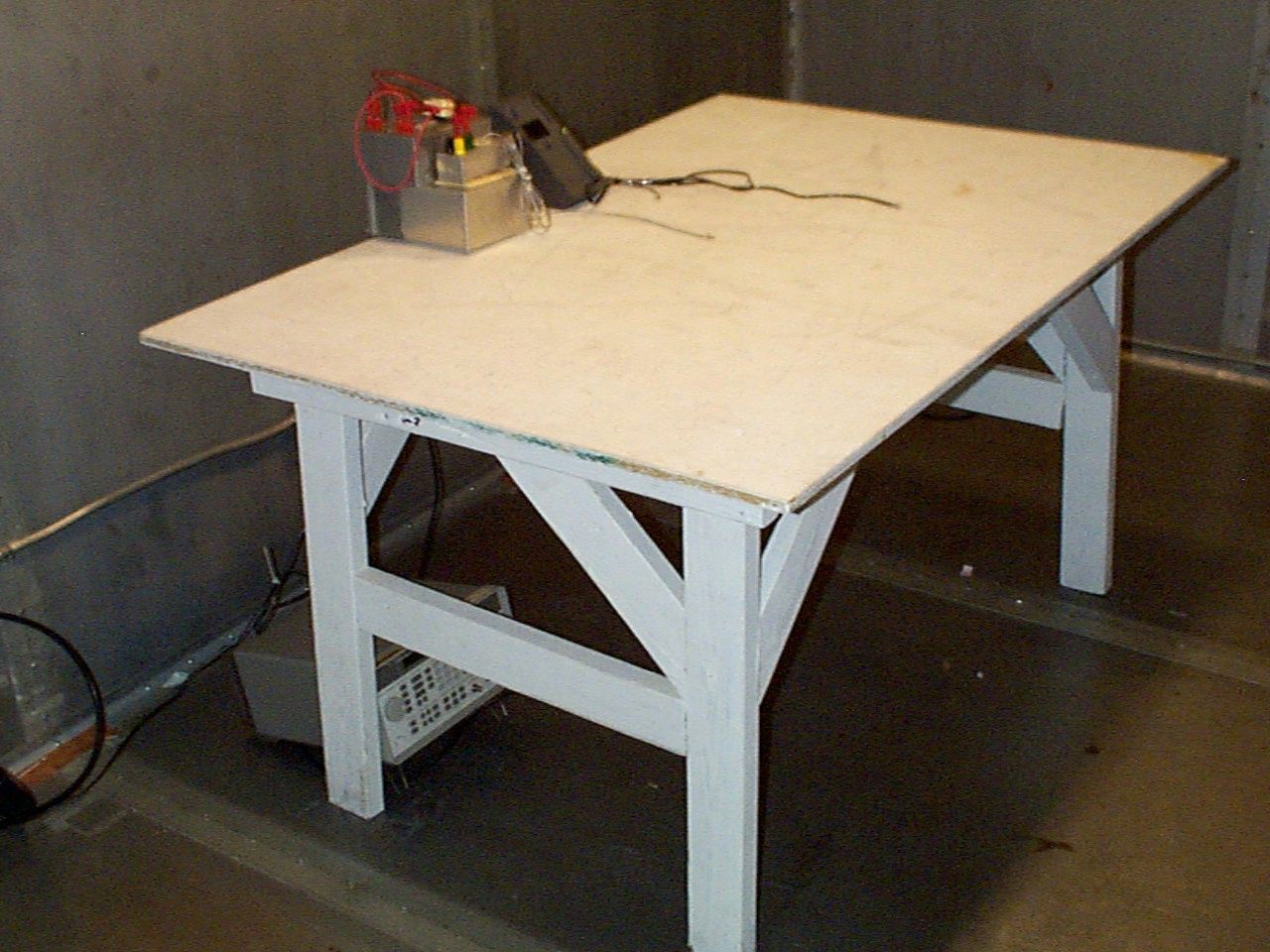

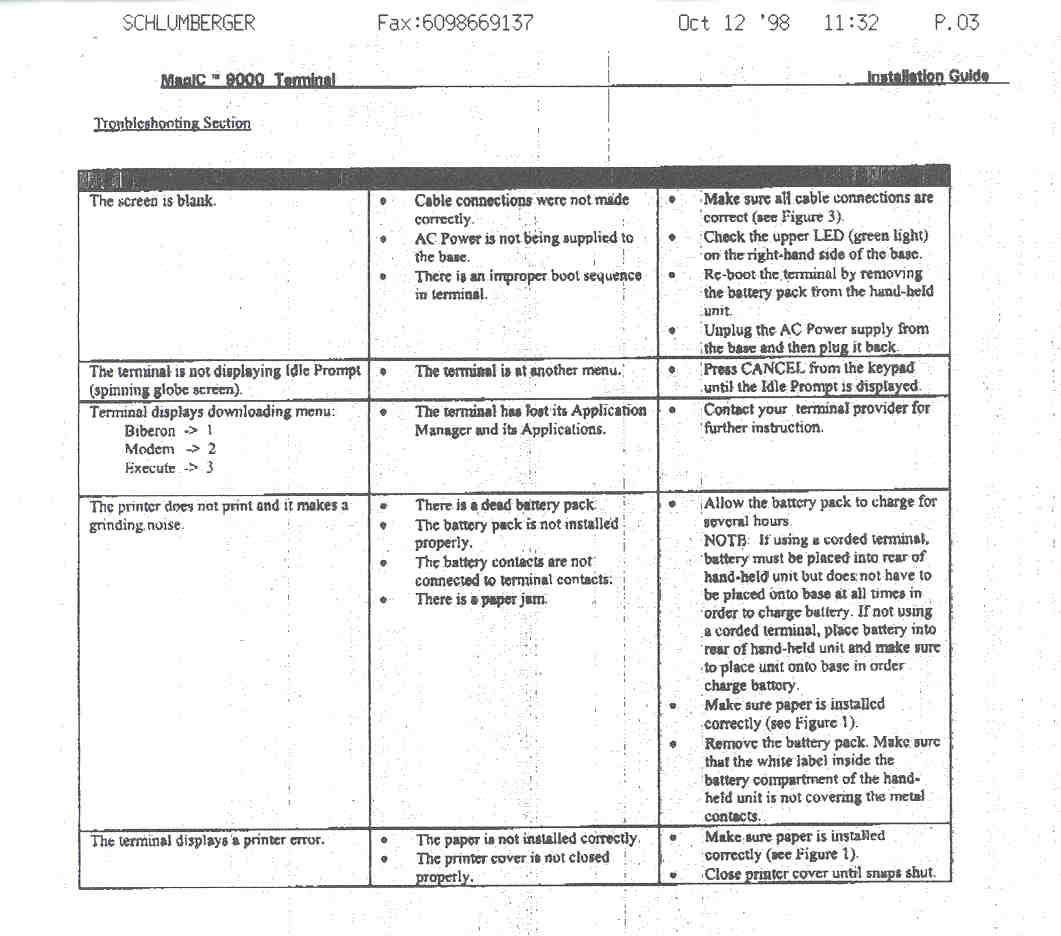

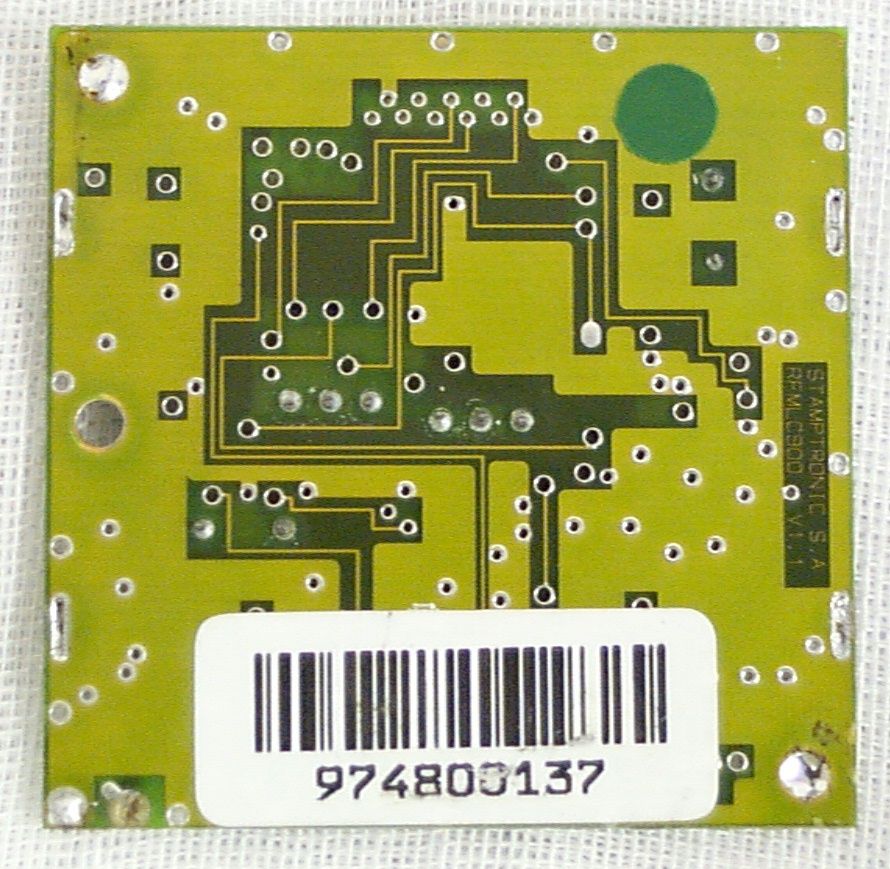

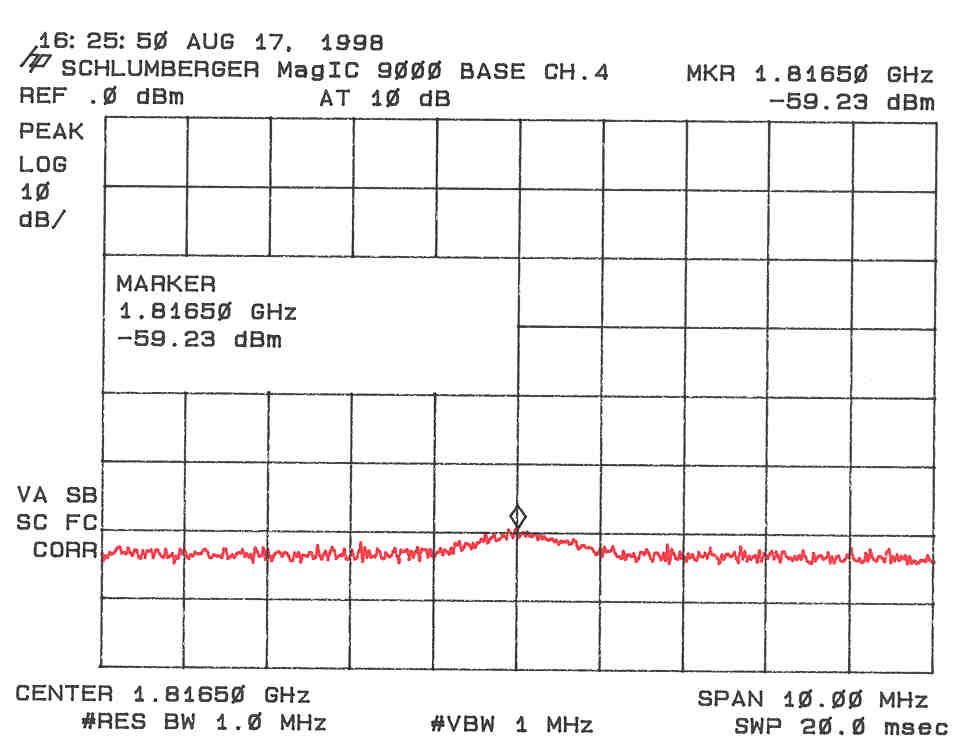

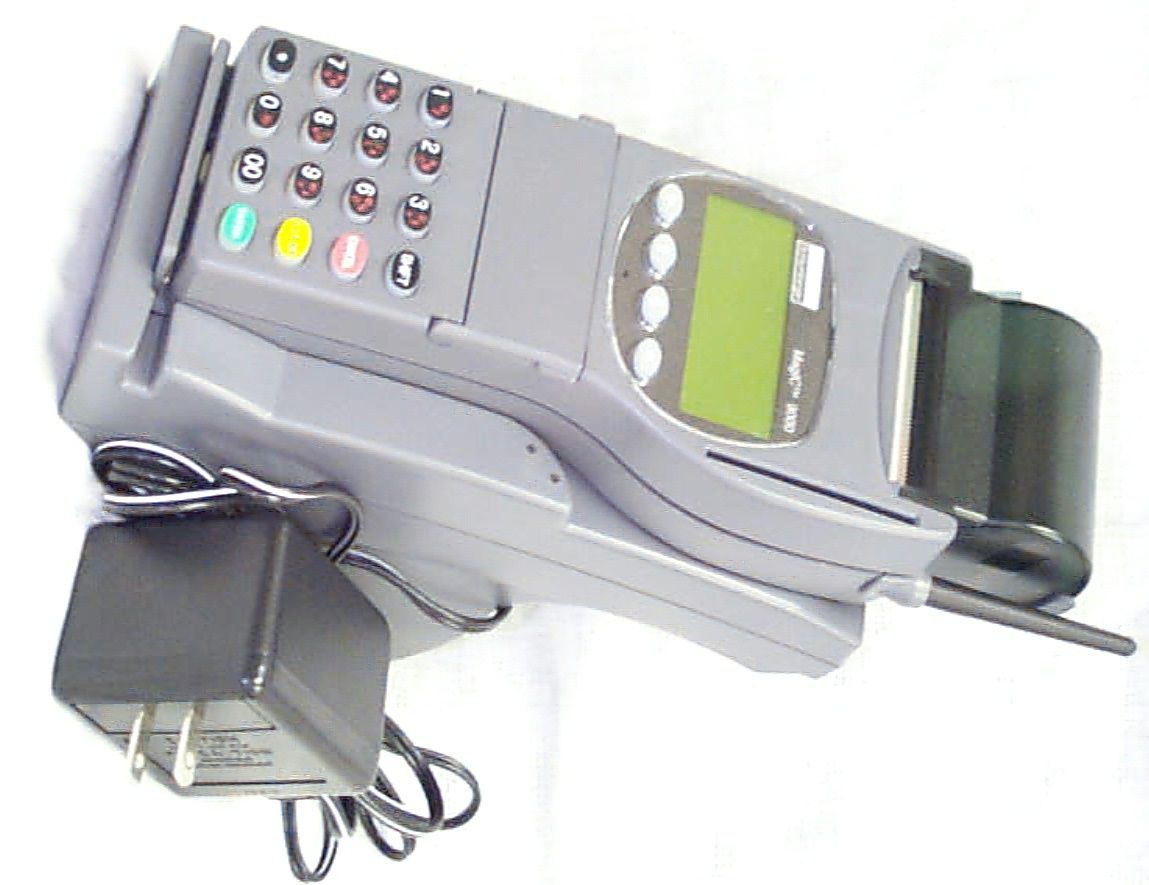

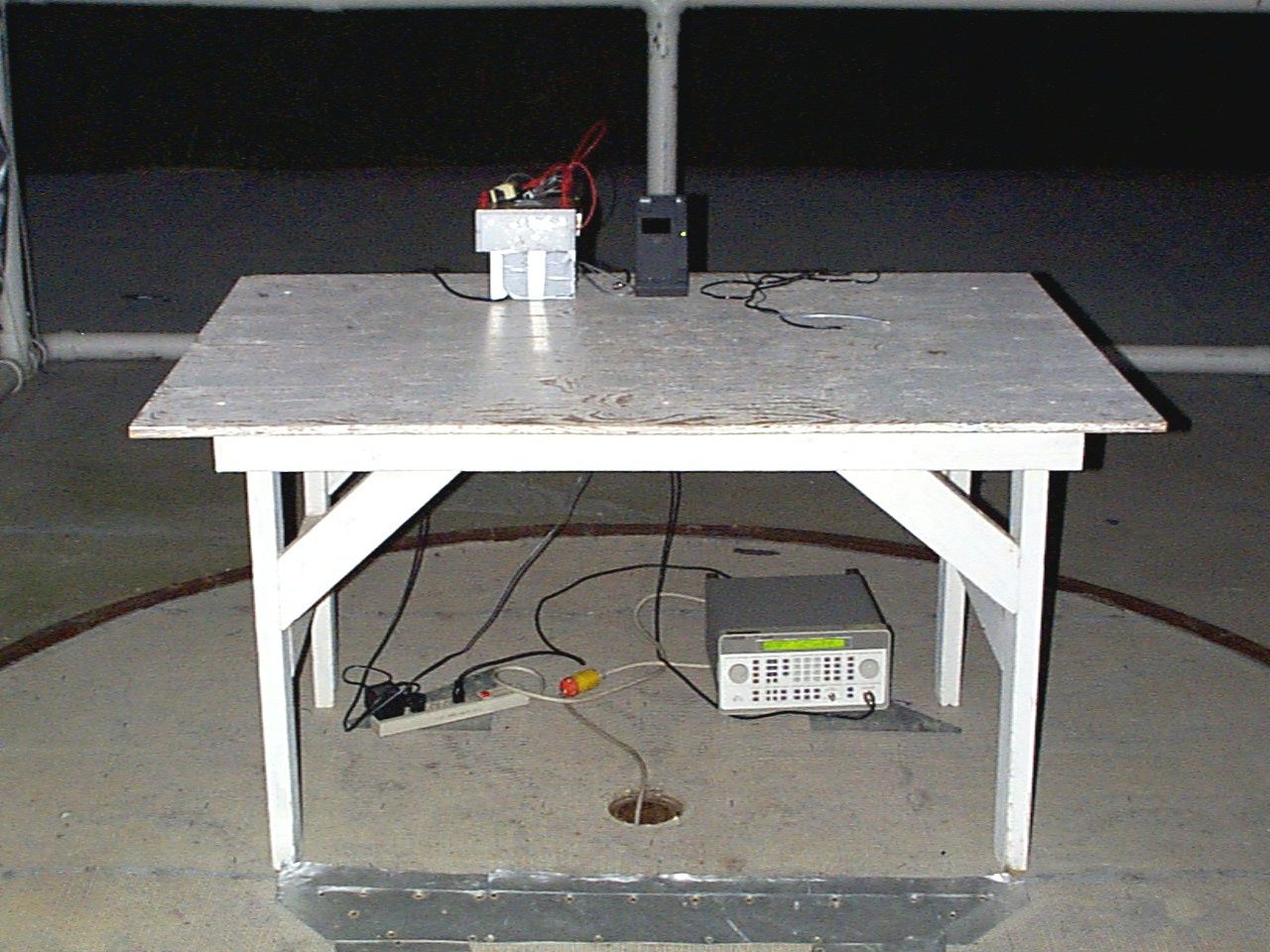

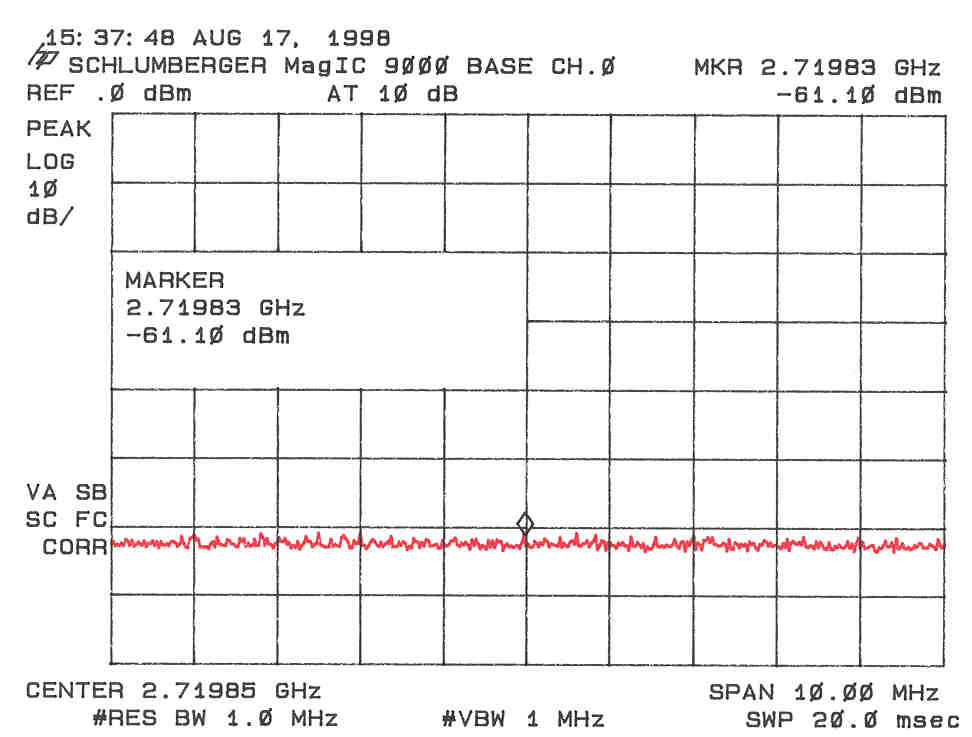

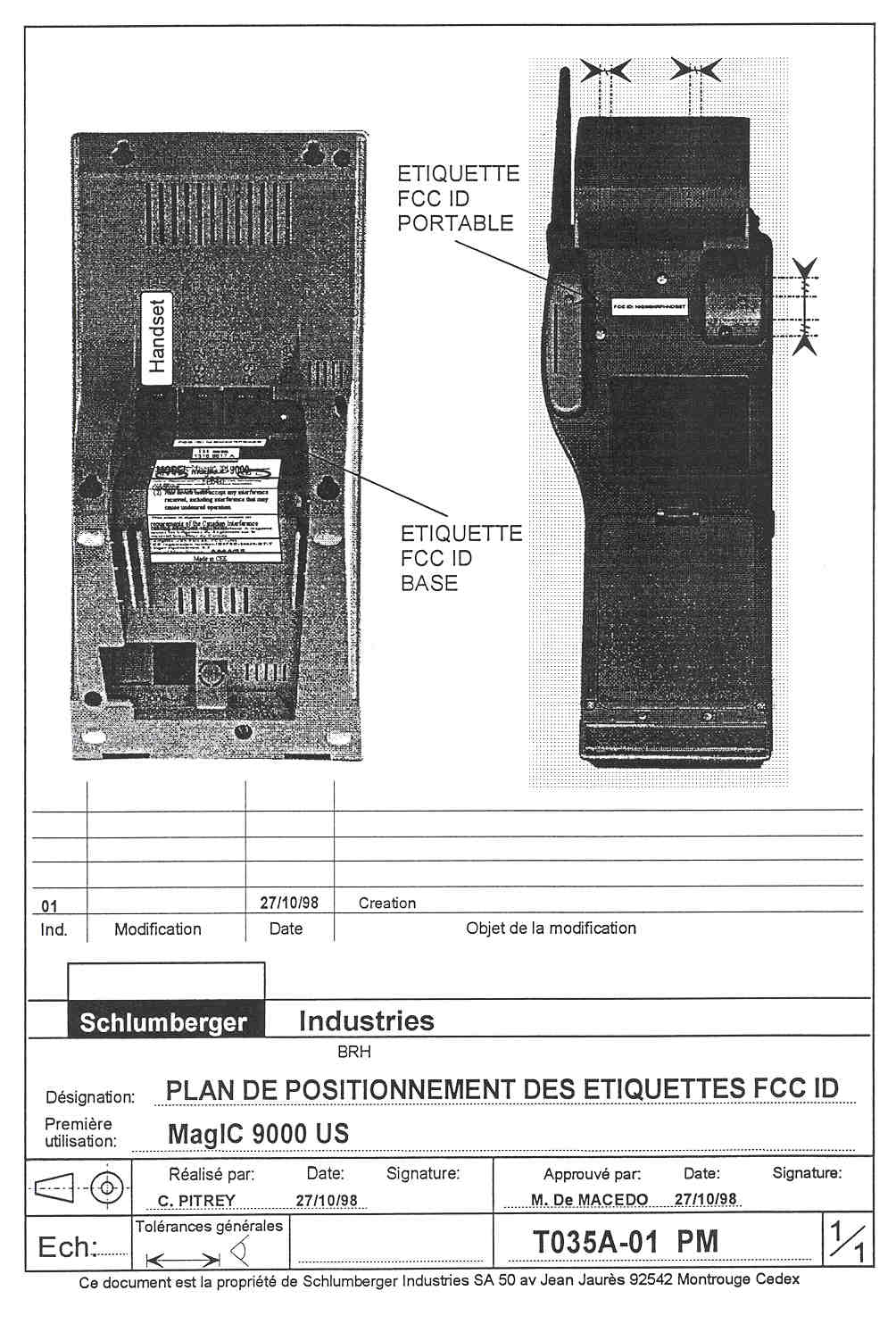

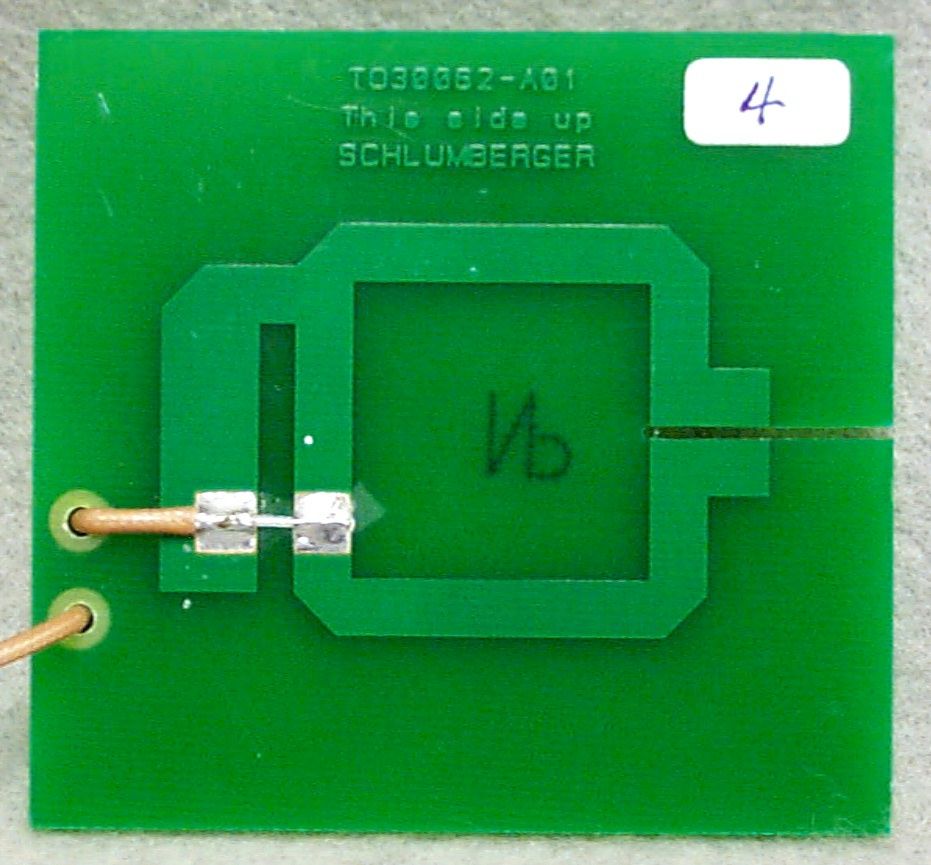

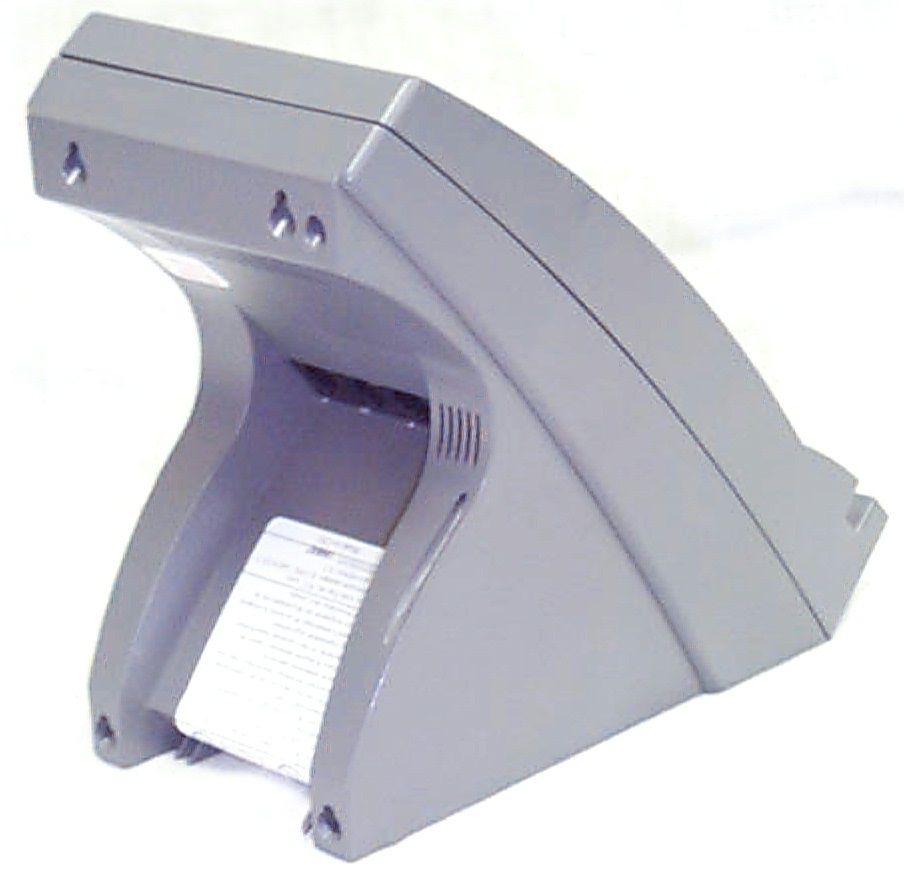

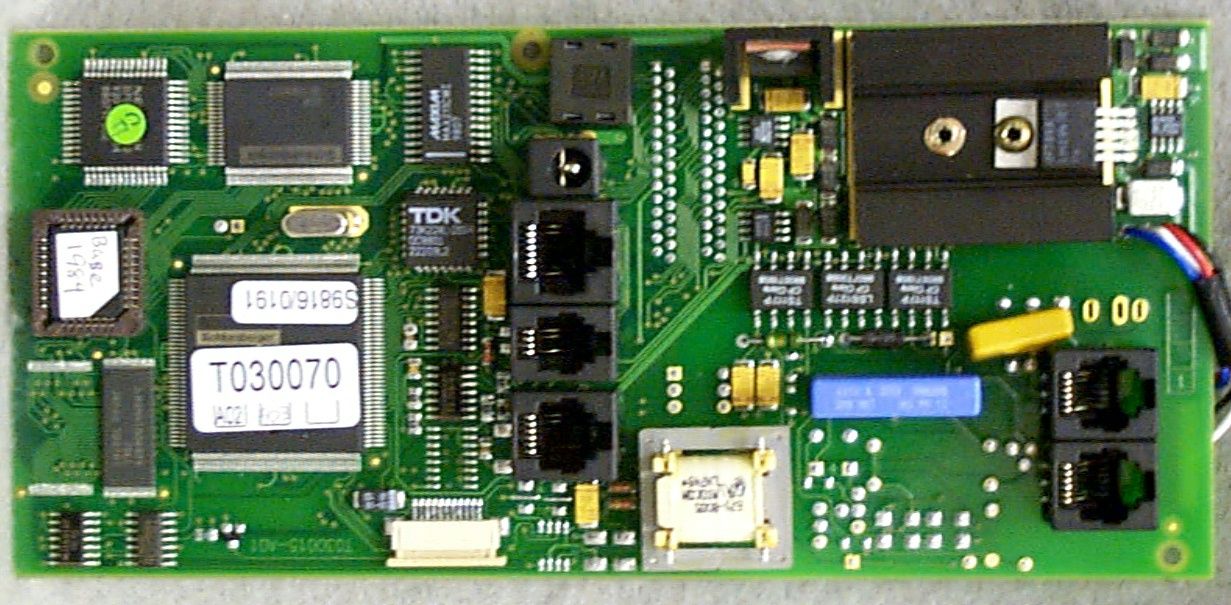

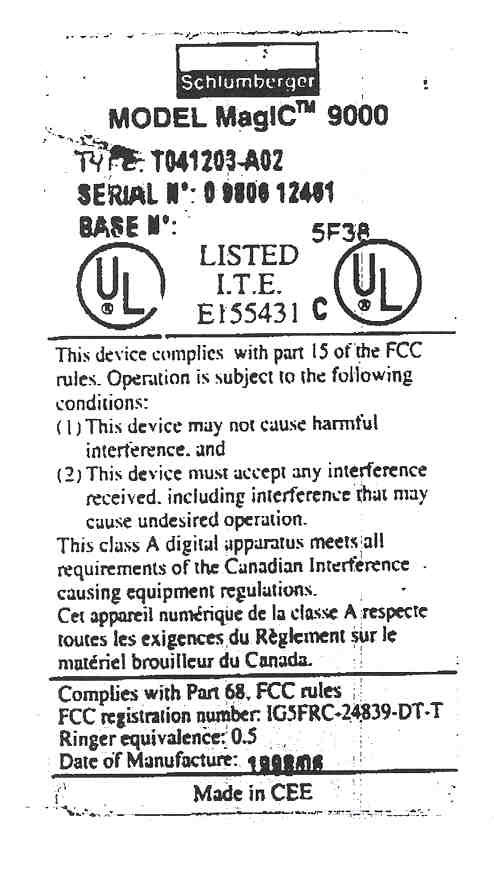

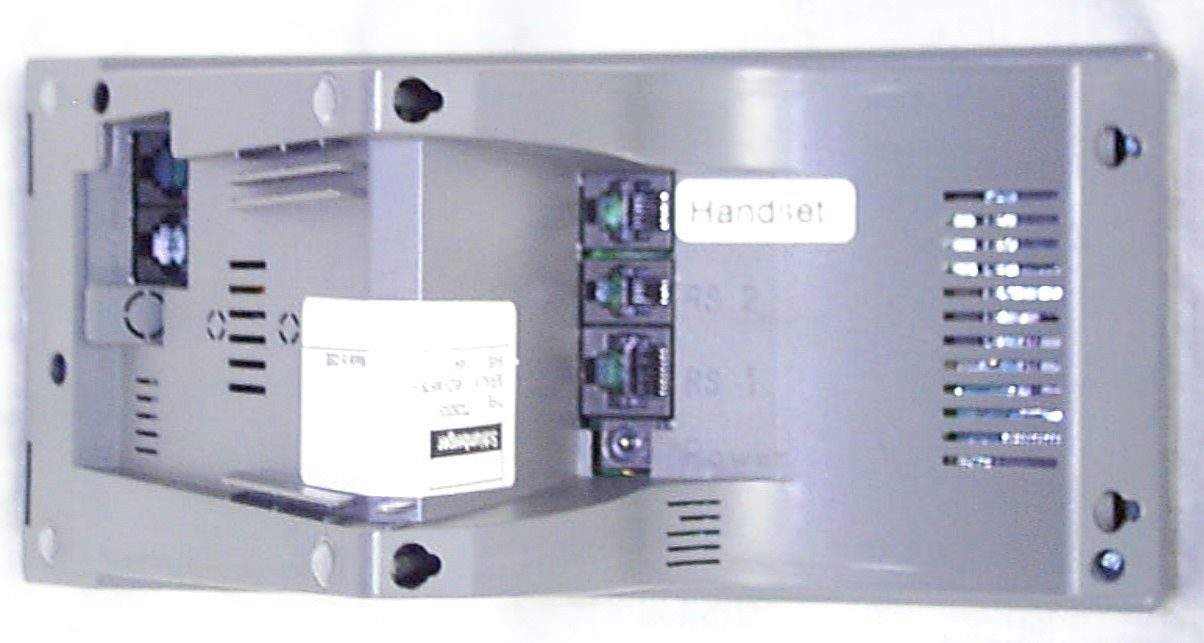

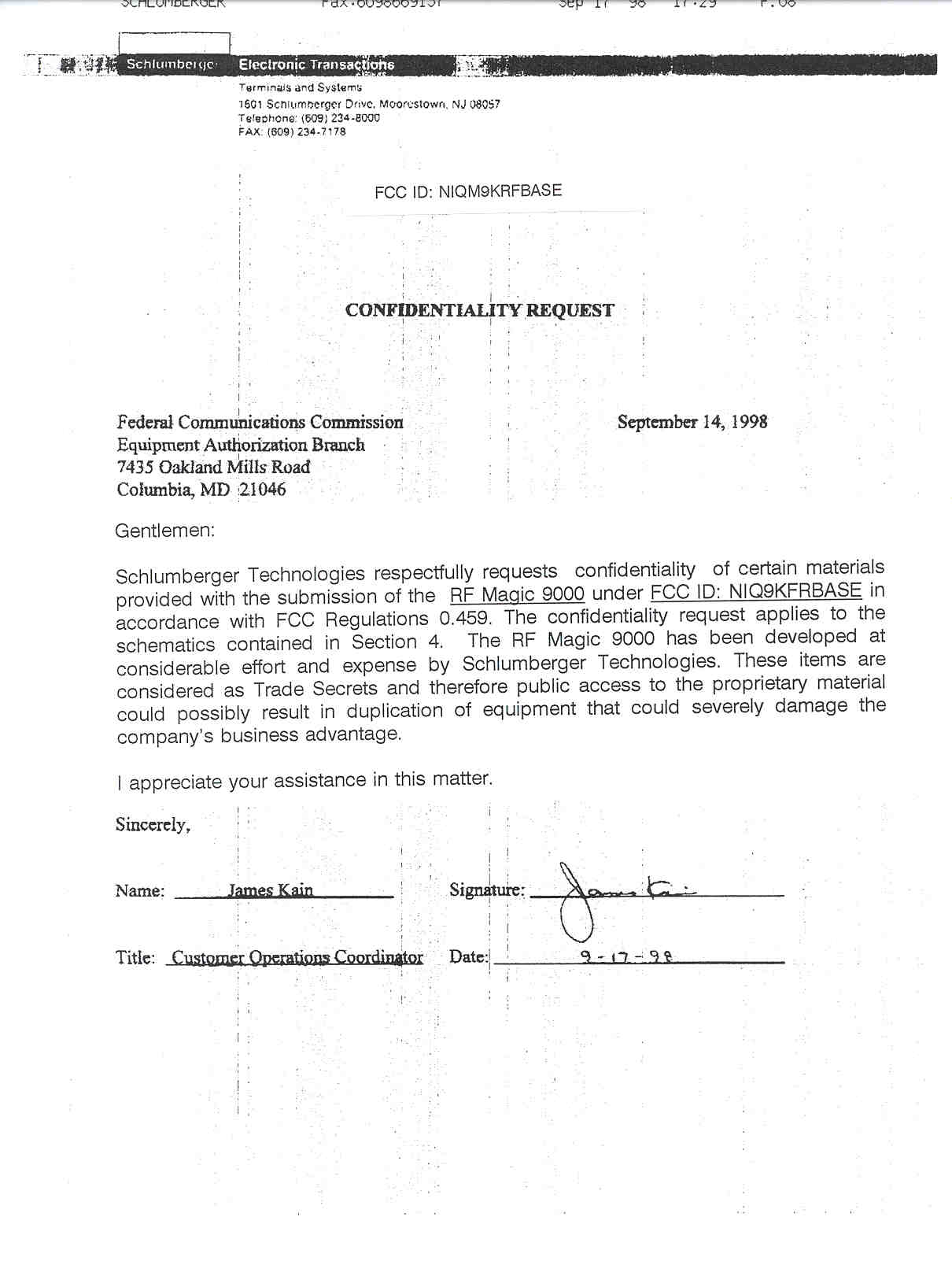

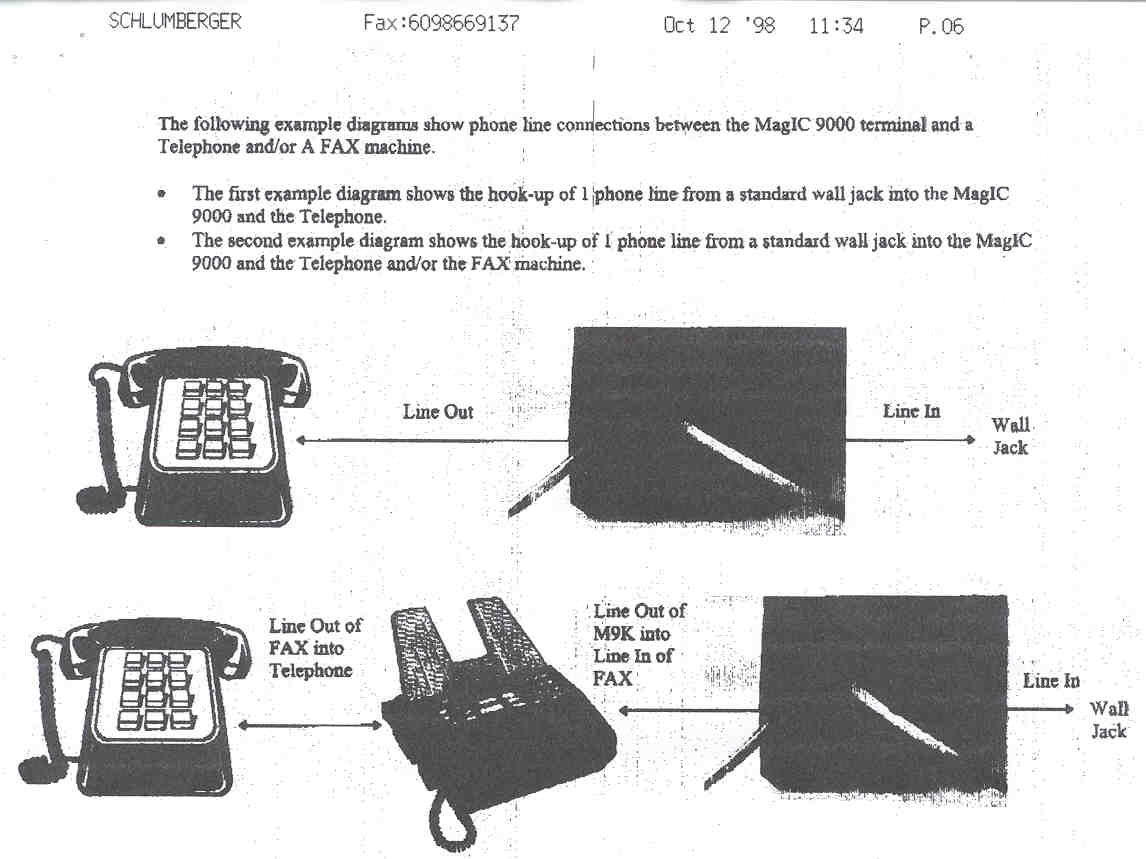

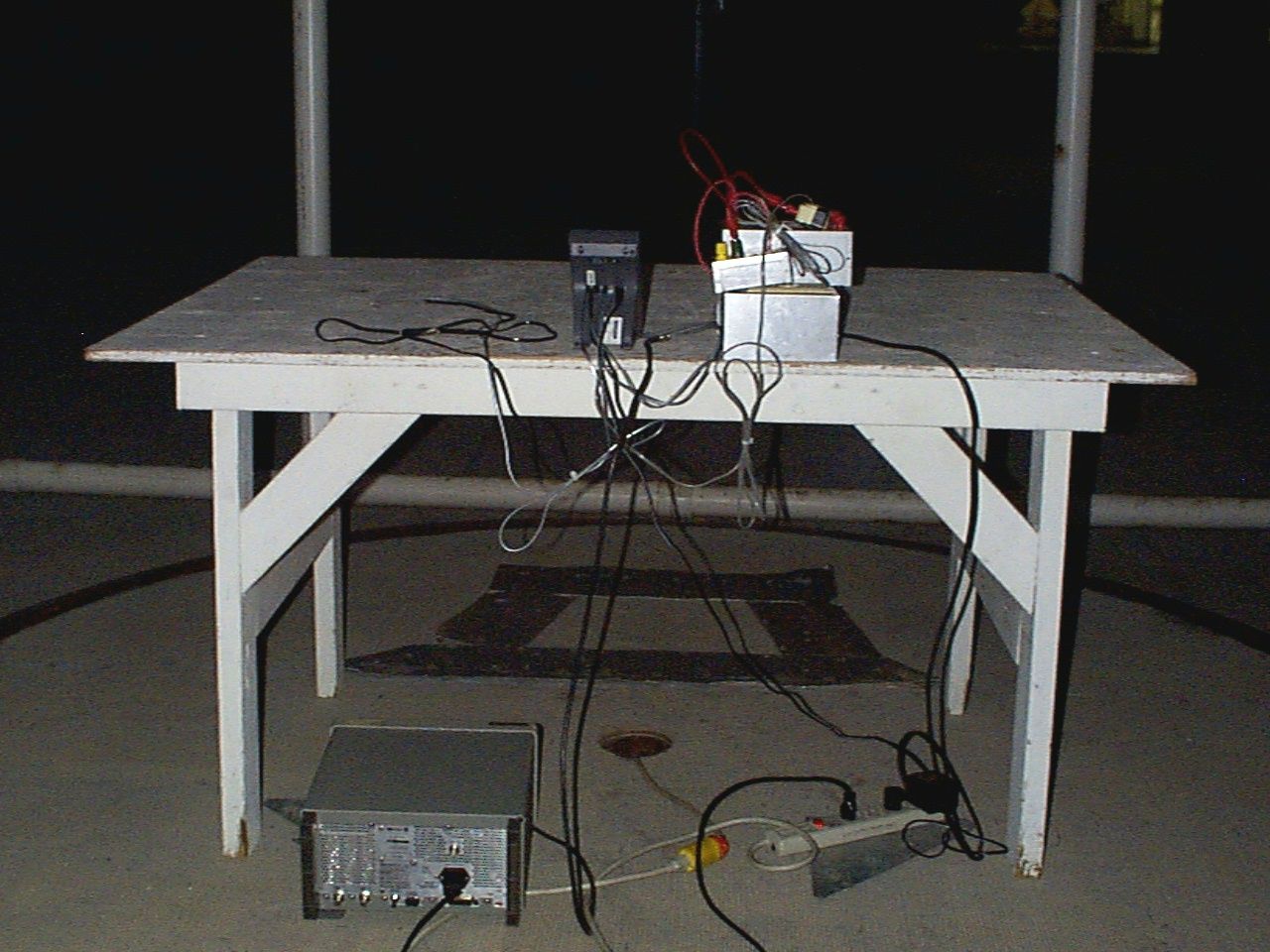

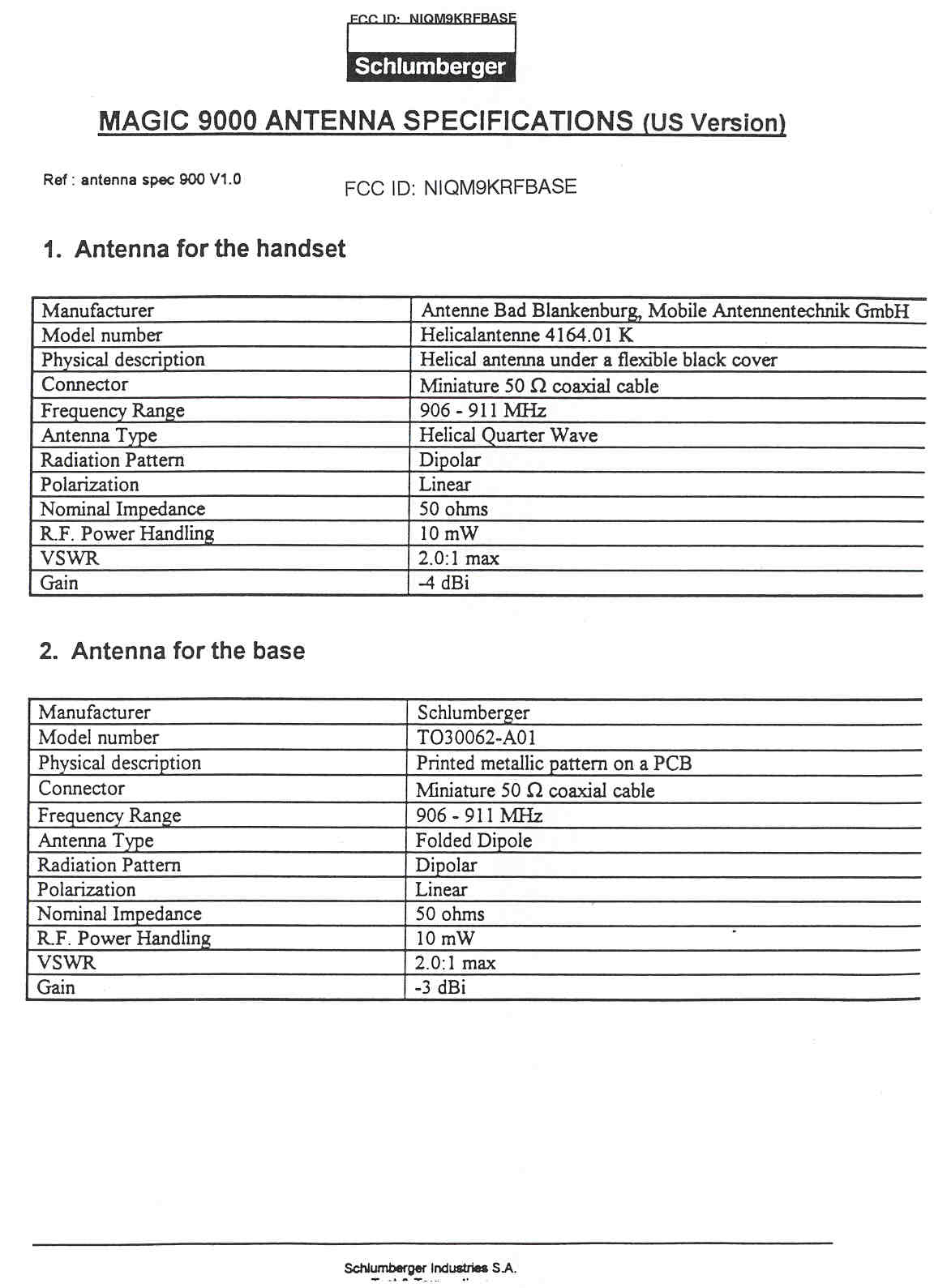

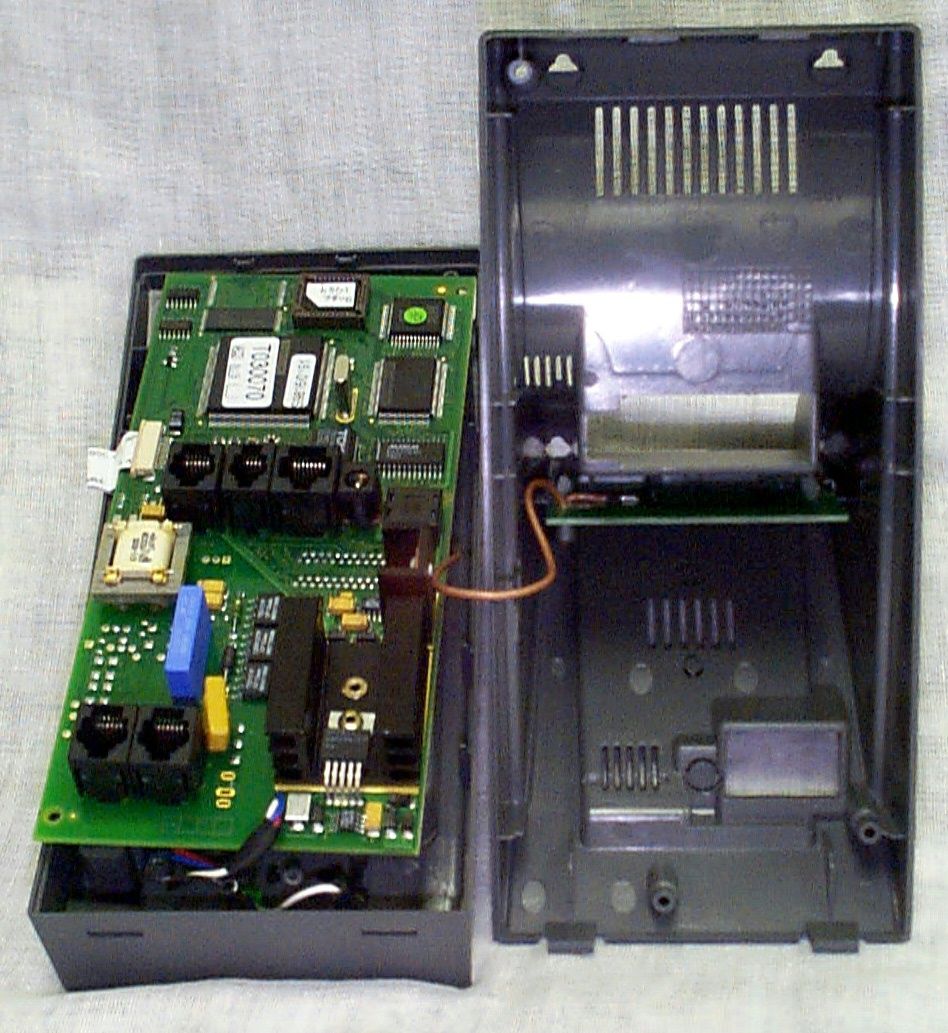

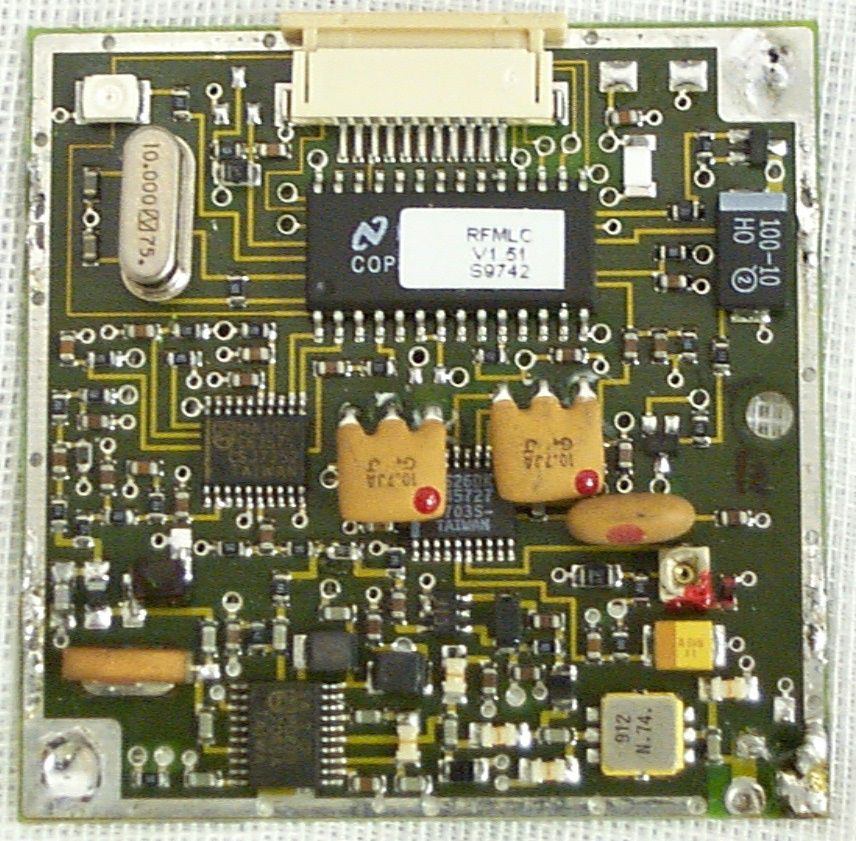

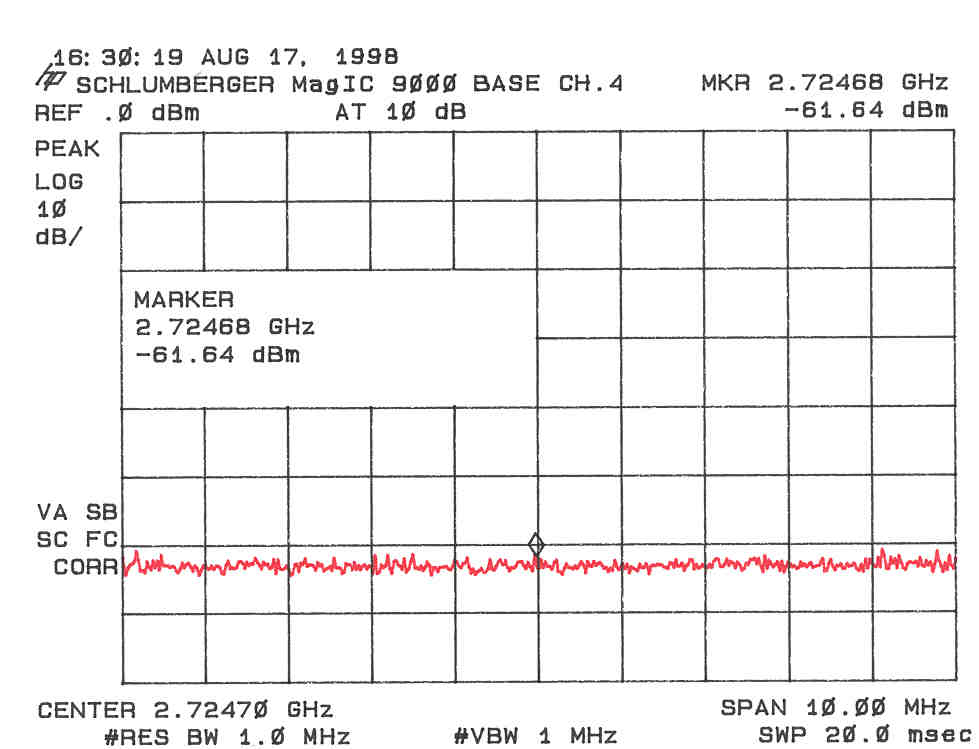

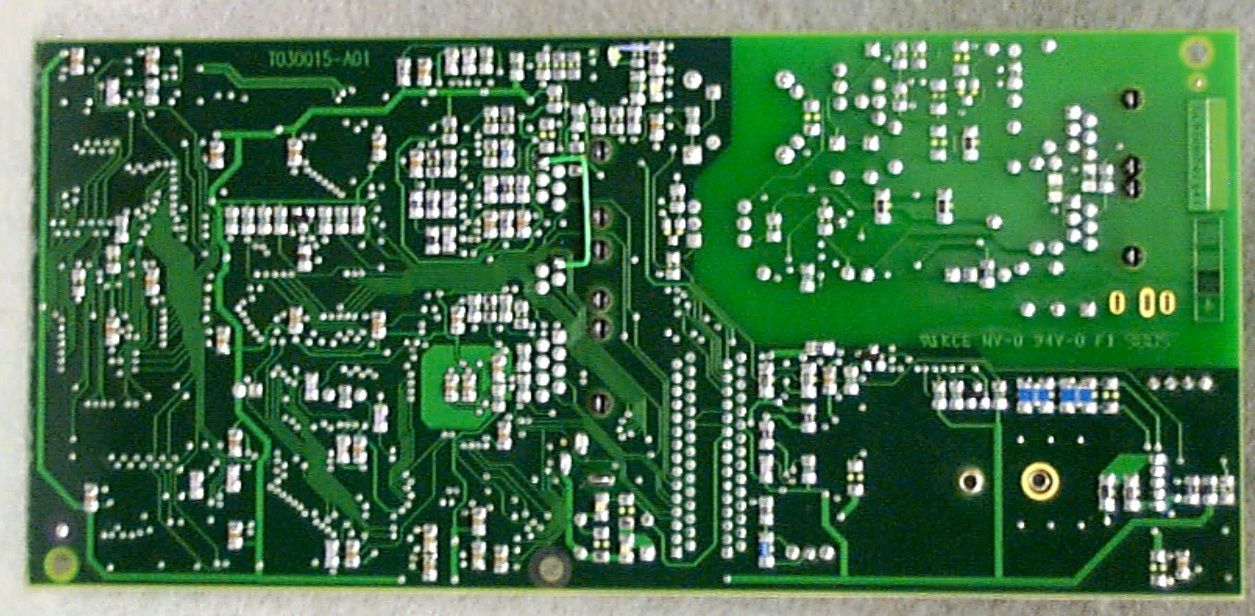

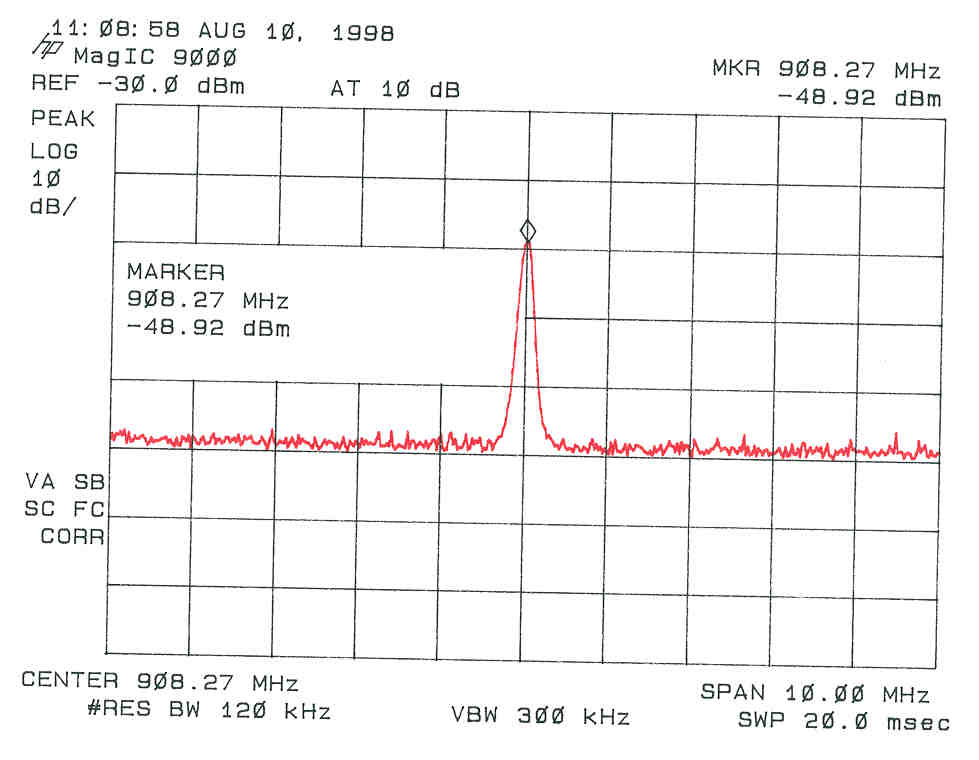

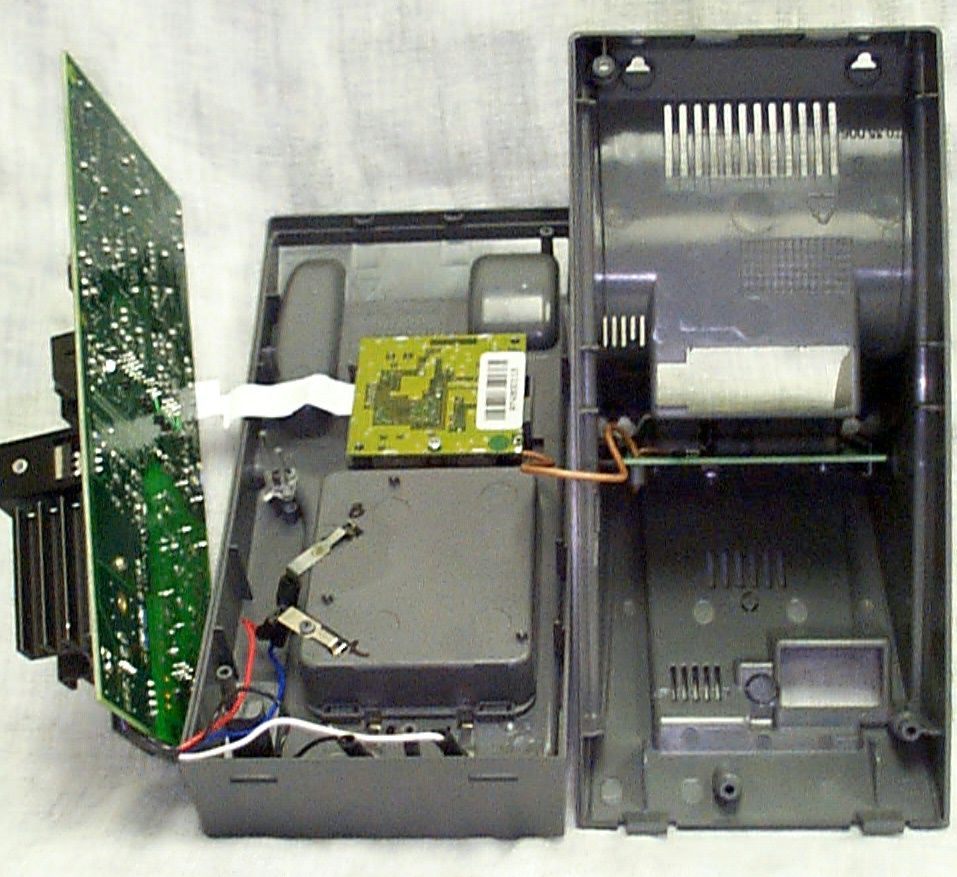

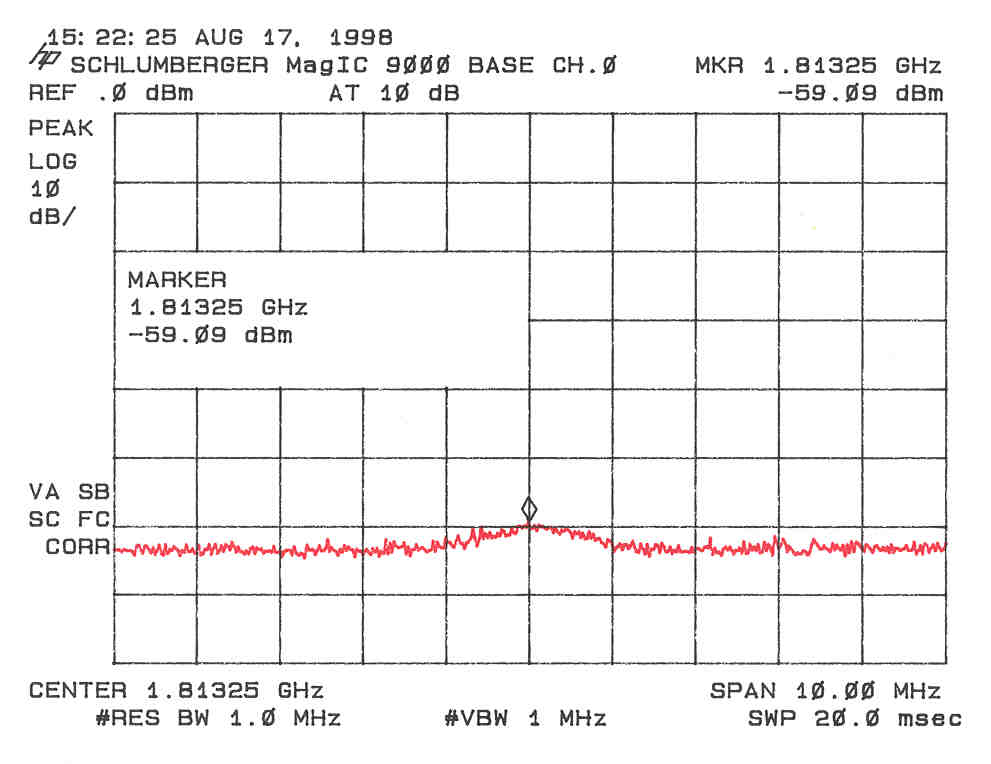

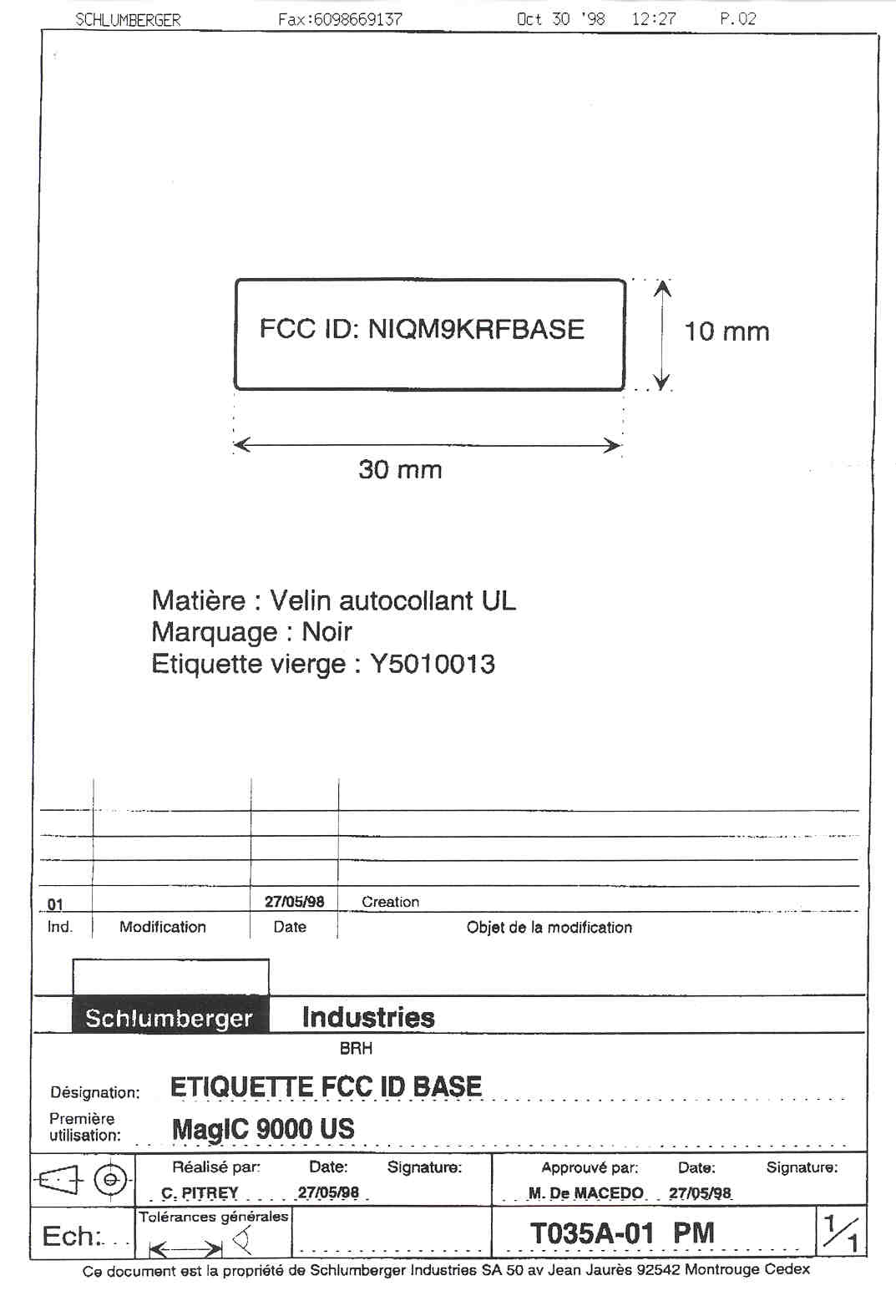

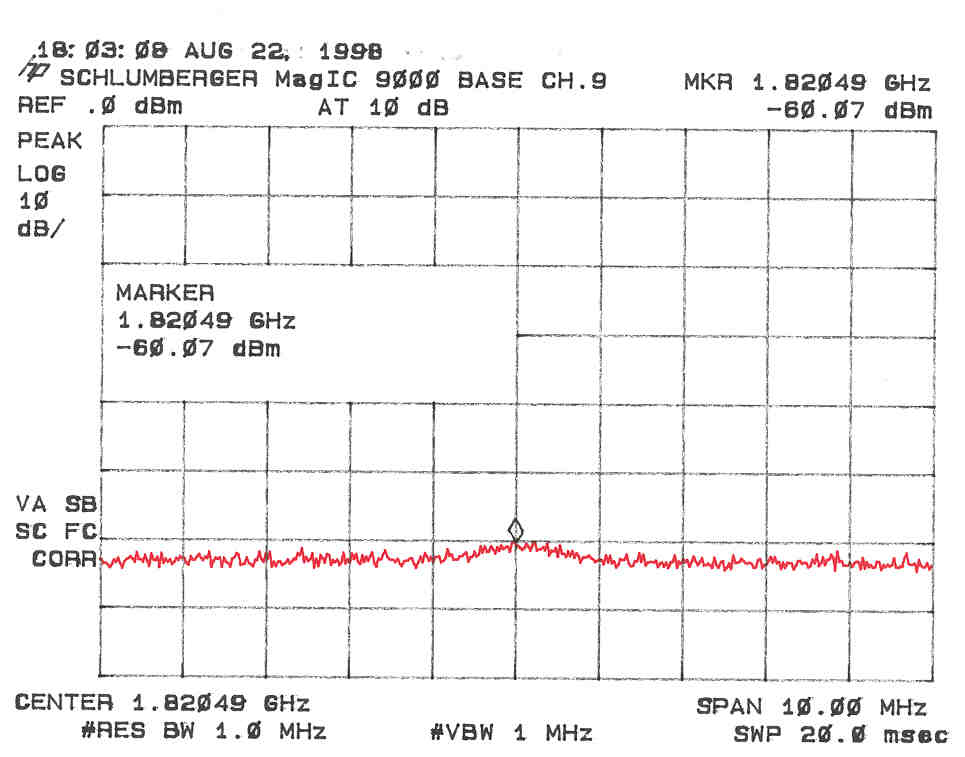

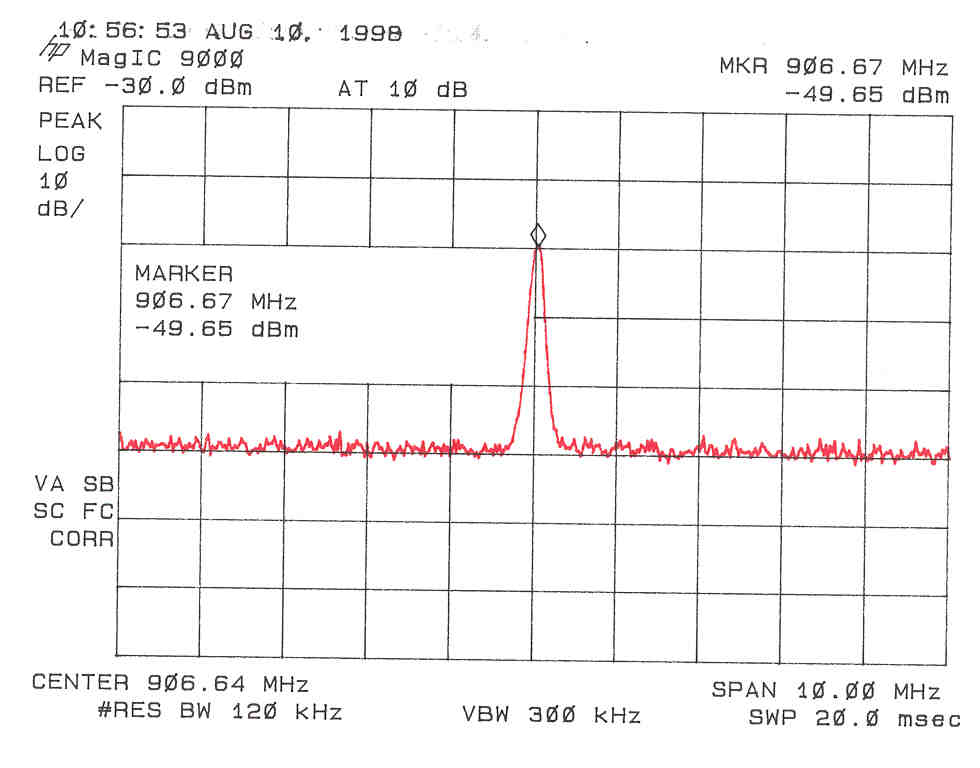

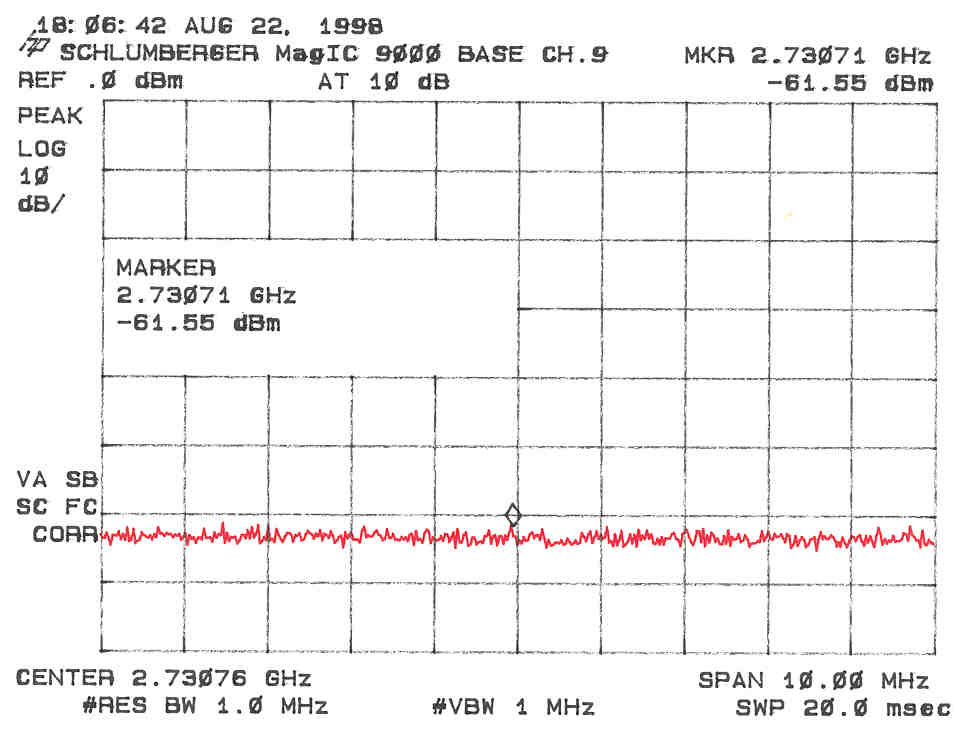

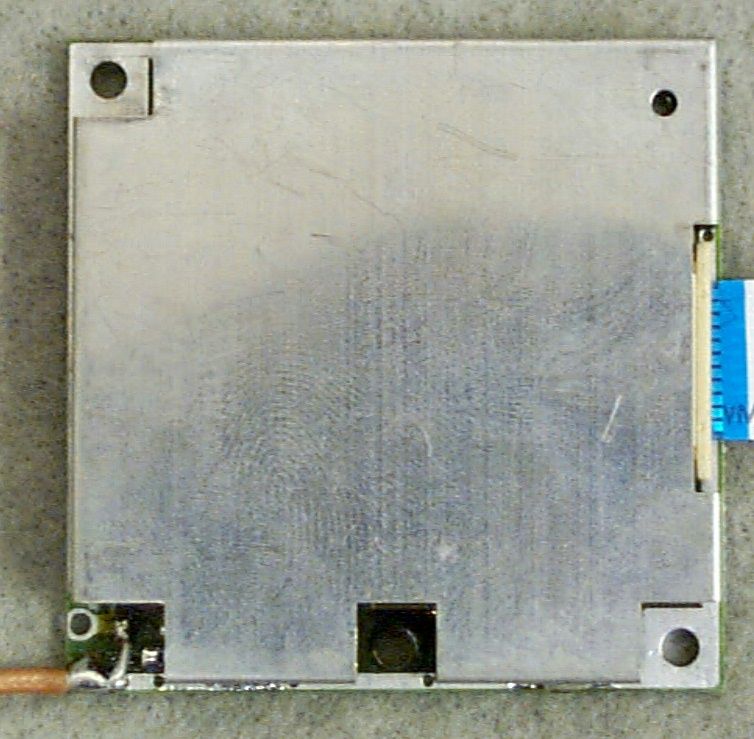

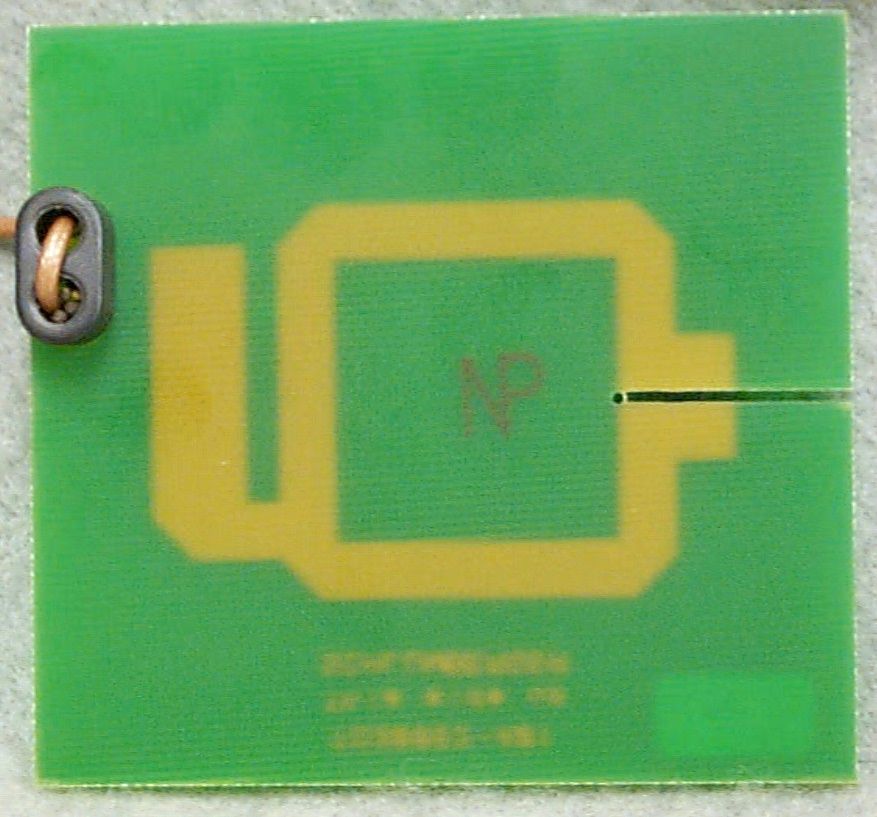

MEASUREMENT/TECHNICAL REPORT COMPANY NAME: Schlumberger Technologies MODEL: Magic 9000 Base FCC ID: NIQM9KRFBASE DATE: September 22, 1998 This report concerns (check one): Original grant X Class II change_____ Equipment type: Low Power Transmitter Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? yes_____ No X If yes, defer until:_________________ date N.A. agrees to notify the Commission by N.A. date of the intended date of announcement of the product so that the grant can be issued on that date. Report prepared by: United States Technologies, Inc. 3505 Francis Circle Alpharetta, GA 30004 Phone Number: (770) 740-0717 Fax Number: (770) 740-1508 TABLE OF CONTENTS FCC ID: NIQM9KRFBASE LETTER OF CONFIDENTIALITY SECTION 1 GENERAL INFORMATION Product Description SECTION 2 TESTS AND MEASUREMENTS Configuration of Tested EUT Test Facility Test Equipment Modifications Field Strength of Fundamental Emission Field Strength of Spurious Emissions Radiated Emissions Power Line Conducted Emissions SECTION 3 LABELING INFORMATION SECTION 4 BLOCK DIAGRAM(S) SECTION 5 PHOTOGRAPHS SECTION 6 USER'S MANUAL FCC ID: NIQM9KRFBASE LIST OF FIGURES AND TABLES FIGURES Test Configuration Photograph(s) for Spurious and Fundamental Emissions Field Strength of Fundamental Emission Field Strength of Spurious Emissions TABLES EUT And Peripherals Test Instruments Field Strength of Fundamental Emission Field Strength of Spurious Emissions Radiated Emmissions Power Line Conducted Emissions FCC ID: NIQM9KRFBASE GENERAL INFORMATION Product Description The Equipment Under Test (EUT) is a Schlumberger Technologies 906.7 - 910.3 MHz Transceiver, Model Magic 9000 Base. The EUT is part of a system including a 906.7 - 910.3 MHz handset transceiver. The handset and base are used as point of sale terminals. The following page from Schlumberger supplies information regarding the antenna (This has been provided in a separate file). Related Submittal(s)/Grant(s) The EUT will be used with part of a system to send/receive data. The transceiver presented in this report will be used with one transceiver which has been submitted under FCC ID: NIQM9KRFHNDSET. FCC ID: NIQM9KRFBASE TESTS AND MEASUREMENTS Configuration of Tested System The sample was tested per ANSI C63.4, Methods of Measurement from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz (1992). Conducted and radiated emissions data were taken with the test receiver or spectrum analyzer's resolution bandwidth adjusted to 9 kHz and 120 kHz, respectively. All measurements are peak unless stated otherwise. The video filter associated with the spectrum analyzer was off throughout the evaluation process. Interconnecting cables were manipulated as necessary to maximize emissions. A block diagram of the tested system is shown in Figure 1. Test configuration photographs for spurious and fundamental emissions are shown in Figure 2. Test Facility Testing was performed at US Tech's measurement facility at 3505 Francis Circle, Alpharetta, GA. This site has been fully described and submitted to the FCC, and accepted in their letter marked 31040/SIT. Additionally this site has also been fully described and submitted to Industry Canada (IC), and has been approved under file number IC2982. Test Equipment Table 2 describes test equipment used to evaluate this product. Modifications No modifications were made by US Tech, to bring the EUT into compliance with FCC Part 15, Class B Limits for the transmitter portion of the EUT or the Class A Digital Device Requirements. FCC ID: NIQM9KRFBASE FIGURE 1 TEST CONFIGURATION NOTE: Handset positioned ON or OFF base as appropriate for each test FCC ID: NIQM9KRFBASE Test Date:August 17, 1998 UST Project:98-385 Customer:Schlumberger Technologies Model:Magic 9000 Base FIGURE 2 Photograph(s) for Spurious and Fundamental Emissions These have been provided in additional files (3 photos) FCC ID: NIQM9KRFBASE TABLE 1 EUT and Peripherals PERIPHERAL MANUFACTURER MODEL NUMBER SERIAL NUMBER FCC ID:CABLES P/D Point Of Sale Terminal Base Schlumberger Technologies (EUT) Magic 9000BaseNIQM9KRFBASE (Pending) 9' U 9' U 5' U Loop Back Hand Set Schlumberger Technologies (EUT) Magic 9000 Handset HandsetNIQM9KRHNDSE T (Pending) None AC Adapter Sceptre AEC-4812A1398KNone120 VAC 60 Hz Direct Plug-In Feed Network US Tech NoneNoneNone6' U 120 VAC 60 Hz Source TABLE 2 FCC ID: NIQM9KRFBASE TEST INSTRUMENTS TYPEMANUFACTURERMODELSN. SPECTRUM ANALYZERHEWLETT-PACKARD8593E3205A00124 SPECTRUM ANALYZERHEWLETT-PACKARD8558B2332A09900 S A DISPLAYHEWLETT-PACKARD853A2404A02387 COMB GENERATORHEWLETT-PACKARD8406A1632A01519 RF PREAMPHEWLETT-PACKARD8447D1937A03355 RF PREAMPHEWLETT-PACKARD8449B3008A00480 HORN ANTENNAEMCO31153723 BICONICAL ANTENNAEMCO31109307-1431 LOG PERIODIC ANTENNA EMCO31469110-3600 LISNSOLAR ELE.8012865577 LISNSOLAR ELE.8028910494 LISNSOLAR ELE.8028910495 THERMOMETERFLUKE525215250 MULTIMETERFLUKE8553710469 FUNCTION GENERATOR TEKTRONIXCFG250CFG250TW1505 9 PLOTTERHEWLETT-PACKARD7475A2325A65394 BILOGCHASECBL6112A2238 Field Strength of Fundamental Emission (47 CFR 15.249a) FCC ID: NIQM9KRFBASE Measurements were made using a peak detector. Field strength of the peak fundamental emission is shown in Table 3 and Figure 4. FCC ID: NIQM9KRFBASE TABLE 3a FIELD STRENGTH OF FUNDAMENTAL EMISSION Test Date:August 17, 1998 UST Project:98-385 Customer:Schlumberger Technologies Model:Magic 9000 Base Channel 0 - Low FREQ. (MHz) TEST DATA (dBm) @ 3m ANTENNA FACTOR + CABLE ATTENUATION RESULTS (uV/m) @ 3m PEAK FCC LIMITS (uV/m) @ 3m 906.7-49.730.7 25,160.550,000 SAMPLE CALCULATIONS: RESULTS uV/m @ 3m = Antilog ((-49.7 + 30.7 + 107)/20) = 25,160.5 CONVERSION FROM dBm TO dBuV = 107 dB Tested By Signature: Name: Brian Parks FCC ID: NIQM9KRFBASE TABLE 3b FIELD STRENGTH OF FUNDAMENTAL EMISSION Test Date:August 17, 1998 UST Project:98-385 Customer:Schlumberger Technologies Model:Magic 9000 Base Channel 4 - Mid FREQ. (MHz) TEST DATA (dBm) @ 3m ANTENNA FACTOR + CABLE ATTENUATION RESUL…
