NJR-PIR003Transmitter Unit of Voice Alert

PROJECT-X106 VOICE ALERT BLOCK DIAGRAM ANT TRANSMITTER: PIR Trigger and >10s~3minute PT2262 ENCODER MO DULATOR DETECTOR delay circuit OSC FREQUENCY : 20KHZ LOW BATT. DETECTOR 9.0V BATT RECEIVER: ANT 433MHZ SAWSUPERHTRERODYNE VOICESPEAKER FILTER & LNA RECEIVER MCU( DECODER)DEVICE f =433.92MHZ 4MHZ RESONATOR FOUR WAY FOUR WAY 9V DC APATERRELAY DRIVERDRY CONTACT OUT PUT PDF created with FinePrint pdfFactory trial version http://www.pdffactory.com

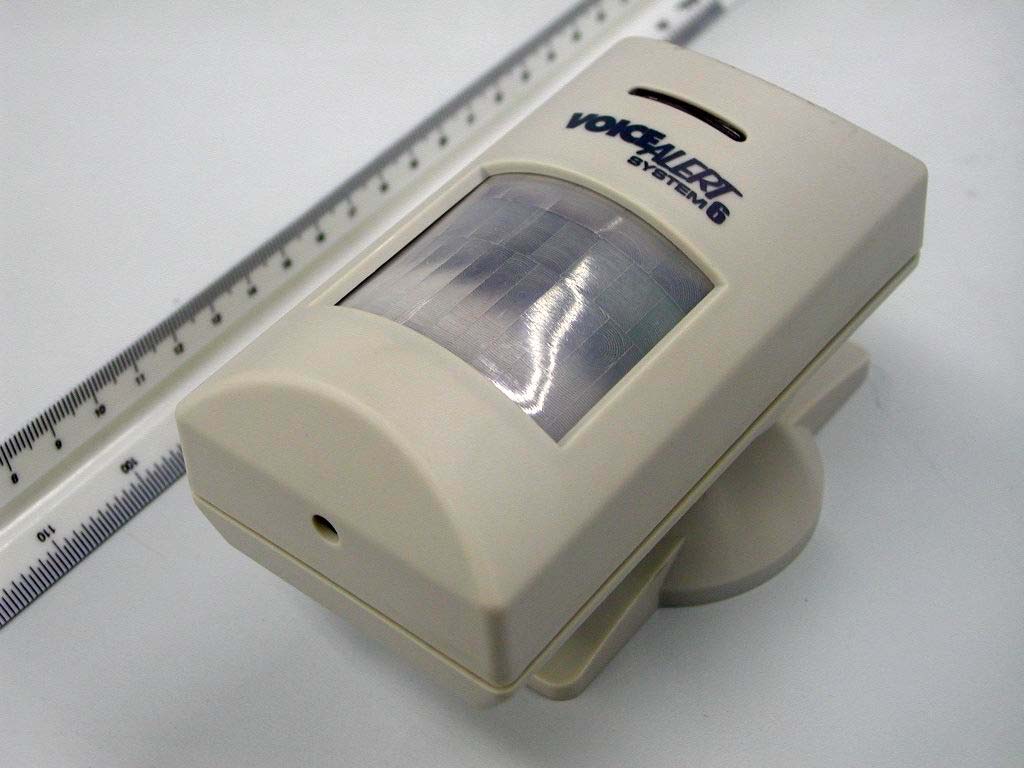

Test Setup FCCID : NJR-PIR003 External Photo -front External Photo – rear

Test Setup FCC ID : NJR-PIR003 Internal Photo – 1 Internal Photo - 2 Internal Photo – 3 Internal Photo – 4 Test Setup FCC ID : NJR-PIR003 Internal Photo – 5

TECHNICAL DESCRIPTION ( X106) A. CIRCIUT OPERATION: TRANSMITTER 1. TX MODULATION : ASK 2. TX MODULATION SIGNAL LIMITER B . COMPONENT DESCRIPTION: CATEGORY NUMBER NAME DESCRIPTION TRANSMITTER 1. INTEGARITE PT2262 DATA ENCODER PT2262 DATA ENCODER CIRCUIT 2. INTEGARITE LM346-M O-AMP O-AMP CIRCUIT 3. INTEGARITE HEF 4001BT 2-INPUT NOR GATE QUADRUPLE 2- INPUT GATE CIRCUIT 4. TRANSISTOR 2SC 4083 RF SINAL TRANSISTOR RF SINAL TRANSISTOR (ASK) 5. SAW RESONATOR HDR433MHZ 433.92MHZ SAW RESONATOR 433.92MHZ SAW RESONATOR

x106-TX.sch-1 - Thu Sep 04 14:41:13 2003 PDF created with FinePrint pdfFactory trial version http://www.pdffactory.com

• The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2371 0521 Website: www.hk.intertek-etlsemko.com Cross Point Industries, Inc. Application For Certification (FCC ID: NJR-PIR003) Transmitter 0314423 DL/ Sandy October 17, 2003 INTERTEK TESTING SERVICES FCC ID: NJR-PIR003 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information INTERTEK TESTING SERVICES FCC ID: NJR-PIR003 ii MEASUREMENT/TECHNICAL REPORT Cross Point Industries, Inc. - MODEL: Voice Alert System 6, Sensor VA-6000T FCC ID: NJR-PIR003 October 17, 2003 This report concerns (check one:) Original Grant X Class II Change Equipment Type: Low Power Transmitter (example: computer, printer, modem, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [08-20-02 Edition] provision. Report prepared by: Derek Leung Intertek Testing Services 2/F., Garment Center, 576, Castle Peak Road, HONG KONG. Phone: 852-2173-8504 Fax: 852-2371-0521 INTERTEK TESTING SERVICES FCC ID: NJR-PIR003 iii Table of Contents 1.0 General Description............................................................................................ 2 1.1 Product Description ............................................................................................ 2 1.2 Related Submittal(s) Grants ............................................................................... 2 1.3 Test Methodology............................................................................................... 3 1.4 Test Facility........................................................................................................ 3 2.0 System Test Configuration ................................................................................. 5 2.1 Justification ........................................................................................................ 5 2.2 EUT Exercising Software.................................................................................... 5 2.3 Special Accessories ........................................................................................... 5 2.4 Equipment Modification ...................................................................................... 6 2.5 Measurement Uncertainty .................................................................................. 6 2.6 Support Equipment List and Description ............................................................. 6 3.0 Emission Results ................................................................................................ 8 3.1 Field Strength Calculation................................................................................... 9 3.2 Radiated Emission Configuration Photograph................................................... 11 3.3 Radiated Emission Data ................................................................................... 12 4.0 Equipment Photographs ................................................................................... 15 5.0 Product Labelling.............................................................................................. 17 6.0 Technical Specifications................................................................................... 19 7.0 Instruction Manual ............................................................................................ 21 8.0 Miscellaneous Information ............................................................................... 23 8.1 Measured Bandwidth........................................................................................ 24 8.2 Discussion of Pulse Desensitization.................................................................. 25 8.3 Calculation of Average Factor........................................................................... 26 8.4 Emissions Test Procedures .............................................................................. 27 INTERTEK TESTING SERVICES FCC ID: NJR-PIR003 iv List of attached file Exhibit type File Description filename Test Report Test Report report.pdf Operation Description Technical Description descri.pdf Test Setup Photo Radiated Emission radiated photos.doc Test Report Bandwidth Plot bw.pdf External Photo External Photo external photos.doc Internal Photo Internal Photo internal photos.doc Block Diagram Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf ID Label/Location Label Artwork and Location label.pdf User Manual User Manual manual.pdf Test Report Timing Diagram timing.pdf INTERTEK TESTING SERVICES FCC ID: NJR-PIR003 1 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES FCC ID: NJR-PIR003 2 1.0 General Description 1.1 Product Description The Equipment Under Test (EUT) is a transmitter operating at 433.92MHz. The EUT is powered by 9V d.c. (1 x 9V “MN1604 6LR61” alkaline battery). The EUT is the motion sensor. In order for the EUT to communicate with the receiver properly, the transmission code…
