NK631238DECT 6.0 Cordless Telephone with Digital Answering System and Call Waiting Caller ID (Base)

31238 DECT 6.0 Call Waiting Caller ID with Digital Answering Machine Cordless Phone Congratulations on your selection of DECT 6.0 Digital Cordless Telephone from Mountain Bell Phones. This quality DECT 6.0 Cordless Telephone with Call Waiting Caller ID and DIGITAL ANSWERING MACHINE, like all Genuine Mountain BELL ® products has been designed to give you many years of continuous service and represents the best value for your money. It requires little maintenance and is easy to setup and operate. 11 IMPORTANT SERVICE INFORMATION Read this manual before attempting to setup or use this instrument. It contains important information regarding safe installation and use. Keep this manual for future reference. Also save the carton, packing and proof of purchase to simplify and accelerate any needed action. If you need assistance or service, call (800) 888‐8990 between 8:00 a.m. and 4:30 p.m. Pacific Standard Time, Monday through Friday. WARNING To prevent fire or shock hazard, do not expose this product to rain or any type of excess moisture. If accidentally dropped into water, the AC adaptor should immediately be unplugged from the wall along with the telephone line cord. THIS SYMBOL IS INTENDED TO ALERT THE USER OF THE PRESENCE OF IMPORTANT OPERATING AND MAINTENANCE (SERVICING) INSTRUCTIONS IN THE OWNER'S MANUAL . CARTON CONTENTS 31238 (One Handset) 31239 (Two Handsets) Base Unit One One Handset Unit One Two Charger Unit ‐ One (with 7.5V DC, 100 mA output Adaptor) Rechargeable Battery Pack (2.4V 500mAh AAA Ni‐MH) One Two Base Adaptor (6V DC, 400 mA output, Center Pin Positive) One One Telephone Line Cord One One User Manual One One Warranty Card One One Accessory Order Form One One The Features and Functions described in this User Manual are published with reservations to modifications. 2 TABLE OF CONTENTS Important Service Information...........................................................................................................1 Warning...............................................................................................................................................1 Carton Contents...................................................................................................................................1 Important Safety Instructions.............................................................................................................4 Installation Precautions.......................................................................................................................5 Maintenance........................................................................................................................................5 Battery Cautionary Instruction...........................................................................................................5 FCC Notice............................................................................................................................................6 Caller ID Question & Answer ..............................................................................................................7 CONTROLS DIAGRAM .........................................................................................................................8 Handset, Base and Charger Unit ....................................................................................................8 CONTROLS DESCRIPTION ....................................................................................................................9 Handset Controls.............................................................................................................................9 Base Unit Controls.........................................................................................................................10 Charger Unit Controls....................................................................................................................10 INSTALLATION...................................................................................................................................10 Battery Installation.........................................................................................................................10 POWER CONNECTION........................................................................................................................11 INITIAL SET‐UP...................................................................................................................................11 Setting to TONE/PULSE Mode ..........................................................................................................11 LCD INFORMATION ...........................................................................................................................12 TELEPHONE OPERATION ...................................................................................................................12 To Place a Call................................................................................................................................12 Activating Handsfree / Speakerphone Feature during calls........................................................13 Activating MUTE Feature during calls ..........................................................................................13 Adjusting Handset Volume during calls........................................................................................13 Redial Feature during Talk mode .................................................................................................13 Redial Feature during Stand by mode .........................................................................................13 To Receive a Call ...........................................................................................................................14 Intercom between Two Handsets and Call Transfer with an External Call.................................14 Intercom…

Text truncated - open the document above for the full version.

Date: 2010-03-08 ___________________________________________________ 16960 Gale Avenue, City of Industry, CA 91745 Tel (626) 912-2166 Fax (626) 912-2258 FCC Confidential Authorization FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Confidentiality Request regarding application for certification of FCC ID: NK631238 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: • Detailed Circuit Schematics of EUT--- (Long term) ƒ Block Diagram--- (Long term) ƒ Circuit Description--- (Long term) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely Yours, Signature: Typed or Printed Name: Alvin Po Title: Project Manager Company Name: MACKARL ENTERPRISES INC. MACKARL ENTERPRISES, INC.

FCC Part 15D – APPLICATION FORM & SELF-DECLARATION Applicant Name MACKARL ENTERPRISES INC. Address 16960 Gale Ave., City of Industry, California, United States of America Contact person Alvin Po Telephone No. +1 – 626 965 5588 Fax No. +1 – 626 965 6998 Manufacturer Name SHENZHEN G. CREDIT ELECTRONICS CO.,LTD Address Zhida Industrial Park, West Longping RD, Central City, Longgang Town, Shenzhen City, Guangdong Province 518172 China PP FP FCC ID NK631238 NK631238 Model Number 31238/31239 31238/31239 HW version REV0.7 REV0.1 SW version V0576 V0584 Antenna Type INVERSE L Type INVERSE L Type Max, Antenna Gain(dBi) 3 3 Adapter Input AC 120 V Adapter Output DC 6.0 V Mains Power Voltage FP Inport DC 6.0 V Battery Voltage DC 2.4 V Number of channels 5 Carrier frequency(MHz) 1921.536 1923.264 1924.992 1926.720 1928.446 Nominal Receive Bandwidth +/- 500KHz Frame period(ms) 10 Timeslot Plan 24 timeslots per frame. First 12 timeslots used for PP transmissions and other 12 timeslots used for FP transmissions. Operating Temperature Range( 。 C) Min -10 。 C Max 40 。 C Does a system built with the EUT that implement the provisions of 47CFR 15.323(c) (5) enabling the use of the upper threshold for deferral? Ye s N o According to 47CFR 15.323(c) (5).4, does your model not use bandwidth in further cooperation with other devices at any range? Ye s N o Does a system built using the EUT that operate under the provisions of 47CFR 25.323(c) (6) incorporating provisions for waiting for a channel to clear? Yes No According to 47CFR 15.323(c) (8), does EUT use the same antennas for transmission and reception as for monitoring? Ye s N o Does a system built with the EUT that operate under the provisions of 47CFR 15.323(c) (10) to test for deferral only in conjunction with a companion device? Yes No Does a system built using the EUT that operate under the provisions of 47CFR 15.323(c) (11) enabling the access criteria check on the receive channel while Ye s N o in the presence of collocated interferers? According to 47CFR 15.323(c) (12), does EUT not work in a mode with denies fair access to spectrum for other devices. Yes No Does you model have the monitoring made through the radio receiver used for communication? Yes No Does your model transmit control and signaling channels? Yes No According to 47CFR 15.307(b), does the applicant have the affidavit from UTAM Inc.? Yes No According to 47CFR 15.319(b), do all transmissions use only digital modulation techniques? Ye s N o Reaction of EUT Situation FP PP Switch-off compare device NA NA Hook-on by compare device B NA Switch-off by EUT NA NA Hook-on at EUT side NA C Remove Power from EUT A C The provisions within the EUT for self-check, by which compliance with 47CFR 15.319(f) is obtained. A – Connection break down, cease of transmit B – Connection break down, EUT transmits its signaling information C – Connection break down, compare device transmits signaling information N – Not possible Remove Power from compare device B A Date: 2010-03-08 Title: Project Manager Signature:

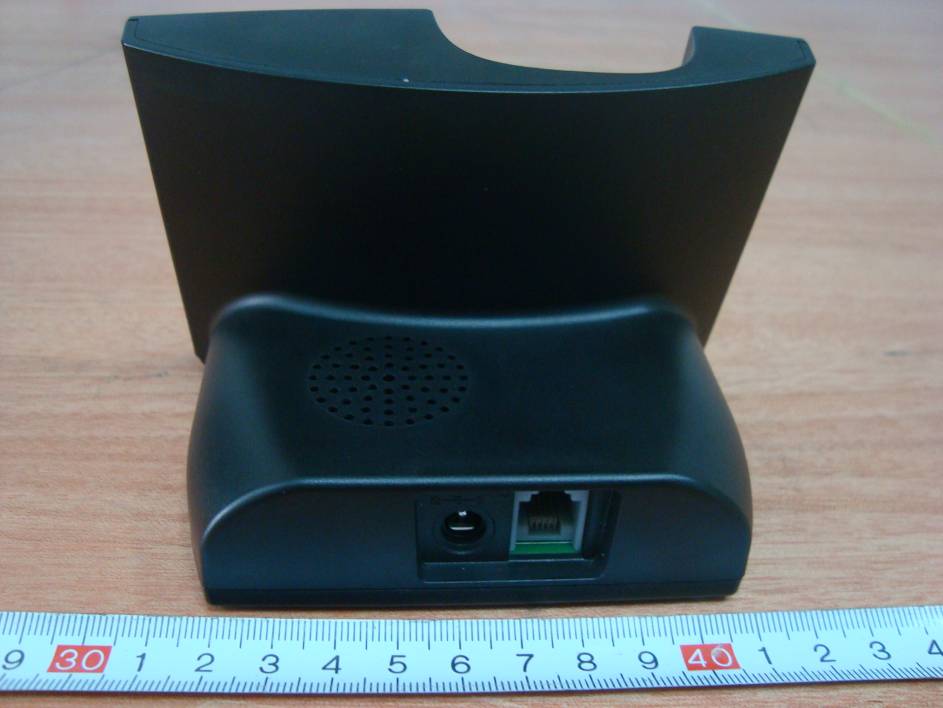

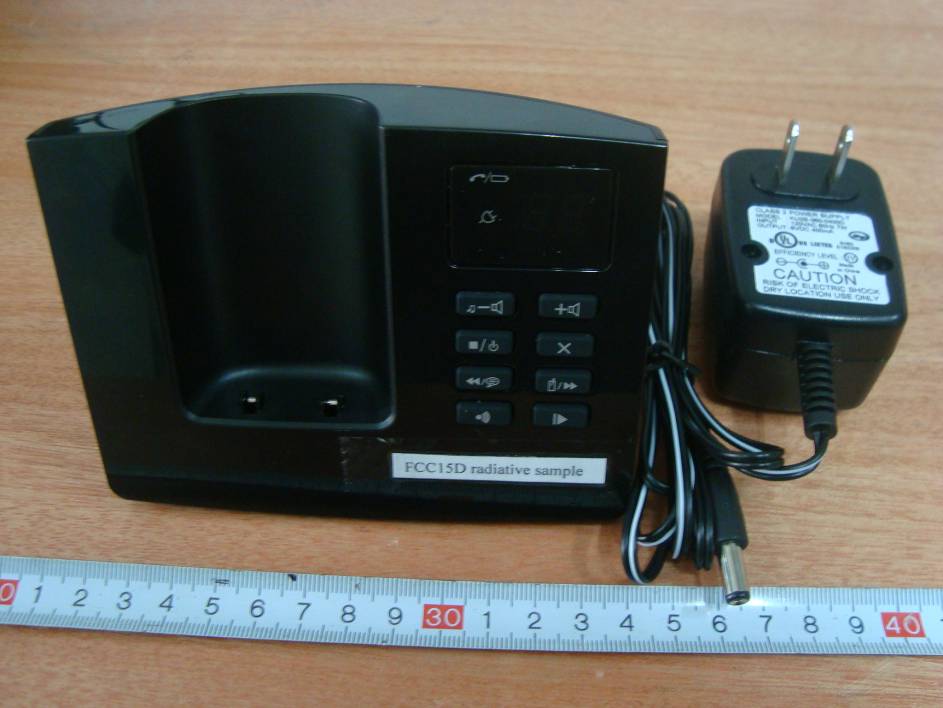

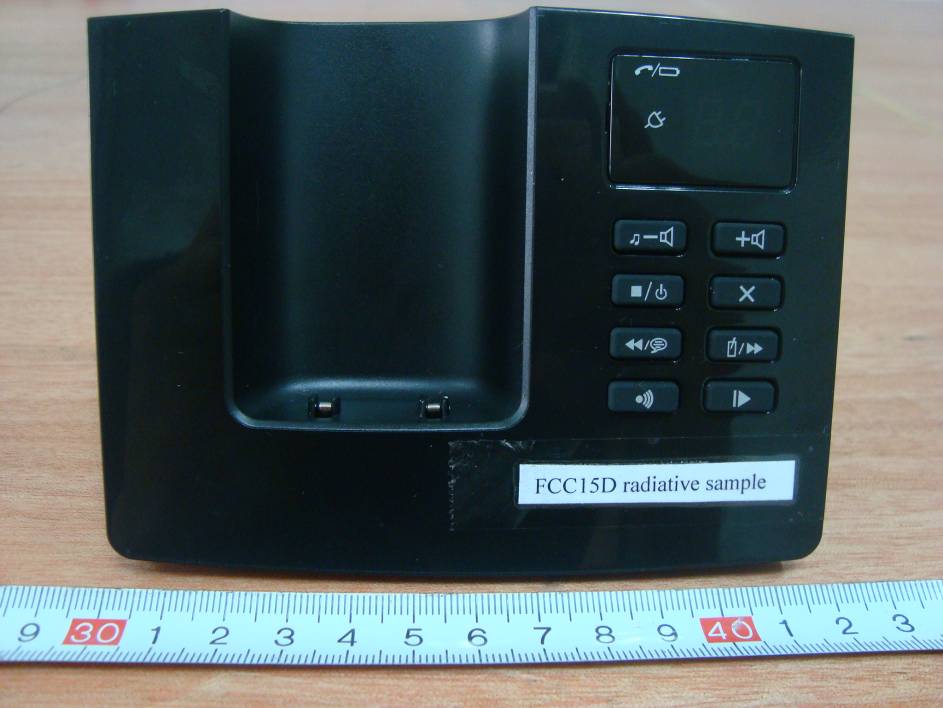

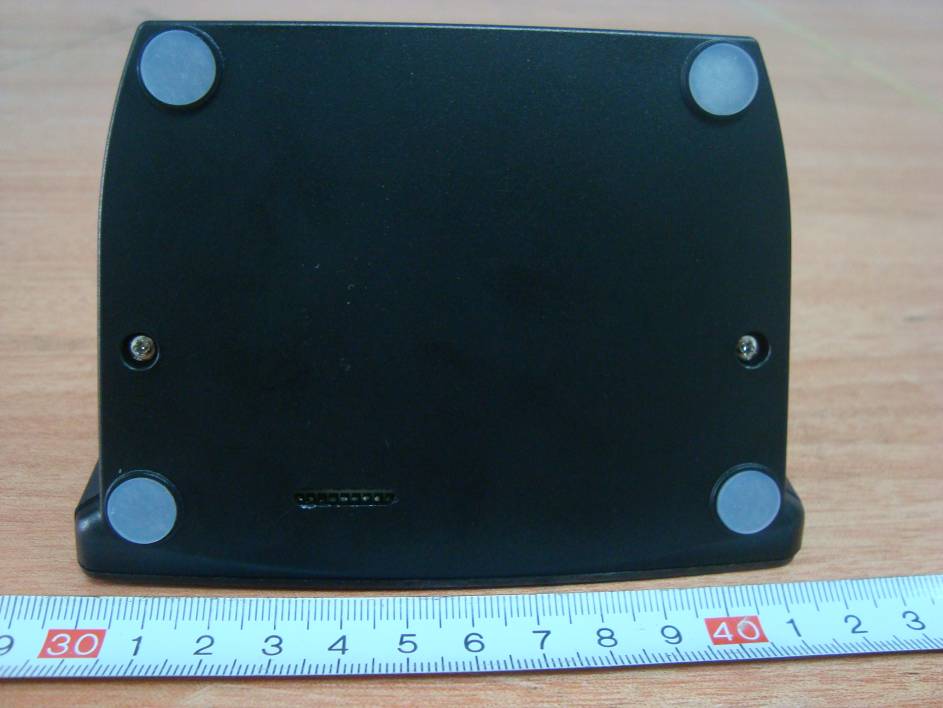

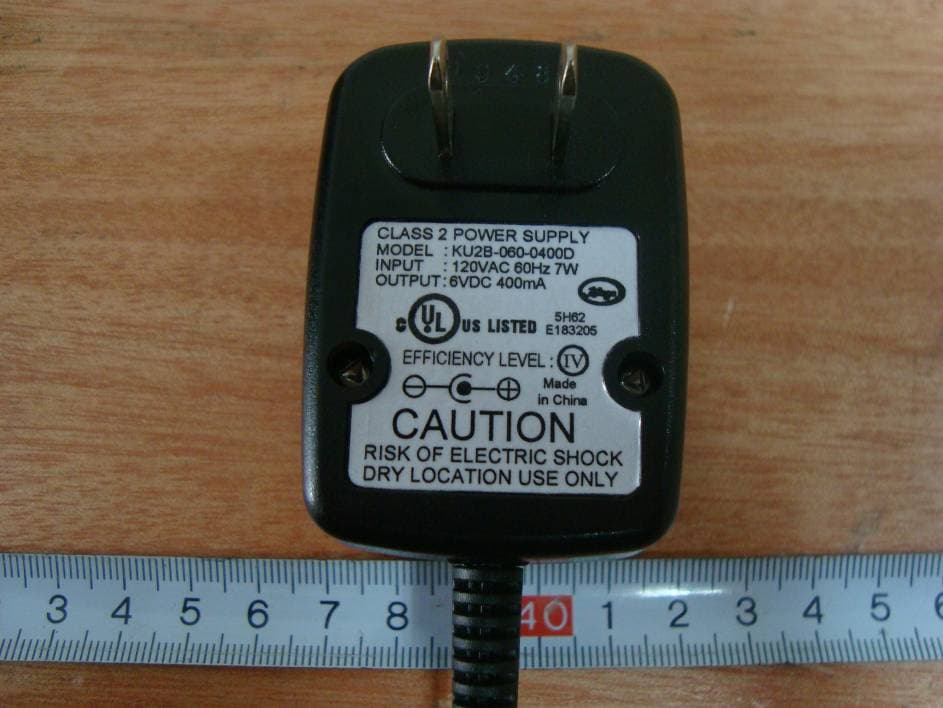

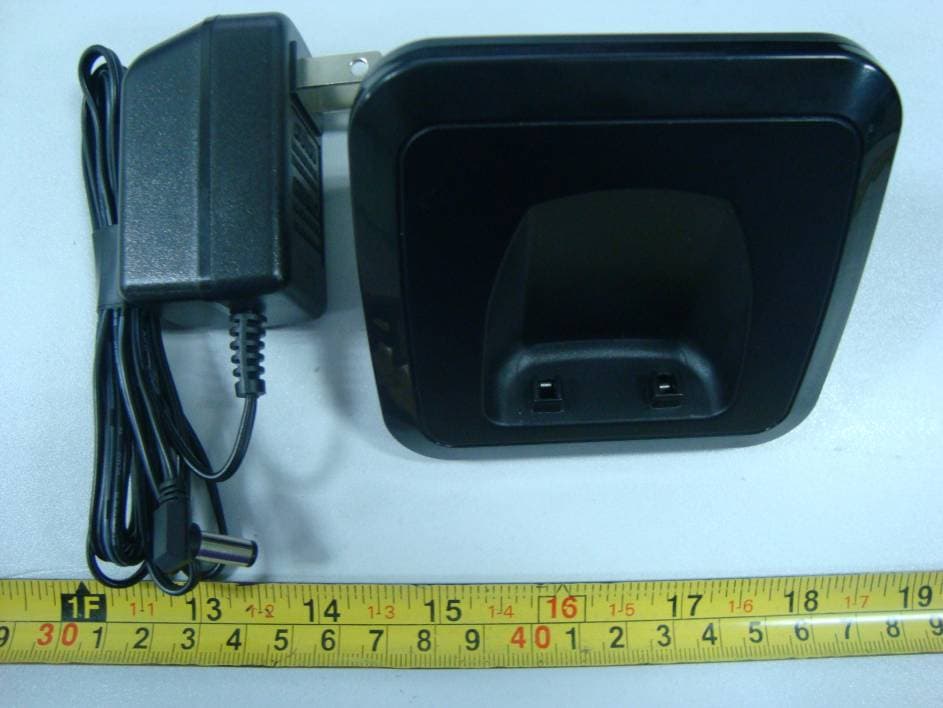

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – with AC/DC Adapter View EUT – Front View EUT – Rear View EUT – Bottom View EUT – AC/DC Adapter View

400 R5JW401B31238 0.1B 1 7 . 5 0 m m 400

EXHIBIT A - FCC ID LABELING AND LOCATION FCC ID Label Location Label here

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Cover off View EUT – Main Board Top View EUT – Main Board without Shielded CoveTop View EUT – Main Board Bottom View Antenna EUT – Button Board Top View EUT – Button Board Bottom View

MACKARL ENTERPRISES INC. FCC ID: NK631238 Report #: RSZ10030401-Base Page 10 of 51 FCC Part 15D Test Report FCC §15.319 (i) - RF RADIATION EXPOSURE Limit According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minute) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 842/f 2.19/f *(180/f\2\) 30 30-300 27.5 0.073 0.2 30 300-1500. / / f/1500 30 1500-100,000. / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density Test Data Predication of MPE limit at a given distance, Equation is from OET Bulletin 65, Edition 97-01 Where: S = power density (in appropriate units, e.g. mW/cm2) P = power input to the antenna (in appropriate units, e.g., mW). G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain. R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) Maximum peak output power at antenna input terminal: 18.65 (dBm ) Maximum peak output power at antenna input terminal: 73.28 (mW) Prediction distance: 20 (cm) Predication frequency: 1921.536 (MHz) Antenna Gain (typical): 0 (dBi) Antenna Gain (typical): 1 numeric The worst case is power density at predication frequency at 20 cm: 0.0146 (mW/cm 2 ) MPE limit for general population exposure at prediction frequency: 1 (mW/cm 2 ) Conclusion: The power density at 20 cm is less than the MPE limit.

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (Shenzhen).This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, NIST, or any agency of the Federal Government. * This report may contain data that are not covered by the NVLAP accreditation and are marked with an asterisk “*” (Rev.2) FCC PART 15D MEASUREMENT AND TEST REPORT For MACKARL ENTERPRISES INC. 16960 Gale Ave., City of Industry, CA 91745, USA FCC ID: NK631238 Report Type: Original Report Product Type: DECT 6.0 Cordless Telephone with Digital Answering System and Call Waiting Caller ID(Base) Test Engineer: Bruce Zhang Report Number: RSZ10030401-Base Report Date: 2010-03-25 Reviewed By: Merry Zhao EMC Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 MACKARL ENTERPRISES INC. FCC ID: NK631238 Report #: RSZ10030401-Base Page 2 of 51 FCC Part 15D Test Report TABLE OF CONTENTS GENERAL INFORMATION...................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT).................................................................................... 4 OBJECTIVE.................................................................................................................................................................. 4 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................ 4 TEST METHODOLOGY.................................................................................................................................................. 4 TEST FACILITY............................................................................................................................................................ 4 SYSTEM TEST CONFIGURATION ......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION...................................................................................................................... 6 EQUIPMENT MODIFICATIONS...................................................................................................................................... 6 LOCAL SUPPORT EQUIPMENT LIST AND DETAILS........................................................................................................ 6 EXTERNAL I/O CABLE................................................................................................................................................. 6 CONFIGURATION OF TEST SETUP................................................................................................................................. 6 BLOCK DIAGRAM OF TEST SETUP...............................................................................................................................7 SUMMARY OF TEST RESULTS.............................................................................................................................. 9 FCC §15.319 (I) - RF RADIATION EXPOSURE.................................................................................................... 10 LIMIT......................................................................................................................................................................... 10 TEST DATA................................................................................................................................................................ 10 FCC §15.317 & §15.203 - ANTENNA REQUIREMENT........................................................................................ 11 STANDARD APPLICABLE............................................................................................................................................ 11 FCC §15.319(E) - ANTENNA GAIN......................................................................................................................... 12 STANDARD APPLICABLE............................................................................................................................................ 12 FCC §15.315 & §15.207 - CONDUCTED EMISSIONS .......................................................................................... 13 MEASUREMENT UNCERTAINTY................................................................................................................................. 13 EUT SETUP............................................................................................................................................................... 13 EMI TEST RECEIVER SETUP...................................................................................................................................... 14 TEST EQUIPMENT LIST AND DETAILS........................................................................................................................ 14 TEST PROCEDURE...................................................................................................................................................... 14 TEST RESULTS SUMMARY......................................................................................................................................... 14 TEST DATA................................................................................................................................................................ 14 FCC §15.323(A) - EMISSION BANDWIDTH ......................................................................................................... 17 STANDARD APPL…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions - Front View Conducted Emissions - Side View Radiated Emissions - Front View (30 -1000 MHz) Radiated Emissions - Side View (30 -1000 MHz) Spurious Emissions - Front View (Above 1 GHz) Spurious Emissions - Rear View (Above 1 GHz) Frequency Stability
