NKL-BW29F-BC29FSecurity Camera

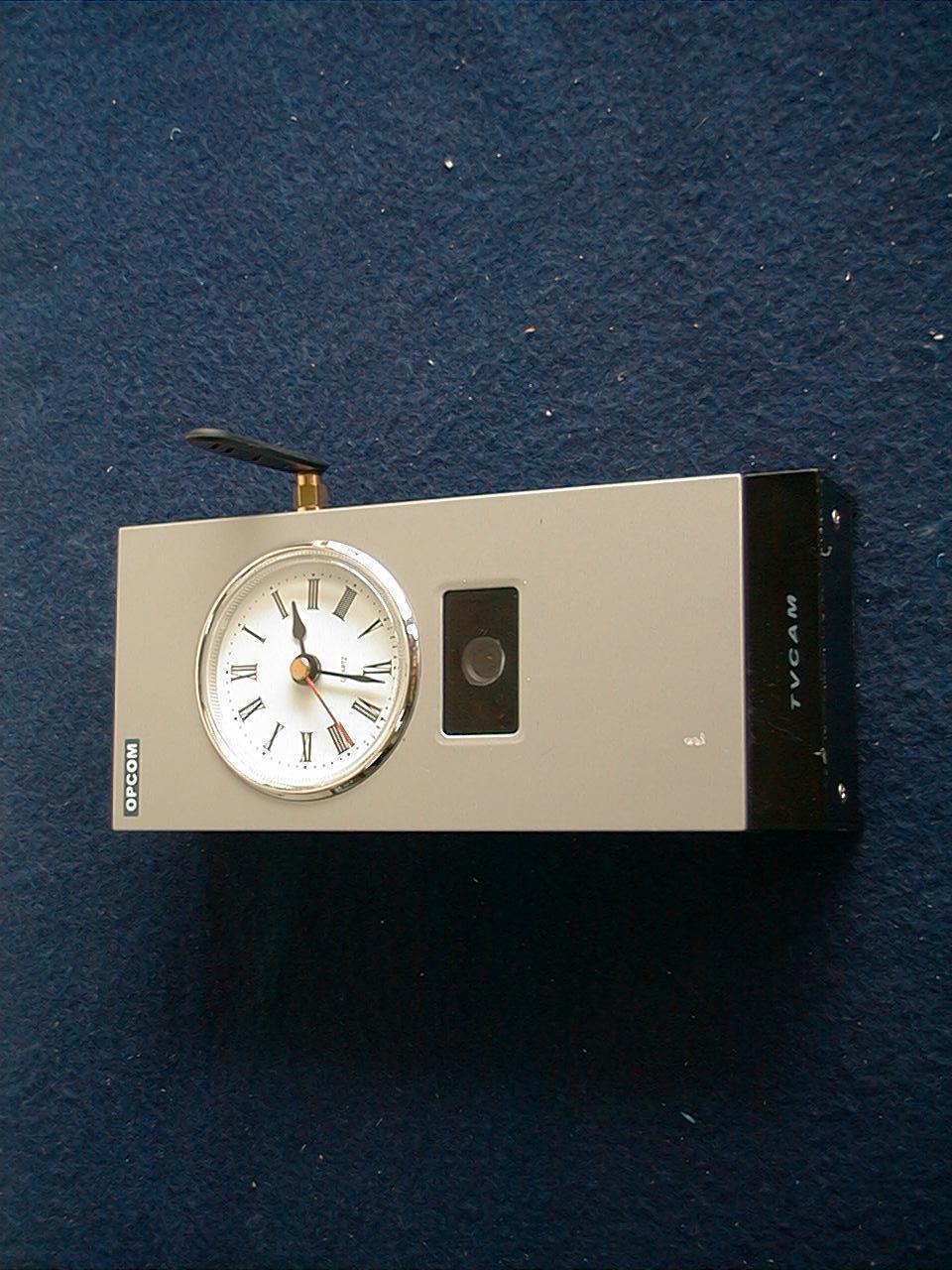

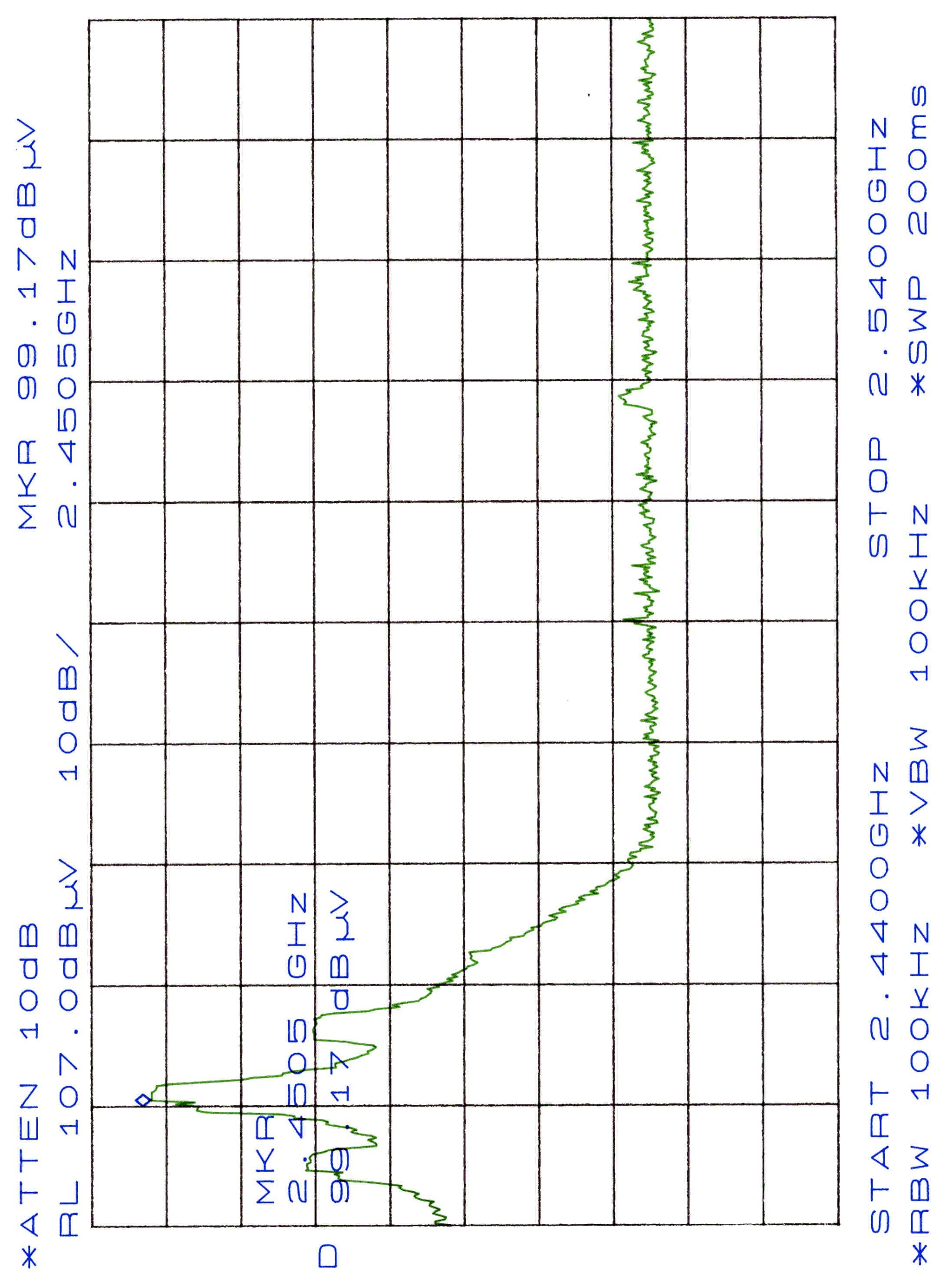

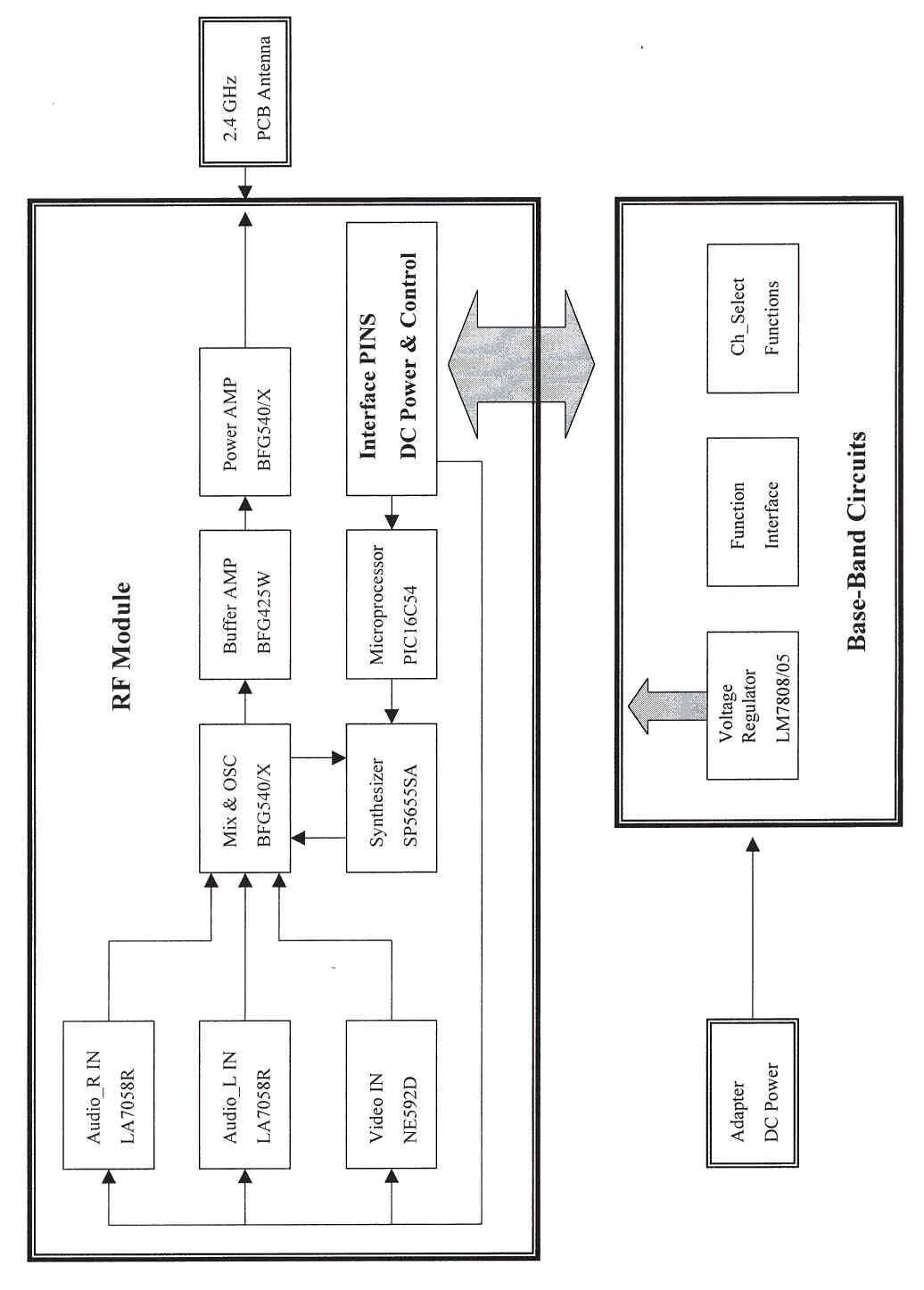

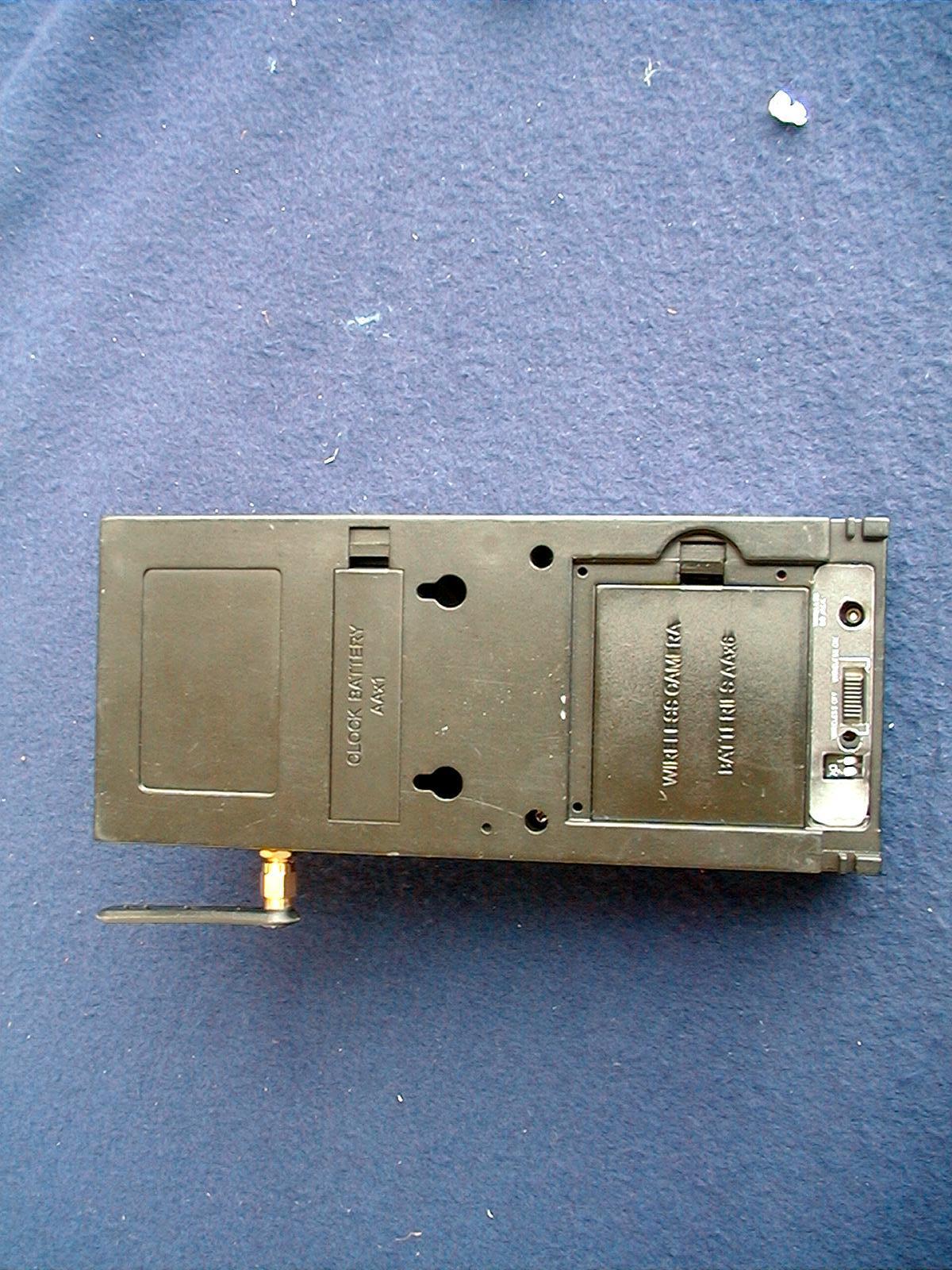

CLOCK EYE, using FM method for Audio/Video signal modulation. There are two channels relative to the following frequences: CH 1: 2415MHz, CH 2 : 2420 MHz.

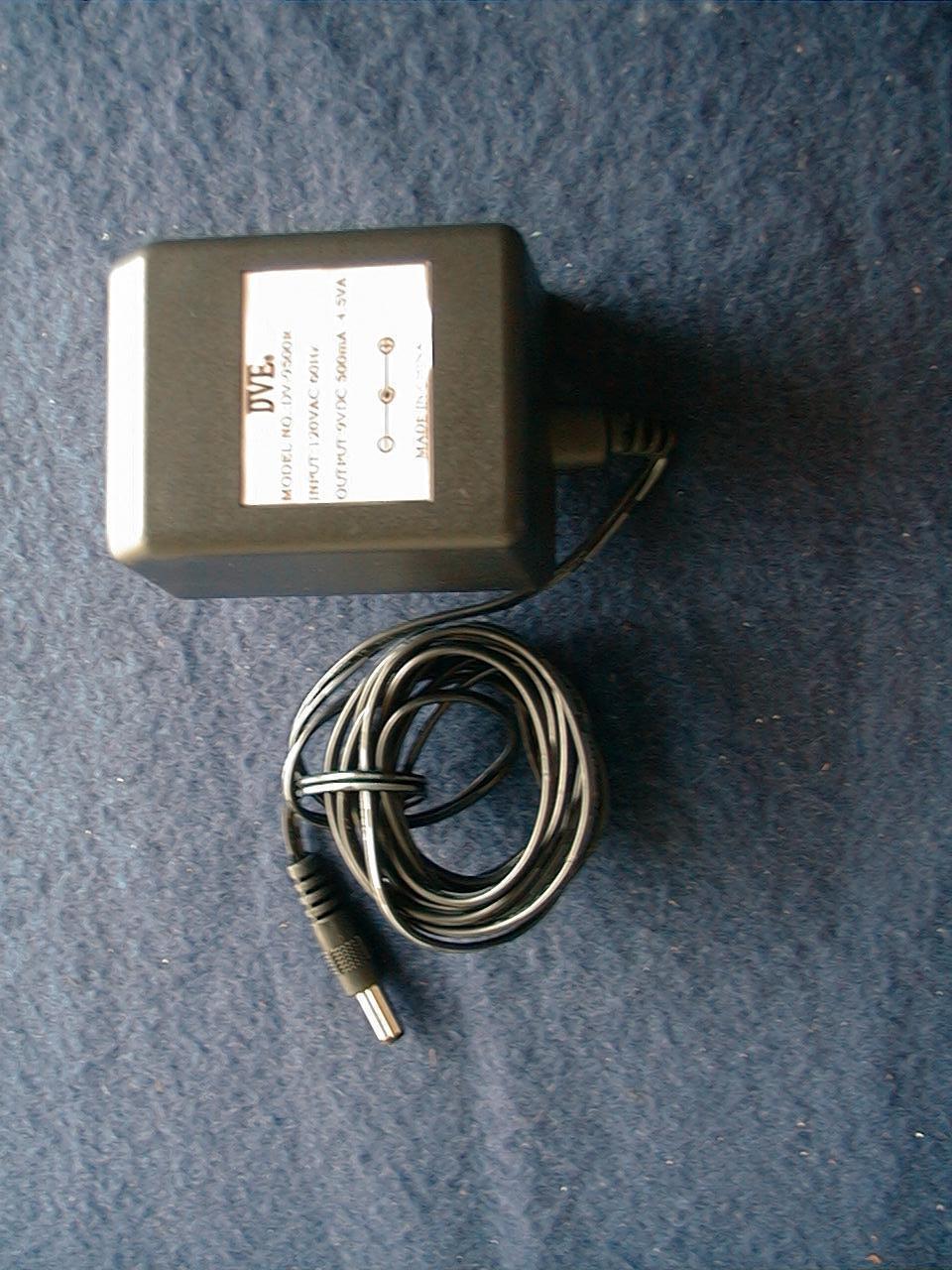

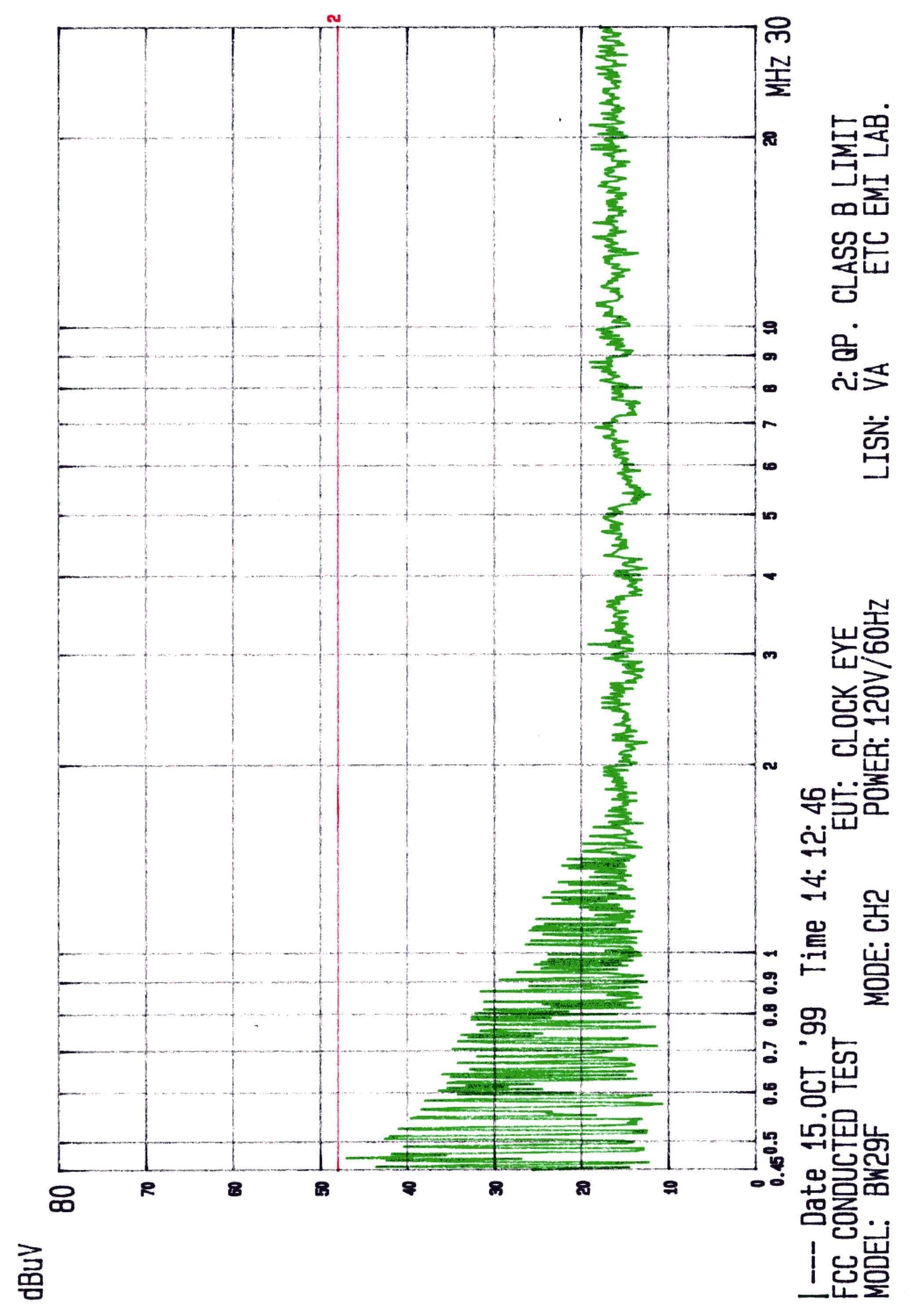

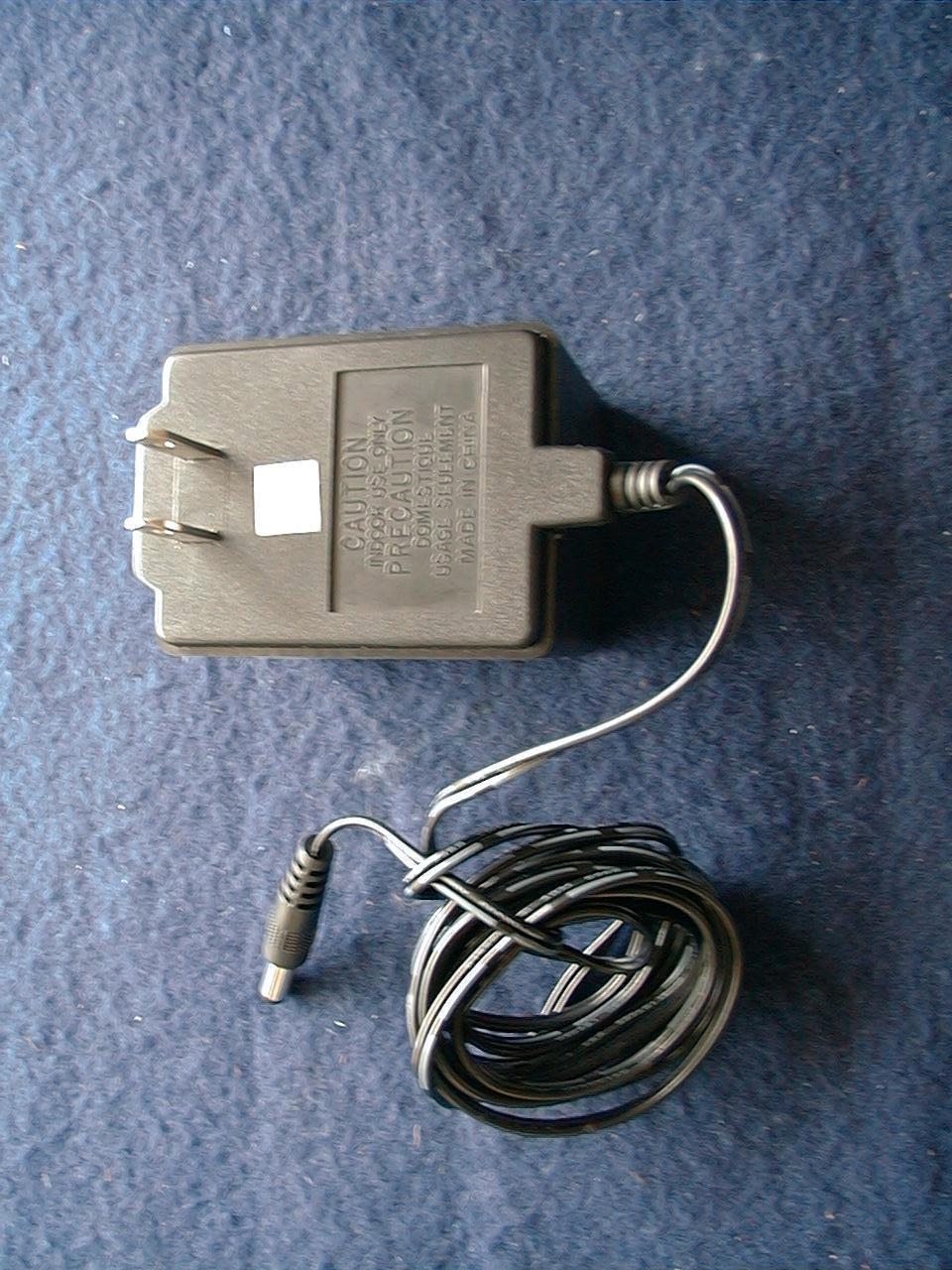

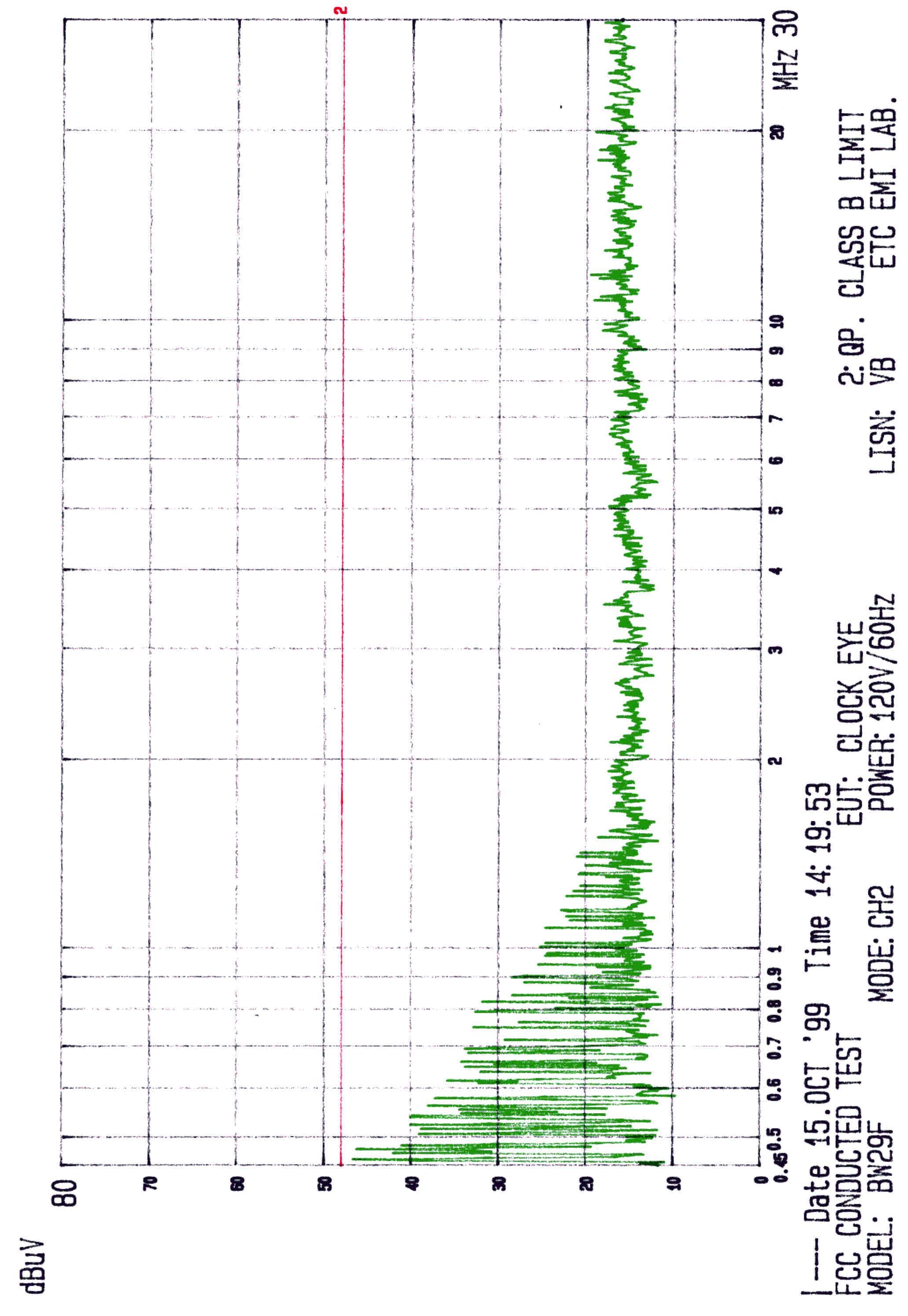

FCC ID. : NKL-BW29F-BC29F Rev. No 1.0 FCC Part 15 EMI TEST REPORT of E.U.T. : CLOCK EYE MODEL : BW29F-BC29F FCC ID. : NKL-BW29F-BC29F for APPLICANT : OPCOM INC. ADDRESS: 8F-5, NO. 6, LANE 609, SEC. 5, CHUNG HSING RD., SANCHUNG CITY, TAIPEI HSIEN, TAIWAN, R.O.C. Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 8 LANE 29, WENMIMG ROAD, LOSHAN TSUN, KWEISHAN HSIANG, TAOYUAN, TAIWAN, R.O.C. Tel:(03)3280026-32 Fax:(03)3280034 Report Number : ET88R-10-053-01 ETC Report No. : ET88R-10-053-01FCC ID. : NKL-BW29F-BC29F Rev. No 1.0 TEST REPORT CERTIFICATION Applicant: OPCOM INC. 8F-5, NO. 6, LANE 609, SEC. 5, CHUNG HSING RD., SANCHUNG CITY, TAIPEI HSIEN, TAIWAN, R.O.C. Manufacturer: OPCOM INC. 8F-5, NO. 6, LANE 609, SEC. 5, CHUNG HSING RD., SANCHUNG CITY, TAIPEI HSIEN, TAIWAN, R.O.C. Description of EUT: a) Type of EUT: CLOCK EYE b) Trade Name: OPCOM c) Model No.: BW29F-BC29F d) AC Power Adaptor : Model : DV-9500R I/P: 120V,60Hz; O/P: DC 9V Regulation Applied: FCC Rules and Regulations Part 15 Subpart C(1998) I HEREBY CERTIFY THAT: The data shown in this report were made in accordance with the procedures given in ANSI C63.4, and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note: 1. The result of the testing report relate only to the item tested. 2. The testing report shall not be reproduced expect in full, without the written approval of ETC. Issued Date :NOV. 11, 1999 Test Engineer : ( Chin Cheng Yeh ) Approve & Authorized Signer : Will Yauo, Supervisor EMI Test Site of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No. : ET88R-10-053-01FCC ID. : NKL-BW29F-BC29F Rev. No 1.0 Table of ContentsPage 1 GENERAL INFORMATION............................................................................................................ 1 1.1 Product Description ........................................................................................................................... 1 1.2 Characteristics of Device................................................................................................................... 1 1.3 Test Methodology.............................................................................................................................. 1 1.4 Test Facility ....................................................................................................................................... 1 2 PROVISIONS APPLICABLE........................................................................................................... 2 2.1 Definition........................................................................................................................................... 2 2.2 Requirement for Compliance............................................................................................................. 3 2.3 Restricted Bands of Operation........................................................................................................... 5 2.4 Labeling Requirement ....................................................................................................................... 5 2.5 User Information................................................................................................................................ 6 3 SYSTEM TEST CONFIGURATION............................................................................................... 7 3.1 Justification........................................................................................................................................ 7 3.2 Devices for Tested System ................................................................................................................ 7 4 RADIATED EMISSION MEASUREMENT................................................................................... 8 4.1 Applicable Standard .......................................................................................................................... 8 4.2 Measurement Procedure .................................................................................................................... 8 4.3 Measuring Instrument ...................................................................................................................... 10 4.4 Radiated Emission Data .................................................................................................................. 11 4.4.1 Tx Portion................................................................................................................................................ 11 4.4.2 Other Emissions ...................................................................................................................................... 13 4.5 Field Strength Calculation ............................................................................................................... 13 4.6 Photos of Radiation Measuring Setup ............................................................................................. 14 5 CONDUCTED EMISSION MEASUREMENT ............................................................................ 15 5.1 Standard Applicable ........................................................................................................................ 15 5.2 Measurement Procedure .................................................................................................................. 15 5.3 Conducted Emission Data ............................................................................................................... 16 5.4 Result Data Calculation ................................................................................................................... 17 5.5 Conducted Measurement Equipment............................................................................................... 17 5.6 Photos of Conduction Measuring Setup ...........................................................…
