NKR-77CORNER77Ghz Corner radar sensor

1 Confidential Material for Internal Use Only Feature & Application •One design for 3 applications, BSM、LCA and RCTA. •ISO 17387 compliance. •Programmable alert zone for different driving preferences. •Wide range of supply voltage, 12V system and 24V system UMD-RN02x 2 Confidential Material for Internal Use Only Feature & Application •One design for 3 applications, TA, FCTA and SA •Programmable alert zone for different driving preferences. •Wide range of supply voltage, 12V system and 24V system UMD-RN03x 3 Confidential Material for Internal Use Only One page specification Basic parameters •Operating voltage range: 9V–32V •Typical operating voltage: 12/24V •Ambient operating temperature: –40 °C to +85°C •Maximum power consumption: 4.5W •Operation frequency: 76~77GHz •Waterproofing: IP67 Performance parameters Occupied bandwidth : <900MHz Operation bandwidth : 750MHz •FOV: -75°to 75° •Range accuracy: ±0.1m •Range resolution: 0.2 m •Velocity accuracy: ±0.13m/s •Velocity resolution: 0.26m/s •Angle accuracy: +/-1.0 degree •Maximum number of tracking objects: 32 •CAN output cycle time: 50±5 ms. Detection target Truck, Passenger Car, Motorcycle Weight The sensor weight is 87±10g for each sensor. Sensor size 91.99*83.07*19.41±3 mm (L*W*H) with connector and fixed hole. IO Interface •SUMITOMO 90980-12303 connecter •2 CAN interface Installation Rear corner of vehicle (UMD-RN02x) Front corner of vehicle (UMD-RN03x) 4 Confidential Material for Internal Use Only Product Dimensional Drawings Explode Assembly Diagram 5 Confidential Material for Internal Use Only Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Professional installation is required IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cmbetween the radiator & your body.

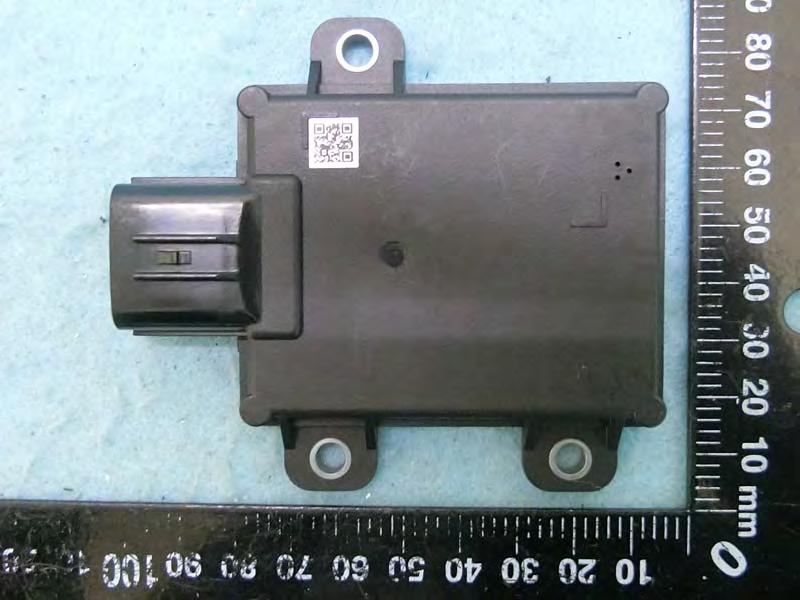

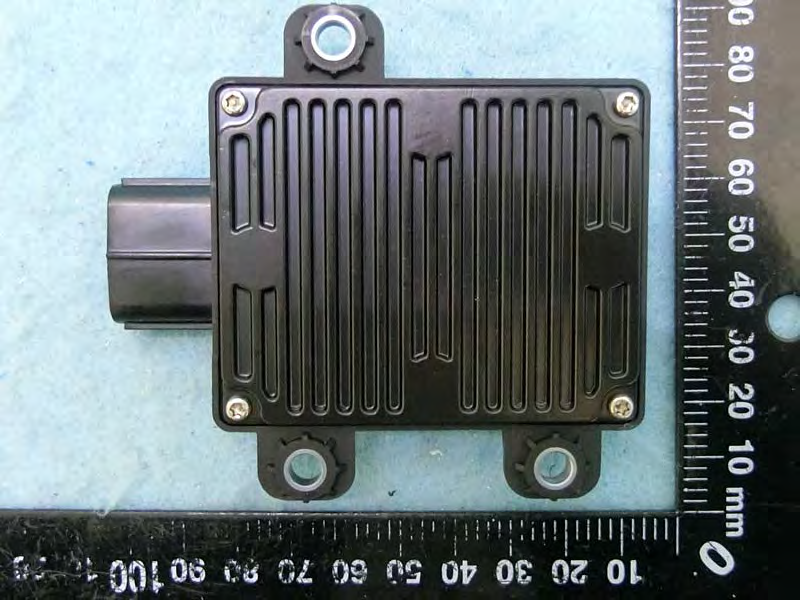

PHOTOGRAPHS OF EUT Report No. : EP111513 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 1 of 6 TEL : 886-3-656-9065 Issued Date : Feb. 09, 2021 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP Brand Name: Wistron NeWeb Corporation Model Name: UMD-RN03T / UMD-RN03x / UMD-RN02x (Refer to test report for detail information.) EUT 1 PHOTOGRAPHS OF EUT Report No. : EP111513 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 2 of 6 TEL : 886-3-656-9065 Issued Date : Feb. 09, 2021 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP PHOTOGRAPHS OF EUT Report No. : EP111513 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 3 of 6 TEL : 886-3-656-9065 Issued Date : Feb. 09, 2021 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP PHOTOGRAPHS OF EUT Report No. : EP111513 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 4 of 6 TEL : 886-3-656-9065 Issued Date : Feb. 09, 2021 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP EUT 2 PHOTOGRAPHS OF EUT Report No. : EP111513 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 5 of 6 TEL : 886-3-656-9065 Issued Date : Feb. 09, 2021 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP PHOTOGRAPHS OF EUT Report No. : EP111513 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 6 of 6 TEL : 886-3-656-9065 Issued Date : Feb. 09, 2021 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP

Label Location Label Here Label Here <Right side corner radar> <Left side corner radar>

PHOTOGRAPHS OF EUT Report No. : EP111513 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 1 of 5 TEL : 886-3-656-9065 Issued Date : Feb. 09, 2021 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP Brand Name: Wistron NeWeb Corporation Model Name: UMD-RN03T / UMD-RN03x / UMD-RN02x (Refer to test report for detail information.) PHOTOGRAPHS OF EUT Report No. : EP111513 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 2 of 5 TEL : 886-3-656-9065 Issued Date : Feb. 09, 2021 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP PHOTOGRAPHS OF EUT Report No. : EP111513 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 3 of 5 TEL : 886-3-656-9065 Issued Date : Feb. 09, 2021 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP PHOTOGRAPHS OF EUT Report No. : EP111513 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 4 of 5 TEL : 886-3-656-9065 Issued Date : Feb. 09, 2021 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP PHOTOGRAPHS OF EUT Report No. : EP111513 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 5 of 5 TEL : 886-3-656-9065 Issued Date : Feb. 09, 2021 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP
