NKR-77FRONT77Ghz Front center radar sensor

1 Confidential Material for Internal Use Only Feature & Application Feature: •Single sensor for forward-vehicle and object detection •Complies with warning coverage per ISO15623 specifications •Multiple tracking of up to 32 object •Programmable alert zone for different driving preferences byTTC &PET •2 transmit antenna support near range and far range. UMD-RN01x 2 Confidential Material for Internal Use Only One page specification Basic parameters: •Operating voltage range: 9V–16V •Typical operating voltage: 13.5V •Ambient operating temperature: –40 °C to +85°C •Maximum power consumption: 4.3 W •Operation frequency: 76~77GHZ •Waterproofing: IP67 Performance parameters: •Occupied bandwidth : <600Mhz •Operation bandwidth :450Mhz •FOV: -10°to 10°forlong range -50°to 50°for near range •Range accuracy: ±0.5m (far), ±0.17m(near) •Range resolution: 1m (far), 0.33 (near) •Velocity accuracy: ±0.22 m/s •Velocity resolution: 0.44m/s •Angle accuracy: +/-1 degree •Maximum detection range: 160m @ 0° •Maximum number of tracking objects: 32 •Cycle time: 50 ms. Detection target Truck, Passenger Car, Motorcycle. Weight The sensor weight is 120±5g Sensor size 91.5*83.1*19.96±3 mm (L*W*H) with connector and fixed hole. IO Interface •SUMITOMO 90980-12303 connecter •2 CAN interface Installation Front Center of vehicle 3 Confidential Material for Internal Use Only Product Dimensional Drawings Explode Assembly Diagram 4 Confidential Material for Internal Use Only Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Professional installation is required IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cmbetween the radiator & your body.

PHOTOGRAPHS OF EUT Report No. : EP111512 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 1 of 3 TEL : 886-3-656-9065 Issued Date : Feb. 09, 2021 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP Brand Name: Wistron NeWeb Corporation Model Name: UMD-RN01T / UMD-RN01x (Refer to test report for detail information.) PHOTOGRAPHS OF EUT Report No. : EP111512 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 2 of 3 TEL : 886-3-656-9065 Issued Date : Feb. 09, 2021 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP PHOTOGRAPHS OF EUT Report No. : EP111512 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 3 of 3 TEL : 886-3-656-9065 Issued Date : Feb. 09, 2021 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP

Label Location Label Here

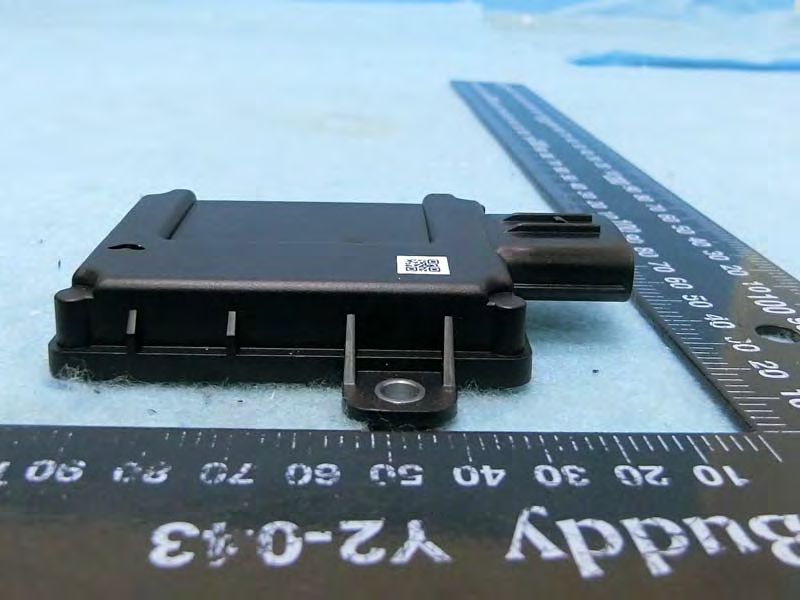

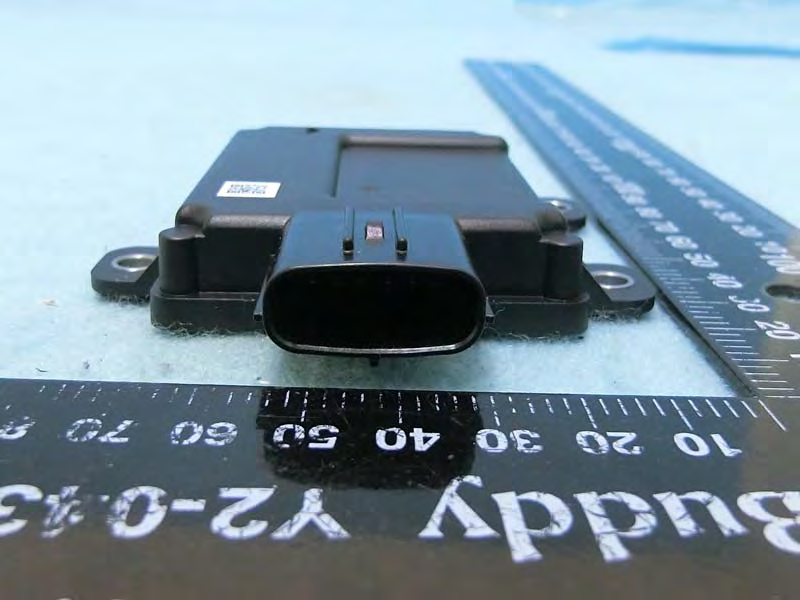

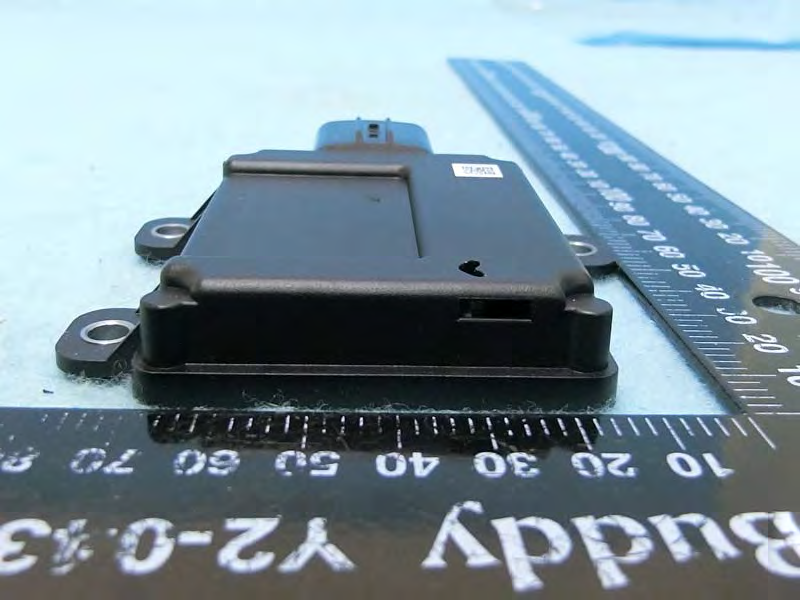

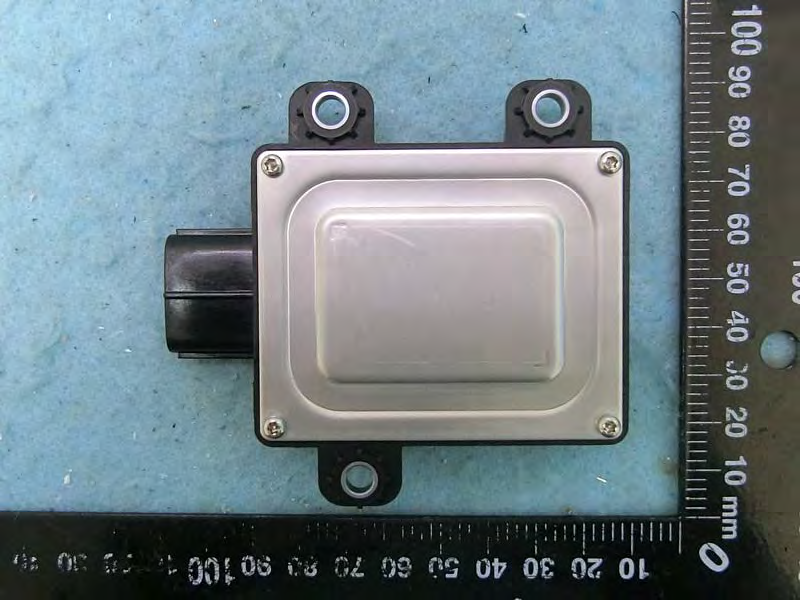

PHOTOGRAPHS OF EUT Report No. : EP111512 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 1 of 5 TEL : 886-3-656-9065 Issued Date : Feb. 09, 2021 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP Brand Name: Wistron NeWeb Corporation Model Name: UMD-RN01T / UMD-RN01x (Refer to test report for detail information.) PHOTOGRAPHS OF EUT Report No. : EP111512 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 2 of 5 TEL : 886-3-656-9065 Issued Date : Feb. 09, 2021 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP PHOTOGRAPHS OF EUT Report No. : EP111512 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 3 of 5 TEL : 886-3-656-9065 Issued Date : Feb. 09, 2021 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP PHOTOGRAPHS OF EUT Report No. : EP111512 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 4 of 5 TEL : 886-3-656-9065 Issued Date : Feb. 09, 2021 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP PHOTOGRAPHS OF EUT Report No. : EP111512 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page Number : 5 of 5 TEL : 886-3-656-9065 Issued Date : Feb. 09, 2021 FAX : 886-3-656-9085 EP Report Version : 01 Report Template No.: CB Ver1.0_EP

FCC RADIO EXPOSURE TEST REPORT Report No. : FA111512 TEL : 886-3-656-9065 Page Number : 2 of 8 FAX : 886-3-656-9085 Issued Date : Feb. 09, 2021 Report Template No.: CB-A1_1 Ver1.0 Report Version : 01 Table of Contents History of this test report ................................................................................................................................. 3 Summary of Test Result ................................................................................................................................... 4 1 General Description ............................................................................................................................. 5 1.1 EUT General Information ....................................................................................................................... 5 1.2 Antenna Information ............................................................................................................................... 5 1.3 Table for Multiple Listing ........................................................................................................................ 5 1.4 Accessories ............................................................................................................................................ 5 1.5 Testing Location ..................................................................................................................................... 6 2 Maximum Permissible Exposure ........................................................................................................ 7 2.1 Limit of Maximum Permissible Exposure ............................................................................................... 7 2.2 MPE Calculation Method ........................................................................................................................ 7 2.3 Calculated Result and Limit .................................................................................................................... 8 Photographs of EUT v01 FCC RADIO EXPOSURE TEST REPORT Report No. : FA111512 TEL : 886-3-656-9065 Page Number : 3 of 8 FAX : 886-3-656-9085 Issued Date : Feb. 09, 2021 Report Template No.: CB-A1_1 Ver1.0 Report Version : 01 History of this test report Report No. Version Description Issued Date FA111512 01 Initial issue of report Feb. 09, 2021 FCC RADIO EXPOSURE TEST REPORT Report No. : FA111512 TEL : 886-3-656-9065 Page Number : 4 of 8 FAX : 886-3-656-9085 Issued Date : Feb. 09, 2021 Report Template No.: CB-A1_1 Ver1.0 Report Version : 01 Summary of Test Result Report Clause Ref Std. Clause Test Items Result (PASS/FAIL) Remark 2 - Exposure evaluation PASS - Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: The declared of product specification for EUT presented in the report are provided by the manufacturer, and the manufacturer takes all the responsibilities for the accuracy of product specification. Reviewed by: Sam Chen Report Producer: Vicky Huang FCC RADIO EXPOSURE TEST REPORT Report No. : FA111512 TEL : 886-3-656-9065 Page Number : 5 of 8 FAX : 886-3-656-9085 Issued Date : Feb. 09, 2021 Report Template No.: CB-A1_1 Ver1.0 Report Version : 01 1 General Description 1.1 EUT General Information RF General Information Frequency Range (GHz) Operating Frequency (GHz) Modulation Type 76-81 76.425~76.575 (Port 1) 76.275~76.725 (Port 3) FMCW 1.2 Antenna Information Ant. Port Brand Model Name Antenna Type Connector Gain (dBi) TX RX 1 1 Wistron NeWeb Corporation - Patch Antenna N/A 22 15.1 2 Wistron NeWeb Corporation - Patch Antenna N/A - 15.1 3 Wistron NeWeb Corporation - Patch Antenna N/A 15.6 15.1 4 Wistron NeWeb Corporation - Patch Antenna N/A - 15.1 Note1: The above information was declared by manufacturer. Note2: The antenna has four ports (2TX, 4RX). Port 1 and Port 3 could transmit simultaneously. Port 1, Port 2, Port 3 and Port 4 could receive simultaneously. 1.3 Table for Multiple Listing The model names in the following table are all refer to the identical product. Model Name Description UMD-RN01T / UMD-RN01x (where “x” can be “0-9, or “a-z”, or “A-Z”, or blank) All the models are identical, the difference model served as marketing strategy. Note 1: From the above models, model: UMD-RN01T was selected as representative model for the test and its data was recorded in this report. Note 2: The above information was declared by manufacturer. 1.4 Accessories N/A FCC RADIO EXPOSURE TEST REPORT Report No. : FA111512 TEL : 886-3-656-9065 Page Number : 6 of 8 FAX : 886-3-656-9085 Issued Date : Feb. 09, 2021 Report Template No.: CB-A1_1 Ver1.0 Report Version : 01 1.5 Testing Location Testing Location HWA YA ADD : No. 52, Huaya 1st Rd., Guishan Dist., Taoyuan City, Taiwan (R.O.C.) TEL : 886-3-327-3456 FAX : 886-3-327-0973 JHUBEI ADD : No.8, Ln. 724, Bo’ai St., Zhubei City, Hsinchu County 302, Taiwan (R.O.C.) TEL : 886-3-656-9065 FAX : 886-3-656-9085 Test site Designation No. TW0006 with FCC. Test site registered number IC 4086D with Industry Canada. FCC RADIO EXPOSURE TEST REPORT Report No. : FA111512 TEL : 886-3-656-9065 Page Number : 7 of 8 FAX : 886-3-656-9085 Issued Date : Feb. 09, 2021 Report Template No.: CB-A1_1 Ver1.0 Report Version : 01 2 Maximum Permissible Exposure 2.1 Limit of Maximum Permissible Exposure (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 *(100) <6 3.0-30 1842/f 4.89/f *(900/f 2 ) <6 30-300 61.4 0.163 1.0 <6 300-1500 - - f/300 <6 1500-100,000 - - 5 <6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time …

Text truncated - open the document above for the full version.

FCC RADIO TEST REPORT Report No. : FR111512 TEL : 886-3-656-9065 Page Number : 2 of 32 FAX : 886-3-656-9085 Issued Date : Feb. 09, 2021 Report Template No.: CB-A17_2 Ver1.2 Report Version : 01 Table of Contents History of this test report ................................................................................................................................. 3 Summary of Test Result ................................................................................................................................... 4 1 General Description ............................................................................................................................. 5 1.1 Information .............................................................................................................................................. 5 1.2 Applicable Standards ............................................................................................................................. 7 1.3 Testing Location Information .................................................................................................................. 7 1.4 Measurement Uncertainty ...................................................................................................................... 7 2 Test Configuration of EUT ................................................................................................................... 8 2.1 Test Channel Frequencies Configuration ............................................................................................... 8 2.2 Conformance Tests and Related Test Frequencies............................................................................... 8 2.3 The Worst Case Measurement Configuration ........................................................................................ 9 2.4 EUT Operation during Test .................................................................................................................... 9 2.5 Accessories ............................................................................................................................................ 9 2.6 Support Equipment ................................................................................................................................. 9 2.7 Far Field Boundary Calculations .......................................................................................................... 10 2.8 Test Setup Diagram ............................................................................................................................. 11 3 Transmitter Test Result ..................................................................................................................... 12 3.1 Occupied Bandwidth ............................................................................................................................ 12 3.2 Radiated E.I.R.P Power ....................................................................................................................... 15 3.3 Transmitter Radiated Unwanted Emissions ......................................................................................... 17 3.4 Frequency Stability ............................................................................................................................... 29 4 Test Equipment and Calibration Data .............................................................................................. 31 Appendix A. Test Photos Photographs of EUT v01 FCC RADIO TEST REPORT Report No. : FR111512 TEL : 886-3-656-9065 Page Number : 3 of 32 FAX : 886-3-656-9085 Issued Date : Feb. 09, 2021 Report Template No.: CB-A17_2 Ver1.2 Report Version : 01 History of this test report Report No. Version Description Issued Date FR111512 01 Initial issue of report Feb. 09, 2021 FCC RADIO TEST REPORT Report No. : FR111512 TEL : 886-3-656-9065 Page Number : 4 of 32 FAX : 886-3-656-9085 Issued Date : Feb. 09, 2021 Report Template No.: CB-A17_2 Ver1.2 Report Version : 01 Summary of Test Result Report Clause Ref Std. Clause Test Items Result (PASS/FAIL) Remark 3.1 95.303 Occupied Bandwidth PASS - 3.2 95.3367 Radiated E.I.R.P Power PASS - 3.3 95.3379 Transmitter Radiated Unwanted Emissions PASS - 3.4 95.3379 Frequency Stability PASS - Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: The declared of product specification for EUT presented in the report are provided by the manufacturer, and the manufacturer takes all the responsibilities for the accuracy of product specification. Reviewed by: Sam Chen Report Producer: Vicky Huang FCC RADIO TEST REPORT Report No. : FR111512 TEL : 886-3-656-9065 Page Number : 5 of 32 FAX : 886-3-656-9085 Issued Date : Feb. 09, 2021 Report Template No.: CB-A17_2 Ver1.2 Report Version : 01 1 General Description 1.1 Information 1.1.1 RF General Information RF General Information Frequency Range (GHz) Operating Frequency Range (GHz) Test Frequency (GHz) Modulation 76-81 76.425~76.575 (Port 1) 76.44 FMCW 76.275~76.725 (Port 3) 1.1.2 Antenna Information Ant. Port Brand Model Name Antenna Type Connector Gain (dBi) TX RX 1 1 Wistron NeWeb Corporation - Patch Antenna N/A 22 15.1 2 Wistron NeWeb Corporation - Patch Antenna N/A - 15.1 3 Wistron NeWeb Corporation - Patch Antenna N/A 15.6 15.1 4 Wistron NeWeb Corporation - Patch Antenna N/A - 15.1 Note1: The above information was declared by manufacturer. Note2: The antenna has four ports (2TX, 4RX). Port 1 and Port 3 could transmit simultaneously. Port 1, Port 2, Port 3 and Port 4 could receive simultaneously. 1.1.3 EUT Operational Condition EUT Power Type From DC 24V Supply Voltage AC State AC voltage - Supply Voltage DC State DC voltage 24V 1.1.4 Test Signal Duty Cycle Test Signal Duty Cycle Continuous transmission - 36.70% Transmissions occur regularly in time - ...% FC…

Text truncated - open the document above for the full version.

Report No.: FR111512 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page No. : A1 of A4 TEL : 886-3-656-9065 FAX : 886-3-656-9085 Appendix A. Test Photos Report No.: FR111512 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page No. : A2 of A4 TEL : 886-3-656-9065 FAX : 886-3-656-9085 1. Photographs of Transmitter Spurious Emissions Test Configuration Test Configuration: Below 1GHz FRONT VIEW REAR VIEW Report No.: FR111512 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page No. : A3 of A4 TEL : 886-3-656-9065 FAX : 886-3-656-9085 Test Configuration: 1GHz~40GHz FRONT VIEW REAR VIEW Report No.: FR111512 SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory Page No. : A4 of A4 TEL : 886-3-656-9065 FAX : 886-3-656-9085 Test Configuration: Above 40GHz FRONT VIEW ─────THE END─────
