NKR-DFCN267NFC MODULE

USER MANUAL DFCN267 NFC MOUDULE USER MANUAL & Operational description USER MANUAL I. Introduction DFCN267 is a kind of NFC (Near Field Communication) module that could be embedded in one IT system by simply connecting the module to his target microcontroller and start developing his application software. II. DESIGN REFERENCE DFCN267 reference design module consists of the following: • Reference Design: When the user wishes to incorporate the DFCN267 to their device, it is strongly recommended that this reference design is copied “as is” in the final application board to guarantee optimum performance, regulatory compliance and lowest development time and design effort. • MCU FPC/FFC Connector: Allow user to connect the DFCN267 module to the host board via FPC/FFC connector. • Antenna Connector: Connect to FPC antenna. USER MANUAL III. FEATURE  Contactless protocols: • ISO14443 A/B • ISO15693 • ISO18092  Contactless transmission of data and RF energy  Peer-to-peer communication  Card emulation  NFC card reader/writer  Programmable receiver sensitivity  Carrier frequency: 13.56 MHz  RF Field detection  Single ended external antenna connection IV. Operation Conditions Supply voltage  AC mains  DC Type of DC Source  Internal DC supply  External DC adapter  Battery Operational Climatic  Tnom (20°C)  Tmax (55°C)  Tnim (-20°C) USER MANUAL V. MECHANICAL DIMENSION USER MANUAL VI. Certifications and Regulatory Item Feature Description 6.1 FCC RF: FCC part 15C EMI: FCC part 15B FCC grant: TCB Filing fee 6.2 CE RF: EN302291 Class B EMC: EN301489-1/-3 Safety: EN 60950-1:2006/A11:2009 6.3 IC RSS-210 ISSUE 8 RSS-GEN ISSUUE 3 General: This modular approval is limited to OEM/Integrators installation only. OEM integrators are responsible for ensuring that the end-user has no manual instructions to remove or install module. End Product Labeling (FCC) When the module is installed in the host device, the FCC ID label must be visible through a window on the final device or it must be visible when an access panel, door or cover is easily re-moved. If not, a second label must be placed on the outside of the final device that contains the following text: “Contains FCC ID: NKR-DFCN267”. The grantee's FCC ID can be used only when all FCC compliance requirements are met. Required FCC Compliance Statement for Host Integration To integrate this module into the host, the host manufacturer is responsible for the applicable FCC rules, including the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. In the user manual of the host device, the following statements are required to be included.  This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.  This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiated radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation If this equipment does cause harmful interference to radio or USER MANUAL television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: –Reorient or relocate the receiving antenna. –Increase the separation between the equipment and receiver. –Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. –Consult the dealer or an experienced radio/TV technician for help.  Changes or modifications not expressly approved by the party responsible for compliance could void the user‘s authority to operate the equipment. FCC Module Integration Restriction: This module has been certified by FCC as single module approval with the following restrictions: 1. The Loop antenna was verified in the conformity testing, and for compliance the antenna shall not be modified. A separate approval is required for all other operating configurations, including different antenna configurations. 2. If any other simultaneous transmission radio is installed in the host platform together with this module, or above restrictions cannot be kept, a separate RF exposure assessment and FCC equipment authorization is required. USER MANUAL End Product Labeling (IC) Labeling Requirements for the Host Device (from Section 3.2.1, RSS-Gen, Issue 3, December 2010): The host device shall be properly labeled to identify the module within the host device. The Industry Canada certification label of a module shall be clearly visible at all times when installed in the host device, otherwise the host device must be labeled to display the Industry Canada certification number of the module, preceded by the words ―Contains transmitter module, or the word ―Contains, or similar wording expressing the same meaning, as follows: "Contains transmitter module IC: 4441A-DFCN267 ". Required IC Compliance Statement for Host Integration To integrate this module into the host, the host manufacturer is responsible for the applicable Industry Canada rules, including the limits for a Class B digital device, pursuant to ICES-003 of the Industry Canada Rules In the user manual of the host device, the following statements are required to be included.  This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that …

Text truncated - open the document above for the full version.

Rev. 1/1/03 Wistron NeWeb Corporation 20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan Tel: 886-3-666-7799 ; Fax: 886-3-666-7323 Date: March 8, 2013 Federal Communications Commission Authorization and Evaluation Division Permanent Confidentiality Request regarding application for certification of FCC ID: NKR-DFCN267 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request Permanent Confidential treatment of information accompanying this application as outlined below:  Schematics  Block Diagram  Parts List  Operation Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely, Signature : Name and Job Title. : Troy Chien / Associate Technical Director E-mail [email protected] Tel. 886-3-6667799 x6361

Wistron NeWeb Corporation 20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan Tel: 886-3-666-7799 ; Fax: 886-3-666-7323 Date: March 8, 2013 Power of Attorney To whom it may concern, Please be notified that I, Troy Chien, have designated Jones Tsai in Sporton International Inc. as the person being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Jones Tsai in Sporton International Inc. on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: NKR-DFCN267 If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. This authorization shall expire six months from the original date. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, Contact Person: Troy Chien Company: Wistron NeWeb Corporation TEL: 886-3-666-7799 FAX: 886-3-666-7323 E-mail: [email protected]

1/1 Wistron NeWeb Corporation 20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan Tel: 886-3-666-7799 ; Fax: 886-3-666-7323 Date: March 8, 2013 Federal Communications Commission Authorization and Evaluation Division RE : Certification Application FCC ID : NKR-DFCN267 To Whom It May Concern, Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 180 days:  External Photos  Internal Photos  Test Setup Photos  User Manual The application contains technical information, which Wistron NeWeb Corporation deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Sincerely, Signature : Name and Job Title. : Troy Chien / Associate Technical Director E-mail [email protected] Tel. 886-3-6667799

Module Approval Request Letter Subject: Module Approval request letter Date: 3/11/2013 FCC ID: NKR-DFCN267 Dear Reviewer, We, Wistron NeWeb Corporation, would request NFC Module approved under module approval authorization. The requirements regulated in 15.212 have been fulfilled and clearly explained below. 1. The requirement of RF shielding: The shielding of the radio portion can be demonstrated in exhibition External Photo. 2. The requirement of buffered inputs: Buffered data inputs stage has been integrated in chip (PN544PC2ET). 3. The requirement of power supply regulation: The part number of the power regulator is (PN544PC2ET). 4. The requirements of section 15.203 and 15.204(C): The requirements of antenna connector and spurious emission have been fulfilled. Please reference the exhibition Test Report. 5. The requirement of stand-alone test configuration: Please reference exhibition Test Configuration Photo for the stand-alone test configuration. 6. The requirement of labeling: The instruction on the labeling rule of the end product has been stated in the users manual of this module. Please also see the exhibition Label Sample. 7. The requirement of compliance on specific rule or operating requirements: The required FCC rule has been fulfilled and all the instructions for maintaining compliance has been clearly stated in the Users Manual. 8. The requirement of RF exposure: NFC devices subject to §15.225 are generally excluded from the RF Exposure requirements due to its very low radiating power. Please do not hesitate to contact me for any questions of this request letter. Thank you. Applicant’s company name : Wistron NeWeb Corporation Applicant’s company address : 20 Park Avenue II Hsinchu Science Park Hsinchu 308 Taiwan Signature : _________________________________ Job Title and Dept. : Troy Chien / Associate Technical Director E-mail : [email protected] Tel. : 886-3-666-7799 Ex 6361

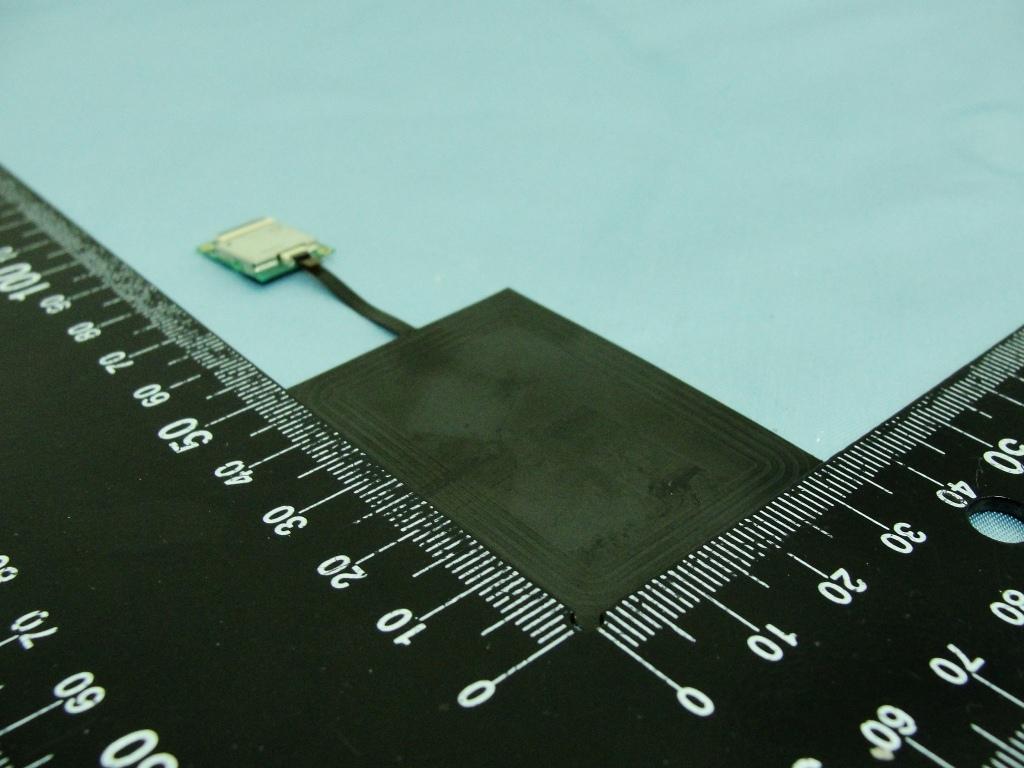

Photographs of EUT Report No.: EP320701 Brand Name: WNC / Model Name: DFCN267 SPORTON INTERNATIONAL INC. Page Number : 1 of 7 TEL : 886-3-327-3456 Report Issued Date : Mar. 08, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NKR-DFCN267 IC : 4441A-DFCN267 720510 1. External Photograph of EUT Photographs of EUT Report No.: EP320701 Brand Name: WNC / Model Name: DFCN267 SPORTON INTERNATIONAL INC. Page Number : 2 of 7 TEL : 886-3-327-3456 Report Issued Date : Mar. 08, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NKR-DFCN267 IC : 4441A-DFCN267

Front of the DUT Shielding Label Location

REVAPPROVEDDATE REV SIZE DWG TITLE DWG NO. SCALESHEET REV A4A4 A 1/1 1 OF 1 SANDY CHEN WING CHEN WING CHEN 12/19/12 12/19/12 12/19/12 SANDY CHEN A ARELEASE TO FILE12/19/12 4L-DFCN103-001 4L-DFCN103-001 DESCRIPTION REVISIONS PART NUMBER BLOCK PART NUMBER LABEL, WHITE , 10.7x10.5, DFCN-1LABEL, WHITE , 10.7x10.5, DFCN-1 WNC PROPRIETARY DFCN-1 20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C. Tel: 886-3-6667799 Fax: 886-3-5788726 NOTES: 1. MATERIAL: WHITE MATT PET, T=0.05 ADHESIVE: , T=0.024±0.003 2. COLOR: a. BACKGROUND=ORIGINAL MATERIAL COLOR(WHTIE) 3. TEMPERATURE RESISTANT= 80 C. 4. ROLLED O 10.7 10.5 R0.5, 4PLC ON LINE PRINTING Model Name: DFCN267 CMIIT ID: XXXXXXX FCC ID: NKR-DFCN267 IC: 4441A-DFCN267 XXXXXX 0560 XXXXXXX MIC/KS

Photographs of EUT Report No.: EP320701 Brand Name: WNC / Model Name: DFCN267 SPORTON INTERNATIONAL INC. Page Number : 3 of 7 TEL : 886-3-327-3456 Report Issued Date : Mar. 08, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NKR-DFCN267 IC : 4441A-DFCN267 720510 2. Internal Photograph of EUT Photographs of EUT Report No.: EP320701 Brand Name: WNC / Model Name: DFCN267 SPORTON INTERNATIONAL INC. Page Number : 4 of 7 TEL : 886-3-327-3456 Report Issued Date : Mar. 08, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NKR-DFCN267 IC : 4441A-DFCN267 Photographs of EUT Report No.: EP320701 Brand Name: WNC / Model Name: DFCN267 SPORTON INTERNATIONAL INC. Page Number : 5 of 7 TEL : 886-3-327-3456 Report Issued Date : Mar. 08, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NKR-DFCN267 IC : 4441A-DFCN267 Photographs of EUT Report No.: EP320701 Brand Name: WNC / Model Name: DFCN267 SPORTON INTERNATIONAL INC. Page Number : 6 of 7 TEL : 886-3-327-3456 Report Issued Date : Mar. 08, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NKR-DFCN267 IC : 4441A-DFCN267 NFC Antenna <Tx / Rx> Photographs of EUT Report No.: EP320701 Brand Name: WNC / Model Name: DFCN267 SPORTON INTERNATIONAL INC. Page Number : 7 of 7 TEL : 886-3-327-3456 Report Issued Date : Mar. 08, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NKR-DFCN267 IC : 4441A-DFCN267

SPORTON INTERNATIONAL INC. Report Format Version: a FCC TEST REPORT Report No. : FR320701 FCC RADIO TEST REPORT according to 47 CFR FCC Part 15 Subpart C § 15.225 Equipment : NFC Module Brand Name : WNC Model No. : DFCN267 Filing Type : New Application Applicant : Wistron NeWeb Corporation 20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C. FCC ID : NKR-DFCN267 Manufacturer Wistron NeWeb Corporation 20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C. Received Date : Feb. 07, 2013 Final Test Date : Mar. 06, 2012 Statement The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and ANSI C63.10-2009 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page No. : i of ii TEL : 886-3-327-3456 Issued Date : Mar. 08, 2013 FAX : 886-3-328-4978 FCC ID : NKR-DFCN267 FCC TEST REPORT Report No. : FR320701 Table of Contents 1. SUMMARY OF THE TEST RESULT ............................................................................................................. 2 2. GENERAL INFORMATION ............................................................................................................................ 3 2.1 Product Details ....................................................................................................................................................................... 3 2.2 Table for Test Modes .............................................................................................................................................................. 4 2.3 Table for Testing Locations ..................................................................................................................................................... 4 2.4 Table for Supporting Units ...................................................................................................................................................... 4 2.5 Test Configurations ................................................................................................................................................................. 5 3. TEST RESULT ............................................................................................................................................... 6 3.1 AC Power Line Conducted Emissions Measurement .............................................................................................................. 6 3.2 Field Strength of Fundamental Emissions and Mask Measurement ...................................................................................... 11 3.3 20dB Spectrum Bandwidth Measurement ............................................................................................................................. 15 3.4 Radiated Emissions Measurement ........................................................................................................................................ 17 3.5 Frequency Stability Measurement ......................................................................................................................................... 24 3.6 Antenna Requirements ......................................................................................................................................................... 27 4. LIST OF MEASURING EQUIPMENT .......................................................................................................... 28 5. TEST LOCATION ......................................................................................................................................... 29 6. TAF CERTIFICATE OF ACCREDITATION ................................................................................................. 30 APPENDIX A. PHOTOGRAPHS OF EUT APPENDIX B. SETUP PHOTOGRAPHS SPORTON INTERNATIONAL INC. Page No. : ii of ii TEL : 886-3-327-3456 Issued Date : Mar. 08, 2013 FAX : 886-3-328-4978 FCC ID : NKR-DFCN267 FCC TEST REPORT Report No. : FR320701 REVISION HISTORY REPORT NO. VERSION DESCRIPTION ISSUED DATE FR320701 Rev. 01 Initial issue of report Mar. 08, 2013 SPORTON INTERNATIONAL INC. Report Format Version: a FCC TEST REPORT Report No. : FR320701 CERTIFICATE OF COMPLIANCE according to 47 CFR FCC Part 15 Subpart C § 15.225 Equipment : NFC Module Brand Name : WNC Model No. : DFCN267 Applicant : Wistron NeWeb Corporation 20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C. Sporton International as requested by the applicant to evaluate the EMC performance of the product sample received on Feb. 07, 2013 would like to declare that the tested sample has been evaluated and found to be in compliance with the tested rule parts. The data recorded as well as the test configuration specified is true and accurate for showing the sample’s EMC nature. SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. ____________________________ Jones Tsai / Manager Reviewed Data: Jul. 30, 2004 SPORTON INTERNATIONAL INC. Page Number : 2 of 30 TEL : 886-3-327-3456 Report Issued Date : Mar. 08, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NKR-DFCN267 FCC RF Test Report Report No. : FR320701 1. SUMMARY OF THE TEST RESULT Applied Standard: 47 CFR FCC Part 15 Subpart C Part FCC Rule IC Rule Description of Test Result Under Limit 3.1 15.207 Gen 7.2.2 AC Power Line Conducted Emissions Complies 0.60dB at 13.558MHz 3.2 15.225(a)(b)(c) A2.6 Field Strength of Fundamental Emissions Complies…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. Page Number : B1 of B2 TEL : 886-3-327-3456 Report Issued Date : Mar. 08, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NKR-DFCN267 FCC RF Test Report Report No. : FR320701 Appendix B. Setup Photographs <Conducted Emission> SPORTON INTERNATIONAL INC. Page Number : B2 of B2 TEL : 886-3-327-3456 Report Issued Date : Mar. 08, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NKR-DFCN267 FCC RF Test Report Report No. : FR320701 <Radiated Emission> From 9KHz~30MHz From 30MHz~1GHz
