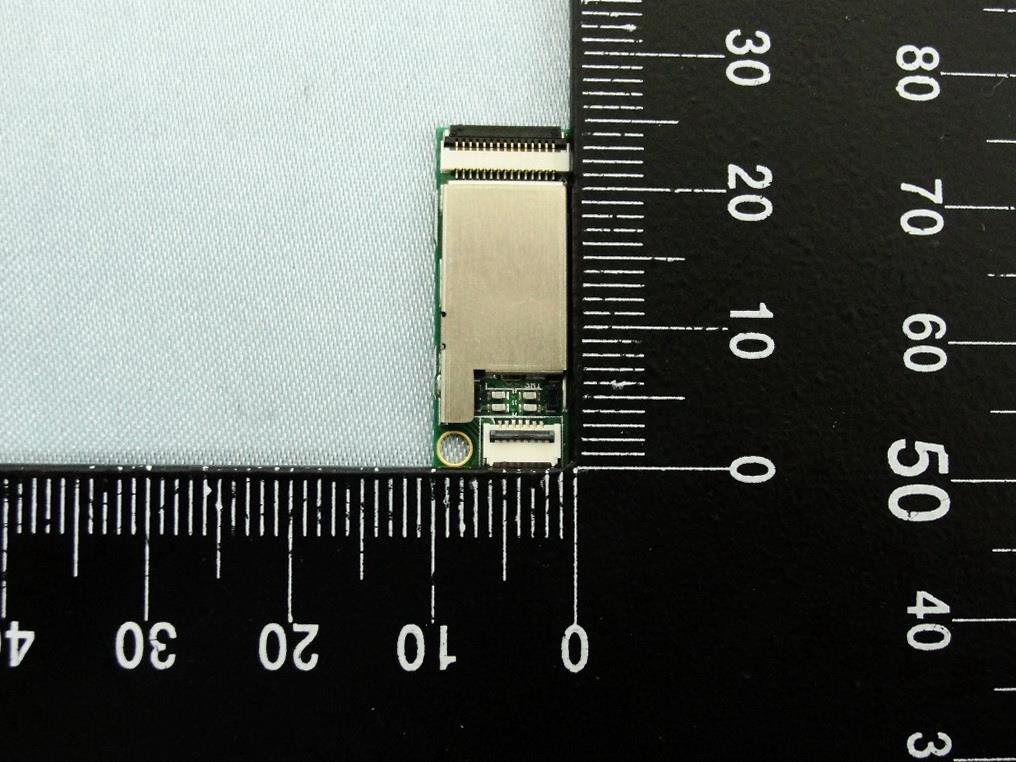

NKR-DFCN4NFC Module

DFCN-4 User manual (V0.3) Model Name: DFCN-4 NFC MODULE Description: NFC reader/writter module compatible Edition # Reason for revision Issue date V0.1 Initial Document 2013/12/17 V0.2 For regular document applied 2014/1/2 V0.3 Adding ICES-003 warning 2014/1/27 This document contains proprietary information which is the property of Wistron NeWeb Corporation and is strictly confidential and shall not be disclosed to others in whole or in part, reproduced, copied, or used as basic for design, manufacturing or sale of apparatus without the written permission of Wistron NeWeb Corporation. NFC module Delivery Specification V0.3 1 I. Introduction DFCN-4 is a kind of NFC (Near Field Communication) module that could be embedded in one IT system by simply connecting the module through I 2 C interface and start developing his application software. II. DESIGN REFERENCE DFCN-4 build a contactless front-end towards contactless applications available on existing system. Integrated MCU is decoupling the host controller from the timing constrains of RF communication and allowing autonomous operation, it provides flexible and integrated power management unit for RF front-end. DFCN-4 reference design module consists of the following: • Reference Design: When the user wishes to incorporate the DFCN-4 to their device, it is strongly recommended that this reference design is copied “as is” in the final application board to guarantee optimum performance, regulatory compliance and lowest development time and design effort. • MCU FPC/FFC Connector: Allow user to connect the DFCN-4 module to the host board via FPC/FFC connector. • Antenna Connector: Connected to FPC antenna, please note that matching circuitry should designed on antenna. NFC module Delivery Specification V0.3 2 III. Hardware Block Diagram DFCN-4 is a full feature NFC module and compliant with NFC standards (NFC Forum, EMVCo, ETSI/SCP). DFCN-4 has an optimized architecture for low-power consumption in different operation modes. The RF contactless front-end is supporting various transmission modes according to NFCIP-1, NFCIP-2, ISO/IEC14443, ISO/IEC 15693, ISO-14443, MIFARE, and FeliCa specifications. The major internal components are illustrated in Figure 1-1. Figure 1-1 NFC module Major Component and System Interface NFC module Delivery Specification V0.3 3 IV. Pin Definition Host connector Antenna connector Pin number Name Configuration Description 1 MOD_VDD Power 3.3V power supply 2 MOD_GND Ground Module ground 3 SWP SWP data SWP data line to UICC/SIM 4 VCC_BOOST Power supply Power rail for Booster 5 IRQ Output Interrupt to host 6 PMUVCC Power supply Power supply to UICC/SIM 7 I 2 C_SDA Input/ Output I 2 C data line 8 I 2 C_SCL Input I 2 C clock 9 MOD_GND Ground Module ground 10 Reset/Wakeup Input Wake up the module from standby mode or reset the module 11 DWL_REQ Input Firmware download control 12 SIMVCC Power The power rail used to power UICC/SIM. 13 MOD_VDD Power 3.3V power supply 14 VDD_IO Power 3.3V for host IO reference voltage 15 MOD_GND Ground Module ground Pin number Name Configuration Description 1 ANT1 Power Antenna connection for Card emulation 2 RXP Input Contactless receiver input 3 TX1 Contactless receiver output 1 4 GND Ground Transmitter ground 5 TX2 Contactless receiver output 2 6 RXN Input Contactless receiver input 7 ANT2 Power Antenna connection for Card emulation NFC module Delivery Specification V0.3 4 V. Specification/Feature Item Standard specifications Main chipset  NXP NPC100 Frequency  13.56MHz NFC Standards  ISO/IEC 14443A, ISO/IEC 14443B PCD  FeliCa PCD mode  Mifare PCD encryption mechanism  ISO/IEC 15693/ICODE VCD mode  NFC Forum tags  NFCIP-1/NFCIP-2 protocol  EMVCo 2.0.1 for PICC and PCD mode  NFC Forum Wave 1 and Wave 2  ETSI/SCP 102 613 and 102 622 for SWP/HCI Host interface  NCI protocol interface according to NFC Forum NCI 1.0 standardization  I 2 C High-speed mode supported Host connector  15 pin FPC/FFC Antenna connector  7 pin FPC/FFC Operation temperature  0 o ~ 85 o C Storage temperature  -20 o ~ 125 o C VI. Electrical Characteristics Symbol Parameter Min Typical Maximum Unit MOD_VDD Power supply input 2.7 3.3 5.5 V VDD_IO IO power supply 3.0 3.3 3.6 VCC_BOOST Power supply input - 5.0 5.5 VDD_SIM Power supply for SWP interface 1.62 3.6 Note. Test without operating booster NFC module Delivery Specification V0.3 5 VII. Recommended Operation Conditions Supply voltage  AC mains  DC Type of DC Source  Internal DC supply  External DC adapter  Battery Operational Climatic  Tnom (20°C)  Tmax (85°C)  Tnim (-25°C) VIII. Power sequence i. Power up Symbol Parameter Min Typical Maximum Unit T VBATVEN Minimum time from VBAT high to V EN high 0 - - ms T PVDDVEN Minimum time from PVDD high to V EN high 0 - - ms ii. Reset Symbol Parameter Min Typical Maximum Unit T RESETVEN VEN pulse width to rest 3 - - us T BOOT Boot time - - 2.5 ms iii. Down load mode Symbol Parameter Min Typical Maximum Unit T GPIO4VEN DWL_REQ voltage high to V EN high 0 - - ms NFC module Delivery Specification V0.3 6 IX. Assembly Guidelines X. Mechanical Dimension NKR-DFCN4 NFC module Delivery Specification V0.3 7 XI. FPC/FFC specifications i. AFC45-S15H1A-HF : 15 pin FFC ii. AFC26-S07F1A-HF : 7 pin FFC NFC module Delivery Specification V0.3 8 XII. Certifications and Regulatory Item Feature Description 6.1 FCC RF: FCC part 15C EMI: FCC part 15B FCC grant: TCB Filing fee 6.2 CE RF: EN302291 Class B EMC: EN301489-1/-3 Safety: EN 60950-1:2006/A11:2009 6.3 IC RSS-210 ISSUE 8 RSS-GEN ISSUUE 3 General: This modular approval is limited to OEM/Integrators installation only. OEM integrators are responsible for ensuring that the end-user has no manual instructions to remove or install module. End Product Labeling (FCC) When the module is installed in the host device, the FCC ID label must be visible through a window on the final device or it must be visible when an access panel, door or cover is easily re-moved. If not, a second labe…
