NKR-DNMA83WLAN a/b/g/n mini-PCI Module

WLAN a/b/g/n mini-PCI Module DNMA-83 User Manual Version: 1.0 Nov 2007 1 Copyright Statement No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, whether electronic, mechanical, photocopying, recording or otherwise without the prior writing of the publisher. Windows ™ 98SE/2000/ME/XP are trademarks of Microsoft ® Corp. Pentium is trademark of Intel. All copyright reserved. 2 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: To assure continued compliance, (example - use only shielded interface cables when connecting to computer or peripheral devices) any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible. 3 IMPORTANT NOTE: This module is intended for OEM integrator. The OEM integrator is still responsible for the FCC compliance requirement of the end product, which integrates this module. 20cm minimum distance has to be able to be maintained between the antenna and the users for the host this module is integrated into. Under such configuration, the FCC radiation exposure limits set forth for an population/uncontrolled environment can be satisfied. Any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. USERS MANUAL OF THE END PRODUCT: In the users manual of the end product, the end user has to be informed to keep at least 20cm separation with the antenna while this end product is installed and operated. The end user has to be informed that the FCC radio-frequency exposure guidelines for an uncontrolled environment can be satisfied. The end user has to also be informed that any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. If the size of the end product is smaller than 8x10cm, then additional FCC part 15.19 statement is required to be available in the users manual: This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. 4 LABEL OF THE END PRODUCT: The final end product must be labeled in a visible area with the following " Contains TX FCC ID: NKR- DNM A8 3 ". If the size of the end product is larger than 8x10cm, then the following FCC part 15.19 statement has to also be available on the label: This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B conforme á la norme NMB-003 du Canada. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.＂ For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible. This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p) is not more than that permitted for successful communication. The OEM integrator is still responsible for the IC compliance requirement of the end product, which integrates this module. 20cm minimum distance has to be able to be maintained between the antenna and the users for the host this module is integrated into. Under such configuration, the IC RSS-102 radiation exposure limits set forth for an population/uncontrolled environment can be satisfied. 5 Any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. USERS MANUAL OF THE END PRODUCT: In the users manual of the end product, the end user has to be informed to keep at least 20cm separation with the antenna while this end product is installed …

Text truncated - open the document above for the full version.

Wistron NeWeb Corporation No.10-1,Li-hsin Road I,Hsinchu Science Park,Hsinchu 300,Taiwan, R.O.C. Tel: 886-3-666-7799 Fax: 886-3-666-1654 Date: 2008/2/22 Subject: Ad Hoc Mode Function Declaration FCC ID: NKR-DNMA83 To Whom it may concern, This device is acting as master and operating on 2.4GHz and 5GHz band. Ad Hoc function is available and not able to work on non-US frequencies. Please contact the one signed below or the authorized agent for this filing. Thank you. NOTE: Ad-hoc mode is available only for 802.11 b/g. It is not available for 802.11a. This product and do not have radar detection function specified by FCC. The software will not let you use ad-hoc mode under 802.11a. Regards, FCC Grantee contact person information. Applicant: Wistron NeWeb Corporation Address: No.10-1,Li-hsin Road I,Hsinchu Science Park,Hsinchu 300,Taiwan, R.O.C. Name and Job Title: Edward Yeh / Engineer / Design Servicedept. Tel: 886-3-666-7799 E-mail: [email protected] Signature:

Wistron NeWeb Corporation No.10-1,Li-hsin Road I,Hsinchu Science Park,Hsinchu 300,Taiwan, R.O.C. Tel: 886-3-666-7799 Fax: 886-3-666-1654 DoC Attestation Letter Date: 2008/3/3 We Wistron NeWeb Corporation ensure that our product with FCC ID: NKR-DNMA83 will comply with rule part 15.101. FCC Grantee contact person information. Applicant : Wistron NeWeb Corporation Address : No.10-1,Li-hsin Road I,Hsinchu Science Park,Hsinchu 300,Taiwan, R.O.C. Signature : __________________________ Name and Job Title. : Edward Yeh / Engineer / Design Servicedept. E-mail : [email protected] Te l . : 886-3-666-7799

Page No. : 9 Limited Module Approval Request Letter Subject: Limited Module Approval Date: 2008/2/22 FCC ID: NKR-DNMA83 Dear Reviewer, We, Sporton International Inc., are authorized by Wistron NeWeb Corporation to have their state-of-the-art WLAN a/b/g/n mini-PCI Module approved under limited module approval authorization. The application of this module is specified to mobile host equipment. The requirements regulated in Public Notice DA00-1407 have been fulfilled and clearly explained below. 1. The requirement of RF shielding: The shielding of the radio portion can be demonstrated in exhibition External Photo. 2. The requirement of buffered inputs: Buffered data inputs stage has been integrated in chip AR9160. 3. The requirement of power supply regulation: The part number of the power regulator is AME8805MEFT. 4. The requirements of section 15.203 and 15.204(C): The requirements of antenna connector and spurious emission have been fulfilled. Please reference the exhibition Test Report. 5. The requirement of stand-alone test configuration: Please reference exhibition Test Configuration Photo for the stand-alone test configuration. 6. The requirement of labeling: The instruction on the labeling rule of the end product has been stated in the users manual of this module. Please also see the exhibition Label Sample. 7. The requirement of compliance on specific rule or operating requirements: The required FCC rule has been fulfilled and all the instructions for maintaining compliance has been clearly stated in the Users Manual. 8. The requirement of RF exposure requirement can be fulfilled only for mobile configuration. Please do not hesitate to contact me for any questions of this request letter. Thank you. Company name : Sporton International Inc. Company Address : No.8, Lane 724, Bo-ai St., Jhubei City, Hsinchu County 302, Taiwan, R.O.C. Signature : Name : Leo Huang Job Title : Manager

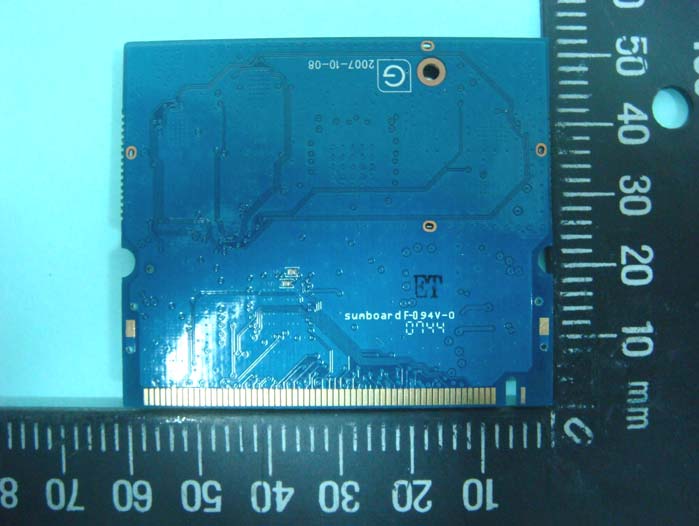

SPORTON International Inc. PAGE NUMBER : A1 OF A5 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 25, 2008 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A5 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 25, 2008 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A5 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 25, 2008 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A5 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 25, 2008 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A5 OF A5 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 25, 2008 FAX : 886-2-2696-2255

SPORTON International Inc. PAGE NUMBER : A1 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 25, 2008 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 25, 2008 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 25, 2008 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 25, 2008 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A5 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 25, 2008 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A6 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 25, 2008 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A7 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 25, 2008 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A8 OF A8 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 25, 2008 FAX : 886-2-2696-2255

Report No.: FR7D1412 FCC ID: NKR-DNMA83 Page No. : C1 of C5 Appendix C. Maximum Permissible Exposure Report No.: FR7D1412 FCC ID: NKR-DNMA83 Page No. : C2 of C5 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP××30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Peak RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP × ×× From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR7D1412 FCC ID: NKR-DNMA83 Page No. : C3 of C5 1.3. Calculated Result and Limit For 5GHz Band: Band 1 Antenna Type : Dipole Antenna Max Conducted Power for 802.11a Ant. B-1 + An.t B-2 + Ant. B-3 : 16.29 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 4.28 2.6792 16.2900 42.5598 0.022696 1 Complies Antenna Type : Emdeded Antenna Max Conducted Power for 802.11a Ant. D-1 + An.t D-2 + Ant. D-3 : 16.67 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 5.1 3.2359 16.6700 46.4515 0.029919 1 Complies Antenna Type : Dipole Antenna Max Conducted Power for draft n 40MHz Ant. B-1 + An.t B-2 + Ant. B-3 : 16.52 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 4.28 2.6792 16.5200 44.8745 0.023930 1 Complies Antenna Type : Emdeded Antenna Max Conducted Power for draft n 20MHz Ant. D-1 + An.t D-2 + Ant. D-3 : 16.78 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 5.1 3.2359 16.7800 47.6431 0.030687 1 Complies Report No.: FR7D1412 FCC ID: NKR-DNMA83 Page No. : C4 of C5 For 5GHz Band: Band 4 Antenna Type : Dipole Antenna Max Conducted Power for 802.11a Ant. B-1 + An.t B-2 + Ant. B-3 : 27.01 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 4.28 2.6792 27.0089 502.2181 0.267820 1 Complies Antenna Type : Emdeded Antenna Max Conducted Power for 802.11a Ant. D-1 + An.t D-2 + Ant. D-3 : 27.64 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 5.1 3.2359 27.6352 580.1175 0.373651 1 Complies Antenna Type : Dipole Antenna Max Conducted Power for draft n 20MHz Ant. B-1 + An.t B-2 + Ant. B-3 : 27.43 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 4.28 2.6792 27.4337 553.8245 0.295340 1 Complies Antenna Type : Emdeded Antenna Max Conducted Power for draft n 20MHz Ant. D-1 + An.t D-2 + Ant. D-3 : 27.80 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 5.1 3.2359 27.8022 602.8596 0.388299 1 Complies Report No.: FR7D1412 FCC ID: NKR-DNMA83 Page No. : C5 of C5 For 2.4GHz Band: Antenna Type : Dipole Antenna Max Conducted Power for 802.11b Ant. A-1 + An.t A-2 + Ant. A-3 : 24.18 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 4.9 3.0903 24.1753 261.5342 0.160871 1 Complies Antenna Type : Emdeded Antenna Max Conducted Power for 802.11g Ant. D-1 + An.t D-2 + Ant. D-3 : 24.15 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 3.8 2.3988 24.1474 259.8594 0.124076 1 Complies Antenna Type : Dipole Antenna Max Conducted Power for draft n 20MHz Ant. A-1 + An.t A-2 + Ant. A-3 : 22.75 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 4.09 2.5645 22.7522 188.4614 0.096200 1 Complies Antenna Type : Emdeded Antenna Max Conducted Power for draft n 20MHz Ant. D-1 + An.t D-2 + Ant. D-3 : 22.61 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 3.8 2.3988 22.6050 182.1816 0.086987 1 Complies

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company Wistron NeWeb Corporation Applicant Address No.10-1,Li-hsin Road I,Hsinchu Science Park,Hsinchu 300,Taiwan, R.O.C. FCC ID NKR-DNMA83 Manufacturer’s company Wistron NeWeb Corporation Manufacturer Address No.10-1,Li-hsin Road I,Hsinchu Science Park,Hsinchu 300,Taiwan, R.O.C. Product Name WLAN a/b/g/n mini-PCI Module Brand Name WNC Model Name DNMA-83 Test Rule Part(s) 47 CFR FCC Part 15 Subpart E § 15.407 Test Freq. Range 5150 ~ 5250MHz Received Date Nov. 29, 2007 Final Test Date Feb. 26, 2008 Submission Type Original Equipment Operating Mode Master Statement Test result included is only for the 802.11a (5150 ~ 5250MHz) of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart E. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR7D1412AA Report Format Version: 01 Page No. : i of ii FCC ID: NKR-DNMA83 Issued Date : Feb. 28, 2008 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................3 3.3. Table for Filed Antenna.......................................................................................................................................................................4 3.4. Table for Carrier Frequencies .............................................................................................................................................................5 3.5. Table for Test Modes ...........................................................................................................................................................................6 3.6. Table for Testing Locations..................................................................................................................................................................6 3.7. Table for Supporting Units ...................................................................................................................................................................6 3.8. Table for Parameters of Test Software Setting .....................................................................................................................................7 3.9. Test Configurations .............................................................................................................................................................................8 4. TEST RESULT ................................................................................................................................................... 11 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................11 4.2. 99% Occupied Bandwidth Measurement ........................................................................................................................................15 4.3. Maximum Conducted Output Power Measurement .........................................................................................................................20 4.4. Power Spectral Density Measurement ..............................................................................................................................................32 4.5. Peak Excursion Measurement ...........................................................................................................................................................37 4.6. Radiated Emissions Measurement ....................................................................................................................................................43 4.7. Band Edge Emissions Measurement .................................................................................................................................................63 4.8. Frequency Stability Measurement ....................................................................................................................................................68 4.9. Antenna Requirements .....................................................................................................................................................................70 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 71 6. TEST LOCATION.............................................................................................................................................. 73 7. TAF CERTIFICATE OF ACCREDITATION .......................................................................................................…

Text truncated - open the document above for the full version.

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company Wistron NeWeb Corporation Applicant Address No.10-1,Li-hsin Road I,Hsinchu Science Park,Hsinchu 300,Taiwan, R.O.C. FCC ID NKR-DNMA83 Manufacturer’s company Wistron NeWeb Corporation Manufacturer Address No.10-1,Li-hsin Road I,Hsinchu Science Park,Hsinchu 300,Taiwan, R.O.C. Product Name WLAN a/b/g/n mini-PCI Module Brand Name WNC Model Name DNMA-83 Test Rule Part(s) 47 CFR FCC Part 15 Subpart E § 15.407 Test Freq. Range 5150 ~ 5250MHz Received Date Nov. 29, 2007 Final Test Date Feb. 29, 2008 Submission Type Original Equipment Operating Mode Master Statement Test result included is only for the Draft n (5150 ~ 5250MHz) of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart E. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR7D1412AB Report Format Version: 01 Page No. : i of ii FCC ID: NKR-DNMA83 Issued Date : Feb. 28, 2008 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................5 3.3. Table for Filed Antenna.......................................................................................................................................................................5 3.4. Table for Carrier Frequencies .............................................................................................................................................................6 3.5. Table for Test Modes ...........................................................................................................................................................................7 3.6. Table for Testing Locations..................................................................................................................................................................7 3.7. Table for Supporting Units ...................................................................................................................................................................8 3.8. Table for Parameters of Test Software Setting .....................................................................................................................................8 3.9. Test Configurations .............................................................................................................................................................................9 4. TEST RESULT ................................................................................................................................................... 12 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................12 4.2. 99% Occupied Bandwidth Measurement ........................................................................................................................................16 4.3. Maximum Conducted Output Power Measurement .........................................................................................................................23 4.4. Power Spectral Density Measurement ..............................................................................................................................................43 4.5. Peak Excursion Measurement ...........................................................................................................................................................50 4.6. Radiated Emissions Measurement ....................................................................................................................................................57 4.7. Band Edge Emissions Measurement .................................................................................................................................................85 4.8. Frequency Stability Measurement ....................................................................................................................................................94 4.9. Antenna Requirements .....................................................................................................................................................................96 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 97 6. TEST LOCATION.............................................................................................................................................. 99 7. TAF CERTIFICATE OF ACCREDITATION .......................................................................................................…

Text truncated - open the document above for the full version.

Report No.: FR7D1412AB Report Format Version: 01 Page No. : 85 of 100 FCC ID: NKR-DNMA83 Issued Date : Feb. 28, 2008 4.7. Band Edge Emissions Measurement 4.7.1. Limit For transmitters operating in the 5.15-5.25 GHz band: all emissions outside of the 5.15-5.25 GHz band shall not exceed an EIRP of -27 dBm/MHz (68.3dBuV/m at 3m). For transmitters operating in the 5.470-5.725 GHz band: all emissions outside of the 5.470-5.725 GHz band shall not exceed an EIRP of -27 dBm/MHz (68.3dBuV/m at 3m). For transmitters operating in the 5.725-5.825 GHz band: all emissions within the frequency range from the band edge to 10 MHz above or below the band edge shall not exceed an EIRP of -17 dBm/MHz (78.3dBuV/m at 3m); for frequencies 10 MHz or greater above or below the band edge, emissions shall not exceed an EIRP of -27 dBm/MHz (68.3dBuV/m at 3m). In addition, In case the emission fall withi…

Text truncated - open the document above for the full version.
