NKR-DNUA134802.11n a/b/g USB module

Wireless LAN Adaptor (11abgn 2x2 USB) DNUA-134 User Manual Copyright Statement No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, whether electronic, mechanical, photocopying, recording or otherwise without the prior writing of the publisher. Pentium is trademark of Intel. All copyright reserved. 1 FCC Statement: Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Country Code selection feature to be disabled for products marketed to the US/CANADA Operations in the 5.15-5.25GHz band are restricted to indoor usage only. 2 This device is intended only for OEM integrators under the following conditions: 1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and 2) The transmitter module may not be co-located with any other transmitter or antenna, 3) For all products market in US, OEM has to limit the operation channels in CH1 to CH11 for 2.4G band by supplied firmware programming tool. OEM shall not supply any tool or info to the end-user regarding to Regulatory Domain change. As long as 3 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed IMPORTANT NOTE In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. End Product Labeling The final end product must be labeled in a visible area with the following: “Contains FCC ID: NKR-DNUA134”. Manual Information to the End User The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user’s manual of the end product which integrates this module. The end user manual shall include all required regulatory information/warning as show in this manual. 3 Industry Canada statement: This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B conforme á la norme NMB-003 du Canada. This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Ce dispositif est conforme à la norme CNR-210 d'Industrie Canada applicable aux appareils radio exempts de licence. Son fonctionnement est sujet aux deux conditions suivantes: (1) le dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible de provoquer un fonctionnement indésirable. Radiation Exposure Statement: This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Déclaration d'exposition aux radiations: Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps. This device is intended only for OEM integrators under the following conditions: (For module device use) 1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and 2) The transmitter module may not be co-located with any other transmitter or antenna. As long as 2 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this modul…

Text truncated - open the document above for the full version.

A G E N C Y A U T H O R I Z A T I O N L E T T E R Date: 2013-08-30 I, Troy Chien, am Associate Technical Director for Wistron NeWeb Corp. hereby authorize the following to act on our behalf, as our agent, in all matters relating to all processes required according to FCC approval for Wistron NeWeb Corp. products (Grantee Code: NKR) Barry Chen Alan Wang Lulu Lin This authorization shall expire twelve months from the original date. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! , Sincerely yours, Troy Chien / Associate technical director Wistron NeWeb Corp. Tel: 886-3-6667799 Ext 6361 Fax: 886-3-6667323 E-mail: [email protected]

Date: 2013/11/21 Federal Communications Commission 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Product Certification Representative Authorization Letter FCC ID: NKR-DNUA134 Product name: 802.11n a/b/g USB module To whom it may concern: We the undersigned, hereby authorize following person to act as our agent in the preparation of an application for equipment authorization of model DNUA-134 to the FCC Rules and Regulations. International Certification Corp. Address : No.3-1, Lane 6, Wen San 3rd St. Kwei Shan Hsiang, Tao Yuan Hsein 333, Taiwan (R.O.C.) Name : Gary Chang Job Title : Manager e-mail : [email protected] Webs We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002(b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Applicant : Wistron NeWeb Corporation Address : 20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C. Signature : _________________________________ Name and Job Title. : Alan Wang / Senior Engineer E-mail : [email protected] Tel. : +886-3-666-7799 ext:6907

Confidentiality Request Letter Date: 2013/11/21 Federal Communications Commission Authorization and Evaluation Division FCC ID：NKR-DNUA134 Permanent Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Applicant’s company name : Wistron NeWeb Corporation Applicant’s company address : 20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C. Signature : Job Title and Dept. : Alan Wang / Senior Engineer E-mail : [email protected] Tel. : +886-3-666-7799 ext:6907

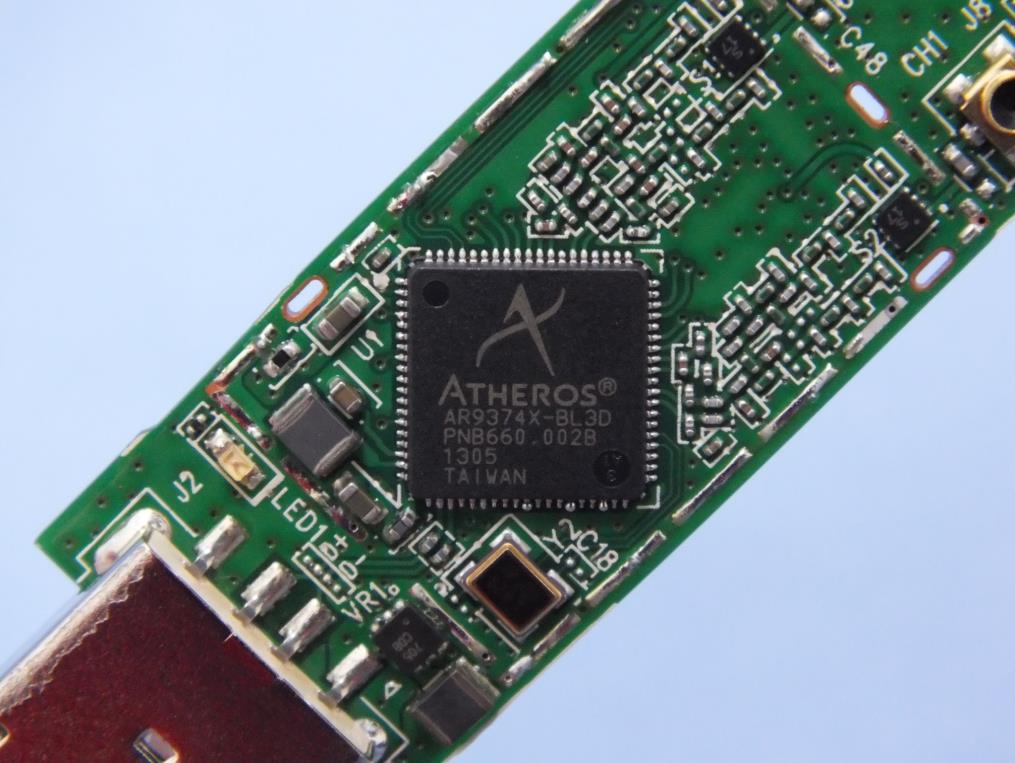

RF_734_00, Issue 1 Modular Approval Request FCC (per DA 00-1407) FCC ID: NKR-DNUA134 Items to be covered Answer from applicant 1. The modular transmitter must have its own RF shielding. The modular has a shielding Case. Please refer to EUT Photo. 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. The component number is AR9374 3. The modular transmitter must have its own power supply regulation. The component number is AR9374 and RT8010 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable).. No antenna connector is used. And no external amplifier will be used with this modular. 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. This modular is tested under stand-alone configuration. Please refer to Test setup photo. 6. The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. The modular transmitter is labeled with its own FCC ID number. Please refer to label sample and label location. 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. For example, there are very strict operational and timing requirements that must be met before a transmitter is authorized for operation under Section 15.231. For instance, data transmission is prohibited, except for operation under Section 15.231(e), in which case there are separate field strength level and timing requirements. Compliance with these requirements must be assured. The modular complies with this requirement. Please refer to user manual. 8. The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 2.1091, 2.1093 and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices perform routine environmental evaluation for RF Exposure to demonstrate compliance. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF Exposure compliance in accordance with Section 15.247(b)(4). Modular transmitters approved under other Sections of Part 15, when necessary, may also need to address certain RF Exposure concerns, typically by providing specific installation and operating instructions for users, installers and other interested parties to ensure compliance. The device complies with this requirement. Please refer to RF exposure report. Note: If compliance with one or more of the numbered requirements, listed above, cannot be demonstrated, it may be possible to obtain a “Limited Modular Approval” (LMA). Name and surname of applicant (or authorized representative): __________________ Date: ___21 January 2014____ Signature: ___________________________

XXXXXX Model : D NUB-PR1 MADE IN CHINA REVAPPROVEDDATE REV SIZE DWG TITLE DWG NO. SCALESHEET REV A4A4 A 1/1 1 OF 2 SANDY CHEN HSINYUN LIN10/18/13 10/18/13 10/24/13 SANDY CHEN AA RELEASE TO FILE 4L-DNUB103-011 4L-DNUB103-011 DESCRIPTION REVISIONS PART NUMBER BLOCK PART NUMBER WNC PROPRIETARY 15.0 18.5 NOTES: 1. MATERIAL: WHITE MATT PET, t=0.05, 壓克力背膠 2. COLOR: a. 底色為材質原色 3. TEMPERATURE RESISTANT= 80 0 C. 4. ADHESIVE THICKNESS=0.024±0.003mm. 5. 貼於ABS塑膠(凹槽) 6. PRODUCT LABEL 參照第二頁相關測試規範 7. 捲狀進料 20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C. Tel: 886-3-6667799 Fax: 886-3-5788726 ON LINE PRINTING Model Name : DNUA-134 MAC : XXXXXXXXXXXX SN : XXXXXXXXXXXXXXXX FCC ID : NKR-DNUA134 WNC P/N : 81DNUA13.GM1 HSINYUN LIN10/18/13 DNUA-134 7 x 7 mm Font: Arial 3 pt Model Name : DNUA-134 MAC : XXXXXXXXXXXX SN : XXXXXXXXXXXXXXXX FCC ID : NKR-DNUA134 WNC P/N : 81DNUA13.GM1 Label Location

Project No.: EP380201-01 Page No. : 3 of 4 Project No.: EP380201-01 Page No. : 4 of 4

FCC RF Exposure Report FCC ID : NKR-DNUA134 Equipment : 802.11n a/b/g USB module Model No. : DNUA-134 Brand Name : WNC Applicant : Wistron Neweb Corporation Address : 20 Park Avenue II, Hsinchu Science Park, Hsinchu 308,Taiwan,R.O.C. Standard : 47 CFR FCC Part 2.1091 Received Date : Aug. 02, 2013 Tested Date : Oct. 29 ~ Dec. 12, 2013 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Approved & Reviewed by: Gary Chang / Manager Ty: XXX Report No.: FA380201-01 Page : 1 of 6 Report Version: Rev. 02 Table of Contents 1 MPE EVALUATION OF MOBILE DEVICES ......................................................................................... 4 1.1 LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE............................................. 4 1.2 MPE EVALUATION FORMULA ............................................................................................................. 4 1.3 MPE EVALUATION RESULTS .............................................................................................................. 5 2 TEST LABORATORY INFORMATION ................................................................................................. 6 Report No.: FA380201-01 Page : 2 of 6 Report Version: Rev. 02 Release Record Report No. Version Description Issued Date FA380201-01 Rev. 01 Initial issue Jan. 20, 2014 FA380201-01 Rev. 02 Modified power value Jan. 23, 2014 Report No.: FA380201-01 Page : 3 of 6 Report Version: Rev. 02 1 MPE EVALUATION OF MOBILE DEVICES Human exposure to RF emissions from mobile devices (47 CFR §2.1091) may be evaluated based on the MPE limits adopted by the FCC for electric and magnetic field strength and/or power density, as appropriate, since exposures are assumed to occur at distances of 20 cm or more from persons. 1.1 LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE Frequency Range (MHz) Power Density (mW /cm 2 ) Averaging Time (minutes) 300~1500 F/1500 30 1500~100000 1.0 30 1.2 MPE EVALUATION FORMULA Pd = 2 **4RPi Pt Where Pd= Power density in mW/cm 2 Pt= EIRP in Mw Pi= 3.1416 R= Measurement distance Report No.: FA380201-01 Page : 4 of 6 Report Version: Rev. 02 1.3 MPE EVALUATION RESULTS MPE Evaluation of Single Transmission Frequency Range (MHz) Maximum Conducted Power (dBm) Antenna Gain (dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) 2412~2462 21.08 4.56 20 0.073 1 5180~5240 16.55 5.51 20 0.032 1 5260~5320 21.96 5.70 20 0.116 1 5500~5700 22.39 6.11 20 0.141 1 5745~5825 22.35 5.80 20 0.130 1 Report No.: FA380201-01 Page : 5 of 6 Report Version: Rev. 02 2 Test laboratory information Established in 2012, ICC provides foremost EMC & RF Testing and advisory consultation services by our skilled engineers and technicians. Our services employ a wide variety of advanced edge test equipment and one of the widest certification extents in the business. International Certification Corp, it is our definitive objective is to institute long term, trust-based associations with our clients. The expectation we set up with our clients is based on outstanding service, practical expertise and devotion to a certified value structure. Our passion is to grant our clients with best EMC / RF services by oriented knowledgeable and accommodating staff. Our Test sites are located at Linkou District and Kwei Shan Hsiang. Location map can be found on our website http://www.icertifi.com.tw . Linkou Kwei Shan Te l : 886-3-271-8666 Te l : 886-3-271-8666 No. 30-2, Ding Fwu Tsuen, Lin Kou District, New Taipei City, Taiwan, R.O.C. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. If you have any suggestion, please feel free to contact us as below information Tel: 886-3-271-8666 Fax: 886-3-318-0155 Email: [email protected] ══END══ Report No.: FA380201-01 Page : 6 of 6 Report Version: Rev. 02

FCC RF Exposure Report FCC ID : NKR-DNUA134 Equipment : 802.11n a/b/g USB module Model No. : DNUA-134 Brand Name : WNC Applicant : Wistron Neweb Corporation Address : 20 Park Avenue II, Hsinchu Science Park, Hsinchu 308,Taiwan,R.O.C. Standard : 47 CFR FCC Part 2.1091 Received Date : Aug. 02, 2013 Tested Date : Oct. 29 ~ Dec. 12, 2013 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Approved & Reviewed by: Gary Chang / Manager Ty: XXX Report No.: FA380201-01 Page : 1 of 6 Report Version: Rev. 02 Table of Contents 1 MPE EVALUATION OF MOBILE DEVICES ......................................................................................... 4 1.1 LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE............................................. 4 1.2 MPE EVALUATION FORMULA ............................................................................................................. 4 1.3 MPE EVALUATION RESULTS .............................................................................................................. 5 2 TEST LABORATORY INFORMATION ................................................................................................. 6 Report No.: FA380201-01 Page : 2 of 6 Report Version: Rev. 02 Release Record Report No. Version Description Issued Date FA380201-01 Rev. 01 Initial issue Jan. 20, 2014 FA380201-01 Rev. 02 Modified power value Jan. 23, 2014 Report No.: FA380201-01 Page : 3 of 6 Report Version: Rev. 02 1 MPE EVALUATION OF MOBILE DEVICES Human exposure to RF emissions from mobile devices (47 CFR §2.1091) may be evaluated based on the MPE limits adopted by the FCC for electric and magnetic field strength and/or power density, as appropriate, since exposures are assumed to occur at distances of 20 cm or more from persons. 1.1 LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE Frequency Range (MHz) Power Density (mW /cm 2 ) Averaging Time (minutes) 300~1500 F/1500 30 1500~100000 1.0 30 1.2 MPE EVALUATION FORMULA Pd = 2 **4RPi Pt Where Pd= Power density in mW/cm 2 Pt= EIRP in Mw Pi= 3.1416 R= Measurement distance Report No.: FA380201-01 Page : 4 of 6 Report Version: Rev. 02 1.3 MPE EVALUATION RESULTS MPE Evaluation of Single Transmission Frequency Range (MHz) Maximum Conducted Power (dBm) Antenna Gain (dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) 2412~2462 21.08 4.56 20 0.073 1 5180~5240 16.55 5.51 20 0.032 1 5260~5320 21.96 5.70 20 0.116 1 5500~5700 22.39 6.11 20 0.141 1 5745~5825 22.35 5.80 20 0.130 1 Report No.: FA380201-01 Page : 5 of 6 Report Version: Rev. 02 2 Test laboratory information Established in 2012, ICC provides foremost EMC & RF Testing and advisory consultation services by our skilled engineers and technicians. Our services employ a wide variety of advanced edge test equipment and one of the widest certification extents in the business. International Certification Corp, it is our definitive objective is to institute long term, trust-based associations with our clients. The expectation we set up with our clients is based on outstanding service, practical expertise and devotion to a certified value structure. Our passion is to grant our clients with best EMC / RF services by oriented knowledgeable and accommodating staff. Our Test sites are located at Linkou District and Kwei Shan Hsiang. Location map can be found on our website http://www.icertifi.com.tw . Linkou Kwei Shan Te l : 886-3-271-8666 Te l : 886-3-271-8666 No. 30-2, Ding Fwu Tsuen, Lin Kou District, New Taipei City, Taiwan, R.O.C. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. If you have any suggestion, please feel free to contact us as below information Tel: 886-3-271-8666 Fax: 886-3-318-0155 Email: [email protected] ══END══ Report No.: FA380201-01 Page : 6 of 6 Report Version: Rev. 02

Report No.: FR380201-01AI Page : 1 of 49 Report Version: Rev. 01 FCC Test Report FCC ID : NKR-DNUA134 Equipment : 802.11n a/b/g USB module Model No. : DNUA-134 Brand Name : WNC Applicant : Wistron Neweb Corporation Address : 20 Park Avenue II, Hsinchu Science Park, Hsinchu 308,Taiwan,R.O.C. Standard : 47 CFR FCC Part 15.247 Received Date : Aug. 02, 2013 Tested Date : Oct. 29 ~ Dec. 10, 2013 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Approved & Reviewed by: Gary Chang / Manager Ty: XXX Report No.: FR380201-01AI Page : 2 of 49 Report Version: Rev. 01 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Local Support Equipment List ................................................................................................................ 7 1.3 Test Setup Chart .................................................................................................................................... 7 1.4 The Equipment List ................................................................................................................................ 8 1.5 Test Standards ....................................................................................................................................... 9 1.6 Measurement Uncertainty .................................................................................................................... 10 2 TEST CONFIGURATION ..................................................................................................................... 11 2.1 Testing Condition ................................................................................................................................. 11 2.2 The Worst Test Modes and Channel Details ....................................................................................... 11 3 TRANSMITTER TEST RESULTS ........................................................................................................ 12 3.1 Conducted Emissions ........................................................................................................................... 12 3.2 6dB and Occupied Bandwidth .............................................................................................................. 15 3.3 RF Output Power .................................................................................................................................. 18 3.4 Power Spectral Density ........................................................................................................................ 20 3.5 Unwanted Emissions into Restricted Frequency Bands ...................................................................... 22 3.6 Unwanted Emissions into Non-Restricted Frequency Bands .............................................................. 42 4 TEST LABORATORY INFORMATION ............................................................................................... 49 Report No.: FR380201-01AI Page : 3 of 49 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FR380201-01AI Rev. 01 Initial issue Jan. 20, 2014 Report No.: FR380201-01AI Page : 4 of 49 Report Version: Rev. 01 Summary of Test Results FCC Rules Test Items Measured Result 15.207 Conducted Emissions [dBuV]: 0.151MHz 45.21 (Margin -10.75dB) - AV Pass 15.247(d) 15.209 Radiated Emissions [dBuV/m at 3m]:11490.00MHz 51.23 (Margin -2.77dB) - AV Pass 15.247(b)(3) Fundamental Emission Output Power Power [dBm]: 11a: 26.20 HT20: 26.18 HT40: 25.81 Pass 15.247(a)(2) 6dB Bandwidth Meet the requirement of limit Pass 15.247(e) Power Spectral Density Meet the requirement of limit Pass 15.203 Antenna Requirement Meet the requirement of limit Pass Report No.: FR380201-01AI Page : 5 of 49 Report Version: Rev. 01 1 General Description 1.1 Information 1.1.1 Specification of the Equipment under Test (EUT) RF General Information Frequency Range (MHz) IEEE Std. 802.11 Ch. Freq. (MHz) Channel Number Transmit Chains (N TX ) Data Rate / MCS 5725-5850 a 5745-5825 149-165 [5] 2 6-54 Mbps 5725-5850 n (HT20) 5745-5825 149-165 [5] 2 MCS 0-15 5725-5850 n (HT40) 5755-5795 151-159 [2] 2 MCS 0-15 Note 1: RF output power specifies thatMaximum Peak Conducted Output Power. Note 2: 802.11a/n uses a combination of OFDM-BPSK, QPSK, 16QAM, 64QAM modulation. 1.1.2 Antenna Details Ant. No. Type Operating Frequency (MHz) / Gain (dBi) Connector 5150~5250 5250~5350 5470~5725 5725~5850 1 Printed 2.55 3.12 3.22 2.51 U.FL 2 Printed 2.44 2.23 2.98 3.06 U.FL 1.1.3 EUT Operational Condition Power Supply Type 5Vdc from Host 1.1.4 Accessories N/A Report No.: FR380201-01AI Page : 6 of 49 Report Version: Rev. 01 1.1.5 Channel List Frequency band (MHz) 5725~5850 802.11 a / HT20 802.11n HT40 Channel Frequency(MHz) Channel Frequency(MHz) 149 5745 151 5755 153 5765 159 5795 157 5785 --- --- 161 5805 --- --- 165 5825 --- --- 1.1.6 Test Tool and Duty Cycle Test Tool ART2-GUI V2.3 Duty Cycle and Duty Factor Mode Duty cycle (%) Duty factor (dB) 11a 98.60% 0.06 HT20 98.87% 0.05 HT40 98.19% 0.08 Report No.: FR380201-01AI Page : 7 of 49 Report Version: Rev. 01 1.1.7 Power Setting Modulation Mode Test Frequency (MHz) Power Set 11a 5745 21.5 11a 5785 21.5 11a 5825 21.5 HT20 5745 21.5 HT20 5785 21.5 HT20 5825 21.5 HT40 5755 19 HT40 5795 21 1.2 Local Support Equipment List Support Equipment List No. Equipment Brand Model S/N FCC ID Signal cabl…

Text truncated - open the document above for the full version.

Report No.: FR380201-01AC Page : 1 of 60 Report Version: Rev. 01 FCC Test Report FCC ID : NKR-DNUA134 Equipment : 802.11n a/b/g USB module Model No. : DNUA-134 Brand Name : WNC Applicant : Wistron Neweb Corporation Address : 20 Park Avenue II, Hsinchu Science Park, Hsinchu 308,Taiwan,R.O.C. Standard : 47 CFR FCC Part 15.247 Received Date : Aug. 02, 2013 Tested Date : Oct. 29 ~ Dec. 10, 2013 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Approved & Reviewed by: Gary Chang / Manager Ty: XXX Report No.: FR380201-01AC Page : 2 of 60 Report Version: Rev. 01 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .................................................................................................................................…

Text truncated - open the document above for the full version.
