NKR-DNUA93FWLAN 802.11 b/g/n USB Adapter

WLAN 802.11 b/g/n USB Adapter DNUA-93F User Manual October 2010 1 Copyright Statement No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, whether electronic, mechanical, photocopying, recording or otherwise without the prior writing of the publisher. Pentium is trademark of Intel. All copyright reserved. 2 FCC Statement Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: ● Reorient or relocate the receiving antenna. ● Increase the separation between the equipment and receiver. ● Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ● Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible. This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. 3 IC Statement This Class B digital apparatus complies with Canadian ICES-003. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Cet appareil numérique de la classe B est conforme á la norme NMB-003 du Canada. For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible. This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter. IMPORTANT NOTE: IC Radiation Exposure Statement: This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. 4 Table of Contents 1. INTRODUCTION 5 2. DRIVER/UTILITY INSTALLATION / UNINSTALLATION 5 3. CONNECTING TO AN EXISTING NETWORK 5 4. MODIFYING A WIRELESS NETWORK 6 4.1 MODIFYING GENERAL SETTINGS.............................................................................................. 6 4.2 MODIFYING SECURITY SETTINGS.............................................................................................. 7 5. SPECIFICATIONS 9 APPENDIX A: FAQ ABOUT WLAN 10 5 1. Introduction Thank you for purchasing the WLAN 802.11 b/g/n USB Adapter that provides the easiest way to wireless networking. This User Manual contains detailed instructions in the operation of this product. Please keep this manual for future reference. System Requirements - 128 MB of RAM or later (recommended) - 300 MHz processor or higher 2. Driver/Utility Installation The driver should have been installed before the TV is shipped from the manufacturer. You can plug this adapter to your TV and start using its network function without installing driver or utility. 3. Connecting to an Existing Network 1. Use the remote control that came with your TV to access the network configuration settings page. 2. Select the scanning wireless network function. The system starts to scan for available network. On this list, click Refresh to refresh the list at any time 3. Select the network you want to connect to. 4. If the chosen network has security enabled, you will have to setup corresponding security parameter. Contact the network manager for the correct settings. Select the security type and fill in required parameters. The options include the following: • WPA/WPA2/CCKM • WPA/WPA2 Passphrase • 802.1x • Pre-Shared Key (Static WEP) • None 6 4. Modifying a Wireless Network 4.1 Modifying General Settings 1. Use the remote control that came with your TV to access the network configuration settings page. 2. From the profile list, select one profile and choose the modify function. 3. Modify the settings below for your network. Profile Name Identifies the configuration wireless network profile. This name must be unique. Profile names are not case sensitive. Client Name Identifies the client machine. Use this profile for Access Point mode Configures station to operate in Access Point mode. Network Names (SSIDs) The IEEE 802.11 wireless network name. This field has a maximum limit of 32 characters. Configure up to three SSIDs (SSID1, SSID2, and SSID3). 7 4.2 Modifying Security Settings 1. Use the remote control that came with your TV to access the network configuration settings page. 2. Select a security option of this wireless network. This product p…

Text truncated - open the document above for the full version.

AGENCY AUTHORIZATION LETTER To whom it may concern: We, the undersigned, FUNAI ELECTRIC CO.,LTD, hereby authorize Wistron NeWeb Corporation of Taiwan to act on our behalf of application relating to all processes required in Taiwan NCC approval and authorize Wistron NeWeb Corporation to manufacture this product for us and for brand name: FUNAI, product name: WLAN 802.11 b/g/n USB Adapter, model name: DNUA-93F. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, Signature : Name/Title : Chuichi Nohara / Manager Company : FUNAI ELECTRIC CO.,LTD Address : 7-1, 7-Chome, Nakagaito, Daito, Osaka, 574-0013, Japan Tel. No. : +81-72-870-4332 E-Mail : [email protected] FUNAI ELECTRIC CO.,LTD 7-1, 7-Chome, Nakagaito, Daito, Osaka, 574-0013, Japan Tel: +81-72-870-4332 Fax: +81-72-870-1279

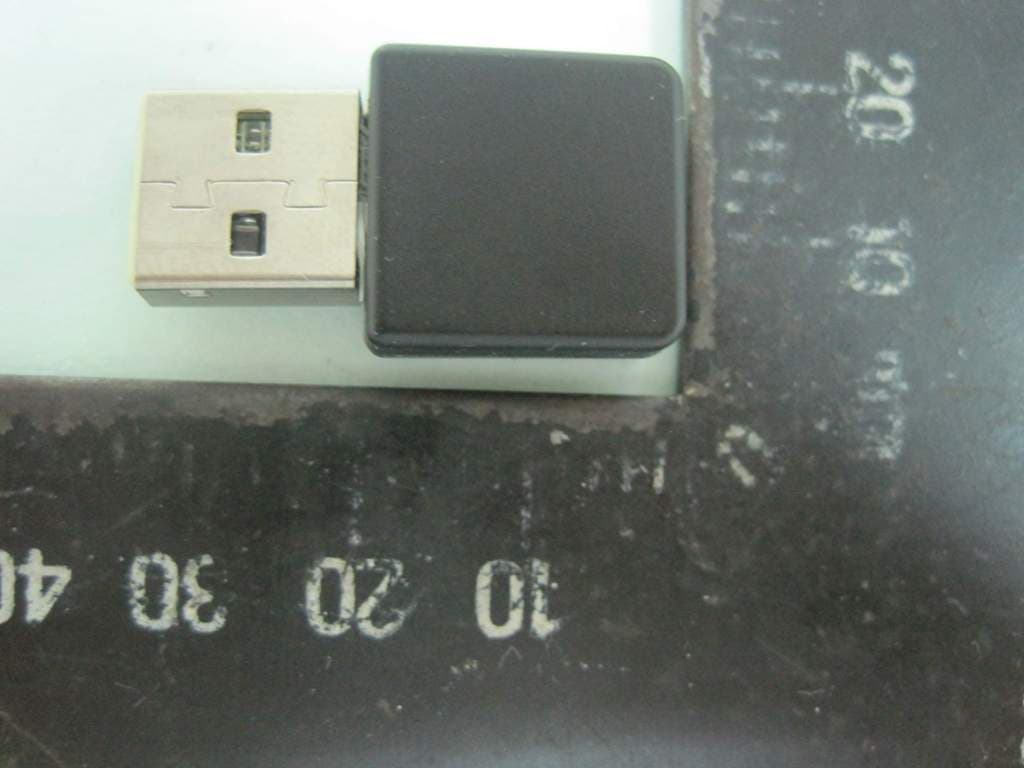

SPORTON International Inc. PAGE NUMBER : A1 OF A2 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 22, 2010 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A2 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 22, 2010 FAX : 886-2-2696-2255

SPORTON International Inc. PAGE NUMBER : A1 OF A3 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 22, 2010 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A3 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 22, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A3 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 22, 2010 FAX : 886-2-2696-2255

Report No.: FR0O1232 FCC ID: NKR-DNUA93F Page No. : 1 of 3 Appendix C. Maximum Permissible Exposure Report No.: FR0O1232 FCC ID: NKR-DNUA93F Page No. : 2 of 3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP××30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Peak RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP × ×× From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR0O1232 FCC ID: NKR-DNUA93F Page No. : 3 of 3 1.3. Calculated Result and Limit Antenna Type : PIFA Antenna Max Conducted Power for IEEE 802.11g Ant. A: 24.75 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2.55 1.7989 24.7500 298.5383 0.106893 1 Complies

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company Wistron NeWeb Corporation Applicant Address 20 Park Avenue II, Hsinchu Science Park, Hsinchu 308,Taiwan,R.O.C. FCC ID NKR-DNUA93F Manufacturer’s company Wistron NeWeb Corporation Manufacturer Address 20 Park Avenue II, Hsinchu Science Park, Hsinchu 308,Taiwan,R.O.C. Product Name WLAN 802.11 b/g/n USB Adapter Brand Name FUNAI Model Name DNUA-93F Test Rule 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz Received Date Oct. 13, 2010 Final Test Date Oct. 21, 2010 Submission Type Original Equipment Statement Test result included in this report is for the IEEE 802.11n and IEEE 802.11b/g part of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR0O1232 Report Format Version: 01 Page No. : iof ii FCC ID: NKR-DNUA93F Issued Date : Oct. 22, 2010 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................5 3.3. Table for Filed Antenna.......................................................................................................................................................................5 3.4. Table for Carrier Frequencies .............................................................................................................................................................5 3.5. Table for Test Modes ...........................................................................................................................................................................6 3.6. Table for Testing Locations..................................................................................................................................................................6 3.7. Table for Supporting Units ...................................................................................................................................................................7 3.8. Table for Parameters of Test Software Setting .....................................................................................................................................7 3.9. Test Configurations .............................................................................................................................................................................8 4. TEST RESULT ................................................................................................................................................... 10 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................10 4.2. Peak Output Power Measurement ....................................................................................................................................................14 4.3. Power Spectral Density Measurement ..............................................................................................................................................17 4.4. 6dB Spectrum Bandwidth Measurement ..........................................................................................................................................23 4.5. Radiated Emissions Measurement ....................................................................................................................................................29 4.6. Band Edge Emissions Measurement .................................................................................................................................................47 4.7. Antenna Requirements .....................................................................................................................................................................56 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 57 6. TEST LOCATION.............................................................................................................................................. 59 7. TAF CERTIFICATE OF ACCREDITATION ............................................................................................................. 60 APPENDIX A. PHOTOGRAPHS OF EUT.......................................................................................................... A1 ~ A5 APPENDIX B. TEST PHOTOS.......................................................................................................................... B1 ~ B5 APPENDIX C. MAXIMUM PERMISSIBLE EXPOSURE........................…

Text truncated - open the document above for the full version.

Report No.: FR0O1232 FCC ID: NKR-DNUA93F Page No. : 1 of 5 Appendix B. Test Photos Report No.: FR0O1232 FCC ID: NKR-DNUA93F Page No. : 2 of 5 1. Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW Report No.: FR0O1232 FCC ID: NKR-DNUA93F Page No. : 3 of 5 2. Photographs of Radiated Emissions Test Configuration Test Configuration: 9kHz ~30MHz FRONT VIEW REAR VIEW Report No.: FR0O1232 FCC ID: NKR-DNUA93F Page No. : 4 of 5 Test Configuration: 30MHz~1GHz FRONT VIEW REAR VIEW Report No.: FR0O1232 FCC ID: NKR-DNUA93F Page No. : 5 of 5 Test Configuration: Above 1GHz FRONT VIEW REAR VIEW
