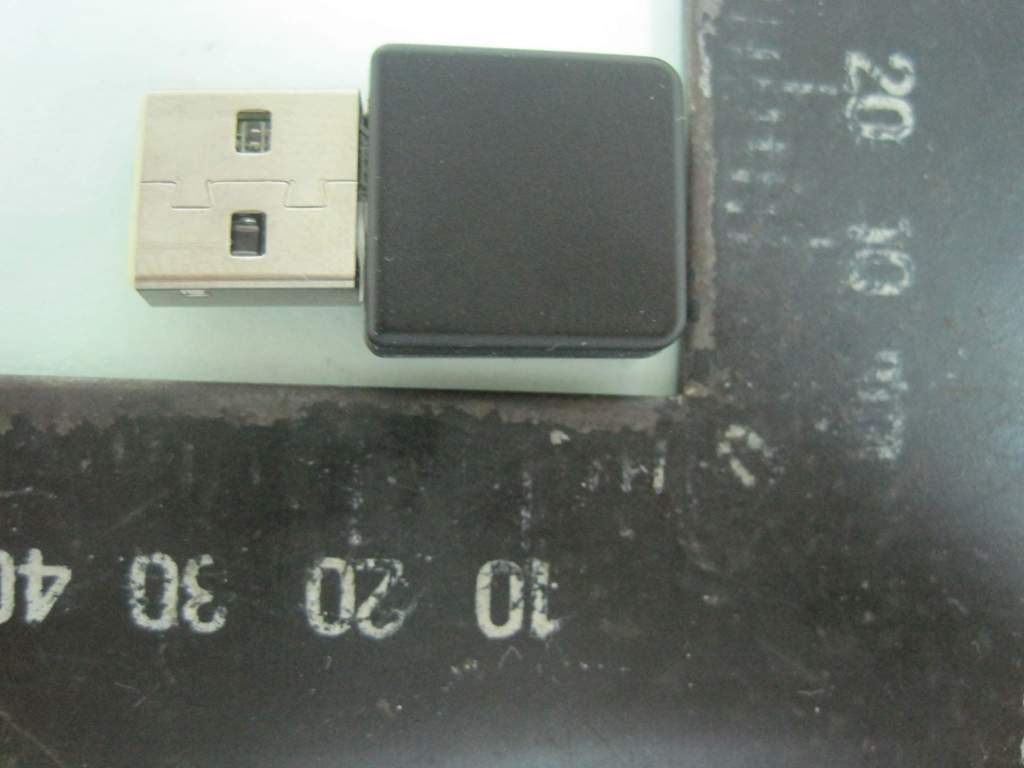

Label size: 13.2 (L) * 12.9 (W) mm

Report No.: 161439-01 SPORTON International Inc. PAGE NUMBER : A1 OF A3 TEL : 886-2-2696-2468 ISSUED DATE : May 28, 2012 FAX : 886-2-2696-2255 APPENDIX A. PHOTOGRAPHS OF EUT Report No.: 161439-01 SPORTON International Inc. PAGE NUMBER : A2 OF A3 TEL : 886-2-2696-2468 ISSUED DATE : May 28, 2012 FAX : 886-2-2696-2255 Report No.: 161439-01 SPORTON International Inc. PAGE NUMBER : A3 OF A3 TEL : 886-2-2696-2468 ISSUED DATE : May 28, 2012 FAX : 886-2-2696-2255

SPORTON INTERNATIONAL INC. Page Number : 1 of 32 TEL : 886-3-327-3456 Report Issued Date : Jun. 04, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NKR-DNUA93FS FCC SAR Test Report Report No. : FA161439-01 FCC SAR Test Report APPLICANT : Wistron NeWeb Corporation EQUIPMENT : WLAN 802.11 b/g/n USB Adapter BRAND NAME : SONY CORPORATION MODEL NAME : IFU-WLM3 FCC ID : NKR-DNUA93FS STANDARD : FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was received on May 25, 2012 and completely tested on May 25, 2012. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Jones Tsai / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 32 TEL : 886-3-327-3456 Report Issued Date : Jun. 04, 2012 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NKR-DNUA93FS FCC SAR Test Report Report No. : FA161439-01 Table of Contents 1. Statement of Compliance ............................................................................................................................................. 4 2. Administration Data ...................................................................................................................................................... 5 2.1 Testing Laboratory .................................................................................................................................................. 5 2.2 Applicant ................................................................................................................................................................ 5 2.3 Manufacturer .......................................................................................................................................................... 5 2.4 Application Details .................................................................................................................................................. 5 3. General Information ...................................................................................................................................................... 6 3.1 Description of Device Under Test (DUT) ................................................................................................................ 6 3.2 Product Photos....................................................................................................................................................... 7 3.3 Applied Standards .................................................................................................................................................. 7 3.4 Device Category and SAR Limits ........................................................................................................................... 7 3.5 Test Conditions ....................................................................................................................................................... 7 4. Specific Absorption Rate (SAR) ................................................................................................................................... 8 4.1 Introduction ............................................................................................................................................................ 8 4.2 SAR Definition ........................................................................................................................................................ 8 5. SAR Measurement System ........................................................................................................................................... 9 5.1 E-Field Probe ........................................................................................................................................................10 5.2 Data Acquisition Electronics (DAE) ....................................................................................................................... 11 5.3 Robot .................................................................................................................................................................... 11 5.4 Measurement Server .............................................................................................................................................12 5.5 Phantom ................................................................................................................................................................12 5.6 Device Holder........................................................................................................................................................13 5.7 Data Storage and Evaluation ................................................................................................................................15 5.8 Test Equipment List ...............................................................................................................................................17 6. Tissue Simulating Liquids ...........................................................................................................................................18 7. Uncertainty Assessment .............................................................................................................................................20 8. SAR Measurement Evaluation ....................................................................................................................................22 8.1 Purpose of …

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/5/25 #13 WLAN2.4G_802.11b_Vertical Back_0.5cm_Ch6 DUT: 161439-01 Communication System: 802.11b ; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium: MSL_2450_120525 Medium parameters used: f = 2437 MHz; σ = 1.95 mho/m; ε r = 53.8; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.5 °C DASY4 Configuration: - Probe: ET3DV6R - SN1788; ConvF(3.55, 3.55, 3.55); Calibrated: 2012/1/26 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2011/11/22 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Ch6/Area Scan (61x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.989 mW/g Ch6/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 17.1 V/m; Power Drift = 0.096 dB Peak SAR (extrapolated) = 2.76 W/kg SAR(1 g) = 0.915 mW/g; SAR(10 g) = 0.402 mW/g Maximum value of SAR (measured) = 0.945 mW/g 0 dB = 0.945mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/5/25 #16 WLAN2.4G_802.11b_Tip Mode_0.5cm_Ch6 DUT: 161439-01 Communication System: 802.11b ; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium: MSL_2450_120525 Medium parameters used: f = 2437 MHz; σ = 1.95 mho/m; ε r = 53.8; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.5 °C DASY4 Configuration: - Probe: ET3DV6R - SN1788; ConvF(3.55, 3.55, 3.55); Calibrated: 2012/1/26 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2011/11/22 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Ch6/Area Scan (61x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.315 mW/g Ch6/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 11.5 V/m; Power Drift = -0.144 dB Peak SAR (extrapolated) = 0.886 W/kg SAR(1 g) = 0.283 mW/g; SAR(10 g) = 0.116 mW/g Maximum value of SAR (measured) = 0.318 mW/g 0 dB = 0.315mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/5/25 #07 WLAN2.4G_802.11b_Horizontal Up_0.5cm_Ch1 DUT: 161439-01 Communication System: 802.11b ; Frequency: 2412 MHz;Duty Cycle: 1:1 Medium: MSL_2450_120525 Medium parameters used: f = 2412 MHz; σ = 1.92 mho/m; ε r = 53.9; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.5 °C DASY4 Configuration: - Probe: ET3DV6R - SN1788; ConvF(3.55, 3.55, 3.55); Calibrated: 2012/1/26 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2011/11/22 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Ch1/Area Scan (61x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.716 mW/g Ch1/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 16.1 V/m; Power Drift = -0.163 dB Peak SAR (extrapolated) = 1.67 W/kg SAR(1 g) = 0.651 mW/g; SAR(10 g) = 0.308 mW/g Maximum value of SAR (measured) = 0.656 mW/g 0 dB = 0.656mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/5/25 #08 WLAN2.4G_802.11b_Horizontal Up_0.5cm_Ch11 DUT: 161439-01 Communication System: 802.11b ; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium: MSL_2450_120525 Medium parameters used: f = 2462 MHz; σ = 1.99 mho/m; ε r = 53.8; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.5 °C DASY4 Configuration: - Probe: ET3DV6R - SN1788; ConvF(3.55, 3.55, 3.55); Calibrated: 2012/1/26 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2011/11/22 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Ch11/Area Scan (61x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.580 mW/g Ch11/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 13.5 V/m; Power Drift = 0.164 dB Peak SAR (extrapolated) = 1.40 W/kg SAR(1 g) = 0.529 mW/g; SAR(10 g) = 0.244 mW/g Maximum value of SAR (measured) = 0.552 mW/g 0 dB = 0.552mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/5/25 #10 WLAN2.4G_802.11b_Horizontal Down_0.5cm_Ch1 DUT: 161439-01 Communication System: 802.11b ; Frequency: 2412 MHz;Duty Cycle: 1:1 Medium: MSL_2450_120525 Medium parameters used: f = 2412 MHz; σ = 1.92 mho/m; ε r = 53.9; ρ = 1000 kg/m 3 Ambient Temperature：22.5 °C; Liquid Temperature：21.5 °C DASY4 Configuration: - Probe: ET3DV6R - SN1788; ConvF(3.55, 3.55, 3.55); Calibrated: 2012/1/26 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2011/11/22 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Ch1/Area Scan (61x91x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.812 mW/g Ch1/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 18.7 V/m; Power Drift = -0.059 dB Peak SAR (extrapolated) = 2.45 W/kg SAR(1 g) = 0.747 mW/g; SAR(10 g) = 0.315 mW/g Maximum value of SAR (measured) = 0.824 mW/g Ch1/Zoom Scan (5x5x7)/Cube 1: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 18.7 V/m; Power Drift = -0.059 dB Peak SAR (extrapolated) = 2.25 W/kg SAR(1 g) = 0.677 mW/g; SAR(10 g) = 0.302 mW/g Maximum value of SAR (measured) = 0.757 mW/g 0 dB = 0.757mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2012/5/25 #11 WLAN2.4G_802.11b_Horizontal Down_0.5cm_Ch11 DUT: 161439-01 Communication System: 802.11b ; Frequency: 2462 MHz;Duty Cycle: 1:1 Medium: MSL_2450_120525 Medium parameters used: f = 2462 MHz; σ = 1.99 mho/m; ε r = 53.8; ρ = 1000 kg/m 3 Ambient Temperature…

Text truncated - open the document above for the full version.

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company Wistron NeWeb Corporation Applicant Address 20 Park Avenue II, Hsinchu Science Park, Hsinchu 308,Taiwan,R.O.C. FCC ID NKR-DNUA93FS Manufacturer’s company Wistron NeWeb Corporation Manufacturer Address 20 Park Avenue II, Hsinchu Science Park, Hsinchu 308,Taiwan,R.O.C. Product Name WLAN 802.11 b/g/n USB Adapter Brand Name SONY CORPORATION Model Name IFU-WLM3 Test Rule 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz Received Date Oct. 13, 2010 Final Test Date May 31, 2012 Submission Type Original Equipment Statement Test result included in this report is for the IEEE 802.11n and IEEE 802.11b/g part of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR161439-01 Report Format Version: 01 Page No. : iof ii FCC ID: NKR-DNUA93FS Issued Date : May 31,2012 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................5 3.3. Table for Filed Antenna.......................................................................................................................................................................5 3.4. Table for Carrier Frequencies .............................................................................................................................................................5 3.5. Table for Test Modes ...........................................................................................................................................................................6 3.6. Table for Testing Locations..................................................................................................................................................................6 3.7. Table for Supporting Units ...................................................................................................................................................................7 3.8. Table for Parameters of Test Software Setting .....................................................................................................................................7 3.9. Test Configurations .............................................................................................................................................................................8 4. TEST RESULT ................................................................................................................................................... 10 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................10 4.2. Peak Output Power Measurement ....................................................................................................................................................14 4.3. Power Spectral Density Measurement ..............................................................................................................................................17 4.4. 6dB Spectrum Bandwidth Measurement ..........................................................................................................................................22 4.5. Radiated Emissions Measurement ....................................................................................................................................................28 4.6. Band Edge Emissions Measurement .................................................................................................................................................46 4.7. Antenna Requirements .....................................................................................................................................................................55 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 56 6. TEST LOCATION.............................................................................................................................................. 59 7. TAF CERTIFICATE OF ACCREDITATION ............................................................................................................. 60 APPENDIX A. PHOTOGRAPHS OF EUT.......................................................................................................... A1 ~ A5 APPENDIX B. TEST PHOTOS.......................................................................................................................... B1 ~ B5 Report No.: FR161439-01 Report Format Version: 01 P…

Text truncated - open the document above for the full version.

Report No.: FR161439-01 FCC ID: NKR-DNUA93FS Page No. : B1 of B5 Appendix B. Test Photos Report No.: FR161439-01 FCC ID: NKR-DNUA93FS Page No. : B2 of B5 1. Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW Report No.: FR161439-01 FCC ID: NKR-DNUA93FS Page No. : B3 of B5 2. Photographs of Radiated Emissions Test Configuration Test Configuration: 9kHz ~30MHz FRONT VIEW REAR VIEW Report No.: FR161439-01 FCC ID: NKR-DNUA93FS Page No. : B4 of B5 Test Configuration: 30MHz~1GHz FRONT VIEW REAR VIEW Report No.: FR161439-01 FCC ID: NKR-DNUA93FS Page No. : B5 of B5 Test Configuration: Above 1GHz FRONT VIEW REAR VIEW
