NKR-DNUAPO1802.11N 2x2 USB module

Product specification for DNUA-PO1 Confidential !! Page 1 of 11 Draft Version 0.2 2014/08/19 by Tina Lu Datacomm product center Wistron Neweb  Corporation Wistron Neweb  Corporation 20 Park Avenue II Road, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C. Tel: +886-3-666-7799 Fax:+886-3-666-7323 Subject to change without notices © Copyrights by Wistron Neweb  All rights reserved Product Specification for model DNUA-PO1 (QCA AR9375_AL3D Base) 802.11n a/b/g USB Module Product specification for DNUA-PO1 Confidential !! Page 2 of 11  Revision history Revision Change history Date 0.1 Initial draft version 2014/07/01 0.2 Add certification 2014/08/19 Product specification for DNUA-PO1 Confidential !! Page 3 of 11  Block diagram:  PCBA outline drawing Product specification for DNUA-PO1 Confidential !! Page 4 of 11  PIN definition Pin No. Description Pin1 GND Pin2 WAKE# Pin3 W_RESET# Pin4 USB_5V Pin5 USB_5V Pin6 USB_D- Pin7 USB_D+ Pin8 GND 8 7 6 5 4 3 2 1 Pin1 Product specification for DNUA-PO1 Confidential !! Page 5 of 11  DNUA-PO1, product specification, 802.11n a/b/g USB module Item Key specifications Main chipset  QCA AR9375_AL3D TX/RX  2T2R Frequency range  USA: 2.400 ~ 2.483GHz, 5.15 ~ 5.25GHz, 5.725 ~ 5.85GHz  Europe: 2.400 ~ 2.483GHz, 5.15 ~ 5.25GHz  Japan: 2.400 ~ 2.497GHz, 5.15 ~ 5.25GHz, Modulation technique  802.11 Legacy a/b/g DSSS (DBPSK, DQPSK, CCK) OFDM (BPSK, QPSK, 16-QAM, 64-QAM) DSSS (Direct Sequence Spread Spectrum) with DBPSK (Differential Binary Phase Shift Keying 1Mbps), DQPSK (Differential Quaternary Phase Shift Keying 2Mbps), and CCK (Complementary Code Keying 5.5&11Mbps), and OFDM (Orthogonal Frequency Division Multiplexing with BPSK for 6,9Mbps QPSK for 12,18Mbps 16QAM for 24,36Mbps 64QAM for 48,54Mbps)  802.11n a/g OFDM (BPSK, QPSK, 16-QAM, 64-QAM) Host interface  USB 2.0 Channels support  802.11n b/g US/Canada: 11 (1 ~ 11) Major European country: 13 (1 ~ 13) France: 4 (10 ~ 13) Japan: 11b: 14 (1~13 or 14 th ), 11g: 13 (1 ~ 13)  802.11n a 1). US/Canada: channels (36,40,44,48,52, 149,153,157,161,165) 2). Europe: channel (36,40,44,48,52) 3). Japan: channels ( 36,40,44,48,52) Operation voltage  5V +/- 5% Power consumption @25 o C 802.11ng MCS8(40MHz) 802.11na MCS8(40MHz) (mA) Avg Avg 5V 350 756 Output Power (Typical-for each chain; with ±2dB tolerance). This power table bases on the maximum HW capability complying with IEEE spec regardless the regulatory limitation  802.11a Test Frequencies 6-24_Target 36_Target 48_Target 54_Target 5180 21 20 19 17 5320 21 20 19 17 5500 21 20 19 17 5600 21 20 19 17 5700 21 20 19 17 5825 21 20 19 17  802.11b Test Frequencies 1/2_Target 5.5_Target 11_Target 2412 16 16 16 2437 16 16 16 2472 16 16 16  802.11g Test Frequencies 6-24_Target 36_Target 48_Target 54_Target 2412 16 16 15 14 2437 16 16 15 14 2472 16 16 15 14  802.11n Freq. Range: HT20 Product specification for DNUA-PO1 Confidential !! Page 6 of 11 Test Freq MCS 0/8 MCS 1/9 MCS 2/10 MCS 3/11 MCS 4/12 MCS 5/13 MCS 6/14 MCS 7/15 5180 21 21 21 21 20 20 19 17 5240 21 21 21 21 20 20 19 17 5320 21 21 21 21 20 20 19 17 5500 21 21 21 21 20 20 19 17 5700 21 21 21 21 20 20 19 17 5745 21 21 21 21 20 20 19 17 5825 21 21 21 21 20 20 19 17 Freq. Range: HT40 Test Freq MCS 0/8 MCS 1/9 MCS 2/10 MCS 3/11 MCS 4/12 MCS 5/13 MCS 6/14 MCS 7/15 5190 21 21 21 21 20 20 19 17 5230 21 21 21 21 20 20 19 17 5310 21 21 21 21 20 20 19 17 5510 21 21 21 21 20 20 19 17 5670 21 21 21 21 20 20 19 17 5755 21 21 21 21 20 20 19 17 5795 21 21 21 21 20 20 19 17 Freq. Range: HT20 Test Freq MCS 0/8 MCS 1/9 MCS 2/10 MCS 3/11 MCS 4/12 MCS 5/13 MCS 6/14 MCS 7/15 2412 16 16 16 16 15 15 14 14 2437 16 16 16 16 15 15 14 14 2472 16 16 16 16 15 15 14 14 Freq. Range: HT40 Test Freq MCS 0/8 MCS 1/9 MCS 2/10 MCS 3/11 MCS 4/12 MCS 5/13 MCS 6/14 MCS 7/15 2412 16 16 16 16 15 15 14 14 2437 16 16 16 16 15 15 14 14 2472 16 16 16 16 15 15 14 14 EVM The transmit modulation accuracy is measured using error vector magnitude (EVM). EVM is the magnitude of the phase difference as a function of time between an ideal reference signal and the measured transmitted signal.  802.11a Modulation Code Rate Relative constellation error (dB) Relative constellation error (dB) IEEE Spec (1Tx dB) Typical (1Tx dB) BPSK 1/2 -5 -25 BPSK 3/4 -8 -25 QPSK 1/2 -10 -25 QPSK 3/4 -13 -25 16-QAM 1/2 -16 -25 16-QAM 3/4 -19 -28 64-QAM 2/3 -22 -30 64-QAM 3/4 -25 -31  802.11b Modulation Code Rate Relative constellation error (dB) Relative constellation error (dB) IEEE Spec (1Tx dB) Typical (1Tx dB) DBPSK -10 -28 DQPSK -10 -28 CCK -10 -28  802.11g Modulation Code Rate Relative constellation error (dB) Relative constellation error (dB) IEEE Spec (1Tx dB) Typical (1Tx dB) BPSK 1/2 -5 -28 BPSK 3/4 -8 -28 QPSK 1/2 -10 -28 QPSK 3/4 -13 -28 16-QAM 1/2 -16 -28 Product specification for DNUA-PO1 Confidential !! Page 7 of 11 16-QAM 3/4 -19 -29 64-QAM 2/3 -22 -29 64-QAM 3/4 -25 -29  802.11ng Modulation Code Rate Relative constellation error (dB) Relative constellation error (dB) IEEE Spec (1Tx dB) Typical (1Tx dB)  HT20 (MCS0) BPSK 1/2 -5 -25 (MCS1) QPSK 1/2 -10 -26 (MCS2) QPSK 3/4 -13 -26 (MCS3) 16-QAM 1/2 -16 -26 (MCS4) 16-QAM 3/4 -19 -29 (MCS5) 64-QAM 2/3 -22 -30 (MCS6) 64-QAM 3/4 -25 -30 (MCS7) 64-QAM 5/6 -27 -31 (MCS8) BPSK 1/2 -5 -25 (MCS9) QPSK 1/2 -10 -26 (MCS10) QPSK 3/4 -13 -26 (MCS11) 16-QAM 1/2 -16 -26 (MCS12) 16-QAM 3/4 -19 -29 (MCS13) 64-QAM 2/3 -22 -30 (MCS14) 64-QAM 3/4 -25 -30 (MCS15) 64-QAM 5/6 -27 -31  HT40 (MCS0) BPSK 1/2 -5 -26 (MCS1) QPSK 1/2 -10 -27 (MCS2) QPSK 3/4 -13 -27 (MCS3) 16-QAM 1/2 -16 -27 (MCS4) 16-QAM 3/4 -19 -29 (MCS5) 64-QAM 2/3 -22 -30 (MCS6) 64-QAM 3/4 -25 -30 (MCS7) 64-QAM 5/6 -27 -31 (MCS8) BPSK 1/2 -5 -26 (MCS9) QPSK 1/2 -10 -27 (MCS10) QPSK 3/4 -13 -27 (MCS11) 16-QAM 1/2 -16 -27 (MCS12) 16-QAM 3/4 -19 -29 (MCS13) 64-QAM 2/3 -22 -30 (MCS14) 64-QAM 3/4 -25 -30 (MCS15) 64-QAM 5/6 -27 -31  802.11na Modulation Code Rate Relative constellation error (dB) Relative constellation error (dB) IEEE Spec (1Tx dB) Typical (1Tx dB) …

Text truncated - open the document above for the full version.

Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Country Code selection feature to be disabled for products marketed to the US/CANADA This device is intended only for OEM integrators under the following conditions: 1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and 2) The transmitter module may not be co-located with any other transmitter or antenna, 3) For all products market in US, OEM has to limit the operation channels in CH1 to CH11 for 2.4G band by supplied firmware programming tool. OEM shall not supply any tool or info to the end-user regarding to Regulatory Domain change. As long as 3 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed IMPORTANT NOTE In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. End Product Labeling This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users. The final end product must be labeled in a visible area with the following: “Contains FCC ID: NKR-DNUAPO1”. Manual Information to the End User The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user’s manual of the end product which integrates this module. The end user manual shall include all required regulatory information/warning as show in this manual. Industry Canada statement: This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Caution: (i) the device for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems; Avertissement: (i) les dispositifs fonctionnant dans la bande 5 150-5 250 MHz sont réservés uniquement pour une utilisation à l’intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux; Radiation Exposure Statement: This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Déclaration d'exposition aux radiations: Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps. This device is intended only for OEM integrators under the following conditions: 1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and 2) The transmitter module may not be co-located with any other transmitter or antenna. As long as 2 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed. Cet appareil…

Text truncated - open the document above for the full version.

Date: August 19, 2014 Federal Communications Commission 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Product Certification Representative Authorization Letter FCC ID: NKR-DNUAPO1 Product name: 802.11N 2*2 USB module To whom it may concern: We the undersigned, hereby authorize following person to act as our agent in the preparation of an application for equipment authorization of model DNUA-PO1 to the FCC Rules and Regulations. International Certification Corp. Address : No.3-1, Lane 6, Wen San 3rd St. Kwei Shan Hsiang, Tao Yuan Hsein 333, Taiwan (R.O.C.) Name : Gary Chang Job Title : Manager e-mail : [email protected] We further certify that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002(b), is subject to a denial to Federal benefits, including FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. This authorization shall expire six months from the original date. If you have any questions regarding the authorization, please don’t hesitate to contact us. Applicant : Wistron NeWeb Corporation Address : 20 Park Avenue II, Hsinchu Science Park, Hsinchu 308,Taiwan,R.O.C. Signature : _________________________________ Name and Job Title. : Troy Chien / Associate Technical Director E-mail : [email protected] Tel. : 886-3-6667799 Fax. : 886-3-6667323

Confidentiality Request Letter Date: August 19, 2014 Federal Communications Commission Authorization and Evaluation Division FCC ID：NKR-DNUAPO1 Permanent Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description 4. Operational Description-Software security The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Applicant’s company name : Wistron NeWeb Corporation Applicant’s company address : 20 Park Avenue II, Hsinchu Science Park, Hsinchu 308,Taiwan,R.O.C. Signature : Name and Job Title. : Troy Chien / Associate Technical Director E-mail : [email protected] Tel. : 886-3-6667799 Fax. : 886-3-6667323

Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Date: September 4, 2014 Subject: FCC Application for FCC ID: NKR-DNUAPO1 To Whom it may concern, We, the undersigned, would like to declare that the composite portion catagorized as computer peripheral has been authorized under the Declaration of Conformity procedures, which the report issued from International Certification Corp..(report number: FD470802.) Applicant : Wistron NeWeb Corporation Address : 20 Park Avenue II, Hsinchu Science Park, Hsinchu 308,Taiwan,R.O.C. Signature : _________________________________ Name and Job Title. : Troy Chien / Associate Technical Director E-mail : [email protected] Tel. : 886-3-6667799 Fax. : 886-3-6667323

RF_734_00, Issue 1 Modular Approval Request FCC (per DA 00-1407) FCC ID: NKR-DNUAPO1 Items to be covered Answer from applicant 1. The modular transmitter must have its own RF shielding. The modular has a shielding Case. Please refer to EUT Photo. 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. The component number is AR9375 3. The modular transmitter must have its own power supply regulation. The component number is AR9375 / AX3503Z6A 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable).. Antenna connector is MCX. And no external amplifier will be used with this modular. 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. This modular is tested under stand-alone configuration. Please refer to Test setup photo. 6. The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. The modular transmitter is labeled with its own FCC ID number. Please refer to label sample and label location. 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. For example, there are very strict operational and timing requirements that must be met before a transmitter is authorized for operation under Section 15.231. For instance, data transmission is prohibited, except for operation under Section 15.231(e), in which case there are separate field strength level and timing requirements. Compliance with these requirements must be assured. The modular complies with this requirement. Please refer to user manual. 8. The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 2.1091, 2.1093 and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices perform routine environmental evaluation for RF Exposure to demonstrate compliance. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF Exposure compliance in accordance with Section 15.247(b)(4). Modular transmitters approved under other Sections of Part 15, when necessary, may also need to address certain RF Exposure concerns, typically by providing specific installation and operating instructions for users, installers and other interested parties to ensure compliance. The device complies with this requirement. Please refer to RF exposure report. Note: If compliance with one or more of the numbered requirements, listed above, cannot be demonstrated, it may be possible to obtain a “Limited Modular Approval” (LMA). Name and surname of applicant (or authorized representative): __________________ Date: ___29 August 2014____ Signature: ___________________________

Date: August 19, 2014 Subject: Ad Hoc Mode Function Declaration FCC ID: NKR-DNUAPO1 IC ID: 4441A-DNUAPO1 To Whom it may concern, We, Wistron NeWeb Corporation declare that the device does not support any non-US channels and country code selection in all the operational mode(s) for the following product. Regards, Applicant : Wistron NeWeb Corporation Address : 20 Park Avenue II, Hsinchu Science Park, Hsinchu 308,Taiwan,R.O.C. Signature Name and Job Title. : Troy Chien / Associate Technical Director E-mail : [email protected] Tel. : 886-3-6667799 Fax. : 886-3-6667323

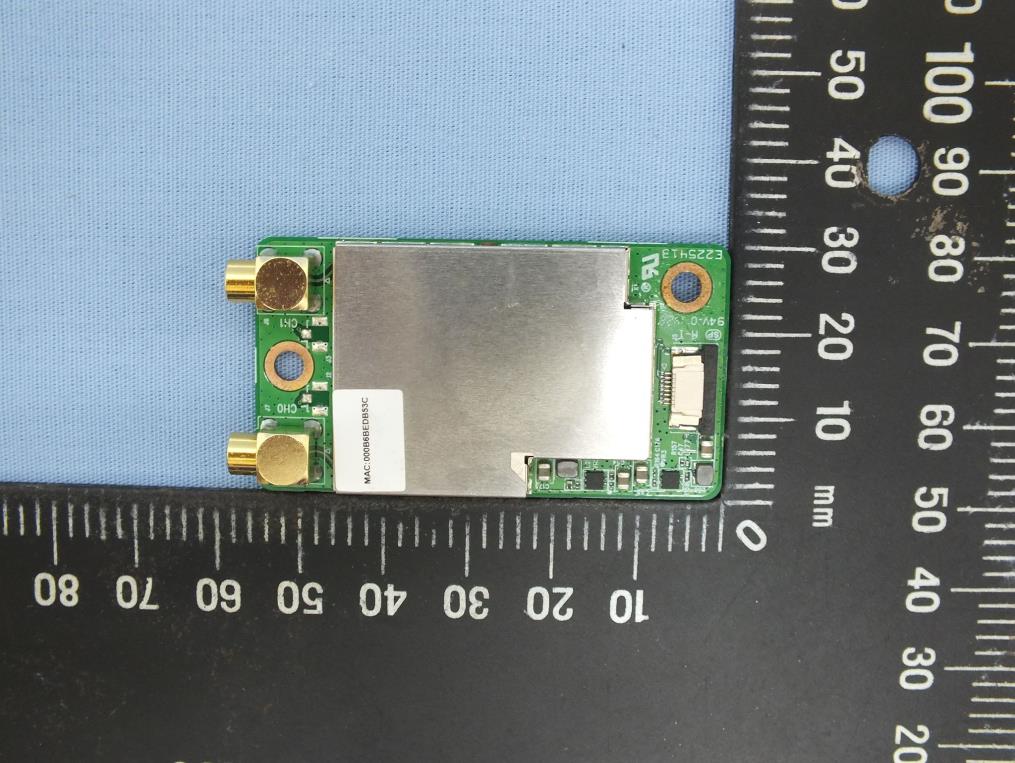

Project No.: 470802 Page No. : 1 of 5 Photographs of EUT Project No.: 470802 Page No. : 2 of 5 Project No.: 470802 Page No. : 3 of 5

1 Confidential Material for Internal Use Only Product label WNC MAC ID Label Location

Project No.: 470802 Page No. : 4 of 5 Project No.: 470802 Page No. : 5 of 5

Report No.: FA470802 Page : 1 of 5 Report Version: Rev. 01 FCC RF Exposure Report FCC ID : NKR-DNUAPO1 Equipment : 802.11N 2*2 USB module Model No. : DNUA-PO1 Brand Name : WNC Applicant : Wistron NeWeb Corporation Address : 20 Park Avenue II, Hsinchu Science Park, Hsinchu 308,Taiwan,R.O.C. Standard : 47 CFR FCC Part 2.1091 Received Date : Jul. 08, 2014 Tested Date : Jul. 21 ~ Aug. 11, 2014 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Approved & Reviewed by: Gary Chang / Manager Ty: XXX Report No.: FA470802 Page : 2 of 5 Report Version: Rev. 01 Table of Contents 1 MPE EVALUATION OF MOBILE DEVICES ......................................................................................... 4 1.1 LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE............................................. 4 1.2 MPE EVALUATION FORMULA ............................................................................................................. 4 1.3 MPE EVALUATION RESULTS .............................................................................................................. 4 2 TEST LABORATORY INFORMATION ................................................................................................. 5 Report No.: FA470802 Page : 3 of 5 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FA470802 Rev. 01 Initial issue Aug. 29, 2014 Report No.: FA470802 Page : 4 of 5 Report Version: Rev. 01 1 MPE EVALUATION OF MOBILE DEVICES Human exposure to RF emissions from mobile devices (47 CFR §2.1091) may be evaluated based on the MPE limits adopted by the FCC for electric and magnetic field strength and/or power density, as appropriate, since exposures are assumed to occur at distances of 20 cm or more from persons. 1.1 LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE Frequency Range (MHz) Power Density (mW /cm 2 ) Averaging Time (minutes) 300~1500 F/1500 30 1500~100000 1.0 30 1.2 MPE EVALUATION FORMULA Pd = 2 **4RPi Pt Where Pd= Power density in mW/cm 2 Pt= EIRP in mW Pi= 3.1416 R= Measurement distance 1.3 MPE EVALUATION RESULTS Frequency Range (MHz) Maximum Conducted Power (dBm) Antenna Gain (dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) 2412~2462 21.67 5.81 20 0.111 1 5180~5240 18.32 11.55 20 0.193 1 5745~5825 24.63 10.72 20 0.682 1 Report No.: FA470802 Page : 5 of 5 Report Version: Rev. 01 2 Test laboratory information Established in 2012, ICC provides foremost EMC & RF Testing and advisory consultation services by our skilled engineers and technicians. Our services employ a wide variety of advanced edge test equipment and one of the widest certification extents in the business. International Certification Corp, it is our definitive objective is to institute long term, trust-based associations with our clients. The expectation we set up with our clients is based on outstanding service, practical expertise and devotion to a certified value structure. Our passion is to grant our clients with best EMC / RF services by oriented knowledgeable and accommodating staff. Our Test sites are located at Linkou District and Kwei Shan Hsiang. Location map can be found on our website http://www.icertifi.com.tw. Linkou Kwei Shan Kwei Shan Site II Tel: 886-2-2601-1640 Tel: 886-3-271-8666 Tel: 886-3-271-8640 No. 30-2, Ding Fwu Tsuen, Lin Kou District, New Taipei City, Taiwan, R.O.C. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. No. 14-1, Lane 19, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. If you have any suggestion, please feel free to contact us as below information Tel: 886-3-271-8666 Fax: 886-3-318-0155 Email: [email protected] ══END══
