NKR-DNXAG1802.11 abgn 2x2 PCIe Module

802.11 abgn 2x2 PCIe Module DNXA-G1-P1 User Manual May 2014 1 Copyright Statement No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, whether electronic, mechanical, photocopying, recording or otherwise without the prior writing of the publisher. Pentium is trademark of Intel. All copyright reserved. 2 FCC Statement: Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: ● Reorient or relocate the receiving antenna. ● Increase the separation between the equipment and receiver. ● Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ● Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible. This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. 3 IMPORTANT NOTE: This module is intended for OEM integrator. The OEM integrator is still responsible for the FCC compliance requirement of the end product, which integrates this module. 20cm minimum distance has to be able to be maintained between the antenna and the users for the host this module is integrated into. Under such configuration, the FCC radiation exposure limits set forth for an population/uncontrolled environment can be satisfied. Any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. USERS MANUAL OF THE END PRODUCT: In the users manual of the end product, the end user has to be informed to keep at least 20cm separation with the antenna while this end product is installed and operated. The end user has to be informed that the FCC radio-frequency exposure guidelines for an uncontrolled environment can be satisfied. The end user has to also be informed that any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. If the size of the end product is smaller than 8x10cm, then additional FCC part 15.19 statement is required to be available in the users manual: This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. LABEL OF THE END PRODUCT: The final end product must be labeled in a visible area with the following " Contains TX FCC ID: NKR-DNXAG1 ". If the size of the end product is larger than 8x10cm, then the following FCC part 15.19 statement has to also be available on the label: This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. 4 IC Statement: CAN ICES-3 (B)/NMB-3(B) This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible. Pour les produits disponibles aux É tats-Unis / Canada du marché, seul le canal 1 à 11 peuvent être exploités. Sélection d'autres canaux n'est pas possible. This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter. Cet appareil et son antenne (s) ne doit pas être co-localisés ou fonctionnement en association avec une autre antenne ou transmetteur. IMPORTANT NOTE: IC Radiation Exposure Statement: This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance …

Text truncated - open the document above for the full version.

Date: 2014/9/22 Federal Communications Commission 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Product Certification Representative Authorization Letter FCC ID: NKR-DNXAG1 Product name: 802.11 abgn 2x2 PCIe Module To whom it may concern: We the undersigned, hereby authorize following person to act as our agent in the preparation of an application for equipment authorization of model DNXA-G1-P1 to the FCC Rules and Regulations. International Certification Corp. Address : No.3-1, Lane 6, Wen San 3rd St. Kwei Shan Hsiang, Tao Yuan Hsein 333, Taiwan (R.O.C.) Name : Gary Chang Job Title : Manager e-mail : [email protected] We further certify that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002(b), is subject to a denial to Federal benefits, including FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Applicant : Wistron NeWeb Corporation Address : 20 Park Avenue II, Hsinchu Science Park, Hsinchu 308,Taiwan,R.O.C. Signature : _________________________________ Name and Job Title. : Alan Wang / Senior Engineer E-mail : [email protected] Tel. : 886-3-6667799 ext:6907

Confidentiality Request Letter Date: 2014/9/22 Federal Communications Commission Authorization and Evaluation Division FCC ID：NKR-DNXAG1 Permanent Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description 4. Operational Description-Software security The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Applicant’s company name : Wistron NeWeb Corporation Applicant’s company address : 20 Park Avenue II, Hsinchu Science Park, Hsinchu 308,Taiwan,R.O.C. Signature : Job Title and Dept. : Alan Wang / Senior Engineer E-mail : [email protected] Tel. : 886-3-6667799 ext:6907

Date: September 22, 2014 Subject: Ad Hoc Mode Function Declaration FCC ID: NKR-DNXAG1 To Whom it may concern, We, Wistron NeWeb Corporation declare that the device does not support any non-US channels and country code selection in all the operational mode(s) for the following product. Regards, Applicant : Wistron NeWeb Corporation Address : 20 Park Avenue II, Hsinchu Science Park, Hsinchu 308,Taiwan,R.O.C. Signature : Name and Job Title. : Alan Wang / Senior Engineer E-mail [email protected] Tel. 886-3-6667799 ext:6907

RF_734_00, Issue 1 Modular Approval Request FCC (per DA 00-1407) FCC ID: NKR-DNXAG1 Items to be covered Answer from applicant 1. The modular transmitter must have its own RF shielding. The modular has a shielding Case. Please refer to EUT Photo. 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. The component number is AR9382-AL1A 3. The modular transmitter must have its own power supply regulation. The component number is RT8010 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable).. No antenna connector is used. And no external amplifier will be used with this modular. 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. This modular is tested under stand-alone configuration. Please refer to Test setup photo. 6. The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMO DEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. The modular transmitter is labeled with its own FCC ID number. Please refer to label sample and label location. 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. For example, there are very strict operational and timing requirements that must be met before a transmitter is authorized for operation under Section 15.231. For instance, data transmission is prohibited, except for operation under Section 15.231(e), in which case there are separate field strength level and timing requirements. Compliance with these requirements must be assured. The modular complies with this requirement. Please refer to user manual. 8. The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 2.1091, 2.1093 and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices perform routine environmental evaluation for RF Exposure to demonstrate compliance. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF Exposure compliance in accordance with Section 15.247(b)(4). Modular transmitters approved under other Sections of Part 15, when necessary, may also need to address certain RF Exposure concerns, typically by providing specific installation and operating instructions for users, installers and other interested parties to ensure compliance. The device complies with this requirement. Please refer to RF exposure report. Note: If compliance with one or more of the numbered requirements, listed above, cannot be demonstrated, it may be possible to obtain a “Limited Modular Approval” (LMA). Name and surname of applicant (or authorized representative): __________________ Date: ___02 October 2014____ Signature: ___________________________

A G E N C Y A U T H O R I Z A T I O N L E T T E R Date: September 10, 2014 I, Troy Chien, am Associate Technical Director for Wistron NeWeb Corp. hereby authorize the following to act on our behalf, as our agent, in all matters relating to all processes required according to FCC approval for Wistron NeWeb Corp. products (Grantee Code: NKR) Barry Chen Alan Wang Lulu Lin This authorization shall expire twelve months from the original date. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, Contact Name: Troy Chien Job Title: Associate Technical Director Company Name: Wistron NeWeb Corp. Address: 20 Park Avenue II, Hsinchu Science Park, Hsinchu 308,Taiwan,R.O.C. TEL: 886-3-6667799 Ext 6361 FAX: 886-3-6667323 E-mail: [email protected]

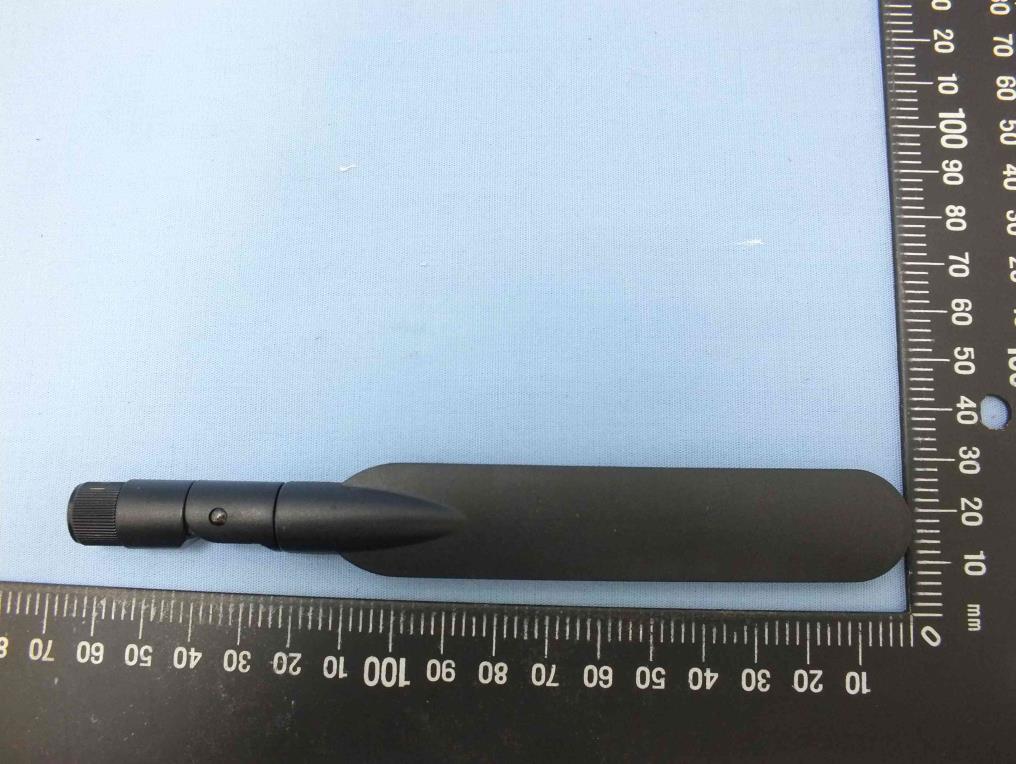

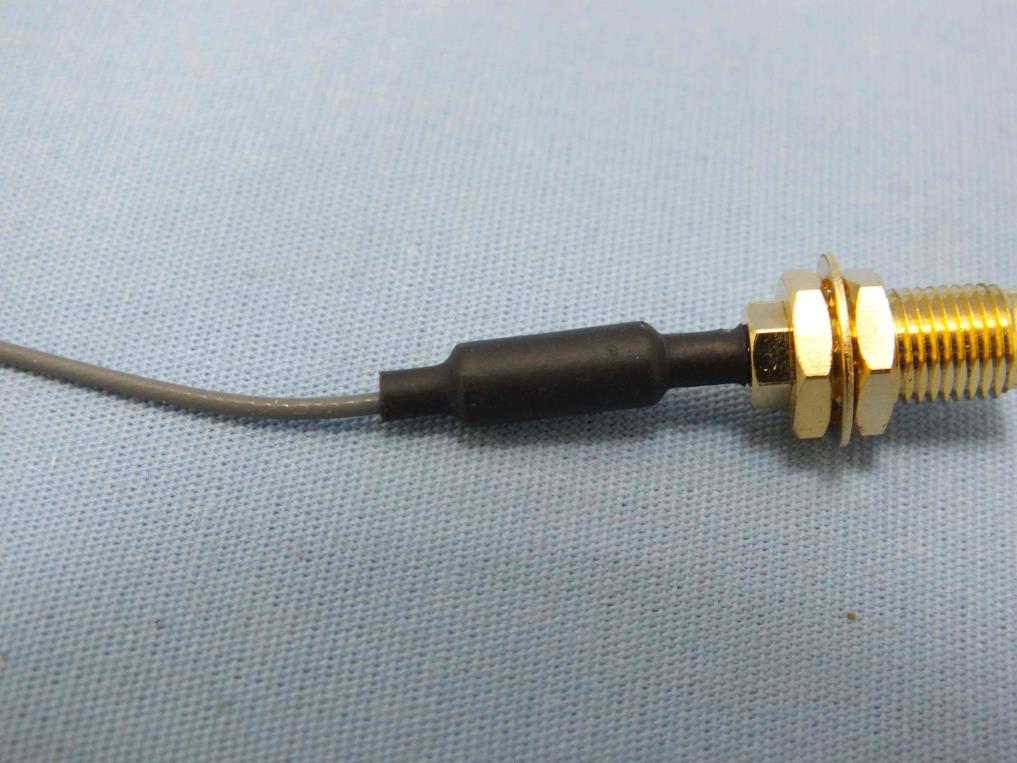

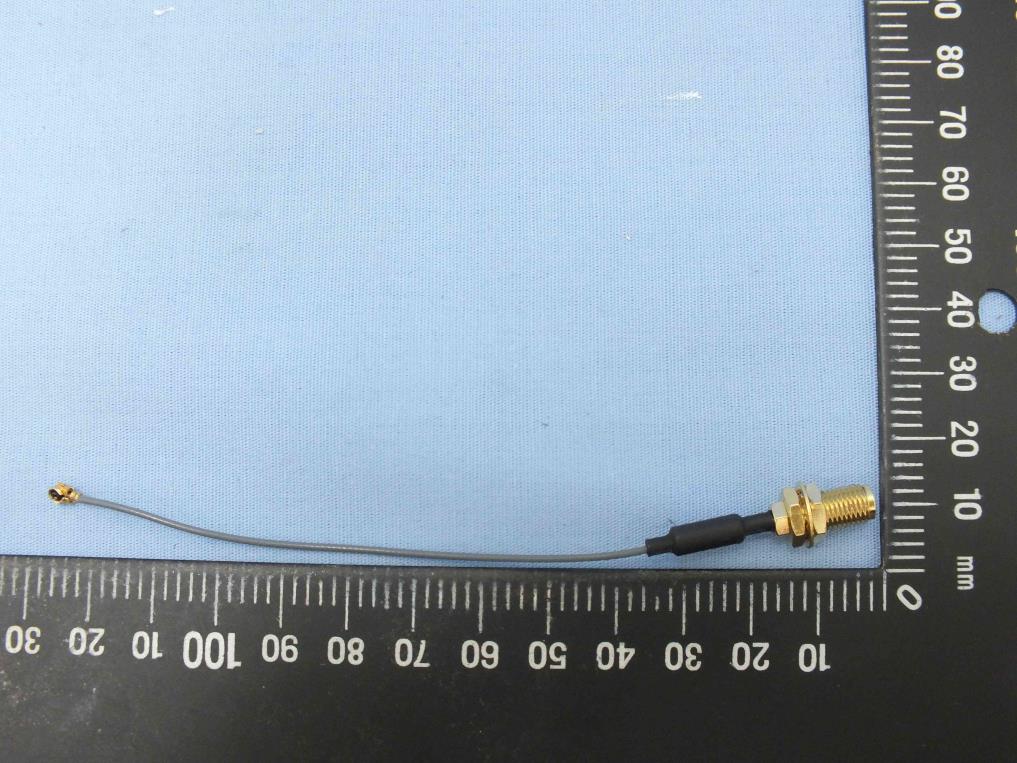

Project No.: EP441506 Page No. : 1 of 7 Photographs of EUT Project No.: EP441506 Page No. : 2 of 7 Project No.: EP441506 Page No. : 3 of 7 Project No.: EP441506 Page No. : 4 of 7

FCC ID: NKR-DNXAG1 Label Location

Project No.: EP441506 Page No. : 5 of 7 Project No.: EP441506 Page No. : 6 of 7 Project No.: EP441506 Page No. : 7 of 7

Report No.: FA441506 Page : 1 of 5 Report Version: Rev. 01 FCC RF Exposure Report FCC ID : NKR-DNXAG1 Equipment : 802.11 abgn 2x2 PCIe Module Model No. : DNXA-G1-P1 Brand Name : WNC Applicant : Wistron Neweb Corporation Address : 20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C. Standard : 47 CFR FCC Part 2.1091 Received Date : Apr. 15, 2014 Tested Date : Aug. 28 ~ Sep. 15, 2014 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Approved & Reviewed by: Gary Chang / Manager Ty: XXX Report No.: FA441506 Page : 2 of 5 Report Version: Rev. 01 Table of Contents 1 MPE EVALUATION OF MOBILE DEVICES ......................................................................................... 4 1.1 LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE............................................. 4 1.2 MPE EVALUATION FORMULA ............................................................................................................. 4 1.3 MPE EVALUATION RESULTS .............................................................................................................. 4 2 TEST LABORATORY INFORMATION ................................................................................................. 5 Report No.: FA441506 Page : 3 of 5 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FA441506 Rev. 01 Initial issue Sep. 22, 2014 Report No.: FA441506 Page : 4 of 5 Report Version: Rev. 01 1 MPE EVALUATION OF MOBILE DEVICES Human exposure to RF emissions from mobile devices (47 CFR §2.1091) may be evaluated based on the MPE limits adopted by the FCC for electric and magnetic field strength and/or power density, as appropriate, since exposures are assumed to occur at distances of 20 cm or more from persons. 1.1 LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE Frequency Range (MHz) Power Density (mW /cm 2 ) Averaging Time (minutes) 300~1500 F/1500 30 1500~100000 1.0 30 1.2 MPE EVALUATION FORMULA Pd = 2 **4RPi Pt Where Pd= Power density in mW/cm 2 Pt= EIRP in mW Pi= 3.1416 R= Measurement distance 1.3 MPE EVALUATION RESULTS Frequency Range (MHz) Maximum Conducted Power (dBm) Antenna Gain (dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) 2412~2462 23.51 4 20 0.112 1 5180~5240 22.95 5 20 0.124 1 Report No.: FA441506 Page : 5 of 5 Report Version: Rev. 01 2 Test laboratory information Established in 2012, ICC provides foremost EMC & RF Testing and advisory consultation services by our skilled engineers and technicians. Our services employ a wide variety of advanced edge test equipment and one of the widest certification extents in the business. International Certification Corp, it is our definitive objective is to institute long term, trust-based associations with our clients. The expectation we set up with our clients is based on outstanding service, practical expertise and devotion to a certified value structure. Our passion is to grant our clients with best EMC / RF services by oriented knowledgeable and accommodating staff. Our Test sites are located at Linkou District and Kwei Shan Hsiang. Location map can be found on our website http://www.icertifi.com.tw. Linkou Kwei Shan Kwei Shan Site II Tel: 886-2-2601-1640 Tel: 886-3-271-8666 Tel: 886-3-271-8640 No. 30-2, Ding Fwu Tsuen, Lin Kou District, New Taipei City, Taiwan, R.O.C. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. No. 14-1, Lane 19, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. If you have any suggestion, please feel free to contact us as below information Tel: 886-3-271-8666 Fax: 886-3-318-0155 Email: [email protected] ══END══

Report No.: FR441506AN Page : 1 of 42 Report Version: Rev. 01 FCC Test Report FCC ID : NKR-DNXAG1 Equipment : 802.11 abgn 2x2 PCIe Module Model No. : DNXA-G1-P1 Brand Name : WNC Applicant : Wistron Neweb Corporation Address : 20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C. Standard : 47 CFR FCC Part 15.407 Received Date : Apr. 15, 2014 Tested Date : Aug. 29 ~ Sep. 15, 2014 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Approved & Reviewed by: Gary Chang / Manager Ty: XXX Report No.: FR441506AN Page : 2 of 42 Report Version: Rev. 01 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Local Support Equipment List ................................................................................................................ 6 1.3 Test Setup Chart .................................................................................................................................... 6 1.4 The Equipment List ................................................................................................................................ 7 1.5 Testing Applied Standards ..................................................................................................................... 8 1.6 Measurement Uncertainty ...................................................................................................................... 8 2 TEST CONFIGURATION ....................................................................................................................... 9 2.1 Testing Condition ................................................................................................................................... 9 2.2 The Worst Test Modes and Channel Details ......................................................................................... 9 3 TRANSMITTER TEST RESULTS ........................................................................................................ 10 3.1 Conducted Emissions ........................................................................................................................... 10 3.2 Emission Bandwidth ............................................................................................................................. 13 3.3 RF Output Power .................................................................................................................................. 15 3.4 Peak Power Spectral Density ............................................................................................................... 17 3.5 Transmitter Radiated and Band Edge Emissions ................................................................................ 19 3.6 Frequency Stability ............................................................................................................................... 40 4 TEST LABORATORY INFORMATION ............................................................................................... 42 Report No.: FR441506AN Page : 3 of 42 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FR441506AN Rev. 01 Initial issue Sep. 22, 2014 Report No.: FR441506AN Page : 4 of 42 Report Version: Rev. 01 Summary of Test Results FCC Rules Test Items Measured Result 15.207 Conducted Emissions [dBuV]: 0.153MHz 48.29 (Margin -7.53dB) - AV Pass 15.407(b) 15.209 Radiated Emissions [dBuV/m at 3m]: 5150.00MHz 72.98 (Margin -1.02dB) - PK Pass 15.407(a) Emission Bandwidth Meet the requirement of limit Pass 15.407(a) RF Output Power Max Power [dBm]: 22.95 Pass 15.407(a) Peak Power Spectral Density Meet the requirement of limit Pass 15.407(g) Frequency Stability Meet the requirement of limit Pass 15.203 Antenna Requirement Meet the requirement of limit Pass Report No.: FR441506AN Page : 5 of 42 Report Version: Rev. 01 1 General Description 1.1 Information 1.1.1 Specification of the Equipment under Test (EUT) RF General Information Frequency Range (MHz) IEEE Std. 802.11 Ch. Freq. (MHz) Channel Number Transmit Chains (N TX ) Data Rate / MCS 5150-5250 a 5180-5240 36-48 [4] 2 6-54 Mbps 5150-5250 n (HT20) 5180-5240 36-48 [4] 2 MCS 0-15 5150-5250 n (HT40) 5190-5230 38-46 [2] 2 MCS 0-15 Note 1: RF output power specifies that Maximum Conducted Output Power. Note 2: 802.11a/n uses a combination of OFDM-BPSK, QPSK, 16QAM, 64QAM modulation. 1.1.2 Antenna Details Ant. No. Type Connector Operating Frequencies (MHz) / Antenna Gain (dBi) 2400~2483.5 5150~5250 5250~5350 5470~5725 5725~5850 1 Dipole U.FL 4 5 5 5 4.5 1.1.3 Power Supply Type of Equipment under Test (EUT) Power Supply Type 3.3Vdc from host 1.1.4 Accessories N/A 1.1.5 Channel List For Frequency band 5150-5250 MHz 802.11 a / HT20 802.11n HT40 Channel Frequency(MHz) Channel Frequency(MHz) 36 5180 38 5190 40 5200 46 5230 44 5220 --- --- 48 5240 --- --- Report No.: FR441506AN Page : 6 of 42 Report Version: Rev. 01 1.1.6 Test Tool and Duty Cycle Test Tool ART2-GUI, version 2.3 Duty Cycle and Duty Factor Mode Duty cycle (%) Duty factor (dB) 11a 98.65% 0.06 HT20 98.12% 0.08 HT40 96.07% 0.17 1.1.7 Power Setting Modulation Mode Test Frequency (MHz) Power Set 11a 5180 16 11a 5200 23.5 11a 5240 18.5 HT20 5180 15.5 HT20 5200 23.5 HT20 5240 18.5 HT40 5190 10.5 HT40 5230 18 1.2 Local Support Equipment List Support Equipment List No. Equipment Brand Model S/N FCC ID Signal cable / Length (m) 1 Notebook DELL E6430 --- -…

Text truncated - open the document above for the full version.

Report No.: FR441506 Page: : 1 of 4 Report Version: Rev. 01 Photographs of the Test Configuration Conducted Emission Test Report No.: FR441506 Page: : 2 of 4 Report Version: Rev. 01 Conducted Emission Test Report No.: FR441506 Page: : 3 of 4 Report Version: Rev. 01 Radiated Emission Test Report No.: FR441506 Page: : 4 of 4 Report Version: Rev. 01 Radiated Emission Test
