PCIe 802.11n WiFi Module WNC User Manual (DNXA-H1) Version: 1.0 Nov. 2010 1 Copyright Statement No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, whether electronic, mechanical, photocopying, recording or otherwise without the prior writing of the publisher. Windows ™ 98SE/2000/ME/XP are trademarks of Microsoft ® Corp. Pentium is trademark of Intel. All copyright reserved. 2 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 3 This device is intended only for OEM integrators under the following conditions: 1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and 2) The transmitter module may not be co-located with any other transmitter or antenna, 3) For all products market in US, OEM has to limit the operation channels in CH1 to CH11 for 2.4G band by supplied firmware programming tool. OEM shall not supply any tool or info to the end-user regarding to Regulatory Domain change. As long as 3 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed. IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. End Product Labeling This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users. The final end product must be labeled in a visible area with the following: “Contains FCC ID: NKR- DNXAH1”. Manual Information To the End User The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user’s manual of the end product which integrates this module. The end user manual shall include all required regulatory information/warning as show in this manual. 4 Table of Contents 1. INTRODUCTION 5 1.1 SYSTEM REQUIREMENTS.........................................................................................5 1.2 FEATURES.................................................................................................................5 2. DRIVER/UTILITY INSTALLATION / UNINSTALLATION 6 2.1 INSTALLATION..........................................................................................................6 2.2 ADDITIONAL SETUP PROCESSES..............................................................................9 2.3 UNINSTALLATION...................................................................................................10 3. CONNECTING TO AN EXISTING NETWORK 11 4. CREATING AN AD HOC NEW NETWORK 16 5. MODIFYING A WIRELESS NETWORK 19 5.1 INFRASTRUCTURE MODE AND AD HOC MODE.....................................................19 5.2 MODIFYING A WIRELESS NETWORK.....................................................................20 5.3 DEFAULT SETTINGS WINDOWS XP ZERO-CONFIGURATION................................27 5.4 SUPER A/G SETTING..............................................................................................27 APPENDIX A: FAQ ABOUT WLAN 28 5 1. Introduction Thank you for purchasing the PCIe 802.11n WiFi Module that provides the easiest way to wireless networking. This User Manual contains detailed instructions in the operation of this product. Please keep this manual for future reference. 1.1 System Requirements
A laptop PC contains: - 32 MB memory or greater - 300 MHz processor or higher
Microsoft ® Win ™ 2000/ME/98 Second Edition/XP 1.2 Features
Mini-PCI adapter, half size design
IEEE 802.11a/b/g/n compatible: allowing inter-operation among multiple vendors
Support Atheros Super A/G TM Mode
Provide seamless …

Text truncated - open the document above for the full version.

FCC ID: NKR-DNXAH1 Report No.: RF991118C18 Modular Approval Request Letter Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch November 26, 2010 Dear Application Examiner, Wistron NeWeb Corp., It’s a PCIe 802.11n WiFi module, FCC ID: NKR-DNXAH1 would like to have your authorization as a modular device. The requirements of section 15.212 of FCC rules have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding”: The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip AR9390. 3. “The modular transmitter must have its own power supply regulation.” The part number of this regulator is. RT8010. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was tested in a stand-alone configuration. Please see section Photographs of Test Configuration in the test report, the EUT was plugged in this extend cable 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: NKR-DNXAH1 Report No.: RF991118C18 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, Gary Chang Assistant Manager Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch

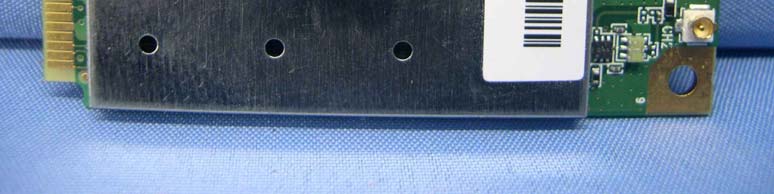

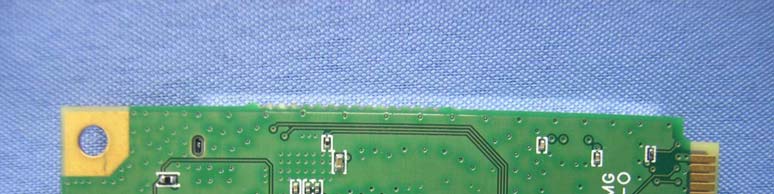

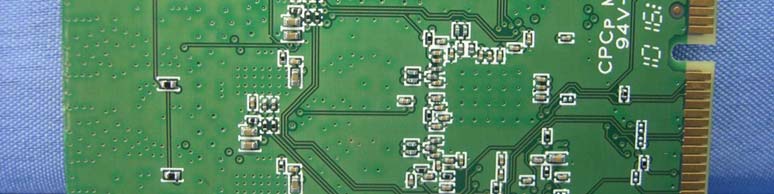

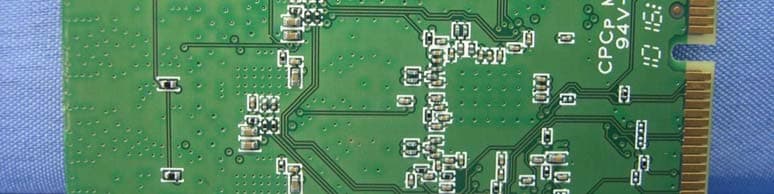

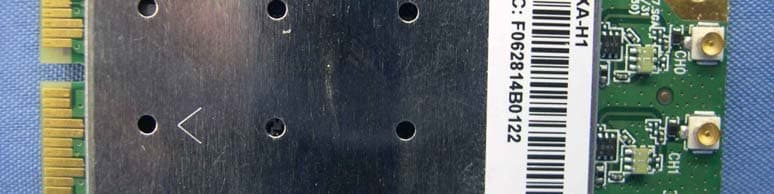

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

PCIe 802.11n WiFi module Model: DNXA-H1 FCC ID: NKR-DNXAH1

Label Location

Page 4

FCC ID: NKR-DNXAH1 Report No.: RF991118C18 Operational Description This device is a PCIe 802.11n Wireless LAN Module, which operates in both of the 5GHz and 2.4GHz bands, the maximum data rate could be up to 450Mbps which OFDM technique. If the signal to noise radio is too poor which could not support 450Mbps, the 11Mbps data rate with DSSS technique will be applied. The antenna is PIFA antenna with U.FL antenna connector. The other instruction, please have a look at the users manual. FCC 15.407(c) states: The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude the transmission of control or signaling information or the use of repetitive codes used by certain digital technologies to complete frame or burst intervals. Applicants shall include in their application for equipment authorization a description of how this requirement is met” Data transmission is always initiated by software, which is then pass down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets (ACKs, CTS, PSPoll, etc...) are initiated by the MAC. There are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets are being transmitted.

Report No.: SA990622C09B Report Format Version 3.0.1. 1 RF EXPOSURE REPORT REPORT NO.: SA990622C09B MODEL NO.: DNXA-H1 FCC ID: NKR- DNXAH1 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Wistron NeWeb Corp. ADDRESS: 20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. Report No.: SA990622C09B Report Format Version 3.0.1. 2 1. RF EXPOSURE LIMIT LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 2. MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r2) where Pd = power density in mW/cm2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm 3. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: SA990622C09B Report Format Version 3.0.1. 3 4. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER MODULATION MODE FREQUENCY BAND (MHz) MAX POWER (dBm) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/cm 2 ) LIMIT (mW/cm 2 ) 802.11b 2412-2462 24.7 10.18 20 0.612 1 802.11g 2412-2462 25.5 10.18 20 0.736 1 802.11n (20MHz) 2412-2462 28.6 5.41 20 0.501 1 802.11n (40MHz) 2422-2452 26.1 5.41 20 0.282 1 802.11a 5180-5240 10.7 11.79 20 0.035 1 802.11n (20MHz) 5180-5240 15.6 7.02 20 0.036 1 802.11n (40MHz) 5190-5230 15.4 7.02 20 0.035 1 802.11a 5745-5825 24.1 11.79 20 0.772 1 802.11n (20MHz) 5745-5825 24.6 7.02 20 0.289 1 802.11n (40MHz) 5755-5795 23.7 7.02 20 0.235 1 NOTE: The antenna is not used for point to point operation, so the directional gain are as below: For 2.4GHz Band (802.11 b/g): Directional gain =5.41dBi + 10log(3)=10.18dBi > 6dBi For 5.180 ~ 5.240GHz Band (802.11 a): Directional gain =7.02dBi + 10log(3)=11.79dBi > 6dBi For 5.745 ~ 5.825GHz Band (802.11 a): Directional gain =7.02dBi + 10log(3)=11.79dBi > 6dBi

Report No.: RF990622C09B 1 Report Format Version 3.0.1 Reference No.: 991118C18 FCC TEST REPORT (15.247) REPORT NO.: RF990622C09B MODEL NO.: DNXA-H1 FCC ID: NKR- DNXAH1 RECEIVED: Jun. 22, 2010 TESTED: Oct. 27 ~ Nov. 15, 2010 ISSUED: Nov. 24, 2010 APPLICANT: Wistron NeWeb Corp. ADDRESS: 20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 121 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product, certification, approval, or endorsement by TAF or any government agency. The test results in the report only apply to the tested sample. Report No.: RF990622C09B 2 Report Format Version 3.0.1 Reference No.: 991118C18 TABLE OF CONTENTS 1. CERTIFICATION.......................................................................................................5 2. SUMMARY OF TEST RESULTS ..............................................................................6 2.1 MEASUREMENT UNCERTAINTY............................................................................6 3. GENERAL INFORMATION .......................................................................................7 3.1 GENERAL DESCRIPTION OF EUT .........................................................................7 3.2 DESCRIPTION OF TEST MODES ...........................................................................9 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST ....................................................10 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ......................... 11 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ........................................16 3.4 DESCRIPTION OF SUPPORT UNITS ...................................................................16 4. TEST TYPES AND RESULTS (FOR 2.4GHz BAND) .............................................17 4.1 RADIATED EMISSION MEASUREMENT ..............................................................17 4.1.1 LIMITS OF RADIATED EMISSION MEASUREMENT............................................17 4.1.2 TEST INSTRUMENTS............................................................................................18 4.1.3 TEST PROCEDURES ............................................................................................19 4.1.4 DEVIATION FROM TEST STANDARD...................................................................19 4.1.5 TEST SETUP..........................................................................................................20 4.1.6 EUT OPERATING CONDITIONS ...........................................................................20 4.1.7 TEST RESULT........................................................................................................21 4.2 CONDUCTED EMISSION MEASUREMENT .........................................................34 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT.......................................34 4.2.2 TEST INSTRUMENTS............................................................................................34 4.2.3 TEST PROCEDURES ............................................................................................35 4.2.4 DEVIATION FROM TEST STANDARD...................................................................35 4.2.5 TEST SETUP..........................................................................................................36 4.2.6 EUT OPERATING CONDITIONS ...........................................................................36 4.2.7 TEST RESULTS .....................................................................................................37 4.3 6dB BANDWIDTH MEASUREMENT......................................................................39 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT ...................................................39 4.3.2 TEST INSTRUMENTS............................................................................................39 4.3.3 TEST PROCEDURE...............................................................................................39 4.3.4 DEVIATION FROM TEST STANDARD...................................................................39 4.3.5 TEST SETUP..........................................................................................................40 4.3.6 EUT OPERATING CONDITIONS ...........................................................................40 4.3.7 TEST RESULTS .....................................................................................................41 4.4 MAXIMUM OUTPUT POWER ................................................................................45 4.4.1 LIMITS OF MAXIMUM OUTPUT POWER MEASUREMENT.................................45 4.4.2 INSTRUMENTS ......................................................................................................45 4.4.3 TEST PROCEDURE...............................................................................................45 Report No.: RF990622C09B 3 Report Format Version 3.0.1 Reference No.: 991118C18 4.4.4 DEVIATION FROM TEST STANDARD...................................................................46 4.4.5 TEST SETUP..........................................................................................................46 4.4.6 EUT OPERATING CONDITIONS ...........................................................................46 4.4.7 TEST RESULTS .....................................................................................................47 4.5 POWER SPECTRAL DENSITY MEASUREMENT .................................................48 4.5.1 LIMI…

Text truncated - open the document above for the full version.

Report No.: RF990622C09B-1 1 Report Format Version 3.0.1 Reference No.: 991118C18 FCC TEST REPORT (15.407) REPORT NO.: RF990622C09B-1 MODEL NO.: DNXA-H1 FCC ID: NKR- DNXAH1 RECEIVED: Jun. 22, 2010 TESTED: Oct. 27 ~ Nov. 15, 2010 ISSUED: Nov. 24, 2010 APPLICANT: Wistron NeWeb Corp. ADDRESS: 20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C. ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 68 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval or endorsement by TAF or any government agency. The test results in the report only apply to the tested sample. Report No.: RF990622C09B-1 2 Report Format Version 3.0.1 Reference No.: 991118C18 TABLE OF CONTENTS 1. CERTIFICATION.......................................................................................................4 2. SUMMARY OF TEST RESULTS ..............................................................................5 2.1 MEASUREMENT UNCERTAINTY............................................................................5 3. GENERAL INFORMATION .......................................................................................6 3.1 GENERAL DESCRIPTION OF EUT .........................................................................6 3.2 DESCRIPTION OF TEST MODES ...........................................................................8 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST ......................................................8 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ...........................9 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ........................................ 11 3.4 DESCRIPTION OF SUPPORT UNITS ................................................................... 11 4. TEST TYPES AND RESULTS ................................................................................12 4.1 RADIATED EMISSION MEASUREMENT ..............................................................12 4.1.1 LIMITS OF RADIATED EMISSION MEASUREMENT............................................12 4.1.2 LIMITS OF UNWANTED EMISSION OUT OF THE RESTRICTED BANDS ..........12 4.1.3 TEST INSTRUMENTS............................................................................................13 4.1.4 TEST PROCEDURES ............................................................................................14 4.1.5 DEVIATION FROM TEST STANDARD...................................................................14 4.1.6 TEST SETUP..........................................................................................................15 4.1.7 EUT OPERATING CONDITION..............................................................................15 4.1.8 TEST RESULTS .....................................................................................................16 4.2 CONDUCTED EMISSION MEASUREMENT .........................................................25 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT.......................................25 4.2.2 TEST INSTRUMENTS............................................................................................25 4.2.3 TEST PROCEDURES ............................................................................................26 4.2.4 DEVIATION FROM TEST STANDARD...................................................................26 4.2.5 TEST SETUP..........................................................................................................27 4.2.6 EUT OPERATING CONDITIONS ...........................................................................27 4.2.7 TEST RESULTS .....................................................................................................28 4.3 CONDUCTED POWER MEASUREMENT .............................................................30 4.3.1 LIMITS OF CONDUCTED POWER MEASUREMENT...........................................30 4.3.2 TEST INSTRUMENTS............................................................................................30 4.3.3 TEST PROCEDURE...............................................................................................31 4.3.4 DEVIATION FROM TEST STANDARD...................................................................31 4.3.5 TEST SETUP..........................................................................................................31 4.3.6 EUT OPERATING CONDITIONS ...........................................................................31 4.3.7 TEST RESULTS .....................................................................................................32 4.4 PEAK POWER EXCURSION MEASUREMENT ....................................................36 4.4.1 LIMITS OF PEAK POWER EXCURSION MEASUREMENT..................................36 4.4.2 TEST INSTRUMENTS............................................................................................36 4.4.3 TEST PROCEDURE...............................................................................................36 4.4.4 DEVIATION FROM TEST STANDARD...................................................................37 4.4.5 TEST SETUP..........................................................................................................37 Report No.: RF990622C09B-1 3 Report Format Version 3.0.1 Reference No.: 991118C18 4.4.6 EUT OPERATING CONDITIONS ...........................................................................37 4.4.7 TEST RESULTS .....................................................................................................38 4.5 PEAK POWER SPECTRAL DENSITY MEA…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 2 3 RADIATED EMISSION TEST 4
