NKR-LS04home security gateway

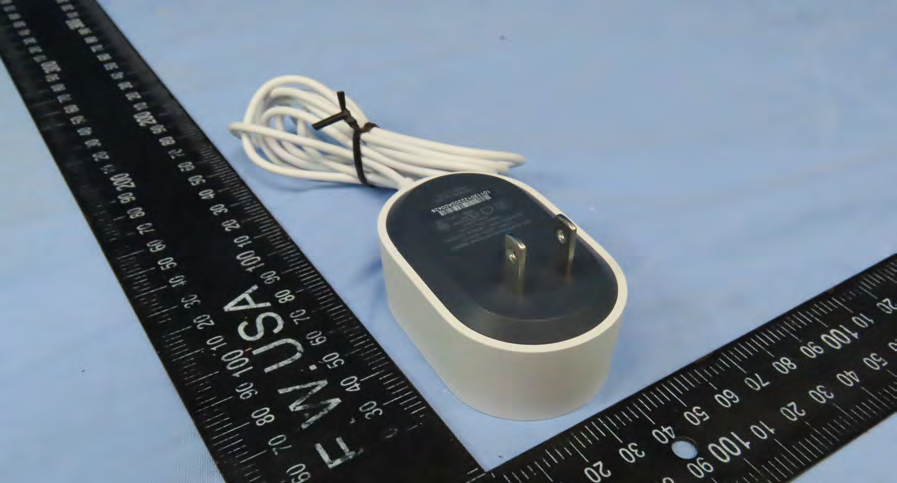

FRONT COVERBACK COVER OUTSIDE PAGE VIEW MIDDLE PAGE INSIDE PAGES VIEW v5 BASE SET UP GUIDE TRI-FOLD DOUBLE SIDED PRINT FOLDED SIZE: 4.125 x 4.125 in. FOLD STYLE: COPY LIMIT CREASE Operating specifications: Wi-Fi connectivity at 2.4 or 5 GHz required Wi-Fi network secured with WPA /WPA 2 password Temperature: 32° to 122°F (0° to 50°C) Indoor use only Power source: AC power plug AC power input: 100-240V ~50-60Hz DC power output 12V~1.5A Backup battery: rechargeable lithium-ion battery pack (lasts up to 24 hours) © 2022 ADT LLC dba ADT Security Services. All rights reserved. ADT, the ADT logo, (800) ADT-ASAP and the product/service names listed in this document are marks and/or registered marks. Unauthorized use is strictly prohibited. Third-party marks are the property of their respective owners. License information available at ADT.com or by calling (800) ADT-ASAP. CA ACO7155, 974443, PPO120288 FL EF0001121; LA F1639, F1640, F1643, F1654; MA 172C; NC Licensed by the Alarm Systems Licensing Board of the State of North Carolina; 7535P2, 7561P2, 7561P2M, 7562P10, 7563P7, 7564P4 NY 12000305615; PA 090797; MS 15019511. Arm Stay Delays on, motion off. Use when people or pets are home. Arm Away Delays on, motion on. Use when leaving home and no pets are home. Delays – Countdown for entry/exit. Motion – Alarm will sound if motion is detected. Arm States Siren sounds. Dispatch occurs if enrolled in paid monitoring. Siren sounds. Dispatch occurs if enrolled in paid monitoring. Police Medical Use to cancel PIN entry. Indicates system is disarmed, has open sensors, or has errors. Disarm + System Status Cancel Arm Night Delays off, motion off. Use at night when home. Siren sounds. Dispatch occurs if enrolled in paid monitoring. Fire Press an emergency button, release, then press and hold same button for 3 seconds to activate. Dispatch requires paid monitoring. Emergency For more detailed setup and troubleshooting information, see the complete owner’s manual at adt.com/help. If you have additional questions or would like to speak to support about expanding your security system, call us at (888) 392-2039. Arm Stay Police Arm Away Arm Night Medical Fire Cancel Power Disarm + System Status Base Quick Start Guide 1 2 Download the ADT+ app. Create an account or log into an existing account. Follow the in-app steps to connect your base to Wi-Fi. Make sure Bluetooth is enabled on your smart device. 3 Note: User can’t purchase any product in the market 100% compatible with our module. Even user completely duplicate one module, the product SW will not enable it if the authentication fails. Label: Please open the bottom cover, and you can see it.

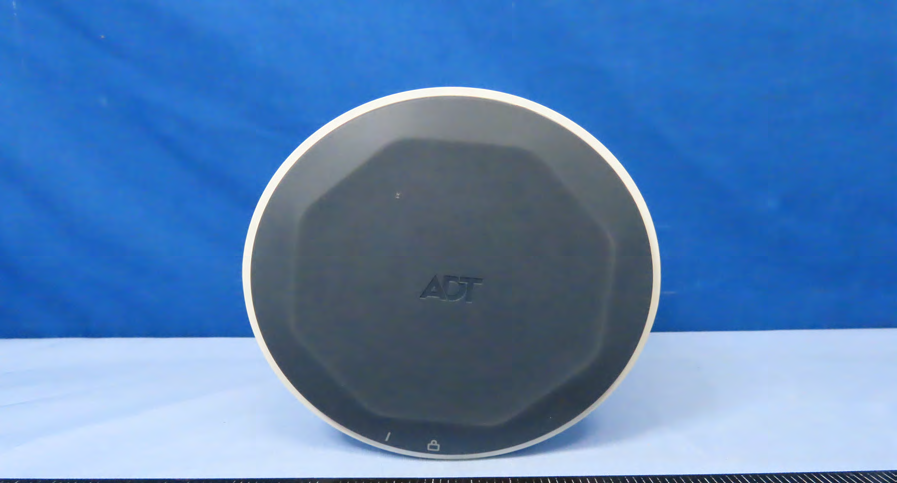

Reference No.: BEOP-WTW-P22030407_EXT Page 1/6 CONSTRUCTION PHOTOS OF EUT Reference No.: BEOP-WTW-P22030407_EXT Page 2/6 Reference No.: BEOP-WTW-P22030407_EXT Page 3/6 Reference No.: BEOP-WTW-P22030407_EXT Page 4/6 Reference No.: BEOP-WTW-P22030407_EXT Page 5/6 Reference No.: BEOP-WTW-P22030407_EXT Page 6/6

Bottom of EUT Label Location

Reference No.: BEOP-WTW-P22030407_INT Page 1/38 CONSTRUCTION PHOTOS OF EUT Reference No.: BEOP-WTW-P22030407_INT Page 2/38 Reference No.: BEOP-WTW-P22030407_INT Page 3/38 Reference No.: BEOP-WTW-P22030407_INT Page 4/38 Reference No.: BEOP-WTW-P22030407_INT Page 5/38 Reference No.: BEOP-WTW-P22030407_INT Page 6/38 Reference No.: BEOP-WTW-P22030407_INT Page 7/38 Z-wave Antenna Reference No.: BEOP-WTW-P22030407_INT Page 8/38 DECT1 Antenna Reference No.: BEOP-WTW-P22030407_INT Page 9/38 Reference No.: BEOP-WTW-P22030407_INT Page 10/38 DECT2 Antenna Reference No.: BEOP-WTW-P22030407_INT Page 11/38 LTE Aux Antenna Reference No.: BEOP-WTW-P22030407_INT Page 12/38 Reference No.: BEOP-WTW-P22030407_INT Page 13/38 WIFI1 and BT Antenna Reference No.: BEOP-WTW-P22030407_INT Page 14/38 WIFI2 and Zigbee Antenna Reference No.: BEOP-WTW-P22030407_INT Page 15/38 Reference No.: BEOP-WTW-P22030407_INT Page 16/38 Reference No.: BEOP-WTW-P22030407_INT Page 17/38 Reference No.: BEOP-WTW-P22030407_INT Page 18/38 Reference No.: BEOP-WTW-P22030407_INT Page 19/38 Reference No.: BEOP-WTW-P22030407_INT Page 20/38 Reference No.: BEOP-WTW-P22030407_INT Page 21/38 Reference No.: BEOP-WTW-P22030407_INT Page 22/38 Reference No.: BEOP-WTW-P22030407_INT Page 23/38 Reference No.: BEOP-WTW-P22030407_INT Page 24/38 LTE Main Antenna Reference No.: BEOP-WTW-P22030407_INT Page 25/38 Reference No.: BEOP-WTW-P22030407_INT Page 26/38 Reference No.: BEOP-WTW-P22030407_INT Page 27/38 Reference No.: BEOP-WTW-P22030407_INT Page 28/38 Reference No.: BEOP-WTW-P22030407_INT Page 29/38 Reference No.: BEOP-WTW-P22030407_INT Page 30/38 Reference No.: BEOP-WTW-P22030407_INT Page 31/38 Reference No.: BEOP-WTW-P22030407_INT Page 32/38 Reference No.: BEOP-WTW-P22030407_INT Page 33/38 Reference No.: BEOP-WTW-P22030407_INT Page 34/38 Reference No.: BEOP-WTW-P22030407_INT Page 35/38 Reference No.: BEOP-WTW-P22030407_INT Page 36/38 Reference No.: BEOP-WTW-P22030407_INT Page 37/38 Reference No.: BEOP-WTW-P22030407_INT Page 38/38

Report No.: MFBEOP-WTW-P22030407 Page No. 1 / 7 Report Format Version: 6.1.1 RF Exposure Report Report No.: MFBEOP-WTW-P22030407 FCC ID: NKR-LS04 Test Model: S501R0-01 Received Date: 2022/3/26 Test Date: 2022/5/18 ~ 2022/6/24 Issued Date: 2022/7/8 Applicant: Wistron NeWeb Corporation Address: 20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C. Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Lin Kou Laboratories Lab Address: No. 47-2, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan Test Location (1): No. 19, Hwa Ya 2nd Rd., Wen Hwa Vil., Kwei Shan Dist., Taoyuan City 33383, Taiwan FCC Registration / Designation Number: 788550 / TW0003 Test Location (2): No. 70, Wenming Rd., Guishan Dist., Taoyuan City 333, Taiwan (R.O.C.) FCC Registration / Designation Number: 281270 / TW0032 This report is governed by, and incorporates by reference, the Conditions of Testing as posted at the date of issuance of this report at http://www.bureauveritas.com/home/about-us/our-business/cps/about-us/terms-conditions/ and is intended for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. Measurement uncertainty is only provided upon request for accredited tests. Statements of conformity are based on simple acceptance criteria without taking measurement uncertainty into account, unless otherwise requested in writing. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence or if you require measurement uncertainty; provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Report No.: MFBEOP-WTW-P22030407 Page No. 2 / 7 Report Format Version: 6.1.1 Table of Contents Release Control Record .................................................................................................................................. 3 1 Certificate of Conformity ...................................................................................................................... 4 2 RF Exposure .......................................................................................................................................... 5 2.1 Limits for Maximum Permissible Exposure (MPE) .............................................................................. 5 2.2 MPE Calculation Formula ................................................................................................................... 5 2.3 Classification ....................................................................................................................................... 5 3 Calculation Result of Maximum Conducted Power ........................................................................... 6 Report No.: MFBEOP-WTW-P22030407 Page No. 3 / 7 Report Format Version: 6.1.1 Release Control Record Issue No. Description Date Issued MFBEOP-WTW-P22030407 Original release 2022/7/8 Report No.: MFBEOP-WTW-P22030407 Page No. 4 / 7 Report Format Version: 6.1.1 1 Certificate of Conformity Product: home security gateway Brand: ADT Test Model: S501R0-01 Sample Status: Engineering sample Applicant: Wistron NeWeb Corporation Test Date: 2022/5/18 ~ 2022/6/24 FCC Rule Part: FCC Part 2 (Section 2.1091) Standards: KDB 447498 D01 General RF Exposure Guidance v06 The above equipment has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s RF characteristics under the conditions specified in this report. Prepared by : , Date:2022/7/8 Celine Chou / Senior Specialist Approved by : , Date:2022/7/8 Jeremy Lin / Project Engineer Report No.: MFBEOP-WTW-P22030407 Page No. 5 / 7 Report Format Version: 6.1.1 2 RF Exposure 2.1 Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) Limits For General Population / Uncontrolled Exposure 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 2.2 MPE Calculation Formula Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale pi = 3.1416 r = distance between observation point and center of the radiator in cm 2.3 Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: MFBEOP-WTW-P22030407 Page No. 6 / 7 Report Format Version: 6.1.1 3 Calculation Result of Maximum Conducted Power WLAN, BT, Zigbee and Z-wave (15.247) Function Frequency Band (MHz) Max AV Power (dBm) Antenna Gain (dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) WLAN 2412-2462 22.82 5.19 20 0.126 1.00 5180-5240 23.84 5.56 20 0.173 1.00 5260-5320 23.29 5.36 20 0.146 1.00 5500-5720 23.87 5.54 20 0.174 1.00 5745-5825 25.47 5.52 20 0.250 1.00 BT LE 2402-2480 13.84 4.26 20 0.013 1.00 Zigbee 2405-2…

Text truncated - open the document above for the full version.

1 □Normal □Internal Use ■Confidential □Restricted Confidential Efficiency Unit, Avg. Gain [dBi], Peak Gain [dBi] 2 □Normal □Internal Use ■Confidential □Restricted Confidential Antenna VSWR – LTE Main & AUX Maximum VSWR is 3 : 1 for LTE antennas 3 □Normal □Internal Use ■Confidential □Restricted Confidential Antenna VSWR – WiFi 1 & 2 Maximum VSWR is 2 : 1 for WIFI antennas 4 □Normal □Internal Use ■Confidential □Restricted Confidential Antenna VSWR – Zigbee & Bluetooth Maximum VSWR is 2 : 1 for BT & Zigbee antenna 5 □Normal □Internal Use ■Confidential □Restricted Confidential Antenna VSWR – DECT 1 & 2 Maximum VSWR is 2 : 1 for DECT antennas 6 □Normal □Internal Use ■Confidential □Restricted Confidential Antenna VSWR – ZWAVE Maximum VSWR is 2 : 1 for ZWAVE antenna 7 □Normal □Internal Use ■Confidential □Restricted Confidential Isolation – LTE Main Isolation more than 20dB among all antennas 8 □Normal □Internal Use ■Confidential □Restricted Confidential Isolation – LTE Aux Isolation more than 20dB among all antennas 9 □Normal □Internal Use ■Confidential □Restricted Confidential Isolation – DECT Isolation more than 20dB among all antennas 10 □Normal □Internal Use ■Confidential □Restricted Confidential Isolation – WiFi Isolation more than 20dB among all antennas 11 □Normal □Internal Use ■Confidential □Restricted Confidential Isolation – ZWAVE Isolation more than 20dB among all antennas 12 □Normal □Internal Use ■Confidential □Restricted Confidential Antenna pattern – LTE Main X Z Y 13 □Normal □Internal Use ■Confidential □Restricted Confidential Antenna pattern – LTE Aux X Z Y 14 □Normal □Internal Use ■Confidential □Restricted Confidential Antenna pattern – ZWAVE X Z Y 15 □Normal □Internal Use ■Confidential □Restricted Confidential Antenna pattern – DECT X Z Y 16 □Normal □Internal Use ■Confidential □Restricted Confidential Antenna pattern – WIFI 2450MHz X Z Y 17 □Normal □Internal Use ■Confidential □Restricted Confidential Antenna pattern – WIFI 5550MHz X Z Y 18 □Normal □Internal Use ■Confidential □Restricted Confidential Antenna pattern – Bluetooth & Zigbee X Z Y

Report No.: RFBEOP-WTW-P22030407-5 Page No. 1 / 34 Report Format Version: 6.1.1 FCC Test Report Report No.: RFBEOP-WTW-P22030407-5 FCC ID: NKR-LS04 Test Model: S501R0-01 Received Date: 2022/3/26 Test Date: 2022/5/25 ~ 2022/5/27 Issued Date: 2022/7/8 Applicant: Wistron NeWeb Corporation Address: 20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C. Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Lin Kou Laboratories Lab Address: No. 47-2, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan Test Location (1): No. 19, Hwa Ya 2nd Rd., Wen Hwa Vil., Kwei Shan Dist., Taoyuan City 33383, Taiwan FCC Registration / Designation Number: 788550 / TW0003 Test Location (2): No. 70, Wenming Rd., Guishan Dist., Taoyuan City 333, Taiwan (R.O.C.) FCC Registration / Designation Number: 281270 / TW0032 This report is governed by, and incorporates by reference, the Conditions of Testing as posted at the date of issuance of this report at http://www.bureauveritas.com/home/about-us/our-business/cps/about-us/terms-conditions/ and is intended for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. Measurement uncertainty is only provided upon request for accredited tests. Statements of conformity are based on simple acceptance criteria without taking measurement uncertainty into account, unless otherwise requested in writing. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence or if you require measurement uncertainty; provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Report No.: RFBEOP-WTW-P22030407-5 Page No. 2 / 34 Report Format Version: 6.1.1 Table of Contents Release Control Record .................................................................................................................................. 3 1 Certificate of Conformity ...................................................................................................................... 4 2 Summary of Test Results ..................................................................................................................... 5 2.1 Measurement Uncertainty ................................................................................................................... 5 2.2 Modification Record ............................................................................................................................ 5 3 General Information .............................................................................................................................. 6 3.1 General Description of EUT ................................................................................................................ 6 3.2 Description of Test Modes ................................................................................................................... 7 3.2.1 Test Mode Applicability and Tested Channel Detail ............................................................................. 8 3.3 Description of Support Units ............................................................................................................... 9 3.3.1 Configuration of System under Test .................................................................................................... 9 3.4 General Description of Applied Standards .......................................................................................... 9 4 Test Types and Results ...................................................................................................................... 10 4.1 Radiated Emission and Bandedge Measurement ............................................................................. 10 4.1.1 Limits of Radiated Emission and Bandedge Measurement .............................................................. 10 4.1.2 Test Instruments ................................................................................................................................. 11 4.1.3 Test Procedures ................................................................................................................................. 13 4.1.4 Deviation from Test Standard ............................................................................................................ 13 4.1.5 Test Set Up ........................................................................................................................................ 14 4.1.6 EUT Operating Conditions ................................................................................................................. 15 4.1.7 Test Results ....................................................................................................................................... 16 4.2 Conducted Emission Measurement .................................................................................................. 27 4.2.1 Limits of Conducted Emission Measurement .................................................................................... 27 4.2.2 Test Instruments ..................................................................…

Text truncated - open the document above for the full version.

Reference No.: BEOP-WTW-P22030407_TSup Page No. 1 / 4 PHOTOGRAPHS OF THE TEST CONFIGURATION Conducted Emission Test Reference No.: BEOP-WTW-P22030407_TSup Page No. 2 / 4 Radiated Emission Test (Above 1GHz) Reference No.: BEOP-WTW-P22030407_TSup Page No. 3 / 4 Radiated Emission Test (Below 1GHz) Reference No.: BEOP-WTW-P22030407_TSup Page No. 4 / 4 DFS Set UUT as Client without radar detection mode (Radar injected into Master) Master Radar (Radiated ) UUT Receiver Antenna to S.A.
