Ve rizo n Internet Gateway User Manual CR200A CONTENTS 01 / INTRODUCTION 1.0 Inside the box 5 1.1 Getting to Know The Verizon Internet Gateway 5 1.2 Setting Up The Verizon Internet Gateway 10 02 / CONFIGURING THE VERIZON INTERNET GATEWAY 2.0 Configure The Verizon Internet Gateway 15 2.1 Computer Network Configuration 19 2.2 Main Screen 26 03 / WI-FI SETTINGS 3.0 Overview 33 3.1 Basic Settings 35 3.2 Advanced Settings 43 04 / CONNECTED DEVICES 4.0 Device Settings 52 4.1 Setting Parental Controls 57 4.2 Universal Plug & Play 61 TABLE OF CONTENTS 3 05 / CONFIGURING ADVANCED SETTINGS 5.0 Security & Firewall 68 5.1 Network Settings 84 5.2 Diagnostics & Monitoring 123 5.3 System 130 06 / TROUBLESHOOTING 6.0 Troubleshooting Tips 146 6.1 Frequently Asked Questions 153 07 / SPECIFICATIONS 7.0 General Specifications 160 7.1 Connections 161 08 / NOTICES 8.0 Regulatory Compliance Notices 164 01 / INTRODUCTION 1.0 Inside the box 1.1 Getting to Know The Verizon Internet Gateway 1.2 Setting Up The Verizon Internet Gateway INSIDE ThE bOx 1.0/ INSIDE ThE bOx Inside the product package you should find the following items. Contact Verizon (https://www.verizon.com/support/contact-us/) if any item is missing or damaged. • Verizon Internet Gateway • Setup guide • Power adapter 1.1/ GETTING TO KNOW ThE VERIZON INTERNET GATEWAY The Verizon Internet Gateway provides fast Wi-Fi (with channel steering) for all your devices, and features built-in network security as well as parental controls, guest Wi-Fi and automatic software updates. 6 01 / INTRODUCTION Take a moment to familiarize with the product: GETTING TO KNOW ThE VERIZON INTERNET GATEWAY 1.1a/ RESET bUTTON The reset button allows you to reset the gateway back to it’s factory default state. Using the reset function will revert all settings and changes made during the setup process. To perform a factory reset and return the Verizon Internet Gateway to default settings, press and hold the reset button for 3+ seconds. The System LED will flash yellow to indicate a reset has been triggered, followed by fading in/out (white) while the gateway restarts. 1.1b/ WPS WPS is an easy way to add supported Wi-Fi devices to your network. Press the WPS button on the back of the Gateway to activate WPS. You will need to activate WPS on your Wi-Fi device too. Refer to “3.1d/ Wi-Fi Protected Setup (WPS)” on page 40. 1.1c/ LEDS The LEDs indicate the system and connection status, and WPS activity. Front LED ModeStatusLED Pattern System Status (O) Bootup System offOff System bootingSoft blink white Firmware updateFast blink white 8 01 / INTRODUCTION Front LED ModeStatusLED Pattern Other Factory resetFast blink yellow Hardware errorSoft blink red No SIM cardHard blink red No signalSolid red Signal Status (5G/LTE Home customer) Low bar Weak mobile coverageSolid white ( ) Low bar and Mid bar Good mobile coverage Solid white ( ) Low bar, Mid bar and High bar Excellent mobile coverage Solid white ( ) Regular usageSetup complete50% bright white Wi-Fi ( ) Regular usage Passing signalSolid white Setup completeSolid white Not connected to Internet Solid red Wi-Fi disabled by userSolid green GETTING TO KNOW ThE VERIZON INTERNET GATEWAY Front LED ModeStatusLED Pattern Paring Pairing WPS (in progress) Hard blink blue WPS connection success Fast blink blue WPS connection unsuccessful (time out) Fast blink red WPS connection failure (interrupted) Hard blink red OtherHardware errorSoft blink red Note: Installation mode lasts for 15 minutes only during first bootup, after which the Gateway will switch to regular usage mode. Ethernet Port LED Mode StatusLeft LEDRight LED Wired LAN connection * Threshold level can be decided based on port capability Ethernet > 100M* Link OffSolid white Ethernet > 100M* Activity OffBlinking white Ethernet < 100M* Link Solid yellowOff Ethernet < 100M* Activity Blinking yellowOff No Ethernet connection OffOff 10 01 / INTRODUCTION 1.2/ SETTING UP ThE VERIZON INTERNET GATEWAY The Verizon Internet Gateway comes with a pre-installed SIM card and can be up and running in just a couple of minutes. The Verizon Internet Gateway can only be used with the 5G Home Internet or LTE Home Internet service, and the SIM card is only authorized for use in the Verizon Internet Gateway. You may not remove the SIM card and Insert it into another device. 1.2a/ POSITIONING ThE VERIZON INTERNET GATEWAY For the best wireless signal transmission from the Gateway to your network devices: • Place the Gateway in a central area near a window. • Avoid keeping the device in the basement to get better signal. • Avoid having obstacles near the device, clear any objects near the window that could interfere with getting a signal. • Keep the Gateway away from metal obstructions and away from direct sunlight. • Keep the Gateway away from 802.11g or 20MHz only Wi-Fi devices, 2.4GHz computer peripherals, Bluetooth devices, cordless phones, transformers, heavy-duty motors, fluorescent lights, microwave ovens, refrigerators, and other industrial equipment to prevent signal interference or loss. SETTING UP ThE VERIZON INTERNET GATEWAY 1.2b/ SETUP REQUIREMENTS To configure your wireless network via computer, you need a computer that meets the following system requirements: • For Wired Connection: Ethernet RJ-45 (LAN) port (10Base-T/100Base-TX/1000Base-TX/ 2500Base-TX) • For Wi-Fi Connection: IEEE 802.11a/b/g/n/ac/ax wireless capability • An installed TCP/IP service • Web browser such as Microsoft Edge, Firefox, Safari, or Google Chrome 1.2c/ SETTING UP Before you begin, if you are replacing an existing gateway, disconnect it. Remove all old gateway components, including the power supply. They will not work with the new Verizon Internet Gateway. 1. Plug the Verizon Internet Gateway into a power outlet with the included power adapter. 2. Wait for a couple of minutes for the Gateway to power up and establish an LTE/5G connection. The LED should display on (white) after starting up. 3. That’s it! You can connect y…

Text truncated - open the document above for the full version.

U.S. Agent Authorized Letter Date: May 29, 2023 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Subject: Attestation Statements Part 2.911(d)(7) Filing FCC ID: NKR-LV65C-T3 To Whom It May Concern: Wistron NeWeb Corporation certifies that, as of the date of the filing of the application, W-NeWeb Corp is our designated U.S. agent for service of process for the above referenced FCC ID. Wistron NeWeb Corporation accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. W-NeWeb Corp accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Sincerely, Applicant: U.S. Agent: Company: Wistron NeWeb Corporation Company: W-NeWeb Corp FRN: 0006053789 FRN: 0033416025 Address: 20 Park Avenue II, Hsinchu Science Park, Hsinchu, Taiwan, 308 Address: 1525 McCarthy Blvd, #206 Milpitas, California, United States, 95035 Contact Name: Brown Wang Contact Name: Stephen Sek Title: Project Management Title: Chief of Technology, Global Business Tel.: 886-3-666-7799 Tel.: (408) 666-1277 Email: [email protected] Email: [email protected] (Signature) (Signature)

Authorization Letter Date: May 29, 2023 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: NKR-LV65C-T3 To Whom It May Concern: We, the undersigned, hereby authorize the following person on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by DEKRA Testing and Certification Co., Ltd. on our behalf shall have the same effect as acts of our own. Agent Company name : DEKRA Testing and Certification Co., Ltd. Address : No. 26, Hwaya 1st Road., Guishan District, Taoyuan City, 33341, Taiwan Contact Name : Phoenix Chen Email : [email protected] We are therefore responsible for the contents of the application. Product description : Internet Gateway Model No. : WNC-CR200A Brand : Verizon Sincerely, Signature Contact Name: Brown Wang Job Title: Project Management Email: [email protected]

SDoC Declaration Letter Date: May 29, 2023 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Subject: SDoC declaration letter for equipment with FCC ID: NKR-LV65C-T3 To Whom It May Concern: This letter is to ascertain that the device has been the unit(s) used for conducting FCC compliance testing. The SDoC portion has been conducted in accordance with FCC SDoC requirement as per Section 2.1077 compliance information. FCC Supplier's Declaration of Conformity 47 CFR § 2.1077 Compliance Information Unique Identifier: Brand Name: Verizon Model No.: WNC-CR200A Responsible Party – U.S. Contact Information Company Name: Wistron NeWeb Corporation Company Address: 20 Park Avenue II, Hsinchu Science Park, Hsinchu, Taiwan, 308 Telephone number: 886-3-666-7799 It's herewith confirmed to comply with the requirements of FCC Part 15 Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Sincerely, Signature Contact Name: Brown Wang Job Title: Project Management Email: [email protected]

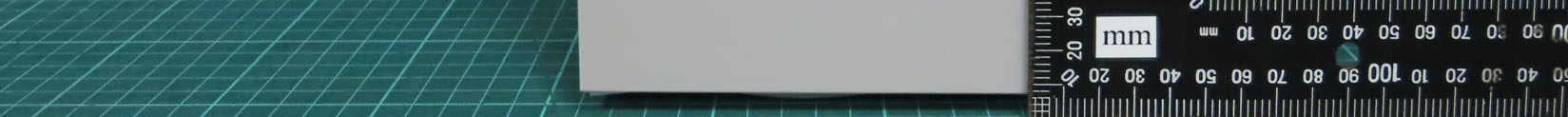

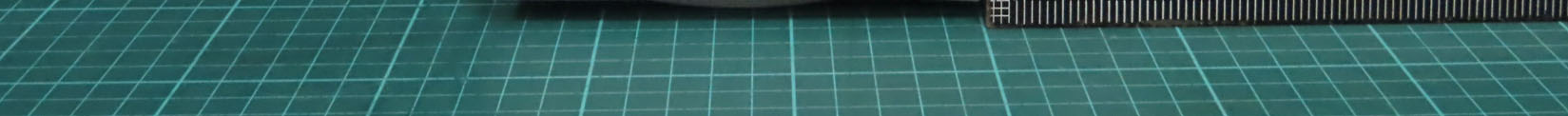

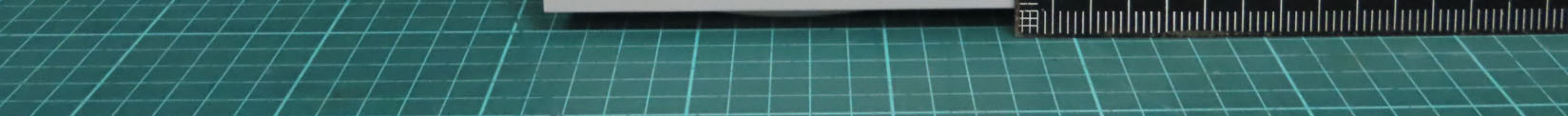

Report No: 22A0288R-Product Photos Page: 1 of 3 (1) EUT Photo (2) EUT Photo Report No: 22A0288R-Product Photos Page: 2 of 3 (3) EUT Photo (4) EUT Photo Report No: 22A0288R-Product Photos Page: 3 of 3 (5) EUT Photo (6) EUT Photo

□ Normal □ Internal Use ■ Confidential □ Restricted Confidential LV65C_Label 區域說明 2023/06/13 2 □ Normal □ Internal Use ■ Confidential □ Restricted Confidential Label area Label area

Report No: 22A0288R-Product Photos Page: 1 of 33 (1) EUT Photo (2) EUT Photo Report No: 22A0288R-Product Photos Page: 2 of 33 (3) EUT Photo (4) EUT Photo Report No: 22A0288R-Product Photos Page: 3 of 33 (5) EUT Photo (6) EUT Photo Report No: 22A0288R-Product Photos Page: 4 of 33 (7) EUT Photo (8) EUT Photo Report No: 22A0288R-Product Photos Page: 5 of 33 (9) EUT Photo (10) EUT Photo Report No: 22A0288R-Product Photos Page: 6 of 33 (11) EUT Photo (12) EUT Photo Report No: 22A0288R-Product Photos Page: 7 of 33 (13) EUT Photo (14) EUT Photo Report No: 22A0288R-Product Photos Page: 8 of 33 (15) EUT Photo (16) EUT Photo Report No: 22A0288R-Product Photos Page: 9 of 33 (17) EUT Photo (18) EUT Photo Report No: 22A0288R-Product Photos Page: 10 of 33 (19) EUT Photo (20) EUT Photo Report No: 22A0288R-Product Photos Page: 11 of 33 (21) EUT Photo (22) EUT Photo Report No: 22A0288R-Product Photos Page: 12 of 33 (23) EUT Photo (24) EUT Photo Report No: 22A0288R-Product Photos Page: 13 of 33 (25) EUT Photo (26) EUT Photo Report No: 22A0288R-Product Photos Page: 14 of 33 (27) EUT Photo (28) EUT Photo_WIFI Report No: 22A0288R-Product Photos Page: 15 of 33 (29) EUT Photo (30) EUT Photo Report No: 22A0288R-Product Photos Page: 16 of 33 (31) EUT Photo_WIFI (32) EUT Photo Report No: 22A0288R-Product Photos Page: 17 of 33 (33) EUT Photo (34) EUT Photo (LV65C-LTE/FR1-S4) Report No: 22A0288R-Product Photos Page: 18 of 33 (35) EUT Photo (LV65C-LTE/FR1-S4) (36) EUT Photo (2.4G-5G antenna) Report No: 22A0288R-Product Photos Page: 19 of 33 (37) EUT Photo (2.4G-5G antenna) (38) EUT Photo (LV65C-LTE/FR1-S6) Report No: 22A0288R-Product Photos Page: 20 of 33 (39) EUT Photo (LV65C-LTE/FR1-S6) (40) EUT Photo (2.4G-5G antenna) Report No: 22A0288R-Product Photos Page: 21 of 33 (41) EUT Photo (2.4G-5G antenna) (42) EUT Photo (LV65C-LTE/FR1-S1) Report No: 22A0288R-Product Photos Page: 22 of 33 (43) EUT Photo (LV65C-LTE/FR1-S1) (44) EUT Photo Report No: 22A0288R-Product Photos Page: 23 of 33 (45) EUT Photo (46) EUT Photo (LV65C-LTE/FR1-S7) Report No: 22A0288R-Product Photos Page: 24 of 33 (47) EUT Photo (LV65C-LTE/FR1-S7) (48) EUT Photo (LV65C-LTE/FR1-S5) Report No: 22A0288R-Product Photos Page: 25 of 33 (49) EUT Photo (LV65C-LTE/FR1-S5) (50) EUT Photo (LV65C-LTE/FR1-S8) Report No: 22A0288R-Product Photos Page: 26 of 33 (51) EUT Photo (LV65C-LTE/FR1-S8) (52) EUT Photo (6E antenna) Report No: 22A0288R-Product Photos Page: 27 of 33 (53) EUT Photo (6E antenna) (54) EUT Photo (LV65C-LTE/FR1-S2) Report No: 22A0288R-Product Photos Page: 28 of 33 (55) EUT Photo (LV65C-LTE/FR1-S2) (56) EUT Photo (LV65C-LTE/FR1-S3) Report No: 22A0288R-Product Photos Page: 29 of 33 (57) EUT Photo (LV65C-LTE/FR1-S3) (58) EUT Photo (6E antenna) Report No: 22A0288R-Product Photos Page: 30 of 33 (59) EUT Photo (6E antenna) (60) EUT Photo (ADH-36NW B) Report No: 22A0288R-Product Photos Page: 31 of 33 (61) EUT Photo (ADH-36NW B) (62) EUT Photo (ADH-36NW B) Report No: 22A0288R-Product Photos Page: 32 of 33 (63) EUT Photo (1A100-US1230) (64) EUT Photo (1A100-US1230) Report No: 22A0288R-Product Photos Page: 33 of 33 (65) EUT Photo (1A100-US1230)

Report No.: 22A0288R-RFUSV17S-A Page: 1 of 8 Test report No.: 22A0288R-RFUSV17S-A RF Exposure Report Product Name Internet Gateway Trademark Verizon Model and /or type reference WNC-CR200A FCC ID NKR-LV65C-T3 Applicant ́s name / address Wistron NeWeb Corporation 20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan Manufacturer ́s name Wistron NeWeb Corporation Test method requested, standard KDB 447498 D01 v06 Minimum test separation distance ≥ 20 cm For low power devices Verdict Summary IN COMPLIANCE Documented By (Senior Project Specialist / Ida Tung) Approved By (Senior Engineer / Jack Hsu) Approved By (Manager / Tim Sung) Date of Receipt 2022/10/13 Date of Issue 2023/06/09 Report Version V1.0 Report No.: 22A0288R-RFUSV17S-A Page: 2 of 8 Competences and Guarantees DEKRA is a testing laboratory competent to carry out the tests described in this report. In order to assure the traceability to other national and international laboratories, DEKRA has a calibration and maintenance program for its measurement equipment. DEKRA guarantees the reliability of the data presented in this report, which is the result of the measurements and the tests performed to the item under test on the date and under the conditions stated in the report and it is based on the knowledge and technical facilities available at DEKRA at the time of performance of the test. DEKRA is liable to the client for the maintenance of the confidentiality of all information related to the item under test and the results of the test. The results presented in this Test Report apply only to the particular item under test established in this document. IMPORTANT: No parts of this report may be reproduced or quoted out of context, in any form or by any means, except in full, without the previous written permission of DEKRA. General conditions 1. The test results relate only to the samples tested. 2. The test results shown in the test report are traceable to the national/international standard through the calibration report of the equipment and evaluated measurement uncertainty herein. 3. This report must not be used to claim product endorsement by TAF or any agency of the government. 4. The test report shall not be reproduced without the written approval of DEKRA Testing and Certification Co., Ltd. 5. Measurement uncertainties evaluated for each testing system and associated connections are given here to provide the system information for reference. Compliance determinations do not take into account measurement uncertainties for each testing system, but are based on the results of the compliance measurement. Report No.: 22A0288R-RFUSV17S-A Page: 3 of 8 Revision History Report No. Ve r s i o n Description Issued Date 22A0288R-RFUSV17S-A V1.0 Initial issue of report. 2023/06/09 Report No.: 22A0288R-RFUSV17S-A Page: 4 of 8 1. General Information 1.1. EUT Description Product Name Internet Gateway Trademark Verizon Model and /or type reference WNC-CR200A Note: For more detailed information please refer to report No.: 22A0288R-RFUSV01S-A, 22A0288R-RFUSV03S-A, 22A0288R-RFUSV03S-B, 22A0288R-RFUSV19S-A, 22A0288R-RFUSV22S-A, 22A0288R-RFUSV23S-A and 22A0288R-RFUSV26S-A. Report No.: 22A0288R-RFUSV17S-A Page: 5 of 8 2. Test Facility USA FCC Registration Number: TW0033 Canada CAB Identifier Number: TW3023 / Company Number: 26930 Site Description Accredited by TAF Accredited Number: 3023 Test Laboratory DEKRA Testing and Certification Co., Ltd. Linkou Laboratory Address No.5-22, Ruishukeng Linkou District, New Taipei City, 24451, Taiwan, R.O.C Performed Location No. 26, Huaya 1st Rd., Guishan Dist.,Taoyuan City 333411, Taiwan, R.O.C. Phone Number +886-3-275-7255 Fax Number +886-3-327-8031 Report No.: 22A0288R-RFUSV17S-A Page: 6 of 8 3. RF Exposure Evaluation 3.1. Standard Applicable According to KDB 447498 D01 (7.1), A minimum test separation distance ≥ 20 cm is required between the antenna and radiating structures of the device and nearby persons to apply mobile device exposure limits. 3.2. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 0.3-3.0 614 1.63 *(100) 6 3.0-30 1842/f 4.89/f *(900/f2) 6 30-300 61.4 0.163 1.0 6 300-1,500 f/300 6 1,500-100,000 5 6 (B) Limits for General Population/ Uncontrolled Exposures 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f2) 30 30-300 27.5 0.073 0.2 30 300-1,500 f/1500 30 1,500-100,000 1.0 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneously transmitting antennas incorporated in a host device is ≤ 1.0 Report No.: 22A0288R-RFUSV17S-A Page: 7 of 8 3.3. Test Result of RF Exposure Evaluation WLAN (CDD mode) Band E.I.R.P (dBm) E.I.R.P (mW) Power Density at R = 22 cm (mW/cm2) Limit (mW/cm2) 2.4 GHz 32.570 1807.174 0.297 1.000 5 GHz 33.260 2118.361 0.348 1.000 6 GHz 20.710 117.761 0.019 1.000 WLAN (Beamforming mode) Band E.I.R.P (dBm) E.I.R.P (mW) Power Density at R = 22 cm (mW/cm2) Limit (mW/cm2) 2.4 GHz 33.380 2177.710 0.358 1.000 5 GHz 33.320 2147.830 0.353 1.000 6 GHz 24.960 313.329 0.052 1.000 WWAN Band E.I.R.P (dBm) E.I.R.P (mW) Power Density at R = 22 cm (mW/cm^2) Limit (mW/cm^2) LTE Band 2 29.540 899.498 0.148 1.000 LTE Band 5 / CA_5B 28.830 763.836 0.126 0.549 LTE Band 13 28.310 677.642 0.111 0.518 LTE Band 48 22.950 197.242 0.032 1.000 LTE Band 66 / CA_66B / CA_66C 29.540 899.498 0.148 1.000 …

Text truncated - open the document above for the full version.

1 FCC ID: NKR-LV65C-T3  Antenna information  RF Connector/Antenna port mapping  The antenna information S9H/S9V/S10H/S10V: Wi-Fi 2.4G/5G S11H/S11V/S12H/S12V: Wi-Fi 6E 2  Dimension (mm): 3  Antenna gain 2.4G/5G Peak gain (dBi) Directional gain (dBi) (MHz) S9V S9H S10V S10H Max 2412 0.90 0.76 0.73 0.18 0.90 3.49 2437 0.82 1.20 1.77 0.82 1.77 2.70 2462 1.28 1.28 2.64 1.88 2.64 3.25 5120 1.15 2.48 1.71 3.45 3.45 4.07 5250 0.73 2.21 1.74 2.76 2.76 3.96 5290 1.14 2.16 1.86 2.64 2.64 3.66 5370 1.13 1.60 2.64 2.12 2.64 3.68 5410 1.58 2.01 2.71 1.88 2.71 3.99 5450 1.51 1.90 2.88 2.04 2.88 3.85 5530 1.39 2.20 2.75 1.09 2.75 3.60 5570 1.32 2.34 2.88 1.76 2.88 3.88 5610 1.26 2.47 2.75 1.97 2.75 4.16 5690 1.34 2.41 3.25 2.99 3.25 4.54 5775 1.57 2.01 3.50 2.28 3.50 4.19 6E Peak gain (dBi) Directional gain (dBi) (MHz) S11V S11H S12V S12H Max 5985 1.21 3.51 0.41 0.17 3.51 4.83 6025 1.65 3.74 1.86 0.45 3.74 4.57 6065 0.77 3.64 2.01 1.48 3.64 4.62 6145 1.51 3.96 2.12 2.85 3.96 5.48 6185 0.94 3.72 2.23 2.75 3.72 5.81 6225 0.92 3.67 2.87 3.52 3.67 6.42 6305 3.02 3.87 3.80 3.42 3.87 6.91 6345 4.02 4.07 3.87 3.18 4.07 7.22 6385 3.81 3.15 3.91 2.42 3.91 7.14 6465 3.70 3.91 4.25 2.74 4.25 7.08 6505 4.49 4.27 4.65 3.14 4.65 7.25 6545 4.50 4.48 4.56 3.05 4.56 6.96 6625 4.17 3.81 4.71 3.20 4.71 7.03 6665 3.46 3.22 4.50 2.99 4.50 6.34 6705 3.42 3.30 4.24 2.96 4.24 6.15 6785 3.33 1.73 3.41 3.53 3.53 6.22 4 6825 3.62 2.21 2.86 3.52 3.62 5.89 6945 3.98 4.21 4.24 3.56 4.24 6.64 6985 4.30 4.14 4.75 2.59 4.75 6.62 7025 4.90 4.49 4.80 2.76 4.90 7.19  Antenna pattern (Unit: dBi) 2450 MHz 5 5600 MHz 6 7 6000 MHz 8

Report No.: 22A0288R-RFUSV03S-B Page: 1 of 219 Test report No.: 22A0288R-RFUSV03S-B TEST REPORT Product Name Internet Gateway Trademark Verizon Model and /or type reference WNC-CR200A FCC ID NKR-LV65C-T3 Applicant ́s name / address Wistron NeWeb Corporation 20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan Manufacturer ́s name Wistron NeWeb Corporation Test method requested, standard FCC CFR Title 47 Part 15 Subpart E ANSI C63.4: 2014, ANSI C63.10: 2013 KDB Publication 789033 Verdict Summary IN COMPLIANCE Documented By (Senior Project Specialist / Ida Tung) Tested By (Senior Engineer / Ivan Chuang) Approved By (Senior Engineer / Jack Hsu) Date of Receipt 2022/10/13 Date of Issue 2023/06/09 Report Version V1.0 Report No.: 22A0288R-RFUSV03S-B Page: 2 of 219 INDEX Page 1. General Information ........................................................................................................................ 6 1.1. EUT Description ...................................................................................................................................... 6 1.2. Tested System Details .............................................................................................................................. 9 1.3. Configuration of tested System ............................................................................................................... 9 1.4. EUT Exercise Software ........................................................................................................................... 9 1.5. Test Facility ........................................................................................................................................... 10 1.6. List of Test Equipment ........................................................................................................................... 11 1.7. Uncertainty ............................................................................................................................................ 12 2. Conducted Emission ...................................................................................................................... 13 2.1. Test Setup .............................................................................................................................................. 13 2.2. Limits ..................................................................................................................................................... 13 2.3. Test Procedure ....................................................................................................................................... 14 2.4. Test Specification .................................................................................................................................. 14 2.5. Test Result of Conducted Emission ....................................................................................................... 15 3. 99 % & 26 dB Bandwidth ............................................................................................................. 16 3.1. Test Setup .............................................................................................................................................. 16 3.2. Limits ..................................................................................................................................................... 16 3.3. Test Procedure ....................................................................................................................................... 16 3.4. Test Result of 99 % & 26 dB Bandwidth .............................................................................................. 17 4. Transmit Output ............................................................................................................................ 24 4.1. Test Setup .............................................................................................................................................. 24 4.2. Limits ..................................................................................................................................................... 25 4.3. Test Procedure ....................................................................................................................................... 25 4.4. Test Result of Transmit Output .............................................................................................................. 26 5. Maximun Power Spectrum Density ............................................................................................. 36 5.1. Test Setup .............................................................................................................................................. 36 5.2. Limits ..................................................................................................................................................... 37 5.3. Test Procedure ....................................................................................................................................... 37 5.4. Test Result of Maximun Power Spectral Density .................................................................................. 38 6. Radiated Emission ......................................................................................................................... 48 6.1. Test Setup .............................................................................................................................................. 48 6.2. Limits ..................................................................................................................................................... 49 Report No.: 22A0288R-RFUSV03S-B Page: 3 of 219 6.3. Test Procedure ....................................................................................................................................... 50 6.4. Test Result of Radiated Emissions ................…
