  1. Home/
  2. Wistron NeWeb Corporation/
  3. NKR-LVSK-R2

NKR-LVSK-R2Consumer Home Router (BT/WiFi)

Wistron NeWeb Corporation
Consumer Home Router (BT/WiFi) - FCC ID NKR-LVSK-R2 - Wistron NeWeb Corporation
Click to zoom

Application Details

Equipment Class
6ID - 15E 6 GHz Low Power Indoor Access Point
Date of Grant
Jul 25, 2021
Application Purpose
Original Equipment
Date of Application
Jul 21, 2021
Equipment Note
Consumer Home Router (BT/WiFi)
Frequency Range
6115.00000000 - 7095.00000000
Company
Wistron NeWeb Corporation
Country
Taiwan

Documents & Files

Select a file to view

Users Manual

↗

Attestation Statements

↗

Cover Letter(s)

↗
↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗
↗

RF Exposure Info

↗

Test Report

↗
↗
↗
↗
↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Verizon Router CR1000A User Guide Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/ TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. FCC regulations restrict the operation of this device to indoor use only. The operation of this device is prohibited on oil platforms, cars, trains, boats, and aircraft, except that operation of this device is permitted in large aircraft while flying above 10,000 feet. Operation of transmitters in the 5.925-7.125 GHz band is prohibited for control of or communications with unmanned aircraft systems. FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Important Notice The user is responsible for determining whether surfaces and installation environments are appropriate. Please remember that many factors influence installation safety. Please follow the user manual. Materials, flatness, cleanliness of surfaces, humidity, wind speed, time and many other factors can affect the adhesiveness and fixedness of this product. Verizon does not guarantee the product can be fixed and will not fall. Given the variety of factors that can affect the adhesion and fixedness, it is essential that the user evaluates the conditions of surfaces and the environment to determine whether they are suitable for installation. DISCLAIMER TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, VERIZON MAKES NO OTHER WARRANTIES, EITHER EXPRESS, IMPLIED OR STATUTORY. VERIZON DISCLAIMS ANY LIABILITY CAUSED BY ANY USER’S NON-COMPLIANCE WITH THE USER MANUAL. Safety Warnings Adapter Do not use any other power adaptor except for the one that accompanies this unit or a power adaptor identified in the list below. Use of another adapter could result in damage to the unit. The following power adaptor is qualified for use with this Verizon Router: This unit must be powered by LUCENT TRANS, model 1A98-1250 ; 12V, 5A, 60W Caution Ensure to connect the power cord of the power adapter to a socket outlet with a grounding connection. The cable distribution system should be grounded (earthed) in accordance with ANS/NFPA 70, the National Electrical Code (NEC), Article 820, in particular Section 820.93, Grounding of Outer Conductive Shield of a Coaxial Cable. Chapter 1 Introduction .................................................................................................................... 1 Unboxing Information ........................................................................................................... 1 Product Overview ................................................................................................................ 2 LED and Audio Behavior ...................................................................................................... 4 Chapter 2 Self-Setup and Activation .............................................................................................. 5 Installation, Activation, and Setup ........................................................................................ 5 Setting up the Verison Router .............................................................................................. 5 WPS Connection ................................................................................................................. 5 Chapter 3 Product Specifications ................................................................................................... 6 1 Chapter 1 Introduction The Verizon Router provides superior Wi-Fi performance with Tri-band support and low latency to support gaming and VR use cases. The innovative design of the Verizon Router allows customers to connect their favorite devices to Verizon’s 5G Network. Unboxing Information Inside the product package for the Verizon Router, you should find the following items: • Verizon Router × 1 • Power adaptor × 1 • Ethernet cable × 1 2 Product Overview Part Description LED The LED lights up in different ways to indicate the connectivity status of the Verizon Router. Front LED Bottom Bracket screw hole 3 Part Description WPS button Press this button once to connect the Verizon Router to Wi-Fi Extender or devices via WPS. After the pairing is successful, the LED light will stop blinking blue. RJ45 port Connect the Verizon Router to PC or switch via an Eth…

Text truncated - open the document above for the full version.

External Photos

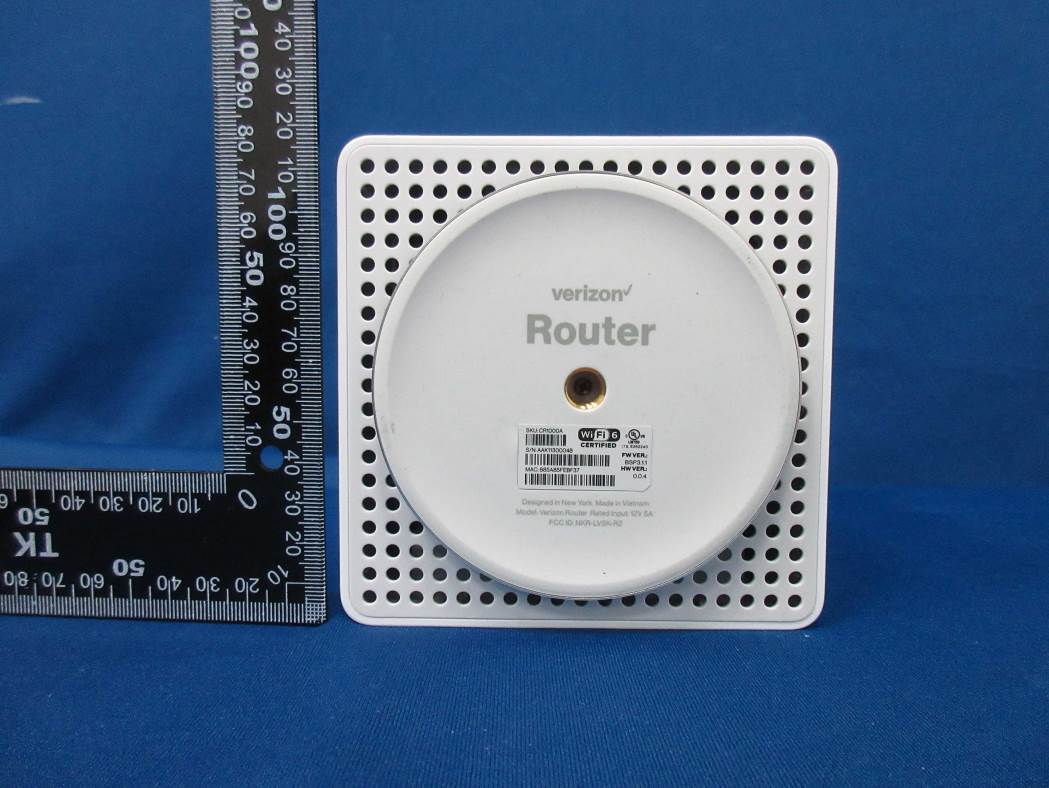

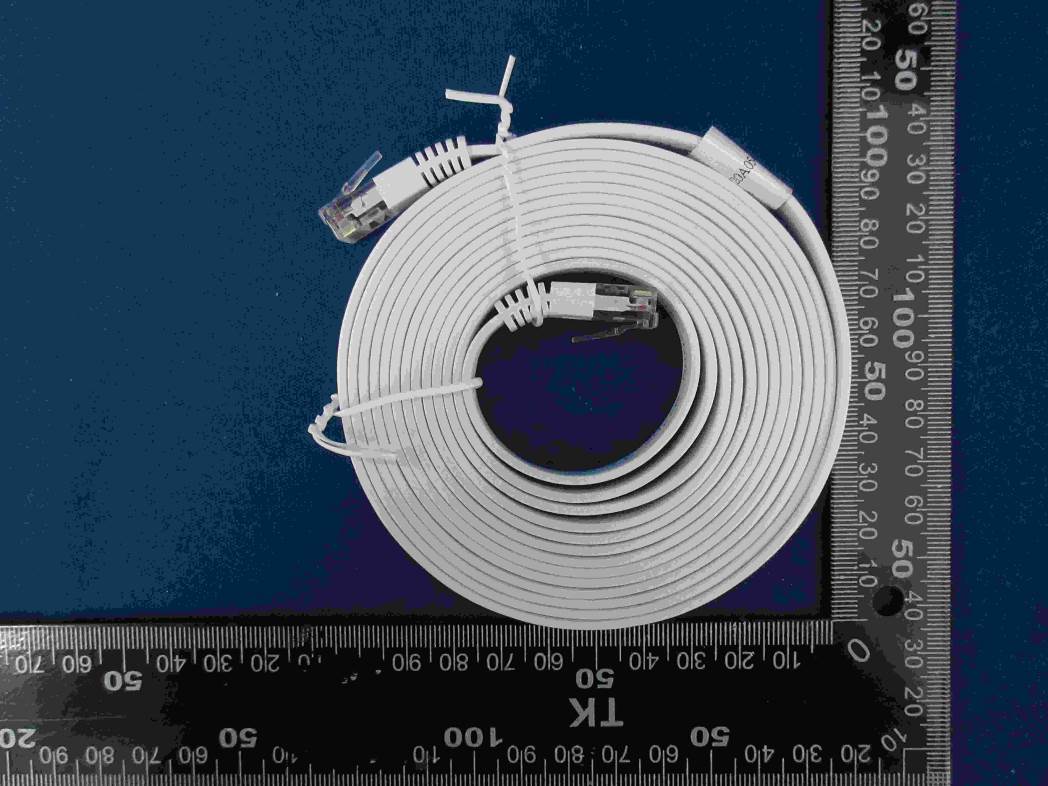

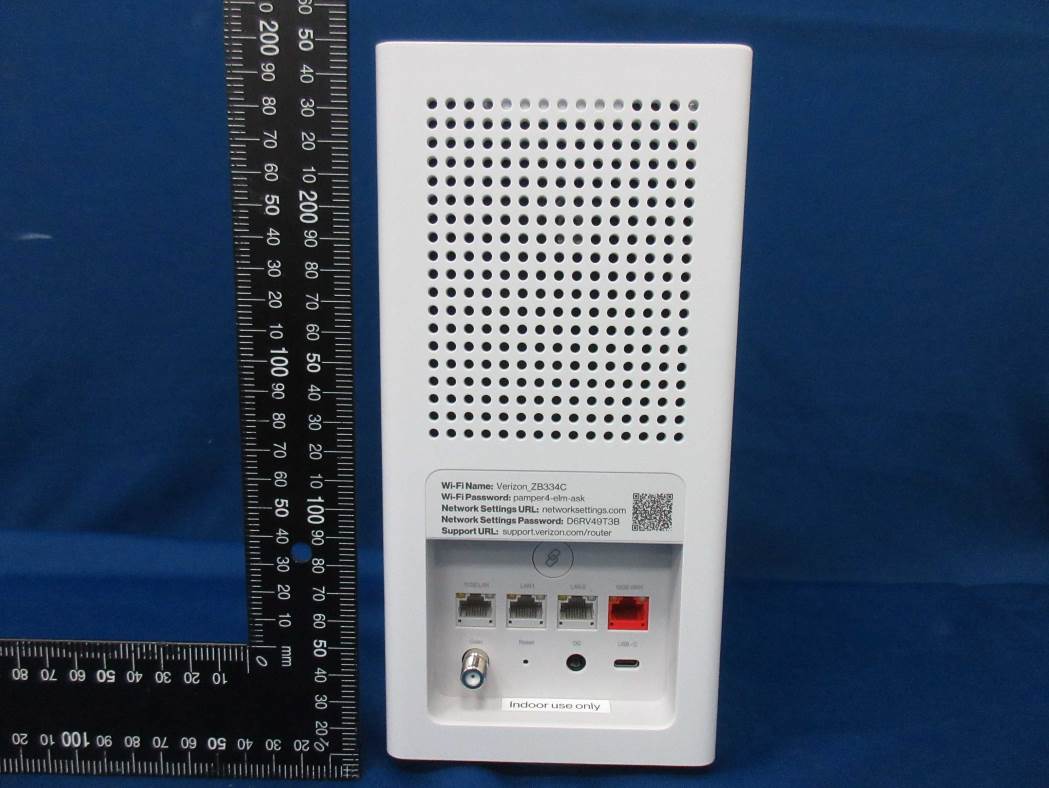

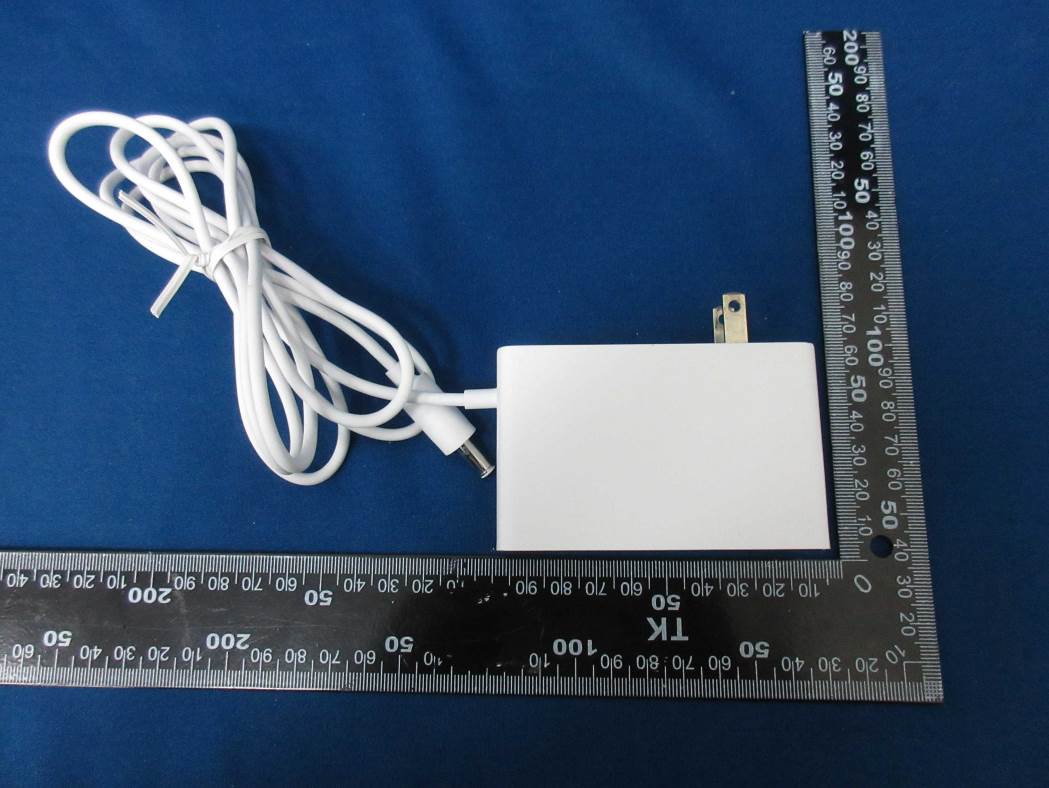

Report No:20A0549R Page: 1 of 52  EUT External Photograph (1) EUT Photo (2) EUT Photo Report No:20A0549R Page: 2 of 52 (3) EUT Photo (4) EUT Photo Report No:20A0549R Page: 3 of 52 (5) EUT Photo (6) EUT Photo Report No:20A0549R Page: 4 of 52 (7) EUT Photo (8) EUT Photo Report No:20A0549R Page: 5 of 52 (9) EUT Photo (Power Adapter) (10) EUT Photo Report No:20A0549R Page: 6 of 52 (11) EUT Photo (LAN Cable)

ID Label/Location Info

REVISIONS 1 OF1 1/1 DRAWN APVDSANDY CHEN AMANDA LAI 04/12/21 0.2mm 0.5mm 1mm 04/12/21 04/12/21 SANDY CHEN CHANEG MODEL NAME DESCRIPTIONREV DATE APPROVED A ASSY,STAND,LVR2 A4 A PART NUMBER COLOR 1 PMS COOL GRAY 7C 印刷尺寸公差 其他 20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C. Tel: 886-3-6667799 Fax: 886-3-5788726 COLOR 1 6B.PLVR2.00304 6B.PLVR2.00304 30.1 15.1 57.9 25.4

Internal Photos

Report No:20A0549R Page: 7 of 52  EUT Internal Photograph (1) EUT Photo (2) EUT Photo Report No:20A0549R Page: 8 of 52 (3) EUT Photo Report No:20A0549R Page: 9 of 52 (4) EUT Photo (Antenna_6-7) (5) EUT Photo (Antenna_6-7) Report No:20A0549R Page: 10 of 52 (6) EUT Photo (Antenna_8-9) (7) EUT Photo (Antenna_8-9) Report No:20A0549R Page: 11 of 52 (8) EUT Photo (Antenna_1-2) (9) EUT Photo (Antenna_1-2) Report No:20A0549R Page: 12 of 52 (10) EUT Photo (Antenna_3-4) (11) EUT Photo (Antenna_3-4) Report No:20A0549R Page: 13 of 52 (12) EUT Photo (Antenna_5) (13) EUT Photo (Antenna_5) Report No:20A0549R Page: 14 of 52 (14) EUT Photo (15) EUT Photo Report No:20A0549R Page: 15 of 52 (16) EUT Photo (17) EUT Photo Report No:20A0549R Page: 16 of 52 (18) EUT Photo (19) EUT Photo Report No:20A0549R Page: 17 of 52 (20) EUT Photo (21) EUT Photo Report No:20A0549R Page: 18 of 52 (22) EUT Photo (23) EUT Photo Report No:20A0549R Page: 19 of 52 (24) EUT Photo (25) EUT Photo Report No:20A0549R Page: 20 of 52 (26) EUT Photo (27) EUT Photo Report No:20A0549R Page: 21 of 52 (28) EUT Photo (29) EUT Photo Report No:20A0549R Page: 22 of 52 (30) EUT Photo (31) EUT Photo Report No:20A0549R Page: 23 of 52 (32) EUT Photo (33) EUT Photo Report No:20A0549R Page: 24 of 52 (34) EUT Photo (35) EUT Photo Report No:20A0549R Page: 25 of 52 (36) EUT Photo (37) EUT Photo Report No:20A0549R Page: 26 of 52 (38) EUT Photo (39) EUT Photo Report No:20A0549R Page: 27 of 52 (40) EUT Photo (41) EUT Photo Report No:20A0549R Page: 28 of 52 (42) EUT Photo (43) EUT Photo Report No:20A0549R Page: 29 of 52 (44) EUT Photo (45) EUT Photo Report No:20A0549R Page: 30 of 52 (46) EUT Photo (47) EUT Photo Report No:20A0549R Page: 31 of 52 (48) EUT Photo (49) EUT Photo Report No:20A0549R Page: 32 of 52 (50) EUT Photo (51) EUT Photo Report No:20A0549R Page: 33 of 52 (52) EUT Photo (53) EUT Photo

Internal Photos

Report No:20A0549R Page: 34 of 52 (54) EUT Photo (55) EUT Photo Report No:20A0549R Page: 35 of 52 (56) EUT Photo (57) EUT Photo Report No:20A0549R Page: 36 of 52 (58) EUT Photo (59) EUT Photo Report No:20A0549R Page: 37 of 52 (60) EUT Photo (61) EUT Photo Report No:20A0549R Page: 38 of 52 (62) EUT Photo (63) EUT Photo Report No:20A0549R Page: 39 of 52 (64) EUT Photo (65) EUT Photo Report No:20A0549R Page: 40 of 52 (66) EUT Photo (67) EUT Photo Report No:20A0549R Page: 41 of 52 (68) EUT Photo (69) EUT Photo Report No:20A0549R Page: 42 of 52 (70) EUT Photo (71) EUT Photo Report No:20A0549R Page: 43 of 52 (72) EUT Photo (73) EUT Photo Report No:20A0549R Page: 44 of 52 (74) EUT Photo (75) EUT Photo Report No:20A0549R Page: 45 of 52 (76) EUT Photo (77) EUT Photo Report No:20A0549R Page: 46 of 52 (78) EUT Photo (79) EUT Photo Report No:20A0549R Page: 47 of 52 (80) EUT Photo (81) EUT Photo Report No:20A0549R Page: 48 of 52 (82) EUT Photo (83) EUT Photo Report No:20A0549R Page: 49 of 52 (84) EUT Photo (85) EUT Photo Report No:20A0549R Page: 50 of 52 (86) EUT Photo (87) EUT Photo Report No:20A0549R Page: 51 of 52 (88) EUT Photo (89) EUT Photo Report No:20A0549R Page: 52 of 52 (90) EUT Photo

RF Exposure Info

Report No. 20A0549R-E3082100013-A Page: 1 of 18 RF Exposure Evaluation Declaration Product Name :Consumer Home Router Trade Name :Verizon Model No. :CR1000A FCC ID :NKR-LVSK-R2 Applicant : Wistron NeWeb Corporation Address : 20 Park Ave. II, Hsinchu Science Park, Hsinchu 308, Taiwan Date of Receipt : Oct. 21, 2020 Date of Declaration : Jul. 07, 2021 Report No. : 20A0549R-E3082100013-A Report Version : V1.0 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of DEKRA Testing and Certification Co., Ltd.. Report No. 20A0549R-E3082100013-A Page: 2 of 18 RF Exposure Evaluation Declaration Issued Date : Jul. 07, 2021 Report No. : 20A0549R-E3082100013-A Product Name : Consumer Home Router Applicant : Wistron NeWeb Corporation Address : 20 Park Ave. II, Hsinchu Science Park, Hsinchu 308, Taiwan Manufacturer : Wistron NeWeb Corporation Address : 20 Park Ave. II, Hsinchu Science Park, Hsinchu 308, Taiwan Trade Name : Verizon Model No. : CR1000A FCC ID : NKR-LVSK-R2 EUT Voltage : AC 100~120V, 50~60Hz Testing Voltage : AC 120V/60Hz Applicable Standard : FCC 47 CFR Part 2.1091 Radiofrequency radiation exposure evaluation: mobile devices. Test Lab : Hsin Chu Laboratory Address : No.372-2, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County 310, Taiwan, R.O.C. TEL: +886-3-582-8001 / FAX: +886-3-582-8958 Test Result : Complied Tested By : ( Elwin Lin / Senior Engineer ) Approved By : ( Louis Hsu / Deputy Manager ) Report No. 20A0549R-E3082100013-A Page: 3 of 18 Revision History Version Description Issued Date V1.0 Initial issue of report Jul. 07, 2021 Report No. 20A0549R-E3082100013-A Page: 4 of 18 1.1. Test Facility Ambient conditions in the laboratory: Items Test Item Required Test Site Temperature (°C) Peak Output Power 15 - 35 1 Humidity (%RH) 25 - 75 Note: Test site information refers to Laboratory Information. USA : FCC Registration Number: TW3024 Canada : IC Registration Number: 22397-1 / 22397-2 / 22397-3 The address and introduction of DEKRA Testing and Certification Co., Ltd. laboratories can be founded in our Web site: http://www.dekra.com.tw If you have any comments, please don’t hesitate to contact us. Our test sites as below: Test Laboratory DEKRA Testing and Certification Co., Ltd. Address 1. No.372, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County 31061, Taiwan, R.O.C. 2. No.372-2, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County 31061, Taiwan, R.O.C. Phone number 1. +886-3-582-8001 2. +886-3-582-8001 Fax number 1. +886-3-582-8958 2. +886-3-582-8958 Email address [email protected] Website http://www.dekra.com.tw Report No. 20A0549R-E3082100013-A Page: 5 of 18 1.2. List of Test Equipment Peak Output Power / SR12-H Instrument Manufacturer Model No. Serial No. Cal. Date Next Cal. Date High Speed Peak Power Meter Dual Input Anritsu ML2496A 1602004 2020/11/30 2021/11/29 Pulse Power Sensor Anritsu MA2411B 1531043 2020/11/30 2021/11/29 Pulse Power Sensor Anritsu MA2411B 1531044 2020/11/30 2021/11/29 Power Meter Keysight 8990B MY510002482021/05/21 2022/05/20 Power Sensor Keysight N1923A MY572400052021/05/21 2022/05/20 Note: All equipment upon which need to calibrated are with calibration period of 1 year. 1.3. Uncertainty Test item Uncertainty Peak Output Power ± 2.26 dB Determining compliance shall be based on the results of the compliance measurement, not taking into account measurement instrumentation uncertainty. Report No. 20A0549R-E3082100013-A Page: 6 of 18 2. RF Exposure Evaluation 2.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm2) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz RF Field Strength Limits for Controlled Use Devices (Controlled Environment) Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m2) Reference Period (minutes) 0.003-1023 170 180 - Instantaneous* 0.1-10 - 1.6/ ƒ - 6** 1.29-10 193/ ƒ 0.5 - - 6** 10-20 61.4 0.163 10 6 20-48 129.8/ ƒ 0.25 0.3444/ ƒ 0.25 44.72/ ƒ 0.5 6 48-100 49.33 0.1309 6.455 6 100-6000 15.60 ƒ 0.25 0.04138 ƒ 0.25 0.6455ƒ0.5 6 6000-15000 137 0.364 50 6 15000-150000 137 0.364 50 616000/ ƒ 1.2 150000-300000 0.354 ƒ 0.5 9.40 x 10-4 ƒ 0.5 3.33 x 10-4 ƒ 616000/ ƒ 1.2 Note: ƒ is frequency in MHz. *Based on nerve stimulation (NS). ** Based on specific absorption rate (SAR). Report No. 20A0549R-E3082100013-A Page: 7 of 18 Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 2.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. Report No. 20A0549R-E3082100013-A Page: 8 of 18 2.3. Test Result of RF Exposure Evaluation Product Consumer Home Router Test Mode Transmit Mode Test Condition RF Exposure Evaluation Date of Test 2021/02/03 Test Site SR12-H Temperature(°C) 23.8°C Test Humidity 51.0% Antenna Gain: The maximum antenna gain is 5.25 (5GHz B2) & 5.91 (5GHz B3) dBi. Output Power into Antenna & RF Exposure Evaluation Distance: WLAN Function 5GHz Band Mode Frequency (MHz) Conducted Output Power Power Density at R = 20cm (mW/c…

Text truncated - open the document above for the full version.

Test Report

Report No.:20A0549R-E3032110126-B Page: 1 of 677 FCC Test Report Product Name : Consumer Home Router Trade Name : Verizon Model No. : CR1000A FCC ID : NKR-LVSK-R2 Applicant : Wistron NeWeb Corporation Address : 20 Park Ave. II, Hsinchu Science Park, Hsinchu 308, Taiwan Date of Receipt : Oct. 21, 2020 Issued Date : Jul. 07, 2021 Report No. : 20A0549R-E3032110126-B Report Version : V1.0 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF or any agency of the government. The test report shall not be reproduced without the written approval of DEKRA Testing and Certification Co., Ltd. Measurement uncertainties evaluated for each testing system and associated connections are given here to provide the system information for reference. Compliance determinations do not take into account measurement uncertainties for each testing system, but are based on the results of the compliance measurement. The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of DEKRA Testing and Certification Co., Ltd.. Report No.:20A0549R-E3032110126-B Page: 2 of 677 Test Report Certification Issued Date : Jul. 07, 2021 Report No. : 20A0549R-E3032110126-B Product Name : Consumer Home Router Applicant : Wistron NeWeb Corporation Address : 20 Park Ave. II, Hsinchu Science Park, Hsinchu 308, Taiwan Manufacturer : Wistron NeWeb Corporation Address 20 Park Ave. II, Hsinchu Science Park, Hsinchu 308, Taiwan Trade Name : Verizon Model No. : CR1000A FCC ID : NKR-LVSK-R2 EUT Voltage : AC 100-120V, 50-60Hz Testing Voltage : AC 120V/60Hz Applicable Standard : FCC CFR Title 47 Part 15 Subpart E Section 15.407: 2018 ANSI C63.10: 2013 Laboratory Name : Hsin Chu Laboratory Address : No.372-2, Sec. 4, Zhongxing Rd., Zhudong Township, Hsinchu County 310, Taiwan, R.O.C. TEL: +886-3-582-8001 / FAX: +886-3-582-8958 Test Result : Complied Documented By : ( Carol Tsai / Senior Engineering Adm. Specialist ) Tested By : ( Elwin Lin / Engineer ) Approved By : ( Louis Hsu / Deputy Manager ) The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of DEKRA Testing and Certification Co., Ltd . Report No.:20A0549R-E3032110126-B Page: 3 of 677 Revision History Version Description Issued Date V1.0 Initial issue of report Jul. 07, 2021 Report No.:20A0549R-E3032110126-B Page: 4 of 677 TABLE OF CONTENTS Description Page 1. General Information .................................................................................................................... 6 1.1. EUT Description ........................................................................................................... 6 1.2. Test Mode ................................................................................................................... 10 1.3. Tested System Details ................................................................................................ 13 1.4. Configuration of tested System .................................................................................. 13 1.5. Operation Descriptions ............................................................................................... 14 1.6. Comments and Remarks ............................................................................................ 14 1.7. Test Facility ................................................................................................................. 15 1.8. List of Test Equipment ................................................................................................ 17 1.9. Uncertainty ................................................................................................................. 20 1.10. Duty Cycle .................................................................................................................. 21 2. Aetenna Requirements ............................................................................................................. 27 3. Conducted Emission ................................................................................................................ 28 3.1. Test Setup ................................................................................................................... 28 3.2. Limits .......................................................................................................................... 28 3.3. Test Procedure ........................................................................................................... 29 3.4. Test Specification ........................................................................................................ 29 3.5. Test Result of Conducted Emission ............................................................................ 30 4. 99% & 26dB Bandwidth ............................................................................................................ 32 4.1. Test Setup ................................................................................................................... 32 4.2. Limits .......................................................................................................................... 32 4.3. Test Procedure ........................................................................................................... 32 4.4. Test Result of 99% & 26dB Bandwidth ....................................................................... 33 5. Transmit Output ........................................................................................................................ 44 5.1. Test Setup ................................................................................................................... …

Text truncated - open the document above for the full version.

Test Report

Report No.:20A0549R-E3032110126-B Page: 149 of 677 Model No CR1000A Site CB4-H Test Voltage AC 120V/60Hz Test Date 2021/3/15 Test Mode Mode 1 Engineer Elwin Lin Polarity Horizontal Temperature (°C) 19.0 Test Condition 802.11ax,6.115G,BW20M Humidity (%RH) 58.0 No Frequency (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Reading Level (dBuV) Correct Factor (dB) Detector Type 1 12230.000 55.57 74.00 -18.43 42.03 13.54 PK * 2 12230.000 42.10 54.00 -11.90 28.56 13.54 AV Note: 1. All reading above 1GHz is performed with peak and/or average measurements as necessary. 2. “ * ”, means this data is the worst value. 3. Emission Level = Reading Level + Correct Factor. 4. The average measurement was not performed when the peak measured data under the limit of average detection. Report No.:20A0549R-E3032110126-B Page: 150 of 677 Model No CR1000A Site CB4-H Test Voltage AC 120V/60Hz Test Date 2021/3/19 Test Mode Mode 1 Engineer Elwin Lin Polarity Horizontal Temperature (°C) 19.0 Test Condition 802.11ax,Ch33,6.115G,BW20M Humidity (%RH) 58.0 No Frequency (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Reading Level (dBuV) Correct Factor (dB) Detector Type * 1 18345.000 41.28 54.00 -12.72 48.12 -6.84 AV 2 18345.000 55.02 74.00 -18.98 61.86 -6.84 PK 3 24460.000 48.86 88.20 -39.34 54.75 -5.89 PK 4 30575.000 50.53 88.20 -37.67 51.22 -0.69 PK 5 36690.000 50.50 88.20 -37.70 49.91 0.59 PK Note: 1. All reading above 1GHz is performed with peak and/or average measurements as necessary. 2. “ * ”, means this data is the worst value. 3. Emission Level = Reading Level + Correct Factor. 4. The average measurement was not performed when the peak measured data under the limit of average detection. Report No.:20A0549R-E3032110126-B Page: 151 of 677 Model No CR1000A Site CB4-H Test Voltage AC 120V/60Hz Test Date 2021/3/15 Test Mode Mode 1 Engineer Elwin Lin Polarity Vertical Temperature (°C) 19.0 Test Condition 802.11ax,6.115G,BW20M Humidity (%RH) 58.0 No Frequency (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Reading Level (dBuV) Correct Factor (dB) Detector Type 1 12230.000 55.69 74.00 -18.31 42.15 13.54 PK * 2 12230.000 42.37 54.00 -11.63 28.83 13.54 AV Note: 1. All reading above 1GHz is performed with peak and/or average measurements as necessary. 2. “ * ”, means this data is the worst value. 3. Emission Level = Reading Level + Correct Factor. 4. The average measurement was not performed when the peak measured data under the limit of average detection. Report No.:20A0549R-E3032110126-B Page: 152 of 677 Model No CR1000A Site CB4-H Test Voltage AC 120V/60Hz Test Date 2021/3/19 Test Mode Mode 1 Engineer Elwin Lin Polarity Vertical Temperature (°C) 19.0 Test Condition 802.11ax,Ch33,6.115G,BW20M Humidity (%RH) 58.0 No Frequency (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Reading Level (dBuV) Correct Factor (dB) Detector Type * 1 18345.000 41.79 54.00 -12.21 48.63 -6.84 AV 2 18345.000 56.09 74.00 -17.91 62.93 -6.84 PK 3 24460.000 49.61 88.20 -38.59 55.50 -5.89 PK 4 30575.000 50.26 88.20 -37.94 50.95 -0.69 PK 5 36690.000 50.91 88.20 -37.29 50.32 0.59 PK Note: 1. All reading above 1GHz is performed with peak and/or average measurements as necessary. 2. “ * ”, means this data is the worst value. 3. Emission Level = Reading Level + Correct Factor. 4. The average measurement was not performed when the peak measured data under the limit of average detection. Report No.:20A0549R-E3032110126-B Page: 153 of 677 Model No CR1000A Site CB4-H Test Voltage AC 120V/60Hz Test Date 2021/3/15 Test Mode Mode 1 Engineer Elwin Lin Polarity Horizontal Temperature (°C) 19.0 Test Condition 802.11ax,Ch61,6.255G,BW20M Humidity (%RH) 58.0 No Frequency (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Reading Level (dBuV) Correct Factor (dB) Detector Type * 1 12510.000 42.27 54.00 -11.73 29.31 12.96 AV 2 12510.000 54.48 74.00 -19.52 41.52 12.96 PK Note: 1. All reading above 1GHz is performed with peak and/or average measurements as necessary. 2. “ * ”, means this data is the worst value. 3. Emission Level = Reading Level + Correct Factor. 4. The average measurement was not performed when the peak measured data under the limit of average detection. Report No.:20A0549R-E3032110126-B Page: 154 of 677 Model No CR1000A Site CB4-H Test Voltage AC 120V/60Hz Test Date 2021/3/19 Test Mode Mode 1 Engineer Elwin Lin Polarity Horizontal Temperature (°C) 19.0 Test Condition 802.11ax,Ch61,6.255G,BW20M Humidity (%RH) 58.0 No Frequency (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Reading Level (dBuV) Correct Factor (dB) Detector Type 1 18765.000 49.93 74.00 -24.07 57.49 -7.56 PK 2 25020.000 48.31 88.20 -39.89 51.80 -3.49 PK * 3 31275.000 51.05 74.00 -22.95 50.24 0.81 PK 4 37530.000 51.95 88.20 -36.25 49.85 2.10 PK Note: 1. All reading above 1GHz is performed with peak and/or average measurements as necessary. 2. “ * ”, means this data is the worst value. 3. Emission Level = Reading Level + Correct Factor. 4. The average measurement was not performed when the peak measured data under the limit of average detection. Report No.:20A0549R-E3032110126-B Page: 155 of 677 Model No CR1000A Site CB4-H Test Voltage AC 120V/60Hz Test Date 2021/3/15 Test Mode Mode 1 Engineer Elwin Lin Polarity Vertical Temperature (°C) 19.0 Test Condition 802.11ax,Ch61,6.255G,BW20M Humidity (%RH) 58.0 No Frequency (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Reading Level (dBuV) Correct Factor (dB) Detector Type 1 12510.000 54.24 74.00 -19.76 41.28 12.96 PK * 2 12510.000 40.48 54.00 -13.52 27.52 12.96 AV Note: 1. All reading above 1GHz is performed with peak and/or average measurements as necessary. 2. “ * ”, means this data is the worst value. 3. Emission Level = Reading Level + Correct Factor. 4. The average measurement was not performed when the peak measured data under the limit of average detection. Report No.:20A0549R-E3032110126-B Page: 156 of 677 Model No CR1000A Site CB4-H Test Voltage AC 120V/60Hz Test Date 2021/3/…

Text truncated - open the document above for the full version.

Test Report

Report No.:20A0549R-E3032110126-B Page: 292 of 677 Model No CR1000A Site CB4-H Test Voltage AC 120V/60Hz Test Date 2021/3/23 Test Mode Mode 1 Engineer Elwin Lin Polarity Vertical Temperature (°C) 19.0 Test Condition 802.11ax,Ch135,6.625G,BW80M Humidity (%RH) 58.0 No Frequency (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Reading Level (dBuV) Correct Factor (dB) Detector Type * 1 19875.000 42.38 74.00 -31.62 48.70 -6.32 PK 2 26500.000 44.70 88.20 -43.50 47.89 -3.19 PK 3 33125.000 47.17 88.20 -41.03 47.04 0.13 PK 4 39750.000 51.09 88.20 -37.11 45.40 5.69 PK Note: 1. All reading above 1GHz is performed with peak and/or average measurements as necessary. 2. “ * ”, means this data is the worst value. 3. Emission Level = Reading Level + Correct Factor. 4. The average measurement was not performed when the peak measured data under the limit of average detection. Report No.:20A0549R-E3032110126-B Page: 293 of 677 Model No CR1000A Site CB4-H Test Voltage AC 120V/60Hz Test Date 2021/3/15 Test Mode Mode 1 Engineer Elwin Lin Polarity Horizontal Temperature (°C) 19.0 Test Condition 802.11ax,Ch151,6.705G,BW80M Humidity (%RH) 58.0 No Frequency (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Reading Level (dBuV) Correct Factor (dB) Detector Type * 1 13410.000 56.03 88.20 -32.17 41.61 14.42 PK Note: 1. All reading above 1GHz is performed with peak and/or average measurements as necessary. 2. “ * ”, means this data is the worst value. 3. Emission Level = Reading Level + Correct Factor. 4. The average measurement was not performed when the peak measured data under the limit of average detection. Report No.:20A0549R-E3032110126-B Page: 294 of 677 Model No CR1000A Site CB4-H Test Voltage AC 120V/60Hz Test Date 2021/3/23 Test Mode Mode 1 Engineer Elwin Lin Polarity Horizontal Temperature (°C) 19.0 Test Condition 802.11ax,Ch151,6.705G,BW80M Humidity (%RH) 58.0 No Frequency (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Reading Level (dBuV) Correct Factor (dB) Detector Type * 1 20115.000 42.23 74.00 -31.77 48.94 -6.71 PK 2 26820.000 46.65 88.20 -41.55 48.58 -1.93 PK 3 33525.000 48.98 88.20 -39.22 48.7…

Text truncated - open the document above for the full version.

Contact Information

Applicant

William Su(Senior Director / System Engineering dept.)
[email protected]886-3-666-7799Fax: 886-3-666-7323

Test Firm

DEKRA TESTING AND CERTIFICATION Hsin Chu Lab.Michael Huang
[email protected]886-3-582-8001Fax: 886-3-592-8958

Technical Specifications

#Rule PartsFrequency RangePower Output
115E6.12 GHz - 7.09 GHz425.00 mW
Confidentiality
Long Term
Grant Notes
Output power is maximum EIRP Power. This device has integrated DTS, NII and 6ID transmitters certified under the same FCC ID. This device supports IEEE 802.11 a/n/ac/ax 20, 40, 80 and 160 MHz channel bandwidths. This device supports 4T4R MIMO. This device is a mobile device and must be installed to maintain a separation distance of at least 20 cm from all persons to satisfy RF Exposure compliance. The device must not be co-located or operate in conjunction with any other antenna or transmitter except as documented in filings under this FCC ID and/or in accordance with FCC multi-transmitter product guidelines.
