NKR-OR8400High End RFID Reader module

1 OR8400 User Manual (V0.3) Model Name: OR8400 Description: UHF RFID Reader Module Edition# Reason for revision Issue date V0.1 First release 2014/06/18 V0.2 Modify return loss 2014/07/03 V0.3 Modified for FCC This document contains proprietary information which is the property of Wistron NeWeb Corporation and is strictly confidential and shall not be disclosed to others in whole or in part, reproduced, copied, or used as basic for design, manufacturing or sale of apparatus without the written permission of Wistron NeWeb Corporation. 2 CONTENTS 1 Introduction .......................................................................................................... 3 2 Hardware Block Diagram ................................................................................... 3 3 Specification ......................................................................................................... 4 4 Hardware interfaces ............................................................................................ 7 4.1 Antenna Connections ................................................................................. 7 4.1.1 Antenna Requirements .................................................................. 7 4.1.2 Antenna Detection ......................................................................... 7 4.2 Digital/Power Connector Definition .......................................................... 7 4.2.1 Antenna status signals ................................................................... 9 4.2.2 LED signal ....................................................................................... 9 5 Mechanical Dimension ...................................................................................... 10 3 1 Introduction OR8400 is a superior, high sensitivity and high performance 4 ports RFID reader module with built-in Impinj Indy R2000 RFID reader chip. OR8400 supports EPC class1 Gen2/ ISO 18000-C. The maximum RF output power is 30.0dBm. The typical sensitivity is -84dBm at 30dBm output power. OR8400 supports auto sensitivity improving technology. It can improve more than 10dB sensitivity. In summary, the R2000 RFID chip was chosen because it provided the very best basic performance. The RF section was optimized by using a circulator. Thus, the combination of the R2000 chip and circulator based RF section with auto sensitivity improving technology provides the very best performance possible. Therefore, OR8400 is superior to all other R2000 base designs. 2 Hardware Block Diagram OR8400 can be controlled via USB interface. OR8400 can connect 4 antennas via R/P TNC connectors. The hardware connection block diagram as below. Hardware connection block diagram 4 3 Specification OR8400 Specification Air Interface Protocol EPCglobal UHF Class 1 Gen 2 / ISO 18000‐6C Transmit Power +10.0 to +30.0 dBm Max. Receive Sensitivity [1] ‐82dBm Typical Receive Sensitivity [1] ‐84dBm at 30dBm ‐86dBm at 27dBm Min. Return Loss 10dB Antenna ports 4 reverse polarity TNC mono‐static ports Dense Reader Mode Support Dense Reader Mode(DRM), Built‐in DRM Filter Performance optimization Support Auto improving sensitivity technology Frequency US: 902 ~ 928MHz Interface USB1.1 (USB 2.0 Full Speed) USB Driver Support Windows XP / 7 / Linux 32bit DC Power 12V +/‐ 5% Power Consumption 12W at 30.0dBm Operating Case Temperature[2] ‐20 o C to +70 o C Humidity 5% to 95%, non‐condensing Dimensions 140 x 90 mm (not include TNC connector) RoHS Compliant to European Union directive 2002/95/EC Note: [1] Sensitivity value is measured by Voyantic Readformance at TNC connectors. [2] The OR8400 module may be considered as a single electronic component. It is designed so that all the internal components have safe margins to their thermal limits when the heat spreading plate (bottom) does not exceed 70°C. The heat spreading plate temperature must not exceed 70 degrees C. Heat sinking will be required for high duty cycle applications. 5 Federal Communication Commission Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: ‐ Reorient or relocate the receiving antenna. ‐ Increase the separation between the equipment and receiver. ‐ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‐ Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This transmitter must not be co‐located or operating in conjunction with any other antenna or transmitter. Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. 6 This device is intended only for OEM integrators under the following conditions: 1) The antenna must be installe…

Text truncated - open the document above for the full version.

20 Park Avenue II, Hsinchu Science Park,Hsinchu 308, Taiwan, R.O.C. September 12, 2014 FCC ID: NKR-OR8400 We, WISTRON NEWEB CORP. declare that the device does not support any non-US channels in all the operational mode(s) for the following product. If you should have any question(s) regarding this declaration, please don’t hesitate to contact us. Thank you! ------------------------------------------------------- Troy Chien Associate Technical Director Tel: +886-3-6667799 Ext 6361 Fax: + 886-3-6667323 E-mail: [email protected]

20 Park Avenue II, Hsinchu Science Park,Hsinchu 308, Taiwan, R.O.C. September 12, 2014 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request FCC ID: NKR-OR8400 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematic Diagram Block Diagram Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ----------------------------------------------------------------- Troy Chien Associate Technical Director Tel: +886-3-6667799 Ext 6361 Fax: + 886-3-6667323 E-mail: [email protected]

20 Park Avenue II, Hsinchu Science Park,Hsinchu 308, Taiwan, R.O.C. Federal Communications Commission Authorization and Evaluation Division Date: September 12, 2014 Confidentiality Request FCC ID: NKR-OR8400 Pursuant to Sections 0.457 and 0.459 of the commission’s rules, we request short-term confidential treatment for the following information until December 12, 2014 in order to ensure sensitive business information remains confidential until the actual marketing of the device: External Photos Test Setup Photos User’s Manual Internal Photo Thank you! Sincerely yours, ------------------------------------------------------- Troy Chien Associate Technical Director Tel: +886-3-6667799 Ext 6361 Fax: + 886-3-6667323 E-mail: [email protected]

20 Park Avenue II, Hsinchu Science Park,Hsinchu 308, Taiwan, R.O.C. September 12, 2014 Power of Attorney FCC ID: NKR-OR8400 To whom it may concern: We, the undersigned WISTRON NEWEB CORP. hereby authorize Bureau Veritas Consumer Products Services (H.K) Ltd., Taoyuan Branch. of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C approval and any communication needed with the national authority. Any and all acts carried out by Bureau Veritas Consumer Products Services (H.K) Ltd., Taoyuan Branch. on our behalf shall have the same effects as acts of our own. This authorization shall expire six months from the original date. If you have any questions regarding the authorization, please don’ t hesitate to contact us. Thank you! Thank you! Sincerely yours, ------------------------------------------------------- Troy Chien Associate Technical Director Tel: +886-3-6667799 Ext 6361 Fax: + 886-3-6667323 E-mail: [email protected]

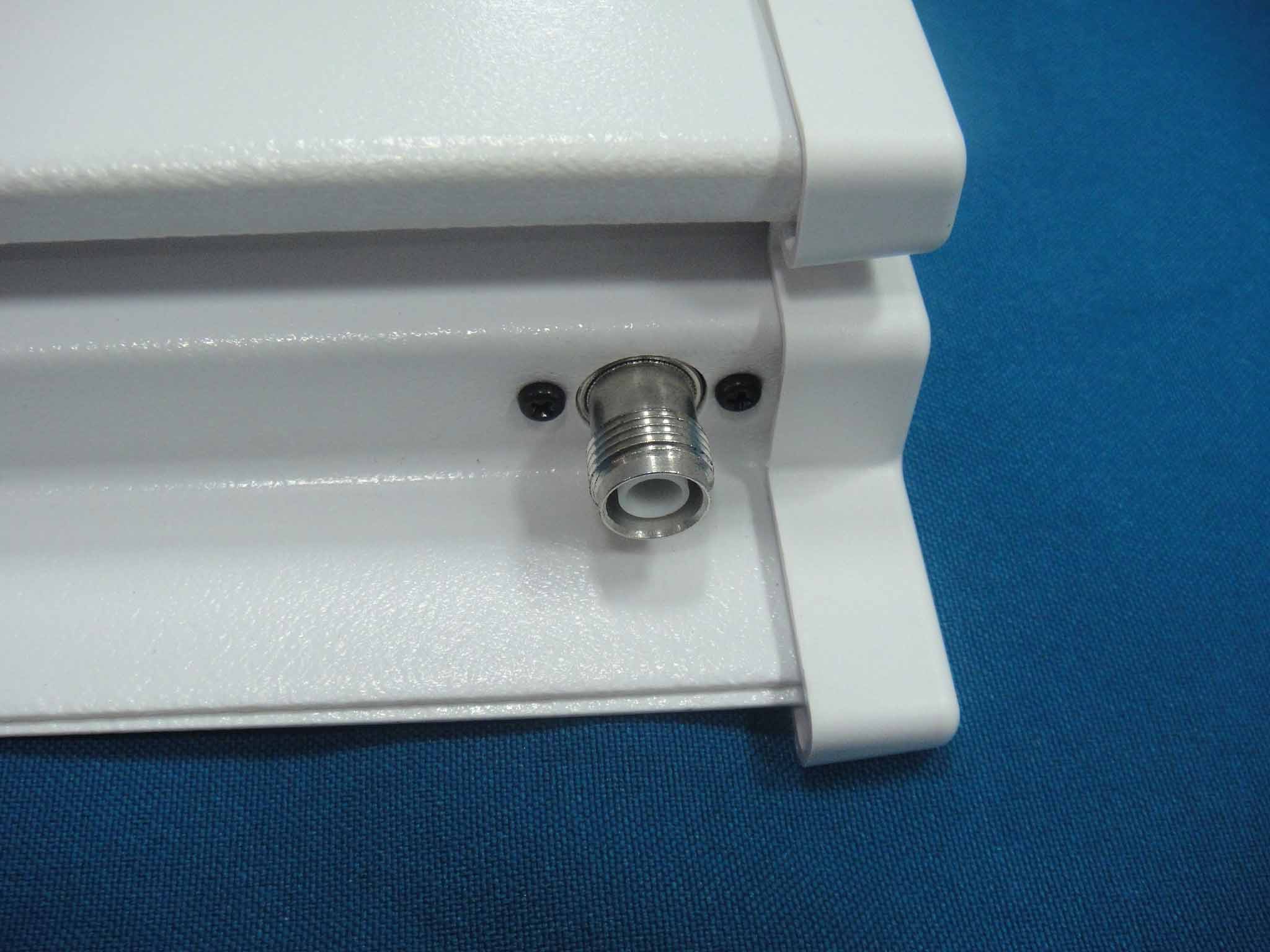

FCC ID: NKR-OR8400 Report No.: RF140728E05 Modular Approval Request Letter Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch September 18, 2014 Dear Application Examiner, Wistron NeWeb Corp., High End RFID Reader module, FCC ID: NKR-OR8400, would like to have your authorization as a modular approval specific to the mobile RF exposure condition. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.” The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip OR8400. 3. “The modular transmitter must have its own power supply regulation.” The part number of this regulator is OR8400. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was tested in a stand-alone configuration via a USB extender. Please see section Photographs of Test Configuration in the test report, the EUT was plugged in this extender. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, Hank Chung Assistant Manager Bureau Veritas Consumer Products Services (H.K.) Ltd., Hsinchu Branch
