NKR-P75802.11 a/b/g/n 2x2 USB Dongle

Wireless LAN Adaptor (11abgn 2x2 USB) Panasonic DNUA-P75 User Manual Copyright Statement No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, whether electronic, mechanical, photocopying, recording or otherwise without the prior writing of the publisher. Pentium is trademark of Intel. All copyright reserved. 1 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Country Code selection feature to be disabled for products marketed to the US/CANADA Operations in the 5.15-5.25GHz band are restricted to indoor usage only. 2 Industry Canada statement: This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Caution: (i) the device for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems; (ii) the maximum antenna gain permitted for devices in the bands 5250-5350 MHz and 5470-5725 MHz shall comply with the e.i.r.p. limit; and (iii) the maximum antenna gain permitted for devices in the band 5725-5825 MHz shall comply with the e.i.r.p. limits specified for point-to-point and non point-to-point operation as appropriate. (iv) Users should also be advised that high-power radars are allocated as primary users (i.e. priority users) of the bands 5250-5350 MHz and 5650-5850 MHz and that these radars could cause interference and/or damage to LE-LAN devices. Avertissement: (i) les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés uniquement pour une utilisation à l’intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux; (ii) le gain maximal d’antenne permis pour les dispositifs utilisant les bandes 5 250-5 350 MHz et 5 470-5 725 MHz doit se conformer à la limite de p.i.r.e.; (iii) le gain maximal d’antenne permis (pour les dispositifs utilisant la bande 5 725-5 825 3 MHz) doit se conformer à la limite de p.i.r.e. spécifiée pour l’exploitation point à point et non point à point, selon le cas. (iv) De plus, les utilisateurs devraient aussi être avisés que les utilisateurs de radars de haute puissance sont désignés utilisateurs principaux (c.-à-d., qu’ils ont la priorité) pour les bandes 5 250-5 350 MHz et 5 650-5 850 MHz et que ces radars pourraient causer du brouillage et/ou des dommages aux dispositifs LAN-EL. Radiation Exposure Statement: This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Déclaration d'exposition aux radiations: Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps. 4 Europe – EU Declaration of Conformity This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The following test methods have been applied in order to prove presumption of conformity with the essential requirements of the R&TTE Directive 1999/5/EC: - IEC 60950-1:2005 (2nd Edition); Am 1:2009 - EN 60950-1:2006+A11:2009+A1:2010+A12:2011 Safety of Information Technology Equipment - EN 62311: 2008 / Article 3(1)(a) and Article 2 2006/95/EC) Assessment of electronic and electrical equipment related to human exposure restrictions for electromagnetic fields (0 Hz-…

Text truncated - open the document above for the full version.

A G E N C Y A U T H O R I Z A T I O N L E T T E R Date: 2013-08-30 I, Troy Chien, am Associate Technical Director for Wistron NeWeb Corp. hereby authorize the following to act on our behalf, as our agent, in all matters relating to all processes required according to FCC approval for Wistron NeWeb Corp. products (Grantee Code: NKR) Barry Chen Alan Wang Lulu Lin This authorization shall expire twelve months from the original date. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! , Sincerely yours, Troy Chien / Associate technical director Wistron NeWeb Corp. Tel: 886-3-6667799 Ext 6361 Fax: 886-3-6667323 E-mail: [email protected]

Date: 2013/8/27 Federal Communications Commission 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Product Certification Representative Authorization Letter FCC ID: NKR-P75 Product name: Wireless LAN Adaptor To whom it may concern: We the undersigned, hereby authorize following person to act as our agent in the preparation of an application for equipment authorization of model DNUA-P75 to the FCC Rules and Regulations. International Certification Corp. Address : No.3-1, Lane 6, Wen San 3rd St. Kwei Shan Hsiang, Tao Yuan Hsein 333, Taiwan (R.O.C.) Name : Gary Chang Job Title : Manager e-mail : [email protected] Webs We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002(b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Applicant : Wistron NeWeb Corporation Address : 20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C. Signature : _________________________________ Name and Job Title. : Alan Wang / Senior Engineer E-mail : [email protected] Tel. : +886-3-666-7799 ext:6907

Confidentiality Request Letter Date: 2013/8/27 Federal Communications Commission Authorization and Evaluation Division FCC ID：NKR-P75 Permanent Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Applicant’s company name : Wistron NeWeb Corporation Applicant’s company address : 20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C. Signature : Job Title and Dept. : Alan Wang / Senior Engineer E-mail : [email protected] Tel. : +886-3-666-7799 ext:6907

Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Date: August 27, 2013 Subject: FCC Application for FCC ID: NKR-P75 To Whom it may concern, We, the undersigned, would like to declare that the composite portion catagorized as computer peripheral has been authorized under the Declaration of Conformity procedures, which the report issued from International Certification Corp..(report number: FD380101.) Applicant : Wistron NeWeb Corporation Address : 20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C. Signature : _________________________________ Name and Job Title. : Alan Wang / Senior Engineer E-mail : [email protected] Tel. : +886-3-666-7799 ext:6907

General Declaration Date: September 10, 2013 We, Wistron NeWeb Corp., declare that the device can work only with specific TV and the product won't supply any driver for the PC or laptop and it is not recognizable by any PC or Notebook. Model name: DNUA-P75 FCC ID: NKR-P75 If you have any questions regarding the declaration, please don’t hesitate to contact us. Thank you! Sincerely yours, Applicant : Wistron NeWeb Corporation Address : 20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C. Signature : Name and Job Title. : Alan Wang / Senior Engineer E-mail [email protected] Tel. +886-3-666-7799 ext:6907

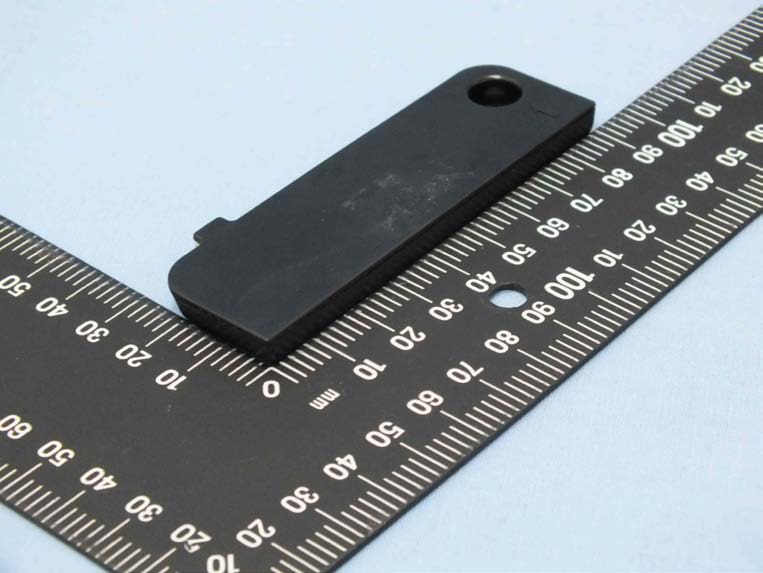

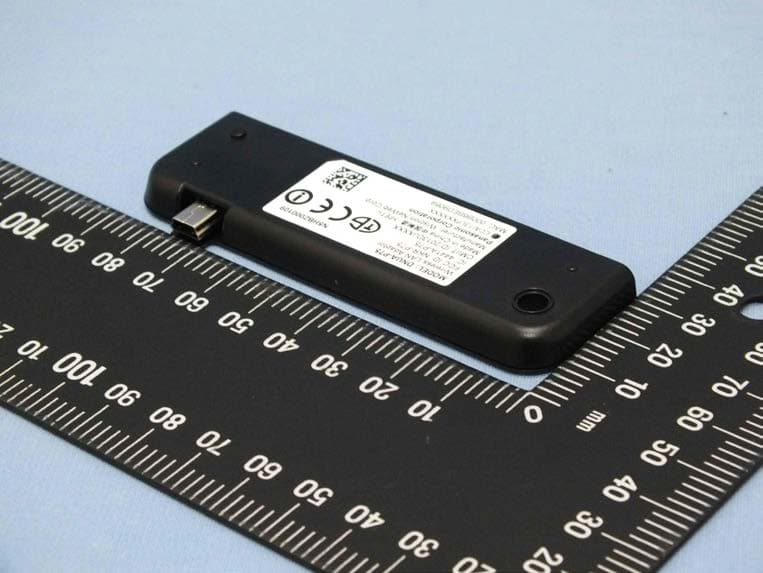

International Certification Corp. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-271-8666 Fax: 886-3-318-0155 Photographs of EUT Projec t No.: EP380101 Page No. : 1 of 6 International Certification Corp. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-271-8666 Fax: 886-3-318-0155 Projec t No.: EP380101 Page No. : 2 of 6

20mm 40mm

International Certification Corp. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-271-8666 Fax: 886-3-318-0155 Projec t No.: EP380101 Page No. : 3 of 6 International Certification Corp. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-271-8666 Fax: 886-3-318-0155 Projec t No.: EP380101 Page No. : 4 of 6 International Certification Corp. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-271-8666 Fax: 886-3-318-0155 Projec t No.: EP380101 Page No. : 5 of 6 International Certification Corp. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-271-8666 Fax: 886-3-318-0155 Projec t No.: EP380101 Page No. : 6 of 6

International Certification Corp. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-271-8666 Fax: 886-3-318-0155 Report No.: FA380101 Page : 1 of 4 Report Version: Rev. 01 FCC RF Exposure Report FCC ID : NKR-P75 Equipment : Wireless LAN Adaptor Model No. : DNUA-P75 Brand Name : Panasonic Applicant : Wistron NeWeb Corp. Address : 20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C. Standard : 47 CFR FCC Part 2.1091 Received Date : Aug. 01, 2013 Tested Date : Aug. 08 ~ Aug. 30, 2013 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Approved & Reviewed by: Gary Chang / Manager Ty: XXX International Certification Corp. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-271-8666 Fax: 886-3-318-0155 Report No.: FA380101 Page : 2 of 4 Report Version: Rev. 01 Table of Contents 1 MPE EVALUATION OF MOBILE DEVICES...................................................................................... 4 1.1 LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE ........................................... 4 1.2 MPE EVALUATION FORMULA ......................................................................................................... 4 1.3 MPE EVALUATION RESULTS .......................................................................................................... 4 International Certification Corp. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-271-8666 Fax: 886-3-318-0155 Report No.: FA380101 Page : 3 of 4 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FA380101 Rev. 01 Initial issue Sep. 06, 2013 International Certification Corp. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-271-8666 Fax: 886-3-318-0155 Report No.: FA380101 Page : 4 of 4 Report Version: Rev. 01 1 MPE EVALUATION OF MOBILE DEVICES Human exposure to RF emissions from mobile devices (47 CFR §2.1091) may be evaluated based on the MPE limits adopted by the FCC for electric and magnetic field strength and/or power density, as appropriate, since exposures are assumed to occur at distances of 20 cm or more from persons. 1.1 LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE Frequency Range (MHz) Power Density (mW /cm 2 ) Averaging Time (minutes) 300~1500 F/1500 30 1500~100000 1.0 30 1.2 MPE EVALUATION FORMULA Pd = 2 **4RPi Pt Where Pd= Power density in mW/cm 2 Pt= EIRP in Mw Pi= 3.1416 R= Measurement distance 1.3 MPE EVALUATION RESULTS Frequency Range (MHz) Maximum Conducted Average Power (dBm) Antenna Gain (dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) 2412~2462 25.28 1.82 20 0.102 1 5180~5240 16.51 2.74 20 0.017 1 5260~5320 20.43 2.78 20 0.042 1 5500~5700 20.00 3.28 20 0.042 1 5745~5825 18.51 2.22 20 0.024 1 ══END══

International Certification Corp. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-271-8666 Fax: 886-3-318-0155 FCC Test Report FCC ID : NKR-P75 Equipment : Wireless LAN Adaptor Model No. : DNUA-P75 Brand Name : Panasonic Applicant : Wistron NeWeb Corp. Address : 20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C. Standard : 47 CFR FCC Part 15.247 Received Date : Aug. 01, 2013 Tested Date : Aug. 08 ~ Aug. 30, 2013 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Approved & Reviewed by: Gary Chang / Manager Ty: XXX Report No.: FR380101AC Page : 1 of 60 Report Version: Rev. 01 International Certification Corp. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-271-8666 Fax: 886-3-318-0155 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Local Support Equipment List ................................................................................................................ 7 1.3 Test Setup Chart .................................................................................................................................... 7 1.4 The Equipment List ................................................................................................................................ 8 1.5 Test Standards ..................................................................................................................................... 10 1.6 Measurement Uncertainty .................................................................................................................... 11 2 TEST CONFIGURATION ..................................................................................................................... 12 2.1 Testing Condition ................................................................................................................................. 12 2.2 The Worst Test Modes and Channel Details ....................................................................................... 12 3 TRANSMITTER TEST RESULTS ........................................................................................................ 13 3.1 Conducted Emissions ........................................................................................................................... 13 3.2 6dB and Occupied Bandwidth .............................................................................................................. 16 3.3 RF Output Power .................................................................................................................................. 19 3.4 Power Spectral Density ........................................................................................................................ 22 3.5 Unwanted Emissions into Restricted Frequency Bands ...................................................................... 24 3.6 Unwanted Emissions into Non-Restricted Frequency Bands .............................................................. 52 Report No.: FR380101AC Page : 2 of 60 Report Version: Rev. 01 International Certification Corp. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-271-8666 Fax: 886-3-318-0155 Release Record Report No. Version Description Issued Date FR380101AC Rev. 01 Initial issue Sep. 06, 2013 Report No.: FR380101AC Page : 3 of 60 Report Version: Rev. 01 International Certification Corp. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-271-8666 Fax: 886-3-318-0155 Summary of Test Results FCC Rules Test Items Measured Result 15.207 Conducted Emissions [dBuV]: 0.151MHz 55.48 (Margin -10.48dB) - QP Pass 15.247(d) 15.209 Radiated Emissions [dBuV/m at 3m]: 2483.50.00MHz 52.98 (Margin -1.02dB) – AV [dBuV/m at 3m]: 2483.50.00MHz 72.98 (Margin -1.02dB) – Peak Pass 15.247(b)(3) Fundamental Emission Output Power Power [dBm]: 11b: 24.58 11g: 28.88 HT20: 28.80 HT40: 26.23 Pass 15.247(a)(2) 6dB Bandwidth Meet the requirement of limit Pass 15.247(e) Power Spectral Density Meet the requirement of limit Pass 15.203 Antenna Requirement Meet the requirement of limit Pass Report No.: FR380101AC Page : 4 of 60 Report Version: Rev. 01 International Certification Corp. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-271-8666 Fax: 886-3-318-0155 1 General Description 1.1 Information 1.1.1 Specification of the Equipment under Test (EUT) RF General Information Frequency Range (MHz) IEEE Std. 802.11 Ch. Freq. (MHz) Channel Number Transmit Chains (N TX ) Data Rate / MCS 2400-2483.5 b 2412-2462 1-11 [11 ] 2 1-11 Mbps 2400-2483.5 g 2412-2462 1-11 [11 ] 2 6-54 Mbps 2400-2483.5 n (HT20) 2412-2462 1-11 [11 ] 2 MCS 0-15 2400-2483.5 n (HT40) 2422-2452 3-9 [7] 2 MCS 0-15 Note 1: RF output power specifies that Maximum Peak Conducted Output Power. Note 2: 802.11b uses a combination of DSSS-DBPSK, DQPSK, CCK modulation. Note 3: 802.11g/n uses a combination of OFDM-BPSK, QPSK, 16QAM, 64QAM modulation. 1.1.2 Antenna Details Ant. No. Model Type Connector Operating Frequency (MHz) / Gain (dBi) 2400~2483.5 5150~5250 5250~5350 5470~5725 5725~5850 1 ANT0 (Left) Printed NA 1.82 2.49 2.49 2.32 2.32 2 ANT1 (Right) Printed NA -1.56 2.74 2.78 3.28 2.2 1.1.3 EUT Operational Condition Supply Voltage AC…

Text truncated - open the document above for the full version.

International Certification Corp. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-271-8666 Fax: 886-3-318-0155 Report No.: FR380101AI Page : 1 of 49 Report Version: Rev. 01 FCC Test Report FCC ID : NKR-P75 Equipment : Wireless LAN Adaptor Model No. : DNUA-P75 Brand Name : Panasonic Applicant : Wistron NeWeb Corp. Address : 20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C. Standard : 47 CFR FCC Part 15.247 Received Date : Aug. 01, 2013 Tested Date : Aug. 08 ~ Aug. 30, 2013 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Approved & Reviewed by: Gary Chang / Manager Ty: XXX International Certification Corp. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-271-8666 Fax: 886-3-318-0155 Report No.: FR380101AI Page : 2 of 49 Report Version: Rev. 01 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Local Support Equipment List ................................................................................................................ 7 1.3 Test Setup Chart .................................................................................................................................... 7 1.4 The Equipment List ................................................................................................................................ 8 1.5 Test Standards ..................................................................................................................................... 10 1.6 Measurement Uncertainty .................................................................................................................... 11 2 TEST CONFIGURATION ..................................................................................................................... 12 2.1 Testing Condition ................................................................................................................................. 12 2.2 The Worst Test Modes and Channel Details ....................................................................................... 12 3 TRANSMITTER TEST RESULTS ........................................................................................................ 13 3.1 Conducted Emissions ........................................................................................................................... 13 3.2 6dB and Occupied Bandwidth .............................................................................................................. 16 3.3 RF Output Power .................................................................................................................................. 19 3.4 Power Spectral Density ........................................................................................................................ 21 3.5 Unwanted Emissions into Restricted Frequency Bands ...................................................................... 23 3.6 Unwanted Emissions into Non-Restricted Frequency Bands .............................................................. 43 International Certification Corp. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-271-8666 Fax: 886-3-318-0155 Report No.: FR380101AI Page : 3 of 49 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FR380101AI Rev. 01 Initial issue Sep. 06, 2013 International Certification Corp. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-271-8666 Fax: 886-3-318-0155 Report No.: FR380101AI Page : 4 of 49 Report Version: Rev. 01 Summary of Test Results FCC Rules Test Items Measured Result 15.207 Conducted Emissions [dBuV]: 0.151MHz 54.60 (Margin -11.36dB) - QP Pass 15.247(d) 15.209 Radiated Emissions [dBuV/m at 3m]:11490.00MHz 52.90 (Margin -1.10dB) - AV Pass 15.247(b)(3) Fundamental Emission Output Power Power [dBm]: 11a: 22.81 HT20: 23.02 HT40: 22.99 Pass 15.247(a)(2) 6dB Bandwidth Meet the requirement of limit Pass 15.247(e) Power Spectral Density Meet the requirement of limit Pass 15.203 Antenna Requirement Meet the requirement of limit Pass International Certification Corp. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-271-8666 Fax: 886-3-318-0155 Report No.: FR380101AI Page : 5 of 49 Report Version: Rev. 01 1 General Description 1.1 Information 1.1.1 Specification of the Equipment under Test (EUT) RF General Information Frequency Range (MHz) IEEE Std. 802.11 Ch. Freq. (MHz) Channel Number Transmit Chains (N TX ) Data Rate / MCS 5725-5850 a 5745-5825 149-165 [5] 2 6-54 Mbps 5725-5850 n (HT20) 5745-5825 149-165 [5] 2 MCS 0-15 5725-5850 n (HT40) 5755-5795 151-159 [2] 2 MCS 0-15 Note 1: RF output power specifies that Maximum Conducted Output Power. Note 2: 802.11a/n uses a combination of OFDM-BPSK, QPSK, 16QAM, 64QAM modulation. 1.1.2 Antenna Details Ant. No. Model Type Connector Operating Frequency (MHz) / Gain (dBi) 2400~2483.5 5150~5250 5250~5350 5470~5725 5725~5850 1 ANT0 (Left) Printed NA 1.82 2.49 2.49 2.32 2.32 2 ANT1 (Right) Printed NA -1.56 2.74 2.78 3.28 2.2 1.1.3 EUT Operational Condition Supply Voltage AC mains DC (5Vdc) Type of DC Source Internal DC supply External DC adapter From Host 1.1.4 Accessories N/A International Certification Cor…

Text truncated - open the document above for the full version.

International Certification Corp. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-271-8666 Fax: 886-3-318-0155 Report No.: FR380101 Page: : 1 of 4 Report Version: Rev. 01 Photographs of the Test Configuration Conducted Emission Test International Certification Corp. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-271-8666 Fax: 886-3-318-0155 Report No.: FR380101 Page: : 2 of 4 Report Version: Rev. 01 Conducted Emission Test International Certification Corp. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-271-8666 Fax: 886-3-318-0155 Report No.: FR380101 Page: : 3 of 4 Report Version: Rev. 01 Radiated Emission Test International Certification Corp. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-271-8666 Fax: 886-3-318-0155 Report No.: FR380101 Page: : 4 of 4 Report Version: Rev. 01 Radiated Emission Test
