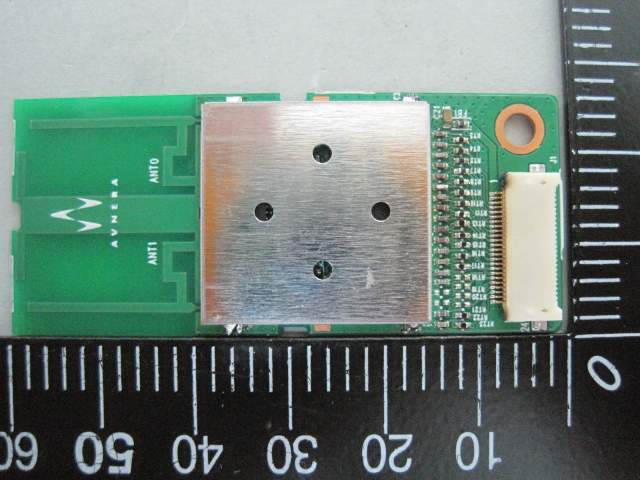

NKR-SWA12Wireless Audio Module

AVNERA CORPORATION | 16505 NW BETHANY COURT SUITE 100 | BEAVERTON, OREGON 97006, U.S.A. | MAIN +1.503.718.4100 | FAX +1.503.718.4101 | WWW.AVNERA.COM AVNERA PROPRIETARY & CONFIDENTIAL | PROVIDED UNDER NDA General Description Every consumer wants to be free from wires, but it has been challenging to find a low-cost, high-quality, easy-to-use wireless audio solution for the wireless subwoofer market. Avnera’s proprietary wireless system takes a new approach to wireless audio. The wireless protocol was designed from the ground up and delivers uncompressed mono or stereo audio, with fixed latency and variable over the air data rate support to eliminate interference problems at the best possible audio quality. Avnera’s wireless modules offer a low-touch, easy-to-integrate wireless audio solution and enable fast time to market by already solving the problem associated with FCC certification, antenna tuning and board optimization. Modules based on Avnera’s AV6200 silicon provide breakthrough wireless audio functionality with fixed low-latency point-to- point transport of uncompressed mono PCM audio data at up to 48KHz, 16-bit resolution using digital (I2S) interfaces. Applications 9 Wireless Subwoofers 9 Stereo audio channel transmission Ordering Options AVMD6200-SWA12 TXD: Transmit module with digital audio input and integrated printed PCB antennas AVMD6200-SWA12 RXD: Receive module with digital audio output and integrated printed PCB antennas Features 9 Audio Interfaces 9 I2S Digital Input Interface with 93dB end-to-end digital audio path 9 Support for >15m range 9 Frequency range: 2.4 GHz ISM band, continuous dynamic frequency selection 9 Forward error correction coding, error detection, and audio-specific error concealment 9 Custom Dual onboard printed PCB antennas for multipath and fading mitigation 9 Auto-search/synch and dynamic channel selection 9 Low, fixed latency of 16ms, suitable for video lip-synch 9 Connector: 24 position 0.5mm flex cable connector for maximum mounting flexibility in the system. 9 Sample rate converter: Support for 16, 20, 24, and 32 bit PCM words at 8,16, 22.05, 24, 32, 44.1, and 48 kHz 9 General purpose over-the-air (OTA) serial interface: 9 2 kbps, bi-directional, full duplex 9 Support for meta-data and remote control commands AudioMagic™ AVMD6210-SWA12 Preliminary Module Brief Point-to-point AVMD6210-SWA12TX/RX modules for Stereo and Mono Wireless Audio Systems, based on Avnera’s AV6210 IC AudioMagic AVMD6210-SWA12 Module Brief PRELIMINARY v0p1 CONTENTS SUBJECT TO CHANGE WITHOUT NOTICE 5 AVNERA PROPRIETARY & CONFIDENTIAL 4 AVMD6210-SWA12- Connector Information Table 1 shows the module connector pin out for the SWA12. A goal of the design is to have the exact same pin out for both the Tx and Rx modules. The module function is completely determined by firmware. The module pins provide the capability to use either SPI slave or I2C slave interfaces – these are mutually exclusive. If an I2C slave host interface is used GPIOs 2 and 3 can be used for general purpose I/O. In addition, the SPI master port is brought out to the connector to facilitate direct programming of the module flash memory if required. A single I2S port is brought to the connector and can be configured to be either a slave or master port. The MCLK pin can be an input or output to offer optimal flexibility. Likewise the I2S audio pin can be an input or output to implement either audio Tx or Rx. In addition, there are 5 other GPIOs that can be used exclusively for system features such as pair button, interrupt, LEDs etc. The reset pin allows for an external device to reset the module but must be driven from an open drain device to avoid timing issues with the module reset. Note: the connector pin out is subject to change throughout the development process to optimize the PCB routing. SWA12 Pin-Out No Pin Name I/O AV6200 Pin Description 1 VDD - +5V +/- 10% 2 VDD - +5V +/- 10% 3 GPIO I/O GPIO13 pin 28 Function defined by firmware application. 4 GPIO I/O GPIO18 pin 43 Function defined by firmware application. 5 GPIO I/O GPIO19 pin 37 Function defined by firmware application. 6 Reset I Pin 24 Driven from open drain external source. Can be left open. 7 I2C_SCL_S / S_MISO I/O GPIO5 pin 44 I2C slave or SPI slave port 8 I2C_SDA_S / S_MOSI I/O GPIO4 pin 45 I2C slave or SPI slave port 9 I2C_SCL_M O GPIO22 pin 41 I2C master port or GPIO 10 I2C_SDA_M I/O GPIO21 pin 42 I2C master port or GPIO 11 S_SCLK I GPIO3 pin 46 SPI slave port or GPIO 12 GND - Ground 13 BCK1 I/O GPIO15 pin 26 I2S port 14 WCLK1 I/O GPIO16 pin 25 I2S port 15 S_SSB I GPIO2 pin 47 SPI slave port or GPIO 16 MCLK I/O GPIO10 pin 31 I2S port or GPIO 17 ADOUT/ADIN1 I/O GPIO14 pin 27 I2S port 18 M_SSB O GPIO6 pin 36 SPI master port 19 M_SCLK O GPIO7 pin 35 SPI master port 20 M_MOSI O GPIO8 pin 34 SPI master port 21 M_MISO I GPIO9 pin 33 SPI master port 22 GPIO I/O GPIO11 pin 30 Function defined by firmware application. 23 GPIO I/O GPIO12 pin 29 Function defined by firmware application. 24 GND - Ground Table 1 – Rx and Tx SWA12 Module Pin-Out AudioMagic AVMD6210-SWA12 Module Brief PRELIMINARY v0p1 CONTENTS SUBJECT TO CHANGE WITHOUT NOTICE 7 AVNERA PROPRIETARY & CONFIDENTIAL 5 AVMD6210-SWA12 Mechanical Dimensions Mounting Hole Connector Shield Can Approx 23 x 25mm 60mm Mounting tabs around perimeter of PCB tbd 26mm 25mm 23mm 1mm x 3mm location slots 3 places 33mm Pin 1 Figure 3 - AVMD6210-SWA12 mechanical dimensions AudioMagic AVMD6210-SWA12 Module Brief PRELIMINARY v0p1 CONTENTS SUBJECT TO CHANGE WITHOUT NOTICE 8 AVNERA PROPRIETARY & CONFIDENTIAL 6 Electrical Specifications 6.1 Absolute Maximum Ratings Absolute Maximum Ratings (AMR) are stress ratings only. AMR corresponds to the maximum value that can be applied without leading to instantaneous or very short-term unrecoverable hard failure (destructive breakdown). Stresses beyond those listed under AMR may cause permanent damage to the device. Functional operation of the device at these or any other…

Text truncated - open the document above for the full version.
