NKR-SWA5Wireless Audio Card

Wistron NeWeb ® Wistron NeWeb Corporation 20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C. Phone: 886-3-666-7799 Fax: 886-3-666-7711 Website: www.wneweb.com













Wistron NeWeb Confidential Document 1 Product Specification Model Name: AVMD7540-SWA5 (AV7540 +16dBm module with U.FL connector) Revision: 1.0 Issue Date: 2010/10/26 This document and the information contained herein is the property of Wistron NeWeb Corporation and reproduction by any means (including, but not limited to, xerographic, chemical, electronic) and distribution is expressly prohibited without prior written consent from Wistron NeWeb Corporation. The document and information contained herein are confidential and may not be divulged without express written consent from Wistron NeWeb Corporation, located at 20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C. Wistron NeWeb ® Wistron NeWeb Corporation 20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C. Phone: 886-3-666-7799 Fax: 886-3-666-7711 Website: www.wneweb.com













Wistron NeWeb Confidential Document 2 Copyright 2010 by Wistron NeWeb Corporation / All rights reserved. Wistron NeWeb ® Wistron NeWeb Corporation 20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C. Phone: 886-3-666-7799 Fax: 886-3-666-7711 Website: www.wneweb.com













Wistron NeWeb Confidential Document 3
Revision History Edition # Reason for revision Issue date Author 0.1 Initial Revision 2010/05/07 cjo 1.0 Add FCC certification wording on p.3 2010/10/26 Amy Wistron NeWeb ® Wistron NeWeb Corporation 20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C. Phone: 886-3-666-7799 Fax: 886-3-666-7711 Website: www.wneweb.com













Wistron NeWeb Confidential Document 4 1. General Description The AVMD7540-SWA5 module is a complete radio module solution containing all the necessary HW and FW to provide a system-integration ready, multichannel wireless HD audio solution. The module is comprised of a AV7540 IC combined with RF front-end circuits (RF PA + balun + filter + RF switch), flash memory, crystal, and passive components. It is FCC certified and ready for operation with U.FL connectors. The module provides a convenient set of digital I/O interfaces for digital audio through an I2S port, host MCU control through an SPI or I2C interface and optional GPIO for various control and indicator functions. The module is a card edge style using the 36 pin PCIe card edge connection method to save space and cost in connecting to the main board. FCC & IC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the exemption from the routine evaluation limits in section 2.5 of RSS 102. 1. This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 2. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters from user and bystanders. The device meets the exemption from the routine evaluation limits in section 2.5 of RSS 102 Wistron NeWeb ® Wistron NeWeb Corporation 20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C. Phone: 886-3-666-7799 Fax: 886-3-666-7711 Website: www.wneweb.com













Wistron NeWeb Confidential Document 5 2. Features
Complete, Integrated Wireless Module o AV7540 IC o RF front-end o Flash memory
High Performance Audio and RF solution o 16 bit, 48kHz to 24 bit, 96kHz digital audio o 120dB SNR Digital Audio Path o Fixed Low Latency solution o +16dBm transmit RF output power o -82dBm receive RF sensitivity o Support for 30m/100m range NLOS/LOS
Digital interfaces and Audio o 8 channel digital audio I/O (4 I2S ports)  Configurable as input or output o Stereo audio DAC output o 4-wire SPI slave interface or 2-wire I2C-compatible communication with the host MCU
Package and connections o Compact size o 36 pin (2x18) PCIe card edge connector o diversity antenna capability Wistron NeWeb ® Wistron NeWeb Corporation 20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C. Phone: 886-3-666-7799 Fax: 886-3-666-7711 Website: www.wneweb.com













Wistron NeWeb Confidential Document 6 3. Block Diagram 3. Module Outline Wistron NeWeb ® Wistron NeWeb Corporation 20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C. Phone: 886-3-666-7799 Fax: 886-3-666-7711 Website: www.wneweb.com













Wistron NeWeb Confidential Document 7 4. Pin Configuration and Definition Figure 1-1 – AVMD7540-SWA5 module pin configuration Wistron NeWeb ® Wistron NeWeb Corporation 20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C. Phone: 886-3-666-7799 Fax: 886-3-666-7711 Website: www.wneweb.com













Wistron NeWeb Confidential Document 8 Table
!  -1 AVMD7540-SWA5 pin description # Pin Name Pin Type Description A1 GND Analog Module ground A2 GND Analog Module ground A3 W CLK2 Digital I/O I2S W ord clock, AV75xx physical I2S I/O # 2 – input/output A4 BCLK2 Digital I/O I2S Bit clock, AV75xx physical I2S I/O # 2 – input/output A5 ADAT2 Digital I/O I2S audio data, AV75xx physical I2S I/O #2 – input/output A6 W CLK0 Digital I/O I2S W ord clock, AV75xx physical I2S I/O # 0 – input/output A7 BCLK0 Digital I/O I2S Bit clock, AV75xx physical I2S I/O # 0 – input/output A8 ADAT0 Digital I/O I2S audio data, AV75xx physical I2S I/O # 0 – input/output A9 SPI/TW I_SEL Digital I/O SPI / TW I interface selection (SPI = 0, TW I = 1) A1 0 GPIO6 Digital I/O GPIO #6 A1 1 GPIO4 Digital I/O GPIO #4 A1 2 GPIO3 Digital I/O GPIO #3 A1 3 GPIO5 Digital I/O GPIO #5 A1 4 reserved Digital I/O reserved A1 5 AGND Analog Audio ground A1 6 ROUT Analog Audio DAC right channel output A1 7 LOUT Analog Audio DAC left channel output A1 8 AGND Analog Audio ground B1 VCC Analog +5V supply volt…

Text truncated - open the document above for the full version.

Page No. : 20 Limit Module Approval Request Letter Subject: Limited Module Approval Date: 2010/10/20 FCC ID: NKR-SWA5 Dear Reviewer, We, Sporton International Inc., are authorized by Wistron NeWeb Corporation to have their state-of-the-art wireless audio card approved under limited module approval authorization. The application of this module is specified to mobile host equipment. The requirements regulated in Public Notice DA00-1407 have been fulfilled and clearly explained below. 1. The requirement of RF shielding: The shielding of the radio portion can be demonstrated in exhibition External Photo. 2. The requirement of buffered inputs: Buffered data inputs stage has been integrated in chip AV7540. 3. The requirement of power supply regulation: The part number of the power regulator is XC6219. 4. The requirements of section 15.203 and 15.204(C): The requirements of antenna connector and spurious emission have been fulfilled. Please reference the exhibition Test Report. 5. The requirement of stand-alone test configuration: Please reference exhibition Test Configuration Photo for the stand-alone test configuration. 6. The requirement of labeling: The instruction on the labeling rule of the end product has been stated in the users manual of this module. Please also see the exhibition Label Sample. 7. The requirement of compliance on specific rule or operating requirements: The required FCC rule has been fulfilled and all the instructions for maintaining compliance has been clearly stated in the Users Manual. 8. The requirement of RF exposure: Please refer exhibition RF Exposure for the compliance of MPE RF exposure rule. Please do not hesitate to contact me for any questions of this request letter. Thank you. Company name : Sporton International Inc. Company Address : No.8, Lane 724, Bo-ai St., Jhubei City, Hsinchu County 302, Taiwan, R.O.C. Signature : Name : Leo Huang Job Title : Manager

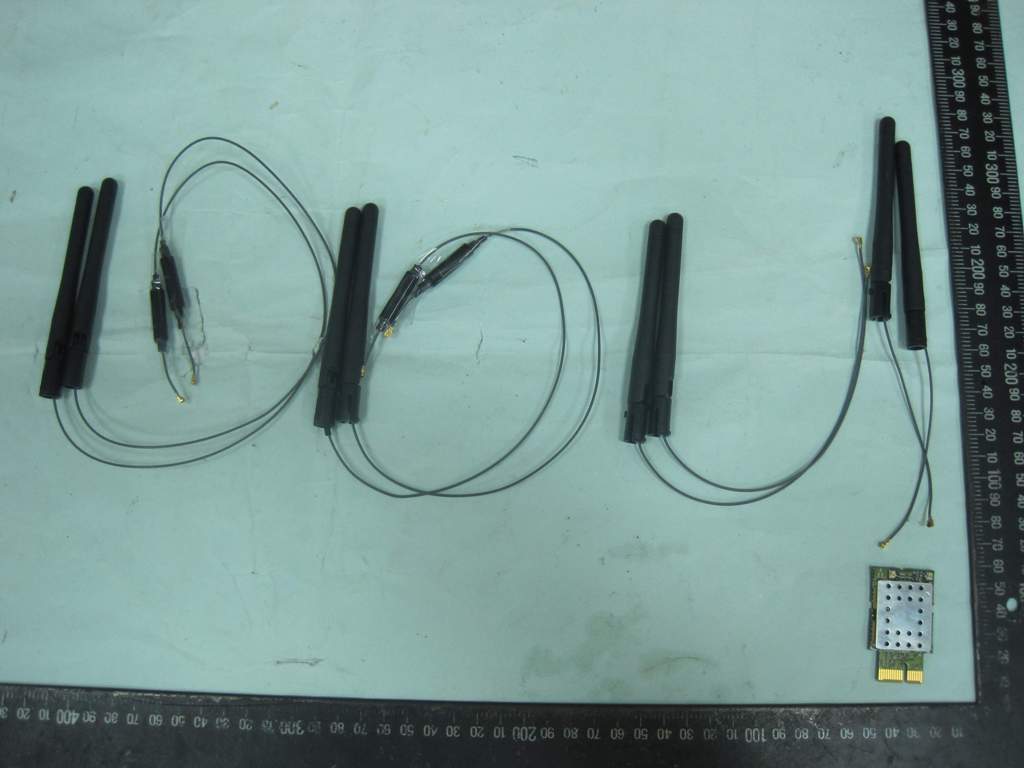

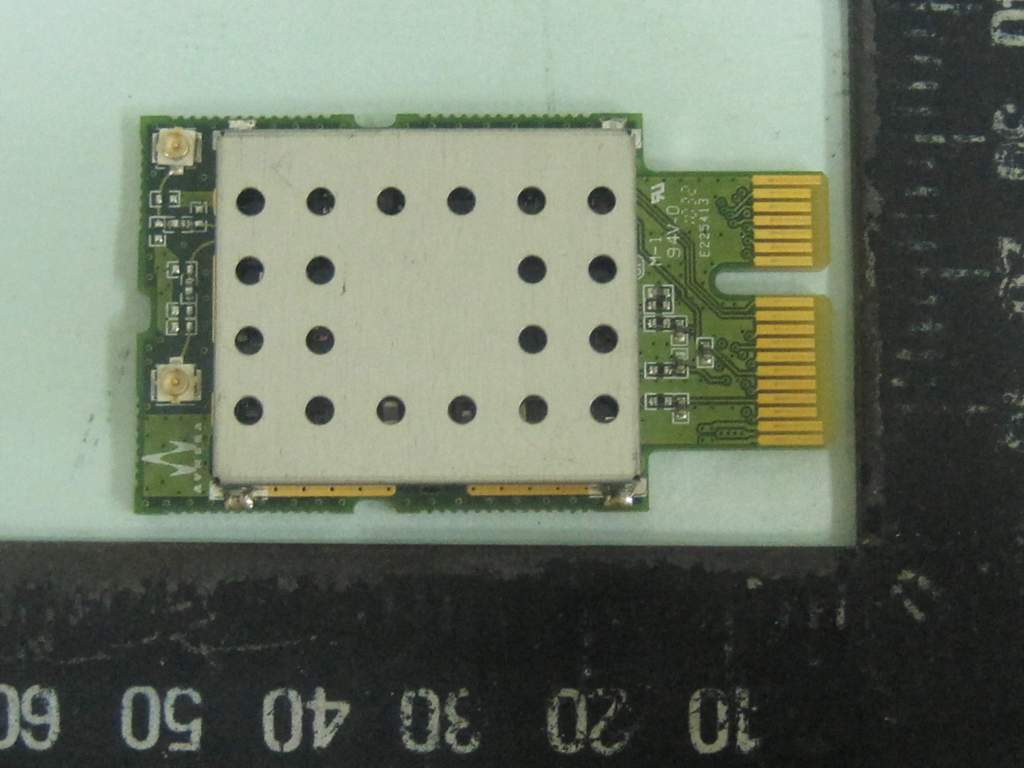

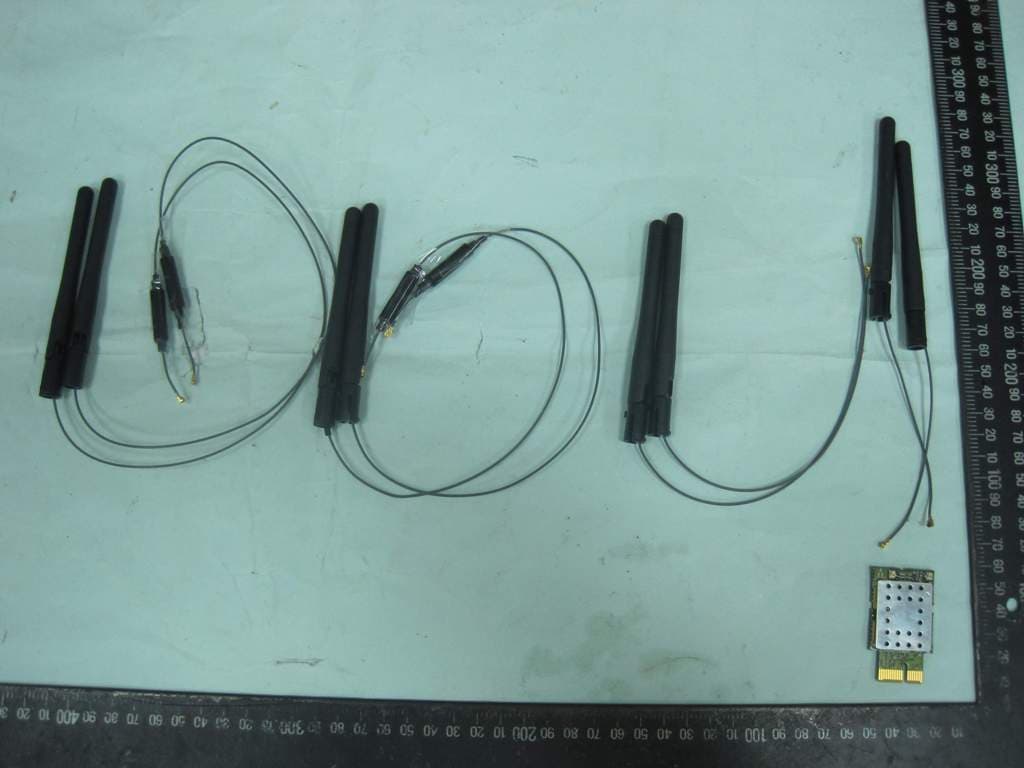

SPORTON International Inc. PAGE NUMBER : A1 OF A6 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 20, 2010 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A6 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 20, 2010 FAX : 886-2-2696-2255 Antenna 1 SPORTON International Inc. PAGE NUMBER : A3 OF A6 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 20, 2010 FAX : 886-2-2696-2255 Antenna 2 SPORTON International Inc. PAGE NUMBER : A4 OF A6 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 20, 2010 FAX : 886-2-2696-2255 Antenna 3 SPORTON International Inc. PAGE NUMBER : A5 OF A6 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 20, 2010 FAX : 886-2-2696-2255 Antenna 4 SPORTON International Inc. PAGE NUMBER : A6 OF A6 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 20, 2010 FAX : 886-2-2696-2255

SPORTON International Inc. PAGE NUMBER : A1 OF A2 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 20, 2010 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A2 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 20, 2010 FAX : 886-2-2696-2255

Report No.: FR0O1222 FCC ID: NKR-SWA5 Page No. : 1 of 3 Appendix C. Appendix C.Appendix C. Appendix C. Maximum Permissible Exposure Maximum Permissible ExposureMaximum Permissible Exposure Maximum Permissible Exposure Report No.: FR0O1222 FCC ID: NKR-SWA5 Page No. : 2 of 3 1. 1.1. 1. Maximum Permissible Exposure Maximum Permissible ExposureMaximum Permissible Exposure Maximum Permissible Exposure 1.1. Applicable Standard Applicable StandardApplicable Standard Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range Frequency Range Frequency Range Frequency Range (MHz) (MHz)(MHz) (MHz) Electric Field Electric Field Electric Field Electric Field Strength (E) (V/m) Strength (E) (V/m)Strength (E) (V/m) Strength (E) (V/m) Magnetic Field Magnetic Field Magnetic Field Magnetic Field Strength (H) (A/m) Strength (H) (A/m)Strength (H) (A/m) Strength (H) (A/m) Power Density (S) Power Density (S)Power Density (S) Power Density (S) (mW/ cm (mW/ cm(mW/ cm (mW/ cm² ²² ²) )) ) Averaging Time Averaging TimeAveraging Time Averaging Time |E| |E||E| |E|² ²² ²,|H| ,|H|,|H| ,|H|² ²² ² or S or Sor S or S (minutes) (minutes)(minutes) (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range Frequency Range Frequency Range Frequency Range (MHz) (MHz)(MHz) (MHz) Electric Field Electric Field Electric Field Electric Field Strength (E) (V/m) Strength (E) (V/m)Strength (E) (V/m) Strength (E) (V/m) Magnetic Field Magnetic Field Magnetic Field Magnetic Field Strength (H) (A/m) Strength (H) (A/m)Strength (H) (A/m) Strength (H) (A/m) Power Density (S) Power Density (S)Power Density (S) Power Density (S) (mW/ cm (mW/ cm(mW/ cm (mW/ cm² ²² ²) )) ) Averaging Time Averaging TimeAveraging Time Averaging Time |E| |E||E| |E|² ²² ²,|H| ,|H|,|H| ,|H|² ²² ² or S or Sor S or S (m (m(m (minutes) inutes)inutes) inutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. 1.2.1.2. 1.2. MPE Calculation Method MPE Calculation MethodMPE Calculation Method MPE Calculation Method E (V/m) ＝ d GP××30 Power Density: Pd (W/m²) ＝ 377 2 E E E E E ＝ Electric field (V/m) P PP P ＝ Peak RF output power (W) G GG G ＝ EUT Antenna numeric gain (numeric) d dd d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd PdPd Pd ＝ 2 377 30 d GP × ×× From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR0O1222 FCC ID: NKR-SWA5 Page No. : 3 of 3 1.3. 1.3.1.3. 1.3. Calculated Result and Limit Calculated Result and LimitCalculated Result and Limit Calculated Result and Limit For 2.4GHz Band: For 2.4GHz Band:For 2.4GHz Band: For 2.4GHz Band: Antenna Type Antenna TypeAntenna Type Antenna Type : : : : Dipole An Dipole AnDipole An Dipole Antenna tennatenna tenna Max Conducted Power for Ant. Max Conducted Power for Ant. Max Conducted Power for Ant. Max Conducted Power for Ant. 1 11 1: :: : 23.56 23.5623.56 23.56 dBm dBmdBm dBm Antenna Gain Antenna Gain Antenna Gain Antenna Gain (dBi) (dBi)(dBi) (dBi) Antenna Gain Antenna Gain Antenna Gain Antenna Gain (numeric) (numeric)(numeric) (numeric) Peak Output Peak Output Peak Output Peak Output Power Power Power Power (dBm) (dBm)(dBm) (dBm) Peak Output Peak Output Peak Output Peak Output Power ( mW ) Power ( mW )Power ( mW ) Power ( mW ) Power Density Power Density Power Density Power Density (S) (S)(S) (S) (mW/cm (mW/cm(mW/cm (mW/cm² ²² ²) )) ) Limit of Power Limit of Power Limit of Power Limit of Power Density (S) Density (S)Density (S) Density (S) (mW/cm (mW/cm(mW/cm (mW/cm² ²² ²) )) ) Test Result Test ResultTest Result Test Result 1.5 1.4125 23.5600 226.9865 0.063819 1 Complies CompliesComplies Complies
