NKR-SWA52Wireless Audio Module

CONFIDENTIAL | PROVIDED UNDER NDA General Description The SWA52 module is a member of a family of products representing a new level of system integration offering customers fast time to market with a point-to-point mono, or stereo, wireless connection. These modules are optimized for low-cost, high-quality and ease- of-use. The module incorporates Avnera’s proprietary 5GHz wireless audio protocol, designed from the ground up specifically for audio. It features low fixed latency, uncompressed CD quality mono or stereo audio, superior interference immunity, and inherent coexistence with WiFi. Extended range is enabled on SWA52 with an external RF power amplifier (PA), increasing typical transmit power to as much as 12dBm typical. The SWA52 module integrates all features necessary to complete a wireless stereo or mono link, including AV5100 Wireless Audio Chip, printed diversity antennas, PA, shield can , flash memory, interface connector and all passive components. Just provide power and an I2S interface and you are ready to create a wireless audio link. The module measures 35 x 35 x 3.5 mm and is provided with a 24 pin FPC connector. The module is certified to FCC and CE standards. Applications  Wireless Subwoofers  Stereo Wireless Rear Speakers  Soundbar / Audio Video Receiver / BluRay  Mono/Stereo Audio Channel Transmission Ordering Options SWA52-TX: Transmit module with digital audio input SWA52- RX: Receive module with digital audio output Features  Audio Interfaces  I2S Digital Input / Output interface with >93dB end-to-end digital audio path  Wireless Range (Typ)  > 50m Non Line Of Sight (NLOS) range  > 160m Line Of Sight (LOS) range  Frequency range: 5.725-5.825 GHz, continuous dynamic channel selection  Forward error correction coding, error detection, and audio-specific error concealment  Dual printed PCB diversity antennas for multipath and fading mitigation  Auto-search/synch and dynamic channel selection  Low, fixed latency  24 pin FPC or pin header connector  Sample rate converter: Support for 32 - 96kHz input sample rates  Customizable firmware for simple, low-cost, sub-woofer amplifier implementations  RF parts can-shielded, module meets FCC part 15 rules for emissions and susceptibility.  General purpose over-the-air (OTA) serial interface:  11 kbps, bi-directional, full duplex  Support for amplifier control data, meta- data, and remote control commands SWA52 5GHz Module Datasheet Extended Range Mono/Stereo Wireless Audio System, based on the Avnera AV5100 IC Different labels and P/Ns are used to distinguish between TX and RX. SWA52 Module Datasheet Rev 1.3 CONTENTS SUBJECT TO CHANGE WITHOUT NOTICE 2 CONFIDENTIAL 1 Table of Contents General Description ............................................................................................................ 1 Applications ........................................................................................................................ 1 Ordering Options ................................................................................................................ 1 Features ............................................................................................................................... 1 1 Table of Contents ......................................................................................................... 2 2 Lists of Figures and Tables ......................................................................................... 3 3 Revision History ........................................................................................................... 3 4 SWA52 Functional Description ................................................................................... 4 4.1 Typical Sub-Woofer Implementation ............................................................................................... 5 4.2 SWA52 Module Connections and Interfaces .................................................................................. 7 5 SWA52 Connector Information ................................................................................... 8 6 Electrical, Audio and Timing Specifications ............................................................ 10 6.1 Absolute Maximum Ratings ........................................................................................................... 10 6.2 Recommended Operating Range ................................................................................................... 10 6.3 Electrical Characteristics – DC Characteristics ........................................................................... 10 6.4 Electrical Characteristics – RF PLL Characteristics.................................................................... 11 6.5 Electrical Characteristics – RF RX Characteristics ..................................................................... 11 6.6 Electrical Characteristics – RF TX Characteristics ...................................................................... 12 6.7 Electrical Characteristics – Audio C/CS ....................................................................................... 12 6.8 AV5100 Rate Converter Characteristics ....................................................................................... 13 6.9 I 2 S Communication Interface Timing ............................................................................................. 14 6.10 I2C Master/Slave Communication Interface Timing (S_SCL, S_SDA) ..................................... 166 7 Ordering Information.................................................................................................. 17 SWA52 Module Datasheet Rev 1.3 CONTENTS SUBJECT TO CHANGE WITHOUT NOTICE 3 CONFIDENTIAL 2 Lists of Figures and Tables Table 1: SWA52 Connector Information ............................................................................................................. 8 Table 2: SWA52 I2S Timing ...................................…

Text truncated - open the document above for the full version.

Wistron NeWeb Corporation 20 Park Avenue II, Hsinchu Science Park, Hsinchu 308 Taiwan Confidentiality Request Letter Date: 2015/11/27 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID：NKR-SWA52 To Whom It May Concern: Long Term Confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby respectfully request confidential treatment of information accompanying this application as outlined below: ● Block Diagrams ● Schematics ● Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We understand that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Note: The registered grantee contact is not available, Lulu Lin is signing for grantee contact. He/She can be reached at email: [email protected] Sincerely, Applicant’s company name : Wistron NeWeb Corporation Applicant’s company address : 20 Park Avenue II, Hsinchu Science Park, Hsinchu 308 Taiwan Signature : Signed for Edward Yeh Name and Job Title : Edward Yeh / Senior Engineer / System Engineering dept. E-Mail : [email protected] Tel : 886-3-666-7799 Fax : 886-3-666-7323

A G E N C Y A U T H O R I Z A T I O N L E T T E R Date: 2015-11-27 I, Edward Yeh, am Compliance Engineer for Wistron NeWeb Corp. hereby authorize the following to act on our behalf, as our agent, in all matters relating to all processes required according to FCC approval for Wistron NeWeb Corp. products (Grantee Code: NKR) Barry Chen Yuanwei Lin Lulu Lin This Letter of Authorization will expire on 12/31/2016, unless earlier revoked in writing. If you have any questions regarding the authorization, please don’t hesitate to contact us. Sincerely, Sincerely, ___________________ Edward Yeh / Compliance Engineer Wistron NeWeb Corp. Tel: 886-3-6667799 Ext 6683 E-mail: [email protected]

Page No. : 29 Module Approval Request Letter Date: 2015/12/16 Subject: Module Approval FCC ID: NKR-SWA52 To Whom It May Concern: We, Sporton International Inc., are authorized by Wistron NeWeb Corporation to have their state-of-the-art Wireless Audio Module approved under module approval authorization. The application of this module is specified to mobile host equipment. The requirements regulated in CFR47 Part 15.212 have been fulfilled and clearly explained below. 1. The requirement of RF shielding: The shielding of the radio portion can be demonstrated in exhibition External Photo. 2. The requirement of buffered inputs: Buffered data inputs stage has been integrated in chip AV5100. 3. The requirement of power supply regulation: The part numbers of the power regulator are AV5100 and AX3701Z6A. 4. The requirements of section 15.203 and 15.204(C): The requirements of antenna connector and spurious emission have been fulfilled. Please reference the exhibition Test Report. 5. The requirement of stand-alone test configuration: Please reference exhibition Test Configuration Photo for the stand-alone test configuration. 6. The requirement of labeling: The instruction on the labeling rule of the end product has been stated in the users manual of this module. Please also see the exhibition Label Sample. 7. The requirement of compliance on specific rule or operating requirements: The required FCC rule has been fulfilled and all the instructions for maintaining compliance has been clearly stated in the Users Manual. 8. The requirement of RF exposure: Please refer exhibition RF Exposure for the compliance of MPE RF exposure rule. Please do not hesitate to contact me for any questions of this request letter. Thank you. Company name : Sporton International Inc. Company Address : No.8, Lane 724, Bo-ai St., Jhubei City, Hsinchu County 302, Taiwan, R.O.C. Signature : Name : Leo Huang Job Title : Manager

Wistron NeWeb Corporation 20 Park Avenue II, Hsinchu Science Park, Hsinchu 308 Taiwan Power of Attorney Date: 2015/11/27 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Sporton International Inc. Address : No.8, Lane 724, Bo-ai St., Jhubei City, HsinChu County 302, Taiwan, R.O.C. Name : Leo Huang Job Title : Manager e-mail : [email protected] I am therefore responsible for the contents of the application. Brand name and model type of the specified radio equipment: WNC / SWA52 FCC ID: NKR-SWA52 Product name: Wireless Audio Module Note: The registered grantee contact is not available, Lulu Lin is signing for grantee contact. He/She can be reached at email: [email protected] FCC Grantee contact person information. Applicant’s company name : Wistron NeWeb Corporation Applicant’s company address : 20 Park Avenue II, Hsinchu Science Park, Hsinchu 308 Taiwan Signature : Signed for Edward Yeh Name and Job Title : Edward Yeh / Senior Engineer / System Engineering dept. E-Mail : [email protected] Tel : 886-3-666-7799 Fax : 886-3-666-7323

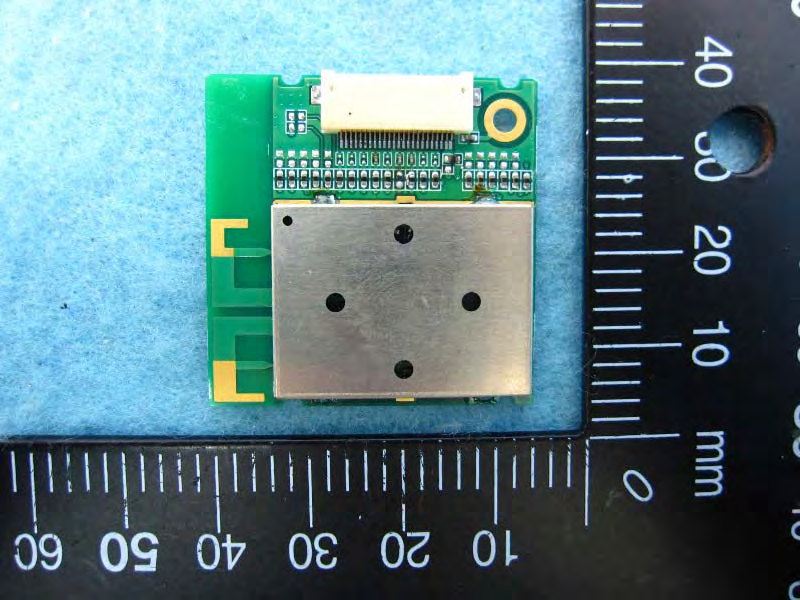

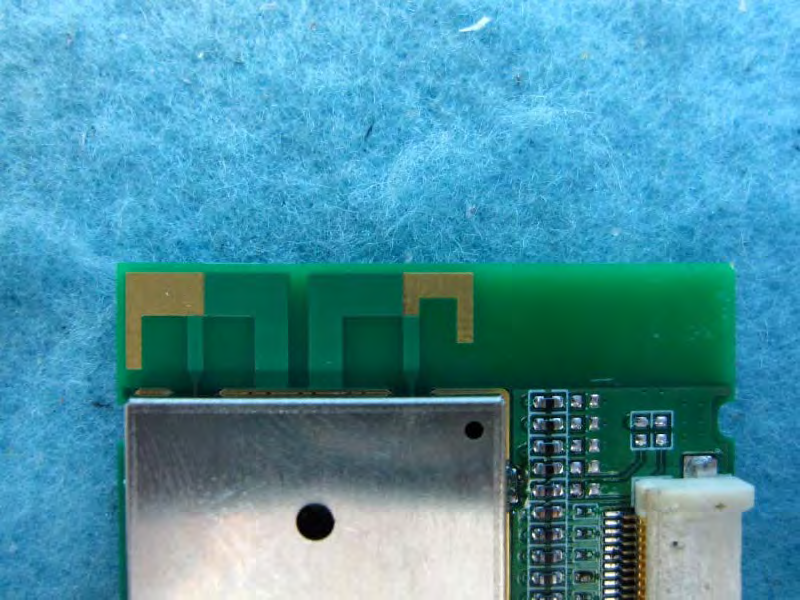

Report No.: 5N2023 SPORTON International Inc. PAGE NUMBER : 1 of 2 TEL : 886-3-327-3456 ISSUED DATE : Jan. 05, 2016 FAX : 886-3-327-0973 Photographs of EUT Report No.: 5N2023 SPORTON International Inc. PAGE NUMBER : 2 of 2 TEL : 886-3-327-3456 ISSUED DATE : Jan. 05, 2016 FAX : 886-3-327-0973

Label is here : size, 25.4 * 19.0mm

Report No.: 5N2023 SPORTON International Inc. PAGE NUMBER : 1 of 2 TEL : 886-3-327-3456 ISSUED DATE : Jan. 05, 2016 FAX : 886-3-327-0973 Photographs of EUT Report No.: 5N2023 SPORTON International Inc. PAGE NUMBER : 2 of 2 TEL : 886-3-327-3456 ISSUED DATE : Jan. 05, 2016 FAX : 886-3-327-0973

Report No.: FA5N2023 Report Format Version: 01 Page No. : i of ii FCC ID : NKR-SWA52 Issued Date : Jan. 05, 2016 Table of Contents 1. GENERAL DESCRIPTION.................................................................................................................................... 1 1.1. EUT General Information .....................................................................................................................................................................1 1.2. Testing Location..................................................................................................................................................................................1 2. MAXIMUM PERMISSIBLE EXPOSURE.................................................................................................................... 2 2.1. Limit of Maximum Permissible Exposure ..............................................................................................................................................2 2.2. MPE Calculation Method ....................................................................................................................................................................3 2.3. Calculated Result and Limit................................................................................................................................................................3 Report No.: FA5N2023 Report Format Version: 01 Page No. : ii of ii FCC ID : NKR-SWA52 Issued Date : Jan. 05, 2016 History of This Test Report REPORT NO. VERSION DESCRIPTION ISSUED DATE FA5N2023 Rev. 01 Initial issue of report Jan. 05, 2016 Report No.: FA5N2023 Report Format Version: 01 Page No. : 1 of 3 FCC ID : NKR-SWA52 Issued Date : Jan. 05, 2016 1. GENERAL DESCRIPTION 1.1. EUT General Information RF General Information Frequency Range (MHz) Operating Frequency (MHz) Modulation Type 5725-5850 5730.35-5820.35 pi/4-DQPSK 1.2. Testing Location Testing Location HWA YA ADD : No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. TEL : 886-3-327-3456 FAX : 886-3-327-0973 JHUBEI ADD : No.8, Lane 724, Bo-ai St., Jhubei City, HsinChu County 302, Taiwan, R.O.C. TEL : 886-3-656-9065 FAX : 886-3-656-9085 Report No.: FA5N2023 Report Format Version: 01 Page No. : 2 of 3 FCC ID : NKR-SWA52 Issued Date : Jan. 05, 2016 2. MAXIMUM PERMISSIBLE EXPOSURE 2.1. Limit of Maximum Permissible Exposure (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density Report No.: FA5N2023 Report Format Version: 01 Page No. : 3 of 3 FCC ID : NKR-SWA52 Issued Date : Jan. 05, 2016 2.2. MPE Calculation Method The MPE was calculated at 20 cm to show compliance with the power density limit. The following formula was used to calculate the Power Density: E (V/m) ＝ d GP30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Peak RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP   2.3. Calculated Result and Limit Exposure Environment: General Population / Uncontrolled Exposure Antenna Type : Printed Antenna Conducted Power for pi/4-DQPSK: 12.39dBm Average Output Power Distance (cm) Test Freq. (MHz) Antenna Gain (dBi) Antenna Gain (numeric) (dBm) (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 20 5730.35MHz 4.90 3.0903 12.3900 17.3380 0.010665 1 Complies

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: Rev. 01 FCC RADIO TEST REPORT Applicant’s company Wistron NeWeb Corporation Applicant Address 20 Park Avenue II, Hsinchu Science Park, Hsinchu 308 Taiwan FCC ID NKR-SWA52 Manufacturer’s company Wistron NeWeb Corporation Manufacturer Address 20 Park Avenue II, Hsinchu Science Park, Hsinchu 308 Taiwan Product Name Wireless Audio Module Brand Name WNC Model No. SWA52 Test Rule Part(s) 47 CFR FCC Part 15 Subpart E § 15.407 Test Freq. Range 5725 ~ 5850 MHz Received Date Nov. 24, 2015 Final Test Date Dec. 26, 2015 Submission Type Original Equipment Statement The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.10-2013, 47 CFR FCC Part 15 Subpart E, KDB789033 D02 v01. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR5N2023 Report Format Version: Rev. 01 Page No. : i of ii FCC ID: NKR-SWA52 Issued Date : Jan. 05, 2016 Table of Contents 1. VERIFICATION OF COMPLIANCE ....................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................3 3.3. Table for Filed Antenna.......................................................................................................................................................................4 3.4. Table for Carrier Frequencies .............................................................................................................................................................4 3.5. Table for Test Modes ...........................................................................................................................................................................5 3.6. Table for Testing Locations..................................................................................................................................................................6 3.7. Table for Supporting Units ...................................................................................................................................................................6 3.8. Table for Parameters of Test Software Setting .....................................................................................................................................7 3.9. EUT Operation during Test ...................................................................................................................................................................7 3.10. Duty Cycle ..........................................................................................................................................................................................7 3.11. Test Configurations .............................................................................................................................................................................8 4. TEST RESULT ................................................................................................................................................... 11 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................11 4.2. 26dB Bandwidth and 99% Occupied Bandwidth Measurement......................................................................................................15 4.3. 6dB Spectrum Bandwidth Measurement ..........................................................................................................................................19 4.4. Maximum Conducted Output Power Measurement .........................................................................................................................21 4.5. Power Spectral Density Measurement ..............................................................................................................................................23 4.6. Radiated Emissions Measurement ....................................................................................................................................................26 4.7. Band Edge Emissions Measurement .................................................................................................................................................35 4.8. Frequency Stability Measurement ....................................................................................................................................................37 4.9. Antenna Requirements .....................................................................................................................................................................41 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 42 6. MEASU…

Text truncated - open the document above for the full version.

Report No.: FR5N2023 FCC ID: NKR-SWA52 Page No. : A1 of A8 Appendix A. Test Photos Report No.: FR5N2023 FCC ID: NKR-SWA52 Page No. : A2 of A8 1. Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW Report No.: FR5N2023 FCC ID: NKR-SWA52 Page No. : A3 of A8 CLOSE-UP VIEW Report No.: FR5N2023 FCC ID: NKR-SWA52 Page No. : A4 of A8 2. Photographs of Radiated Emissions Test Configuration Test Configuration: 9kHz ~30MHz FRONT VIEW REAR VIEW Report No.: FR5N2023 FCC ID: NKR-SWA52 Page No. : A5 of A8 Test Configuration: 30MHz~1GHz FRONT VIEW REAR VIEW Report No.: FR5N2023 FCC ID: NKR-SWA52 Page No. : A6 of A8 CLOSE-UP VIEW Report No.: FR5N2023 FCC ID: NKR-SWA52 Page No. : A7 of A8 Test Configuration: Above 1GHz FRONT VIEW REAR VIEW Report No.: FR5N2023 FCC ID: NKR-SWA52 Page No. : A8 of A8 CLOSE-UP VIEW
