UMC-STD35Gx Product Specification 1 Wistron NeWeb Corp. CONFIDENTIAL THIS DOCUMENT CONTAINS PROPRIETARY TECHNICAL INFORMATION, WHICH IS THE PROPERTY OF THE WISTRON NEWEB CORPORATION AND SHALL NOT BE DISCLOSED TO OTHERS IN WHOLE OR IN PART, REPRODUCED, COPIED, OR USED AS THE BASIS FOR DESIGN, MANUFACTURING, OR SALE OF APPARATUS WITHOUT WRITTEN PERMISSION OF WISTRON NEWEB CORPORATION. Automotive 5G-NR NAD Product Specification UMC-STD35GX UMC-STD35Gx Product Specification 2 Revision Revision Date Revised By Description 1.0 2024/7/11 Paul 1 st Release UMC-STD35Gx Product Specification 3 1. INTRODUCTION ...................................................................................................................................................... 5 1.1 UMC-STD35GX INTRODUCTION .................................................................................................................... 5 1.2 PRODUCT FEATURES ...................................................................................................................................... 5 1.2.1 RF KEY SPECIFICATIONS ........................................................................................................................... 7 1.2.2 NAD BAND PLAN ........................................................................................................................................... 8 1.2.3 SRS SUPPORT BAND PLAN ....................................................................................................................... 9 1.2.4 HIGH POWER UE SUPPORT BAND PLAN ............................................................................................... 9 1.2.5 ANTENNA CONFIGURATION ...................................................................................................................... 9 1.2.6 ECALL-ASM BLOCK DIAGRAM AND SWITCH SCENARIO ............................................................... 10 2. PIN DEFINITIONS ................................................................................................................................................. 12 2.1 I/O PARAMETERS DEFINITIONS .................................................................................................................. 13 2.2 PIN DESCRIPTION ........................................................................................................................................... 14 3. NAD SPECIFICATIONS ....................................................................................................................................... 35 3.1 ABSOLUTE MAXIMUM RATINGS ................................................................................................................. 35 3.2 OPERATING CONDITIONS ............................................................................................................................ 35 3.3 POWER-DISTRIBUTION NETWORK ............................................................................................................ 37 3.4 POWER-SUPPLY SEQUENCES .................................................................................................................... 37 3.4.1 POWER ON SEQUENCES .......................................................................................................................... 37 3.4.2 POWER OFF SEQUENCES ........................................................................................................................ 38 3.4.3 RESET SEQUENCES ................................................................................................................................... 38 3.5 AIR INTERFACE NETWORKING ................................................................................................................... 39 3.5.1 LTE RECEIVING CA SUPPORTING LIST ................................................................................................ 39 3.5.2 NR RECEIVING CA SUPPORTING LIST ................................................................................................. 39 3.5.3 EN-DC SUPPORTING LIST ........................................................................................................................ 39 3.5.4 RF OUTPUT POWER ................................................................................................................................... 39 3.5.5 RF RECEIVING SENSITIVITY .................................................................................................................... 40 3.5.6 GNSS PERFORMANCE ............................................................................................................................... 41 3.5.7 SRS SWITCHING TIME ............................................................................................................................... 42 4. Design guide ......................................................................................................................................................... 43 4.1 RF DESIGN GUIDE ........................................................................................................................................... 43 4.1.1 GNSS performance ...................................................................................................................................... 43 4.2 BASEBAND DESIGN GUIDE .......................................................................................................................... 43 4.2.1 MSDC interface ............................................................................................................................................. 43 4.2.2 I2C interface .................................................................................................................................................. 43 4.2.3 SPI interface .................................................................................................................................................. 43 4.2.4 SIM interface .......…

Text truncated - open the document above for the full version.

FCC ID: NKR-UMCSTD35GN Modular Approval Request Letter Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch August 5, 2024 Dear Application Examiner, Wistron NeWeb Corporation, Automotive 5G-NR NAD, FCC ID: NKR-UMCSTD35GN would like to have your authorization as a modular approval specific to the mobile RF exposure condition. The requirements of KDB996369 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.” The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip MT6190. 3. “The modular transmitter must have its own power supply regulation.” The part number of this regulator is MT6190. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission is shown in the test report, and unique antenna connector requirement is shown in User’s Manual. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was tested in a stand-alone configuration via a USB extender. Please see section Photographs of Test Configuration in the test report, the EUT was plugged in this extender. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: NKR-UMCSTD35GN 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, Trista Tsai / Specialist Bureau Veritas Consumer Products Services (H.K.) Ltd., Hsinchu Branch Tel: 886-3-318 3232 ext. 4311812 Fax: 886-3-327 0892 Email: [email protected]

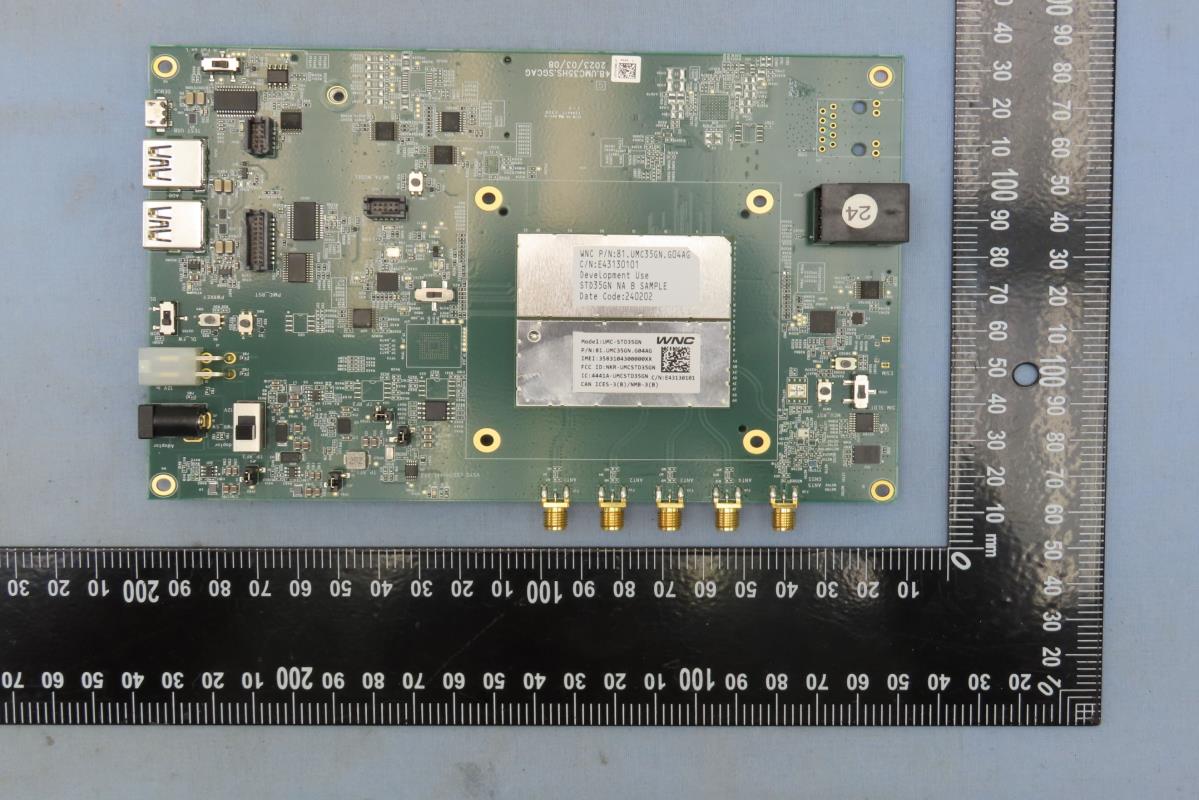

Reference No.: BCKS-WTW-P24050344_EXT Page 1 / 6 CONSTRUCTION PHOTOS OF EUT Brand ：WNC ／ Model：UMC-STD35GN EUT Reference No.: BCKS-WTW-P24050344_EXT Page 2 / 6 Reference No.: BCKS-WTW-P24050344_EXT Page 3 / 6 Reference No.: BCKS-WTW-P24050344_EXT Page 4 / 6 Reference No.: BCKS-WTW-P24050344_EXT Page 5 / 6 Reference No.: BCKS-WTW-P24050344_EXT Page 6 / 6

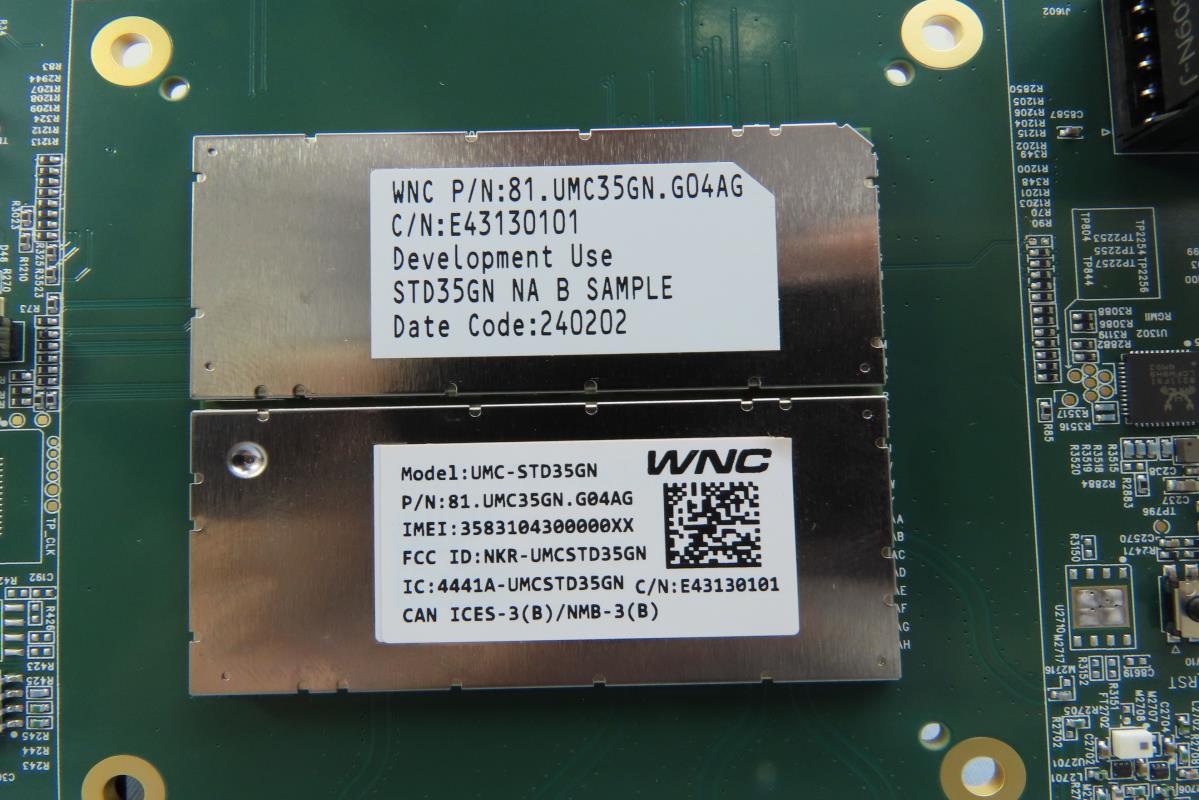

FCC ID: NKR-UMCSTD35GN The label will be permanently affixed and readily visible

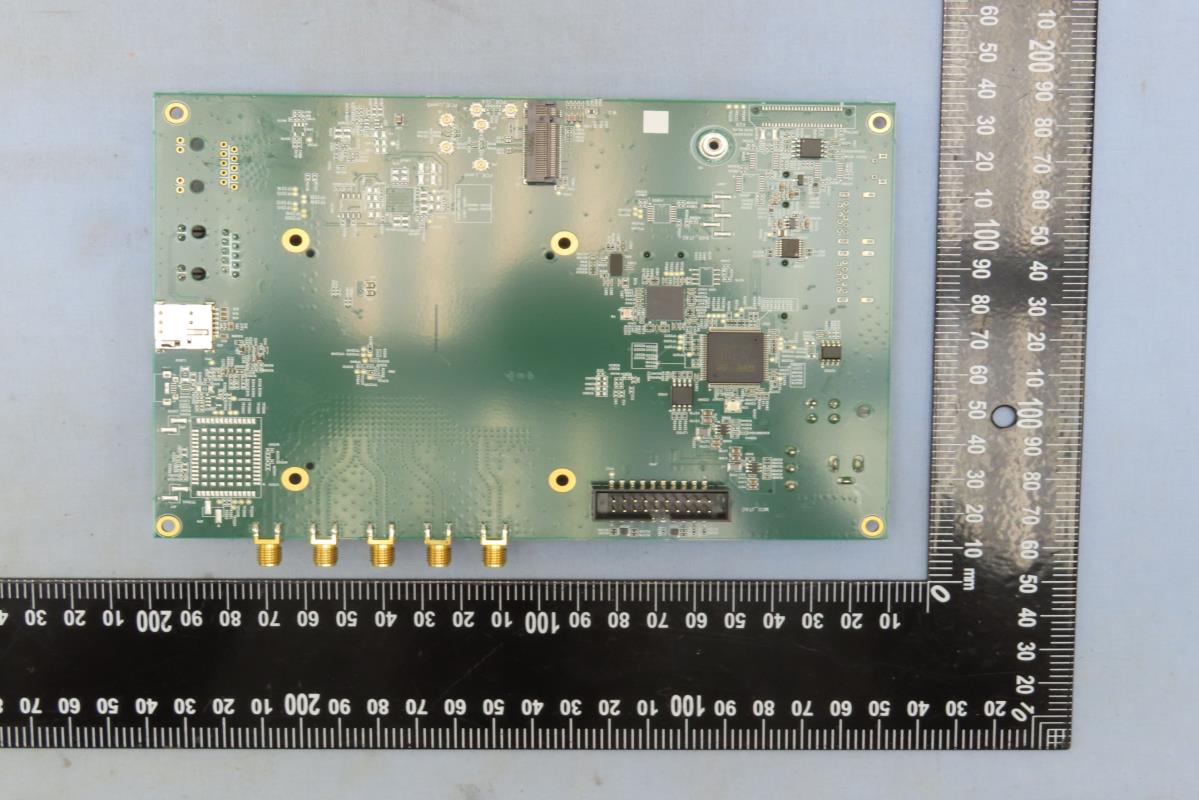

Reference No.: BCKS-WTW-P24050344_INT Page 1 / 2 CONSTRUCTION PHOTOS OF EUT Brand ：WNC ／ Model：UMC-STD35GN EUT Reference No.: BCKS-WTW-P24050344_INT Page 2 / 2

Report No.: MFBCKS-WTW-P24050344 Page No. 1 / 7 Report Format Version: 6.1.1 RF Exposure Report Report No.: MFBCKS-WTW-P24050344 FCC ID: NKR-UMCSTD35GN Model No.: UMC-STD35GN Received Date: 2024/5/14 Test Date: 2024/5/20 ~ 2024/7/18 Issued Date: 2024/8/7 Applicant: Wistron NeWeb Corporation Address: 20 Park Ave. II, Hsinchu Science Park,Hsinchu 308, Taiwan Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Lin Kou Laboratories Lab Address: No. 47-2, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan Test Location: No. 19, Hwa Ya 2nd Rd., Wen Hwa Vil., Kwei Shan Dist., Taoyuan City 33383, TAIWAN FCC Registration / Designation Number: 788550 / TW0003 This report is governed by, and incorporates by reference, the Conditions of Testing as posted at the date of issuance of this report at http://www.bureauveritas.com/home/about-us/our-business/cps/about-us/terms-conditions/ and is intended for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. Measurement uncertainty is only provided upon request for accredited tests. Statements of conformity are based on simple acceptance criteria without taking measurement uncertainty into account, unless otherwise requested in writing. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence or if you require measurement uncertainty; provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Report No.: MFBCKS-WTW-P24050344 Page No. 2 / 7 Report Format Version: 6.1.1 Table of Contents Release Control Record .................................................................................................................................. 3 1 Certificate of Conformity ...................................................................................................................... 4 2 RF Exposure .......................................................................................................................................... 5 2.1 Limits for Maximum Permissible Exposure (MPE) .............................................................................. 5 2.2 MPE Calculation Formula ................................................................................................................... 5 2.3 Classification ....................................................................................................................................... 5 3 Calculation Result of Maximum Conducted Power ........................................................................... 6 Report No.: MFBCKS-WTW-P24050344 Page No. 3 / 7 Report Format Version: 6.1.1 Release Control Record Issue No. Description Date Issued MFBCKS-WTW-P24050344 Original release. 2024/8/7 Report No.: MFBCKS-WTW-P24050344 Page No. 4 / 7 Report Format Version: 6.1.1 1 Certificate of Conformity Product: Automotive 5G-NR NAD Brand: WNC Test Model: UMC-STD35GN Sample Status: Engineering sample Applicant: Wistron NeWeb Corporation Test Date: 2024/5/20 ~ 2024/7/18 FCC Rule Part: FCC Part 2 (Section 2.1091) Standards: KDB 447498 D01 General RF Exposure Guidance v06 The above equipment has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s RF characteristics under the conditions specified in this report. Prepared by : , Date: 2024/8/7 Gina Liu / Specialist Approved by : , Date: 2024/8/7 Jeremy Lin / Project Engineer Report No.: MFBCKS-WTW-P24050344 Page No. 5 / 7 Report Format Version: 6.1.1 2 RF Exposure 2.1 Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) Limits For General Population / Uncontrolled Exposure 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 2.2 MPE Calculation Formula Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale pi = 3.1416 r = distance between observation point and center of the radiator in cm 2.3 Classification The antenna of this product, under normal use condition, is at least 29cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: MFBCKS-WTW-P24050344 Page No. 6 / 7 Report Format Version: 6.1.1 3 Calculation Result of Maximum Conducted Power Mode Tune-up power (dBm) Gain (dBi) EIRP (dBm) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) GSM 850 35.00 2.63 37.63 29 0.548 0.549 GSM 1900 32.00 2.03 34.03 29 0.239 1.000 WCDMA Band 2 25.00 2.03 27.03 29 0.048 1.000 WCDMA Band 4 25.00 2.03 27.03 29 0.048 1.000 WCDMA Band 5 25.00 2.63 27.63 29 0.055 0.550 LTE Band 2 25.00 2.03 27.03 29 0.048 1.000 LTE Band 4 25.00 2.03 27.03 29 0.048 1.000 LTE Band 5 25.00 2.63 27.63 29 0.055 0.549 LTE Band 7 25.00 2.26 27.26 29 0.050 1.000 LTE Band 12 25.00 1.63 26.63 29 0.044 0.466 LTE Band 13 25.00 …

Text truncated - open the document above for the full version.

Report No.: RFBCKS-WTW-P24050344-1 Page No. 195 / 701 Report Format Version: 7.1.0 NR n77 SCS 30 kHz (3.45 GHz ~ 3.55 GHz), Channel Bandwidth: 80 MHz Modulation RB Size RB Offset Peak To Average Ratio (dB) CH 632668 CH 633334 CH 634000 3490.02 MHz 3500.01 MHz 3510 MHz BPSK 1 0 4.7 5.62 4.8 QPSK 1 0 8.76 7.86 7.9 16 QAM 1 0 8.53 9.22 8.96 64 QAM 1 0 9.03 8.84 8.01 256 QAM 1 0 10.07 9.82 9.77 Spectrum Plot of Worst Value 256 QAM CH 632668 (3490.02 MHz) Report No.: RFBCKS-WTW-P24050344-1 Page No. 196 / 701 Report Format Version: 7.1.0 NR n77 SCS 30 kHz (3.45 GHz ~ 3.55 GHz), Channel Bandwidth: 90 MHz Modulation RB Size RB Offset Peak To Average Ratio (dB) CH 633000 CH 633334 CH 633666 3495 MHz 3500.01 MHz 3504.99 MHz BPSK 1 0 4.84 5.12 5.03 QPSK 1 0 8.61 7.9 8.58 16 QAM 1 0 8.85 9.07 8.73 64 QAM 1 0 9.09 8.99 8.76 256 QAM 1 0 9.76 9.62 9.62 Spectrum Plot of Worst Value 256 QAM CH 633000 (3495 MHz) Report No.: RFBCKS-WTW-P24050344-1 Page No. 197 / 701 Report Format Version: 7.1.0 NR n77 SCS 30 kHz (3.45 GHz ~ 3.55 GHz), Channel Bandwidth: 100 MHz Modulation RB Size RB Offset Peak To Average Ratio (dB) CH 633334 3500.01 MHz BPSK 1 0 4.12 QPSK 1 0 7.50 16 QAM 1 0 7.78 64 QAM 1 0 7.61 256 QAM 1 0 8.71 Spectrum Plot of Worst Value QPSK CH 633334 (3500.01 MHz) Report No.: RFBCKS-WTW-P24050344-1 Page No. 198 / 701 Report Format Version: 7.1.0 7.3.8 NR n77 SCS 30 kHz (3.45 GHz ~ 3.55 GHz) (PC3) NR n77 SCS 30 kHz (3.45 GHz ~ 3.55 GHz), Channel Bandwidth: 10 MHz Modulation RB Size RB Offset Peak To Average Ratio (dB) CH 630334 CH 633334 CH 636332 3455.01 MHz 3500.01 MHz 3544.98 MHz BPSK 1 0 6.75 6.94 6.6 QPSK 1 0 10.02 10.14 9.98 16QAM 1 0 10.07 9.88 10.06 64QAM 1 0 10.43 9.59 10.12 256QAM 1 0 11 11.18 10.83 Spectrum Plot of Worst Value 256QAM CH 633334 (3500.01 MHz) Report No.: RFBCKS-WTW-P24050344-1 Page No. 199 / 701 Report Format Version: 7.1.0 NR n77 SCS 30 kHz (3.45 GHz ~ 3.55 GHz), Channel Bandwidth: 15 MHz Modulation RB Size RB Offset Peak To Average Ratio (dB) CH 630500 CH 633334 CH 636166 3457.5 MHz 3500.01 MHz 3542.49 MHz BPSK 1 0 6.82 6.94 6.85 QPSK 1 0 10.29 10.4 8.98 16QAM 1 0 10.52 9.93 10.3 64QAM 1 0 10.42 10.14 10.35 256QAM 1 0 11.02 10.51 10.54 Spectrum Plot of Worst Value 256QAM CH 630500 (3457.5 MHz) Report No.: RFBCKS-WTW-P24050344-1 Page No. 200 / 701 Report Format Version: 7.1.0 NR n77 SCS 30 kHz (3.45 GHz ~ 3.55 GHz), Channel Bandwidth: 20 MHz Modulation RB Size RB Offset Peak To Average Ratio (dB) CH 630668 CH 633334 CH 636000 3460.02 MHz 3500.01 MHz 3540 MHz BPSK 1 0 6.7 6.5 6.66 QPSK 1 0 9.99 10.98 10.22 16QAM 1 0 10.06 10.26 10.09 64QAM 1 0 10.3 10.5 10.33 256QAM 1 0 10.9 10.63 10.83 Spectrum Plot of Worst Value QPSK CH 633334 (3500.01 MHz) Report No.: RFBCKS-WTW-P24050344-1 Page No. 201 / 701 Report Format Version: 7.1.0 NR n77 SCS 30 kHz (3.45 GHz ~ 3.55 GHz), Channel Bandwidth: 30 MHz Modulation RB Size RB Offset Peak To Average Ratio (dB) CH 631000 CH 633334 CH 635666 3465 MHz 3500.01 MHz 3534.99 MHz BPSK 50 25 7.38 6.86 6.81 QPSK 53 26 9.08 8.56 8.61 16QAM 53 26 9.57 8.98 9.17 64QAM 53 26 11.12 10.6 10.19 256QAM 53 26 11.51 11.29 11.05 Spectrum Plot of Worst Value 256QAM CH 631000 (3465 MHz) Report No.: RFBCKS-WTW-P24050344-1 Page No. 202 / 701 Report Format Version: 7.1.0 NR n77 SCS 30 kHz (3.45 GHz ~ 3.55 GHz), Channel Bandwidth: 40 MHz Modulation RB Size RB Offset Peak To Average Ratio (dB) CH 631334 CH 633334 CH 635332 3470.01 MHz 3500.01 MHz 3529.98 MHz BPSK 1 0 6.79 6.81 6.48 QPSK 1 0 10.86 10.22 11.27 16QAM 1 0 10.35 10.36 10.19 64QAM 1 0 10.51 10.31 10.28 256QAM 1 0 10.66 10.8 10.58 Spectrum Plot of Worst Value QPSK CH 635332 (3529.98 MHz) Report No.: RFBCKS-WTW-P24050344-1 Page No. 203 / 701 Report Format Version: 7.1.0 NR n77 SCS 30 kHz (3.45 GHz ~ 3.55 GHz), Channel Bandwidth: 50 MHz Modulation RB Size RB Offset Peak To Average Ratio (dB) CH 631668 CH 633334 CH 635000 3475.02 MHz 3500.01 MHz 3525 MHz BPSK 1 0 7.06 6.66 6.84 QPSK 1 0 10.61 10.93 10.6 16QAM 1 0 10.06 9.95 10.27 64QAM 1 0 10.38 10.18 10.21 256QAM 1 0 10.87 10.52 10.59 Spectrum Plot of Worst Value QPSK CH 633334 (3500.01 MHz) Report No.: RFBCKS-WTW-P24050344-1 Page No. 204 / 701 Report Format Version: 7.1.0 NR n77 SCS 30 kHz (3.45 GHz ~ 3.55 GHz), Channel Bandwidth: 60 MHz Modulation RB Size RB Offset Peak To Average Ratio (dB) CH 632000 CH 633334 CH 634666 3480 MHz 3500.01 MHz 3519.99 MHz BPSK 1 0 6.66 6.76 6.79 QPSK 1 0 9.25 10.19 9.19 16QAM 1 0 10.44 9.87 9.94 64QAM 1 0 10.31 10.09 9.99 256QAM 1 0 10.67 11.27 11.02 Spectrum Plot of Worst Value 256QAM CH 633334 (3500.01 MHz) Report No.: RFBCKS-WTW-P24050344-1 Page No. 205 / 701 Report Format Version: 7.1.0 NR n77 SCS 30 kHz (3.45 GHz ~ 3.55 GHz), Channel Bandwidth: 70 MHz Modulation RB Size RB Offset Peak To Average Ratio (dB) CH 632334 CH 633334 CH 634332 3485.01 MHz 3500.01 MHz 3514.98 MHz BPSK 1 0 7.09 6.7 6.48 QPSK 1 0 10.6 9.77 10.25 16QAM 1 0 10.63 9.95 9.92 64QAM 1 0 10.2 9.64 10.49 256QAM 1 0 11.24 11.29 11.14 Spectrum Plot of Worst Value 256QAM CH 633334 (3500.01 MHz) Report No.: RFBCKS-WTW-P24050344-1 Page No. 206 / 701 Report Format Version: 7.1.0 NR n77 SCS 30 kHz (3.45 GHz ~ 3.55 GHz), Channel Bandwidth: 80 MHz Modulation RB Size RB Offset Peak To Average Ratio (dB) CH 632668 CH 633334 CH 634000 3490.02 MHz 3500.01 MHz 3510 MHz BPSK 1 0 6.79 7.05 6.81 QPSK 1 0 10.09 10.35 9.15 16QAM 1 0 10.16 10.03 9.87 64QAM 1 0 9.74 10.16 10.16 256QAM 1 0 11.21 11.17 11.05 Spectrum Plot of Worst Value 256QAM CH 632668 (3490.02 MHz) Report No.: RFBCKS-WTW-P24050344-1 Page No. 207 / 701 Report Format Version: 7.1.0 NR n77 SCS 30 kHz (3.45 GHz ~ 3.55 GHz), Channel Bandwidth: 90 MHz Modulation RB Size RB Offset Peak To Average Ratio (dB) CH 633000 CH 633334 CH 633666 3495 MHz 3500.01 MHz 3504.99 MHz BPSK 1 0 6.91 7.3 6.9 QPSK 1 0 10.49 11.42 10.43 16QAM 1 0 10.14 9.94 9.89 64QAM 1 0 10.25 10.33 10.66 256QAM 1 0 11.24 10.89 11.59 Spectrum Plot of Worst Value 256QAM CH 633666 (3504.99 MHz) Report No.: RFBCKS-WTW-P24050344-1 Page No. 208 / 701 Report …

Text truncated - open the document above for the full version.

Report No.: RFBCKS-WTW-P24050344-1 Page No. 262 / 701 Report Format Version: 7.1.0 7.4.7 NR n77 SCS 30 kHz (3.45 GHz ~ 3.55 GHz) (PC2) NR n77 SCS 30 kHz (3.45 GHz ~ 3.55 GHz), Channel Bandwidth: 10 MHz Modulation Channel Frequency (MHz) Occupied Bandwidth (MHz) 26 dB Bandwidth (MHz) BPSK 630334 3455.01 8.5388 9.389 BPSK 633334 3500.01 8.5366 9.254 BPSK 636332 3544.98 8.5462 9.380 QPSK 630334 3455.01 8.5530 9.276 QPSK 633334 3500.01 8.5662 9.349 QPSK 636332 3544.98 8.5748 9.454 16 QAM 630334 3455.01 8.5525 9.320 16 QAM 633334 3500.01 8.5662 9.308 16 QAM 636332 3544.98 8.5623 9.306 64 QAM 630334 3455.01 8.5761 9.311 64 QAM 633334 3500.01 8.5765 9.228 64 QAM 636332 3544.98 8.5825 9.274 256 QAM 630334 3455.01 8.5510 9.268 256 QAM 633334 3500.01 8.5680 9.478 256 QAM 636332 3544.98 8.5490 9.305 Spectrum Plot of Worst Value Occupied bandwidth 26 dB Bandwidth 64 QAM CH 636332 (3544.98 MHz) 256 QAM CH 633334 (3500.01 MHz) Report No.: RFBCKS-WTW-P24050344-1 Page No. 263 / 701 Report Format Version: 7.1.0 NR n77 SCS 30 kHz (3.45 GHz ~ 3.55 GHz), Channel Bandwidth: 15 MHz Modulation Channel Frequency (MHz) Occupied Bandwidth (MHz) 26 dB Bandwidth (MHz) BPSK 630500 3457.5 13.488 13.79 BPSK 633334 3500.01 13.425 13.82 BPSK 636166 3542.49 13.417 13.89 QPSK 630500 3457.5 13.528 14.51 QPSK 633334 3500.01 13.542 14.67 QPSK 636166 3542.49 13.534 14.46 16 QAM 630500 3457.5 13.561 14.56 16 QAM 633334 3500.01 13.587 14.54 16 QAM 636166 3542.49 13.548 14.45 64 QAM 630500 3457.5 13.546 14.56 64 QAM 633334 3500.01 13.540 14.40 64 QAM 636166 3542.49 13.564 14.56 256 QAM 630500 3457.5 13.507 14.47 256 QAM 633334 3500.01 13.552 14.40 256 QAM 636166 3542.49 13.549 14.52 Spectrum Plot of Worst Value Occupied bandwidth 26 dB Bandwidth 16 QAM CH 633334 (3500.01 MHz) QPSK CH 633334 (3500.01 MHz) Report No.: RFBCKS-WTW-P24050344-1 Page No. 264 / 701 Report Format Version: 7.1.0 NR n77 SCS 30 kHz (3.45 GHz ~ 3.55 GHz), Channel Bandwidth: 20 MHz Modulation Channel Frequency (MHz) Occupied Bandwidth (MHz) 26 dB Bandwidth (MHz) BPSK 630668 3460.02 17.954 18.92 BPSK 633334 3500.01 17.981 19.08 BPSK 636000 3540 18.010 19.03 QPSK 630668 3460.02 18.169 19.38 QPSK 633334 3500.01 18.169 19.54 QPSK 636000 3540 18.165 19.49 16 QAM 630668 3460.02 18.114 19.17 16 QAM 633334 3500.01 18.150 19.88 16 QAM 636000 3540 18.132 19.25 64 QAM 630668 3460.02 18.165 19.22 64 QAM 633334 3500.01 18.193 19.48 64 QAM 636000 3540 18.197 19.59 256 QAM 630668 3460.02 18.153 19.53 256 QAM 633334 3500.01 18.142 19.39 256 QAM 636000 3540 18.157 19.31 Spectrum Plot of Worst Value Occupied bandwidth 26 dB Bandwidth 64 QAM CH 636000 (3540 MHz) 16 QAM CH 633334 (3500.01 MHz) Report No.: RFBCKS-WTW-P24050344-1 Page No. 265 / 701 Report Format Version: 7.1.0 NR n77 SCS 30 kHz (3.45 GHz ~ 3.55 GHz), Channel Bandwidth: 30 MHz Modulation Channel Frequency (MHz) Occupied Bandwidth (MHz) 26 dB Bandwidth (MHz) BPSK 631000 3465 27.361 28.66 BPSK 633334…
