NKR03T8726802.11 a/b/g/n 2x2 USB Dongle

Wistron NeWeb Wistron NeWeb Corporation 20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C. Phone: 886-3-666-7799 Fax: 886-3-666-7711 Website: www.wneweb.com Wistron NeWeb Confidential Document 1 User Manual lenovo / 03T8726 (Ralink RT5572 2x2 11agn USB Dongle) Revision: 1 Issue Date: 2011/12/20 This document and the information contained herein is the property of Wistron NeWeb Corporation and reproduction by any means (including, but not limited to, xerographic, chemical, electronic) and distribution is expressly prohibited without prior written consent from Wistron NeWeb Corporation. The document and information contained herein are confidential and may not be divulged without express written consent from Wistron NeWeb Corporation, located at 20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C. Copyright 2010 by Wistron NeWeb Corporation / All rights reserved. Wistron NeWeb Wistron NeWeb Corporation 20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C. Phone: 886-3-666-7799 Fax: 886-3-666-7711 Website: www.wneweb.com Wistron NeWeb Confidential Document 2 Revision History Edition # Reason for revision Issue date Author 1.0  Initial Draft Document 2011/12/20 Louis Wu     Wistron NeWeb Wistron NeWeb Corporation 20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C. Phone: 886-3-666-7799 Fax: 886-3-666-7711 Website: www.wneweb.com Wistron NeWeb Confidential Document 3 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: Radiation Exposure Statement: The product comply with the US portable RF exposure limit set forth for an uncontrolled environment and are safe for intended operation as described in this manual. The further RF exposure reduction can be achieved if the product can be kept as far as possible from the user body or set the device to lower output power if such function is available. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Country Code selection feature to be disabled for products marketed to the US/CANADA SAR compliance has been established in typical laptop computer(s) with USB slot, and product could be used in typical laptop computer with USB slot. Other application like handheld PC or similar device has not been verified and may not compliance with related RF exposure rule and such use shall be prohibited. Wistron NeWeb Wistron NeWeb Corporation 20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C. Phone: 886-3-666-7799 Fax: 886-3-666-7711 Website: www.wneweb.com Wistron NeWeb Confidential Document 4 The USB dongle transmitter is approved for use in typical laptop computers. To comply with FCC RF exposure requirements, it should not be used in other devices or certain laptop and tablet computer configurations where the USB connectors on the host computer are unable to provide or ensure the necessary operating configurations intended for the device and its users or bystanders to satisfy RF exposure compliance requirements. Operations in the 5.15-5.25GHz band are restricted to indoor usage only. Wistron NeWeb Wistron NeWeb Corporation 20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C. Phone: 886-3-666-7799 Fax: 886-3-666-7711 Website: www.wneweb.com Wistron NeWeb Confidential Document 5 Industry Canada statement: This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Caution: (i) the device for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems; (ii) the maximum antenna gain permitted for devices in the bands 5250-5350 MHz and 5470- 5725 MHz shall comply with the e.i.r.p. limit; and (iii) the maximum antenna gain permitted for devices in the band 5725-5825 MHz shall comply with the e.i.r.p. limits specified for …

Text truncated - open the document above for the full version.

A G E N C Y A U T H O R I Z A T I O N L E T T E R Date: 2013-08-30 I, Troy Chien, am Associate Technical Director for Wistron NeWeb Corp. hereby authorize the following to act on our behalf, as our agent, in all matters relating to all processes required according to FCC approval for Wistron NeWeb Corp. products (Grantee Code: NKR) Barry Chen Alan Wang Lulu Lin This authorization shall expire twelve months from the original date. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! , Sincerely yours, Troy Chien / Associate technical director Wistron NeWeb Corp. Tel: 886-3-6667799 Ext 6361 Fax: 886-3-6667323 E-mail: [email protected]

Date: 2013/8/27 Federal Communications Commission 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Product Certification Representative Authorization Letter FCC ID: NKR03T8726 Product name: 802.11 a/b/g/n 2x2 USB Dongle To whom it may concern: We the undersigned, hereby authorize following person to act as our agent in the preparation of an application for equipment authorization of model 03T8726 to the FCC Rules and Regulations. International Certification Corp. Address : No.3-1, Lane 6, Wen San 3rd St. Kwei Shan Hsiang, Tao Yuan Hsein 333, Taiwan (R.O.C.) Name : Gary Chang Job Title : Manager e-mail : [email protected] Webs We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002(b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Applicant : Wistron NeWeb Corporation Address : 20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C. Signature : _________________________________ Name and Job Title. : Lulu Lin / Engineer E-mail : [email protected] Tel. : +886-3-666-7799 ext:6684

Date: August 27, 2013 Subject: Ad Hoc Mode Function Declaration FCC ID: NKR03T8726 IC ID: 4441A-03T8726 To Whom it may concern, We, Wistron NeWeb Corporation declare that the device does not support any non-US channels, country code selection in all the operational mode(s), like Ad-Hoc...etc. for the following product. Also, the client software and associated drivers will not initiate any transmission on DFS frequencies without initiation by a master and the device without support DFS detection capability. This includes restriction on transmissions for beacons and support for ad-hoc peer-to-peer modes. Regards, Applicant : Wistron NeWeb Corporation Address : 20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C. Signature : Name and Job Title. : Lulu Lin / Engineer E-mail [email protected] Tel. +886-3-666-7799 ext:6684

Confidentiality Request Letter Date: 2013/8/29 Federal Communications Commission Authorization and Evaluation Division FCC ID：NKR03T8726 Permanent Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accompanying this Application As outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Applicant’s company name : Wistron NeWeb Corporation Applicant’s company address : 20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C. Signature : Job Title and Dept. : Lulu Lin / Engineer E-mail : [email protected] Tel. : +886-3-666-7799 ext:6684

Date : September 10, 2013 UNII Declaration Letter We have declared below featured for FCC equipment authorization, Device FCC ID: NKR03T8726 (1) DFS Device -- Master , Client with Radar detection capability , Client without radar detection capability, N/A (2) Active / Passive Scanning , adhoc mode access point capability Frequency Band (MHz) Active Scanning (the device can transmit a probe (beacon)) passive scanning (where the device is can listen only with no probes) Ad Hoc Mode capability Access point capability 2412 – 2462 Yes , No Yes , No Yes , No Yes , No 2422 - 2452 Yes , No Yes , No Yes , No Yes , No 5745 - 5825 Yes , No Yes , No Yes , No Yes , No 5765 - 5795 Yes , No Yes , No Yes , No Yes , No 5180 – 5240 Yes , No Yes , No Yes , No Yes , No 5190 – 5230 Yes , No Yes , No Yes , No Yes , No 5260 – 5320 Yes , No Yes , No Yes , No Yes , No 5270 – 5310 Yes , No Yes , No Yes , No Yes , No 5500 – 5700 Yes , No Yes , No Yes , No Yes , No 5510 - 5670 Yes , No Yes , No Yes , No Yes , No (3) Country code selection ability - Yes , No If no, pls explain how was implemented : (4) Meet 15.202 requirement - Yes , No , pls check below : A master device is defined as a device operating in a mode in which it has the capability to transmit without receiving an enabling signal. In this mode it is able to select a channel and initiate a network by sending enabling signals to other devices A client device is defined as a device operating in a mode in which the transmissions of the device are under control of the master. A device in client mode is not able to initiate a network. (5) For client devices that have software configuration control to operate in different modes (active scanning in some and passive scanning in others) in different bands (devices with multiple equipment classes or those that operate on non-DFS frequencies) or modular devices which configure the modes of operations through software, the application must provide software and operations description on how the software and / or hardware is implemented to ensure that proper operations modes can not be modified by end user or an installer. Apply , No Apply , (If apply , pls help to provide explanation on how it was implement (By hardware or software , and how software was controlled) On DFS channels, the WLAN driver on the device operates under the control of an AP at all times, except when in ad-hoc mode, on US non-DFS channels. As described in the answer to question (2), the device passively scans DFS frequencies until a master device is detected. The control of this functionality is not accessible to anyone under any conditions. Furthermore, the firmware is locked by proprietary password and cannot be changed or modified by end user. Applicant : Wistron NeWeb Corporation Address : 20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C. Signature : _________________________________ Name and Job Title. : Lulu Lin / Engineer

Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Date: August 27, 2013 Subject: FCC Application for FCC ID: NKR03T8726 To Whom it may concern, We, the undersigned, would like to declare that the composite portion catagorized as computer peripheral has been authorized under the Declaration of Conformity procedures, which the report issued from International Certification Corp..(report number: FD371401.) Applicant : Wistron NeWeb Corporation Address : 20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C. Signature : _________________________________ Name and Job Title. : Lulu Lin / Engineer E-mail : [email protected] Tel. : +886-3-666-7799 ext:6684

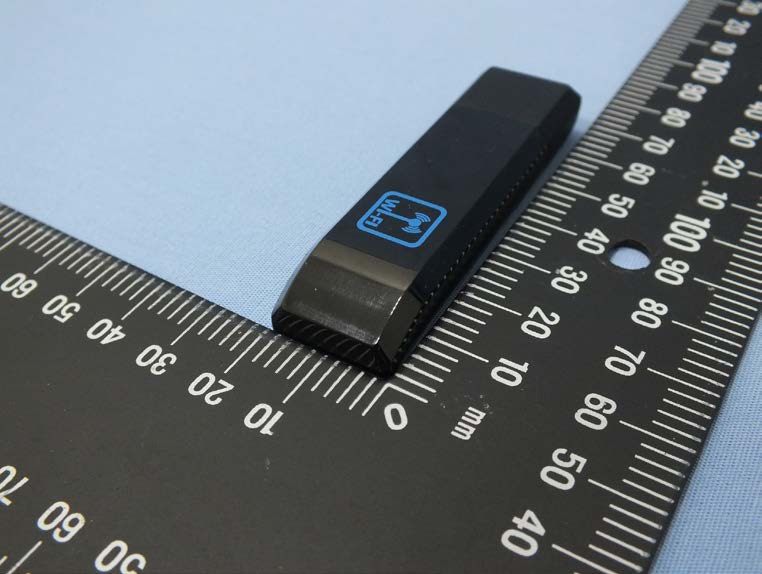

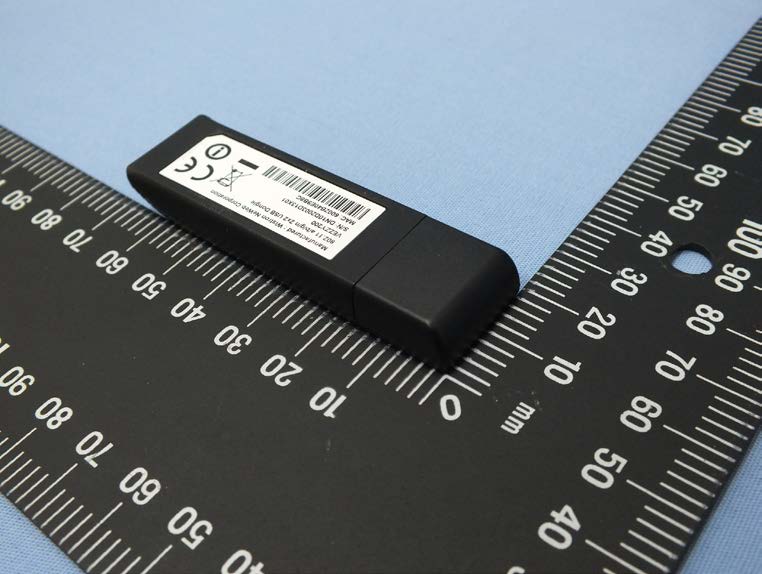

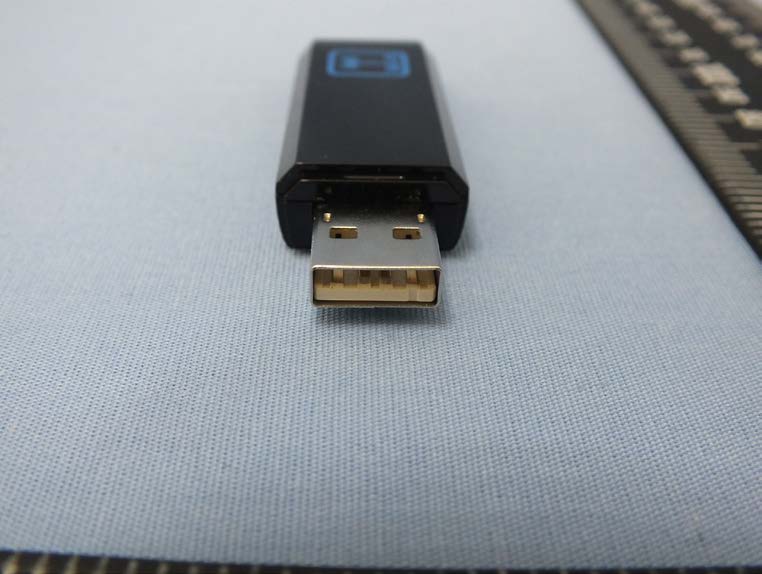

International Certification Corp. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-271-8666 Fax: 886-3-318-0155 Photographs of EUT Projec t No.: EP371401 Page No. : 1 of 7 International Certification Corp. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-271-8666 Fax: 886-3-318-0155 Projec t No.: EP371401 Page No. : 2 of 7

08/27/13 HSINYUN LIN HSINYUN LIN 07/11/13 07/11/13 07/11/13 4L-DNURV73-002 4L-DNURV73-002 PMS COOL GRAY 9C， BLACK LABEL, DONGLE, LENOVO, DNUR-V72 DNUR-V72 C C C XX-XXXX/XXX APPROVED PMS COOL GRAY 9C BLACK Model: 03T8726 FCC ID: NKR03T8726 IC: 4441A-03T8726 cert ID and cert issued date AGREE PAR L’ANRT MAROC Numero d’agrement: MR XXXX ANRT XXXX Date d’agrement: XX/XX/XXXX E307995 Label Location

International Certification Corp. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-271-8666 Fax: 886-3-318-0155 Projec t No.: EP371401 Page No. : 3 of 7 International Certification Corp. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-271-8666 Fax: 886-3-318-0155 Projec t No.: EP371401 Page No. : 4 of 7 International Certification Corp. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-271-8666 Fax: 886-3-318-0155 Projec t No.: EP371401 Page No. : 5 of 7 International Certification Corp. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-271-8666 Fax: 886-3-318-0155 Projec t No.: EP371401 Page No. : 6 of 7 International Certification Corp. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan Hsiang, Tao Yuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-271-8666 Fax: 886-3-318-0155 Projec t No.: EP371401 Page No. : 7 of 7

SPORTON INTERNATIONAL INC. Page Number : 1 of 37 TEL : 886-3-327-3456 Report Issued Date : Sep. 04, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NKR03T8726 FCC SAR Test Report Report No. : FA371642 FCC SAR Test Report APPLICANT : Wistron NeWeb Corp. EQUIPMENT : 802.11 a/b/g/n 2x2 USB Dongle BRAND NAME : lenovo MODEL NAME : 03T8726 FCC ID : NKR03T8726 STANDARD : FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2003 The product was completely tested on Aug. 19, 2013. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. Approved by: Jones Tsai / Manager Reviewed by: Eric Huang / Deputy Manager SPORTON INTERNATIONAL INC. Page Number : 2 of 37 TEL : 886-3-327-3456 Report Issued Date : Sep. 04, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : NKR03T8726 FCC SAR Test Report Report No. : FA371642 Table of Contents 1. Statement of Compliance ............................................................................................................................................. 4 2. Administration Data ...................................................................................................................................................... 5 2.1 Testing Laboratory .................................................................................................................................................. 5 2.2 Applicant ................................................................................................................................................................ 5 2.3 Manufacturer .......................................................................................................................................................... 5 2.4 Application Details .................................................................................................................................................. 5 3. General Information ...................................................................................................................................................... 6 3.1 Description of Equipment Under Test (EUT) .......................................................................................................... 6 3.2 Maximum RF output power among production units .............................................................................................. 7 3.3 Applied Standard .................................................................................................................................................... 8 3.4 Device Category and SAR Limits ........................................................................................................................... 8 3.5 Test Conditions ....................................................................................................................................................... 8 4. Specific Absorption Rate (SAR) ................................................................................................................................... 9 4.1 Introduction ............................................................................................................................................................ 9 4.2 SAR Definition ........................................................................................................................................................ 9 5. SAR Measurement System ..........................................................................................................................................10 5.1 E-Field Probe ........................................................................................................................................................ 11 5.2 Data Acquisition Electronics (DAE) ....................................................................................................................... 11 5.3 Robot ....................................................................................................................................................................12 5.4 Measurement Server .............................................................................................................................................12 5.5 Phantom ................................................................................................................................................................13 5.6 Device Holder........................................................................................................................................................14 5.7 Data Storage and Evaluation ................................................................................................................................15 5.8 Test Equipment List ...............................................................................................................................................17 6. Tissue Simulating Liquids ...........................................................................................................................................18 7. System Verification Procedures .................................................................................................................................20 7.1 Purpose of System Performance check ................................................................................................................20 7.2 System Setup ........................................................................................................…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/8/13 System Check_Body_2450MHz_130813 DUT: D2450V2-SN:869 Communication System: CW; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: MSL_2450_130813 Medium parameters used: f = 2450 MHz; σ = 1.969 S/m; ε r = 52.278; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(6.57, 6.57, 6.57); Calibrated: 2012/9/28; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1279; Calibrated: 2013/1/28 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY52, Version 52.8 (6); SEMCAD X Version 14.6.9 (7117) Configuration/Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 19.7 W/kg Configuration/Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 100.9 V/m; Power Drift = -0.08 dB Peak SAR (extrapolated) = 26.7 W/kg SAR(1 g) = 12.7 W/kg; SAR(10 g) = 5.79 W/kg Maximum value of SAR (measured) = 19.5 W/kg 0 dB = 19.5 W/kg = 12.90 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/8/13 System Check_Body_5200MHz_130813 DUT: D5GHzV2-SN:1128 Communication System:CW; Frequency: 5200 MHz;Duty Cycle: 1:1 Medium: MSL_5G_130813 Medium parameters used: f = 5200 MHz; σ = 5.302 S/m; ε r = 47.54; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(4.29, 4.29, 4.29); Calibrated: 2012/9/28; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1279; Calibrated: 2013/1/28 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY52, Version 52.8 (6); SEMCAD X Version 14.6.9 (7117) Configuration/Pin=100mW/Area Scan (71x71x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 20.5 W/kg Configuration/Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 47.783 V/m; Power Drift = 0.05 dB Peak SAR (extrapolated) = 38.2 W/kg SAR(1 g) = 7.89 W/kg; SAR(10 g) = 2.16 W/kg Maximum value of SAR (measured) = 19.6 W/kg 0 dB = 19.6 W/kg = 12.92 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/8/13 System Check_Body_5300MHz_130813 DUT: D5GHzV2-SN:1128 Communication System:CW; Frequency: 5300 MHz;Duty Cycle: 1:1 Medium: MSL_5G_130813 Medium parameters used: f = 5300 MHz; σ = 5.451 S/m; ε r = 47.403; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(4.29, 4.29, 4.29); Calibrated: 2012/9/28; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1279; Calibrated: 2013/1/28 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY52, Version 52.8 (6); SEMCAD X Version 14.6.9 (7117) Configuration/Pin=100mW/Area Scan (71x71x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 18.4 W/kg Configuration/Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 43.670 V/m; Power Drift = 0.05 dB Peak SAR (extrapolated) = 35.8 W/kg SAR(1 g) = 6.98 W/kg; SAR(10 g) = 1.88 W/kg Maximum value of SAR (measured) = 18.0 W/kg 0 dB = 18.0 W/kg = 12.55 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/8/13 System Check_Body_5600MHz_130813 DUT: D5GHzV2-SN:1128 Communication System: CW; Frequency: 5600 MHz;Duty Cycle: 1:1 Medium: MSL_5G_130813 Medium parameters used: f = 5600 MHz; σ = 5.956 S/m; ε r = 46.803; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(3.75, 3.75, 3.75); Calibrated: 2012/9/28; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1279; Calibrated: 2013/1/28 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY52, Version 52.8 (6); SEMCAD X Version 14.6.9 (7117) Configuration/Pin=100mW/Area Scan (71x71x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 21.3 W/kg Configuration/Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 43.714 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 45.2 W/kg SAR(1 g) = 8 W/kg; SAR(10 g) = 2.15 W/kg Maximum value of SAR (measured) = 20.6 W/kg 0 dB = 20.6 W/kg = 13.14 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/8/19 System Check_Body_5600MHz_130819 DUT: D5GHzV2-SN:1128 Communication System: CW; Frequency: 5600 MHz;Duty Cycle: 1:1 Medium: MSL_5G_130819 Medium parameters used: f = 5600 MHz; σ = 5.944 S/m; ε r = 47.753; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(3.75, 3.75, 3.75); Calibrated: 2012/9/28; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1279; Calibrated: 2013/1/28 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY52, Version 52.8 (6); SEMCAD X Version 14.6.9 (7117) Configuration/Pin=100mW/Area Scan (71x71x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 20.7 W/kg Configuration/Pin=100mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 46.064 V/m; Power Drift = -0.06 dB Peak SAR (extrapolated) = 36.5 W/kg SAR(1 g) = 8.25 W/kg; SAR(10 g) = 2.32 W/kg Maximum value of SAR (measured) = 20.8 W/kg 0 dB = 20.8 W/kg = 13.18 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/8/19 System Check_Body_5800MHz_130819 DUT: D5GHzV2-SN:1128 Communication System: CW; Frequency: 5800 MHz;Duty Cycle: 1:1 Medium: MSL_5G_130819 Medium parameters used: f = 5800 MHz; σ = 6.228 S/m; ε r = 47.321; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(4.06, 4.06, 4.06); Calibrated: 2012/9/28; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1279; Calibrated: 2013/1/28 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY52, Version 52.8 (6); SEMCAD X Version 14.6.9 (7117) Configuration/Pin=10…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/8/13 #01_WLAN2.4GHz_802.11b 1Mbps_Horizontal Up_0.5cm_Ch1 DUT: 371642 Communication System: 802.11b; Frequency: 2412 MHz;Duty Cycle: 1:1.017 Medium: MSL_2450_130813 Medium parameters used: f = 2412 MHz; σ = 1.918 S/m; ε r = 52.404; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(6.57, 6.57, 6.57); Calibrated: 2012/9/28; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1279; Calibrated: 2013/1/28 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY52, Version 52.8 (6); SEMCAD X Version 14.6.9 (7117) Configuration/Ch1/Area Scan (51x91x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 1.17 W/kg Configuration/Ch1/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5m m Reference Value = 23.640 V/m; Power Drift = -0.15 dB Peak SAR (extrapolated) = 1.44 W/kg SAR(1 g) = 0.714 W/kg; SAR(10 g) = 0.324 W/kg Maximum value of SAR (measured) = 1.04 W/kg 0 dB = 1.04 W/kg = 0.17 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/8/13 #06_WLAN2.4GHz_802.11b 1Mbps_Horizontal Up_0.5cm_Ch6 DUT: 371642 Communication System:802.11b; Frequency: 2437 MHz;Duty Cycle: 1:1.017 Medium: MSL_2450_130813 Medium parameters used: f = 2437 MHz; σ = 1.951 S/m; ε r = 52.324; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - SN3697; ConvF(6.57, 6.57, 6.57); Calibrated: 2012/9/28; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1279; Calibrated: 2013/1/28 - Phantom: ELI 4.0_Front; Type: QDOVA001BB; Serial: 1026 - Measurement SW: DASY52, Version 52.8 (6); SEMCAD X Version 14.6.9 (7117) Configuration/Ch6/Area Scan (51x91x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 1.51 W/kg Configuration/Ch6/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5m m Reference Value = 25.493 V/m; Power Drift = -0.09 dB Peak SAR (extrapolated) = 1.66 W/kg SAR(1 g) = 0.821 W/kg; SAR(10 g) = 0.376 W/kg Maximum value of SAR (measured) = 1.25 W/kg 0 dB = 1.25 W/kg = 0.97 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2013/8/13 #07_WLAN2.4GHz_802.11b 1Mbps_Horizontal Up_0.5cm_Ch11 DUT: 371642 Communication System:802.11b; Frequency: 2462 MHz;Duty Cycle: 1:1.017 Medium: MSL_2450_130813 Medium parameters used: f = 2462 MHz; σ = 1.986 S/m; ε r = 52.236; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV4 - …

Text truncated - open the document above for the full version.
