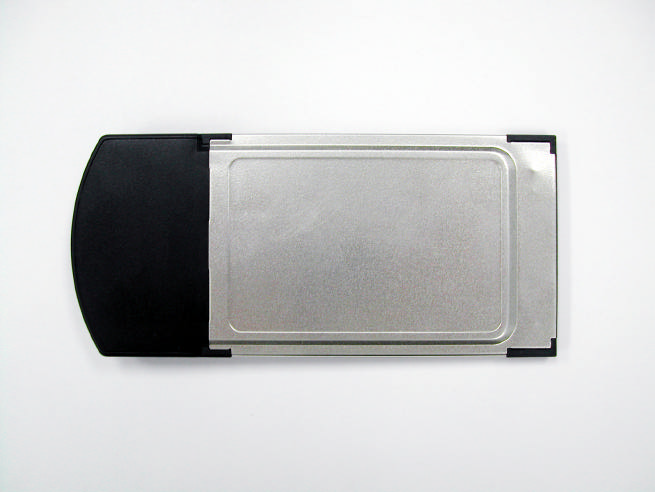

NKRCB500AG802.11a/b/g WLAN Cardbus Adapter

WLAN a+b+g Cardbus Adapter User Manual Version: 1.0 Feb 2003 1 Copyright Statement No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, whether electronic, mechanical, photocopying, recording or otherwise without the prior writing of the publisher. Windows ™ 98SE/2000/ME/XP are trademarks of Microsoft ® Corp. Pentium is trademark of Intel. All copyright reserved. 2 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: To assure continued compliance, (example - use only shielded interface cables when connecting to computer or peripheral devices) any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. RF EXPOSURE STATEMENT: In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this device complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could result in violation 3 of FCC regulations. This device can not co-locate or operate with any other transmitter. Body-worn Operation This device was tested with typical laptop computer with PCMCIA SLOT ON EITHER SIDE OF THE COMPUTER FOR TYPICAL BODY-WORN OPERATIONS with the device directly contacted to the human body to the back and side of the laptop computer. To maintain compliance with FCC RF exposure compliance requirements, maintain at least 1.5 cm to nearby person. 4 Table of Contents 1. INTRODUCTION 5 1.1 KIT CONTENTS........................................................................................................5 1.2 S YSTEM R EQUIREMENTS .........................................................................................5 1.3 STATUS LED............................................................................................................5 2. DRIVER/UTILITY INSTALLATION / UNINSTALLATION 6 2.1 INSTALLATION.........................................................................................................6 2.1.1 A DDITIONAL S ETUP P ROCESSES .............................................................................9 2.1.2 VERIFYING THE DRIVER.........................................................................................9 2.2 U NINSTALLATION ...................................................................................................11 3. CONNECTING TO AN EXISTING NETWORK 12 3.1 A DDITIONAL N OTE FOR W INDOWS XP................................................................14 4. CREATING A NEW NETWORK 15 5. CONFIGURATION 17 5.1 D EVICE C ONFIGURATION ......................................................................................17 5.1.1 NON-DEFAULT SETTINGS CONFIGURATION..........................................................18 5.1.2 D EFAULT S ETTINGS W INDOWS XP Z ERO -C ONFIGURATION .................................21 6. TROUBLESHOOTING 22 5 1. Introduction Thank you for purchasing the WLAN a+g Cardbus Adapter that provides the easiest way to wireless networking. This User Manual contains detailed instructions in the operation of this product. Please keep this manual for future reference. 1.1 Kit Contents l WLAN a+g Cardbus Adapter l Installation Software CD l Quick Start Guide 1.2 System Requirements l A laptop PC contains: - 32-bit Cardbus slot (or Desktop PC with PC Card-PCI adapter) - 32 MB memory or greater - 300 MHz processor or higher l Microsoft ® Win ™ 2000/ME/98 Second Edition/XP 1.3 Status LED There are 2 Status LEDs on the WLAN a+g Cardbus Adapter. You can check your network connectivity status by looking at the LEDs. l Off: Power off. l Slow Blink: A connection is made. There is no activity yet. l Fast Blink: There are activities in a connected network. l Alternate Blink between LEDs: Look for a network association. l One LED Blink: Power Saving Mode is on. l One LED Steady Light: Awake from Power Saving Mode. 6 2. Driver/Utility Installation / Uninstallation 2.1 Installation Note! The Installation Section in this User Manual describes the first-time installation for Windows. To re-install the driver, please first uninstall the previously installed driver. See Chapter 2.2 “Uninstallation” section in this User Manual. Note! Do Not insert the A…

Text truncated - open the document above for the full version.

PROPOSED FCC ID LABEL AND LOCATION Wistron NeWeb Corporation This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: NKRCB500AG FCC ID LABEL LOCATION

A/B Card Bus Antenna Test Report I. Antenna Design 1.1 Antenna Antenna: PIFA Type Antenna description: PIFA antenna be mounted on PCB 1.2 Position: as the following. II. Antenna Specification 2.1 VSWR VSWR ≦ 2.5 0 270 180 90 Azimuth phi Right Card Bus Interface Left. 2.2 Peak Gain and Average Gain 2.40 GHz 2.45 GHz 2.50GHz5.15 GHz5.25 GHz5.35 GHz 5.47 GHz 5.647GHz5.825 GHz Peak dBi 1.9 2.5 0.96 -0.06 -0.02 2.87 -0.58 -0.97 -0.64 Left Ant. Avg dBi -3.28 -2.26 -2.89 -3.41 -4.12 -3.22 -4.36 -4.7 -3.7 Peak dBi 0.77 2.13 1.34 -0.36 0.15 0.78 -0.39 -0.1 0.03 Right Ant. Avg dBi -3.35 -1.64 -1.73 -2.81 -2.71 -2.47 -2.82 -2.9 -3.15 2.3 Radiation Pattern Left Antenna Antenna Radi ati on pattern [email protected] -50.0 -45.0 -40.0 -35.0 -30.0 -25.0 -20.0 -15.0 -10.0 -5.0 0.0 5.0 2 45 79 11 13 1416 18 20 22 23 25 27 29 31 32 34 36 38 40 41 43 45 47 49 50 52 54 56 58 59 61 63 65 67 68 70 72 74 76 77 79 81 83 85 86 88 90 92 94 95 97 99 101 103 104 106 108 110 112 113 115 117 119 121 122 124 126 128 130 131 133 135 137 139 140 142 144 146 148 149 151 153 155 157 158 160 162 164 166 167169 171 173 175176 178180 182 184185 187189 191 193 194196 198 200 202 203 205 207 209 211 212 214 216 218 220 221 223 225 227 229 230 232 234 236 238 239 241 243 245 247 248 250 252 254 256 257 259 261 263 265 266 268 270 272 274 275 277 279 281 283 284 286 288 290 292 293 295 297 299 301 302 304 306 308 310 311 313 315 317 319 320 322 324 326 328 329 331 333 335 337 338 340 342 344 346 347349 351 353 355356 358360 Isotropic Antenna Gain H-pole (dBi) V-pole (dBi)Average Gain (dBi) Antenna Radi ati on pattern [email protected] -50.0 -45.0 -40.0 -35.0 -30.0 -25.0 -20.0 -15.0 -10.0 -5.0 0.0 5.0 2 45 79 11 13 1416 18 20 22 23 25 27 29 31 32 34 36 38 40 41 43 45 47 49 50 52 54 56 58 59 61 63 65 67 68 70 72 74 76 77 79 81 83 85 86 88 90 92 94 95 97 99 101 103 104 106 108 110 112 113 115 117 119 121 122 124 126 128 130 131 133 135 137 139 140 142 144 146 148 149 151 153 155 157 158 160 162 164 166 167169 171 173 175176 178180 182 184185 187189 191 193 194196 198 200 202 203 205 207 209 211 212 214 216 218 220 221 223 225 227 229 230 232 234 236 238 239 241 243 245 247 248 250 252 254 256 257 259 261 263 265 266 268 270 272 274 275 277 279 281 283 284 286 288 290 292 293 295 297 299 301 302 304 306 308 310 311 313 315 317 319 320 322 324 326 328 329 331 333 335 337 338 340 342 344 346 347349 351 353 355356 358360 Isotropic Antenna Gain H-pole (dBi) V-pole (dBi) Average Gain (dBi) a Antenna Radiation pattern [email protected] -50.0 -45.0 -40.0 -35.0 -30.0 -25.0 -20.0 -15.0 -10.0 -5.0 0.0 5.0 2 4 5 7 9 11 13 14 16 18 20 22 23 25 27 29 31 32 34 36 38 40 41 43 45 47 49 50 52 54 56 58 59 61 63 65 67 68 70 72 74 76 77 79 81 83 85 86 88 90 92 94 95 97 99 101 103 104 106 108 110 112 113 115 117 119 121 122 124 126 128 130 131 133 135 137 139 140 142 144 146 148 149 151 153 155 157 158 160 162 164 166 167 169 171 173 175 176 178 180 182 184 185 187 189 191 193 194 196 198 200 202 203 205 207 209 211 212 214 216 218 220 221 223 225 227 229 230 232 234 236 238 239 241 243 245 247 248 250 252 254 256 257 259 261 263 265 266 268 270 272 274 275 277 279 281 283 284 286 288 290 292 293 295 297 299 301 302 304 306 308 310 311 313 315 317 319 320 322 324 326 328 329 331 333 335 337 338 340 342 344 346 347 349 351 353 355 356 358 360 Isotropic Antenna Gain H-pole (dBi) V-pole (dBi)Average Gain (dBi) Antenna Radiation pattern [email protected] -50.0 -45.0 -40.0 -35.0 -30.0 -25.0 -20.0 -15.0 -10.0 -5.0 0.0 5.0 2 4 5 7 9 11 13 14 16 18 20 22 23 25 27 29 31 32 34 36 38 40 41 43 45 47 49 50 52 54 56 58 59 61 63 65 67 68 70 72 74 76 77 79 81 83 85 86 88 90 92 94 95 97 99 101 103 104 106 108 110 112 113 115 117 119 121 122 124 126 128 130 131 133 135 137 139 140 142 144 146 148 149 151 153 155 157 158 160 162 164 166 167 169 171 173 175 176 178 180 182 184 185 187 189 191 193 194 196 198 200 202 203 205 207 209 211 212 214 216 218 220 221 223 225 227 229 230 232 234 236 238 239 241 243 245 247 248 250 252 254 256 257 259 261 263 265 266 268 270 272 274 275 277 279 281 283 284 286 288 290 292 293 295 297 299 301 302 304 306 308 310 311 313 315 317 319 320 322 324 326 328 329 331 333 335 337 338 340 342 344 346 347 349 351 353 355 356 358 360 Isotropic Antenna Gain H-pole (dBi) V-pole (dBi) Average Gain (dBi) Antenna Radiation pattern [email protected] -50.0 -45.0 -40.0 -35.0 -30.0 -25.0 -20.0 -15.0 -10.0 -5.0 0.0 5.0 2 4 5 7 9 11 13 14 16 18 20 22 23 25 27 29 31 32 34 36 38 40 41 43 45 47 49 50 52 54 56 58 59 61 63 65 67 68 70 72 74 76 77 79 81 83 85 86 88 90 92 94 95 97 99 101 103 104 106 108 110 112 113 115 117 119 121 122 124 126 128 130 131 133 135 137 139 140 142 144 146 148 149 151 153 155 157 158 160 162 164 166 167 169 171 173 175 176 178 180 182 184 185 187 189 191 193 194 196 198 200 202 203 205 207 209 211 212 214 216 218 220 221 223 225 227 229 230 232 234 236 238 239 241 243 245 247 248 250 252 254 256 257 259 261 263 265 266 268 270 272 274 275 277 279 281 283 284 286 288 290 292 293 295 297 299 301 302 304 306 308 310 311 313 315 317 319 320 322 324 326 328 329 331 333 335 337 338 340 342 344 346 347 349 351 353 355 356 358 360 Isotropic Antenna Gain H-pole (dBi) V-pole (dBi) Average Gain (dBi) a Antenna Radiation pattern [email protected] -50.0 -45.0 -40.0 -35.0 -30.0 -25.0 -20.0 -15.0 -10.0 -5.0 0.0 5.0 2 4 5 7 9 11 13 14 16 18 20 22 23 25 27 29 31 32 34 36 38 40 41 43 45 47 49 50 52 54 56 58 59 61 63 65 67 68 70 72 74 76 77 79 81 83 85 86 88 90 92 94 95 97 99 101 103 104 106 108 110 112 113 115 117 119 121 122 124 126 128 130 131 133 135 137 139 140 142 144 146 148 149 151 153 155 157 158 160 162 164 166 167 169 171 173 175 176 178 180 182 184 185 187 189 191 193 194 196 198 200 202 203 205 207 209 211 212 214 216 218 220 221 223 225 227 229 230 232 234 236 238 239 241 243 245 247 248 250 252 254 256 257 259 261 263 265 266 268 270 272 274 275 277 279 281 283 284 286 288 290 292 293 295 297 299 301 302 304 306 308 310 311 313 315 317 319 320 322 324 326 328 329 331 333 335 337 338…

Text truncated - open the document above for the full version.

SAR TESTING OF WISTRON NEWEB MODEL CB-500AG 802.11 a/b/g CARDBUS ADAPTER WITH THREE HOST COMPUTERS WISTRON NEWEB MODEL: CB-500AG FCC ID: NKRCB500AG Host Computers: 1. IBM Model 2659-HT2 (Serial #AK-VND0G 02/12) 2. Compaq Model PP2150 (Serial #1V31LDLZ20PG) 3. Toshiba Satellite 1110 System (Part No. PS111T-00CMW, Serial #Y2382109) March 12, 2003 Prepared for: Wistron NeWeb Corporation No. 10-1, Li-Hsin road 1 Science-Based Industrial Park Hsinchu, 300 Taiwan, R.O.C. Attention: Eric Y.C. Liu Senior Manager, Engineering Prepared by: Om P. Gandhi Professor of Electrical and Computer Engineering University of Utah 50 S Central Campus Dr., Rm. 3280 Salt Lake City, UT 84112-9206 ii TABLE OF CONTENTS I. Introduction ........................................................................................................................ 1 II. The SAR Measurement System ......................................................................................... 2 The Flat Phantom ............................................................................................................... 3 III. Calibration of the E-Field Probe ......................................................................................... 3 IV. SAR System Verification ................................................................................................... 4 V. Tissue Simulant Fluid for the Frequency Band 5.2 to 5.8 GHz ......................................... 5 VI. The Measured SAR Distributions....................................................................................... 7 VII. Comparison of the Data with FCC 96-326 Guidelines ...................................................... 8 REFERENCES ............................................................................................................................ 9 TABLES ................................................................................................................................ 11-41 FIGURES .............................................................................................................................. 42-96 APPENDIX A (separate pdf file) APPENDIX B ........................................................................................................................... 97 APPENDIX C ........................................................................................................................... 99 1 SAR TESTING OF WISTRON NEWEB MODEL CB-500AG 802.11 a/b/g CARDBUS ADAPTER WITH THREE HOST COMPUTERS WISTRON NEWEB MODEL: CB-500AG FCC ID: NKRCB500AG Host Computers: 1. IBM Model 2659-HT2 (Serial #AK-VND0G 02/12) 2. Compaq Model PP2150 (Serial #1V31LDLZ20PG) 3. Toshiba Satellite 1110 System (Part No. PS111T-00CMW, Serial #Y2382109) I. Introduction The U.S. Federal Communications Commission (FCC) has adopted limits of human exposure to RF emissions from mobile and portable devices that are regulated by the FCC [1]. The FCC has also issued Supplement C (Edition 97-01) to OET Bulletin 65 [2] and a more recent version of the same [3] defining both the measurement and the computational procedures that should be followed for evaluating compliance of mobile and portable devices with FCC limits for human exposure to radiofrequency emissions. We have used the measurement procedure for SAR compliance testing of the Wistron NeWeb Model CB-500AG 802.11 a/b/g Cardbus Adapter with three host computers. These host computers shown in Figs. 1-3, respectively, are: 1. IBM Model 2659-HT2. 2. Compaq Model PP2150. 3. Toshiba Satellite 1110 System. The Wistron NeWeb Model CB-500AG 802.11 a/b/g Cardbus Adapter is plugged into each of the above host computers as shown in Figs. 1, 2, and 3, respectively. The peak and average conducted RF power outputs measured at various frequencies for the Wistron NeWeb Model CB-500AG Cardbus Adapter 802.11a Antenna for the normal and turbo modes are given in Table 1. For SAR measurements, two configurations of each of the host PCs relative to the experimental phantom have been used. These are as follows: 2 a. Configuration 1 is for the PC placed on a user's lap. For this configuration, a planar phantom model with inside dimensions 12" x 16.5" (30.5 x 41.9 cm) and a base thickness of 2.0 ± 0.2 mm (recommended in [3]) was used for SAR measurements and the bottom side of each of the laptop computers shown in parts b of Figs. 1, 2, and 3 was pressed against it. Photographs of the three PCs pressed against the bottom of the planar phantom for this "Above-lap" position are given as Figs. 4a, b, and c, respectively. b. Configuration 2: Edge-on position. This configuration corresponds to a bystander close to the outer edge of the cardbus adapter in contact with this edge (separation of 0 cm). For this configuration, the host computer is placed at 90° and the edge of the cardbus adapter is pressed against the bottom of the planar phantom (see Figs. 7, 8, and 9). II. The SAR Measurement System The University of Utah SAR Measurement System has been described in peer-reviewed literature [Ref. 8 -- attached here as Appendix A]. A photograph of the SAR Measurement System is given in Fig. 5. This SAR Measurement System uses a computer-controlled 3-D stepper motor system (Arrick Robotics MD-2A). A triaxial Narda Model 8021 E-field probe is used to determine the internal electric fields. The positioning repeatability of the stepper motor system moving the E-field probe is within ±0.1 mm. Outputs from the three channels of the E- field probe are dc voltages, the sum of which is proportional to the square of the internal electric fields ( ) 2 i E from which the SAR can be obtained from the equation SAR = ( ) 2 i Eσρ, where σ and ρ are the conductivity and mass density of the tissue-simulant materials, respectively [5]. The dc voltages for the three channels of the E-field probe are read by three HP 34401A multimeters and sent to the computer via an HPIB interface. The setup is carefully grounded and shielded to reduc…

Text truncated - open the document above for the full version.

234IEEE TRANSACTIONS ON ELECTROMAGNETIC COMPATIBILITY, VOL. 41, NO. 3, AUGUST 1999 An Automated SAR Measurement System for Compliance Testing of Personal Wireless Devices Qishan Yu, Om P. Gandhi,Life Fellow, IEEE, Magnus Aronsson,Student Member, IEEE, and Ding Wu Abstract—An automated specific absorption rate (SAR) mea- surement system has been developed for compliance testing of personal wireless devices. Unlike other systems, this system uses a model with a lossy ear-shaped protrusion and the accuracy of this experimental setup has been checked by comparing the peak 1-g SAR’s for ten cellular telephones, five each at 835 and 1900 MHz, with the results obtained using a 15-tissue anatomically based model with the finite-difference time-domain (FDTD) numerical electromagnetic technique. The SAR measurement system uses a three-dimensional (3-D) stepper motor to move a Narda Model 8021 E-field probe to measure the SAR distribution inside a head- shaped tissue-simulant phantom near the radiating device. The head and neck part of the model with an ear-shaped protrusion of 3 mm thickness is made of a lossy outer shell of 5–7 mm thickness of epoxy laced with KCl solution. The phantom is filled with appropriate frequency-specific fluids with measured electrical properties (dielectric constant and conductivity) that are close to the average for gray and white matters of the brain at the center frequencies of interest (835 and 1900 MHz). The implantable E-field probe is calibrated using the FDTD- calculated SAR variations for a slab model at two commonly used frequencies, 835 and 1900 MHz and is checked to have good isotropic characteristics ( 0.23 dB) and a wide dynamic range (0.01–10 W/kg). The system is validated using a 223-mm- diameter sphere model. Peak 1-g SAR’s for ten telephones using different antennas are within 1 dB of those obtained using the FDTD numerical method for the anatomical model of the head and neck region. Index Terms—Experimental phantom with lossy ear, safety compliance testing, validation against computed SAR. I. INTRODUCTION T HE use of cellular telephones and mobile wireless com- munication systems has increased dramatically during the past few years. Meanwhile, there is public concern for safety of RF exposure from these devices. Since the RF exposure is quantified by the mass-normalized rate of electromagnetic energy absorption or the specific absorption rate (SAR), the United States Federal Communications Commission (FCC) requires that the SAR values of new personal wireless devices must meet the prescribed RF safety guidelines [1]. Further- more, since electromagnetic energy absorbed by the human head depends to a large extent on the antenna used for the personal wireless devices [2], knowledge of SAR distributions in the human head can also help the industry to design better antennas to improve the performance of the wireless transceivers. In this regard, we should note that 30–65% of Manuscript received March 10, 1998; revised April 26, 1999. The authors are with the Department of Electrical Engineering, University of Utah, Salt Lake City, UT 84112 USA. Publisher Item Identifier S 0018-9375(99)06718-6. the power radiated by the whip antennas used today is wasted by absorption in the human head and hand [2] and this could be reduced greatly. Recent dosimetric studies on the RF exposure to the human body from personal wireless devices have been carried out by both numerical simulation [3]–[5] and experimental measure- ments [6], [7]. Numerical methods using millimeter resolution anatomically based human body models and computer-aided design (CAD) files of cellular telephones can simulate the human body and the cellular phones in detail, respectively, thus providing highly accurate information about the electro- magnetic coupling of the radiating device to the human body [8]. But the numerical technique requires considerable com- putational resources (memory and computation time) for just one test condition of the device. To alleviate this problem, use of the expanding grid finite-difference time-domain (FDTD) method [9] together with the use of the truncated models of the head [10] has resulted in savings of memory requirements by factors in excess of 20, making it possible to compute the high- resolution SAR distributions using workstations instead of parallel computers [8]. Nevertheless, if a device is to be tested for several orientations relative to the head or slightly variable conditions of the relatively unshielded internal circuitry, an easy, fast experimental procedure with validated accuracy and repeatability is of interest. A major requirement of the experimental setup, however, is that the phantom model be designed such that it gives peak 1-g SAR’s that are in good agreement (within 1 dB) with the values obtained using anatomically based models. While none of the previously developed thin shell phantoms can make this claim in this paper, we present an automated SAR measurement system that meets this requirement and can, therefore, be used for compliance testing at both 835 and 1900 MHz. The system is fully automated by a three-dimensional (3-D) stepper motor system controlled by a computer, with a miniature implantable -field probe that is used to determine spatial SAR variations. Using an ear-shaped protrusion of 3 mm thickness, the head and neck part of the phantom model is made of a lossy shell of 5–7 mm thickness of epoxy laced with KCl solution to simulate the thickness of the human skull. This is important since most of the electromagnetic energy absorption for the region of the highest SAR for anatomically based models occurs either for the ear or the internal tissues beyond the skull, which is on the order of 5–7 mm thick. This and the upper part of the torso are filled with a frequency specific fluid with measured electrical properties (dielectric constant and conductivity) close to the average properties of the brain 0018–9375/99$10.001…

Text truncated - open the document above for the full version.

in accordance with the requirements of FCC Report and Order: ET Docket 93-62, and OET Bulletin 65 Supplement C for 802.11a/b/g Wireless LAN Cardbus Adaptor MODEL: CB-500AG FCC ID: NKRCB500AG March 21, 2003 REPORT NO: 03T1781-3 Prepared for Wistron NeWeb Corporation No. 10-1, Li-Hsin Road 1 Science-Based Industrial Park Hsinchu, Taiwan, R. O. C. Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 REPORT NO: 03T1781-3 DATE: March 21, 2003 FCC ID: NKRCB500AG COMPLIANCE CERTIFICATION SERVICES Page: 2 of 30 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Date of Tests: March 19 - 21, 2003 Report No: 03T1781-3 APPLICANT: Wistron NeWeb Corporation No. 10-1, Li-Hsin Road I Science-Based Industrial Park Hsinchu, Taiwan, R.O.C. MODEL: CB-500AG FCC ID: NKRCB500AG DEVICE CATEGORY: PORTABLE DEVICES EXPOSURE CATEGORY: GENERAL POPULATION/UNCONTROLLED EXPOSURE Test Sample is a: Production unit Modulation type: Direct Sequence Spread Spectrum (DSSS) Operating mode: Maximum continuous output Tx Frequency: 2412 – 2462 MHz Max. O/P Power (Conducted): 802.11b – 19.86 dBm 802.11g – 20.65 dBm Max. SAR (1g): Max. SAR (mW/g) 11b / 11g Host devices 0.856 / 0.736 Compaq 1.19 / 1.11 Toshiba 0.837 / 0.698 IBM Application Type: Certification FCC Rule Part(s): §15.247 Note: CCS tested on modes 802.11b/g only, the 802.11a was tested on other facility. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC OET 65 Supplement C (released on 6/29/2001 see Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Steve Cheng EMC Engineering Manager REPORT NO: 03T1781-3 DATE: March 21, 2003 FCC ID: NKRCB500AG COMPLIANCE CERTIFICATION SERVICES Page: 3 of 30 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TABLE OF CONTENT 1. EUT DESCRIPTION........................................................................................................4 2. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC.................5 3. DOSIMETRIC ASSESSMENT SYSTEM........................................................................5 3.1. MEASUREMENT SYSTEM DIAGRAM.......................................................................................................6 3.2. SYSTEM COMPONENTS..............................................................................................................................7 4. EVALUATION PROCEDURES.......................................................................................9 5. MEASUREMENT UNCERTAINTY................................................................................12 6. EXPOSURE LIMIT.........................................................................................................13 7. MEASUREMENT RESULTS.........................................................................................14 7.1. SYSTEM VALIDATION.................................................................................................................................14 7.2. TEST LIQUID CONFIRMATION.................................................................................................................15 7.3. EUT TUNE-UP PROCEDURES..................................................................................................................16 7.4. EUT SETUP PHOTOS.................................................................................................................................17 7.5. SAR MEASUREMENT RESULTS..............................................................................................................20 8. EUT PHOTOS................................................................................................................26 9. EQUIPMENTS LIST & CALIBRATION STATUS.........................................................28 10. REFERENCES...............................................................................................................29 11. ATTACHMENTS............................................................................................................30 REPORT NO: 03T1781-3 DATE: March 21, 2003 FCC ID: NKRCB500AG COMPLIANCE CERTIFICATION SERVICES Page: 4 of 30 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1. EUT DESCRIPTION APPLICANT: Wistron NeWeb Corporation No. 10-1, Li-Hsin Road I Science-Based Industrial Park Hsinchu, Taiwan, R.O.C. MODEL: CB-500AG FCC ID: NKRCB500AG DEVICE CATEGORY: PORTABLE DEVICES EXPOSURE CATEGORY: GENERAL POPULATION/UNCONTROLLED EXPOSURE Test Sample is a: Pr…

Text truncated - open the document above for the full version.
