Car Connection OBDII User Manual 1 Car Connection OBDII User Manual Introduction Car Connection OBDII device complies with OBDII standard, which has been adopted for most vehicles on the road. It integrates multiples applications such as Usage Based Insurance (UBI), data mining, driver assistance, roadside assistance, and fleet management that allow you to manage those features using one device. Users can easily install the Car Connection OBDII product on their own by simply plugging the device in. Enable your service in the air with Car Connection OBDII device now! Key Features  Flexible antenna and housing design  Compact device size meeting OBD Industry requirement  Over-the-Air update capability  Simple plug-in installation Specifications Physical 60mm (w) x 48mm (H) x 24mm (D) Weight: <60g Operating Voltage 9V ~ 18V (13.5V nominal) Power Consumption 150mA @ 12V 2 Car Connection OBDII User Manual Installation Note! Keep the distance at least 20cm from all persons. 3 Car Connection OBDII User Manual Federal Communication Commission Interference Statement This device (Model Name: UOC-AVX1-S; FCC ID: NKRCCOBD2S) complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 4 Car Connection OBDII User Manual Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

Date: 2012-05-24 A U T H O R I Z A T I O N L E T T E R To whom it may concern: We, the undersigned Wistron NeWeb Corporation hereby authorize Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan) of Taiwan and Daniel Lee of Bureau Veritas Consumer Products Services (H.K.) Ltd. Taoyuan Branch (BV CPS Taoyuan Branch) of Taiwan to act on our behalf in all matters relating to all processes required in FCC certification and any communication needed with the national authority. Any and all acts carried out by BV CPS Taoyuan on our behalf shall have the same effects as acts of our own. This authorization shall expire six months from the original date. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, ____________________________________________________________________ Troy Chien/Associate Technical Director Tel : +886-3-6667799 Fax : +886-3-6667323 E-mail:[email protected]

Date: 2012-05-24 FCC ID: NKRCCOBD2S To the attention of Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to DA 04-1705 of the commission’s public notice, we request short-term confidential treatment for the following information until 2012/11/30 in order to ensure sensitive business information remains confidential until the actual marketing of the device: External photos Internal photos Test Setup photos User’s manual This authorization shall expire six months from the original date. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, ____________________________________________________________________ Troy Chien/Associate Technical Director Tel.: +886-3-6667799 Fax.: +886-3-6667323 E-mail:[email protected]

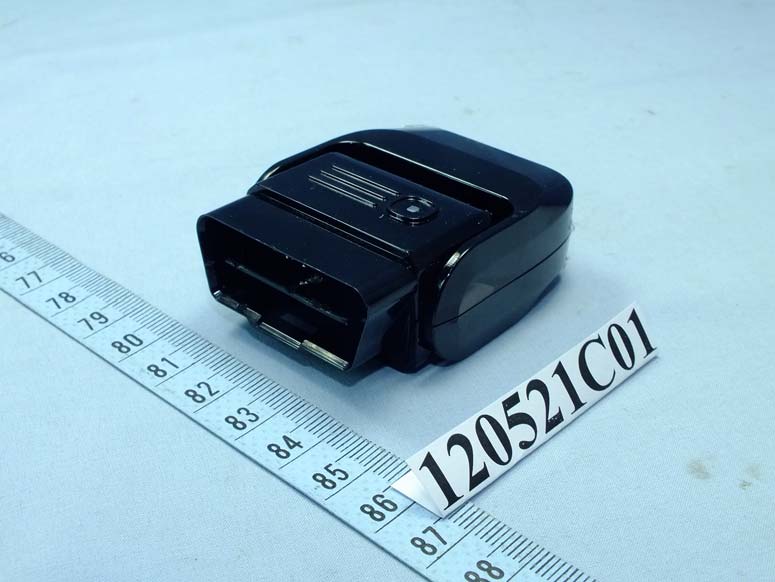

Page 1 CONSTRUCTION PHOTOS OF EUT
