802.11g USB 2.0 Adapter DRUC User’s Guide Version: 2.0 — April 2004 1 Copyright Statement No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, whether electronic, mechanical, photocopying, recording or otherwise without the prior writing of the publisher. Windows ™ 98SE/2000/ME/XP are trademarks of Microsoft ® Corp. Pentium is trademark of Intel. All copyright reserved. 2 Regulatory Information Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: To assure continued compliance, (example - use only shielded interface cables when connecting to computer or peripheral devices) any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 3 Table of Contents Regulatory Information________________________________________________2 1. Welcome__________________________________________________________4 1.1 Kit Contents______________________________________________________5 1.2 Main Features of 802.11g USB 2.0 Adapter____________________________6 1.3 Wireless Networking Scenarios______________________________________7 1.4 Advantages for Using Wireless Network_______________________________9 2. Quick Start to Wireless Networking____________________________________10 2.1 Installation______________________________________________________10 2.2 Connecting to an Existing Network__________________________________11 3. Step-by-Step Installation Guide_______________________________________15 3.1 Installing the 802.11g USB2.0 Adapter Driver / Utility__________________16 3.1.1 Additional Setup Processes____________________________________18 3.1.2 Disable Windows XP Zero-Configuration_________________________19 3.2 Verifying the Driver/Utility________________________________________20 3.3 802.11g USB2.0 adapter Setting_____________________________________21 3.4 Connecting to an Infrastructure Network____________________________22 3.5 Creating an Ad-Hoc Network______________________________________23 3.6 Removing your 802.11g USB 2.0 Adapter_____________________________24 3.7 Uninstalling the 802.11g USB2.0 Adapter Driver / Utility________________24 4. Using the Utility___________________________________________________25 4.1 Wireless Networks Tab____________________________________________25 4.2 Link Status Tab__________________________________________________27 4.3 About Tab_______________________________________________________28 5. Network Application________________________________________________29 5.1 Surveying the Network Neighborhood_______________________________29 5.2 File Sharing_____________________________________________________30 5.3 Using the Shared Folder___________________________________________31 6. Product Specifications______________________________________________32 7. Glossary_________________________________________________________33 4 1. Welcome Thank you for purchasing our 802.11g USB 2.0 Adapter, and welcome to Wireless LAN—the easy way to wireless networking. This user’s guide introduces to you the 802.11g USB 2.0 Adapter and describes the most common configurations, which will help you connect to your network easily. Please read this manual to get familiar with the IEEE802.11g Wireless LAN. This manual contains detailed instructions in operation of this product. Please keep this manual for future reference. As this product is designed to run under Microsoft Windows, it is recommended that to be installed by people who are familiar with the installation procedures for network operating systems under Microsoft Windows. 5 1.1 Kit Contents The 802.11g USB 2.0 Adapter kit should include the following items: One 802.11g USB 2.0 Adapter with USB cable, one CD and one Quick Start Guide. a. One 802.11g USB 2.0 Adapter b. One USB cable c. One Software CD including: 1. Utility & Driver Installation Software 2. Acrobat Reader 3. User Manual PDF File d. Quick Start Guide If any of the items mentioned above are damaged or missing, please contact your distributor. 6 1.2 Main Features of 802.11g USB 2.0 Adapter A. Status LED l Off: Power Off. l Blinking: The USB adapter is powered on but no wireless connection is made yet. l Steady Green: Wireless con…

Text truncated - open the document above for the full version.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 May 26, 2004 RE: Wistron NeWeb Corp. FCC ID: NKRDRUC After a review of the submitted information, I have a few comments on the above referenced Application. Technical: 1) The exhibit for label location does not appear to define/show the placement of the label. Please update. 2) For your information (no response is required for this item). Page 33 of the users manual states UNII where it should state USA. Also, output power for 802.11g appears +13 dBm while the measured power was +18 dBm. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

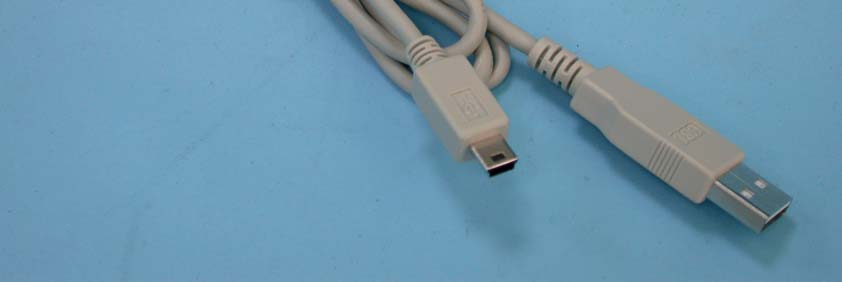

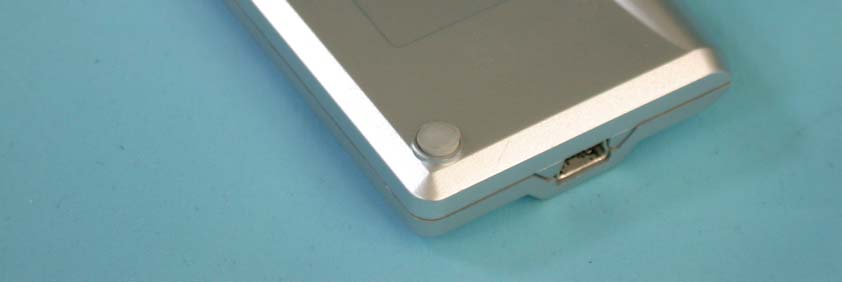

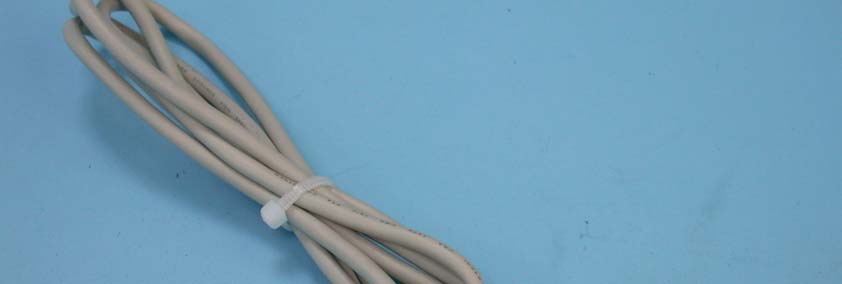

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

Page 1 Label location

Page 3 Page 4 Page 5 Page 6

FCC ID: NKRDRUC Report No.RF930513L08 Operational Description This device is a 802.11g USB 2.0 Adapter which operates in the 2.4GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT is powered by host equipment via a USB interface. The antenna is PIFA antenna without connector. The other instruction, please have a look at the users manual.

FCC ID: NKRDRUC Report No: SA930513L08 1 RF EXPOSURE REPORT REPORT NO.: SA930513L08 MODEL NO.: DRUC ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Wistron NeWeb Corp. ADDRESS: No. 10-1, Li-hsin Road I, Science-based Industrial Park, Hsinchu 300, Taiwan, R. O. C ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 19, Hwa Ya 2nd rd., Kueishan, Taoyuan, Taiwan, R.O.C. FCC ID: NKRDRUC Report No: SA930513L08 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: NKRDRUC Report No: SA930513L08 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification This device is not fixed inside the host equipment, it is connected with host through wire. So it is easy to be re-located in the place where at least 20cm far away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: NKRDRUC Report No: SA930513L08 4 6 Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is –2.42dBi or 0.573 (numeric). 6.2 Output Power Into Antenna & RF Exposure Distance : For Part 802.11b (CCK technique): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241250.1190.0061.0 6243779.4330.0091.0 11246270.7950.0081.0 For Part 802.11g (OFDM technique): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241231.6230.0041.0 6243763.0960.0071.0 11246231.6230.0041.0

FCC ID: NKRDRUC Report No.: RF930513L081Issued: May 24, 2004 FCC TEST REPORT REPORT NO.: RF930513L08 MODEL NO.: DRUC RECEIVED: May 13, 2004 TESTED: May 17 ~ May 20, 2004 APPLICANT: Wistron NeWeb Corp. ADDRESS: No. 10-1, Li-hsin Road I, Science-based Industrial Park, Hsinchu 300, Taiwan, R. O. C ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 19, Hwa Ya 2nd rd., Kueishan, Taoyuan, Taiwan, R.O.C. This test report consists of 68 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by any government agencies. The test results in the report only apply to the tested sample. FCC ID: NKRDRUC Report No.: RF930513L082Issued: May 24, 2004 Table of Contents 1CERTIFICATION .......................................................................................................4 2SUMMARY OF TEST RESULTS ...............................................................................5 3GENERAL INFORMATION........................................................................................6 3.1GENERAL DESCRIPTION OF EUT ..........................................................................6 3.2DESCRIPTION OF TEST MODES ............................................................................7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ...........................................7 3.4DESCRIPTION OF SUPPORT UNITS ......................................................................8 3.5 CONFIGURATION OF SYSTEM UNDER TEST .......................................................8 4TEST TYPES AND RESULTS ...................................................................................9 4.1CONDUCTED EMISSION MEASUREMENT ............................................................9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT..........................................9 4.1.2TEST INSTRUMENTS...............................................................................................9 4.1.3TEST PROCEDURES .............................................................................................10 4.1.4DEVIATION FROM TEST STANDARD ...................................................................10 4.1.5TEST SETUP........................................................................................................... 11 4.1.6EUT OPERATING CONDITIONS ............................................................................12 4.1.7TEST RESULTS ......................................................................................................13 4.2RADIATED EMISSION MEASUREMENT ...............................................................19 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT.............................................19 4.2.2TEST INSTRUMENTS.............................................................................................20 4.2.3TEST PROCEDURES .............................................................................................21 4.2.4DEVIATION FROM TEST STANDARD ...................................................................21 4.2.5TEST SETUP...........................................................................................................22 4.2.6EUT OPERATING CONDITIONS ............................................................................22 4.2.7TEST RESULTS ......................................................................................................23 4.2.8TEST RESULTS (A) ................................................................................................24 4.2.9TEST RESULTS (B) ................................................................................................27 4.36dB BANDWIDTH MEASUREMENT.......................................................................30 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT ....................................................30 4.3.2TEST INSTRUMENTS.............................................................................................30 4.3.3TEST PROCEDURE................................................................................................31 4.3.4DEVIATION FROM TEST STANDARD ...................................................................31 4.3.5TEST SETUP...........................................................................................................31 4.3.6EUT OPERATING CONDITIONS ............................................................................31 FCC ID: NKRDRUC Report No.: RF930513L083Issued: May 24, 2004 4.3.7TEST RESULTS (A) ................................................................................................32 4.3.8TEST RESULTS (B) ................................................................................................36 4.4MAXIMUM PEAK OUTPUT POWER ......................................................................40 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT .......................40 4.4.2TEST INSTRUMENTS.............................................................................................40 4.4.3TEST PROCEDURES .............................................................................................41 4.4.4DEVIATION FROM TEST STANDARD ...................................................................41 4.4.5TEST SETUP...........................................................................................................41 4.4.6EUT OPERATING CONDITIONS ............................................................................41 4.4.7TEST RESULTS (A) ................................................................................................42 4.4.8TEST RESULTS (B) ................................................................................................43 4.5POWER SPECTRAL DENSITY MEASUREMENT..................................................44 4.5.1LIMITS OF POW…

Text truncated - open the document above for the full version.

FCC ID: NKRDRUC Report No.: RF930513L0866Issued: May 24, 2004 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: NKRDRUC Report No.: RF930513L0867Issued: May 24, 2004 RADIATED EMISSION TEST
