NKREM200B802.11b WLAN miniPCI

IEEE 802.11b WLAN miniPCI EM-200B OEM Installation Manual (The module is sold only to the OEM integrators & the manual is valid only for the OEM manufactures) Version: 1.0 April 2003 1 Copyright Statement No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, whether electronic, mechanical, photocopying, recording or otherwise without the prior writing of the publisher. Windows ™ 98SE/2000/ME/XP are trademarks of Microsoft ® Corp. Pentium is trademark of Intel. All copyright reserved. 2 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: To assure continued compliance, (example - use only shielded interface cables when connecting to computer or peripheral devices) any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: This module is restricted to mobile configuration. To comply with FCC RF exposure compliance requirements, the antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. This transmitter module must not be co-located or operating in conjunction with any other antenna or transmitter 3 TABLE OF CONTENTS 1. INTRODUCTION 4 2. HARDWARE INSTALLATION & ANTENNA INFORMATION5 CAUTION !! 6 3. CONNECTING TO AN EXISTING NETWORK 8 4. CREATING A NEW AD HOC NETWORK 10 5. CONFIGURATION 11 5.1 WIRELESS MODE 11 5.2 LINK INFO PAGE 12 5.3 CONFIGURATION PAGE 13 5.4 ENCRYPTION PAGE 14 5.5 SITESURVEY PAGE 15 5.6 VERSIONS 15 5.7 PROFILE 16 5.8 DEFAULT SETTINGS WINDOWS XP ZERO-CONFIGURATION 17 6. WIRELESS NETWORKING APPLICATIONS 18 6.1 SURVEYING THE NETWORK NEIGHBORHOOD 18 6.2 FILE SHARING 19 6.3 USING THE SHARED FOLDER 20 7. TROUBLESHOOTING 21 8. PRODUCT SPECIFICATION 22 4 1. Introduction Thank you for purchasing the IEEE802.11b WLAN miniPCI that provides the easiest way to wireless networking. This OEM Installation Manual contains detailed instructions in the operation of this product. Please keep this manual for future reference. System Requirements l A Personal Computer contains: - 32 MB memory or greater - 300 MHz processor or higher l Microsoft ® Win ™ 98SE/ME/2000/ XP 5 2. Hardware Installation & Antenna Information l Module is installed in the Personal Computer, located either under the keypad or on the bottom side of the Personal Computer (see the following diagrams). l Antennas are embedded in the top corners of the panel (see the two circles shown below) Important Note: This module is restricted to mobile configuration. The antennas of module should be installed and operated with minimum distance 20cm between the radiator and all persons. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The module is for OEM installation only and can not be sold to end user directly. Only the antenna types listed below can be used. 1. CA8-I (WNC) 2. 5600 (CLEVO) 3. 888E (CLEVO) 4. M300N (CLEVO) 6 Caution !! (1). This module cannot be bound in a tablet computer for RF exposure issues. (See label 1) (2). Due to the RF exposure issues, this module can be used in a laptop computer in normal operation, but cannot be used when it is put above the lap and the LCD screen is in the closed position. (See label 2) Label 1 Label 2 The device can’t be operated above the lap when the LCD is closed 7 (3). This module must be labeled with FCC ID. (See label 3) (4). If the FCC ID is not visible when the module is installed inside another device, then the outside of device must also display a label referring to the enclosed module. The exterior label can be “ Contains Transmitter Module FCC ID: NKREM200B” or similar wording. (See label 4) Please put Label 2 & Label 4 to the enclosure of end product to note the end user. Label 3 Label 4 8 3. Connecting to an Existing Network 1. Double click the shortcut icon of “IEEE802.11b WLAN miniPCI Utility” on the desktop, and the “IEEE802.11b WLAN miniPCI Utility” window will appear. 2. In the Windows System Tray, there is a communication-status icon that indicates different connection statuses by showing different colors. Green communication-status icon indicates the presence of a successful connection, and your network connection process is complete. 3. Red communication-status icon indicates that no connection is present. In this case, please go to “SiteSurvey” page and wait for a second (or click “Refresh” button) to get a list of all available networks. 4. From the …

Text truncated - open the document above for the full version.

Wistron Neweb Corporation No. 10-1, Li-hsin Road 1, Science-based Industrial Park,Hsinchu 300, Taiwan, R. O. C. 886-3-666-7799 886-3-666-1654 Rev 2 C:\_My Business\DT Associates\_Client Data\_American TCB\_ATCB Apps in review\NKREM200B_ATCB000472\Cover Letter\AP FORM.doc 02/08/02 Request for Confidentiality Date: May 27, 2003 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: Certification Application FCC ID: NKREM200B Brand: Wistron NeWeb Dear Sir, Please be advised that the following information is to be held confidential on behalf of Wistron NeWeb Corporation : ‰ Block Diagram ‰ Schematics The application contains technical information which Wistron NeWeb Corporation deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Sincerely, ________________ Eric Liu / Sr. Manager Engineer Wistron NeWeb Corporation

Wistron Neweb Corporation No. 10-1, Li-hsin Road 1, Science-based Industrial Park,Hsinchu 300, Taiwan, R. O. C. 886-3-666-7799 886-3-666-1654 Rev 2 C:\_My Business\DT Associates\_Client Data\_American TCB\_ATCB Apps in review\NKREM200B_ATCB000472\Cover Letter\AP FORM.doc 02/08/02 Letter Of Agency Date: May 27, 2003 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: Please be advised that Wistron NeWeb Corporation authorizes International Standards Laboratory (ISL) to act on our behalf, until otherwise notified, for applications submitted to American Telecommunications Certification Body, Inc. (ATCB). We certify that we are not subject to denial of federal benefits that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C. 862. Further, no party as defined in 47 CFR 1.2002(b), for this application is subject to denial of federal benefits that includes FCC benefits. Thank you for your attention to this matter. ________________ Eric Liu / Sr. Manager Engineer Wistron Corporation

Wistron Neweb Corporation No. 10-1, Li-hsin Road 1, Science-based Industrial Park,Hsinchu 300, Taiwan, R. O. C. 886-3-666-7799 886-3-666-1654 Date: June 09, 2003 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 FCC ID: NKREM200B Model: EM-200B Brand: Wistron NeWeb Dear Sir, We would like to declare that our product: mini-PCI transmitter module, Model: EM-200B, FCC ID: NKREM200B meets the requirements as a modular device which was indicated in FCC Public DA 00-1407, and to have your authorization as a modular approval. The statement is listed below: 1. “The modular transmitter must have its own RF shielding.” :The radio portion of this module has been shielded, please see the attached photo “Shielding”. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip RTL8180L.(Please see the schematic file) 3. “The modular transmitter must have its own power supply regulation.” The transmitter is a homodyne structure, and the baseband / rf modulator needs 3.0 V DC power supply. The mini-PCI interface provides 3.3V DC power supply, so there is a 3.3/3.0 DC regulator on the module, and the part number of this regulator is XC6209B302MR. Please see the attached photo “Regulator”. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(c).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photos of antennas are showed in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration”. The EUT is tested in a stand-alone configuration via a PCI extender board. The EUT is outside the notebook PC chassis using the extender board to extend the EUT outside the computer chassis. Please see the previous photo “eut-16”. Wistron Neweb Corporation No. 10-1, Li-hsin Road 1, Science-based Industrial Park,Hsinchu 300, Taiwan, R. O. C. 886-3-666-7799 886-3-666-1654 6. “The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module.” Please see exhibition label samples “Label EM- 200B” & “Label Exterior”. And also in the OEM installation manual, there are labels and the instructions on how to label the end product. 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirement.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with the applicable RF exposure requirements. RF Exposure is addressed in the MPE test report. This request for modular approval is restricted to applications in mobile Host configurations only. Thanks for your help and do not hesitate to contact us if you have any further questions. Yours sincerely, Sincerely, ________________ Eric Liu / Sr. Manager Engineer Wistron NeWeb Corporation Wistron Neweb Corporation No. 10-1, Li-hsin Road 1, Science-based Industrial Park,Hsinchu 300, Taiwan, R. O. C. 886-3-666-7799 886-3-666-1654 “ Shielding” “ Regulator”

HI Daphne The FCC requires a separate exhibit for the operational description. This means you will have to provide a separate document for this operational description, not just an operational description as part of a response. Please provide the operational description as a separate file. Please note that the attestation letter for modular approval must also request modular approval. Usually the attestation letter states how it complies with each of the 8 requirements individually, not just that it complies. Also, since this is restricted to mobile applications, the request should address this fact. A simple sentence at the end stating something to the affect as, “This request for modular approval is restricted to applications in mobile Host configurations only.” Please note that the application is still not in compliance with all 8 modular requirements. Your manual still does not meet requirement 6 of the docket. Item 6 clearly states, “ The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization.” Please note that this is not the same as the ID label that is on the device. This is the label that is to appear on the final product. Your manual must clearly instruct the OEM on the above. Please provide a manual that provides these clear instructions to the OEM. Please note that your answer to Item 3 (20cm separation and mobile use) does not address the restriction from use in laptops that can operate with the LCD screen in the closed position (i.e. convertible tablet/laptop PC’s). Simply because the antenna(s) are in the top of the LCD does not mean it is mobile. The new technology laptops can, in some instances, be converted to a tablet PC. This device must be restricted from use in such a Host since this would make the device portable because it would put the antenna(s) in the LCD within 5cm of the body when used in the lap. How is this addressed? Thanks Dennis

1 dward From: dward [[email protected]] Sent: Tuesday, June 03, 2003 11:24 AM To: '[email protected]' Cc: Bill Graff ([email protected]) Subject: FCC ID: NKREM200B HI Daphne The FCC requires a separate exhibit for the operational description. This means you will have to provide a separate document for this operational description, not just an operational description as part of a response. Please provide the operational description as a separate file. Please note that the attestation letter for modular approval must also request modular approval. Usually the attestation letter states how it complies with each of the 8 requirements individually, not just that it complies. Also, since this is restricted to mobile applications, the request should address this fact. A simple sentence at the end stating something to the affect as, “This request for modular approval is restricted to applications in mobile Host configurations only.” Please note that the application is still not in compliance with all 8 modular requirements. Your manual still does not meet requirement 6 of the docket. Item 6 clearly states, “ The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization.” Please note that this is not the same as the ID label that is on the device. This is the label that is to appear on the final product. Your manual must clearly instruct the OEM on the above. Please provide a manual that provides these clear instructions to the OEM. Please note that your answer to Item 3 (20cm separation and mobile use) does not address the restriction from use in laptops that can operate with the LCD screen in the closed position (i.e. convertible tablet/laptop PC’s). Simply because the antenna(s) are in the top of the LCD does not mean it is mobile. The new technology laptops can, in some instances, be converted to a tablet PC. This device must be restricted from use in such a Host since this would make the device portable because it would put the antenna(s) in the LCD within 5cm of the body when used in the lap. How is this addressed? Thanks Dennis

Dear Dennis, Here are our answers, please review 1. Ans: See the Attach file (attestation-letter.doc) 2. Ans: See the updated Manual. (KM8-1 manual-update.doc) 3. Ans: Antennas are embedded in the top corners of the panel ( see the page 6 of the updated Manual ) by the OEM integrators. The distance from the antennas to the body should be over 20cm. The module is useable in a mobile configurations, not a portable configurations. 4. Ans: Same with Answer 3. 5. Ans: Same with Answer 3 & see page of updated Manual. 6. Ans: Yes, the frequency range should be 150KHz to 30MHz. We have corrected it in the updated report.( 03LR007FC-update.doc ) 7. Ans: Thanks a lot, and we have updated the new standard in the report.( 03LR007FC-update.doc) 8. Ans: (1) The operational description: The IEEE802.11b Mini PCI WLAN adapter is embedded 2.4GHz Wireless Local Area Network Mini-PCI adapter. The Mini-PCI form factor is designed for notebook computer systems where overall thickness must be kept to an absolute minimum. It is capable of a data rate of up to 11 Mbps at 2.4GHz. During the test, the adapter was tested outside the notebook PC chassis using a PCI extender board to extend the adapter outside the computer chassis. The adapter was then connected to a set of antennas via its transmit and receive Hirose connectors. (2) The Separate MPE report is attached: (03LR007MPE.doc ) If there is any info needed, feel free to contact me through e-mail Thanks Daphne Liu

Date: June 10, 2003 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 FCC ID: NKREM200B Model: EM-200B Brand: Wistron NeWeb Dear Dennis, Here are our answers: 1. an separate operation description was attached file name: operation description.pdf 2. an update attestation letter was attached, clearly indicated complying with 8 requirements file name: attestation-letter-update.pdf 3. a module label & a exterior label were indicated in the updated users manual p8. For the item 3 <20cm separation and mobile use> were also mentioned in this updated manual P7 file name KM8-1 manual-06062003-update If there is any info needed, feel free to contact me through e-mail Thanks Daphne Liu

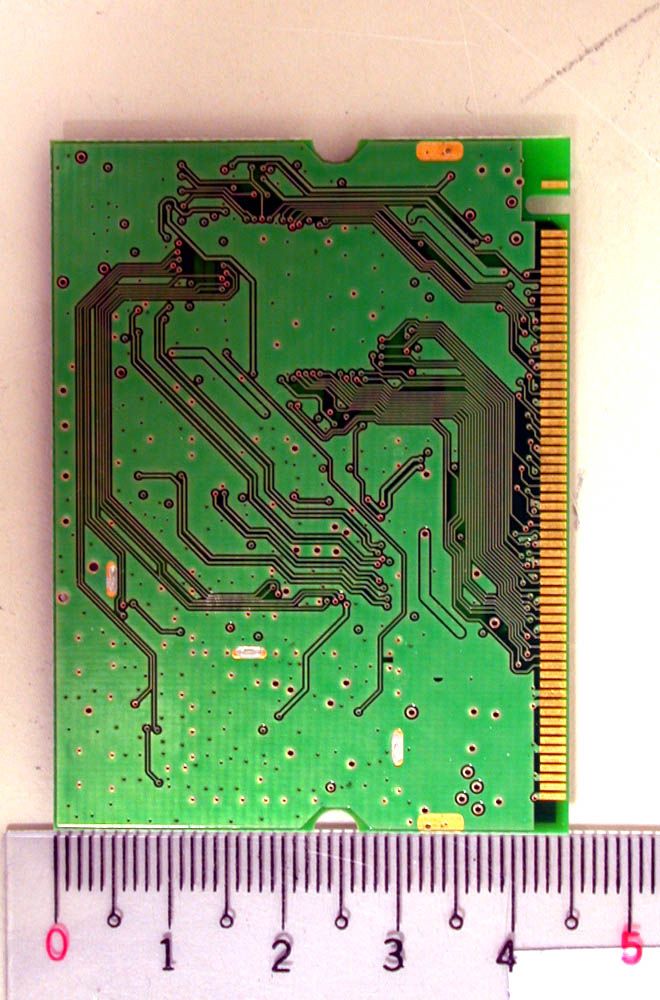

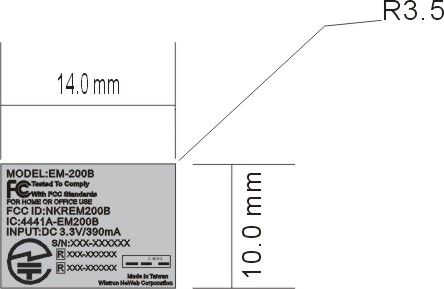

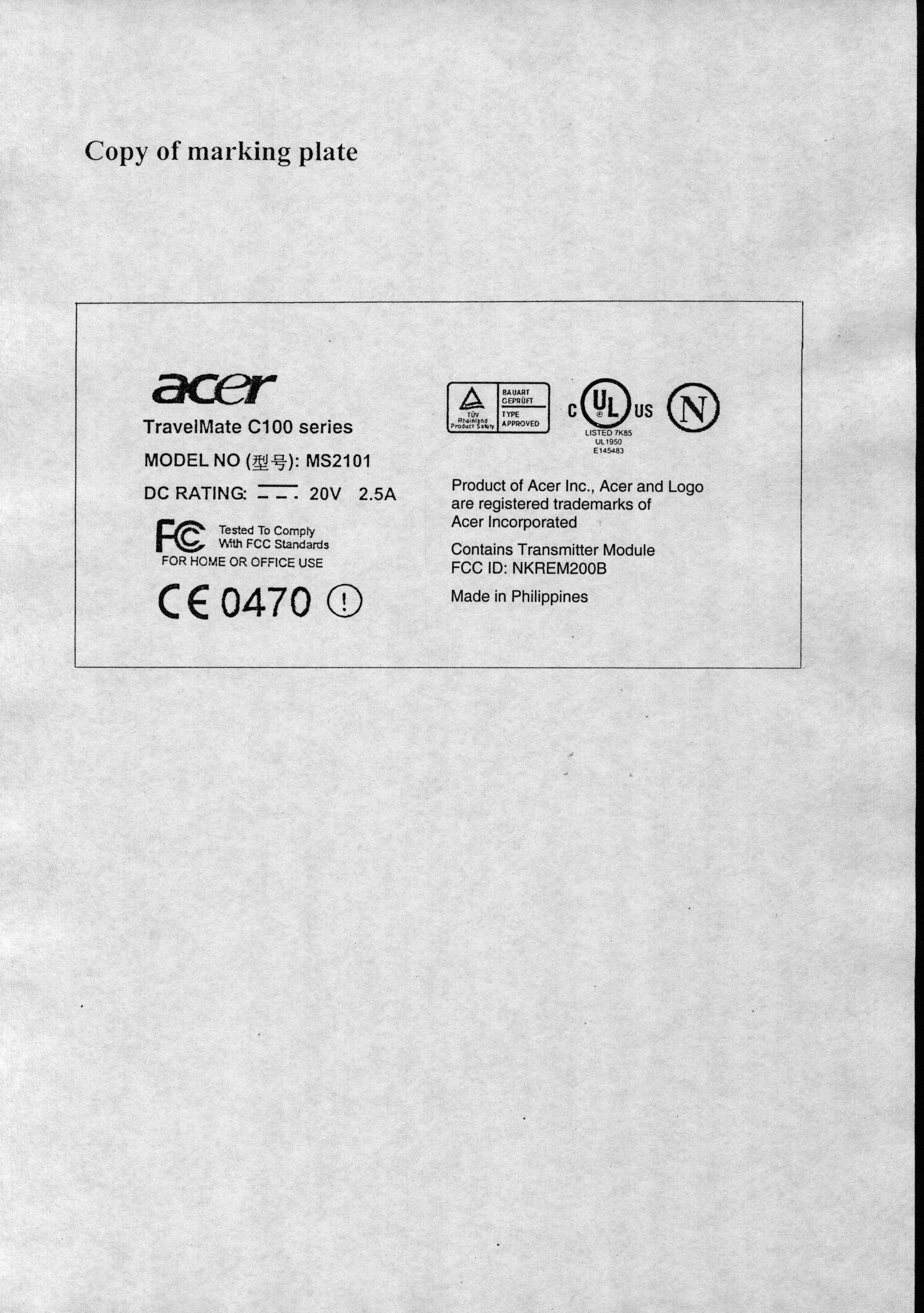

FCC Label Label Location Label Location

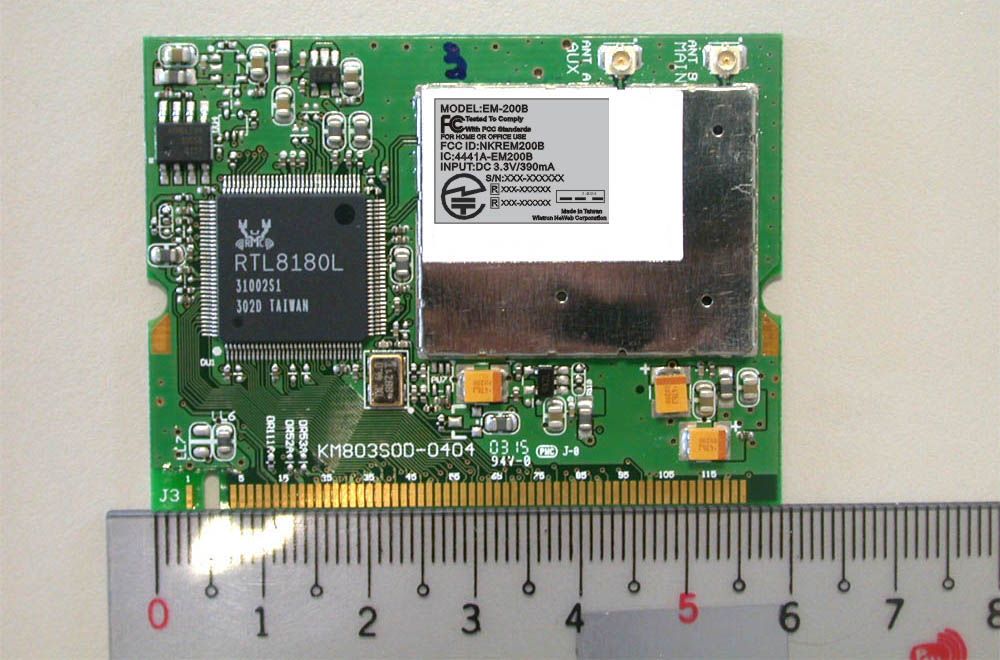

Operational Description For EM-200B The IEEE802.11b Mini PCI WLAN adapter is embedded 2.4GHz Wireless Local Area Network Mini-PCI adapter. The channel and the operation frequency are located on the free licensed ISM band from 2412MHz to 2462MHz, and different Modulations are applied to different select data rate mechanism. The DBPSK modulation operates at 1Mbps low date transmit rate, the DQPSK modulation operates at 2Mbps standard date transmit rate, the CCK operates at 5.5 medium and 11Mbps high date transmit rate respectively. The adapter is 60mm x 45mm in dimension, and mainly contains a 128-pin MAC controller and a fully duplex RF transceiver inside. The fully duplex RF transceiver is a direct conversion structure, and the chip of Philips SA2400ABE which needs 3.0V power supply is used. The RF transceiver is connected to a set of antennas via its transmit and receive Hirose connectors. The MAIN connector is linked to the main antenna which transmits and receives the RF signal for data communication, and the AUX connector is linked to the aux antenna which only receives the RF signal. For reducing the fading effect, the antenna diversity is applied. The distance between the main antenna and the aux antenna should be kept a half of the wave length. The Mini-PCI form factor is designed for notebook computer systems where overall thickness must be kept to an absolute minimum. When the PCI interface connects the WLAN adapter and notebook PC for baseband data communicating, the adapter could be bound inside the notebook PC, and a high frequency coaxial cable along the casing links the adapter and the antenna from the notebook bottom to the top seam of the LCD plane. The distance among the antenna, the adapter, and the human body would be large enough for anti-interference and anti- exposure in normal operation.
