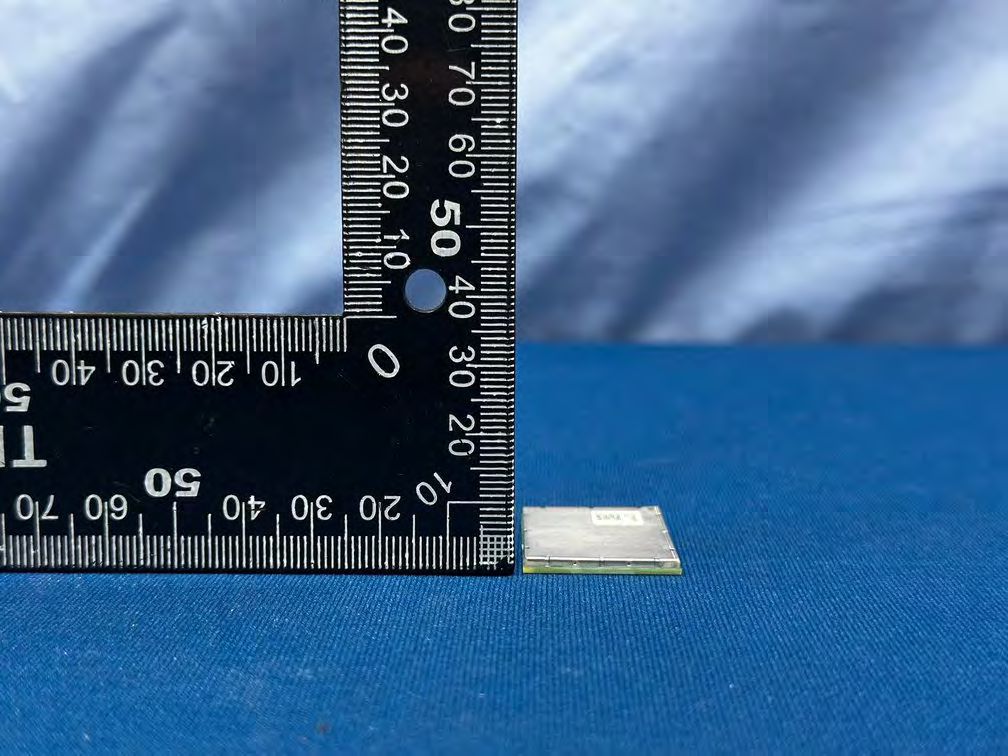

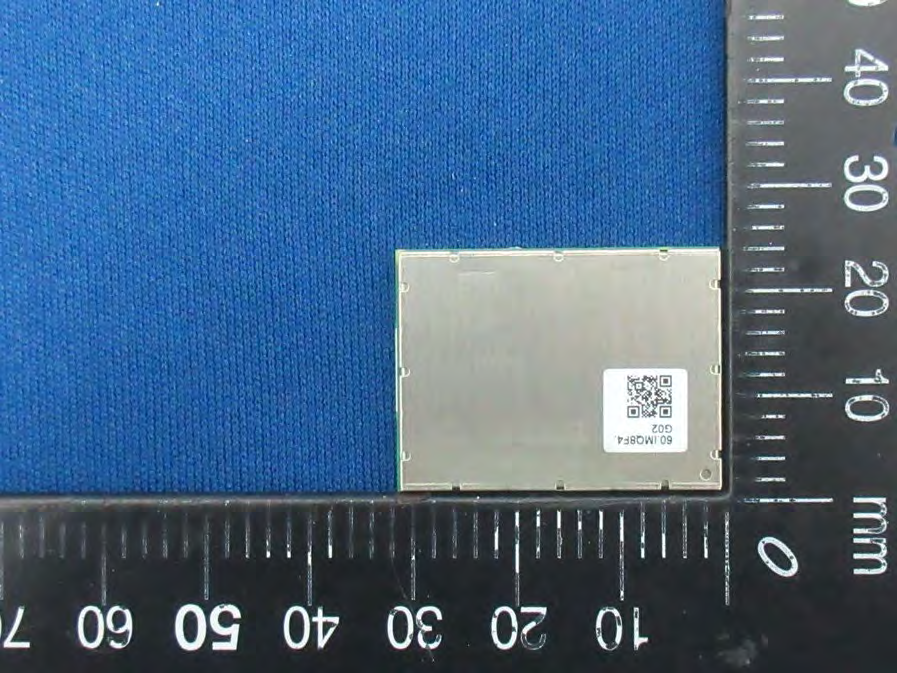

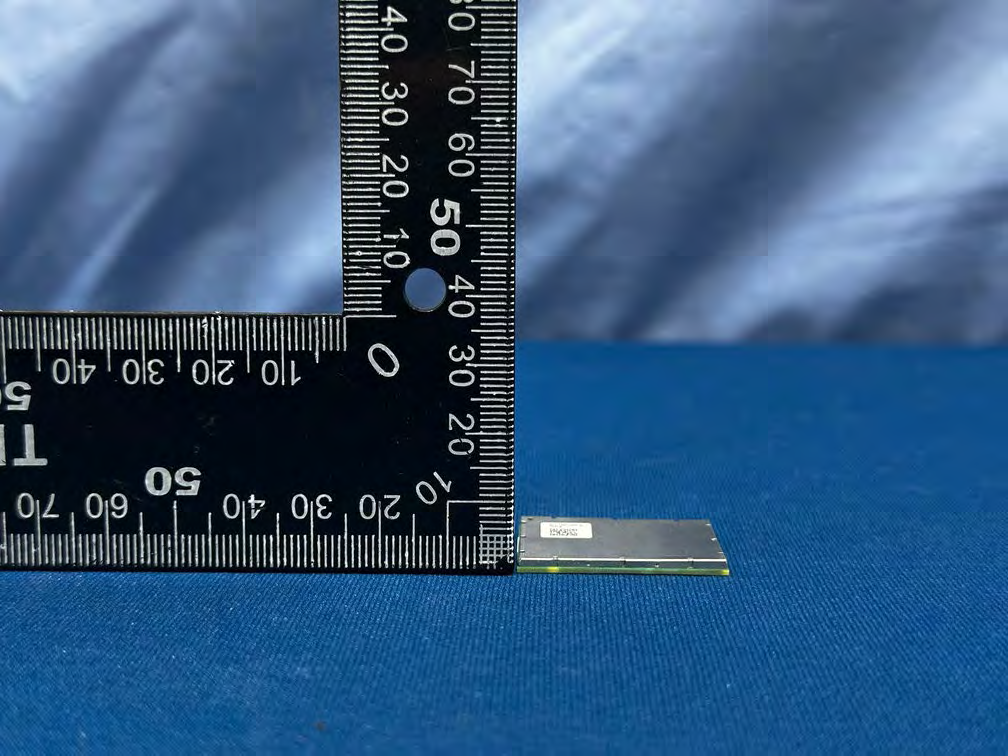

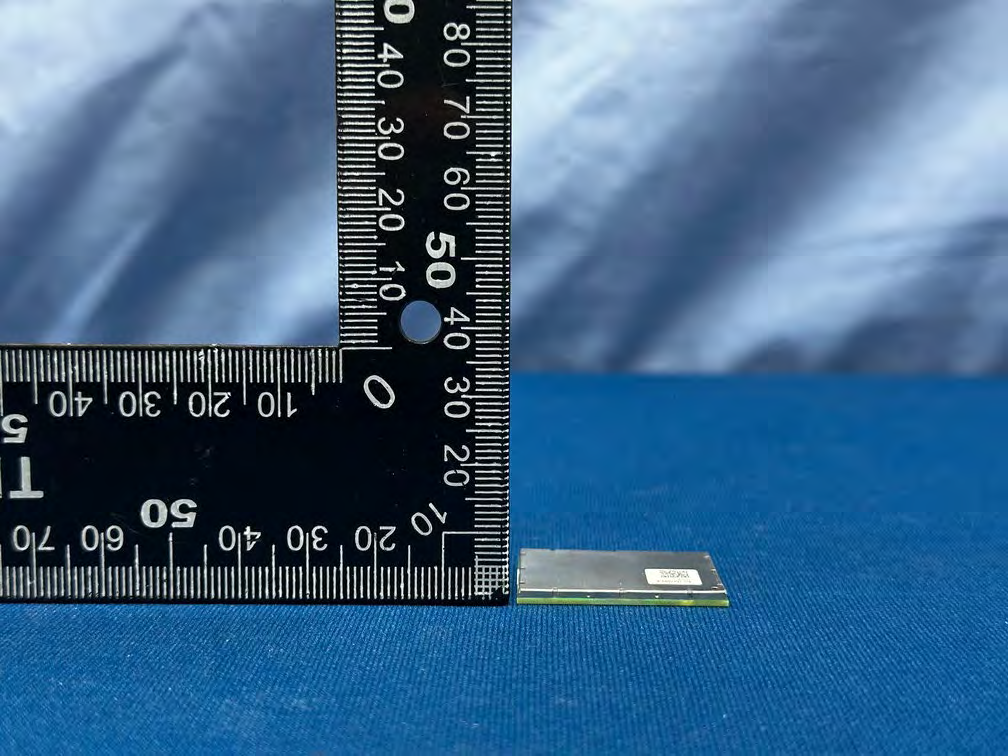

NKRIMQ8F4LTE 4G module

WNC Corporation

Click to zoom

Application Details

Equipment Class: PCB - PCS Licensed Transmitter
Date of Grant: May 04, 2026
Application Purpose: Original Equipment
Equipment Note: LTE 4G module
Frequency Range: 665.50000000 - 695.50000000
Company: WNC Corporation
Country: Taiwan

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

□ Normal □ Internal Use  Confidential □ Restricted Confidential 1 / 70 Product Name: IMQ8F4 module Author: Wistron NeWeb Corporation Revision: 1.0 Revision Date: 2026/01/15 Product Technical Specifications & Design guide HW Design Guidelines □ Normal □ Internal Use  Confidential □ Restricted Confidential 2 / 70 Contact Information Technical Support website https://SupportIoT.wnc.com.tw Company Website www.wnc.com.tw Revision History Rev. # Author Summary of Changes Date 1.0 WNC First release 2026/01/15 1.1 WNC Modify module’s picture 2026/04/23 © WNC Corporation THIS DOCUMENT AND THE INFORMATION CONTAINED HEREIN IS PROPRIETARY AND IS THE EXCLUSIVE PROPERTY OF WNC AND SHALL NOT BE DISTRIBUTED, REPRODUCED, OR DISCLOSED IN WHOLE OR IN PART WITHOUT PRIOR WRITTEN PERMISSION FROM WNC. LIMITATION OF LIABILITY THIS DOCUMENT AND THE INFORMATION CONTAINED HEREIN IS PURELY FOR DESIGN REFERENCE AND SUBJECT TO REVISION BY WNC AT ANY TIME. NOTHING IN THIS DOCUMENT SHALL BE CONSTRUED AS GRANTING ANY WARRANTY OR RIGHT TO USE THE MATERIAL CONTAINED HEREIN WITHOUT WNC’S PRIOR EXPRESS WRITTEN CONSENT. WNC SHALL NOT BE LIABLE FOR ANY USE, APPLICATION OR DEVELOPMENT DERIVED FROM THE MATERIAL WITHOUT SUCH PRIOR EXPRESS WRITTEN CONSENT. HW Design Guidelines □ Normal □ Internal Use  Confidential □ Restricted Confidential 3 / 70 Contents Contact Information ............................................................................................................................. 2 Revision History ................................................................................................................................... 2 Contents .............................................................................................................................................. 3 1. Introduction ................................................................................................................................. 6 1.1. Abbreviation ............................................................................................................................... 6 1.2. Features ...................................................................................................................................... 7 2. Electrical Specifications ................................................................................................................ 9 2.1. Host interface pin assignments .................................................................................................. 9 2.1.1. LGA Pad Diagram ........................................................................................................... 9 2.1.2. Pin Assignments ........................................................................................................... 10 2.2. Power supply ............................................................................................................................ 19 2.3. USB interface ............................................................................................................................ 20 2.4. SGMII interface ......................................................................................................................... 22 2.5. UIM interface ............................................................................................................................ 23 2.6. Control interface ....................................................................................................................... 27 2.6.1. Power-on Signal ........................................................................................................... 27 2.6.2. Wake-up interface ....................................................................................................... 28 2.6.3. Reset Signal .................................................................................................................. 29 2.6.4. WWAN state Signal ...................................................................................................... 30 2.6.5. Emergency download interface ................................................................................... 30 2.7. Digital interface ........................................................................................................................ 31 2.7.1. JTAG Interface .............................................................................................................. 31 2.7.2. SPI Master Interface .................................................................................................... 32 HW Design Guidelines □ Normal □ Internal Use  Confidential □ Restricted Confidential 4 / 70 2.7.3. PCM Interface .............................................................................................................. 32 2.7.4. I2S Interface ................................................................................................................. 34 2.7.5. I2C Interface ................................................................................................................ 36 2.7.6. UART Interface ............................................................................................................. 36 2.7.7. ADC Interface ............................................................................................................... 37 2.7.8. Secure digital interfaces .............................................................................................. 37 3. RF Specifications ........................................................................................................................ 39 3.1. RF connections .......................................................................................................................... 39 3.2. Interference and sensitivity ...................................................................................................... 40 3.3. GNSS external circuit design .......................................…

Text truncated - open the document above for the full version.

Test Report

Report No.：2620312R-RFUSV22S-A2 TEL : +886-3-582-8001 Page Number : 1 of 20 FAX : +886-3-582-8958 Issued Date : Apr. 20, 2026 Report Version : V1.0 Test Report No: 2620312R-RFUSV22S-A2 TEST REPORT FCC Rules&Regulations Product Name LTE 4G module Brand Name WNC Corporation Model No. IMQ8F4 FCC ID NKRIMQ8F4 Applicant ́s Name / Address WNC Corporation 20 Park Avenue II, Hsinchu Science Park, Hsinchu 300, Taiwan Manufacturer’s N ame / Address WNC Corporation 20 Park Ave. II, Hsinchu Science Park, Hsinchu 308, Taiwan Test Method Requested, Standard FCC CFR Title 47 Part 22 Subpart H FCC CFR Title 47 Part 24 Subpart E FCC CFR Title 47 Part 27Subpart F, Subpart L FCC CFR Title 47 Part 90 Subpart S ANSI/TIA-603-E-2016 ANSI C63.26-2015 Verdict Summary IN COMPLIANCE Documented By Hailey Peng Approved By Rueyyan Lin Date of Receipt Feb. 11, 2026 Date of Issue Apr. 20, 2026 Report Version V1.0 Report No.：2620312R-RFUSV22S-A2 TEL : +886-3-582-8001 Page Number : 2 of 20 FAX : +886-3-582-8958 Issued Date : Apr. 20, 2026 Report Version : V1.0 INDEX page Competences and Guarantees ............................................................................................................................... 4 General Conditions ................................................................................................................................................. 4 Revision History ...................................................................................................................................................... 5 Summary of Test Result .......................................................................................................................................... 6 Comments and Remarks ........................................................................................................................................ 7 1. General Information................................................................................................................................. 8 1.1. EUT Description ...................................................................................................................................... 8 1.2. EUT Information ...................................................................................................................................... 9 1.3. Testing Applied Standards ...................................................................................................................... 9 1.4. Testing Location Information ................................................................................................................. 10 1.5. Measurement Uncertainty ..................................................................................................................... 10 1.6. List of Test Equipment ........................................................................................................................... 11 2. Test Configuration of EUT ..................................................................................................................... 12 2.1. Test Condition ....................................................................................................................................... 12 2.2. The Worst Case Measurement Configuration ...................................................................................... 12 2.3. Tested System Details .......................................................................................................................... 13 2.4. Configuration of Tested System ............................................................................................................ 13 3. RF Output Power ................................................................................................................................... 14 3.1. Test Setup ............................................................................................................................................. 14 3.2. Test Procedure ...................................................................................................................................... 14 3.3. Test Result of RF Output Power ........................................................................................................... 14 4. Occupied Bandwidth ............................................................................................................................. 15 4.1. Test Setup ............................................................................................................................................. 15 4.2. Te s t Procedures .................................................................................................................................... 15 4.3. Test Result of Occupied Bandwidth ...................................................................................................... 15 5. Peak to Average Power Ratio ............................................................................................................... 16 5.1. Test Setup ............................................................................................................................................. 16 5.2. Test Procedure ...................................................................................................................................... 16 5.3. Test Result of Peak to Average Power Ratio ........................................................................................ 16 6. Spurious Emission ................................................................................................................................. 17 6.1. Test Setup ............................................................................................................................................. 17 6.2. Test Procedure ................................................................................................................................…

Text truncated - open the document above for the full version.

Test Setup Photos

Report No.: 2620312R TEL : +886-3-582-8001 Page Number : 21 of 23 FAX : +886-3-582-8958 Appendix G. Test Setup Photograph <Radiated Emission> Description: Front View of Radiated Spurious Emission Test Setup (below 1 GHz) Description: Rear View of Radiated Spurious Emission Test Setup (below 1 GHz) Report No.: 2620312R TEL : +886-3-582-8001 Page Number : 22 of 23 FAX : +886-3-582-8958 Description: Front View of Radiated Spurious Emission Test Setup (above 1 GHz) Description: Rear View of Radiated Spurious Emission Test Setup (above 1 GHz) Report No.: 2620312R TEL : +886-3-582-8001 Page Number : 23 of 23 FAX : +886-3-582-8958 <RF Conducted Emission> Description: Conducted Spurious Emission Test Setup

Test Setup Photos

Report No.: 2620312R TEL : +886-3-582-8001 Page Number : 228 of 230 FAX : +886-3-582-8958 Appendix G. Test Setup Photograph <Radiated Emission> Description: Front View of Radiated Spurious Emission Test Setup (below 1 GHz) Description: Rear View of Radiated Spurious Emission Test Setup (below 1 GHz) Report No.: 2620312R TEL : +886-3-582-8001 Page Number : 229 of 230 FAX : +886-3-582-8958 Description: Front View of Radiated Spurious Emission Test Setup (above 1 GHz) Description: Rear View of Radiated Spurious Emission Test Setup (above 1 GHz) Report No.: 2620312R TEL : +886-3-582-8001 Page Number : 230 of 230 FAX : +886-3-582-8958 <RF Conducted Emission> Description: Conducted Spurious Emission Test Setup

Test Report

MAG.LAYERS APPROVAL SHEET (RoHS) CUSTOMER : CUSTOMER’S PART NO. : DESCRIPTION : RF ANTENNA ASSEMBLY PART NO. : BTEA0020106G0R2A22 DATE : AUTHORIZED BY : Alvin Chen FULLY APPROVED PARTIALLY APPROVED REJECTED SIGN SUGGESTION 美磊科技股份有限公司 MAG. LAYERS SCIENTIFIC-TECHNICS CO., LTD No.270, Nanfeng Rd., Pingzhen Dist., Taoyuan City 324, Taiwan (R.O.C.) TEL: +886-3-4159111 FAX: +886-3-4192255 http://www.maglayers.com.tw E-mail：[email protected] MAG.LAYERS Revisions REV. Description Date Prepared by Approved by V01 New Release 2021/10/20 Maggie Alvin MAG.LAYERS Contents Item Description Page 1. ．．．．．．．．．． Antenna Specification ．．．．．．．4 2. ．．．．．．．．．． Mechanical Specification ．．．．．．．5 3. ．．．．．．．．．． Test Report ．．．．．．6~43 MAG.LAYERS Antenna Specification ■ ELECTRICAL PROPERTIES 1.1 Frequency Range.......................... ..... 617-960MHz/1100-1612MHz 1710-2170MHz/2170-2300MHz 2300-2700MHz/3300-3800MHz 3800-4200MHz/4400-5000MHz 5150-5950MHz 1.2 Impedance................................ ..... 50 Ohm Nominal 1.3 VSWR.......................................... .... 7(Max) 1.4 Radiation.................................. .... Omni-directional 1.5 Peak Gain ................................ .... 617-960MHz/2.55dBi 1100-1612MHz/2.15dBi 1710-2170MHz/2.72dBi 2170-2300MHz/2.43dBi 2300-2700MHz/4.75dBi 3300-3800MHz/4.17dBi 3800-4200MHz/4.67dBi 4400-5000MHz/4.50dBi 5150-5950MHz/6.43dBi 1.6 Polarization............................... .... Linear Vertical 1.7 Admitted Power........................ .... 1W ■ PHYSICAL PROPERTIES 2.1 Cable............................................... ..... RG-178 2.2 Antenna Cover........................... ..... ABS 2.3 Antenna Base............................ .... PC+PBT 2.4 Operating Temp............................. .... -20°C ~ +65°C 2.5 Storage Temp................................. .... -30°C ~ +70°C 2.6 Color............................................... ..... Black MAG.LAYERS Mechanical Specification MAG.LAYERS Experimental Setup MAG.LAYERS RF Antenna Assembly ■ELECTRICAL CHARACTERISTICS P/NO: BTE A0020106G0R2A22 Spec: 617-960MHz/1100-1612MHz/1710-2170MHz/2170-2300MHz 2300-2700MHz/3300-3800MHz/3800-4200MHz/4400-5000MHz 5150-5950MHz Return Loss VSWR MAG.LAYERS MAG.LAYERS MAG.LAYERS MAG.LAYERS MAG.LAYERS MAG.LAYERS MAG.LAYERS MAG.LAYERS MAG.LAYERS MAG.LAYERS MAG.LAYERS MAG.LAYERS MAG.LAYERS MAG.LAYERS MAG.LAYERS MAG.LAYERS MAG.LAYERS MAG.LAYERS MAG.LAYERS MAG.LAYERS MAG.LAYERS MAG.LAYERS MAG.LAYERS MAG.LAYERS MAG.LAYERS MAG.LAYERS MAG.LAYERS MAG.LAYERS MAG.LAYERS MAG.LAYERS MAG.LAYERS MAG.LAYERS . MAG.LAYERS MAG.LAYERS MAG.LAYERS MAG.LAYERS

Test Report

Report No.：2620312R-RFUSV22S-A1 TEL : +886-3-582-8001 Page Number : 1 of 18 FAX : +886-3-582-8958 Issued Date : Apr. 20, 2026 Report Version : V1.0 Test Report No: 2620312R-RFUSV22S-A1 TEST REPORT FCC Rules&Regulations Product Name LTE 4G module Brand Name WNC Corporation Model No. IMQ8F4 FCC ID NKRIMQ8F4 Applicant ́s Name / Address WNC Corporation 20 Park Avenue II, Hsinchu Science Park, Hsinchu 300, Taiwan Manufacturer’s Name / Address WNC Corporation 20 Park Ave. II, Hsinchu Science Park, Hsinchu 308, Taiwan Te s t Method Requested, Standard FCC CFR Title 47 Part 22 Subpart H FCC CFR Title 47 Part 24 Subpart E ANSI/TIA-603-E-2016 ANSI C63.26-2015 Verdict Summary IN COMPLIANCE Documented By Hailey Peng Approved By Rueyyan Lin Date of Receipt Feb. 11, 2026 Date of Issue Apr. 20, 2026 Report Version V1.0 Report No.：2620312R-RFUSV22S-A1 TEL : +886-3-582-8001 Page Number : 2 of 18 FAX : +886-3-582-8958 Issued Date : Apr. 20, 2026 Report Version : V1.0 INDEX page Competences and Guarantees ............................................................................................................................... 4 General Conditions ................................................................................................................................................. 4 Revision History ...................................................................................................................................................... 5 Summary of Test Result .......................................................................................................................................... 6 Comments and Remarks ........................................................................................................................................ 6 1. General Information................................................................................................................................. 7 1.1. EUT Description ...................................................................................................................................... 7 1.2. EUT Information ...................................................................................................................................... 7 1.3. Testing Applied Standards ....................................................................................................................... 7 1.4. Testing Location Information ................................................................................................................... 8 1.5. Measurement Uncertainty ....................................................................................................................... 8 1.6. List of Test Equipment ............................................................................................................................. 9 2. Test Configuration of EUT ..................................................................................................................... 10 2.1. Test Condition ........................................................................................................................................ 10 2.2. The Worst Case Measurement Configuration ....................................................................................... 10 2.3. Tested System Details ........................................................................................................................... 11 2.4. Configuration of Tested System ............................................................................................................ 11 3. RF Output Power ................................................................................................................................... 12 3.1. Test Setup ............................................................................................................................................. 12 3.2. Test Procedure ...................................................................................................................................... 12 3.3. Test Result of RF Output Power ............................................................................................................ 12 4. Occupied Bandwidth ............................................................................................................................. 13 4.1. Test Setup ............................................................................................................................................. 13 4.2. Te s t Procedures .................................................................................................................................... 13 4.3. Test Result of Occupied Bandwidth ...................................................................................................... 13 5. Peak to Average Power Ratio ............................................................................................................... 14 5.1. Test Setup ............................................................................................................................................. 14 5.2. Test Procedure ...................................................................................................................................... 14 5.3. Test Result of Peak to Average Power Ratio ........................................................................................ 14 6. Spurious Emission ................................................................................................................................. 15 6.1. Test Setup ............................................................................................................................................. 15 6.2. Test Procedure ...................................................................................................................................... 16 6.3. Test Result of Radiated Spurious Emission (Below 1 GHz).…

Text truncated - open the document above for the full version.

Test Report

Report No.: 2620312R TEL : +886-3-582-8001 Page Number : 215 of 230 FAX : +886-3-582-8958 Mode 5: LTE Band 13 LTE Band 13 / 5 MHz / 779.5 MHz Voltage (VDC) Frequency Stability (Hz) Frequency Stability (ppm) 13.80 -3.47 -0.0045 12.00 -1.91 -0.0025 10.20 -2.24 -0.0029 Temperature (°C) Frequency Stability (Hz) Frequency Stability (ppm) -20 -1.87 -0.0024 -10 -1.41 -0.0018 0 -2.53 -0.0032 10 -3.31 -0.0042 20 -3.27 -0.0042 30 -2.10 -0.0027 40 -2.48 -0.0032 50 -2.41 -0.0031 60 -2.42 -0.0031 65 -2.44 -0.0031 LTE Band 13 / 5 MHz / 782 MHz Voltage (VDC) Frequency Stability (Hz) Frequency Stability (ppm) 13.80 2.22 0.0028 12.00 3.00 0.0038 10.20 3.07 0.0039 Temperature (°C) Frequency Stability (Hz) Frequency Stability (ppm) -20 3.25 0.0042 -10 3.06 0.0039 0 2.24 0.0029 10 2.92 0.0037 20 3.10 0.0040 30 1.88 0.0024 40 2.40 0.0031 50 2.64 0.0034 60 2.92 0.0037 65 2.36 0.0030 Report No.: 2620312R TEL : +886-3-582-8001 Page Number : 216 of 230 FAX : +886-3-582-8958 LTE Band 13 / 5 MHz / 784.5 MHz Voltage (VDC) Frequency Stability (Hz) Frequency Stability (ppm) 13.80 -1.61 -0.0021 12.00 -1.15 -0.0015 10.20 -1.74 -0.0022 Temperature (°C) Frequency Stability (Hz) Frequency Stability (ppm) -20 -0.78 -0.0010 -10 -2.02 -0.0026 0 -2.39 -0.0030 10 -2.34 -0.0030 20 -2.11 -0.0027 30 -1.88 -0.0024 40 -1.81 -0.0023 50 -1.95 -0.0025 60 -1.83 -0.0023 65 -1.69 -0.0022 LTE Band 13 / 10 MHz / 782 MHz Voltage (VDC) Frequency Stability (Hz) Frequency Stability (ppm) 13.80 2.55 0.0033 12.00 2.28 0.0029 10.20 1.64 0.0021 Temperature (°C) Frequency Stability (Hz) Frequency Stability (ppm) -20 2.22 0.0028 -10 1.64 0.0034 0 1.91 0.0021 10 2.12 0.0028 20 2.36 0.0030 30 2.36 0.0030 40 2.45 0.0031 50 0.84 0.0011 60 1.32 0.0017 65 1.50 0.0019 Report No.: 2620312R TEL : +886-3-582-8001 Page Number : 217 of 230 FAX : +886-3-582-8958 Mode 6: LTE Band 26 (Part 90) LTE Band 26 / 1.4 MHz / 814.7 MHz Voltage (VDC) Frequency Stability (Hz) Frequency Stability (ppm) 13.80 1.30 0.0016 12.00 2.13 0.0026 10.20 1.63 0.0020 Temperature (°C) Frequency Stability (Hz) Frequency Stability (ppm) -20 2.52 0.0031 -10 2.41 0.0030 0 1.81 0.0022 10 1.27 0.0016 20 0.88 0.0011 30 1.17 0.0014 40 1.74 0.0021 50 1.16 0.0014 60 1.35 0.0017 65 2.79 0.0034 LTE Band 26 / 1.4 MHz / 819 MHz Voltage (VDC) Frequency Stability (Hz) Frequency Stability (ppm) 13.80 2.82 0.0034 12.00 3.12 0.0038 10.20 2.92 0.0036 Temperature (°C) Frequency Stability (Hz) Frequency Stability (ppm) -20 2.11 0.0026 -10 2.16 0.0026 0 3.16 0.0039 10 3.88 0.0047 20 2.06 0.0025 30 2.00 0.0024 40 2.35 0.0029 50 3.08 0.0038 60 2.58 0.0032 65 2.75 0.0034 Report No.: 2620312R TEL : +886-3-582-8001 Page Number : 218 of 230 FAX : +886-3-582-8958 LTE Band 26 / 1.4 MHz / 823.3 MHz Voltage (VDC) Frequency Stability (Hz) Frequency Stability (ppm) 13.80 2.35 0.0029 12.00 2.11 0.0026 10.20 2.71 0.0033 Temperature (°C) Frequency Stability (Hz) Frequency Stability (ppm) -20 0.94 0.0011 -10 2.05 0.0025 0 2.74 0.0033 10 0.96 0.0012 20 2.00 0.0024 30 2.00 0.0024 40 1.21 0.0015 50 0.56 0.0007 60 1.82 0.0022 65 1.30 0.0016 LTE Band 26 / 3 MHz / 81 5.5 MHz Voltage (VDC) Frequency Stability (Hz) Frequency Stability (ppm) 13.80 1.66 0.0020 12.00 2.27 0.0028 10.20 0.97 0.0012 Temperature (°C) Frequency Stability (Hz) Frequency Stability (ppm) -20 2.24 0.0027 -10 1.96 0.0024 0 2.64 0.0032 10 1.60 0.0020 20 1.28 0.0016 30 1.87 0.0023 40 0.65 0.0008 50 2.41 0.0030 60 1.29 0.0016 65 1.64 0.0020 Report No.: 2620312R TEL : +886-3-582-8001 Page Number : 219 of 230 FAX : +886-3-582-8958 LTE Band 26 / 3 MHz / 819 MHz Voltage (VDC) Frequency Stability (Hz) Frequency Stability (ppm) 13.80 1.08 0.0013 12.00 1.55 0.0019 10.20 0.81 0.0010 Temperature (°C) Frequency Stability (Hz) Frequency Stability (ppm) -20 1.09 0.0013 -10 1.46 0.0018 0 1.17 0.0014 10 0.06 0.0001 20 0.90 0.0011 30 1.18 0.0014 40 0.98 0.0012 50 0.14 0.0002 60 0.85 0.0010 65 0.56 0.0007 LTE Band 26 / 3 MHz / 822.5 MHz Voltage (VDC) Frequency Stability (Hz) Frequency Stability (ppm) 13.80 0.91 0.0011 12.00 2.59 0.0031 10.20 2.52 0.0031 Temperature (°C) Frequency Stability (Hz) Frequency Stability (ppm) -20 2.02 0.0025 -10 2.66 0.0032 0 2.72 0.0033 10 1.72 0.0021 20 2.08 0.0025 30 1.96 0.0024 40 2.33 0.0028 50 1.75 0.0021 60 2.41 0.0029 65 2.51 0.0031 Report No.: 2620312R TEL : +886-3-582-8001 Page Number : 220 of 230 FAX : +886-3-582-8958 LTE Band 26 / 5 MHz / 81 6.5 MHz Voltage (VDC) Frequency Stability (Hz) Frequency Stability (ppm) 13.80 2.42 0.0030 12.00 2.11 0.0026 10.20 1.29 0.0016 Temperature (°C) Frequency Stability (Hz) Frequency Stability (ppm) -20 1.65 0.0020 -10 0.96 0.0012 0 1.61 0.0020 10 0.92 0.0011 20 2.41 0.0030 30 1.75 0.0021 40 2.13 0.0026 50 1.44 0.0018 60 1.29 0.0016 65 1.49 0.0018 LTE Band 26 / 5 MHz / 819 MHz Voltage (VDC) Frequency Stability (Hz) Frequency Stability (ppm) 13.80 -1.58 -0.0019 12.00 -1.23 -0.0015 10.20 -1.84 -0.0022 Temperature (°C) Frequency Stability (Hz) Frequency Stability (ppm) -20 -2.20 -0.0027 -10 -2.23 -0.0027 0 -1.59 -0.0019 10 -2.14 -0.0026 20 -1.80 -0.0022 30 -1.34 -0.0016 40 -1.31 -0.0016 50 -1.34 -0.0016 60 -1.32 -0.0016 65 -0.66 -0.0008 Report No.: 2620312R TEL : +886-3-582-8001 Page Number : 221 of 230 FAX : +886-3-582-8958 LTE Band 26 / 5 MHz / 821.5 MHz Voltage (VDC) Frequency Stability (Hz) Frequency Stability (ppm) 13.80 0.97 0.0012 12.00 2.58 0.0031 10.20 2.00 0.0024 Temperature (°C) Frequency Stability (Hz) Frequency Stability (ppm) -20 2.39 0.0029 -10 1.97 0.0024 0 2.22 0.0027 10 2.65 0.0032 20 2.77 0.0034 30 2.64 0.0032 40 2.47 0.0030 50 1.82 0.0022 60 2.93 0.0036 65 2.55 0.0031 LTE Band 26 / 10 MHz / 819 MHz Voltage (VDC) Frequency Stability (Hz) Frequency Stability (ppm) 13.80 1.29 0.0016 12.00 1.47 0.0018 10.20 1.36 0.0017 Temperature (°C) Frequency Stability (Hz) Frequency Stability (ppm) -20 0.57 0.0007 -10 1.82 0.0022 0 0.81 0.0010 10 0.85 0.0010 20 1.00 0.0012 30 0.60 0.0007 40 1.46 0.0018 50 1.24 0.0015 60 0.47 0.0006 65 1.20 0.0015 Report No.: 2620312R TEL : +886-3-582-8001 Page Number : 222 of …

Text truncated - open the document above for the full version.

Test Report

Report No.: 2620312R TEL : +886-3-582-8001 Page Number : 126 of 230 FAX : +886-3-582-8958 LTE Band 66_QPSK_1715M_10M_1RB0_Below 1GHz LTE Band 66_QPSK_1715M_10M_1RB0_Above 1GHz LTE Band 66_QPSK_1745M_10M_1RB0_Below 1GHz LTE Band 66_QPSK_1745M_10M_1RB0_Above 1GHz LTE Band 66_QPSK_1775M_10M_1RB0_Below 1GHz LTE Band 66_QPSK_1775M_10M_1RB0_Above 1GHz Report No.: 2620312R TEL : +886-3-582-8001 Page Number : 127 of 230 FAX : +886-3-582-8958 LTE Band 66_QPSK_1717.5M_15M_1RB0_Below 1GHz LTE Band 66_QPSK_1717.5M_15M_1RB0_Above 1GHz LTE Band 66_QPSK_1745M_15M_1RB0_Below 1GHz L LTE Band 66_QPSK_1745M_15M_1RB0_Above 1GHz LTE Band 66_QPSK_1772.5M_15M_1RB0_Below 1GHz LTE Band 66_QPSK_1772.5M_15M_1RB0_Above 1GHz Report No.: 2620312R TEL : +886-3-582-8001 Page Number : 128 of 230 FAX : +886-3-582-8958 LTE Band 66_QPSK_1720M_20M_1RB0_Below 1GHz LTE Band 66_QPSK_1720M_20M_1RB0_Above 1GHz LTE Band 66_QPSK_1745M_20M_1RB0_Below 1GHz LTE Band 66_QPSK_1745M_20M_1RB0_Above 1GHz LTE Band 66_QPSK_1770M_20M_1RB0_Below 1GHz LTE Band 66_QPSK_1770M_20M_1RB0_Above 1GHz Report No.: 2620312R TEL : +886-3-582-8001 Page Number : 129 of 230 FAX : +886-3-582-8958 Mode 3: LTE Band 5/26 (Part 22) LTE Band 26 (Part 22)_QPSK_824.7M_1.4M_1RB0_Below 1GHz LTE Band 26 (Part 22)_QPSK_824.7M_1.4M_1RB0_Above 1GHz LTE Band 26 (Part 22)_QPSK_836.5M_1.4M_1RB0_Below 1GHz LTE Band 26 (Part 22)_QPSK_836.5M_1.4M_1RB0_Above 1GHz LTE Band 26 (Part 22)_QPSK_848.3M_1.4M_1RB0_Below 1GHz LTE Band 26 (Part 22)_QPSK_848.3M_1.4M_1RB0_Above 1GHz Report No.: 2620312R TEL : +886-3-582-8001 Page Number : 130 of 230 FAX : +886-3-582-8958 LTE Band 26 (Part 22)_QPSK_825.5M_3 M_1RB0_Below 1GHz LTE Band 26 (Part 22)_QPSK_825.5M_3 M_1RB0_Above 1GHz LTE Band 26 (Part 22)_QPSK_836.5M_3 M_1RB0_Below 1GHz LTE Band 26 (Part 22)_QPSK_836.5M_3 M_1RB0_Above 1GHz LTE Band 26 (Part 22)_QPSK_847.5M_3 M_1RB0_Below 1GHz LTE Band 26 (Part 22)_QPSK_847.5M_3 M_1RB0_QPSK_ Above 1GHz Report No.: 2620312R TEL : +886-3-582-8001 Page Number…

Text truncated - open the document above for the full version.

Contact Information

Applicant

William Su(Senior Director / System Engineering dept.)

[email protected]Fax: 886-3-666-7323

Technical Contact

W-NeWeb CorporationStephen Sek

[email protected]

1525 McCarthy Blvd, #206 · United States

Test Firm

DEKRA TESTING AND CERTIFICATION Hsin Chu Lab.Michael Huang

[email protected]Fax: 886-3-592-8958

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
1	24E	1.85 GHz - 1.91 GHz	208.00 mW	4M13F9W	0.0015ppm
2	22H	826.4 MHz - 846.6 MHz	286.00 mW	4M13F9W	0.0039ppm
3	24E	1.85 GHz - 1.91 GHz	182.00 mW	17M8G7D	0.0032ppm
4	24E	1.85 GHz - 1.91 GHz	156.00 mW	17M9W7D	0.0032ppm
5	24E	1.85 GHz - 1.91 GHz	182.00 mW	17M8G7D	0.0032ppm
6	24E	1.85 GHz - 1.91 GHz	156.00 mW	17M9W7D	0.0032ppm
7	27	1.71 GHz - 1.75 GHz	199.00 mW	17M9G7D	0.0042ppm
8	27	1.71 GHz - 1.75 GHz	162.00 mW	17M9W7D	0.0042ppm
9	27	1.71 GHz - 1.78 GHz	199.00 mW	17M9G7D	0.0042ppm
1	27	1.71 GHz - 1.78 GHz	162.00 mW	17M9W7D	0.0042ppm
11	22H	824.7 MHz - 848.3 MHz	228.00 mW	13M4G7D	0.0048ppm
12	22H	824.7 MHz - 848.3 MHz	181.00 mW	13M4W7D	0.0048ppm
13	22H	814 MHz - 849 MHz	228.00 mW	13M4G7D	0.0048ppm
14	22H	814 MHz - 849 MHz	181.00 mW	13M4W7D	0.0048ppm
15	27	699.7 MHz - 715.3 MHz	233.00 mW	8M97G7D	0.0063ppm
16	27	699.7 MHz - 715.3 MHz	185.00 mW	8M97W7D	0.0063ppm
17	27	779.5 MHz - 784.5 MHz	244.00 mW	8M91G7D	0.0045ppm
18	27	779.5 MHz - 784.5 MHz	202.00 mW	8M89W7D	0.0045ppm
19	9	814.7 MHz - 823.3 MHz	218.00 mW	8M93G7D	0.0047ppm
2	9	814.7 MHz - 823.3 MHz	178.00 mW	4M48W7D	0.0047ppm
21	9	814.7 MHz - 823.3 MHz	173.00 mW	8M93W7D	0.0047ppm
22	27	665.5 MHz - 695.5 MHz	209.00 mW	17M9G7D	0.0051ppm
23	27	665.5 MHz - 695.5 MHz	155.00 mW	17M9W7D	0.0051ppm

Modular Type

Single Modular Approval

Confidentiality

Long Term

Grant Notes

Modular Approval. This grant is valid only when the module is sold to OEM integrators and must be installed by the OEM or OEM integrators. The antennas used for this transmitter as shown in this filing must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users may not be provided with the module installation instructions.OEM integrators and end-users must be provided with transmitter operating conditions for satisfying RF exposure compliance. Output power listed for WCDMA Band 5, LTE Band 5/12/13/26/71 are maximum ERP, except Part 90 operations, which are conducted. Output power listed for WCDMA Band 2, LTE Band 2/4/25/66 are maximum EIRP. It supports WCDMA, LTE (QPSK, 16QAM) LTE B2, B4, B5, B12, B13, B25, B26, B66, B71 Channel Bandwidth (1.4/3/5/10 MHz) for LTE B5, B12, Channel Bandwidth (1.4/3/5/10/15 MHz) for LTE B26, Channel Bandwidth (1.4/3/5/10/15/20 MHz) for LTE B2, B4, B25, B66, Channel Bandwidth (5/10 MHz) for LTE B13, Channel Bandwidth (5/10/15/20 MHz) for LTE B71
