NKRRU8-1IEEE 802.11g USB 2.0 Adapter

802.11g USB2.0 WLAN Adapter User’s Guide Version: 1.0 — Dec. 2003 1 Copyright Statement No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, whether electronic, mechanical, photocopying, recording or otherwise without the prior writing of the publisher. Windows ™ 98SE/2000/ME/XP are trademarks of Microsoft ® Corp. Pentium is trademark of Intel. All copyright reserved. 2 Regulatory Information Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: To assure continued compliance, (example - use only shielded interface cables when connecting to computer or peripheral devices) any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 3 Table of Contents Regulatory Information________________________________________________2 1. Welcome__________________________________________________________4 1.1 Kit Contents______________________________________________________5 1.2 Main Features of 802.11g USB 2.0 WLAN Adapter_____________________6 1.3 Wireless Networking Scenarios______________________________________7 1.4 Advantages for Using Wireless Network_______________________________9 2. Quick Start to Wireless Networking____________________________________10 2.1 Installation______________________________________________________10 2.2 Connecting to an Existing Network__________________________________12 3. Step-by-Step Installation Guide_______________________________________14 3.1 Install the 802.11g USB2.0 adapter Driver / Utility_____________________15 3.1.1 Additional Setup Processes________________________________19 3.1.2 Disable Windows XP Zero-Configuration__________________20 3.2 Verifying the Driver/Utility________________________________________21 3.3 802.11g USB2.0 WLAN Utility______________________________________22 3.4 Basic Setting for Infrastructure Mode_______________________________23 3.5 Basic Setting for Peer-to-peer Mode_________________________________24 3.6 Remove your 802.11g USB 2.0 WLAN Adapter________________________25 3.7 Uninstall the 802.11g USB2.0 WLAN Utility / Driver___________________26 4. Using the Utility___________________________________________________27 4.1 Status Tab_______________________________________________________27 4.2 Configuration Tab________________________________________________29 4.3 WEP Tab_______________________________________________________30 4.4 Security Tab_____________________________________________________34 4.5 IBSS Tab_______________________________________________________41 4.6 Domain Tab_____________________________________________________42 4.7 About Tab_______________________________________________________44 5. Network Application________________________________________________45 5.1 Surveying the Network Neighborhood_______________________________45 5.2 File Sharing_____________________________________________________46 5.3 Using the Shared Folder___________________________________________47 6. Product Specifications______________________________________________48 4 1. Welcome Thank you for purchasing our 802.11g USB 2.0 WLAN Adapter, and welcome to Wireless LAN—the easy way to wireless networking. This user’s guide introduces to you the 802.11g USB 2.0 WLAN Adapter and describes the most common configurations, which will help you connect to your network easily. Please read this manual to get familiar with the IEEE802.11g Wireless LAN. This manual contains detailed instructions in operation of this product. Please keep this manual for future reference. As this product is designed to run under Microsoft Windows, it is recommended that to be installed by people who are familiar with the installation procedures for network operating systems under Microsoft Windows. 5 1.1 Kit Contents The 802.11g USB 2.0 WLAN Adapter kit should include the following items: One 802.11g USB 2.0 WLAN Adapter with USB cable, one CD and one Quick Start Guide. a. One 802.11g USB 2.0 WLAN Adapter b. One USB cable c. One Software CD including: 1. Utility & Driver Installation Software 2. Acrobat Reader 3. User Manual PDF File d. Quick Start Guide If any of the items mentioned above are damaged or missing, plea…

Text truncated - open the document above for the full version.

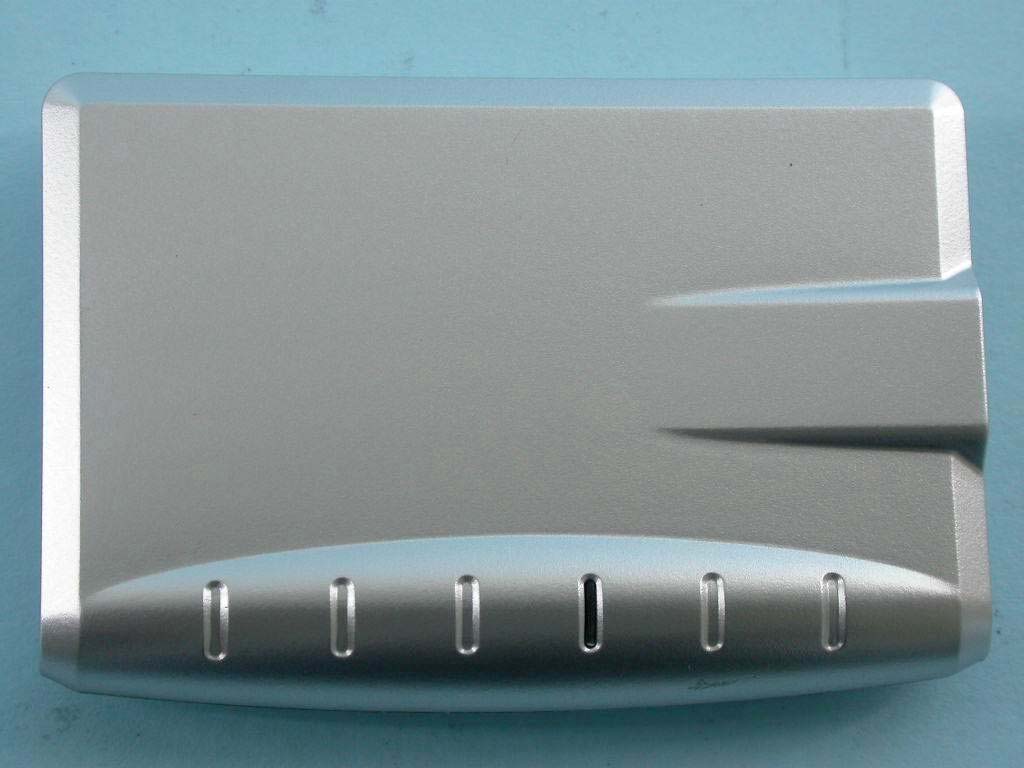

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4

Page 5 Page 6 Page 7 Page 8

FCC ID: NKRRU8-1 ADT No.930203R01 Operational Description This device is a IEEE 802.11g USB 2.0 Adapter which operates in the 2.4GHz frequency spectrum with throughput of up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT is powered by host equipment via a USB interface. The antenna is external antenna without a connector. The other instruction, please have a look at the users manual.

FCC ID: NKRRU8-1 Report No: SA930203R01 1 RF EXPOSURE REPORT REPORT NO.: SA930203R01 MODEL NO.: RU8-1 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Wistron Neweb Corp. ADDRESS: No. 10-1, Li-hsin Road I, Science-based Industrial Park, Hsinchu 300, Taiwan, ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. FCC ID: NKRRU8-1 Report No: SA930203R01 2 RF Exposure Measurement (Mobile Device) 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: NKRRU8-1 Report No: SA930203R01 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification This device is not fixed inside the host equipment, it is connected with host through wire. So it is easy to be re-located in the place where at least 20cm far away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: NKRRU8-1 Report No: SA930203R01 4 6 Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is -3dBi or 0.501(numeric). 6.2 Output Power Into Antenna & RF Exposure Distance : For Part 802.11b (CCK technique): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241232.7340.0031.0 6243732.2110.0031.0 11246232.2110.0031.0 For Part 802.11g (OFDM technique): Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241231.8420.0031.0 6243731.7690.0031.0 11246231.6230.0031.0

FCC ID: NKRRU8-1 Report No.: RF930203R011Issued: February 11, 2004 FCC TEST REPORT REPORT NO.: RF930203R01 MODEL NO.: RU8-1 RECEIVED: February 2, 2004 TESTED: February 3 ~ February 5, 2004 APPLICANT: Wistron Neweb Corp. ADDRESS: No. 10-1, Li-hsin Road I, Science-based Industrial Park, Hsinchu 300, Taiwan, ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 68 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA FCC ID: NKRRU8-1 Report No.: RF930203R012Issued: February 11, 2004 Table of Contents 1CERTIFICATION ........................................................................................... 4 2SUMMARY OF TEST RESULTS................................................................... 5 3GENERAL INFORMATION ........................................................................... 6 3.1GENERAL DESCRIPTION OF EUT.............................................................. 6 3.2DESCRIPTION OF TEST MODES................................................................ 7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ............................... 7 3.4DESCRIPTION OF SUPPORT UNITS .......................................................... 8 3.5CONFIGURATION OF SYSTEM UNDER TEST........................................... 9 4TEST TYPES AND RESULTS..................................................................... 10 4.1CONDUCTED EMISSION MEASUREMENT .............................................. 10 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT............................ 10 4.1.2TEST INSTRUMENTS ................................................................................ 10 4.1.3TEST PROCEDURES..................................................................................11 4.1.4DEVIATION FROM TEST STANDARD ........................................................11 4.1.5TEST SETUP .............................................................................................. 12 4.1.6EUT OPERATING CONDITIONS................................................................ 12 4.1.7TEST RESULTS.......................................................................................... 13 4.2RADIATED EMISSION MEASUREMENT ................................................... 19 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT................................. 19 4.2.2TEST INSTRUMENTS ................................................................................ 20 4.2.3TEST PROCEDURES................................................................................. 21 4.2.4DEVIATION FROM TEST STANDARD ....................................................... 21 4.2.5TEST SETUP .............................................................................................. 22 4.2.6EUT OPERATING CONDITIONS................................................................ 22 4.2.7.TEST RESULTS.......................................................................................... 23 4.2.8.TEST RESULTS (FOR CCK)...................................................................... 25 4.2.9.TEST RESULTS (FOR OFDM) ................................................................... 28 4.36dB BANDWIDTH MEASUREMENT .......................................................... 31 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT ........................................ 31 4.3.2TEST INSTRUMENTS ................................................................................ 31 4.3.3TEST PROCEDURE ................................................................................... 32 4.3.4DEVIATION FROM TEST STANDARD ....................................................... 32 4.3.5TEST SETUP .............................................................................................. 32 4.3.6EUT OPERATING CONDITIONS................................................................ 32 FCC ID: NKRRU8-1 Report No.: RF930203R013Issued: February 11, 2004 4.3.7TEST RESULTS(FOR CCK) ....................................................................... 33 4.3.8TEST RESULTS(FOR OFDM) .................................................................... 37 4.4MAXIMUM PEAK OUTPUT POWER .......................................................... 41 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ........... 41 4.4.2TEST INSTRUMENTS ................................................................................ 41 4.4.3TEST PROCEDURES................................................................................. 42 4.4.4DEVIATION FROM TEST STANDARD ....................................................... 42 4.4.5TEST SETUP .............................................................................................. 42 4.4.6EUT OPERATING CONDITIONS................................................................ 42 4.4.7TEST RESULTS(FOR CCK) ....................................................................... 43 4.4.8TEST RESULTS(FOR OFDM) .................................................................... 43 4.5POWER SPECTRAL DENSITY MEASUREMENT...................................... 44 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ................... 44 4.5.2TEST INSTRUMENTS ................................................................................ 44 4.5.3TEST PROCEDURE ................................................................................... 45 4.5.4DEVIATION FROM TEST STANDARD ....................................................... 45 4.5.5TEST SETUP .............................................................................................. 45 4.5.6EUT OPERATING CONDITIONS..............................…

Text truncated - open the document above for the full version.

FCC ID: NKRRU8-1 Report No.: RF930203R0166Issued: February 11, 2004 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: NKRRU8-1 Report No.: RF930203R0167Issued: February 11, 2004 RADIATED EMISSION TEST
