NKRUMC-6270Qmodule

Product specification 1 Wistron NeWeb Corp. CONFIDENTIAL THIS DOCUMENT CONTAINS PROPRIETARY TECHNICAL INFORMATION, WHICH IS THE PROPERTY OF THE WISTRON NEWEB CORPORATION AND SHALL NOT BE DISCLOSED TO OTHERS IN WHOLE OR IN PART, REPRODUCED, COPIED, OR USED AS THE BASIS FOR DESIGN, MANUFACTURING, OR SALE OF APPARATUS WITHOUT WRITTEN PERMISSION OF WISTRON NEWEB CORPORATION. UMC-6270QV User Guide Product specification 2 CONTENTS CONTENTS .......................................................................................................................................................................... 2 1. INTRODUCTION ...................................................................................................................................................... 3 1.1 PRODUCT CONCEPT ........................................................................................................................................ 3 1.2 STANDARDS ....................................................................................................................................................... 3 1.3 TERMS AND ABBREVIATION ......................................................................................................................... 4 1.4 CONVENTIONS ................................................................................................................................................... 4 1.5 PRODUCT FEATURES OVERVIEW ............................................................................................................... 5 2. BLOCK DIAGRAM & PIN ASSIGNMENT ........................................................................................................... 7 3. RF AIR INTERFACES AND PERFORMANCE ................................................................................................ 14 3.1 RF AIR INTERFACE AND BAND CONFIGURATION ................................................................................ 14 3.1.1 Air interfaces ............................................................................................................................................. 14 3.2 RF PERFORMANCE ......................................................................................................................................... 14 3.3 TRANSMITTER POWER CLASS ................................................................................................................... 14 4. OPERATING CONDITIONS ................................................................................................................................ 15 4.1 ABSOLUTE MAXIMUM RATINGS ................................................................................................................. 15 4.2 RECOMMENDED OPERATING CONDITION .............................................................................................. 16 5. CURRENT CONSUMPTION ................................................................................................................................ 17 6. APPLCATION DESIGN NOTES ......................................................................................................................... 18 6.1 LAYOUT NOTES .................................................................................................................................. 18 7. MECHANICAL REQUIREMENTS ...................................................................................................................... 20 7.1 MODULE DIMENSION AND FOOTPRINT.................................................................................................... 20 8. CERTIFICATION REQUIREMENTS ................................................................................................................ 22 8.1 CARRIER CERTIFICATION REQUIREMENTS ........................................................................................... 22 8.2 REGULATORY COMPLIANCE ..................................................................................................................... 22 8.3 FCC WARNING STATEMENT ........................................................................................................................ 22 Revision history Revision Date Description V1.0 April 7 2014 Initial release V2.0 May 13 2014 Modify recommended operating condition Product specification 3 1. INTRODUCTION This document describes the hardware interface of the WNC Small Form Factor (SFF) module used to connect the device application and the air interface. Two versions of Small Form Factor (SFF) module are described in this specification document as follows:  UMC-6270QV - HSDPA 1.1 PRODUCT CONCEPT The SFF module is one of the smallest available WCDMA HSDPA of the market. The target application is the Machine to Machine (M2M) market including automotive, AMM (Automatic Metering Management), tracking system, Alarm, Healthcare/monitoring, Telematics etc. Despite its small size and cost, In addition to its size it has the following outstanding characteristics:  Minimum low power consumption in idle mode: 1.4mA  High input voltage range: 3.4 V to 4.2 V  USB High Speed  Digital Audio PCM  Full set of AT commands as well as analogue and Digital audio interface. In addition to the module, a complete development kit can be provided for customers. 1.2 STANDARDS This product, together with its evaluation board, is in compliance with the directives and standards listed below: Directives FCC RF : FCC Part 22H (850 Band ) FCC Part 24E (for 1900 Band) FCC Part 22 Subpart H: Cellular Radiotelephone Service; Subpart I: Offshore Radiotelephone Service; FCC Part 24 E: Personal Communications Service; Subpart E: Broadband PCS. EMI: FCC Part 15B Subpart B - Radio frequency devices subpart B – Unintentional Radiators SAR(MPE) : OET65C Product specification 4 1.3 TERMS AND ABBREVIATION ADC Analog to Digital Converter CODEC Coder-Decoder CLIP Calling Line Identification Presentation COLP Connected Line Identificat…

Text truncated - open the document above for the full version.

Date: July 24, 2014 Federal Communications Commission 7435 Oakland Mills Road - Gate A Columbia, Maryland 21046 SUBJECT: FCC Application for FCC ID: NKRUMC-6270Q To Whom It May Concern, We, Wistron NeWeb Corporation, hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite filing. Sincerely yours, Name and Job Title. : Troy Chien / Associate Technical Director E-mail : [email protected] Tel. : 886-3-666-7799 Fax : 886-3-666-7323

Date: July 24, 2014 Federal Communications Commission 7435 Oakland Mills Road - Gate A Columbia, Maryland 21046 Subject: Request for Confidentiality FCC ID: NKRUMC-6270Q To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission’s rules (47CFR§§0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely.  Schematic Diagram  Block Diagram  Parts List  Tune-up Procedure  Operational Description Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’ s policy, in order to comply with the marketing regulations in 47 CFT §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until 180 days after the Grant Date of Equipment Authorizations.  External Photos  Internal Photos  Test Setup Photos  Users Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards, Name and Job Title. : Troy Chien / Associate Technical Director E-mail : [email protected] Tel. : 886-3-666-7799 Fax : 886-3-666-7323

Date: July 24, 2014 Power of Attorney To whom it may concern, Please be notified that I, Troy Chien, have designated Daniel Lee of Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan Branch) of Taiwan as the person being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Daniel Lee of Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan Branch) of Taiwan on the matters relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. As defined in 47 CFR Ch. 1.2002 (b), we further certify that neither the applicant nor any party to this application is subject to a denial to Federal benefits, including FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: NKRUMC-6270Q If you have any acknowledgement and response, please send it to Daniel Lee of Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan Branch) of Taiwan directly. Should you have any question or comment regarding this matter, please have my best attention. This authorization shall expire six months from the original date. If you have any questions regarding the authorization, please don’t hesitate to contact us. Sincerely yours, Name and Job Title. : Troy Chien / Associate Technical Director E-mail : [email protected] Tel. : 886-3-666-7799 Fax : 886-3-666-7323

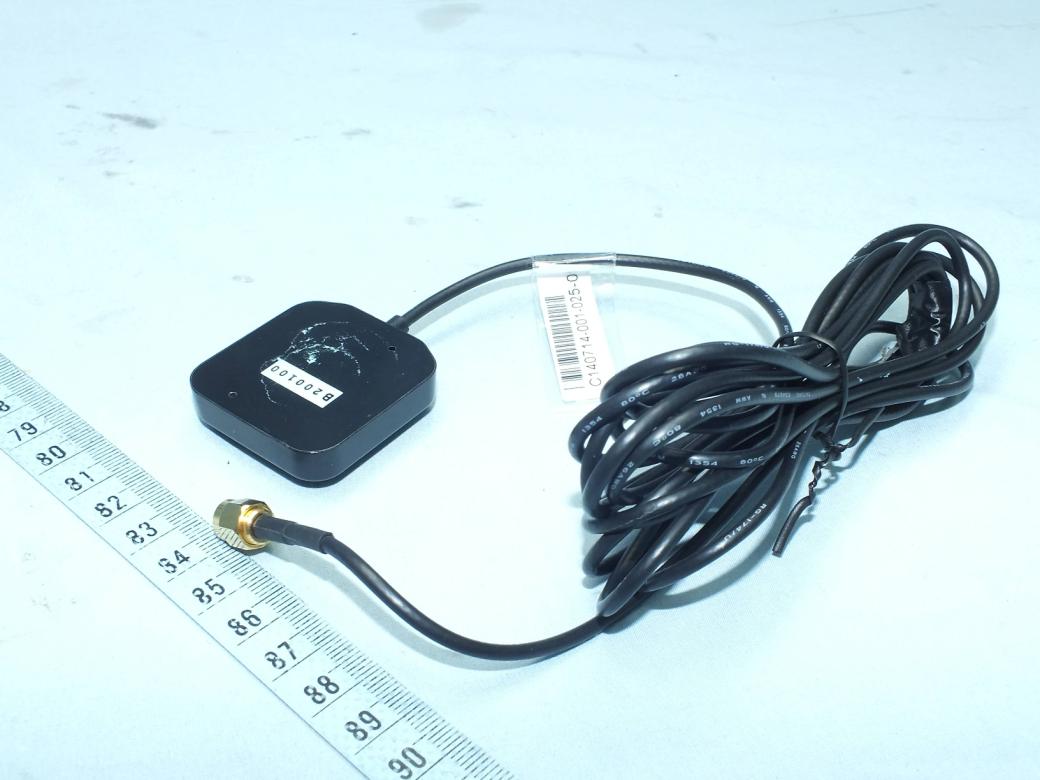

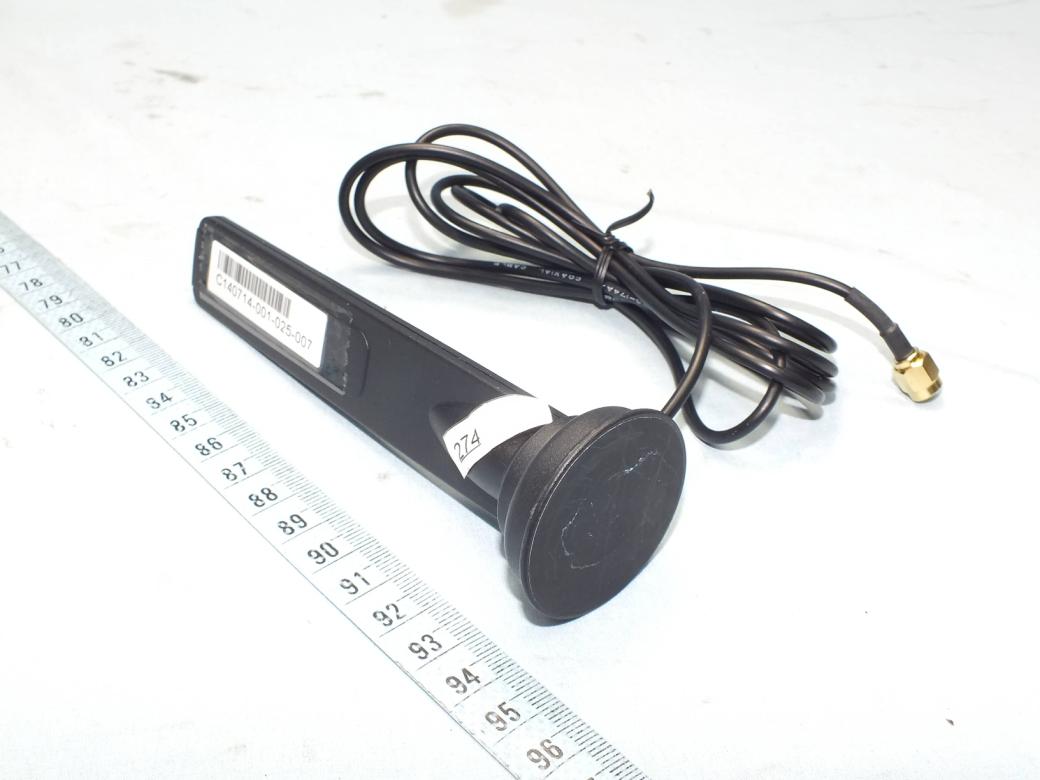

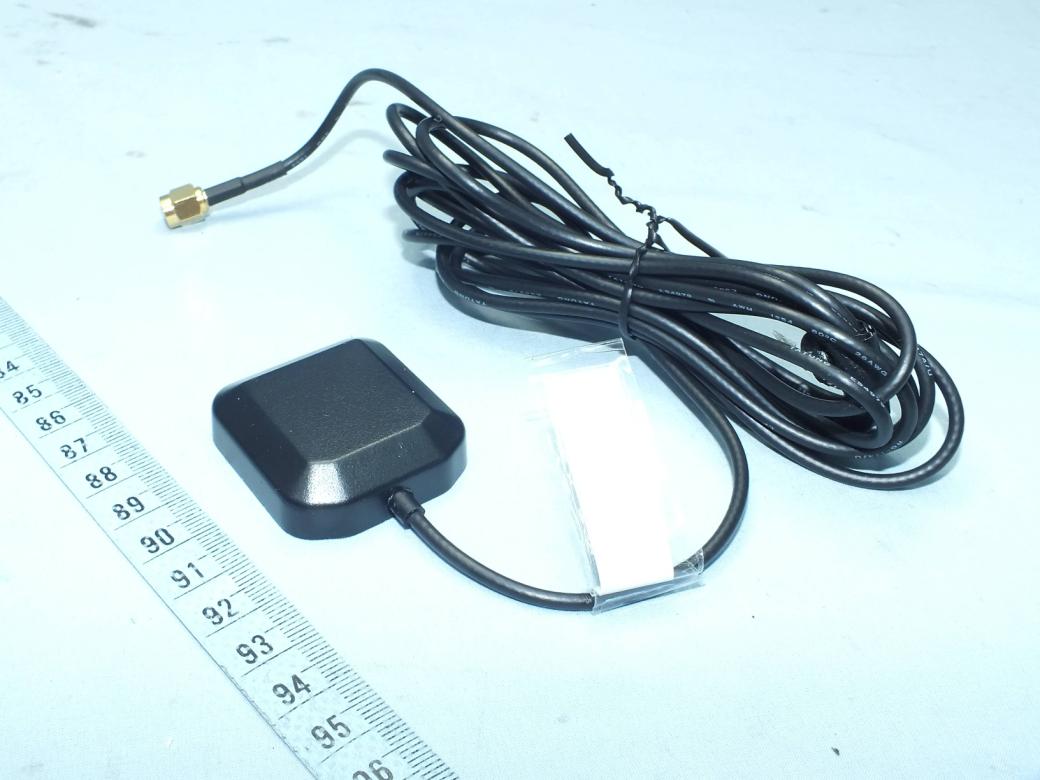

FCC ID: NKRUMC-6270Q Modular Approval Request Letter Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch August 5, 2014 Dear Application Examiner, We, Wistron NeWeb Corporation, claim that the EUT, FCC ID: NKRUMC-6270Q is a WWAN module and would like to have your authorization as a modular approval specific to the mobile RF exposure condition. The requirements of section 15.212 of FCC rules have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.” The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data input, it is integrated in chip CPU (MAC IC) QSC6270T and POWER IC QSC6270T. 3. “The modular transmitter must have its own power supply regulation.” The part number of this regulator is QSC6270T. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was tested in a stand-alone configuration via a USB extender. Please see section Photographs of Test Configuration in the test report, the EUT was plugged in this extender. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: NKRUMC-6270Q 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further question. Thanks for your attention. Best Regards, ____________________________ Daniel Lee Vice President Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch

Page 1 of 3 Report No.: 140715C10 CONSTRUCTION PHOTOS OF EUT Brand Name: Wistron NeWeb Corporation / Model Name: UMC-6270QV Page 2 of 3 Report No.: 140715C10 Page 3 of 3 Report No.: 140715C10

module Label Location

S/N: UAGLE25S0001C01 MODEL:UMC-6270QV FCC ID ： NKRUMC-6270Q IMEI: 35412506000001

Page 1 of 2 Report No.: 140715C10 CONSTRUCTION PHOTOS OF EUT Brand Name: Wistron NeWeb Corporation / Model Name: UMC-6270QV Page 2 of 2 Report No.: 140715C10

FCC MPE Evaluation Report Report Format Version 5.0.0 Page No. : 1 of 7 Report No. : SA140715C10 Issued Date : Jul. 28, 2014 FCC MPE Evaluation Report Report No. : SA140715C10 Applicant : Wistron NeWeb Corporation Address : 20 Park Avenue II, Hsinchu Science Park Product : module Brand : Wistron NeWeb Corporation Model No. : UMC-6270QV Standards : FCC Part 2 (Section 2.1091) KDB 447498 D01 Sample Received Date : Jul. 15, 2014 Date of Evaluation : Jul. 25, 2014 CERTIFICATION: The above equipment have been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch – Lin Kou Laboratories, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s SAR characteristics under the conditions specified in this report. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. Prepared By : Rona Chen / Specialist Approved By : Roy Wu / Manager This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. FCC MPE Evaluation Report Report Format Version 5.0.0 Page No. : 2 of 7 Report No. : SA140715C10 Issued Date : Jul. 28, 2014 Table of Contents Release Control Record ............................................................................................................................................................... 3 1. Description of Equipment Under Test ................................................................................................................................. 4 2. MPE (Maximum Permissible Exposure) Assessment ......................................................................................................... 5 2.1 Introduction .................................................................................................................................................................. 5 2.2 RF Radiation Exposure Limits ...................................................................................................................................... 5 2.3 MPE Assessment Method ............................................................................................................................................ 6 2.4 MPE Calculation for Standalone Operations ................................................................................................................ 6 3. Information on the Testing Laboratories ............................................................................................................................. 7 FCC MPE Evaluation Report Report Format Version 5.0.0 Page No. : 3 of 7 Report No. : SA140715C10 Issued Date : Jul. 28, 2014 Release Control Record Report No. Reason for Change Date Issued SA140715C10 Initial release Jul. 28, 2014 FCC MPE Evaluation Report Report Format Version 5.0.0 Page No. : 4 of 7 Report No. : SA140715C10 Issued Date : Jul. 28, 2014 1. Description of Equipment Under Test EUT Type module Brand Name Wistron NeWeb Corporation Model Name UMC-6270QV Tx Frequency Bands (Unit: MHz) WCDMA Band II : 1852.4 ~ 1907.6 WCDMA Band V : 826.4 ~ 846.6 Uplink Modulations WCDMA : QPSK Antenna Type Dipole Antenna EUT Stage Production Unit Note: 1. The above EUT information is declared by manufacturer and for more detailed features description please refers to the manufacturer's specifications or User's Manual. List of Accessory: AC Adapter Brand Name Channel Well Technology Model Name CAP010051 Power Rating I/P:100-240Vac, 3500mA; O/P: 5Vdc, 2000mA DC Power Cord Type 1.5 meter shielded cable without ferrite core USB Cable Brand Name WELLFORCE ELECTRONIC CO., LTD Model Name WG260100040 Signal Line Type 1.2 meter shielded cable with ferrite core 3G Antenna Brand Name JOYMAX Model Name CAF-211XSAXX-156 GPS Antenna Brand Name CIROCOMM Model Name SP03AB15923-0110 FCC MPE Evaluation Report Report Format Version 5.0.0 Page No. : 5 of 7 Report No. : SA140715C10 Issued Date : Jul. 28, 2014 2. MPE (Maximum Permissible Exposure) Assessment 2.1 Introduction According to 47 CFR §2.1091, a mobile device is defined as a transmitting device designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 cm is normally maintained between the transmitting antenna and the body of the user or nearby persons. In this context, the term “fixed location” means that the device is physically secured at one location and is not able to be easily moved to another location. Transmitting devices designed to be used by consumers or workers that can be easily re-l…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION (PART 22 / 24) RADIATED EMISSION & ERP / EIRP POWER TEST 2
