NKRUPAST5Satellite Radio PnP Receiver

Starmate 5Starmate 5 Dock & Play SIRIUS Radio User GuideUser Guide Your new SIRIUS Starmate ST5 Dock & Play Radio comes with everything you need to enjoy SIRIUS ® in your car. And with available SIRIUS Universal Docking accessories you can use your Starmate ST5 just about anywhere. Your new Starmate ST5 gives you powerful features: >> SIRIUS Replay™ — Pause, rewind and replay up to 44 minutes of live radio. >> Memo function — Store up to 30 favorite songs and artists plus a favorite sports team or NASCAR ® car and get an alert whenever they’re playing on any channel. >> Easy-to-read wide-angle 5-line display. >> Built-in wireless FM transmitter so you can listen to SIRIUS through your car’s FM stereo. An FM Presets button makes transmitter frequency changes quick and easy. >> Full-function wireless remote control Use this manual to familiarize yourself with all of your SIRIUS Starmate ST5’s features and capabilities. For the latest information about your ST5 and other SIRIUS products and accessories, visit http://www.sirius.com. Here’s your new SIRIUS ® Starmate ST5 Dock & Play Radio Table of Contents 4 Table of Contents Table of Contents 4 Warning and Safety Information 6 FCC Information 6 Canadian Compliance 7 General Precautions 7 Warnings 9 Copyrights & Trademarks 10 Package Contents 1 1 Installation 14 Installing the Vehicle Dock 1 4 Installing the Magnetic Antenna 2 1 Connecting the Cigarette Lighter Adapter 37 Docking the Starmate ST5 38 Cable Separation and Routing 39 Connecting the Starmate ST5 to Your Vehicle’s Audio System 41 Subscribing to the SIRIUS Service 65 Controls 66 SIRIUS Starmate ST5 Front Panel 66 Remote Control Buttons 68 Vehicle Dock Reference Guide 71 Table of Contents 5 Operation 72 Display Screen Information 72 Changing Channels and Categories 7 3 My Channels Category 74 Display Button (Disp) 75 Selecting Channels Directly 76 Channel Presets (Band Button) 77 Memory (MEMO) and Song Seek (S-Seek) Functions 79 Jump Button 87 SIRIUS Replay 89 Using SIRIUS Replay 91 FM Presets Button 93 Menu Options 96 Sirius ID 96 FM Transmitter 97 Settings 98 Parental Control 1 04 Time Based Features 1 06 Signal Indicator 1 1 2 Factory Default 1 1 3 Troubleshooting 1 1 5 Specifi cations 1 1 6 Sirius ID 1 17 Warning and Safety Information 6 FCC Information This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation. 1. 2. Note: This equipment has been tested and found to comply with the limits for a CLASS B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radi- ate radio frequency energy and, if not installed and used in accordance with the in- structions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and the receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. 1. 2. 3. 4. Warning & Safety Information Warning and Safety Information 7 Warning Changes or modifi cations not expressly approved by the manufacturer could void the user’s authority to operate the equipment. Canadian Compliance This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. General Precautions Liquid Crystal Precautions If the LCD screen on the radio is damaged, do not to touch the liquid crystal fl uid. If any of the following situations happen, take the action indicated: If the liquid crystal fl uid comes in contact with your skin, wipe the skin area with a cloth and then wash the skin thoroughly with soap and running water. If the liquid crystal fl uid gets into your eye, fl ush the eye with clean water for at least 15 minutes. Seek medical care. If the liquid crystal fl uid is ingested, fl ush your mouth thoroughly with water. Drink large quantities of water and induce vomiting. Seek medical care. Safety Precautions Be sure to observe the following warnings. Failure to follow these safety in- structions and warnings may result in a serious accident. Do not operate your SIRIUS ST5 in a way that might divert your attention from driving safely. As a driver, you alone are responsible for safely operating your vehicle in accordance with traffi c safety laws at all times. 1. 2. 3. • Warning and Safety Information 8 Do not install the radio where it may obstruct your view through the windshield, or of your vehicle’s indicator displays. Do not install the radio where it may hinder the function of safety devices such as an airbag. Doing so may prevent the airbag from functioning properly in the event of an accident. Be sure the radio and accessories are installed as described in these installation instructions and the instructions which accompany each accessory kit. SIRIUS Satellite Radio is not responsible for issues arising from installations which were not installed according to the instructions. Before attaching the suction cup mount to your windshield, you should check your state and local laws for regulations regarding mounting this device on your wind- shield. To avoid short circuits, do not open the radio or accessories, and never put or leave any metallic objects (coins, to…

Text truncated - open the document above for the full version.

SPORTON International Inc. No.8, Lane 724, Bo-ai St., Jhubei City, Hsinchu County 302, Taiwan, R.O.C. TEL: 886-3-656-9065 FAX: 886-3-656-9085 FCC Requested Information for 15.239 device FCC ID: NKRUPAST5 1) How does this device operate? Answer: This device is a satellite radio; it receives the satellite signal from the satellite receiving antenna, decodes the audio signal to base band and couples it to the FM modulator contained in the receiver. The output of the FM modulator is coupled to either the internal FM transmitting antenna or the external FM transmitting antenna depending on the users preference. If performance is satisfactory with the internal FM transmitting antenna, then it is expected that the customer would not install the external FM transmitting antenna. 2) Provide information on the device and its antenna. Answer: This device is a satellite radio that consist of the following individual pieces: (1) Internal FM transmitting antenna, (2) External FM transmitting antenna, (3) External satellite receiving antenna (4) Cigarette Lighter Adapter, (5) Car Dock, (6) Remote controller. These two ways of transmitting can only be used individually. 3) How is it installed? Answer: The car dock is installed to hold the radio typically below the top of the dash in order to avoid blocking the view of the road by the driver. The internal FM transmitting antenna will normally be activated at this time and the customer will locate and tune the satellite radio to output its signal on an unused FM channel in his locale. After determining the appropriate channel, the user will tune his car radio to the same channel. If performance is not satisfactory the user is instructed to mount the external FM transmitting antenna adjacent to the window glass antenna. After mounting the external FM transmitting antenna it is plugged into the FM output port, which automatically decouples any internal FM transmitting antenna. 4) What test procedure was used? Answer: The system is tested according to the procedures in ANSI C63.4. Cables are manipulated on the tabletop to maximize the FM band signal level. And also, the cables are bundled as per the instruction in ANSI C63.4 and are then moved around to maximize the FM band signal. Both internal FM transmitting antenna and external FM transmitting antenna configurations are tested. SPORTON International Inc. No.8, Lane 724, Bo-ai St., Jhubei City, Hsinchu County 302, Taiwan, R.O.C. TEL: 886-3-656-9065 FAX: 886-3-656-9085 5) If tested in a car, how was it configured/tested? Answer: It is not tested in the car. 6) Was the tuning range properly verified? The test lab should indicate in the report that the tuning controls were manually adjusted to verify maximum tuning range. Answer: The tuning controls were manually adjusted to verify maximum tuning range. All controls, manual and software were adjusted to determine the maximum tuning range capability of the unit. This range is specified in the test report and is 88.1MHz to 107.9MHz. 7) Was the bandwidth properly tested with maximum audio input? Answer: Maximum internal modulation was used since the radio doesn’t have an external audio input. The modulator audio input level control was set to maximum to perform this test. 8) Use a typical audio file from a typical device. e.g. do not use a 1 kHz signal from a signal generator. Answer: There is no any audio file used on the test since the maximum internal modulation was used.

Page No. : 2 Wistron NeWeb Corporation No. 10-1, Li-hsin Road I, Science-baded Industrial Park, Hsinchu 300, Taiwan, R.O.C. Tel: 886-03-6667799 Fax: 886-03-6667711 Power of Attorney Date: 2008/3/21 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Sporton International Inc. Address : No.8, Lane 724, Bo-ai St., Jhubei City, HsinChu County 302, Taiwan, R.O.C. Name : Leo Huang Job Title : Manager e-mail : [email protected] I am therefore responsible for the contents of the application. Brand name and model type of the specified radio equipment: SIRIUS / ST5-TK1, ST5 FCC ID: NKRUPAST5 Product name: Satellite Radio PnP Receiver FCC Grantee contact person information. Applicant’s company name : Wistron NeWeb Corporation Applicant’s company address : No. 10-1, Li-hsin Road I, Science-baded Industrial Park, Hsinchu 300, Taiwan, R.O.C. Signature : _____________________________ Job Title and Dept. : Mr. Edward Yeh / Engineer / Design Servicedept. E-Mail : [email protected] Tel. : 886-03-6667799

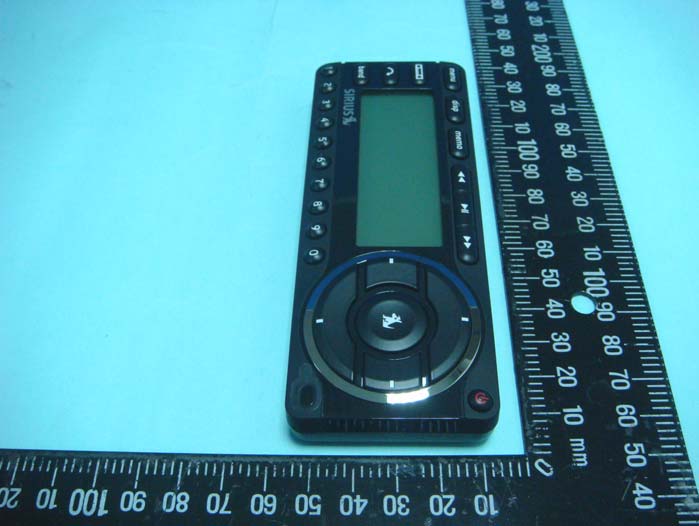

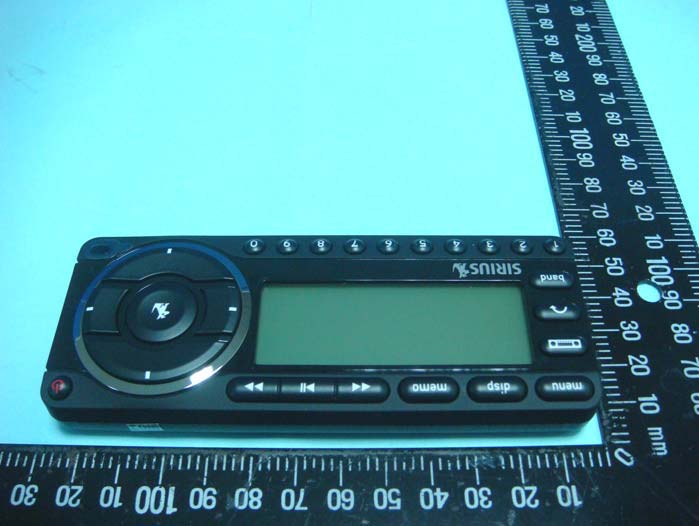

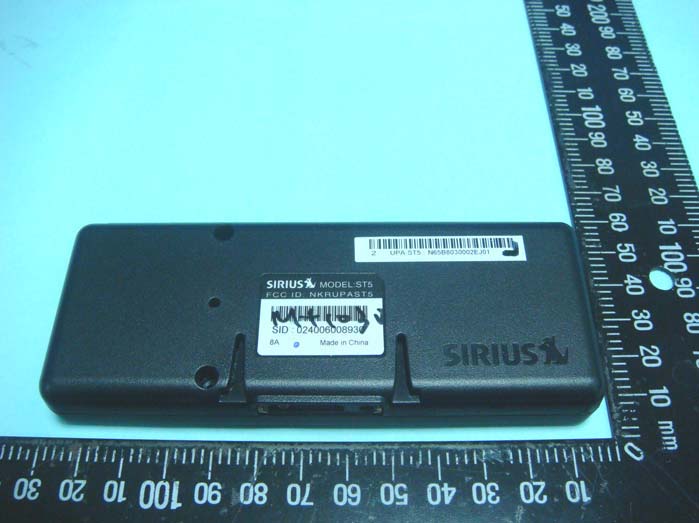

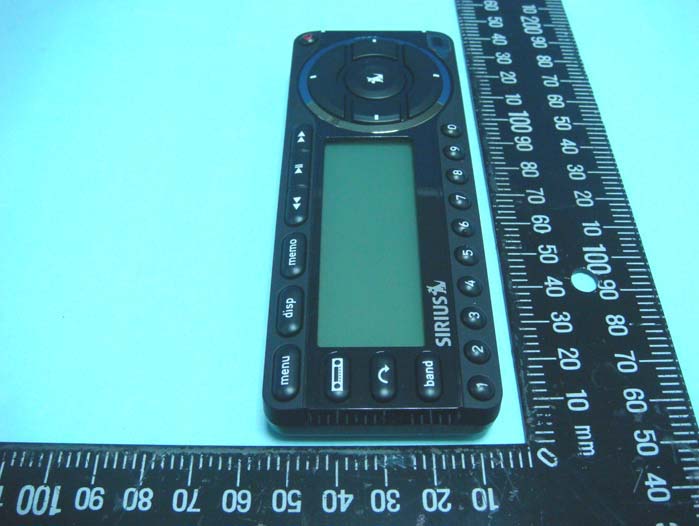

SPORTON International Inc. PAGE NUMBER : A1OFA20 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 15, 2008 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2OFA20 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 15, 2008 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3OFA20 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 15, 2008 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4OFA20 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 15, 2008 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A5OFA20 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 15, 2008 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A6OFA20 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 15, 2008 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A7OFA20 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 15, 2008 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A8OFA20 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 15, 2008 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A9OFA20 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 15, 2008 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A10 OFA20 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 15, 2008 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A11 OFA20 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 15, 2008 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A12 OFA20 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 15, 2008 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A13 OFA20 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 15, 2008 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A14 OFA20 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 15, 2008 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A15 OFA20 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 15, 2008 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A16 OFA20 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 15, 2008 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A17 OFA20 TEL : 886-2-2696-2468 ISSUED DATE : Feb. 15, 2008 FAX : 886-2-2696-2255

27.2 mm 20.0 mm

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 02 FCC RADIO TEST REPORT Applicant’s company Wistron NeWeb Corporation Applicant Address No. 10-1, Li-hsin Road I, Science-baded Industrial Park, Hsinchu 300, Taiwan, R.O.C. FCC ID NKRUPAST5 Manufacturer’s company Wistron NeWeb Corporation Manufacturer Address No. 10-1, Li-hsin Road I, Science-baded Industrial Park, Hsinchu 300, Taiwan, R.O.C. Product Name Satellite Radio PnP Receiver Brand Name SIRIUS Model Name ST5-TK1, ST5 Test Rule Part(s) 47 CFR FCC Part 15 Subpart C § 15.239 Test Freq. Range 88 ~ 108MHz Received Date Jan. 30, 2008 Final Test Date Feb. 04, 2008 Submission Type Original Equipment Statement The device is only possible within the range 88.1-107.9MHz. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR821416 Report Format Version: 02 Page No. : i of ii FCC ID: NKRUPAST5 Issued Date : Feb. 21, 2008 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................3 3.3. Table for Filed Antenna.......................................................................................................................................................................3 3.4. Table for Carrier Frequencies .............................................................................................................................................................4 3.5. Table for Test Modes ...........................................................................................................................................................................4 3.6. Table for Testing Locations..................................................................................................................................................................5 3.7. Table for Multiple Listing & Existing Change .......................................................................................................................................6 3.8. Table for Supporting Units ...................................................................................................................................................................6 3.9. Test Configurations .............................................................................................................................................................................7 4. TEST RESULT ..................................................................................................................................................... 9 4.1. Field Strength of Fundamental Emissions Measurement .....................................................................................................................9 4.2. 20dB Spectrum Bandwidth Measurement ........................................................................................................................................17 4.3. Radiated Emissions Measurement ....................................................................................................................................................20 4.4. Band Edge Emissions and Tuning Range of FM transmitter Measurement .......................................................................................26 4.5. Antenna Requirements .....................................................................................................................................................................29 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 30 6. TEST LOCATION.............................................................................................................................................. 31 7. TAF CERTIFICATE OF ACCREDITATION ............................................................................................................. 32 APPENDIX A. PHOTOGRAPHS OF EUT.........................................................................................................A1 ~ A30 APPENDIX B. TEST PHOTOS.......................................................................................................................... B1 ~ B4 Report No.: FR821416 Report Format Version: 02 Page No. : ii of ii FCC ID: NKRUPAST5 Issued Date : Feb. 21, 2008 History of This Test Report Original Issue Date: Feb. 21, 2008 Report No.: FR821416 ■ No additional attachment. □ Additional attachment were issued as following record: Attachment No. Issue Date Description 15.205(a) 15.209(a) 47 CFR FCC Part 15 Subpart C Further, this requirement does not apply to intentional radiators that must be professi…

Text truncated - open the document above for the full version.

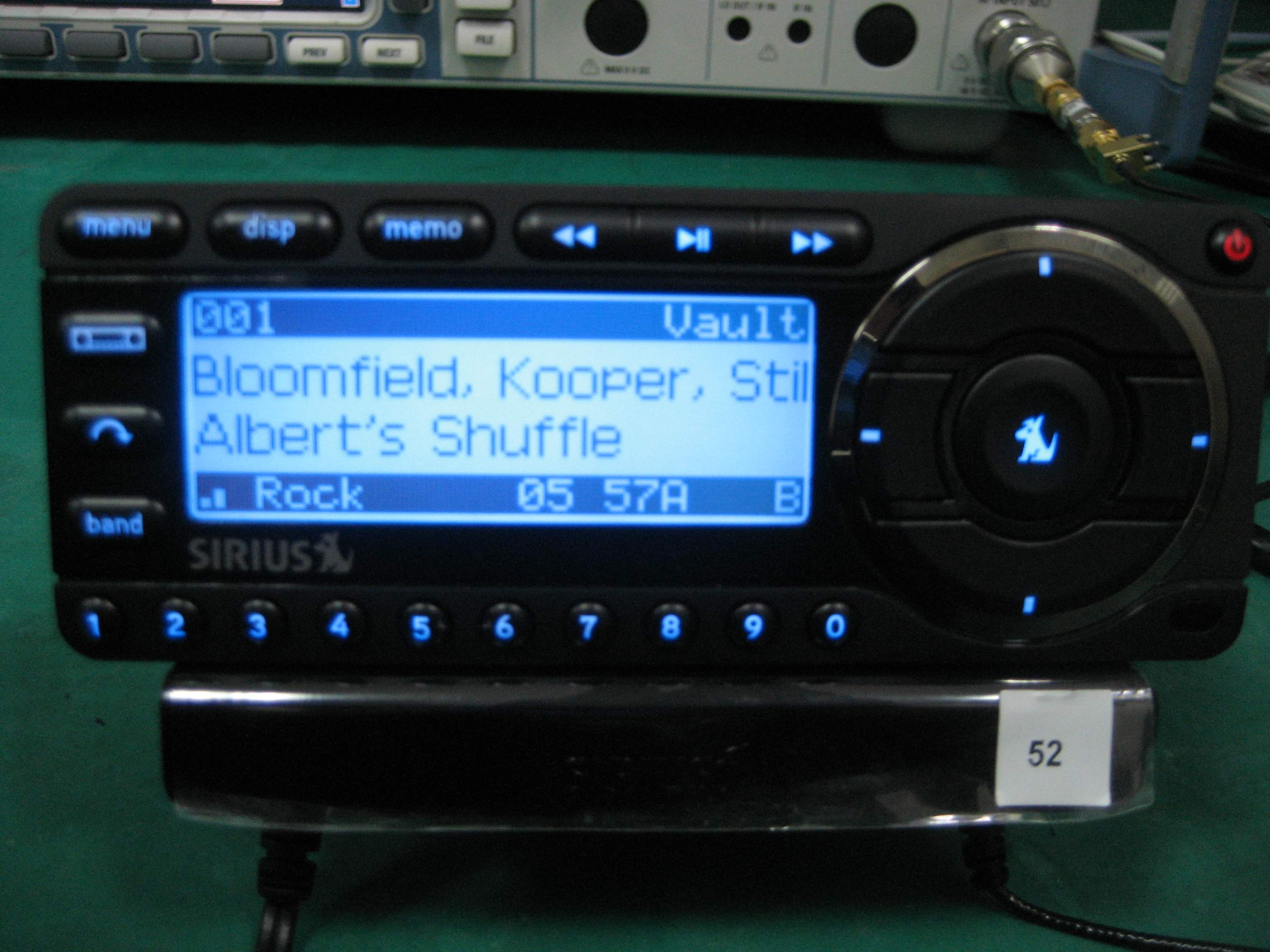

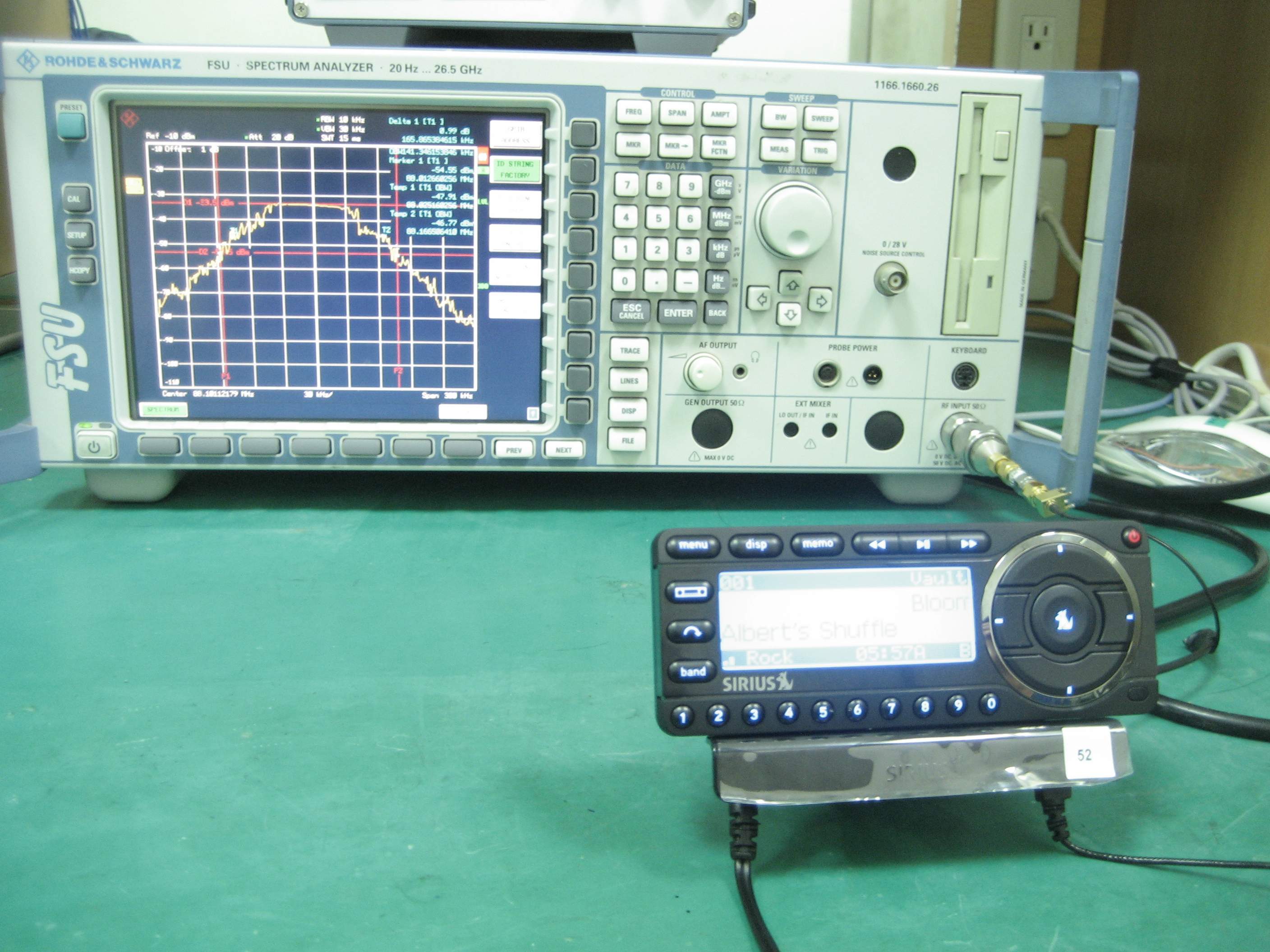

Report No.: FR821416 FCC ID: NKRUPAST5 Page No. : 1 of 4 Appendix B. Test Photos Report No.: FR821416 FCC ID: NKRUPAST5 Page No. : 2 of 4 1. Photographs of Radiated Emissions Test Configuration 9kHz ~30MHz FRONT VIEW REAR VIEW Report No.: FR821416 FCC ID: NKRUPAST5 Page No. : 3 of 4 30MHz~1GHz FRONT VIEW REAR VIEW Report No.: FR821416 FCC ID: NKRUPAST5 Page No. : 4 of 4 Above 1GHz FRONT VIEW REAR VIEW
