NKRUWASLV2STILETTO 2 CAR DOCK

V e h i c l e K i t Installation & User Guide Congratulations on the purchase of your new SIRIUS Stiletto 2 Vehicle Kit! The Stiletto 2 Vehicle Kit will maximize your safety and provide convenience by positioning the Stiletto 2 for easy viewing and operation. Whether you choose the FM wireless or direct con- nect option when installing the kit, the rich digital sound of SIRIUS radio will play through your vehicle’s stereo system. The vehicle dock features preset and direct tune buttons for quickly tuning to your favorite channels, and a jump button for tuning directly to the traffic/weather channel for your area. It is designed for professional or self-installation, and includes a vent and dash mount for flexible mounting options. Use this manual as a guide for the installation. The SIRIUS Stiletto 2 Vehicle Kit will work with the Stiletto 2 model satellite radio. To enhance your Stiletto 2 listening experience, several optional accessories are available to make your Stiletto 2 even more versatile. Please refer to the accessory brochure that is included in this kit for more details. [ Table of Contents ]  Table of Contents Table of ConTenTS 3 WaRnIng and SafeTy InfoRmaTIon 4 FCC Caution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 FCC Interference Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 PaCKage ConTenTS 7 ConTRolS 9 Vehicle Dock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 Remote Control Reference Guide . . . . . . . . . . . . . . . . . . . . . . . . . 11 Remote Control Battery Installation . . . . . . . . . . . . . . . . . . . . . . . 15 InSTallaTIon 16 Installing the Vehicle Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Installing the Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Antenna Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Cable Routing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Connecting the Cigarette Lighter Adapter . . . . . . . . . . . . . . . . . . . . . 30 Docking and Un-docking the Stiletto 2 . . . . . . . . . . . . . . . . . . . . . . . 31 Maximizing Audio Quality From Your Stiletto 2 Radio . . . . . . . . . . . . . . . . . 32 Wireless Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Direct Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48 Subscribing to the SIRIUS Service . . . . . . . . . . . . . . . . . . . . . . . . 51 oPeRaTIon 52 Battery Charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52 Presets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52 Direct Channel Tuning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53 Jump Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54 Auto Shutdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55 Low Light Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55 TRoUbleShooTIng 56 oPTIonal aCCeSSoRIeS 57 WaRRanTy 58 SPeCIfICaTIonS 59 CoPyRIghTS & TRademaRKS 60 SIRIUS Id 61 [ Warning and Safety Information ] 4 Warning and Safety Informatio n FCC Caution Any changes or modifications n ot expr ess ly approved by t he party r esponsibl e f or compli ance coul d v oi d the user’s author ity to oper ate t his equipment. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. For product available in the USA market, only channel 1~11 can be operated. Selection of other channels is not possible. Thi s device complies with part 15 of the F CC R ules. Operation is subject to the foll owing two conditions: Thi s d evice may not cause harmful int erf erence, and Thi s d evice must accept any interfe re nce received, including interference tha t may cause undesired operation. Thi s tr an smi tt er must n ot be co- loca ted or oper ati ng in conjunct ion with any ot her an tenna or tr an smitt er. FCC Interf ere nce St ate ment Thi s e quipment has been test ed and fo und to compl y with th e li mi ts for a Cl ass B di gita l de- vice, pursuan t to Part 15 of the FCC Rules. These limits ar e designed to pro vide rea so na ble protection against harmful interfer ence in a residenti al installation. This equipment generates, uses a nd can r adia te radio f requency ener gy and, if not inst alled an d us ed in accor dance with the in structions, may cause har mful interf ere nce to radio communications. Howeve r, there is no guarant ee tha t in terfe rence will not occur in a part icular inst allat ion. If thi s e quipment does cause harmful interfe rence to radio or television re ception, which can be determined by turn - ing the equipment off and on, the u ser is encouraged to tr y to correct the in terference by one of the foll owin g mea sures: Reor ient or rel oca te the receivi ng antenna . Increas e the separation betw een t he equipment and re ceiv er. 1. 2. — — [ Warning and Safety Information ] 5 Safe ty Pr ecautions Be sure to observ e the fol lowing warn ings. Failur e to f ollow th ese sa fe ty instructions and warn in gs may resul t in a serious a ccident and/or personal injur y. Inst alla tion must be perfor med accor ding to this install ation guid e. SIRIUS i s n ot respon- sible for issues arising fro m inst allations not performed ac cording to th e procedures in this guide. Do not operate t he SIRIUS radio in a way t ha t might divert y our attention from drivin g saf ely. A s a driver, y ou alone are responsib le for safely operati ng your vehicle in accor- dance with tr affic safety laws a t all times. Do not inst all t he unit where it may obstruct y our view thro ugh th e windshield, or of y our vehicl e’s indica tor d is play s. Do not inst all t he unit where it may hinder t…

Text truncated - open the document above for the full version.

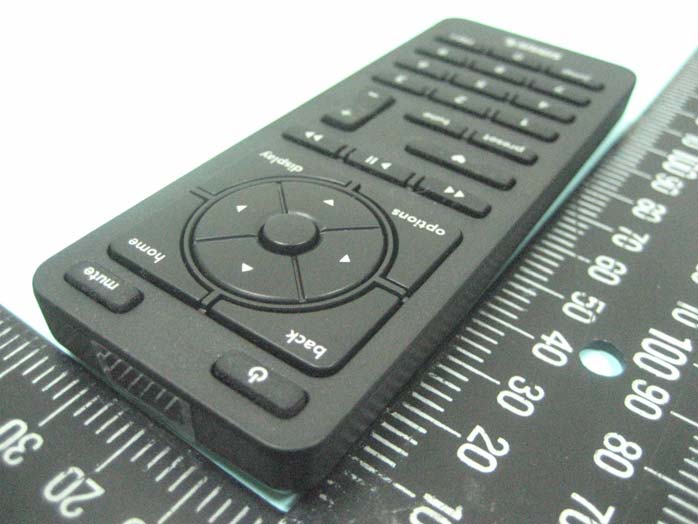

SPORTON International Inc. No.8, Lane 724, Bo-ai St., Jhubei City, Hsinchu County 302, Taiwan, R.O.C. TEL: 886-3-656-9065 FAX: 886-3-656-9085 FCC Requested Information for 15.239 device FCC ID: NKRUWASLV2 1) How does this device operate? Answer: This device is a satellite radio; it receives the satellite signal from the satellite receiving antenna, decodes the audio signal to base band and couples it to the FM modulator contained in the receiver. The output of the FM modulator is coupled to either the internal FM transmitting antenna or the external FM transmitting antenna depending on the users preference. If performance is satisfactory with the internal FM transmitting antenna, then it is expected that the customer would not install the external FM transmitting antenna. The EUT will work with the Stiletto 2 model satellite radio. 2) Provide information on the device and its antenna. Answer: This device is a satellite radio that consist of the following individual pieces: (1) Internal FM transmitting antenna, (2) External FM transmitting antenna, (3) External satellite receiving antenna (4) Cigarette Lighter Adapter, (5) Vehicle Mounts, (6) Remote controller. These two ways of transmitting can only be used individually. 3) How is it installed? Answer: The car dock is installed to hold the radio typically below the top of the dash in order to avoid blocking the view of the road by the driver. The internal FM transmitting antenna will normally be activated at this time and the customer will locate and tune the satellite radio to output its signal on an unused FM channel in his locale. After determining the appropriate channel, the user will tune his car radio to the same channel. If performance is not satisfactory the user is instructed to mount the external FM transmitting antenna adjacent to the window glass antenna. After mounting the external FM transmitting antenna it is plugged into the FM output port, which automatically decouples any internal FM transmitting antenna. 4) What test procedure was used? Answer: The system is tested according to the procedures in ANSI C63.4. Cables are manipulated on the tabletop to maximize the FM band signal level. And also, the cables are bundled as per the instruction in ANSI C63.4 and are then moved around to maximize the FM band signal. Both internal FM transmitting antenna and external FM transmitting antenna configurations are tested. SPORTON International Inc. No.8, Lane 724, Bo-ai St., Jhubei City, Hsinchu County 302, Taiwan, R.O.C. TEL: 886-3-656-9065 FAX: 886-3-656-9085 5) If tested in a car, how was it configured/tested? Answer: It is not tested in the car. 6) Was the tuning range properly verified? The test lab should indicate in the report that the tuning controls were manually adjusted to verify maximum tuning range. Answer: The tuning controls were manually adjusted to verify maximum tuning range. All controls, manual and software were adjusted to determine the maximum tuning range capability of the unit. This range is specified in the test report and is 88.1MHz to 107.9MHz. 7) Was the bandwidth properly tested with maximum audio input? Answer: Input source through the Satellite Base Station continuously transmitter maximum audio input to EUT. 8) Use a typical audio file from a typical device. e.g. do not use a 1 kHz signal from a signal generator. Answer: Ye s . Input source through the Satellite Base Station continuously transmitter maximum audio input to EUT.

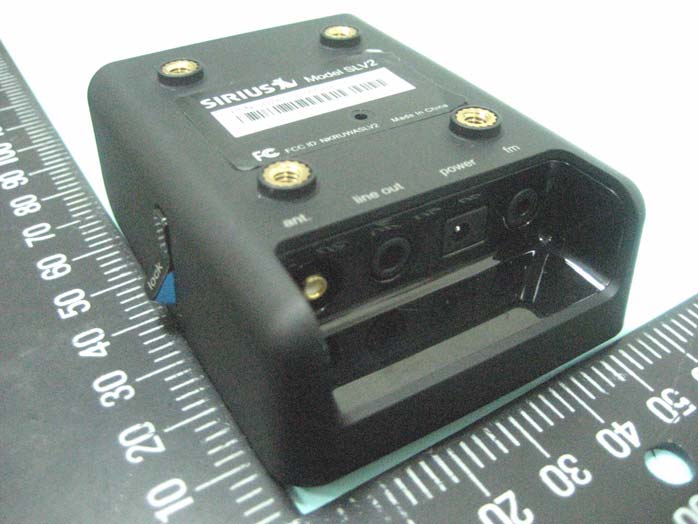

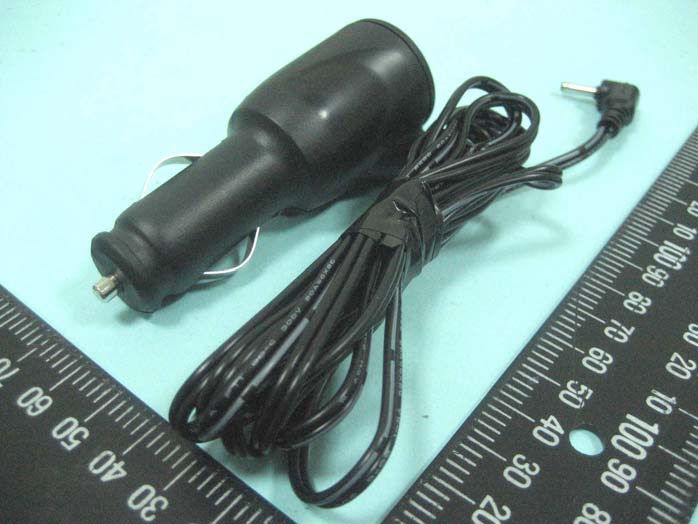

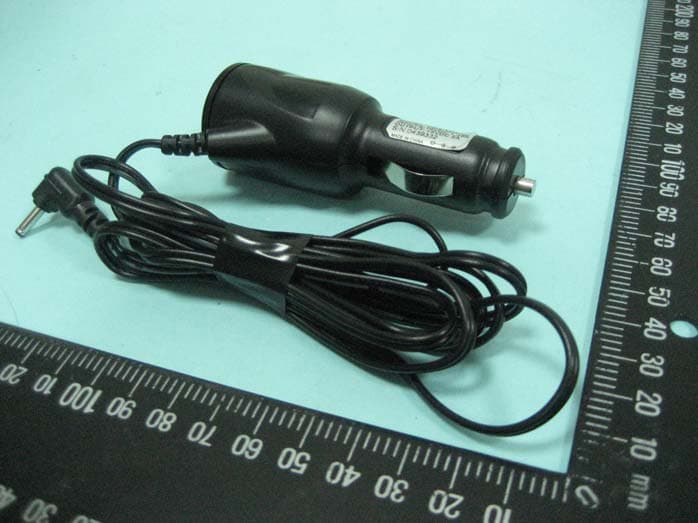

SPORTON International Inc. PAGE NUMBER : A1 OF A11 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 23, 2007 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A11 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 23, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A11 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 23, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A11 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 23, 2007 FAX : 886-2-2696-2255 External FM transmitting antenna SPORTON International Inc. PAGE NUMBER : A5 OF A11 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 23, 2007 FAX : 886-2-2696-2255 External satellite receiving antenna SPORTON International Inc. PAGE NUMBER : A6 OF A11 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 23, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A7 OF A11 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 23, 2007 FAX : 886-2-2696-2255 Cigarette Lighter Adapter 1 SPORTON International Inc. PAGE NUMBER : A8 OF A11 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 23, 2007 FAX : 886-2-2696-2255 Cigarette Lighter Adapter 2 SPORTON International Inc. PAGE NUMBER : A9 OF A11 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 23, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A10 OF A11 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 23, 2007 FAX : 886-2-2696-2255 Vehicle Mounts SPORTON International Inc. PAGE NUMBER : A11 OF A11 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 23, 2007 FAX : 886-2-2696-2255 Remote Control

SPORTON International Inc. PAGE NUMBER : A1 OF A6 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 23, 2007 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A6 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 23, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A6 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 23, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A6 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 23, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A5 OF A6 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 23, 2007 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A6 OF A6 TEL : 886-2-2696-2468 ISSUED DATE : Aug. 23, 2007 FAX : 886-2-2696-2255

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company Wistron NeWeb Corporation Applicant Address No. 10-1, Li-hsin Road I, Science-baded Industrial Park, Hsinchu 300, Taiwan, R.O.C. FCC ID NKRUWASLV2 Manufacturer’s company 1 Wistron NeWeb Corporation Manufacturer Address No. 10-1, Li-hsin Road I, Science-baded Industrial Park, Hsinchu 300, Taiwan, R.O.C. Manufacturer’s company 2 WNC(Kunshan) Corporation Manufacturer Address No.88,Central Avenue, Area B, Kunshan Export Processing Zone, Kunshan City, Jiangsu, China. Product Name Stiletto 2 Car Dock Brand Name Sirius Model Name SLV2, UWA-SL2 Car Dock, SLV2R, SLV2B, SLV2C, SL2TK1C Test Rule Part(s) 47 CFR FCC Part 15 Subpart C § 15.239 Test Freq. Range 88 ~ 108MHz Received Date Aug. 14, 2007 Final Test Date Aug. 21, 2007 Submission Type Original Equipment Multiple Listing Please refer to section 3.7 Statement The device is only possible within the range 88.1-107.9MHz. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR782102-01 Report Format Version: 01 Page No. : i of ii FCC ID: NKRUWASLV2 Issued Date : Aug. 23, 2007 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................3 3.3. Table for Filed Antenna.......................................................................................................................................................................3 3.4. Table for Carrier Frequencies .............................................................................................................................................................4 3.5. Table for Test Modes ...........................................................................................................................................................................4 3.6. Table for Testing Locations..................................................................................................................................................................5 3.7. Table for Multiple Listing......................................................................................................................................................................5 3.8. Table for Supporting Units ...................................................................................................................................................................5 3.9. Test Configurations .............................................................................................................................................................................6 4. TEST RESULT ..................................................................................................................................................... 7 4.1. Field Strength of Fundamental Emissions Measurement .....................................................................................................................7 4.2. 20dB Spectrum Bandwidth Measurement ........................................................................................................................................15 4.3. Radiated Emissions Measurement ....................................................................................................................................................18 4.4. Band Edge Emissions and Tuning Range of FM transmitter Measurement .......................................................................................24 4.5. Antenna Requirements .....................................................................................................................................................................28 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 29 6. TEST LOCATION.............................................................................................................................................. 30 7. TAF CERTIFICATE OF ACCREDITATION ............................................................................................................. 31 APPENDIX A. PHOTOGRAPHS OF EUT.........................................................................................................A1 ~ A17 APPENDIX B. TEST PHOTOS.......................................................................................................................... B1 ~ B4 Report No.: FR782102-01 Report Format Version: 01 Page No. : ii of ii FCC ID: NKRUWASLV2 Issued Date : Aug. 23, 2007 History of This Test Report Original Issue Date: Aug. 23, 2007 Report No.: FR7821…

Text truncated - open the document above for the full version.

Report No.: FR782102-01 FCC ID: NKRUWASLV2 Page No. : 1 of 4 Appendix B. Test Photos Report No.: FR782102-01 FCC ID: NKRUWASLV2 Page No. : 2 of 4 1. Photographs of Radiated Emissions Test Configuration 9kHz ~30MHz FRONT VIEW REAR VIEW Report No.: FR782102-01 FCC ID: NKRUWASLV2 Page No. : 3 of 4 30MHz~1GHz FRONT VIEW REAR VIEW Report No.: FR782102-01 FCC ID: NKRUWASLV2 Page No. : 4 of 4 88~108MHz FRONT VIEW REAR VIEW
