Page No. : 19 Module Approval Request Letter Subject: Module Approval Date: 2011/12/15 FCC ID: NKRUWMWBT-CWM01 Dear Reviewer, We, Sporton International Inc., are authorized by Wistron NeWeb Corporation to have their state-of-the-art MOD-SM WNC BLUETOOTH/WLAN CWM-01 approved under module approval authorization. The application of this module is specified to mobile host equipment. The requirements regulated in Public Notice DA00-1407 have been fulfilled and clearly explained below. 1. The requirement of RF shielding: The shielding of the radio portion can be demonstrated in exhibition External Photo. 2. The requirement of buffered inputs: Buffered data inputs stage has been integrated in chip 88W8688. 3. The requirement of power supply regulation: The part number of the power regulator is MAX4835/18. 4. The requirements of section 15.203 and 15.204(C): The requirements of antenna connector and spurious emission have been fulfilled. Please reference the exhibition Test Report. 5. The requirement of stand-alone test configuration: Please reference exhibition Test Configuration Photo for the stand-alone test configuration. 6. The requirement of labeling: The instruction on the labeling rule of the end product has been stated in the users manual of this module. Please also see the exhibition Label Sample. 7. The requirement of compliance on specific rule or operating requirements: The required FCC rule has been fulfilled and all the instructions for maintaining compliance has been clearly stated in the Users Manual. 8. The requirement of RF exposure: Please refer exhibition RF Exposure for the compliance of MPE RF exposure rule. Please do not hesitate to contact me for any questions of this request letter. Thank you. Company name : Sporton International Inc. Company Address : No.8, Lane 724, Bo-ai St., Jhubei City, Hsinchu County 302, Taiwan, R.O.C. Signature : Name : Leo Huang Job Title : Manager

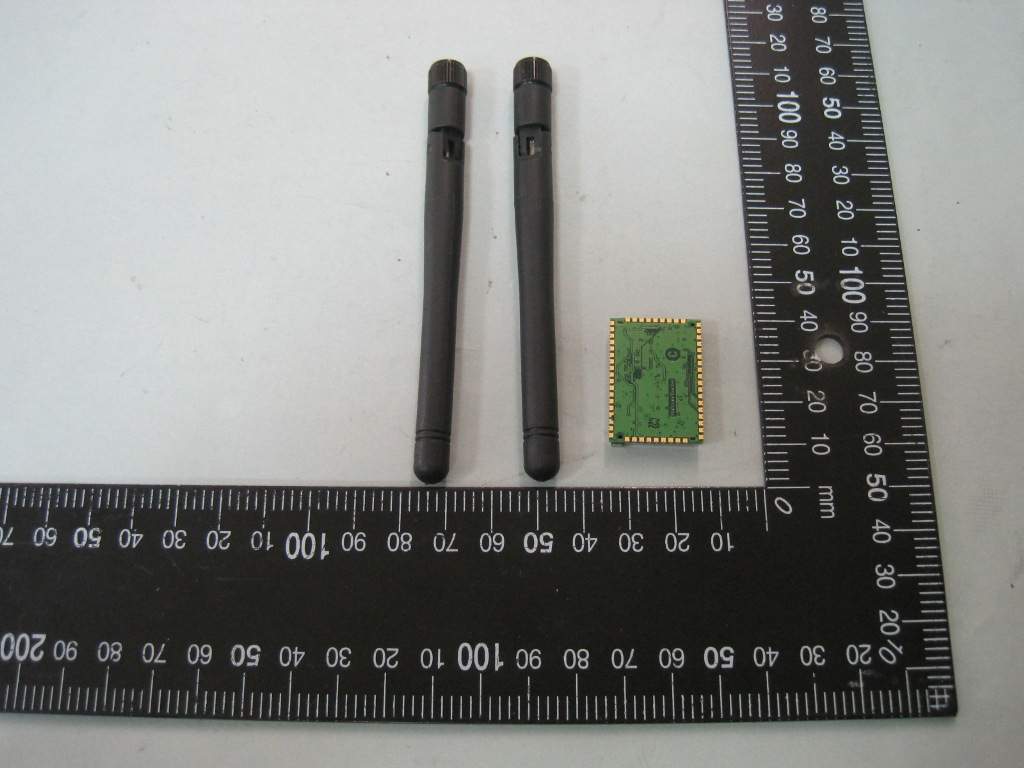

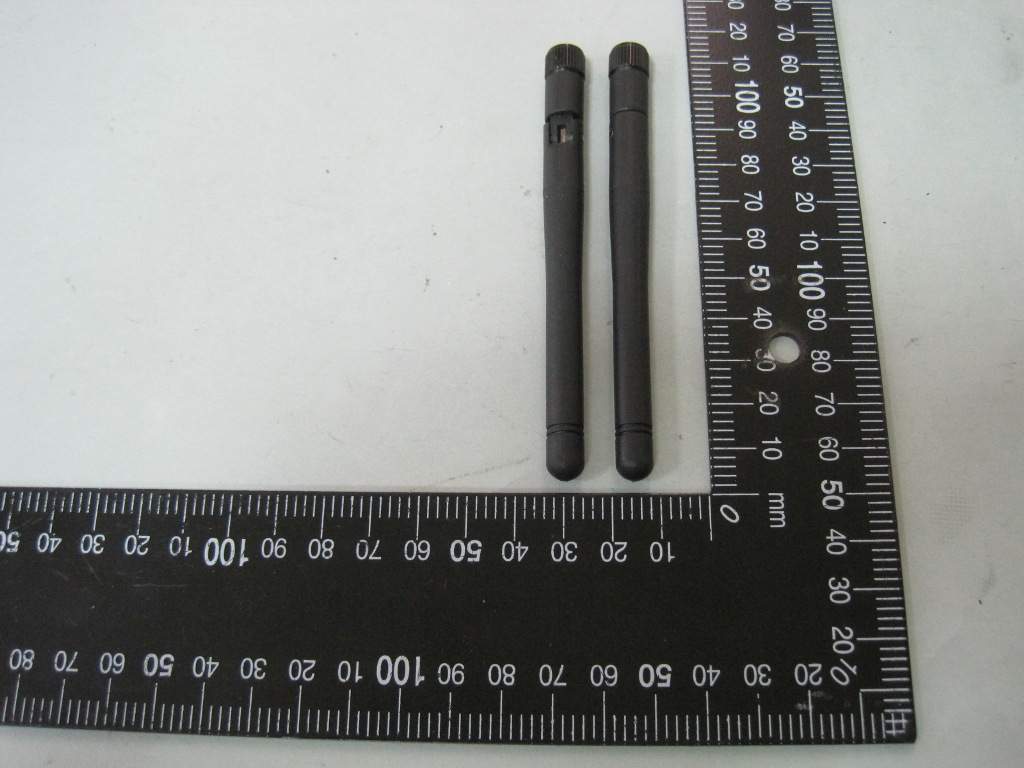

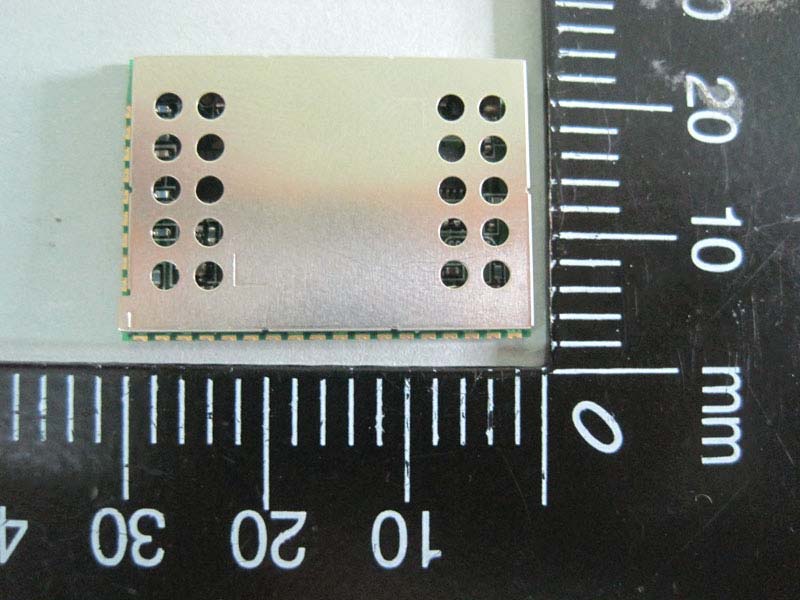

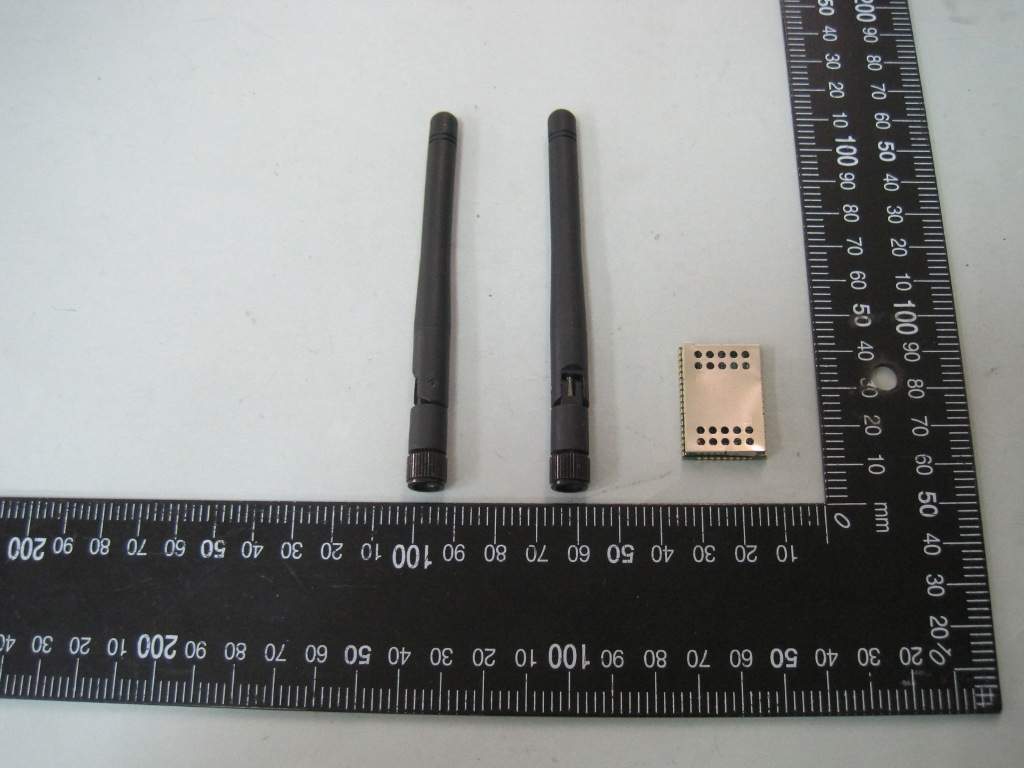

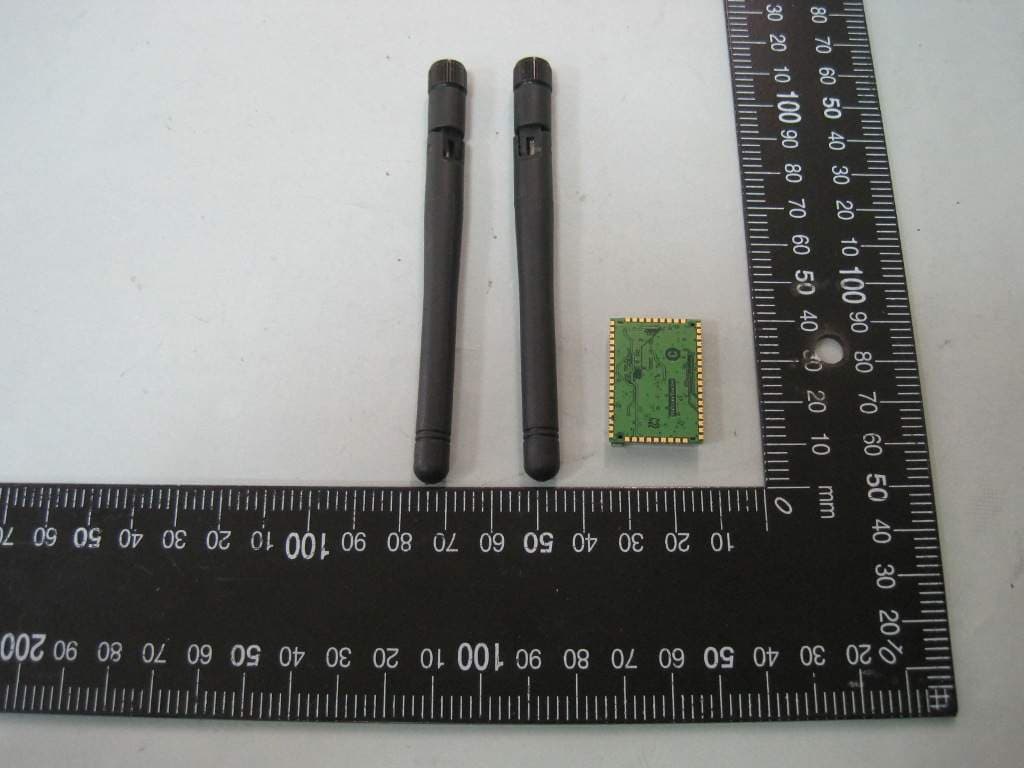

SPORTON International Inc. PAGE NUMBER : A1 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 22, 2011 FAX : 886-2-2696-2255 Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 22, 2011 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 22, 2011 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 22, 2011 FAX : 886-2-2696-2255

SPORTON International Inc. PAGE NUMBER : A1 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 22, 2011 FAX : 886-2-2696-2255 Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 22, 2011 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 22, 2011 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : Dec. 22, 2011 FAX : 886-2-2696-2255

Report No.: FR1D0821 FCC ID: NKRUWMWBT-CWM01 Page No. : B1 of B3 Appendix B. Maximum Permissible Exposure Report No.: FR1D0821 FCC ID: NKRUWMWBT-CWM01 Page No. : B2 of B3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.25 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Average RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP   From the EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR1D0821 FCC ID: NKRUWMWBT-CWM01 Page No. : B3 of B3 1.3. Calculated Result and Limit For 2.4GHz Band: Antenna Type : Dipole Max Conducted Power for IEEE 802.11b/g: 13.98dBm Directional Antenna Gain (dBi) Antenna Gain (numeric) Output Power (dBm) Output Power ( mW ) Power Density (S) Limit of Power Density (S) Test Result 2.00 1.5849 13.9800 25.0035 0.007888 1 Complies For 2.4GHz Band: Antenna Type : Dipole Max Conducted Power for Bluetooth: 5.00dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) Limit of Power Density (S) (mW/cm²) Test Result 2 1.5849 5.0000 3.1623 0.000998 1 Complies CONCULSION: Both of the WLAN 2.4GHz Band and Bluetooth 2.4GHz Band can transmit simultaneously, the formula of calculatedthe MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.007888 / 0.000998 = 0.008886, which isless than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit.

Report No.: FR1D0821 FCC ID: NKRUWMWBT-CWM01 Page No. : C1 of C3 Appendix C. Co-location Report No.: FR1D0821 FCC ID: NKRUWMWBT-CWM01 Page No. : C2 of C3 1. Results of Radiated Emissions for Co-located Temperature 21°C Humidity 63% Test Engineer Rion Li Configurations 2.4GHz Bluetooth + 2.4GHz WLAN Horizontal Report No.: FR1D0821 FCC ID: NKRUWMWBT-CWM01 Page No. : C3 of C3 Vertial

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company Wistron NeWeb Corporation Applicant Address 20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C. FCC ID NKRUWMWBT-CWM01 Manufacturer’s company Wistron NeWeb Corporation Manufacturer Address 20 Park Avenue II, Hsinchu Science Park, Hsinchu 308, Taiwan, R.O.C. Product Name MOD-SM WNC BLUETOOTH/WLAN CWM-01 Brand Name WNC Model Name CWN-01 / UWM-WBT Test Rule 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz Received Date Nov. 29, 2011 Final Test Date Dec. 05, 2011 Submission Type Original Equipment Statement Test result included is only for the 802.11b/g part of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.10-2009 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR1D0821AA Report Format Version: 01 Page No. : i of ii FCC ID: NKRUWMWBT-CWM01 Issued Date : Dec. 22, 2011 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................3 3.3. Table for Filed Antenna.......................................................................................................................................................................4 3.4. Table for Carrier Frequencies .............................................................................................................................................................5 3.5. Table for Test Modes ...........................................................................................................................................................................5 3.6. Table for Testing Locations..................................................................................................................................................................6 3.7. Table for Supporting Units ...................................................................................................................................................................6 3.8. Table for Parameters of Test Software Setting .....................................................................................................................................6 3.9. Test Configurations .............................................................................................................................................................................7 4. TEST RESULT ..................................................................................................................................................... 9 4.1. AC Power Line Conducted Emissions Measurement...........................................................................................................................9 4.2. Peak Output Power Measurement ....................................................................................................................................................13 4.3. Average Output Power Measurement ..............................................................................................................................................15 4.4. Power Spectral Density Measurement ..............................................................................................................................................17 4.5. 6dB Spectrum Bandwidth Measurement ..........................................................................................................................................20 4.6. Radiated Emissions Measurement ....................................................................................................................................................23 4.7. Band Edge Emissions Measurement .................................................................................................................................................35 4.8. Antenna Requirements .....................................................................................................................................................................40 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 41 6. TEST LOCATION.............................................................................................................................................. 43 7. TAF CERTIFICATE OF ACCREDITATION ............................................................................................................. 44 APPENDIX A. TEST PHOTOS ........................................................................................................................ A1 ~ A7 APPENDIX B. MAXIMUM PERMISSIBLE …
