A5 SIZE <Cover Page> IMMERSE UD‐1404 and UD‐1404S User Manual 2.1 Wi‐Fi / Bluetooth Multi‐Room Sound Bar with Wireless Subwoofer * Please read the instructions carefully before using the system and keep the manual for future reference. Table of Content Inside the Box Precautions Product Introduction Overview Soundbar Subwoofer Remote Control Setup IMMERSE Placement Connect to TV Connect to DVD player Connect to other devices ‐ Wi‐Fi ‐ Bluetooth ‐ Ethernet ‐ Aux‐in / Analog / Optical / Coaxial Multi‐Room Sound Effect Mode Firmware Update Troubleshooting Inside the Box Carefully unpack the carton and confirm that the following parts are included. • IMMERSE Wi‐Fi / Bluetooth sound bar • Subwoofer • Remote control • AC adaptors • Manual Precautions * Please read these safety instructions carefully to ensure your safety. • Do not use this product where contact with moisture, liquids, humidity or rain is possible to avoid electric shock and operating damage. • Avoid exposing this product to direct sunlight, stove tops or any other heat sources to prevent operating damage. • Do not cover the ventilation openings – this may cause overheating, damage to the product, and a hazardous condition. • Do not drop, disassemble, deform, modify or insert any objects into this product as operating damage will result. • Do not attempt to repair, modify or disassemble the product yourself. This product does not contain any user‐serviceable components. • Do not clean the product with alcohol, ammonia based cleaners, abrasive cleaners or wet cloth. Only clean with a soft dry cloth. • Do not place this product on its side, on slanted surfaces as well as near the edge of high surfaces, like shelves. Take care to prevent accidental falling. The product may vibrate while playing music, which cause it to move and fall off a surface. • Do not bring your product in to contact with any sharp objects as this may cause scratches and operating damage. • Observe all signs and displays that require an electrical device or RF radio product to be switched off in designated areas. • Dispose of the product in accordance with local laws and regulations. FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates use and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio / TV technician for help. FCC Notice This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. FCC Caution • Any changes or modifications not expressly approved by the party responsible for compliance could void the user‘s authority to operate this equipment. • This device and its antenna(s) must not be co‐located or operating in conjunction with any other antenna or transmitter. FCC ID: NKTUD‐1404, NKTUD‐1404S To locate the FCC and IC id‐entification numbers, please look on the underside of the IMMERSE. Model number UD‐1404,UD ‐1404S The crossed‐out wheelie bin symbol means that the product must be disposed of separately in the European Union. These products must not be disposed of with unsorted household waste. Product Introduction The iui DESIGN UD‐1404 “IMMERSE” multi‐room 2.1 sound bar is a breakthrough in providing high performance audio to your TV and also the whole home. You’re in control – you can use sound bar with other iui DESIGN Wi‐Fi speakers. And the configuration options are almost limitless. Historically, if you wanted to listen to music from your TV or digital device, you could connect to your speaker with a 3.5mm audio cable, or Bluetooth. But IMMERSE provides you breakthrough flexibility. While it connects via an audio cable and Bluetooth, it also can connect by Wi‐Fi and wired Ethernet. And by using Wi‐Fi or wired Ethernet, you can create a whole home audio system, so that you have music distributed throughout your home. To get the best experience from IMMERSE, it’s good to understand some basics. First and foremost, you can simply connect the product by using the 3.5mm audio line in or Bluetooth if you want to just connect a TV to the sound bar. But to play your music to the sound bar and also to other Wi‐Fi speakers, you need to take a few additional steps. But, let’s first walk through the basics... Since IMMERSE is a very high‐performance sound bar with amazing technology capability, you have options to meet your lifestyle. First, you need to decide how to connect your TV and other digital devices to the product, and what the trade‐offs are for each type of connection. 3.5mm Audio Line‐in: If you use the 3.5mm stereo audio line in, you can simply connect your audio source to IMMERSE, and you can enjoy high performance audio. Of course, you will be limited to one IMMERSE sound bar and you have to remain physically connected. Bluetooth: Bluetooth is a simple wireless connection to connect your digital source to your IMMERSE. Bluetooth technology only connects from one source (your TV or other digital source, like …

Text truncated - open the document above for the full version.

MET Laboratories TCB - Samples Agent Authorization Letter 2015-07-09 MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Most Technology Service Co., Ltd. to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Name: Winny Mak Position: Exective Assistant to CEO Company Name: Platform2 International Limited Address: Room 905, Seapower Centre, 73 Lei Muk Road, Kwai Chung, N.T., Hongkong E-Mail: [email protected]

Declaration statement Letter 2015-07-13 MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Declaration statement Letter To Whom It May Concern: We hereby declare that (Subwoofer / UD-1404S) fulfill the requirements of 47 CFR Part 15C Section 15.247(g) & 15.247(h). Compliance for section 15.247(g) According to Bluetooth Core Specification, the Bluetooth system transmits the packet with the pseudorandom hopping frequency with a continuous data and the short burst transmission from the Bluetooth system is also transmitted under the frequency hopping system with the pseudorandom hopping frequency system. Compliance for section 15.247(h) According to Bluetooth Core specification, the Bluetooth system incorporates with an adaptive system to detect other user within the spectrum band so that it individually and independently to avoid hopping on the occupied channels. According to the Bluetooth Core specification, the Bluetooth system is designed not have the ability to coordinated with other FHSS System in an effort to avoid the simultaneous occupancy of individual hopping frequencies by multiple transmitter. Please contact me if there is any information you may need. Sincerely, Name: Winny Mak Position: Exective Assistant to CEO Company Name: Platform2 International Limited Address: Room 905, Seapower Centre, 73 Lei Muk Road, Kwai Chung, N.T., Hongkong E-Mail: [email protected]

MET Laboratories TCB - Samples Long Term Confidentiality Request Letter 2015-07-09 MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (Subwoofer / UD-1404S) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - e.g. Block diagram - e.g. SCH - e.g. Operational Description required to be submitted with this application be permanently withheld from public review. SPECIFY REASON FOR REQUEST (i.e. the above documents are company proprietary information that could never get into the possession of your competition). Please contact me if there is any information you may need. Sincerely, Name: Winny Mak Position: Exective Assistant to CEO Company Name: Platform2 International Limited Address: Room 905, Seapower Centre, 73 Lei Muk Road, Kwai Chung, N.T., Hongkong E-Mail: [email protected]

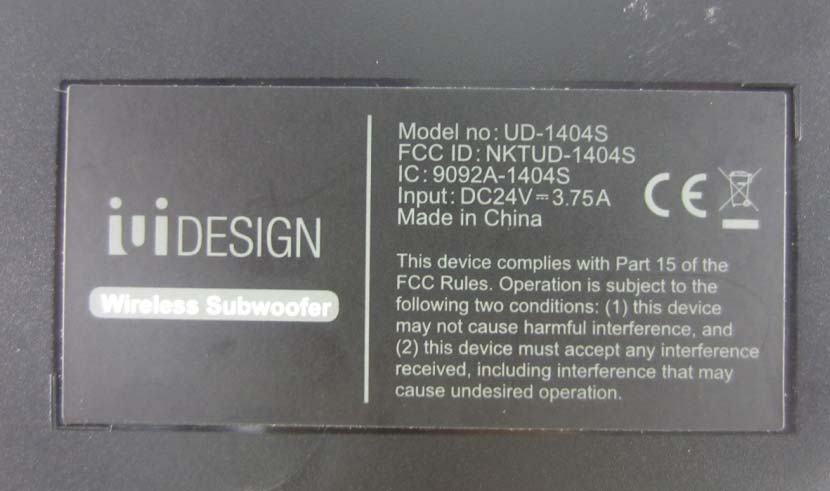

FCC ID: NKTUD-1404S Model No.: UD-1404S FRONT VIEW OF SAMPLE BACK VIEW OF SAMPLE FCC ID: NKTUD-1404S Model No.: UD-1404S LEFT VIEW OF SAMPLE RIGHT VIEW OF SAMPLE FCC ID: NKTUD-1404S Model No.: UD-1404S TOP VIEW OF SAMPLE BOTTOM VIEW OF SAMPLE FCC ID: NKTUD-1404S Model No.: UD-1404S PHOTO OF THE ENTIRE SAMPLE PHOTO OF THE ENTIRE SAMPLE FCC ID: NKTUD-1404S Model No.: UD-1404S PHOTO OF THE ENTIRE SAMPLE

2015-06-10 release first K06-04665-01 A0 ±0.5 PLASTOFORM INDUSTRIES LTD. UD1404S CHECKED BY 3 RD ANGLE : A4 SIZE VERSHEET SCALE TREATMENT / FINISH (COLOR) DRAWN BY DATE 1 2 3 A0 A1 ITEM 1/1 APPROVED BY SIGN. RELEASE DESCRIPTION DECIMALS MODEL MATERIAL (COLOR) DESCRIPTION PART NO. TOLERANCE: Part should be fulfill the banned and restricted substances requirement which specified in ESPP- 3001 DIMENSION ARE IN MILLIMETER UNLESS OTHERWISE SPECIFIED C 7 A 8 B 4 6 5 7 D E F 8 6 2 1 3 CC B A B 2 1 3 DD E F Producy label UD1404S Rating label ROHS REACH

FCC ID: NKTUD-1404S Model No.: UD-1404S INTERNAL PHOTO OF SAMPLE – 1 INTERNAL PHOTO OF SAMPLE – 2 FCC ID: NKTUD-1404S Model No.: UD-1404S INTERNAL PHOTO OF SAMPLE – 3 INTERNAL PHOTO OF SAMPLE – 4 FCC ID: NKTUD-1404S Model No.: UD-1404S INTERNAL PHOTO OF SAMPLE – 5 INTERNAL PHOTO OF SAMPLE – 6 FCC ID: NKTUD-1404S Model No.: UD-1404S INTERNAL PHOTO OF SAMPLE – 7 INTERNAL PHOTO OF SAMPLE – 8 FCC ID: NKTUD-1404S Model No.: UD-1404S BATTERY PHOTO OF SAMPLE – 9 BATTERY PHOTO OF SAMPLE – 10
