NLDAP-9FSHair Remover

1. Make sure that the area to be treated with the Emjoi ® Spotless Beauty is clean, dry and free from oil or lotion. Tip: If you apply a warm compress to the area you wish to treat it will open the pores and hair follicles to make the hair easier to slide out. 2. Remove the Emjoi ® Spotless Beauty handset from its case. 3. The Emjoi ® Spotless Beauty comes with an interchangeable tweezer system. The gold-plated tweezers are ideal for removing single hairs in areas that you want pinpoint precision, eyebrows and sensitive breast hair, while the coil tweezers are excellent for removing multiple hairs at one time, bikini line and facial hair on the sides of your face. 4. To change the tweezers: Remove the cap at the tip of the handset, where the tweezer is located, by using a slight bending motion (fig 1). Then press the small blue button, on the bottom of the handset, and at the same time gently pull out the tweezers (fig 2). Place the other tweezers into the handset until it clicks into place and replace the cap. 5. Since the Emjoi ® Spotless Beauty uses Radio Frequencies to remove unwanted hair it may cause interference with other appliances that use Radio Frequencies, TV, radio, cordless phone, etc. Therefore, make sure that these appliances are not in use where you are using your Emjoi ® Spotless Beauty because they may interfere with its efficient operation. (You can have a microwave oven plugged in as long as you are not cooking something in your microwave oven. Your cordless phone can be plugged in as along as you are not using the phone). 6. Plug the Emjoi ® Spotless Beauty into an electrical outlet. The green light above the “OFF” button will light up (fig 3). Before using your Emjoi ® Spotless Beauty, read this instruction booklet thoroughly. 7. To turn the Emjoi ® Spotless Beauty ON, just select a setting, “HI”, ”MED” or ”LO”, and the red light above the selected setting will light up. For coarse hair use “HI“ and for fine hair select “LO“. You can use “HI“ to remove all types of hair but for people with sensitive skin we recommend to use the “LO“ or “MED“ setting. Note: There is no harmful electricity emitted from the tweezers. When using the Emjoi ® Spotless Beauty you will not feel anything being emitted from the tweezers. 8. If the hair you wish to treat is very long, trim the hair prior to treatment. Hair should not be longer than a 1/4th of an inch. 9. Clasp the unwanted hair between the tweezers by pressing the large blue button on the handle. The Radio Frequency Indicator, red light by the adapter plug, will get brighter (fig 4) this lets you know that the Radio Frequency technology is working. 10. For best results, grasp the hair as close to the skin as possible without touching the skin. Important: Hold the tweezers closed on unwanted hair for 20-30 seconds 11. Gently slide the hair out in the direction of hair growth. If the hair does not slide out easily, some hairs are more stubborn than others, gently tweeze it out. If the hair breaks or does not slide out easily, the follicle may not be at the proper stage to be destroyed. Wait a few days and try again. 12. After you are finished removing hair with the Emjoi ® Spotless Beauty, turn the unit OFF by pressing the “OFF” button and unplug it from the electrical outlet. You can also turn it OFF by selecting the “LIGHT” button if you want to use the clear skin feature. fig 4 fig 5 fig 2 fig 1 fig 3 fig 4 fig 5 Thank you for your purchase of the Emjoi ® Spotless Beauty a two-in-one product that will keep your skin smooth and clear. It removes unwanted hair from the root and damages the root with Radio Frequency Technology. It is a non-invasive alternative to electrolysis that leaves your skin smooth for weeks. Since you are damaging the root every time you remove hair, your hair may begin to grow back lighter as well as thinner. The hair remover includes two interchangeable heads. Use the tweezer attachment for removing single hairs or the coil tweezer to remove multiple hairs. Its skin clearing light attachment uses the same intensity light as the sun on a summer’s day without the harmful infrared and ultraviolet rays to clear up blemishes and unsightly skin conditions. 2x magnification mirror Built in travel case Clear Skin light attachment Comfort grip handle To Use The Hair Remover Feature Cleaning: After each session it is important to clean your Emjoi ® Spotless Beauty. Make sure that your unit is turned OFF and you have unplugged it from the electrical outlet. To clean the coil-tweezers, use the brush provided (fig 5), to brush off any hairs. To clean the gold-plated tweezers, use rubbing alcohol on the tip of the tweezers with a cotton swab that has been squeezed dry. Note: Make sure that the cotton swab is not soaked with alcohol. You cannot use the Hair Removal feature and the Clear Skin Light feature at the same time. You must use them separately. To Use The Clear Skin Feature 1. Make sure that the area to be treated with the Emjoi ® Spotless Beauty is clean, dry and free from oil or lotion. 2. Plug the Emjoi ® Spotless Beauty into an electrical outlet.The green light above the “OFF” button will light up. 3. To turn the Emjoi ® Spotless Beauty ON, press the “LIGHT” button and the red light above it will light up. 4. Hold the Clear Skin light applicator above the area to be treated, without touching the skin. If the light applicator touches the skin turn the unit OFF by pressing the "OFF" button so you can clean the lens. Put rubbing alcohol on a cotton swab that has been squeezed dry and rub it on the lens. After cleaning the lens turn the unit ON by pressing the “LIGHT” button. 5. Hold the Clear Skin light applicator over the treatment area for 3-4 minutes. 6. Repeat step 1-5 three or four times a day as needed. 7. After you are finished using the Clear Skin light attachment, turn the unit OFF by pressing the “OFF” buttton. You can also turn it OFF by selecting a hair removal setting “Hi”, “MED”, or “LO” if you…

Text truncated - open the document above for the full version.

RF Osc (Q1) 27.125MHz Power Control (Q4~Q5) Step Down Control (Q6~Q11) Technical Description - Q1 Transistor for RF oscillation with frequency of 27.125MHz- Q2 Transistor for RF Enable- Q3 Transistor for RF power amp which provide the RF output (for Q1~3)- Q4~Q5 Transistor for Power control purpose- Q6~Q11 for Step down control which give the Light output RF Hair Remover Block Diagram - U1 IC CD40174 for logic control - LED1~6 for STATUS indication Logic Control (U1) Key Buttons RF Enable (Q2) AC supply Adaptor Bridge Rectifier Power STATUS indication LED 1~6 Light O/P RF Power Amp (Q3) RF O/P

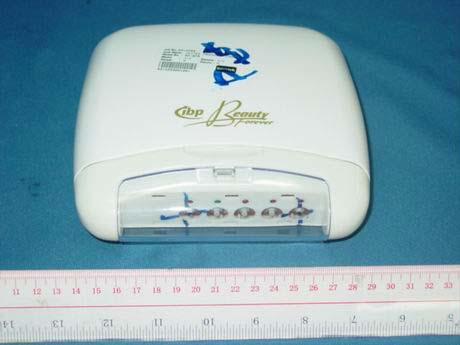

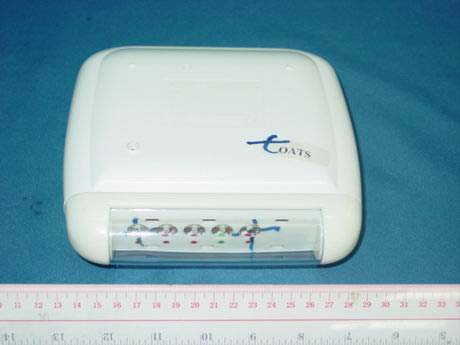

External photos FCC ID: NLDAP-9FS External photos FCC ID: NLDAP-9FS

Main PCB and CD jack Main PCB and DC jack Main PCB

Internal photos FCC ID: NLDAP-9FS Main PCB solder side Internal photos FCC ID: NLDAP-9FS Control button PCB component side Control button solder side

Soft Lines International Limited Application For Certification (FCC ID: NLDAP-9FS) ISM Equipment – Hair Remover We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 18, Subpart C for ISM Equipment Mention 47 CFR (10-1-2002) WO#0314293 BLC/cyl 25 September, 2003 INTERTEK TESTING SERVICES FCC ID: NLDAP-9FS i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual INTERTEK TESTING SERVICES FCC ID: NLDAP-9FS ii MEASUREMENT/TECHNICAL REPORT Soft Lines International Limited - MODEL: emjoi AP-9FS FCC ID: NLDAP-9FS 25 September, 2003 This report concerns (check one:) Original Grant X Class II Change Equipment Type: ISM Equipment Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Report prepared by: Billy Chow Intertek Testing Services 2/F., Garment Center, 576, Castle Peak Road, HONG KONG Phone: 852-2713-8491 Fax: 852-2742-5716 INTERTEK TESTING SERVICES FCC ID: NLDAP-9FS iii Table of Contents 1.0 General Description................................................................................................. 2 1.1 Product Description............................................................................................... 2 1.2 Related Submittal(s) Grants .................................................................................. 2 1.3 Test Methodology ................................................................................................. 3 1.4 Test Facility........................................................................................................... 3 1.5 Equipment List ............................................................................................................ 4 2.0 System Test Configuration ...................................................................................... 6 2.1 Justification ............................................................................................................. 6 2.2 EUT Exercising Software ......................................................................................... 6 2.3 Special Accessories ................................................................................................ 6 2.4 Equipment Modification ........................................................................................... 7 2.5 Support Equipment List and Description .................................................................. 7 3.0 Emission Results ..................................................................................................... 9 3.1 Field Strength Calculation ...................................................................................... 10 3.1 Field Strength Calculation (cont) ............................................................................ 11 3.2 Radiated Emission Configuration Photograph ........................................................ 12 3.3 Radiated Emission Data ........................................................................................ 13 3.4 Line Conducted Configuration Photograph (cont’d) ................................................ 15 3.5 Line Conducted Emission Data .................................................................................. 16 4.0 Equipment Photographs ........................................................................................ 18 5.0 Product Labelling ................................................................................................... 20 6.0 Technical Specifications ........................................................................................ 22 7.0 Instruction Manual .................................................................................................. 24 INTERTEK TESTING SERVICES FCC ID: NLDAP-9FS iv List of attached file Exhibit type File Description filename Cover Letter Letter of Agency letter.pdf Test Report Test Report report.doc Test Report Technical Description descri.pdf Test Setup Photo Config Photo config photo.doc Test Report Conducted Emission Test Result conducted.pdf External Photo External Photo external photo.doc Internal Photo Internal Photo internal photo.doc Block Diagram Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf ID Label/Location Label Artwork and Location label.pdf User Manual User Manual manual.pdf INTERTEK TESTING SERVICES FCC ID: NLDAP-9FS 1 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES FCC ID: NLDAP-9FS 2 1.0 General Description1.0 General Description 1.1 Product Description1.1 Product Description The equipment under test (EUT) is a hair remover . The EUT is operated with 27.125MHz and powered by a 24Va.c. AC adaptor. There are five buttons on the EUT, ON, HI, MED, LO and LIGHT. After turn on the EUT, the setting of the tweezers can be selected (HI, MED and LO). Besides there is a LIGHT button to control the ON/OFF of the light bulb. The brief circuit description is saved with filename : descri.pdf. 1.2 Related Submittal(s) Grants1.2 Related Submittal(s) Grants This is a single application for certification of a consumer ISM equipment. INTERTEK TESTING SERVICES FCC ID: NLDAP-9FS 3 1.3 Test Methodology1.3 Test Methodology Both AC mains line-conducted and radiated emission measurements were performed according to the procedures in MP-5. All measurements were performed in Open Area Test Sites. Preliminary scans were performed in the Open Area Test Sites only to determine worst case modes. For each scan, the procedure for maximizing emissions in Appendices D and E were followed. All Radiated tests were performed at an antenna to EUT distance of 3 meters, unl…

Text truncated - open the document above for the full version.

The Worst Case Configuration Photographs FCC ID: NLDAP-9FS Radiated Emission Front View Rear View The Worst Case Configuration Photographs FCC ID: NLDAP-9FS Conducted Emission Front View Rear View The Worst Case Configuration Photographs FCC ID: NLDAP-9FS Conducted Emission Side View
