NLKTMI330802727 MHz Remote Control Transmitter

27 MHz FCC ID: NLKTMI3308027 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. Toymax Inc. Job #: 490U1 FCC ID: NLKTMI3308027 Exhibit #: 4

DYNAMIC INDUSTRIES CO LTDITEM NO: UNIT 2205, 22F, 57, HUNG TO RD.KLN .HONG KONG.MODEL NANE:-RC STREET LUGE TEL :-852-2389-8230FREQUENCY :-27.145 MHZ FAX :-852-2790-5521DATE :-11TH MAY 2001 ENGINEERING DEPARTMENT BY:B.LEE (TX CIRCUIT DESCRIPTION ) **CIRCUIT DESCRIPTION :- (TX) WHEN THE UNIT IS TURNED ON A CW SIGNAL IS TRANSMITTED. THE CRYSTAL CONTROLLED OSCILLATOR Q1 OUTPUT IS COUPLED THROUGH C6 TO THE BASE OF Q2. FROM Q2 THE SIGNAL IS FED THROUGH C8 TO THE LOW PASS FILTER MADE UP OF C8,C10,L3,C11, & L4 WHICH IS CONNECTED TO THE ANTENNA. THE 'MODULATION IS PROVIDED BY U1 WHEN ONE OF THE SWITCHES ARE PUSHED. THE UNIT IS POWERED BY A 9.0V BATTERY AND IS SELF CONTAINED. **ANTENNA AND GROUND CIRCUITRY. (TX) THIS UNIT MAKES USE OF AN EXTENAL 5"ANTENNA. THE ANTENNA IS INDUCTIVELY COUPLED. THIS UNIT IS POWERED FROM A 9.0V BATTERY. ** NO GROUND CONNECTION IS PROVIDED. THE UNIT RELIES ON THE GROUND TRACK OF THE PRINTED CIRCUIT BOARD. (PCB)

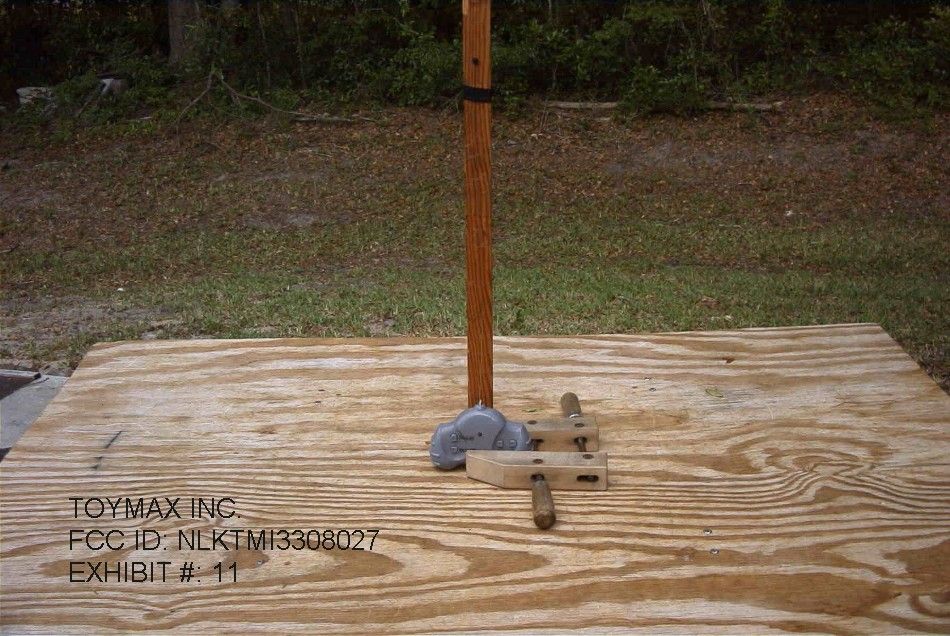

TABLE OF CONTENTS APPLICANT: TOYMAX INC. FCC ID: NLKTMI3308027 TEST REPORT CONTAINING: PAGE 1......TEST EQUIPMENT LIST AND TEST PROCEDURE PAGE 2......TEST PROCEDURE CONTD. PAGE 3......RADIATION INTERFERENCE TEST DATA PAGE 4......OCCUPIED BANDWIDTH TEST DATA PAGE 5......OCCUPIED BANDWIDTH PLOT EXHIBITS CONTAINING: EXHIBIT 1............BLOCK DIAGRAM EXHIBIT 2............SCHEMATIC EXHIBIT 3A-B.........INSTRUCTION MANUAL EXHIBIT 4............SAMPLE OF FCC ID LABEL EXHIBIT 5............LOCATION OF FCC ID LABEL EXHIBIT 6............EXTERNAL PHOTO - FRONT SIDE EXHIBIT 7............EXTERNAL PHOTO - BACK SIDE EXHIBIT 8............INTERNAL PHOTO - COMPONENT SIDE EXHIBIT 9............INTERNAL PHOTO - COPPER SIDE EXHIBIT 10...........CIRCUIT DESCRIPTION EXHIBIT 11...........TEST SETUP PHOTO APPLICANT: TOYMAX INC. FCC ID: NLKTMI3308027 REPORT #: T\TOYMAX\490U1\490U1RPT.doc PAGE: TABLE OF CONTENTS LIST APPLICANT: TOYMAX INC. FCC ID: NLKTMI3308027 TEST EQUIPMENT LIST 1._X_Spectrum Analyzer: HP 8566B-Opt 462, S/N 3138A07786, w/ preselector HP 85685A, S/N 3221A01400, Quasi-Peak Adapter HP 8565OA, S/N 3303A01690 & Preamplifier HP 8449B-OPT H02, S/N 3008A00372 Cal. 10/17/99 2._X_Biconnical Antenna: Eaton Model 94455-1, S/N 1057 3.___Biconnical Antenna: Electro-Metrics Model BIA-25, S/N 1171 4._X_Log-Periodic Antenna: Electro-Metrics Model EM-6950, S/N 632 5.___Log-Periodic Antenna: Electro-Metrics Model LPA-30, S/N 409 6.___Double-Ridged Horn Antenna: Electro-Metrics Model RGA-180, 1-18 GHz, S/N 2319 7.___18-26.3GHz Systron Donner Standard Gain Horn #DBE-520-20 8.___Horn 40-60GHz: ATM Part #19-443-6R 9.___Line Impedance Stabilization Network: Electro-Metrics Model ANS-25/2, S/N 2604 Cal. 2/9/00 10.___Temperature Chamber: Tenney Engineering Model TTRC, S/N 11717-7 11.___Frequency Counter: HP Model 5385A, S/N 3242A07460 Cal 10/6/99 12.___Peak Power Meter: HP Model 8900C, S/N 2131A00545 13._X_Open Area Test Site #1-3meters Cal. 12/22/99 14.___Signal Generator: HP 8640B, S/N 2308A21464 Cal. 9/23/99 15.___Signal Generator: HP 8614A, S/N 2015A07428 16.___Passive Loop Antenna: EMCO Model 6512, 9KHz to 30MHz, S/N 9706-1211 Cal. 6/10/00 17.___Dipole Antenna Kit: Electro-Metrics Model TDA-30/1-4, S/N 153 Cal. 11/24/99 18.___AC Voltmeter: HP Model 400FL, S/N 2213A14499 Cal. 9/21/99 19.___Digital Multimeter: Fluke Model 8012A, S/N 4810047 Cal 9/21/99 20.___Digital Multimeter: Fluke Model 77, S/N 43850817 Cal 9/21/99 21.___Oscilloscope: Tektronix Model 2230, S/N 300572 Cal 9/23/99 TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of TIMCO ENGINEERING, INC. RADIATION INTERFERENCE: The test procedure used was ANSI STANDARD C63.4-1992 using a HEWLETT PACKARD spectrum analyzer with a prese- lector. The bandwidth of the spectrum analyzer was 100 kHz with an appropriate sweep speed. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100KHz and the video bandwidth was 300KHz. The ambient temperature of the UUT was 80º with a humidity of 45%. APPLICANT: TOYMAX INC. FCC ID: NLKTMI3308027 REPORT #: T\TOYMAX\490U1\490U1RPT.doc PAGE #: 1 APPLICANT: TOYMAX INC. FCC ID: NLKTMI3308027 TEST PROCEDURES CONTINUED FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was estab- lished by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor sup- plied by the antenna manufacturer. The antenna correction factors are stated in terms of dB. The gain of the Preselector was accounted for in the Spectrum Analyzer Meter Reading. Example: Freq (MHz) METER READING + ACF = FS 33 20 dBuV + 10.36 dB = 30.36 dBuV/m @ 3m ANSI STANDARD C63.4-1992 10.1.7 MEASUREMENT PROCEDURES: The unit under test was placed on a table 80 cm high and with dimensions of 1m by 1.5m. The table used for radiated measurements is capable of continuous rotation. When an emission was found, the table was rotated to produce the maximum signal strength. At this point, the antenna was raised and lowered from 1m to 4m. The antenna was placed in both the horizontal and vertical planes. FCC ID: NLKTMI3308027 REPORT #: T\TOYMAX\490U1\490U1RPT.doc PAGE #: 2 APPLICANT: TOYMAX INC. FCC ID: NLKTMI3308027 NAME OF TEST: RADIATION INTERFERENCE RULES PART NO.: 15.227 REQUIREMENTS: CARRIER FREQUENCY WILL NOT EXCEED 80 dBuV/m AT 3M. OUT-OF-BAND EMISSIONS SHALL NOT EXCEED: 30 - 88 MHz 40.0 dBuV/M MEASURED AT 3 METERS 88 - 216 MHz 43.5 dBuV/M 216 - 960 MHz 46.0 dBuV/M ABOVE 960 MHz 54.0 dBuV/M TEST DATA: Emission Frequency MHz Meter Reading dBuv Ant. Polarity Coax Loss dB Correction Factor dB Field Strength dBuv/m Margin dB 27.1 56.5 V 0.60 10.25 67.35 12.65 54.3 15.5 V 0.90 7.75 23.75 16.25 81.4 19.1 V 1.10 12.90 33.10 6.90 108.6 6.5 V 1.30 11.35 19.15 24.35 135.7 10.7 H 1.40 16.90 29.00 14.50 162.9 8.5 V 1.60 16.67 26.77 16.73 190.0 11.3 V 1.80 12.60 25.70 17.80 244.3 5.8 V 2.00 13.77 21.57 24.43 271.4 3.9 V 2.20 15.50 21.60 24.40 SAMPLE CALCULATION: FSdBuV/m = MR(dBuV) + ACFdB. TEST PROCEDURE: The procedure used was ANSI STANDARD C63.4-1992. The spectrum was scanned from 30 MHz to 1000 MHz. When an emission was found, the table was rotated to produce the maximum signal strength. The antenna was placed in both the horizontal and vertical planes and the worse case emissions were reported. The UUT was tested in 3 orthogonal planes. TEST RESULTS: THE UNIT DOES MEET THE FCC REQUIREMENTS. PERFORMED BY: JOSEPH SCOGLIO DATE: MAY 9, 2001 APPLICANT: TOYMAX INC. FCC ID: NLKTMI3308027 REPORT #: T\TOYMAX\490U1\490U1RPT.doc PAGE #: 3 APPLICANT: TOYMAX INC. FCC ID: NLKTMI3308027 NAME OF TEST: Occupied Bandwidth RULES PART NO.: 15.227 REQUIREMENTS: The field strength of any emissions appearing outside the 26.96-27.28 MHz band shall not exceed the general radiated emission limits in (15.209). THE GRAPH ON THE FOLLOWING PAGE REPRESENTS THE WORSE CASE OCCUPPIED BANDWIDTH EMISSIONS FOR THIS DEVICE. METHOD OF MEASUREMENT: A small sam…
