NM5-EL24A-1124GHz Pt-Pt Bridge

Preliminary Version 1.0 May 2003 EtherLeap User’s Manual LIMITED WARRANTY YDI Wireless (YDI) warrants that your device is free of defects in material and workmanship for a period of one year after initial purchase. YDI will, in this period of time, repair or replace, any YDI product returned to the factory, freight prepaid. The YDI warranty covers repairs or replacement (at YDI’s option) of the product only. YDI is not responsible for the cost of removal, reinstallation, or shipping to the place of repair. YDI does not extend or modify its warranty period as a result of repair or replacement. YDI reserves the right to void a warranty and/or make reasonable charges for repair of a unit if the warranty seal is broken or the unit displays evidence of misuse, abuse, or tampering. YDI is not responsible for damage to any other equipment or property, or any other consequential or incidental damages of any kind, whether based on contract, negligence, or strict liability. Maximum liability shall not in any case exceed the purchase price of the unit. Warranties give you (the buyer) specific legal rights. You may also have other rights that vary from state to state. This warranty is only extended to purchases made in the United States of America or its possessions. SPECIAL WARRANTY NOTICE The warranty is null and void if any of the following occurs: 1. The product enclosure is opened. 2. The connections are not properly waterproofed. 3. The device is installed improperly or with incorrect connectors. 4. The round connector of the outdoor Ethernet cable provided is improperly plugged into the rear jack of the enclosure. 5. The device or DC Power Injector are physically damaged. 6. The device is operated outside the recommended DC power specifications. 7. The device is damaged by extreme forces of nature, lightning, or ‘Acts of God.’ FCC NOTICE This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. * Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user's authority to operate the equipment. These products are labeled with one of the following FCC ID numbers: FCC ID: NM5-EL24A-11 Version 1.0 Page i May 2003 EtherLeap User’s Manual TABLE OF CONTENTS Section 1 Overview 1 1.1 Description....................................................................................................................................1 1.2 EtherLeap Features......................................................................................................................1 1.3 EtherLeap Kit................................................................................................................................2 Section 2 Installation 3 2.1 Introduction...................................................................................................................................3 2.2 DC Power Injector.........................................................................................................................3 2.3 Power Supply................................................................................................................................3 2.4 LED...............................................................................................................................................3 2.5 Hardware Installation....................................................................................................................4 2.6 Making Final Adjustment to Maximize Received Signal...............................................................7 © 2003 YDI Wireless. All Rights Reserved. No part or parts of this document may be reproduced, translated, stored in any electronic retrieval system or transmitted, in any form or by any means, electronic, mechanical, photocopied, recorded or otherwise, without the prior written permission of YD I Wireless. Version 1.0 Page ii May 2003 EtherLeap User’s Manual Section 1 Overview 1.1 Description The EtherLeap TM is a Point-to-Point Wireless Bridge that operates on the uncrowded license-free 24 GHz band. It was specifically created for RF hostile environments where the 2.4 and 5.8 GHZ bands have too much congestion or interference. It is designed to extend the reach of 10/100Base-T Ethernet networks through wireless connections where installation barriers and high cost make installing additional copper connections less desirable. It provides flexibility by being deployable in a large variety of network architectures. EtherLeap comes pre-configured and is capable to interface seamlessly with Ethernet networks. EtherLeap is a Time Division Duplex (TDD) device with an over-the-air data rate of 11 Mbps. It uses Direct Sequence Spread Spectrum (DSSS) and an adaptive data rate technology to ensure the integrity of the link under adverse conditions. This allows for smooth changes in the data rate instead of an abrupt loss of link. The product can be used in a wide range of applications. It can bridge Hot Spots by providing connectivity outside the 2.4 GHz and 5.8 GHz bands. It can also bridge Ethernet networks and connect remote servers to LANs, managing virtually an unlimited number of client MAC addresses on each side of the link. The unit features 128-bit WEP-Plus encryption. The EtherLeap comes with an integrated one-foot dish antenna. Because the radio is located at the antenna, extending the Ethernet cable will not affect the operating range. Since EtherLeap is based on 802.11 MAC layer, it provides transparent point-to-point connectivity. It requires only 25 watts to operate and it plugs into any layer-2 switch. These attributes make EtherLeap ideal for disaster recovery and emergency network restoration applications. …

Text truncated - open the document above for the full version.

Response to TCB Findings 1. Please specify the measurement system settings (RBW,VBW) for the radiated emissions tests in the report. Response: Measurement system settings clarified. See revised test report. 2. Please remove the RF exposure statement from the user manual’s FCC Notice section, as there are no RF exposure requirements in the rules section that the device was tested against. Response: Statement removed. See the revised manual.

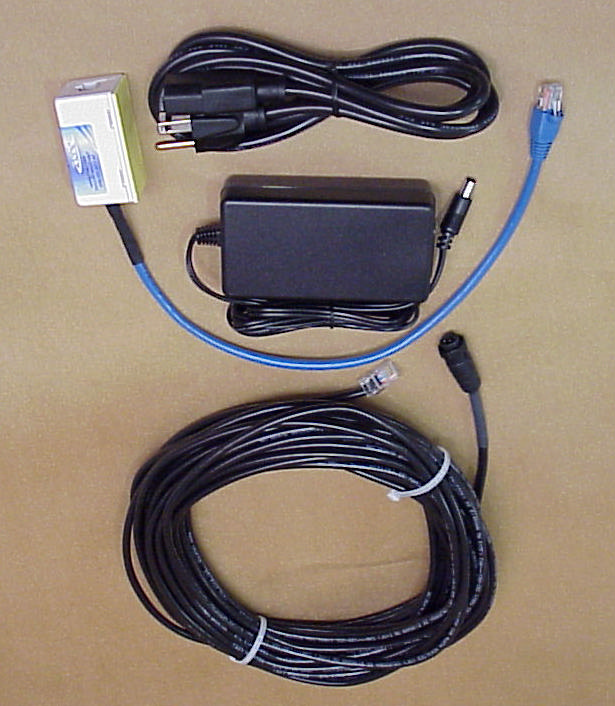

External Photographs 5/28/03 1/5 YDI Wireless Proprietary All information, including mechanical and electrical designs, described on or otherwise set forth on this document is proprietary and confidential to YDI Wireless and may not be copied or reproduced by any means, or disclosed by the party who receives this document to any other party without prior written permission from YDI Wireless. This document is on loan from YDI Wireless and must be immediately returned on demand. File: YDIWirelessEL24A-11EP.doc External Photographs, EtherLeap Unit Model EL24A-11 YDI Wireless Proprietary All information, including mechanical and electrical designs, described on or otherwise set forth on this document is proprietary and confidential to YDI Wireless and may not be copied or reproduced by any means, or disclosed by the party who receives this document to any other party without prior written permission from YDI Wireless. This document is on loan from YDI Wireless and must be immediately returned on demand. List of Contents Photo of EUT – Front view pg. 2 Photo of EUT – Rear view pg. 3 Photo of EUT – Side view pg. 4 Auxiliary Equipment Photo of EUT ancilliary equipment pg. 5 External Photographs 5/28/03 2/5 YDI Wireless Proprietary All information, including mechanical and electrical designs, described on or otherwise set forth on this document is proprietary and confidential to YDI Wireless and may not be copied or reproduced by any means, or disclosed by the party who receives this document to any other party without prior written permission from YDI Wireless. This document is on loan from YDI Wireless and must be immediately returned on demand. Photograph of EUT – Front view External Photographs 5/28/03 3/5 YDI Wireless Proprietary All information, including mechanical and electrical designs, described on or otherwise set forth on this document is proprietary and confidential to YDI Wireless and may not be copied or reproduced by any means, or disclosed by the party who receives this document to any other party without prior written permission from YDI Wireless. This document is on loan from YDI Wireless and must be immediately returned on demand. Photograph of EUT – Rear view FCC Label position External Photographs 5/28/03 4/5 YDI Wireless Proprietary All information, including mechanical and electrical designs, described on or otherwise set forth on this document is proprietary and confidential to YDI Wireless and may not be copied or reproduced by any means, or disclosed by the party who receives this document to any other party without prior written permission from YDI Wireless. This document is on loan from YDI Wireless and must be immediately returned on demand. Photograph of EUT – side view External Photographs 5/28/03 5/5 YDI Wireless Proprietary All information, including mechanical and electrical designs, described on or otherwise set forth on this document is proprietary and confidential to YDI Wireless and may not be copied or reproduced by any means, or disclosed by the party who receives this document to any other party without prior written permission from YDI Wireless. This document is on loan from YDI Wireless and must be immediately returned on demand. Auxiliary Equipment Photo of EUT ancilliary equipment AC cord AC adapter PoE injector Ethernet cable

Label and Label Location 5/28/03 1/2 YDI Wireless Proprietary All information, including mechanical and electrical designs, described on or otherwise set forth on this document is proprietary and confidential to YDI Wireless and may not be copied or reproduced by any means, or disclosed by the party who receives this document to any other party without prior written permission from YDI Wireless. This document is on loan from YDI Wireless and must be immediately returned on demand. File: YDIWirelessEL24A-11ID.doc ID Label/Location EtherLeap Model EL24A-11 The Unit ID Label is required to include the FCC ID and the statement: “This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.” The label is shown below in Photograph 1. Photograph 1: Unit Label Label and Label Location 5/28/03 2/2 YDI Wireless Proprietary All information, including mechanical and electrical designs, described on or otherwise set forth on this document is proprietary and confidential to YDI Wireless and may not be copied or reproduced by any means, or disclosed by the party who receives this document to any other party without prior written permission from YDI Wireless. This document is on loan from YDI Wireless and must be immediately returned on demand. The label material is made from .0508mm white polyester with a V156 acrylic adhesive. Both adhesive and label material will last the lifetime of the product. The label location on the exterior of the EtherLeap is shown in Photograph 2. Photograph 2: Label Location on Exterior of EtherLeap Position of FCC label

Report: D0373-1 FCC ID: NM5-EL24A-11 Report: D0373-1 FCC ID: NM5-EL24A-11 Report: D0373-1 FCC ID: NM5-EL24A-11

Report: D0373-1 FCC ID: NM5-EL24A-11 Report: D0373-1 FCC ID: NM5-EL24A-11

2’ Antenna Specifications 5/28/03 1/3 YDI Wireless Proprietary All information, including mechanical and electrical designs, described on or otherwise set forth on this document is proprietary and confidential to YDI Wireless and may not be copied or reproduced by any means, or disclosed by the party who receives this document to any other party without prior written permission from YDI Wireless. This document is on loan from YDI Wireless and must be immediately returned on demand. File: YDIWirelessEL24A-11ANT.doc 12” Antenna Specifications, EtherLeap Unit Model EL24A-11 YDI Wireless Proprietary All information, including mechanical and electrical designs, described on or otherwise set forth on this document is proprietary and confidential to YDI Wireless and may not be copied or reproduced by any means, or disclosed by the party who receives this document to any other party without prior written permission from YDI Wireless. This document is on loan from YDI Wireless and must be immediately returned on demand. List of Contents Antenna Specifications pg. 2 Antenna gain plots pg. 2 Photo of Antenna aperture – Front view pg. 3 2’ Antenna Specifications 5/28/03 2/3 YDI Wireless Proprietary All information, including mechanical and electrical designs, described on or otherwise set forth on this document is proprietary and confidential to YDI Wireless and may not be copied or reproduced by any means, or disclosed by the party who receives this document to any other party without prior written permission from YDI Wireless. This document is on loan from YDI Wireless and must be immediately returned on demand. Antenna Specifications Andrews Antenna Model # BCP-030-245-003 Frequency range 24.050 – 24.250GHz Antenna type 12”diameter reflector antenna 3dB beam-width (E-plane) 2.9 O typical Bore-sight gain 34.5dBi typical @ 24.250GHz EtherLeap Antenna Azimuth Pattern 24.00 GHz 0 5 10 15 20 25 30 35 40 -15-12-9-6-303691215 Angle (degrees) Power (dB) 2’ Antenna Specifications 5/28/03 3/3 YDI Wireless Proprietary All information, including mechanical and electrical designs, described on or otherwise set forth on this document is proprietary and confidential to YDI Wireless and may not be copied or reproduced by any means, or disclosed by the party who receives this document to any other party without prior written permission from YDI Wireless. This document is on loan from YDI Wireless and must be immediately returned on demand. EtherLeap Antenna Azimuth Pattern 24.25 GHz 0 5 10 15 20 25 30 35 40 -15-12-9-6-303691215 Angle (degrees) Power (dB) Photograph of Antenna aperture – Front view 12” Diameter antenna aperture

Test Report Report No . ED0373-1 Client YDI Wireless 20 Industrial Drive East South Deerfield, MA 01373 Phone 413-665-8551 Fax 413-665-7090 FRN 0006891675 Models EL24A-11 FCC ID NM5-EL24A-11 Equipment Type Low Power Communication Device Transmitter Equipment Code DXX Results As detailed within this report Prepared by Mairaj Hussain – Test Engineer Authorized by Michael Buchholz – EMC Manager Issue Date 6-3-03 Conditions of issue This Test Report is issued subject to the conditions stated in ‘terms and conditions’ section of this Curtis-Straus LLC is accredited by the American Association for Laboratory Accreditation for the specific scope of accreditation under Certificate Number 1627-01. This report may contain data which is not covered by the A2LA accreditation. _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 REPORT:ED0373-1 FCC ID:NM5-EL24A-11 Summary...........................................................................................................3 Modifications..................................................................................................3 Test Methodology..............................................................................................3 EUT Configuration.............................................................................................4 Statement of Conformity....................................................................................5 Test Data and Plots...........................................................................................6 Section 15.249 (b).........................................................................................6 Section 15.249 (b) (1)....................................................................................6 Section 15.249 (b) (2)....................................................................................8 Section 15.249 (d).........................................................................................9 AC Line Conducted Emission Measurements..............................................11 Modifications Required for Compliance...........................................................12 Terms And Conditions.....................................................................................17 Page 2 of 18 _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 REPORT:ED0373-1 FCC ID:NM5-EL24A-11 Summary This report is an application for certification of a transmitter operating under 47 CFR 15.249 of the FCC rules provided for operation of fixed, point-to-point operation in the frequency band of 24.05-24.25GHz. The product covered by this report is EtherLeap, which is a Digital Relay Radio System (DRRS). The manufacture requires the following antenna to be used with EtherLeap: i) Andrews model #: BCP-030-245-003 A detailed description of the above-mentioned antenna can be found in the antenna exhibit. Modifications The product was found to be failing spurious emissions at several frequencies. Modifications were required, as given below, to pass the radiated emissions test. See modification section. 1) Terminated ground on DC power to the chassis. See modification exhibit. 2) Two pieces of ARC absorber LS-10211 added to inside cover. Test Methodology All testing was performed according to the procedures specified in ANSI C63.4 (2000). The product was tested with modulation on and peak readings were compared against the average limit presented in section CFR 15.249. Frequency range investigated: 30MHz – 100GHz Measurement Distance: Frequency (MHz) Distance (m) Comments Fundamental (Three channels) 24.112GHz, 24.137GHz, 24.183GHz 3 m Radiated 30MHz – 100GHz except 24-24.25GHz band 3, 1m, 0.1m, & 0.03 m Radiated Spurious Measurements The EUT was fully maximized. The EUT antenna can not be maximized separately. The product was evaluated at three channels of operation. (Channel 1, Channel 6, and Channel 13.) The product is DC powered. The product was tested with an AC adaptor model # PSA31U-480. All readings are peak unless otherwise noted. Page 3 of 18 _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 REPORT:ED0373-1 FCC ID:NM5-EL24A-11 EUT Configuration EUT Configuration Work Order: D0373 Company: YDI Wireless Company Address: 20 Industrial Drive East South Deerfield, MA 01373 Contact: John Hutchins Person Present: Jason Messier MNSNFCC ID EUT: EL24A-11-- AC AdaptorPSA31U - 480-- DC power injectorDCI-1-- EUT Description: Digital Relay Radio System EUT Max Frequency: 24.101-24.143 GHz Support Equipment: MNSNFCC ID Laptop333TN1SD914313849L4PK1100X13 EUT Cables: QtyShielded?LengthFerrites Ethernet 1No> 1 mNone Unpopulated EUT Ports: QtyReason None Software / Operating Mode Description: 1. Constant Packet Tx mode. 2. Disconnected from laptop for RX. The product has an integrated 802.11B WLAN card (FCC ID: IMRWLPC24H). Because, this card provides the IF signal for the 24GHz RF frontend, additional exhibits documenting the WLAN card certification have been provided. Page 4 of 18 _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 REPORT:ED0373-1 FCC ID:NM5-EL24A-11 Statement of Conformity The EtherLeap has been found to conform with the following parts of the 47 CFR as detailed below: 47 CFR Part # 47 CFR Part # Comments 15.15(b) The product contains no user accessible controls that increase transmission power above allowable levels. 2.925 15.19 The label is shown in the label exhibit. The label is permanently attached. 15.21 Information to the user is shown in the instruction manual exhibit. 15.27 No special accessories are required for compliance. 15.31(e) The …

Text truncated - open the document above for the full version.

Report: D0373-1 FCC ID: NM5-EL24A-11 Radiated EMI Report: D0373-1 FCC ID: NM5-EL24A-11 Radiated EMI Report: D0373-1 FCC ID: NM5-EL24A-11 Conducted EMI Report: D0373-1 FCC ID: NM5-EL24A-11 Voltage Variation/Frequency Stability
