NMWRT7690-2915MHz RF Remote Unit

User Guide Guía para el Usuario Guide d'Utilisation ENGLISH ESPANOL FRANCAIS Self-Leveling, Remote- Controlled, Simultaneous Level & Plumb Rotational Laser System Sistema Láser Rotativo de Nivel y Plomada Simultáneo, Autonivelante y con Control Remoto Système Laser Rotationnel de mise de Niveau et d'aplomb Simultané, à Réglage de Niveau Automatique et à Télécommande Toolz 404 Villa Street, Mountain View, CA 94041 USA 1-800-984-0404 - 1-650-903-4944 www.toolz-inc.com Copyright © Toolz Ltd. 2004 P/N 080-0053 MODEL: RT-7690-2 MODEL: RT-7690-2XP Contents User Safety......................................................................................... 2 Warning Labels................................................................... 2 FCC Statement................................................................... 2 Overview................................................................................... 3 Features.............................................................................. 3 Accessories......................................................................... 3 Components............................................................................. 4 Operation.................................................................................. 5 Controls............................................................................... 5 Turning on the Laser System.............................................. 5 Using the Lasers................................................................. 6 Operating Modes - Spin and Line/Dither Scan................... 6 Out of Level........................................................................ 7 Laser Detector..................................................................... 7 Reflective Target................................................................. 9 Laser Enhancement Glasses............................................. 9 Applications............................................................................ 10 Power....................................................................................... 11 Base Unit.......................................................................... 11 RF Remote Control/Laser Detector.................................. 12 Temperature Protection..................................................... 12 Calibration.............................................................................. 13 Care and Maintenance........................................................... 15 Limited Warranty.................................................................... 15 Specifications......................................................................... 16 156 Overview The RT-7690 series are self-leveling, remote-controlled, simultaneous level and plumb rotational laser systems. Its’ level and plumb laser beams can be independ- ently controlled from the base unit or RF remote control. Aremote control with built-in laser detector allows for laser beam detection under lighting conditions where beam visibility is poor. This guide describes the features and operation of the RT-7690 series laser sys- tems. Important warranty and safety information is also included. Features The RT-7690 series laser systems includes the following: Base Unit •Level and plumb laser beams, with independent and simultaneous operation •Accuracy - Level - ±1/8 in. (3 mm) at 100 ft. (30m) - Plumb - ±1/4 in. (6.4 mm) at 100 ft. (30m) •Level and plumb self-leveling range - ±6° •Laser diode output - RT-7690-2XP: up to 5mW output for each of the diodes - RT-7690-2: 2mW output for each of the diodes •Spin mode - Variable rotation speeds: 350, 600 and 1200 rpms •Dot/Line Dither/Scan mode (level or plumb), for higher beam visibility - Dither angles - six line lengths - 3-120° •End-user calibration •Pendulum lock mechanism for protection during transport and storage •Out-of-level indicator •Automatic power standby, with override •Low battery indicator •Built-in tripod mount - 5/8" x 11, for standard surveyor's tripods, such as the RoboToolz RT-A1150 tripod or RT-A1150-123 tripod™. RF Remote Control/Laser Detector •RF remote control range - RT-7690-2XP: 300 ft. (160m) RT-7690-2: 300 ft. (91m) •Laser detector range - RT-7690-2XP: up to 500 ft. (160m) RT-7690-2: up to 300 ft. (91m) •Laser beam functions, controllable from the base unit or RF remote control •Last command sent confirmation •Laser beam locator, with fine/coarse resolution selection •Low battery indicator Accessories •Rod bracket (for RF remote control/laser detector) •Laser target •Laser enhancement glasses 354 552 Garantie Limitée Garanties de Toolz avec la preuve de l'achat pendant une (1) période d'une année civile à compter de la date d'achat, que ses produits sont libres de tout défaut de fabrication et de main d'oeuvre et sont conformes aux spécifications techniques publiées par Toolz, dans des conditions de fonctionnement normales. Cette garantie est nulle et ne s'applique pas si le produit a été endommagé par accident, abus, mauvaise utilisation, usure normale ou si le produit a été modifié, altéré, ou si son boîtier a été ouvert, ou s'il a été réparé par quelqu'un d'autre que Toolz ou l'un de ses centres de réparation agréés. Toolz décidera, à son choix et à ses frais, de réparer ou de remplacer tout produit trouvé défectueux conformément à la garantie ci-dessus. Les unités réparées ou remplacées peuvent contenir des composants nouveaux et/ou remis à neuf. SAUF COMME EXPRESSÉMENT STIPULÉ CI-DESSUS, TOOLZ N'ACCORDE AUCUNE GARANTIE, EXPRESSE OU TACITE, Y COMPRIS ET SANS LIMITA- TION, TOUTE GARANTIE IMPLICITE DE QUALITÉ MARCHANDE OU DE CON- VENANCE À UN USAGE PARTICULIER, ET TOOLZ DÉNIE EXPRESSÉMENT TOUTE GARANTIE NE FIGURANT PAS CI-DESSUS. Certaines juridictions n'au- torisent pas de limitations sur la durée de garantie implicite, c'est pourquoi il est possible que la restriction de limitation ci-dessus ne s'applique pas à vous. Cette garantie vous donne d…

Text truncated - open the document above for the full version.

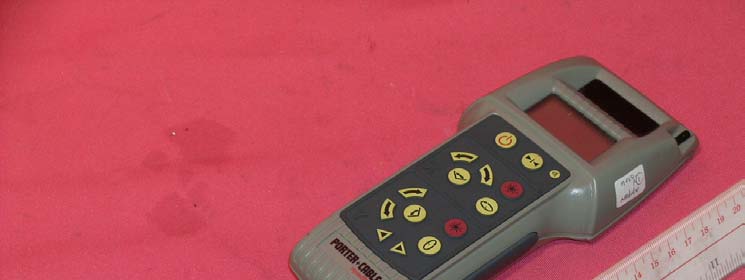

Test Setup FCC ID : NMWRT7690-2 External Photo - front External Photo - rear

R T -A 7690-1 F C C ID: N MWR T 7690-2 E ngineered in U S A/Ma nufa ctured in C hina 5, 680, 208 a nd P a tent P ending 19mm 38mm SN: 1431127942

Test Setup FCC ID : NMWRT7690-2 Internal Photo - 1 Internal Photo - 2 Test Setup FCC ID : NMWRT7690-2 Internal Photo - 3 Internal Photo – 4 Test Setup FCC ID : NMWRT7690-2 Internal Photo – 5 Internal Photo – 6 Test Setup FCC ID : NMWRT7690-2 Internal Photo – 7 Internal Photo - 8

• The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2371 0521 Website: www.hk.intertek-etlsemko.com Toolz Limited Application For Certification (FCC ID: NMWRT7690-2) Transmitter 0413579 DL/ Sandy Lee October 7, 2004 INTERTEK TESTING SERVICES FCC ID: NMWRT7690-2 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information EXHIBIT 9 : Confidentiality Request INTERTEK TESTING SERVICES FCC ID: NMWRT7690-2 ii MEASUREMENT/TECHNICAL REPORT Toolz Limited - MODEL: RoboToolz RT-A7690-1 RoboToolz RT-A7690-1XP FCC ID: NMWRT7690-2 October 7, 2004 This report concerns (check one:) Original Grant X Class II Change Equipment Type: Low Power Transmitter (example: computer, printer, modem, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [12-08-03 Edition] provision. Report prepared by: Derek Leung Intertek Testing Services 2/F., Garment Center, 576, Castle Peak Road, HONG KONG. Phone: 852-2173-8539 Fax: 852-2371-0521 INTERTEK TESTING SERVICES FCC ID: NMWRT7690-2 iii Table of Contents 1.0 General Description..............................................................................................2 1.1 Product Description ..............................................................................................2 1.2 Related Submittal(s) Grants .................................................................................2 1.3 Test Methodology.................................................................................................3 1.4 Test Facility ..........................................................................................................3 2.0 System Test Configuration ...................................................................................5 2.1 Justification ..........................................................................................................5 2.2 EUT Exercising Software .....................................................................................5 2.3 Special Accessories .............................................................................................5 2.4 Equipment Modification ........................................................................................6 2.5 Measurement Uncertainty ....................................................................................6 2.6 Support Equipment List and Description ..............................................................6 3.0 Emission Results ..................................................................................................8 3.1 Field Strength Calculation ....................................................................................9 3.2 Radiated Emission Configuration Photograph ....................................................11 3.3 Radiated Emission Data.....................................................................................12 4.0 Equipment Photographs .....................................................................................15 5.0 Product Labelling ................................................................................................17 6.0 Technical Specifications ....................................................................................19 7.0 Instruction Manual ..............................................................................................21 8.0 Miscellaneous Information .................................................................................23 8.1 Bandwidth Plot ...................................................................................................24 8.2 Discussion of Pulse Desensitization ...................................................................25 8.3 Emissions Test Procedures................................................................................26 9.0 Confidentiality Request......................................................................................29 INTERTEK TESTING SERVICES FCC ID: NMWRT7690-2 iv List of attached file Exhibit type File Description filename Test Report Test Report report.pdf Operation Description Technical Description descri.pdf Test Setup Photo Radiated Emission radiated photos.doc Test Report Bandwidth Plot bw.pdf External Photo External Photo external photos.doc Internal Photo Internal Photo internal photos.doc Block Diagram Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf ID Label/Location Label Artwork and Location label.pdf User Manual User Manual manual.pdf Cover Letter Confidentiality Request request.pdf INTERTEK TESTING SERVICES FCC ID: NMWRT7690-2 1 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES FCC ID: NMWRT7690-2 2 1.0 General Description 1.1 Product Description The Equipment Under Test (EUT) is a Transmitter operating at 915MHz. The EUT is powered by 9V d.c. (1 x 9V “6LR61” battery). During normal use, it transmits control signal to receiver unit and …
