Exhibit 8 FCC ID: NNSRTU2000-00 4/05/00Page 1 of 4 Exhibit 8 -- Users Manual SpectraPoint Wireless LLC Customer Premises Equipment Roof Unit 2.0 FCC ID: NNSRTU2000-00 Model Number : RTU2000-28-3 Information Provided in this Exhibit: Operating Instructions for the SpectraPoint CPE Roof Unit Transceiver (Stand-Alone Configuration) The Customer Premises Equipment Roof Unit transceiver, under operational conditions is under control of the element controller and network management software which automatically determines the operating frequencies and power levels and monitors the performance of the system. The User Manuals delivered with the system describes the installation of the entire system but does not include stand-alone operation of the individual components of the system. Therefore, this document describes the equipment setup and operation employed for stand-alone operation of the CPE Roof Unit transceiver, as applicable to compliance testing. For stand-alone testing such as functional checkout or compliance testing, this user’s manual provides the instructions so that the Roof Unit transceiver may be operated at maximum rated output power with automatic power control disabled. In addition, the Roof Unit may be commanded to various operating frequencies within the allocated band of operation and modulated with actual or simulated IF input signals. Exhibit 8 FCC ID: NNSRTU2000-00 4/05/00Page 2 of 4 Instructions for Stand-Alone Operation of the CPE Roof Unit Transceiver Version 2.0 1.0 Scope This document provides the instructions for operation of a single CPE Roof Top Unit transceiver for test purposes (i.e., without the control of the SpectraPoint System). 2.0Introduction The CPE Roof Unit transceivers, when operating under control of the SpectraPoint System, receives QPSK (quadrature phase shift keying) modulated RF signals (downstream telephony, digitized video or digital data) from one or more SpectraPoint Node Transmitters (LMDS Base Station). The CPE Roof Unit likewise transmits a QPSK modulated RF signal (upstream) from the CPE Network Interface Unit (NIU) to the SpectraPoint Node Receivers (LMDS Base Station). For test purposes, the QPSK modulated input signal to the Roof Unit transmitter, at the appropriate center frequency, modulation, bandwidth and level must be provided by test hardware and software which is defined in this document. 3.0Interconnection of Support Equipment The interconnection of the CPE Roof unit with the test fixture and support equipment is shown in figure 4-1. Operational parameters for setup of the support hardware and software is provided in Table 4-1. Using this support test equipment, the CPE Roof Unit will produce a single QPSK phase modulated output at user-selected bandwidths (as in the SpectraPoint System). 4.0 Description of the Test and Support Equipment The support equipment required to operate the CPE Roof Unit in a stand-alone mode is shown in Figure 4-1 and consists of: • DC power source for the Roof Unit electronics card • Transmit enable signal • DC Blocks for both the transmit and receive cables to protect the signal sources and test equipment • Source of the QPSK digitally-modulated signal (Rohde & Schwarz AMIQ Arbitrary Waveform Generator and SMIQ Vector Signal Generator) • Personal Computer with WinSim software to generate the QPSK I and Q Signals at the AMIQ Exhibit 8 FCC ID: NNSRTU2000-00 4/05/00Page 3 of 4 Personal Computer (WinSim Software) (IEEE-488 Interface) AMIQ Arbitrary Waveform Generator SMIQ Vector Signal Generator CPE Roof Unit Test Fixture CPE Roof Unit 75 Ω Cable I/F Input to Transmit Portion and Transmit Enable 75 Ω Cable I/F Output from Receive Portion and DC Power HP 8564E Spectrum Analyzer 120 VAC 60 Hz Power Input Figure 4-1 CPE Roof Unit Test and Support Equipment Exhibit 8 FCC ID: NNSRTU2000-00 4/05/00Page 4 of 4 4.1 Generation of QPSK Test Signals Test signals for the CPE Roof Unit, simulating I/F input from the SpectraPoint Network Interface Unit (NIU), are generated in the AMIQ and transferred by operator command to the SMIQ. The WinSim software program is launched by double-clicking on the WinSim icon or by selection from the Windows Program Start menu. The modulation parameters may be manually entered through the PC keyboard or recalled from predefined parameters stored on disk. The NIU is capable of generating QPSK-modulated signals ranging from approximately 1.5 MHz bandwidth to 10.0 MHz bandwidth depending on a variety of operating rates and error correction schemes required for reliable operation of a SpectraPoint LMDS installation. The CPE Roof Unit test and support equipment has the capability to simulate these complex signals and provide the DC power and enable command to operate the unit for test and analysis. 4.2 QPSK Test Signals Two QPSK signals are stored as data files on disk, one having a low data rate representing the narrowest bandwidth signal that will be produced by the NIU in operation, and one having a high data rate representing the widest bandwidth signal that will be produced by the NIU in operation. Refer to Table 4-1 for these parameters. Table 4.1 Parameters for Rohde & Schwarz AMIQ Modulation Setup AMIQ Window ParameterSetting Data SourcePRBSPRBS 9 ModulationCodingNone ModulationTypeQPSK ModulationSequence Length10,000 ModulationFilter FunctionRoot Cosine ModulationWindow FunctionRect ModulationSymbol Rate1.257 MSps for min BW 7.332 MSps for max BW ModulationOversampling16 for min BW 12 for max BW Main Sampling Rate 20.112 MHz for min BW 87.984 MHz for max BW MainSamples160,000 for min BW 120,000 for max BW

Exhibit 2 Page 1 of 1FCC ID: NNSRTU2000-00 4/05/00 Exhibit 2 – Attestation Statement SpectraPoint Wireless LLC Customer Premises Equipment Roof Unit 2.0 FCC ID: NNSRTU2000-00 Model Number: RTU2000-28-3 1.0Certification of Data The technical data supplied with this application, having been taken under my supervision, is hereby duly certified. This is a statement of my qualifications: BSEE 1974, University of Michigan, Ann Arbor, Michigan 25 years experience in EMC Engineering design and test Name:James Dykema Date:5 April 2000 Position:Sr. Staff Engineer I hereby certify that the above application was prepared under my direction and that to the best of my knowledge and belief, the facts set forth in the application and accompanying technical data are true and correct. Name:J. Michael Grizzaffi Date:5 April 2000 Position:Agency Test Manager SpectraPoint Wireless LLC

Exhibit 4 Page 1 of 2 FCC ID: NNSRTU2000-00 4/05/00 Exhibit 4 – Roof Unit Block Diagram SpectraPoint Wireless LLC Customer Premises Equipment Roof Unit 2.0 FCC ID: NNSRTU2000-00 Model Number : RTU2000-28-3 Information Provided in this Exhibit: Figure 4-1 CPE Roof Top Unit Detailed Block Diagram Exhibit 4 Page 2 of 2 FCC ID: NNSRTU2000-00 4/05/00 Figure 4-1 CPE ROOF UNIT BLOCK DIAGRAM

Exhibit 13 FCC ID: NNSRTU2000-00 4/05/00 Page 1 of 1 April 5, 2000 Federal Communications Commission Equipment Approval Services P.O. Box 358315 Pittsburgh, PA 15251-5315 Enclosed is an Application for Equipment Authorization and supporting exhibits for a SpectraPoint Wireless LLC, Roof Unit 2.0, FCC ID: NNSRTU2000-00, intended for use in the Local Multipoint Distribution Service (LMDS), under 47 CFR, Part 101. The transceiver contains a 100 milliwatts transmitter operating as an LMDS subscriber station in the 27.5-to-28.35 GHz LMDS band. Sincerely, James W. McCoy Vice President and Chief Technical Officer SpectraPoint Wireless LLC Exhibit 13 - Cover Letter SpectraPoint Wireless LLC Customer Premises Equipment Roof Unit 2.0 FCC ID: NNSRTU2000-00 Model Number: RTU2000-28-3

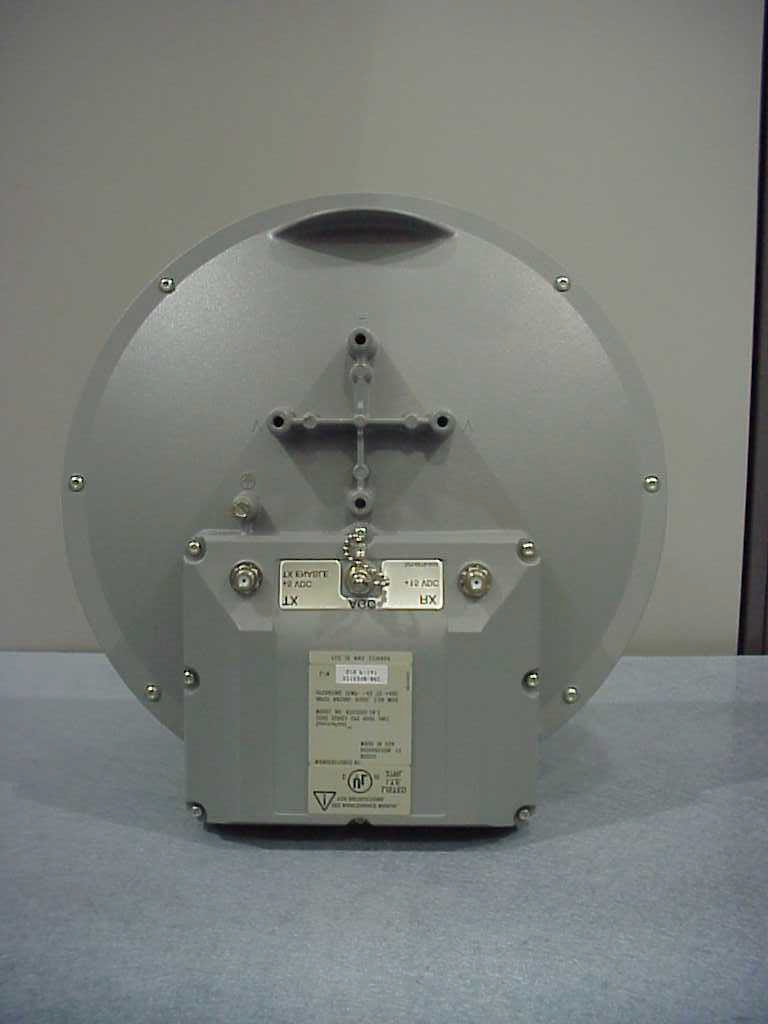

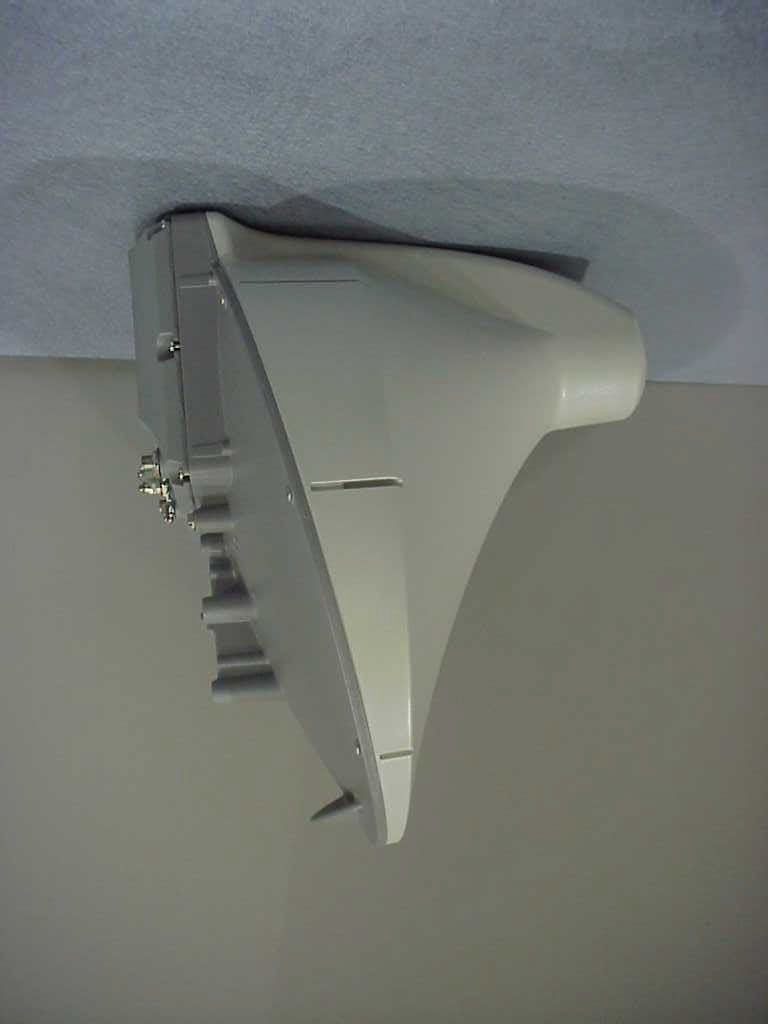

Exhibit 3 Page 1 of 4 FCC ID: NNSRTU2000-00 4/05/00 Exhibit 3 – External Photos SpectraPoint Wireless LLC Customer Premises Equipment Roof Unit 2.0 FCC ID: NNSRTU2000-00 Model Number : RTU2000-28-3 Information Provided in this Exhibit: External Photos of CPE Roof Unit Transceiver Figure 3.1 CPE Roof Unit Side view with radome, Page 2 Figure 3.2 CPE Roof Unit Front view with radome, Page 3 Figure 3.3 CPE Roof Unit Rear view, Page 4 Exhibit 3 Page 2 of 4 FCC ID: NNSRTU2000-00 4/05/00 Figure 3.1 CPE Roof Unit Side view with radome Exhibit 3 Page 3 of 4 FCC ID: NNSRTU2000-00 4/05/00 Figure 3.2 CPE Roof Unit Front view with radome Exhibit 3 Page 4 of 4 FCC ID: NNSRTU2000-00 4/05/00 Figure 3.3 CPE Roof Unit Rear view

Exhibit 1 – ID Label/Location Information SpectraPoint Wireless LLC Customer Premises Equipment Roof Unit 2.0 FCC ID: NNSRTU2000-00 Model Number: RTU2000-28-3 Information Provided in this Exhibit: a) Label Drawings SpectraPoint Wireless drawing 3214978 is the artwork for the CPE Roof Unit ID labels. Sheet 1 of this drawing (shown on page 2 of this exhibit) contains notes pertaining to the labels and sheet 6 (shown on page 3 of this exhibit) contains the artwork for the -005 label. b) CPE Roof Unit Top Assembly Drawings SpectraPoint Wireless drawing 3215391 sheet 1, shown on page 4 of this exhibit, is a drawing for the CPE Roof Unit. The location of the label is shown on this drawing. Exhibit 01 Page 1 of 4 FCC ID: NNSRTU2000-00 4/05/00

Exhibit 9 Page 1 of 5FCC ID: NNSRTU2000-00 4/05/00 Exhibit 9 – Internal Photos SpectraPoint Wireless LLC Customer Premises Equipment Roof Unit 2.0 FCC ID: NNSRTU2000-00 Model Number : RTU2000-28-3 Information Provided in this Exhibit: Internal Photos of CPE Roof Unit Transceiver Figure 9-1 Roof Unit Electronics Board, Page 2 Figure 9-2 CPE Roof Unit with Electronics Board Cover Removed, Page 3 Figure 9-3 CPE Roof Unit with Electronics Board Cover Removed (Close up view), Page 4 Figure 9-4 CPE Roof Unit With Radome Removed, Page 5 Exhibit 9 Page 2 of 5FCC ID: NNSRTU2000-00 4/05/00 Figure 9-1 Roof Unit Electronics Board Exhibit 9 Page 3 of 5FCC ID: NNSRTU2000-00 4/05/00 Figure 9-2 CPE Roof Unit with Electronics Board - Cover Removed Exhibit 9 Page 4 of 5FCC ID: NNSRTU2000-00 4/05/00 Figure 9-3 CPE Roof Unit with Electronics Board - Cover Removed (Close up view) Exhibit 9 Page 5 of 5FCC ID: NNSRTU2000-00 4/05/00 Figure 9-4 CPE Roof Unit With Radome Removed

Exhibit 12 Page 1 of 3FCC ID: NNSRTU2000-00 4/05/00 Exhibit 12 – Operational Description Customer Premises Equipment Roof Unit 2.0 FCC ID: NNSRTU2000-00 Model Number : RTU2000-28-3 Information Provided in this Exhibit: Operational description of CPE Roof Unit Exhibit 12 Page 2 of 3FCC ID: NNSRTU2000-00 4/05/00 Operational Description of CPE Roof Unit The SpectraPoint ® LMDS system is designed to transport a variety of broadband wireless services to customers. This LMDS system is capable of delivering up to 360 MHz of contiguous bandwidth of data services to customers in an area of up to 5 Km radius from a central base station. The same frequency spectrum may be reused in similar sectors throughout a given metropolitan area. The two basic parts that make up the SpectraPoint ® LMDS system are the Base Station and Subscriber Terminal equipment. The block diagram in Figure 1 shows the relationship of the Customer Premises Equipment (CPE) Roof Unit to the total system. In the diagram, the downstream direction is defined from the RF Transmitter to the Roof Unit. The reverse signal direction is defined as upstream. In operation, the DS3 data interface to the Channel Group is processed and then Quadrature Phase Shift Key (QPSK) modulated onto an L-Band Intermediate Frequency (IF) carrier. The IF is input to the RF Transmitter where it is upconverted to the 27.50 – 27.86 GHz within the authorized LMDS frequency band. The RF is transmitted downstream through one of 4 orthogonal sectors. Each sector reuses the same frequency spectrum analogous to a cellular phone system that has no moving components. ATM Switch Channel Group RF Transmitter Roof Top Unit Channel Group RF Transmitter Network Interface Customer Access Device Channel Group RF Receiver Subscriber Terminal DS3c Base Station Figure 1: LMDS Block Diagram Down Stream > > > < < < Up Stream The CPE roof unit serves as a transceiver at the customer premises location for the subscriber terminal equipment. The CPE roof unit receives a downstream carrier and down converts the RF signal from 27.50 – 27.86 GHz back to L-Band IF in the 1100 to 1460 MHz range. The L-Band QPSK modulated carrier is input to the Network Interface Unit (NIU) where it is demodulated into data streams to interface with customer T1, 10BaseT LAN, and digital video data equipment. In the upstream direction, the customer interface to the Network Interface Unit (NIU) is made up of T1 data lines, 10BaseT local area network data, or digital video data. The NIU combines the data into a single data stream and QPSK modulates the data on to an Exhibit 12 Page 3 of 3FCC ID: NNSRTU2000-00 4/05/00 L-Band IF carrier between 1590 – 1950 MHz. This IF carrier is then input to the transmit side of the CPE Roof Unit Transceiver. The CPE Roof Unit upconverts the L-Band signal to the 27.99 – 28.35 GHz within the authorized LMDS frequency band for transmission upstream to the RF Receiver. The RF Receiver then down converts the RF to the L-band frequency in a reverse of the Base Station downstream process. Finally data is reassembled into a DS3 ATM format for interfacing with the a network switch. Frequency stability of the CPE roof unit is maintained through high stability crystal based internal oscillator. Power to the CPE roof unit is supplied through the RF coaxial cable interface to the receiver IF connector. The CPE operates from 12 VDC nominal at a maximum current of 2.4 amps. A transmitter enable voltage of +5 VDC is supplied through the RF coaxial cable interface to the transmitter IF connector. The Roof Unit transmitter operates in a power control mode with power levels controlled through a closed loop with the Base Station. This loop senses signal strength variations due to changes in path parameters and adjusts power levels of the CPE roof unit transmitter. In case of total loss of the link, or oscillator not ready condition, the transmitter portion of the CPE Roof Unit will be disabled.

Exhibit 10 – Parts List/Tune –up Information SpectraPoint Wireless LLC Customer Premises Equipment Roof Unit 2.0 FCC ID: NNSRTU2000-00 Model Number: RTU2000-28-3 Information Provided in this Exhibit: Assembly Drawing – Page 2 Assembly Parts List Expanded View – Page 3 is an expanded view of the parts list from the Assembly drawing of page 2 Product Information Primer – Pages 4-11. There are no tune- up procedures for the hardware device itself. During installation, the hardware is positioned for best signal transmission and reception as well as proper polarization. The Product Information Primer supplies information for installation and adjustment. Exhibit 10 FCC ID: NNSRTU2000-00 4/5/00 ™ SpectraPoint 2000 Rooftop Unit (RTU) Model No. RTU2000-28-3 Product Information Primer The RTU integrated antenna and radio frequency (RF) transceiver provides wireless transmission and reception capabilities in the 28-GHz frequency region. Received signals are down converted from the 28 GHz band to the Intermediate Frequency (IF) L-Band and are sent to the NIU. IF signals from the NIU are up converted and transmitted over-the-air on the 28-GHz band. Model RTU2000-28-3 does not require a pilot tone. The RTU consists of an antenna with radome, housing, and electronics including a down-converter/IF strip and an upconverter/transmitter. RTU polarization is set during installation to match the polarization of the Base station. The RTU connects to the Network Interface Unit (NIU) through two cables: the transmit cable and the receiver/power cable. Refer to the Installation section of the applicable CPE Equipment Manual for more detailed instructions on the installation of the RTU. An Installation Worksheet or similar installation order provides site-specific parameters. A sample Installation Worksheet is provided in Appendix A of the CPE Equipment Manual Installation section. The equipment required to install the NIU is listed in the CPE Installation Tools and Supplies table in the CPE Equipment Manual Installation section. Warning! The RTU installation and cabling must meet national and local codes. A properly installed grounding wire must be attached to the RTU. Figure 1. RTU Dimensions Pivot Bolts* *Note: Penetrating Roof Mounts (consisting of mast, pivot bolts, and foot) are sold separately. 24 in. 610 mm 13 in. 330 mm 26 in. 680 mm Antenna Mast* Foot* ™ RTU Equipment Parts RTU Specifications Installing the RTU Warning! Verify that the RTU mounting location will not interfere with power lines or utility wires that carry dangerous voltage. Contact with the wires can result in severe injury or death. Installing a Non-Penetrating Roof Mount 1. Place the metal frame on a rubber mat where you plan to place the antenna. 2. Connect the 31.75 mm (1-1/4-in) Schedule 40 metal pole to the frame using the angle supports. Note: The Schedule 40 metal pole has a 31.75 mm (1-1/4-in) inside diameter and 42.16 mm(1.66-in) outside diameter. 3. Use 10 concrete blocks 400 x 200 x 100 mm (16 x 8 x 4 in) in two rows of five to anchor the frame. 4. See “Mounting the RTU Antenna“on the opposite page. Attaching the Mount Foot to Wood-Frame, Cinder Block, Concrete, or Brick 1. Use a level to align the mount foot plate vertically, or parallel to any incline. PartModel Number SP2000 Rooftop Unit, NA-A Band Plan, Version 2.0 Each of the models listed above include the following parts: • RTU antenna assembly with electronics card • Antenna mount clamp bracket • Product Information Primer (PIP), SP2000 Series RTU Items purchased separately: • Non-Penetrating Roof Mount • Penetrating Roof Mount • Wall Mount Note: Ten Cinder Blocks or similar ballast are required for the Non-Penetrating Roof Mount. The Cinder Blocks are not provided and must be obtained locally. Cinder Block size: 400 mm x 200 mm x 100 mm (16 in x 8 in x 4 in.) RTU-2000-28-3 3215974 MNT-RTU-NR MNT-RTU-PR MNT-RTU-WL Operating Voltage & Power RTU-2000-28-3: +9.0 to +15.0 V DC Transmission Power: 100 mW nominal Diameter: 330 mm (13 in) Depth: 300 mm (12 in) Weight: 3.6 kg (8 lb) for RTU only (does not include mounting components) Operational Temperature Range: –40° to +55° C (–40° to +131° F) ambient ™ 2. Secure the mount foot into a sturdy surface to provide a secure base for the mount. a) When mounting the foot to solid wood construction, use six 8 mm (5/16-in.) diameter, 25 mm (1-in.) long hex lag screws. b) For hollow wall or roof construction, align the foot so bolts or screws through the center holes will penetrate a stud or rafter whenever possible (see Figure 2). Use two 8 mm (5/16-in.) diameter x 38 mm (1.5-in) long lag screws for the center holes. When a stud or rafter cannot be found, fasten the mount foot with four 8 mm (5/16-in) diameter x 76 mm (3-in) long round head toggle bolts. c) When attaching the mount foot to cinder block, concrete, or brick, drill two 13 mm (1/2-in.) diameter holes in the surface for the outside holes on each side of the foot. Insert four 8 mm (5/16-in.) diameter x 38 mm (1.5-in.) long concrete anchors. 3. Seal the holes with caulk, RTV or roof sealer to prevent leaks. Attaching the Mast to the Foot 1. Position the mast (see Figure 1) so the pivot bolt holes align with the hole and slot on the foot. 2. Align the mast so the top part of the mast is vertical (see Figure 5). 3. Insert the two mount foot pivot bolts and tighten (see Figure 2). Mounting the RTU Antenna 1. Check the CPE Installation Worksheet to determine the antenna polarization setting for the particular customer site. 2. For horizontal polarization, attach the antenna clamp on the RTU antenna so the letter “H” is to the right of the backplate as shown Figure 3. For vertical polarization, attach the antenna clamp on the RTU antenna so the letter “V” is to the right of the backplate. Note: The antenna electronics package should be located at the top when the antenna is set for vertical polarization and at the side when set for horizontal polarization. 3. Hold the antenna a…

Text truncated - open the document above for the full version.

Exhibit 11 - RF Exposure Customer Premises Equipment Roof Unit 2.0 FCC ID: NNSRTU2000-00 Model Number: RTU2000-28-3 Information Provided in this Exhibit: • RF Exposure calculations for the CPE Roof Unit 2.0 • Warning label drawing • Drawing showing placement of the warning label on the CPE Roof Unit 2.0 radome RF Exposure Calculations This exhibit contains RF Exposure Information for the SpectraPoint CPE Roof Unit, Version 2.0, based on calculations using RF exposure equations contained in FCC Office of Engineering & Technology Bulletin 65, Edition 97-01. The transmitter portion of the CPE Roof Unit has a maximum rated RF output power of +20 dBm (100 milliwatts) and is tunable over the frequency range of 27.990 to 28.350 GHz. When installed in the SpectraPoint System, the unit is digitally modulated with a QPSK signal with an occupied bandwidth of from approximately 1.4 MHz to 10 MHz. The unit has an integral antenna for transmitting and receiving LMDS data within the authorized LMDS band of 27.500 to 28.350 GHz. The unit has a 13" diameter parabolic reflector which provides a highly directional gain of 35 dBi. The maximum RF power density from the CPE Roof Unit transmitter is 0.16 milliwatt per square centimeter, which is below the maximum permissible limits for general population/uncontrolled exposure, Table 1, FCC Part 1, paragraph 1.1310. Calculations for 27.991 GHz, 28.170 GHz and 28.348 GHz, representative of minimum, mid and maximum tunable frequencies for the CPE Roof Unit, are presented on pages 2, 3 and 4 of this exhibit. Conclusion While calculations for RF exposure do not indicate a hazard by recognized standards, Spectrapoint Wireless will place a label on all units to warn of potential hazards to personnel in near proximity of the CPE roof unit antenna while in operation. The labels and their location are shown in pages at the end of this exhibit. RF Exposure Calculations SpectraPoint CPE Roof Unit, Version 2.0 Ref: OET Bulleting 65, Edition 97-01 Extent of the Near- Field Region: Antenna Diameter =0.330meters Frequency =27991MHz R nf =2.542meters Distance from Reflector to Beginning of the Far-Field Region: R ff =6.101meters R ff =20.021feet Maximum On-Axis Power Density in the Near-Field: Transmitter Power =0.100Watts Antenna Gain =35dB S nf =1.578Watts per Square Meter S nf =0.158MilliWatts per Square Centimeter Power Density in the Far-Field: Distance from Antenna =6.125meters S ff =0.671Watts per Square Meter S ff =0.067MilliWatts per Square Centimeter Power Density in the Transition Region: Distance from Antenna =2.56meters S ff =1.57Watts per Square Meter S ff =0.16MilliWatts per Square Centimeter RF Exposure Calculations SpectraPoint CPE Roof Unit, Version 2.0 Ref: OET Bulleting 65, Edition 97-01 Extent of the Near- Field Region: Antenna Diameter =0.330meters Frequency =28170MHz R nf =2.558meters Distance from Reflector to Beginning of the Far-Field Region: R ff =6.140meters R ff =20.149feet Maximum On-Axis Power Density in the Near-Field: Transmitter Power =0.100Watts Antenna Gain =35dB S nf =1.558Watts per Square Meter S nf =0.156MilliWatts per Square Centimeter Power Density in the Far-Field: Distance from Antenna =6.125meters S ff =0.671Watts per Square Meter S ff =0.067MilliWatts per Square Centimeter Power Density in the Transition Region: Distance from Antenna =2.56meters Sff =1.56Watts per Square Meter Sff =0.16MilliWatts per Square Centimeter RF Exposure Calculations SpectraPoint CPE Roof Unit, Version 2.0 Ref: OET Bulleting 65, Edition 97-01 Extent of the Near- Field Region: Antenna Diameter =0.330meters Frequency =28348MHz R nf =2.574meters Distance from Reflector to Beginning of the Far-Field Region: R ff =6.179meters R ff =20.276feet Maximum On-Axis Power Density in the Near-Field: Transmitter Power =0.100Watts Antenna Gain =35dB S nf =1.539Watts per Square Meter S nf =0.154MilliWatts per Square Centimeter Power Density in the Far-Field: Distance from Antenna =6.125meters S ff =0.671Watts per Square Meter S ff =0.067MilliWatts per Square Centimeter Power Density in the Transition Region: Distance from Antenna =2.56meters Sff =1.55Watts per Square Meter Sff =0.15MilliWatts per Square Centimeter FOR REFERENCE ONLY File Created: 02/18/00 10:15:14 FOR REFERENCE ONLY File Created: 02/18/00 10:15:14

Exhibit 5 Page 1 of 2FCC ID: NNSRTU2000-00 4/05/00 Exhibit 5 – Roof Unit Schematic SpectraPoint Wireless LLC Customer Premises Equipment Roof Unit 2.0 FCC ID: NNSRTU2000-00 Model Number : RTU2000-28-3 Information Provided in this Exhibit: CPE Roof Unit Schematic

Exhibit 6 FCC ID: NNSRTU2000-00 4/5/00 Exhibit 6 – Test Report SpectraPoint Wireless LLC Customer Premises Equipment Roof Unit 2.0 FCC ID: NNSRTU2000-00 Model Number: RTU2000-28-3 Information Provided in this Exhibit Test Report Date: 5 Apr 2000 1 of 38 pagesFCC ID: NNSRTU2000-00 Revision: - FCC Part 101 Certification Test Report for the SpectraPoint CPE Roof Top Unit 2.0 Prepared for: SpectraPoint Wireless LLC 1125 E. Collins Blvd. Richardson, TX Prepared by: Motorola, SSG 8201 E. McDowell Rd. Scottsdale, AZ The Motorola SSG EMC/TEMPEST Laboratory is accredited through the NVLAP Lab Code 100405-0 This document shall not be reproduced, except in full, without the written approval of the laboratory. This document shall not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. Prepared by:Approved By: Jim DykemaDwayne Awerkamp Sr. Staff Engineer, EMC GroupManager, EMC Group Date: 5 Apr 2000 2 of 38 pagesFCC ID: NNSRTU2000-00 Revision: - Table of Contents 1.0Introduction................................................................................................................3 1.1Facility Description........................................................................................................3 1.2Quality System..............................................................................................................3 1.3Standard References.......................................................................................................3 2.0Equipment Under Test (EUT) Description......................................................................4 2.1General Description.......................................................................................................4 2.2Network Interface Unit (NIU)..........................................................................................4 2.3Roof Unit Transceiver....................................................................................................5 2.4Transmitter Modulation..................................................................................................5 3.0Test Procedures............................................................................................................6 3.1RF Power Spectral Density..............................................................................................7 3.2Modulation Characteristics..............................................................................................9 3.3Occupied Bandwidth......................................................................................................9 3.4Radiated Emissions Mask – Antenna Port..........................................................................9 3.5Radiated Spurious Emissions.........................................................................................10 3.6Frequency Stability......................................................................................................10 4.0Test Results...............................................................................................................12 4.1RF Power Spectral Density Test Results...........................................................................12 4.2Occupied Bandwidth Test Results...................................................................................13 4.3Radiated Emissions Mask – Antenna Port Test Results.......................................................13 4.4Radiated Spurious Emissions Test Results........................................................................15 4.5Frequency Stability Test Results.....................................................................................16 5.0Test Equipment..........................................................................................................19 Appendix AAntenna Terminal Radiated Measurements...........................................20 Appendix BRadiated Spurious Emission Measurements............................................30 Date: 5 Apr 2000 3 of 38 pagesFCC ID: NNSRTU2000-00 Revision: - 1.0Introduction 1.1Facility Description EMI testing of the SpectraPoint Roof Top Unit was performed at the Motorola Systems Solutions Group’s (SSG) EMI/TEMPEST Test Laboratory. This test laboratory is located in the southeast wing of the Hayden building at 8201 E. McDowell Road, Scottsdale, AZ. The EMI/TEMPEST Test Laboratory is certified and accredited through the National Institute of Standards and Technology (NIST) National Voluntary Laboratory Accreditation Program (NVLAP). 1.2Quality System The EMI/TEMPEST Test Laboratory maintains a Quality Manual that describes the quality assurance program of the EMC/TEMPEST Facility to set forth procedures covering all quality assurance functions. This manual has been constructed to reflect a quality program in compliance with the requirements of the following: • National Institute of Standards & Technology (NIST) National Voluntary Laboratory Accreditation Program (NVLAP) • NIST/NVLAP EMC MIL-STD 462 Program Handbook (Apr. 1994) • NVLAP EMC and Telecommunications FCC Methods Handbook 150-11 (Apr. 1995) • MIL-Q-9858A, MIL-STD 461, 462, 463, 461D, 462D • National Security Agency Technical and Security Requirements Document for the Endorsed TEMPEST Test Services Program, NSA TSRD No. 88-8B, 5 Oct. 1993 • S…
