NO9C100007Remote Control for Cranes

Operating Instructions Radio Transmitter cubix BE-CUBIX_V1.3-FCC.doc.DOC [ Word 2000 ] MBPage 1 / 18 HBC-radiomatic GmbH • D-74564 Crailsheim • Germany Information and specifications subject to change without notice.2003-03-11 Radio Control System HBC – Radio Control R R a a d d i i o o T T r r a a n n s s m m i i t t t t e e r r c c u u b b i i x x Operating Instructions Radio Transmitter cubix Page 2 / 18BE-CUBIX_V1.3-FCC.doc.DOC [ Word 2000 ] MB HBC-radiomatic GmbH • D-74564 Crailsheim • Germany 2003-03-11Information and specifications subject to change without notice. Radio Control System Manufacturer :HBC-radiomatic GmbH Haller Straße 49 - 53 74564 Crailsheim • Germany Tel. +49 ( 0 ) 79 51 – 3 93 - 0 Fax +49 ( 0 ) 79 51 – 3 93 - 50 E-mail: [email protected] http://www.hbc-radiomatic.com HBC radiomatic GmbH is not liable for any misprints or errors! – All rights reserved. ™radiomatic is a registered German trademark. ©2003 – 01 , HBC-radiomatic GmbH , D-74564 Crailsheim No part of any software or of the present document may be reproduced in any manner whatsoever without the expressed written permission of HBC-radiomatic GmbH. Operating Instructions Radio Transmitter cubix BE-CUBIX_V1.3-FCC.doc.DOC [ Word 2000 ] MBPage 3 / 18 HBC-radiomatic GmbH • D-74564 Crailsheim • Germany Information and specifications subject to change without notice.2003-03-11 Radio Control System Table of Contents 1Description ..................................................................................4 2Safety Instructions....................................................................5 2.1 Pictographs..................................................................................... 5 2.2 General Safety Instructions................................................... 6 2.3 Operator Safety Instructions................................................. 7 2.4 FCC-Rules .................................................................................................... 8 3Operation.....................................................................................9 Automatic Switch-OFF (APO Function) ...................................... 10 3.1 Special Operating Modes...................................................... 10 3.2 Charging......................................................................................... 12 3.2.1 Internal Battery................................................................... 12 3.2.2 Internal Battery Charger..................................................... 12 3.3 Power-Supply............................................................................ 13 4Fault Correction....................................................................... 14 5Maintenance.............................................................................. 15 5.1 In the Event of a Fault............................................................. 15 6.1 Technical Data transmitter cubix.......................................... 16 6.1 Dimensions.................................................................................... 17 Operating Instructions Radio Transmitter cubix Page 4 / 18BE-CUBIX_V1.3-FCC.doc.DOC [ Word 2000 ] MB HBC-radiomatic GmbH • D-74564 Crailsheim • Germany 2003-03-11Information and specifications subject to change without notice. Radio Control System 1Description The cubix transmitter is designed to transmit command instructions for controlling industrial cranes, hoists and machines. 10 control commands plus the integrated STOP commands are available to the operator. A non-interchangeable system address ensures the functional safety of the radio control system when operating cranes or machines. This feature is particularly important when several cranes or machines are in use, for example in halls and shops. The system address is exclusively allocated to each HBC radio transmitter and its respective receiver. It is not possible to activate crane or machine functions using a radio control system allocated to another crane or machine. The radio control system consists of the cubix transmitter an internal rechargeable NiMh batteries, a battery charging-power-supply and a receiver. The transmitter housing with integrated antenna is made of impact resistant plastic. The transmitter is powered by rechargeable batteries, charged with a memory effect-free technology. State of the art radio technology complying with the latest guidelines of the regulations on labor safety and the use of highly developed microprocessor technology guarantees optimal operating safety, availability and long life time. The transmitter has general telecommunications approvals. It is not necessary to have or to apply for a license to operate the transmitter with the respective receiver. The transmitter must be operated in USA in the 902 MHz to 918 MHz range or 910 MHz to 928 MHz bandwidth. For Europe we offer the 869 bandwidth. Operating the radio transmitter using a different frequency range or transmitting power requires the approval of the competent regulative authorities for telecommunication. Note : The improper use, operation or deployment of the device renders the manufacturer guarantee void of any legal substance ! Operating Instructions Radio Transmitter cubix BE-CUBIX_V1.3-FCC.doc.DOC [ Word 2000 ] MBPage 5 / 18 HBC-radiomatic GmbH • D-74564 Crailsheim • Germany Information and specifications subject to change without notice.2003-03-11 Radio Control System 2Safety Instructions 2.1Pictographs The following pictographs will be used throughout the present operating instructions : Indicates a possible shock hazard Contacting components under voltage may lead to death. Housing (e.g. hoods and lids) marked with this symbol may only be opened by qualified electricians after having disconnected the device from the mains supply (supply voltage, operating voltage or input terminal voltage). Indicates safety relevant passages You will find this pictograph as an indicator for occupational sa…

Text truncated - open the document above for the full version.

CONFIDENTIALITY REQUEST Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 May 08, 2003 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, HBC Radiomatic GmbH requests confidentiality for the following products: FCC ID Number Product Title/Model NO9C100007 Cubix For the product stated above, we request that the following information be held confidential: 1. Circuit diagrams, BOM, and PCBs submitted as Equipment Authorization Electronic Filing attachment: "schematics”. 2. Block diagram submitted as Equipment Authorization Electronic Filing attachment: “blockdiagram”. 3. Operational description submitted as Equipment Authorization Electronic Filing attachment: “operational description” The above exhibits contain HBC Radiomatic GmbH trade secrets and proprietary information that could be of benefit to our competitors regarding the design of our mobile handset. This material is not customarily available to the general public and we request that it be withheld from public inspection. If you have any questions, please feel free to contact me at the address shown below. Sincerely, (signed) Gerald Schmidt

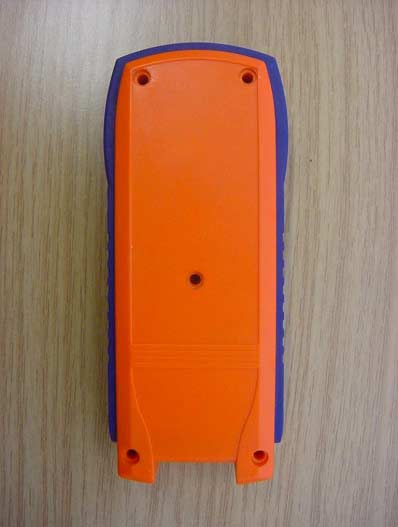

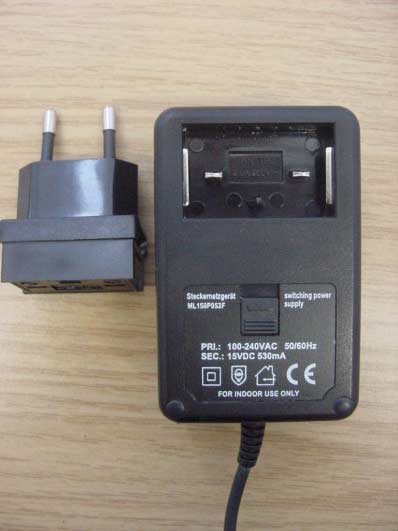

CETECOM ICT Services GmbH Test report No.: 2_3102-01-01/02Date: 2003-01-15Page 27 (37) Photographs of the equipment Photograph no.: 1 CETECOM ICT Services GmbH Test report No.: 2_3102-01-01/02Date: 2003-01-15Page 28 (37) Photographs of the equipment Photograph no.: 2 CETECOM ICT Services GmbH Test report No.: 2_3102-01-01/02Date: 2003-01-15Page 36 (37) Photographs of the equipment Charger with changeable adapters Photograph no.: 10 CETECOM ICT Services GmbH Test report No.: 2_3102-01-01/02Date: 2003-01-15Page 37 (37) Photographs of the equipment Charger with changeable adapters Photograph no.: 11

Datum: Date: Z.-Nr.: Doc.-No.: Gezeichnet / Drawn by: Geprüft / Checked: Datei: Blatt: File: Sheet: HBC-radiomatic GmbH Postfach 1561 D-74555 Crailsheim Typenschild nameplate Sender Cubix Ansicht von unten transmitter Cubix bottom view Position Typenschild Cubix Location nameplate Cubix M.Metzger D.Hahn Ans_cubix_typ.cdr 1/1 23.01.2003 AA.333.A.91 Datum: 03.02.2003 typ_cubix.cdr D.Hahn AA.335.A.93 1/1 Date: Z.-Nr.: Doc.-No.: Gezeichnet / Drawn by: M.Metzger Typenschild Cubix Geprüft / Checked: Datei: Blatt: File: Sheet: HBC-radiomatic GmbH Postfach 1561 D-74555 Crailsheim HBC radiomatic GmbH Tel.: +49(0)7951/393-0 Made in Germany FCC-ID: NO9 C10007 Frequ. 1 (MHz): Frequency Block: Voltage: Frequency (MHz): IP 55 / Nema 4 Transmitter Ser.No.: Prod.Code: 00369514 cubix W5 902 - 928 -03 3,6V DC 908,375

CETECOM ICT Services GmbH Test report No.: 2_3102-01-01/02Date: 2003-01-15Page 29 (37) Photographs of the equipment Photograph no.: 3 CETECOM ICT Services GmbH Test report No.: 2_3102-01-01/02Date: 2003-01-15Page 30 (37) Photographs of the equipment Photograph no.: 4 CETECOM ICT Services GmbH Test report No.: 2_3102-01-01/02Date: 2003-01-15Page 31 (37) Photographs of the equipment Photograph no.: 5 CETECOM ICT Services GmbH Test report No.: 2_3102-01-01/02Date: 2003-01-15Page 32 (37) Photographs of the equipment RF-module TC960 Photograph no.: 6 CETECOM ICT Services GmbH Test report No.: 2_3102-01-01/02Date: 2003-01-15Page 33 (37) Photographs of the equipment RF-module TC960 without shielding Photograph no.: 7 CETECOM ICT Services GmbH Test report No.: 2_3102-01-01/02Date: 2003-01-15Page 34 (37) Photographs of the equipment Build in antenna Photograph no.: 8 CETECOM ICT Services GmbH Test report No.: 2_3102-01-01/02Date: 2003-01-15Page 35 (37) Photographs of the equipment Build in antenna Photograph no.: 9

CETECOM ICT Services GmbH Radio Satellite Communication Untertürkheimer Straße 6–10, D-66117 Saarbrücken, Telephone +49 (0) 681 598- 0, Fax +49 (0) 598 9075 Test report No.: 2_3102-01-01/02This test report consists of 37 pagesPage 1 (37) Recognized by the Federal Communications Commission FCC–Identification Number: 90462 TCB ID: DE 001 Accredited by the German Accreditation Council DAR–Registration Number TTI–P–G 166/98 Independent ETSI compliance test house ETSI Accredited Bluetooth™ Test Facility (BQTF) Test report No. : 2_3102-01-01/02 Applicant : HBC-radiomatic GmbH. Type : cubix FCC–ID No : NO9C100007 BLUETOOTH is a trademark owned by Bluetooth SIG, Inc. and licensed to CETECOM CETECOM ICT Services GmbH Test report No.: 2_3102-01-01/02Date: 2003-01-15Page 2 (37) Table of contents 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of applicant 1.4 Application details 1.5 Test item 1.6 Test specifications 2 Technical test 2.1 Summary of test results 2.2 Test report CETECOM ICT Services GmbH Test report No.: 2_3102-01-01/02Date: 2003-01-15Page 3 (37) 1 General information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM ICT Services GmbH does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM ICT Services GmbH. Test laboratory manager: 2003-02-13RSC - 8411Berg M. DateSectionNameSignature Technical responsibility for area of testing: 2003-02-13RSC - 8412Hausknecht D. DateSectionNameSignature CETECOM ICT Services GmbH Test report No.: 2_3102-01-01/02Date: 2003-01-15Page 4 (37) 1.2 Testing laboratory CETECOM ICT Services GmbH Untertürkheimer Straße 6 - 10 66117 Saarbrücken Germany Telephone: + 49 681 598 - 0 Telefax : + 49 681 598 - 9075 E-mail: [email protected] Internet: www.cetecom-ict.de Accredited testing laboratory Accredited by: Regulierungsbehörde für Telekommunikation und Post (RegTP) Listed by: Federal Communications Commission (FCC) AuthorityIdentification/Registration No. RegTPTTI-P-G 166/98-30 FCC90462 1.3Details of applicant Name :HBC-radiomatic GmbH. Street :Haller Str. 49 - 53 City :D-74564 Crailsheim Country :Germany Telephone:+49 (0) 7951 393-725 Telex :+49 (0) 7951 393-723 E-mail :[email protected] Contact person: Name : Mr. D. Hahn Telephone : +49 (0) 7951 393-725 Telex : +49 (0) 7951 393-723 E-mail : [email protected] 1.4Application details Date of receipt of test item : 2002-12-19 Date of test: 2003-01-14 Person(s) who have been : Mr. Hahn ; Mr. Schulze present during the test CETECOM ICT Services GmbH Test report No.: 2_3102-01-01/02Date: 2003-01-15Page 5 (37) 1.5Test item Type of equipment : Remote control for cranes Type designation:cubix (with RF module TC690(transceiver)) Manufacturer:Same as applicant Street: City: Country: Serial number:- / - Additional information : Frequency:902.125 to 927.875 MHz Type of modulation:115KF1D (2x FM-Deviation + BIT-Rate: 2x 50 kHz +15kBit ) Channel spacing:250 kHz Number of channels :103 Antenna:Integral antenna ERP:92.9 dBμ/m or 44.157 mV/m Power supply:3.6V NiMH rechargeable battery Temperature range :-20°C - +55°C FCC ID :NO9C100007 1.6Test specifications: FCC Part 15 §15.209 / 15.107 / 15.109 FCC Part 15 §15.249 CANADA RSS-210 CETECOM ICT Services GmbH Test report No.: 2_3102-01-01/02Date: 2003-01-15Page 6 (37) 2 Technical test 2.1 Summary of test results The radiated measurements are performed in vertical and horizontal plane in the frequency range from 9 kHz to 20 GHz in semi-anechoic chambers. The EUT is positioned on a non- conductive support with a height of 0.80 m above a conductive ground plane that covers the whole chamber. The receiving antennas are conform with specifications ANSI C63.2-1987 clause 15 and ANSI C63.4-1992 clause 4.1.5. These antennas can be moved over the height range between 1.0 m and 4.0 m in order to search for maximum field strength emitted from EUT. The measurement distances between EUT and receiving antennas are indicated in the test setups for the various frequency ranges. For each measurement, the EUT is rotated in all three axes until the maximum field strength is received. The wanted and unwanted emissions are received by spectrum analyzers where the detector modes and resolution bandwidths over various frequency ranges are set according to requirement ANSI C63-4-1992 clause 4.2. Antennas are conform with ANSI C63.2-1996 item 15. 150 kHz - 30 MHz: Quasi Peak measurement, 9kHz Bandwidth, passive loop antenna. 30 MHz - 200 MHz: Quasi Peak measurement, 120KHz Bandwidth, biconical antenna 200MHz - 1GHz: Quasi Peak measurement, 120KHz Bandwidth, log periodic antenna >1GHz: Average, RBW 1MHz, VBW 10 Hz, wave guide horn All measurement settings are according to FCC 15.35, 15.107, 15.109, 15.209, 15.245 . The product fulfills also the requirements for CANADA RSS-210 No deviations from the technical specification(s) were ascertained in the course of the tests performed. FINAL VERDICT : PASS CETECOM ICT Services GmbH Test report No.: 2_3102-01-01/02Date: 2003-01-15Page 7 (37) 2.2Test report TEST REPORT Test report no. : 2_3102-01-01/02 CETECOM ICT Services GmbH Test report No.: 2_3102-01-01/02Date: 2003-01-15Page 8 (37) TEST REPORT REFERENCE LIST OF MEASUREMENTS PARAMETER TO BE MEASUREDPAGE Field Strength of Fundamental (radiated) § 15.249 (a)9 SPURIOUS EMISSION (radiated) § 15.249 (a)12 RECEIVER SPURIOUS EMISSION(radiated) § 15.10917 Additional measurements for the ancillary equipmentPART 15.10919 Conducted emissions § 15.107/20721 TEST EQUIPMENT AND ANCILLARIES USED FOR TESTS22 Test site24 Photographs of the equipment27 CETECOM ICT Services GmbH Test report No.: 2_3102-01-01/02Date: 2003-01-15Pa…
