Operating Instructions Radio Transmitter eco L BE-ECO-L-V2-1.DOC [ Word 97 ] FLPage 1 / 16 HBC-radiomatic GmbH • D-74564 Crailsheim • GERMANY All rights reserved through HBC-radiomatic GmbH. Technical changes made without notice.2000-07-28 Radio Control System HBC – Radio Controls R R a a d d i i o o T T r r a a n n s s m m i i t t t t e e r r e e c c o o L L Operating Instructions Radio Transmitter eco L Page 2 / 16BE-ECO-L-V2-1.DOC [ Word 97 ] FL HBC-radiomatic GmbH • D-74564 Crailsheim • GERMANY 28.07.2000All rights reserved through HBC-radiomatic GmbH. Technical changes made without notice. Radio Control System Before proceeding with the installation, operation or maintenance of the radio control equipment it is important that the installation, operating, and maintenance personnel read this bulletin carefully in order to ensure the safe and efficient use of the crane or machine. Also, it is strongly recommended that the personnel responsible for the operation, inspection, and servicing of the crane or machine on which this radio control is installed, read this manual carefully. If any instructions are unclear, contact the manufacturer or distributor of the radio control before attempting to install or use the radio controller on a crane or a machine. Note : Electrical wiring diagrams have been packed with this manual to ensure installations without any problems. If these items are missing, contact the manufacturer or distributor before attempting to install or use the radio control system to a machine. Manufacturer :HBC-radiomatic GmbH Haller Straße 49 - 53 D-74564 Crailsheim Tel. +49 ( 0 ) 79 51 – 3 93 - 0 Fax +49 ( 0 ) 79 51 – 3 93 - 50 Printing errors, omissions and mistakes excepted ! – All details are subject to change without notice. ™radiomatic is a registered German trademark. ©2000 , HBC-radiomatic GmbH , D-74564 Crailsheim Any duplication of operating firmware and any duplication of this documentation or parts of it without written consent of HBC-radiomatic GmbH is prohibited. Operating Instructions Radio Transmitter eco L BE-ECO-L-V2-1.DOC [ Word 97 ] FLPage 3 / 16 HBC-radiomatic GmbH • D-74564 Crailsheim • GERMANY All rights reserved through HBC-radiomatic GmbH. Technical changes made without notice.2000-07-28 Radio Control System Table of Contents 1Helpful Hints.................................................................................4 2Safety Regulations.......................................................................5 2.1Warning Notes...................................................................................5 2.2Safety Notes Regarding Operation.....................................................6 2.3Safety Notes when Operating the Transmitter.....................................6 2.3.1Safety Notes Regarding Battery and Battery Charger.............6 2.4Safety Notes Regarding Maintenance.................................................7 2.5Certificates, Certifications.................................................................7 2.5.1Nameplate.............................................................................7 3Description of the System and Application..................................8 3.1Specification.....................................................................................8 3.1.1Dimensions and Operating Elements of eco L........................9 4Operation....................................................................................10 Enabling of the Proportional Outputs...............................................11 Utilization of the START Key as "shift" Key......................................11 4.1Battery Charger...............................................................................12 4.2Special Operating Modes (Options)..................................................13 4.2.1Scanner..............................................................................13 4.2.2tele-teach-in Battery TTB 05................................................13 5Maintenance...............................................................................15 5.1In Case of a Defect...........................................................................15 6Trouble-Shooting........................................................................16 Operating Instructions Radio Transmitter eco L Page 4 / 16BE-ECO-L-V2-1.DOC [ Word 97 ] FL HBC-radiomatic GmbH • D-74564 Crailsheim • GERMANY 28.07.2000All rights reserved through HBC-radiomatic GmbH. Technical changes made without notice. Radio Control System 1Helpful Hints Following symbols are used in the operating instructions at hand : Warnings This symbol will show situations that could be dangerous for people or machines. Pay particular attention in reading the parts of this manual. Be careful and try to avoid these situations. Notes This symbol will show important operating hints to guarantee a long working life to the apparatus. Do not forget to observe these notes. The radio control could become unreliable. This symbol will show general information. Others This symbol will show regulations, e.g. notes on local, regional and federal regulations on labor safety and accident prevention when operating a radio controlled system. This symbol will identify the "Operation" section. This symbol will give you helpful maintenance notes in the corresponding section. This symbol will identify the trouble-shooting section. Operating Instructions Radio Transmitter eco L BE-ECO-L-V2-1.DOC [ Word 97 ] FLPage 5 / 16 HBC-radiomatic GmbH • D-74564 Crailsheim • GERMANY All rights reserved through HBC-radiomatic GmbH. Technical changes made without notice.2000-07-28 Radio Control System 2Safety Regulations ÿ Strictly observe and always adhere to the respective regulations on labor safety and accident prevention when operating a radio controlled system ! ÿ Retrofitting of a radio control to a crane or machine is considered to be a major modification. The crane or machine must therefore be sub…

Text truncated - open the document above for the full version.

Operating Instructions Radio Transmitter eco L BEECOLUS-L.DOC [ Word 97 ] FL Page 6 / 18 2001-09-13HBC-radiomatic reserves the right to alter or amend the above information without any notice. Radio Remote Control System HBC-radiomatic, Inc. , Cincinnati , Ohio 45242 , USA 2.2Safety Notes Regarding Operation ➪ Warning to our Users : In accordance to the rules and regulations of the FCC, any changes or modifications made to our transmitter or receiver by you without the express written consent of HBC-radiomatic, Inc. could void your authority to operate the equipment under FCC’s rule 15.21 ! ➪ Before using the radio control system for the first time, read these operating instructions completely and carefully. ➪ In case of a defect, an emergency situation and whenever a malfunction occurs in the working area of the radio system, it is required to de-energize the radio equipment immediately until the cause of the fault has been located and repaired ! − Switch OFF the transmitter via the EMERGENCY-STOP pushbutton. − Disconnect the connecting cable from the receiver. ➪ During breaks and at the end of work, disconnect the transmitter by means of the key switch or the EMERGENCY-STOP pushbutton. ➪ Be cautious when working with the radio control. – When using the radio control, choose a stable location from which you can see the entire working area. ➪ Usage of radio remote control systems outside of manufacturer’s guidelines (section 3) may result in invalidity of the guarantee. 2.3Safety Notes when Operating the Transmitter ➪ Before you start working, always verify the operation of the EMERGENCY-STOP pushbutton. ➪ It is not allowed to leave a connected transmitter and not supervise it. ➪ In case of an emergency and in case of all sorts of problems in the working range of the machinery or in case of a technical failure of the radio control, you must stop the crane or machine by pressing the EMERGENCY-STOP pushbutton ! ➪ During breaks, disconnect the transmitter by means of the key switch or the EMERGENCY-STOP pushbutton. ➪ At the end of work, switch OFF the transmitter by means of the key switch, pull out the key and store it at a safe place. ➪ The operation of the transmitter is permissible only with the carrying set included with the transmitter (possibility of mixing up the controls) ! Operating Instructions Radio Transmitter eco L BEECOLUS-L.DOC [ Word 97 ] FL Page 6 / 18 2001-09-13HBC-radiomatic reserves the right to alter or amend the above information without any notice. Radio Remote Control System HBC-radiomatic, Inc. , Cincinnati , Ohio 45242 , USA

CAD-Zeichnung, keine manuellen Aenderungen! CAD drawing, no manual modification! D-74555 Crailsheim Postfach 1561 HBC-radiomatic GmbH Z.-Nr.: Doc.No.:Sheet Blatt Datum: Date: Datei: File: Geprueft/checked by: Gezeichnet/Drawn by: SWITCHES BATTERY BLOCK DIAGRAMM TRANSMITTER ECO LD.Hahn TRANSMITTERMODUL CASE MAINBOARD 1/1AA.284.A.91 25.05.2000AA284A91.sbk M.Metzger

HBC-radiomatic, GmbH - Haller Strasse 49-53 - D-74564 Crailsheim - Deutschland PH USA: (513) 733-4900 - FX USA: (513) 733-4903 - www.hbc-radiomatic.com - e-mail: [email protected] radiomatic ® radiobus ®® Standard for Excellence Attn: Reviewing Engineer Federal Communications Commision 7435 Oakland Mills Road Columbia, MD 21046 RE: CONFIDENTIALITY REQUEST FOR HBC-RADIOMATIC’S APPLICATION FOR GRANT OF EQUIPMENT AUTHORIZATION FOR THE eco L TRANSMITTER N09E20004 To Whom It May Concern: This letter serves as an official request for confidentiality under FCC Rule Section 0.459. We have requested that the schematic diagrams required to be submitted with this application for the eco L transmitter (FCC ID: N09E20004) be withheld from public review. Due to the competitive nature of our industry, a public viewing of these schematics could allow our competitors an unfair advantage in illegally reproducing our technology. Please contact me if there is any information you may need. Sincerely, Jason F. Looman Vice President of Operations, N.A. HBC-radiomatic, GmbH Haller Strasse 49-53 D-74564 Crailsheim Deutschland

88 mm (3.5 ") 126 mm (4.9 ") 202 mm (8.0 ") 216 mm (8.5 ") File: ECO-L_Unterseite.CDR [ CorelDraw 8.0 ] 15.12.2000 FL HBC-radiomatic GmbH Tel.: +49(0)7951/393-0 Made in Germany Prod.Code: eco L Transmitter Ser.No.: IP55 / Nema 4 U: 6V DC Frequency (MHz): 902,000918,000 Frequency Block: Batt. FCC ID: NO9E20004 CANADA: YYYY YYY YYYY – This device complies with part 15 of the FCC rules. Operation is subject to the following conditions: (1) This device may not cause harmful interference, and (2) this device must accept interference received, including interference that may cause undesired operation. File: ECO-L_Unterseite.CDR [ CorelDraw 8.0 ] 15.12.2000 FL This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, & (2) This device must accept any interference received, including interference received that may cause undesired operation. HBC-radiomatic GmbH Tel.: +49(0)7951/393-0 Made in Germany Prod.Code: eco L Transmitter Ser.No.: IP55 / Nema 4 U: 6V DC Frequency (MHz): 902,000918,000 Frequency Block: Batt. – eco:NO9E20004USA:CANADA:

Operating Instructions Radio Transmitter eco L Page 8 / 16BE-ECO-L-V2-1.DOC [ Word 97 ] FL HBC-radiomatic GmbH • D-74564 Crailsheim • GERMANY 2000-07-28All rights reserved through HBC-radiomatic GmbH. Technical changes made without notice. Radio Control System 3Description of the System and Application The system consists of a transmitter hosing with six linear levers, two selector switches, a key switch and an EMERGENCY-STOP pushbutton, a battery charger with two rechargeable NiCd batteries and a receiver with an antenna. The radio transmitter eco L enables – in combination with a corresponding receiver – control of small and medium loading cranes, hoists and working machines in construction and industry. The transmitter housing is made of glass-fiber reinforced ABS plastic with a built-in antenna. The system is equipped to control receivers with 6 operating commands and works within a 30 cm or 70 cm frequency band. State of the art radio technology complying with the latest guidelines of the regulations on labor safety and the use of highly developed microprocessor technology guarantees optimal operating safety, availability and longevity. Following radio receivers can be controlled by this transmitter type : FSE 707 PHFSE 717 3.1Specification General Technical Data Systemeco L Number of control commands6 Unique system addressover 65,000 possibilities Transmitter Specific Technical Data Transmitting power (FuS 671/3 or 680/3) < 10 mW (synthesizer) Type of batteryFuB 05 AA (orange) Voltage supply via NiCd battery6 V DC / 600 mAh Max. duration of operation 16 h ( 50 % ON) 8 h (100 % ON) Housing materialglass-fiber reinforced ABS plastic Weight (approx.)2,0 kg (4.4 lb.) Operating temperature–25 °C ... +75 °C (–13 °F ... +167 °F) Protection classIP 55 Operating Instructions Radio Transmitter eco L BE-ECO-L-V2-1.DOC [ Word 97 ] FLPage 9 / 16 HBC-radiomatic GmbH • D-74564 Crailsheim • GERMANY All rights reserved through HBC-radiomatic GmbH. Technical changes made without notice.2000-07-28 Radio Control System 3.1.1Dimensions and Operating Elements of eco L File: ECO-L.CDR [ CorelDraw 6.0 ] 02-21-2000 FL 1 7 6 m m ( 6 . 9 " ) 126 mm (4.9 ") 88 mm (3.5 ") 216 mm (8.5 ") 202 mm (8.0 ") ¿ ¡ ¬ 6 linear levers 2 selector switches pushbuttonEMERGENCY-STOP √ ƒ ≈ Key switch "Transmitter ON" Loop for carrying belt Roll-over bar ¿ ¬ ≈ ¡ ¿ ¬ ƒ ≈ √

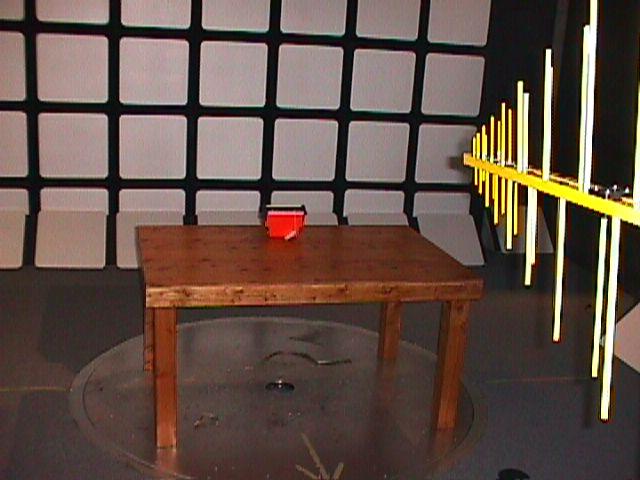

FCC Declaration of Conformity Report for the Eco L Transmitter Authorized under the FCC Declaration of Conformity Rules contained in Title 47 of the CFR, Part 15, Subpart B for Class B Digital Device MET REPORT EMC1308C December 20, 2000 PREPARED FOR: HBC-Radiomatic Haller Strasse 49-53 D-74564 Crailsheim, Germany PREPARED BY: MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, Maryland 21230-3432 December 20, 2000 HBC-Radiomatic Haller Strasse 49-53 D-74564 Crailsheim, Germany Attention:Juergen Schneider Regarding:Declaration of Conformity of theEco L Transmitter under Part 15, Subpart B of the FCC Rules as a Class B Digital Device MET Report: EMC1308C Dear Juergen Schneider: Enclosed is a report of Declaration of Conformity in accordance with FCC Part 15, Subpart B of Title 47 of the Code of Federal Regulations, Section 15.101(a) for theEco L Transmitter. Based on these results, MET Laboratories, Inc. certifies that theEco L Transmitter, tested as configured, meets the requirements and interference limitations contained in Section 15.209(a) and 15.249 for Class B Digital Devices under Part 15, Subpart B of Title 47 of the Code of Federal Regulations. If you have any questions concerning this report or your responsibilities as a manufacturer of verified equipment, please contact us at your convenience. Thank you for using MET's testing services. Sincerely, MET Laboratories, Inc. Joanna Agnieszka Kolasinski EMC Senior Technical Administrator FCC Declaration of Conformity Report for the Eco L Transmitter Authorized under the FCC Declaration of Conformity Rules contained in Title 47 of the CFR, Part 15, Subpart B for Class B Digital Device MET REPORT EMC1308C December 20, 2000 PREPARED FOR: HBC-Radiomatic Haller Strasse 49-53 D-74564 Crailsheim, Germany PREPARED BY: MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, Maryland 21230-3432 Test Engineer:________________________________ Tony Permsombut Technical Writer:________________________________ Joanna A. Kolasinski Reviewed by:________________________________ Chris Harvey EMC Laboratory Director December 20, 2000- 2 -EMC1308C TABLE OF CONTENTS COVER LETTER LEGAL STATEMENT....................................................................3 EXHIBIT 1.............................................................................4 MANUFACTURER & PRODUCT INFORMATION.......................................5 ENGINEERING STATEMENT......................................................5 EXHIBIT 2.............................................................................6 INTRODUCTION.................................................................7 TEST SITE......................................................................7 MEASUREMENT PROCEDURES....................................................7 INSTRUMENTATION.............................................................8 TEST CONFIGURATION...........................................................8 Photograph of Radiated Emissions Test Configuration.....................................11 EXHIBIT 3............................................................................12 Radiated Emissions...............................................................13 Radiated Emissions...............................................................14 Radiated Emissions...............................................................15 Radiated Emissions...............................................................16 Radiated Emissions...............................................................17 Radiated Emissions...............................................................18 EXHIBIT 4............................................................................19 MANUFACTURER’S RESPONSIBILITIES............................................20 APPENDIX A..........................................................................25 ICES-003 PROCEDURAL AND LABELING REQUIREMENTS............................26 December 20, 2000- 3 -EMC1308C LEGAL STATEMENT While use of the National Voluntary Laboratory Accreditation Program (NVLAP) letters or the NVLAP Logo in this report reflects the MET Accreditation under the NVLAP Program, these letters, logo, or Statements do not claim product endorsement by NVLAP or any Agency of the U.S. Government. Certificates and reports shall not be reproduced except in full, without the written permission of MET Laboratories, Inc. December 20, 2000- 4 -EMC1308C EXHIBIT 1 MANUFACTURER & PRODUCT INFORMATION ENGINEERING STATEMENT December 20, 2000- 5 -EMC1308C MANUFACTURER & PRODUCT INFORMATION TYPE OF AUTHORIZATION:Declaration of Conformity of a Class B Digital Device FCC IDENTIFIER:N/A APPLICABLE FCC RULES:2.906; 2.951 to 2.957; 15.209(a); 15.249(a) CLIENT:HBC-Radiomatic Haller Strasse 49-53 D-74564 Crailsheim, Germany EQUIPMENT:Eco L Transmitter TESTING DATE(S):2/4/00 and 2/7/00 ENGINEERING STATEMENT I ATTEST: the measurements shown in this report were made in accordance with the procedures indicated, and that the Emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. I FURTHER ATTEST: on the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of Part 15 of the FCC Rules under normal use and maintenance. ______________________ Tony Permsombut Project Engineer December 20, 2000- 6 -EMC1308C EXHIBIT 2 INTRODUCTION TEST SITE MEASUREMENT PROCEDURES INSTRUMENTATION TEST CONFIGURATION MODIFICATIONS STATEMENT PHOTOGRAPHS December 20, 2000- 7 -EMC1308C INTRODUCTION An EMC evaluation to determine compliance of theEco L Transmitter with the requirements of §15.101(a) for Class B Digital Devices was conducted. (All references are to the most current version of Title 47 of the Code of Federal Regulations in effect). In accordance with §2.1075(a)(3), the foll…
