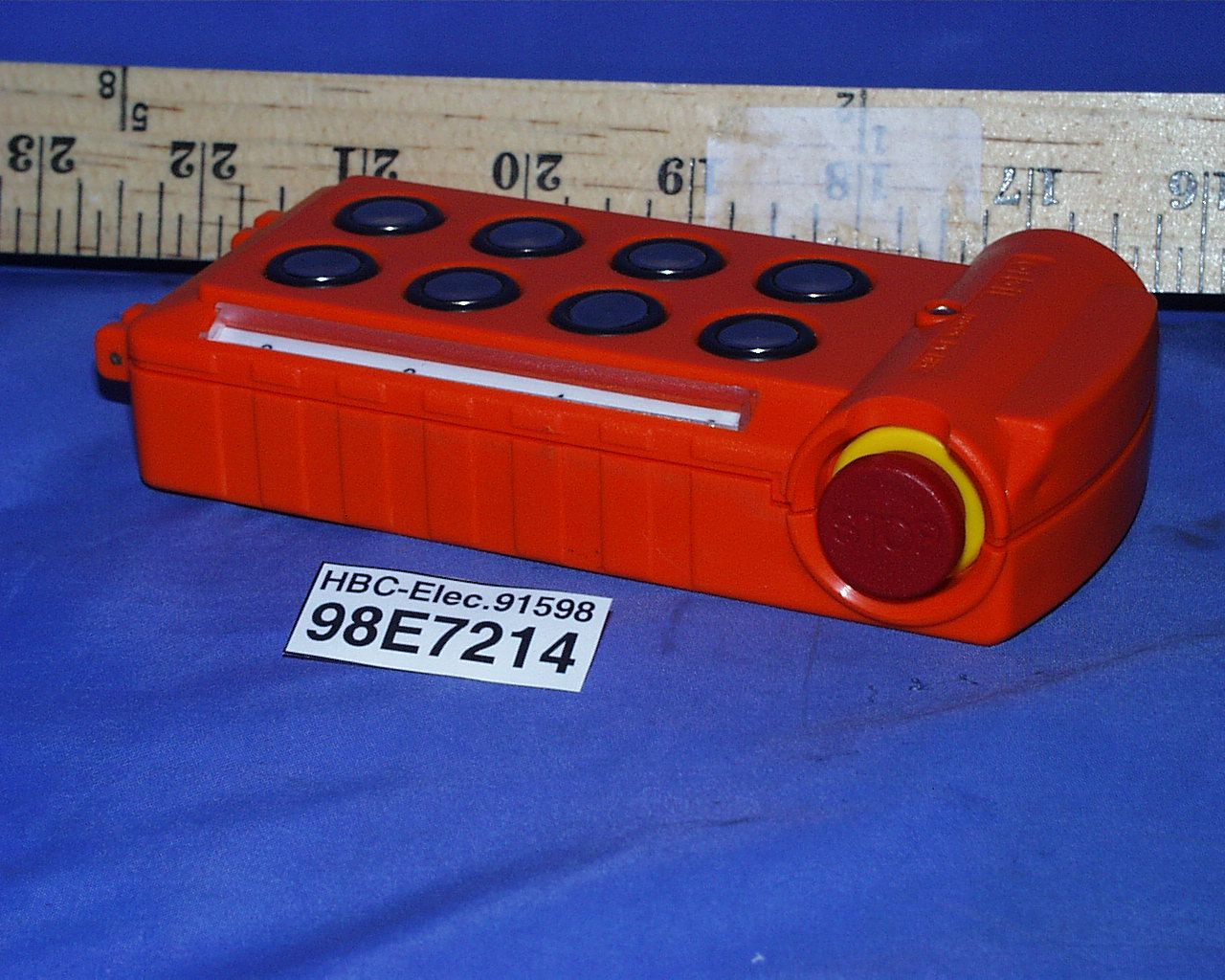

NO9O10004REMOTE CONTROL TRANSMITTER FOR INDUSTRIAL USE

HBC-radiomatic GmbH
REMOTE CONTROL TRANSMITTER FOR INDUSTRIAL USE - FCC ID NO9O10004 - HBC-radiomatic GmbH
Click to zoom

Application Details

Equipment Class
DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant
Apr 12, 1999
Application Purpose
Original Equipment
Date of Application
Dec 17, 1998
Equipment Note
REMOTE CONTROL TRANSMITTER FOR INDUSTRIAL USE
Frequency Range
902.00000000 - 918.00000000
Company
HBC-radiomatic GmbH
Country
Germany

Documents & Files

Select a file to view

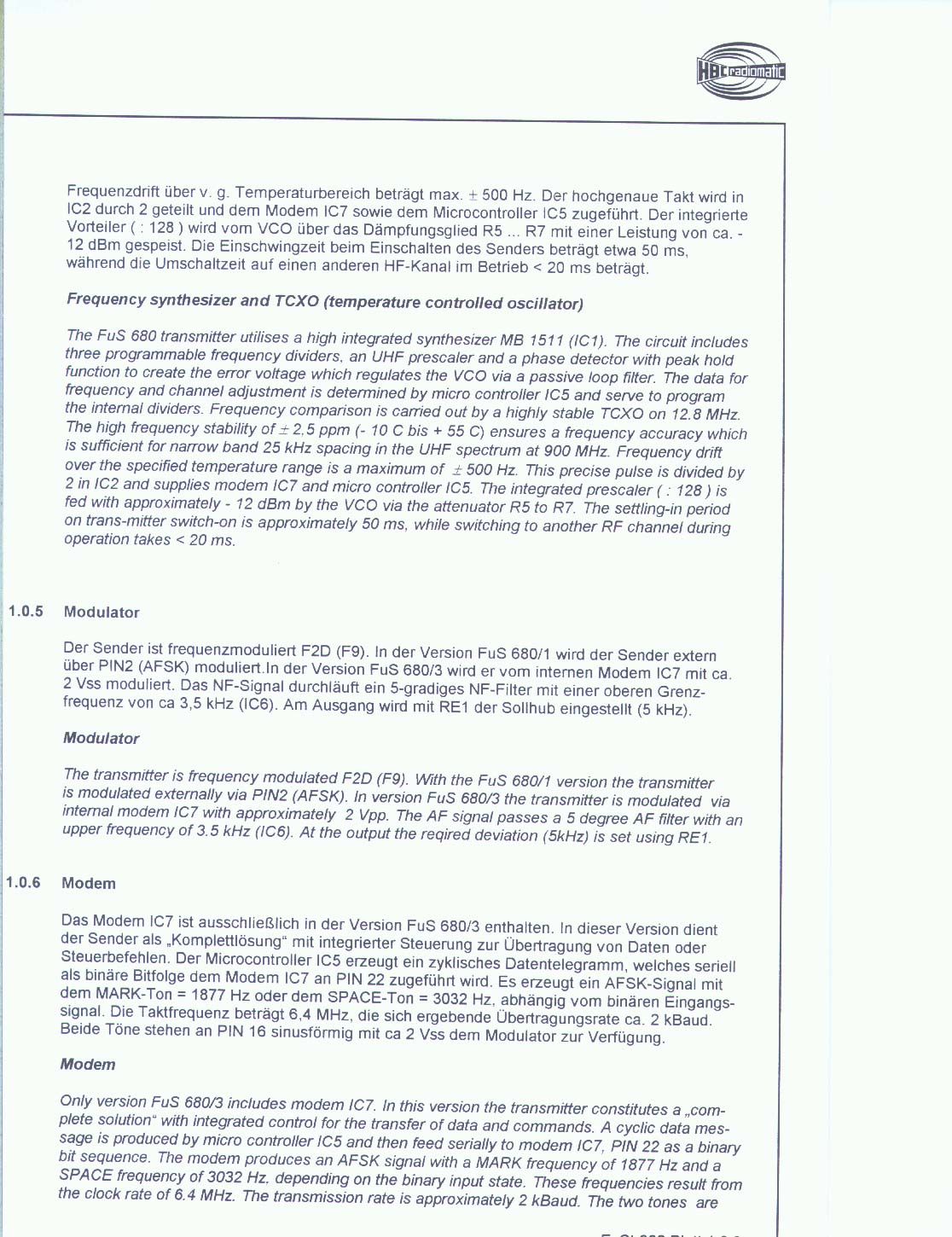

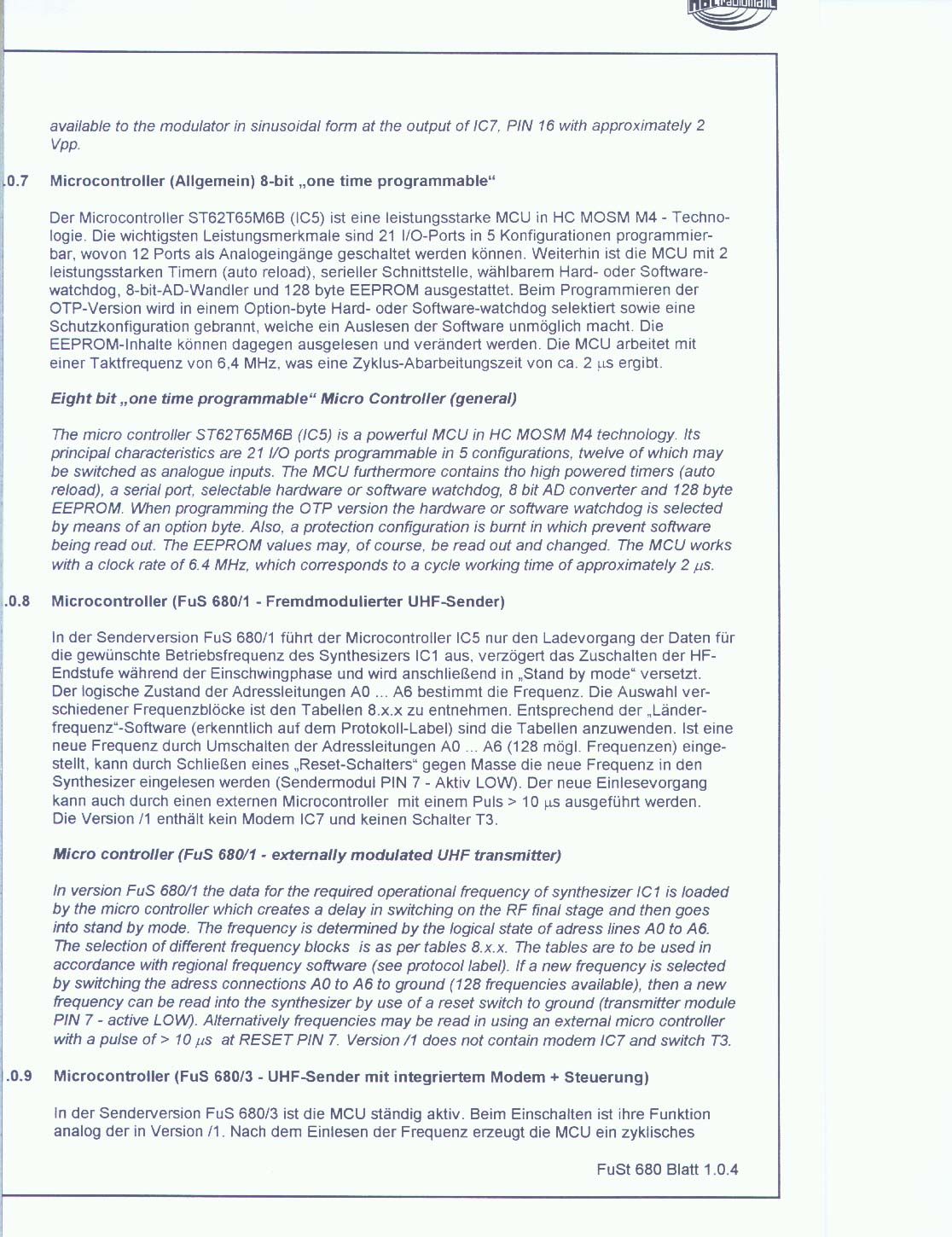

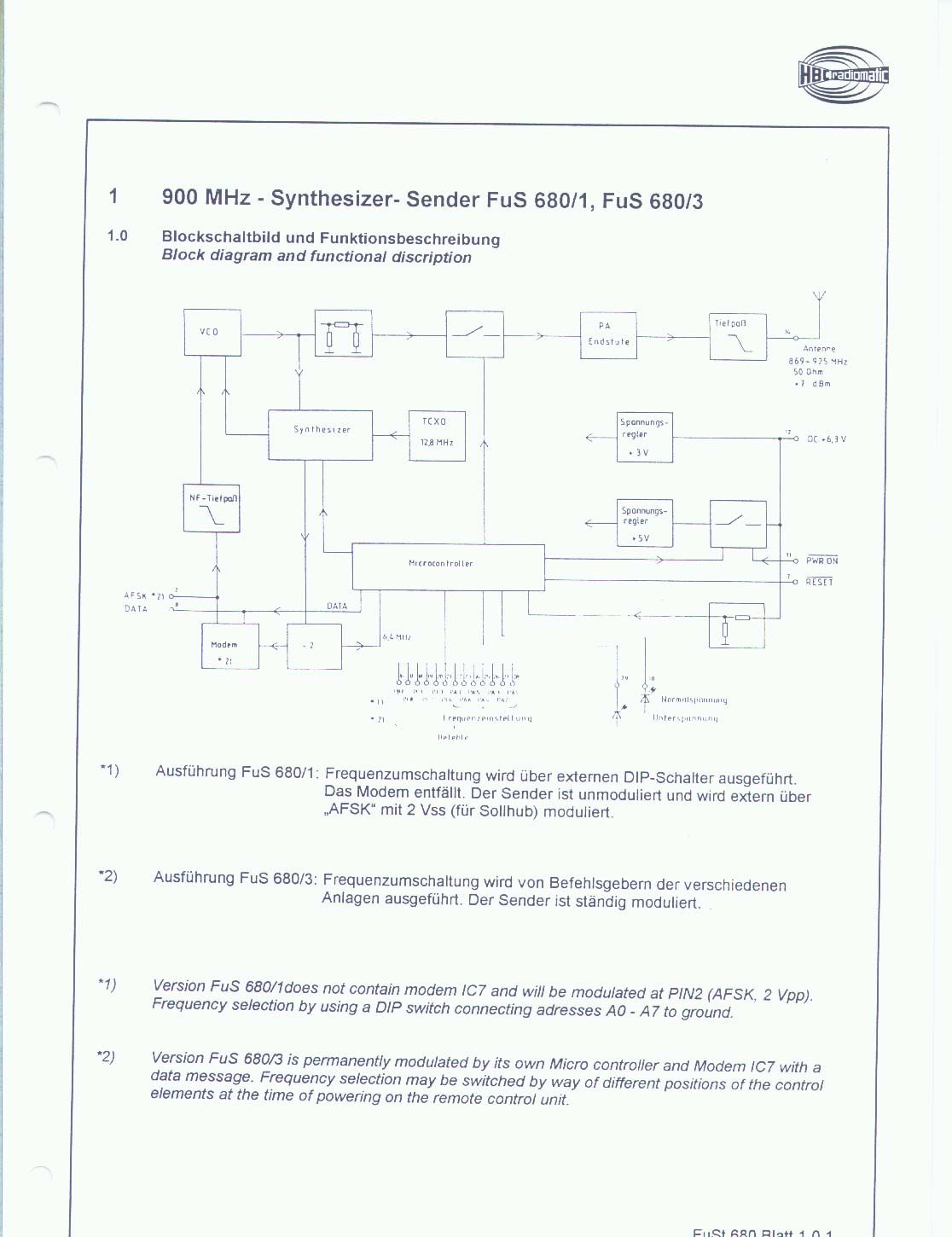

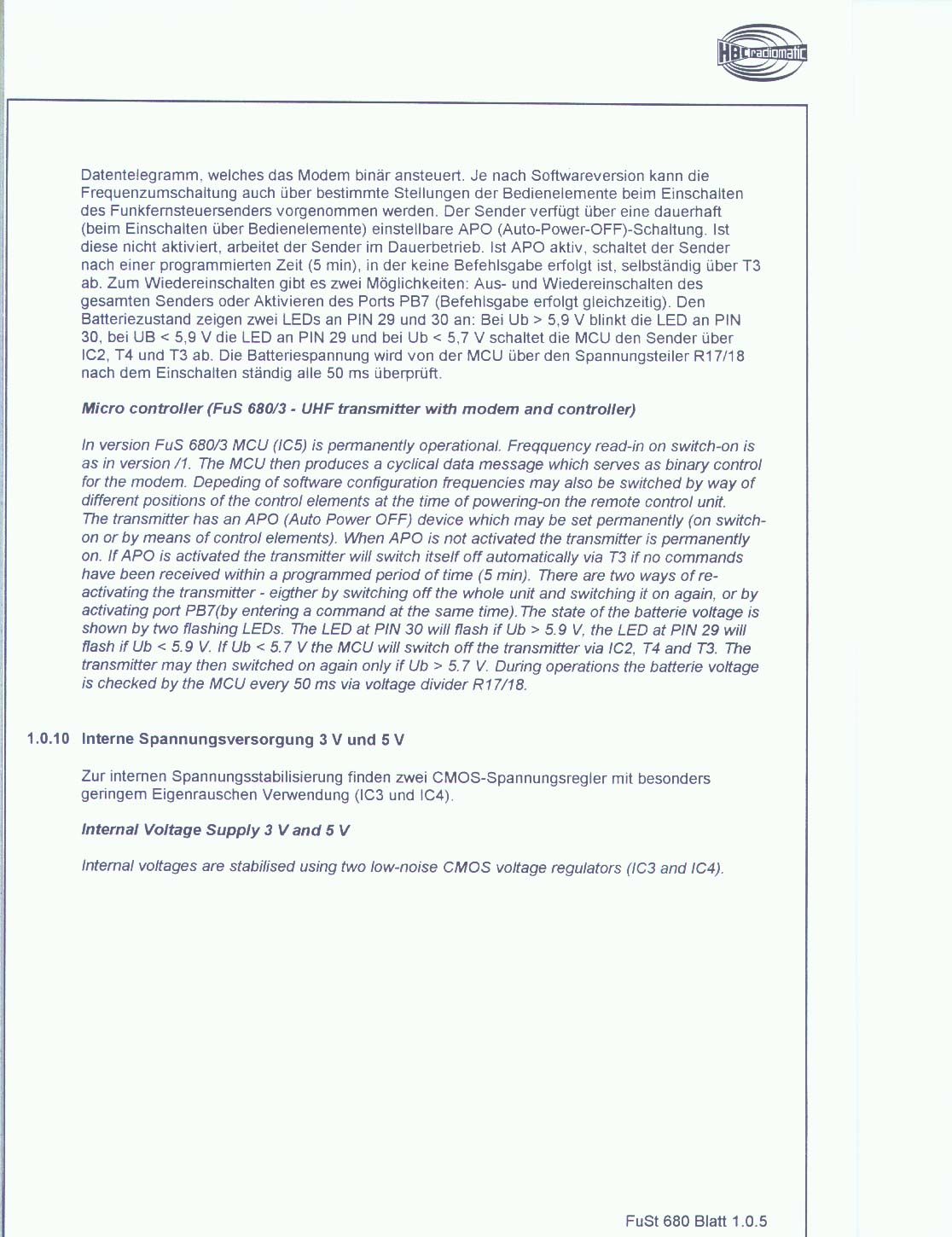

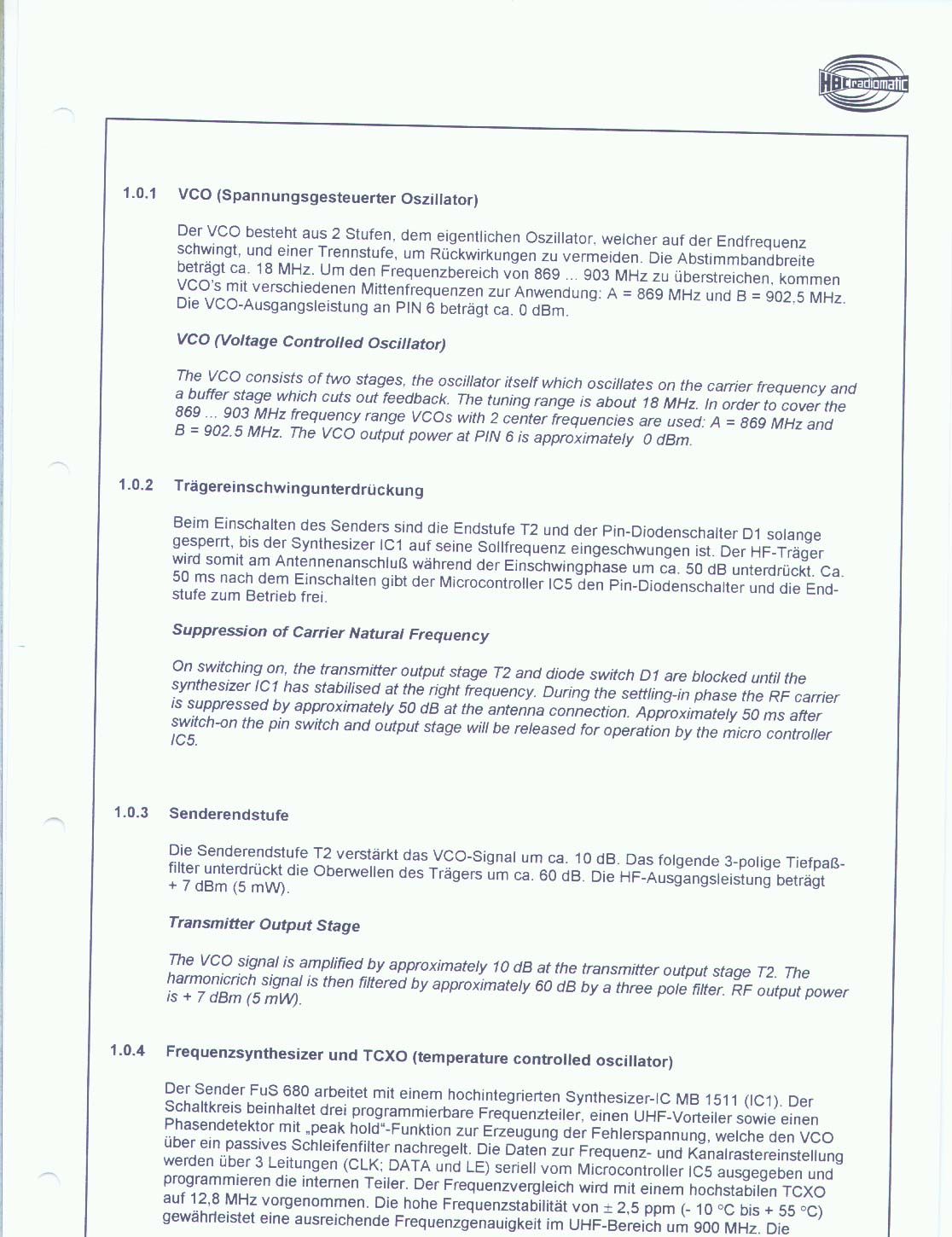

Users Manual

↗
↗
↗
↗
↗

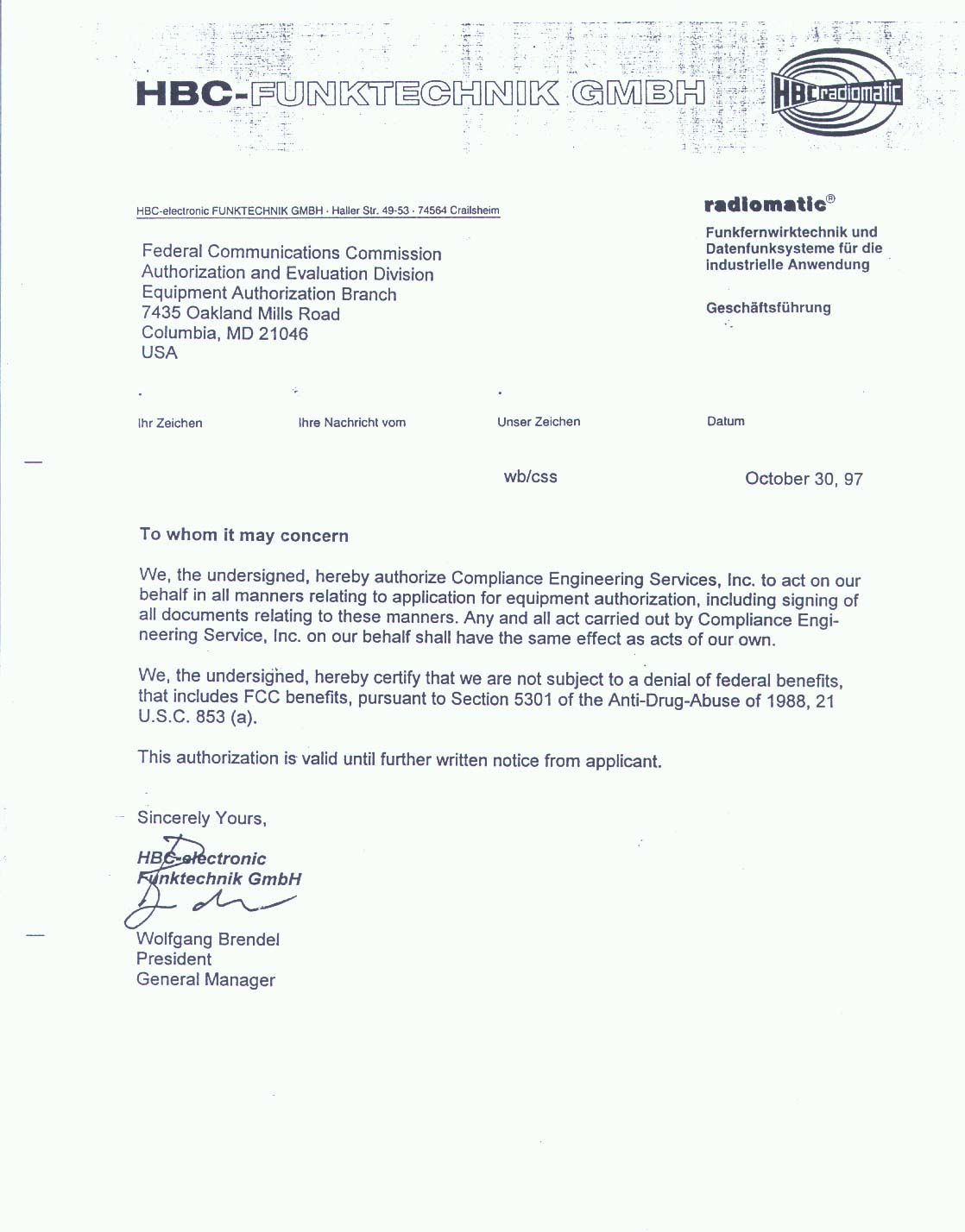

Cover Letter(s)

↗

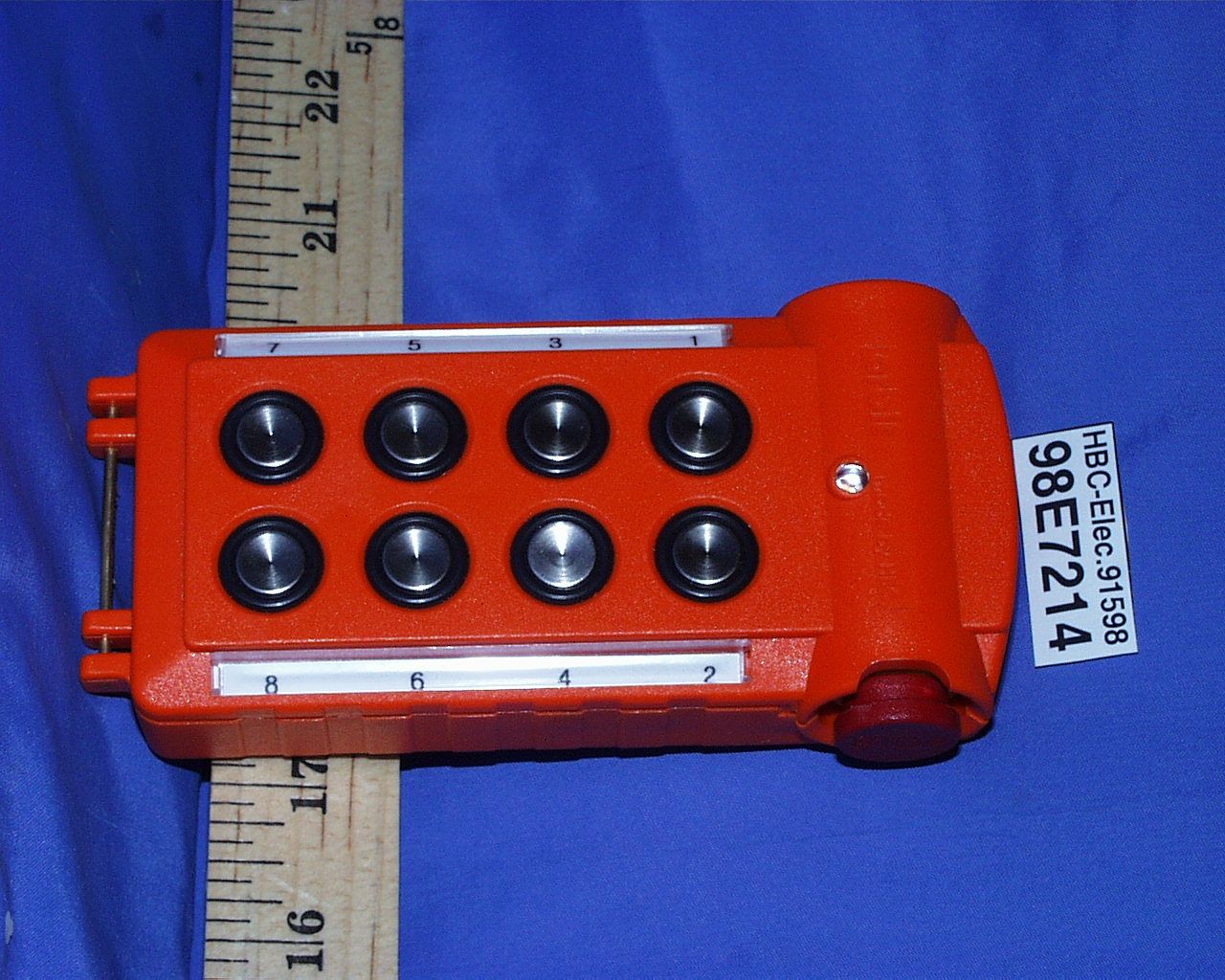

External Photos

↗
↗

ID Label/Location Info

↗

Internal Photos

↗
↗
↗
↗

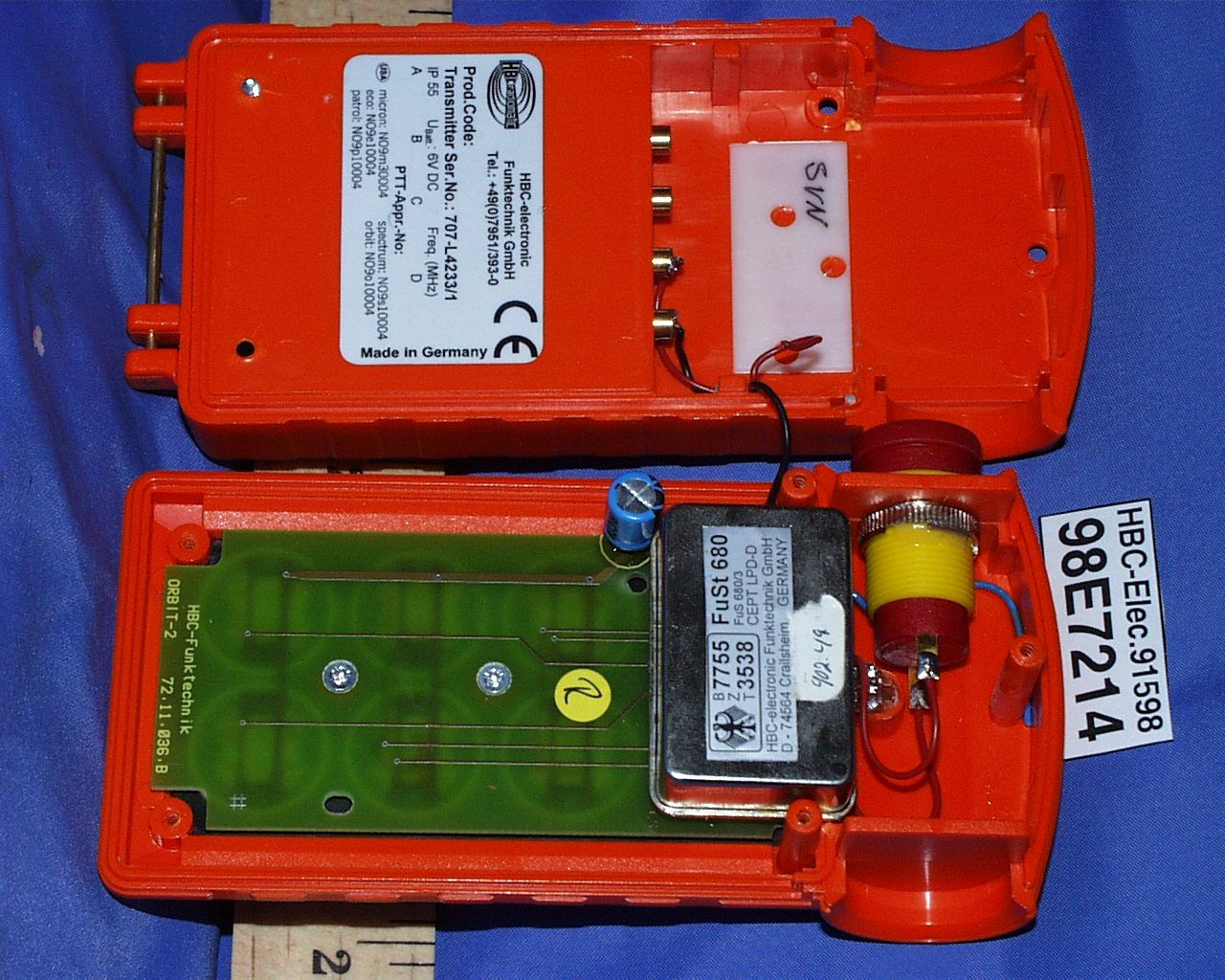

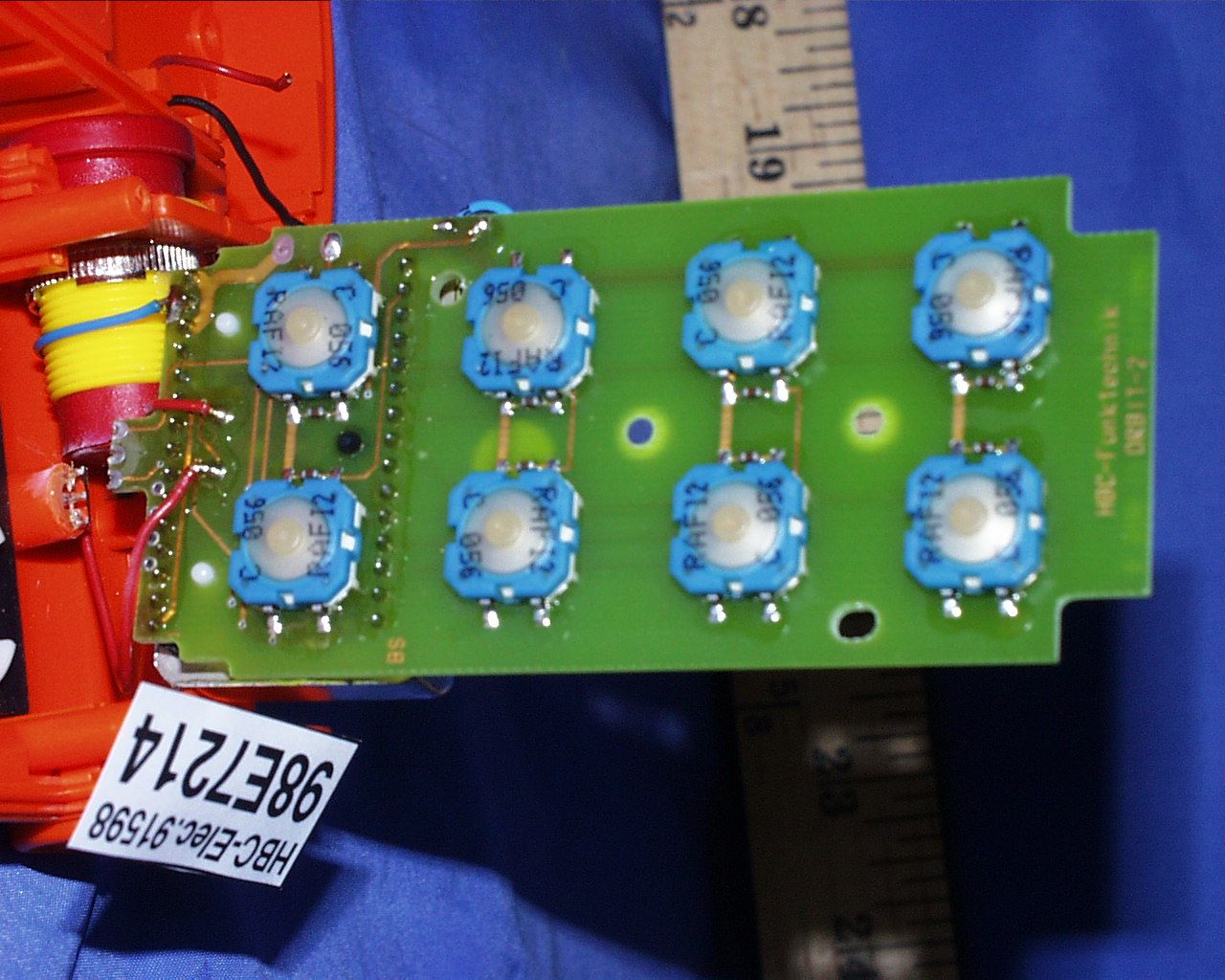

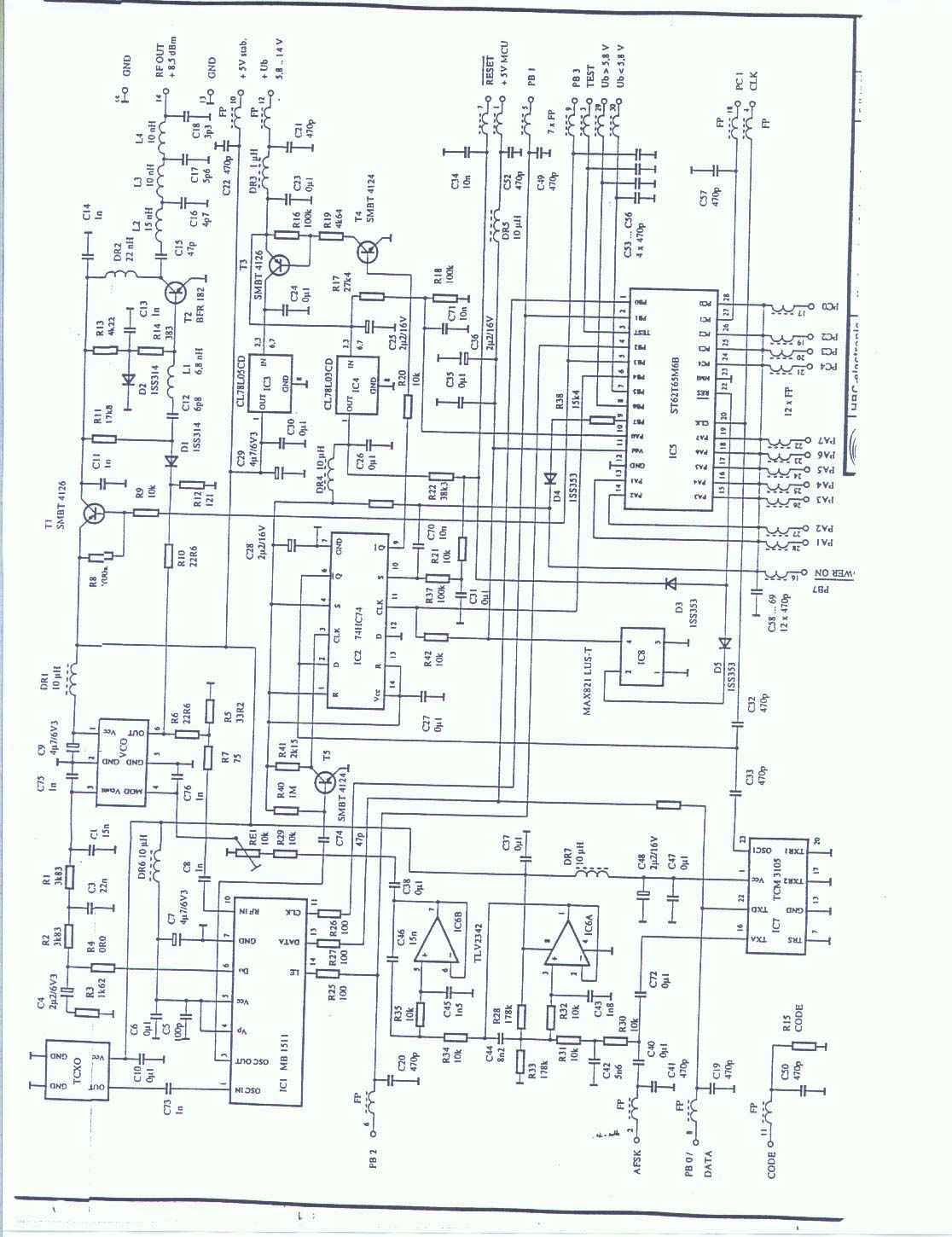

Schematics

↗

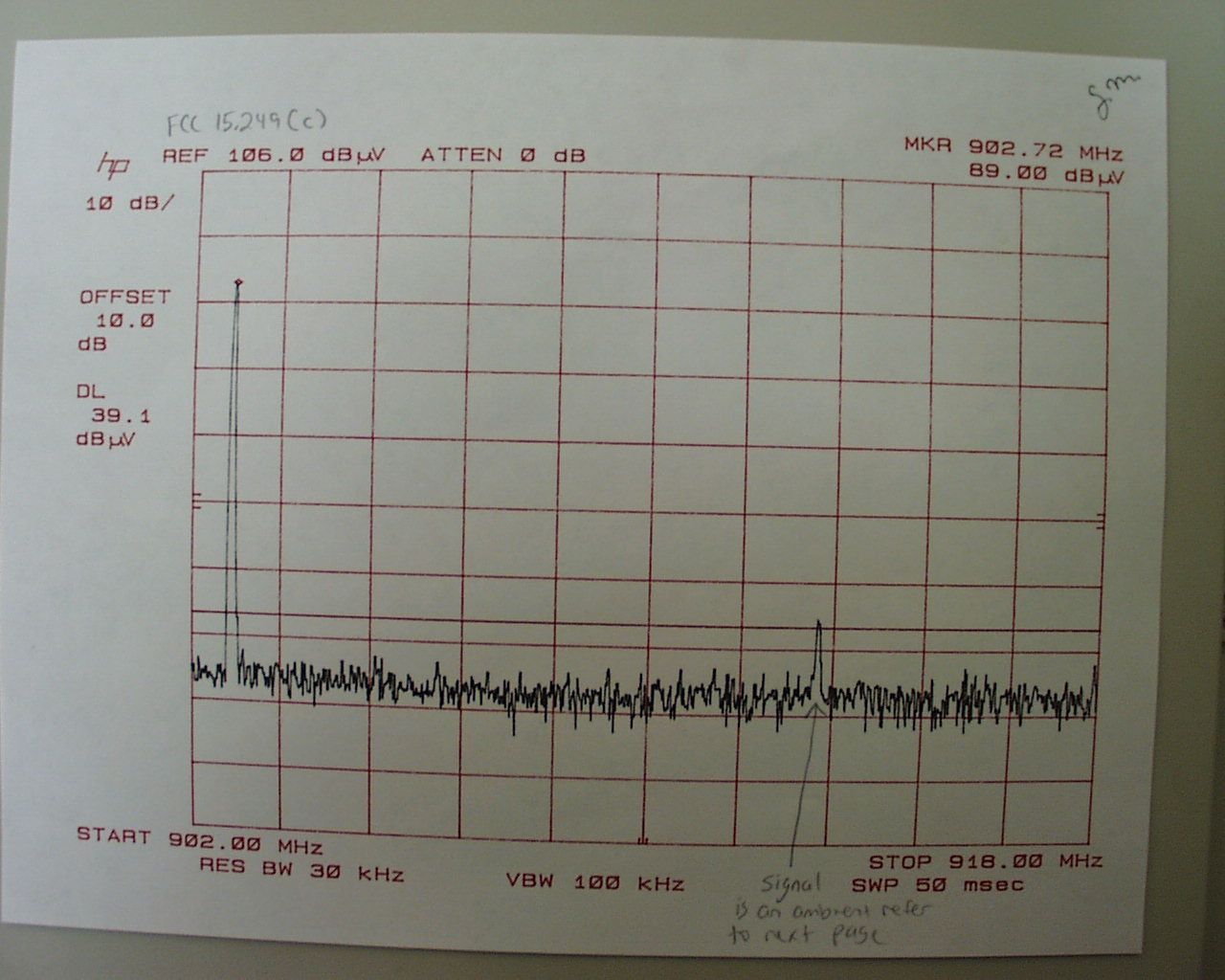

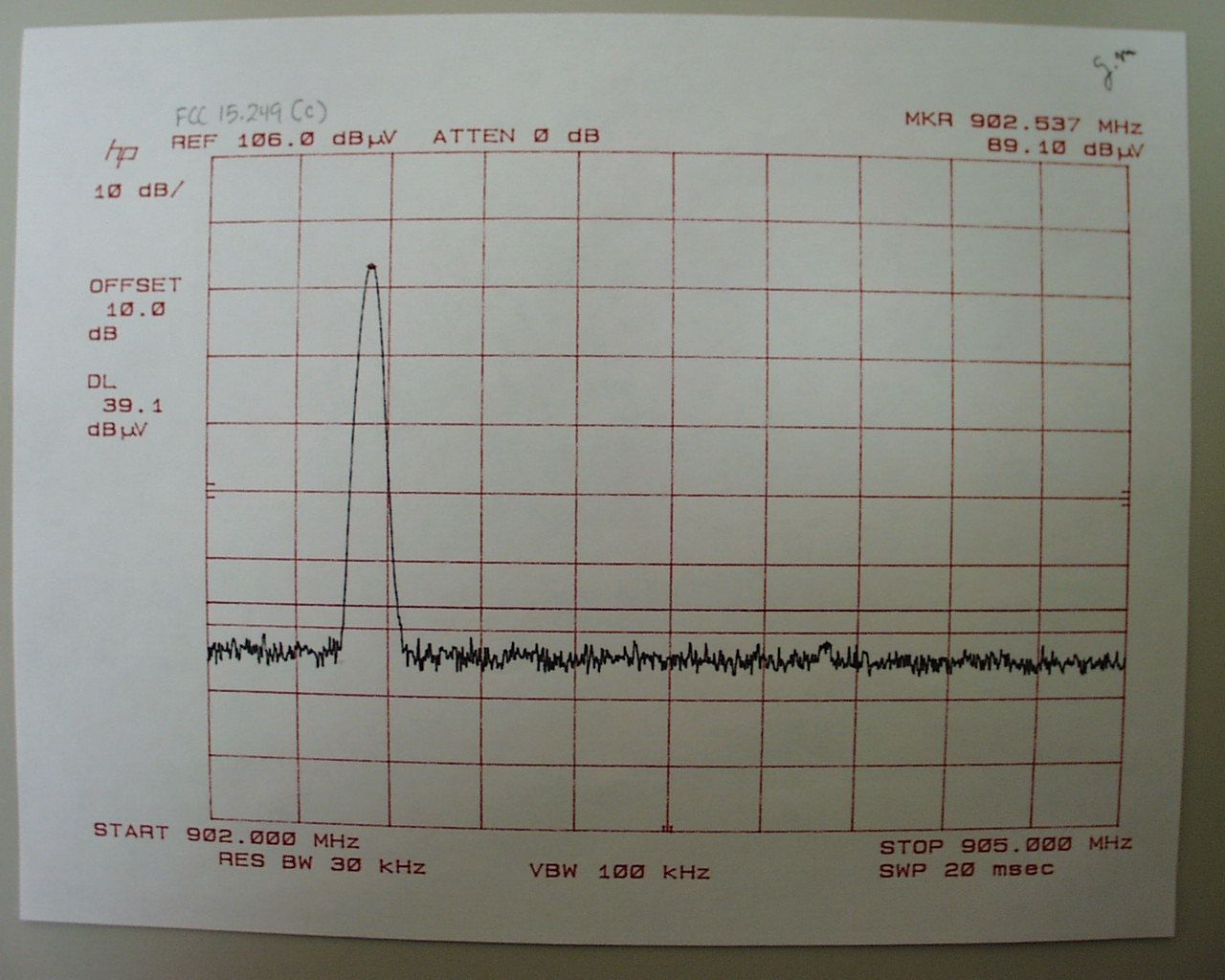

Test Report

↗
↗
↗
↗
↗
↗
↗
↗
↗
↗
↗
↗
↗
↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

ID Label/Location Info

FCC ID LABEL FORMAT AND LOCATION Applicant:HBC Electronic Funktechnik GMBH FCC ID:NO9O10004 FCC ID:NO9O10004 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID LABEL AREA

Test Report

Sheet1 Compliance Consulting Services Radiated Emissions Date: 4 December 1998 FCC Part 15.205Company: P-COM Test Distance: 1 m FCC ID: KINDM2 Ch1: 2421.252 z MHz Mo d 1280 Ch5: 2441.464 MHz s/n: 742320 Ch9: 2461.476 MHz 0 dBi antenna Duty cycle: 20log(1.4/2.7) = -5.6 dB Ch. P, dBm F(MHz) P K A V AF CL A mp Dist DUTY TOT AL LIM IT MARGIN (dBuV) (dBuV) (dB) (dB) (dB) (dB) (dB) (dBuV/m) (dBuV/m) (dB) P K AV P K AV P K AV 1 29 4842V 54.9 51.4 35 4.8 -35.0 -9.5 -5.6 50.2 41.1 74.0 54.0 -23.8 -12.9 1 29 7264V 42.3 34 40.9 5.6 -35.0 -9.5 -5.6 44.3 30.4 74.0 54.0 -29.7 -23.6 5 29 4882.8 V 50.5 60.4 35 4.8 -35 -9.5 -5.6 45.8 50.1 74.0 54.0 -28.2 -3.9 5 29 7324.4 V 47.1 50.3 40.9 5.6 -35.0 -9.5 -5.6 49.1 46.7 74.0 54.0 -24.9 -7.3 9 29 4922.9 V 49 43.7 35 4.8 -35.5 -9.5 -5.6 43.8 32.9 74.0 54.0 -30.2 -21.1 9 29 7381V 50 39.1 40.9 5.6 -35.5 -9.5 -5.6 51.5 35.0 74.0 54.0 -22.5 -19.0 All other emissions to 10 fo: more than 20 dB below limits or undetected/noise floor 8 dBi antenna Duty cycle: 20log(1.4/2.7) = -5.6 dB Ch. P, dBm F(MHz) P K A V AF CL A mp Dist DUTY TOT AL LIM IT MARGIN (dBuV) (dBuV) (dB) (dB) (dB) (dB) (dB) (dBuV/m) (dBuV/m) (dB) P K AV P K AV P K AV 1 29 4842V 57 54.4 35 4.8 -35.0 -9.5 -5.6 52.3 44.1 74.0 54.0 -21.7 -9.9 1 29 7264V 52.5 41 40.9 5.6 -35.0 -9.5 -5.6 54.5 37.4 74.0 54.0 -19.5 -16.6 5 29 4882.8 V 52.4 48.8 35 4.8 -35 -9.5 -5.6 47.7 38.5 74.0 54.0 -26.3 -15.5 5 29 7324.4 V 49.2 37.4 40.9 5.6 -35.0 -9.5 -5.6 51.2 33.8 74.0 54.0 -22.8 -20.2 9 29 4922.9 V 57.8 56.1 35 4.8 -35.5 -9.5 -5.6 52.6 45.3 74.0 54.0 -21.4 -8.7 9 29 7381V 51.7 41.5 40.9 5.6 -35.5 -9.5 -5.6 53.2 37.4 74.0 54.0 -20.8 -16.6 Page 1 Sheet1 All other emissions to 10 fo: more than 20 dB below limits or undetected/noise floor 16 dBi antenna Duty cycle: 20log(1.4/2.7) = -5.6 dB Ch. P, dBm F(MHz) P K A V AF CL A mp Dist DUTY TOT AL LIM IT MARGIN (dBuV) (dBuV) (dB) (dB) (dB) (dB) (dB) (dBuV/m) (dBuV/m) (dB) P K AV P K AV P K AV 1 29 4842V 53.9 50.9 35 4.8 -35.0 -9.5 -5.6 49.2 40.6 74.0 54.0 -24.8 -13.4 1 29 7264V 48.9 37.2 40.9 5.6 -35.0 -9.5 -5.6 50.9 33.6 74.0 54.0 -23.1 -20.4 5 29 4882.8 V 44.1 34 35 4.8 -35 -9.5 -5.6 39.4 23.7 74.0 54.0 -34.6 -30.3 5 29 7324.4 V 47.6 35.5 40.9 5.6 -35.0 -9.5 -5.6 49.6 31.9 74.0 54.0 -24.4 -22.1 9 29 4922.9 V 47.6 40.7 35 4.8 -35.5 -9.5 -5.6 42.4 29.9 74.0 54.0 -31.6 -24.1 9 29 7381V 51.7 41.5 40.9 5.6 -35.5 -9.5 -5.6 53.2 37.4 74.0 54.0 -20.8 -16.6 All other emissions to 10 fo: more than 20 dB below limits or undetected/noise floor 24 dBi antenna Duty cycle: 20log(1.4/2.7) = -5.6 dB Ch. P, dBm F(MHz) P K A V AF CL A mp Dist DUTY TOT AL LIM IT MARGIN (dBuV) (dBuV) (dB) (dB) (dB) (dB) (dB) (dBuV/m) (dBuV/m) (dB) P K AV P K AV P K AV 1 29 4842V 61.1 59.6 35 4.8 -35.0 -9.5 -5.6 56.4 49.3 74.0 54.0 -17.6 -4.7 1 29 7264V 50.2 39.1 40.9 5.6 -35.0 -9.5 -5.6 52.2 35.5 74.0 54.0 -21.8 -18.5 5 29 4862V 49.7 43.6 35 4.8 -35 -9.5 -5.6 45.0 33.3 74.0 54.0 -29.0 -20.7 5 29 7290V 47.4 34.2 40.9 5.6 -35.0 -9.5 -5.6 49.4 30.6 74.0 54.0 -24.6 -23.4 9 29 4922.9 V 53.4 49.2 35 4.8 -35.5 -9.5 -5.6 48.2 38.4 74.0 54.0 -25.8 -15.6 9 29 7381V 49.8 36.5 40.9 5.6 -35.5 -9.5 -5.6 51.3 32.4 74.0 54.0 -22.7 -21.6 All other emissions to 10 fo: more than 20 dB below limits or undetected/noise floor Page 2

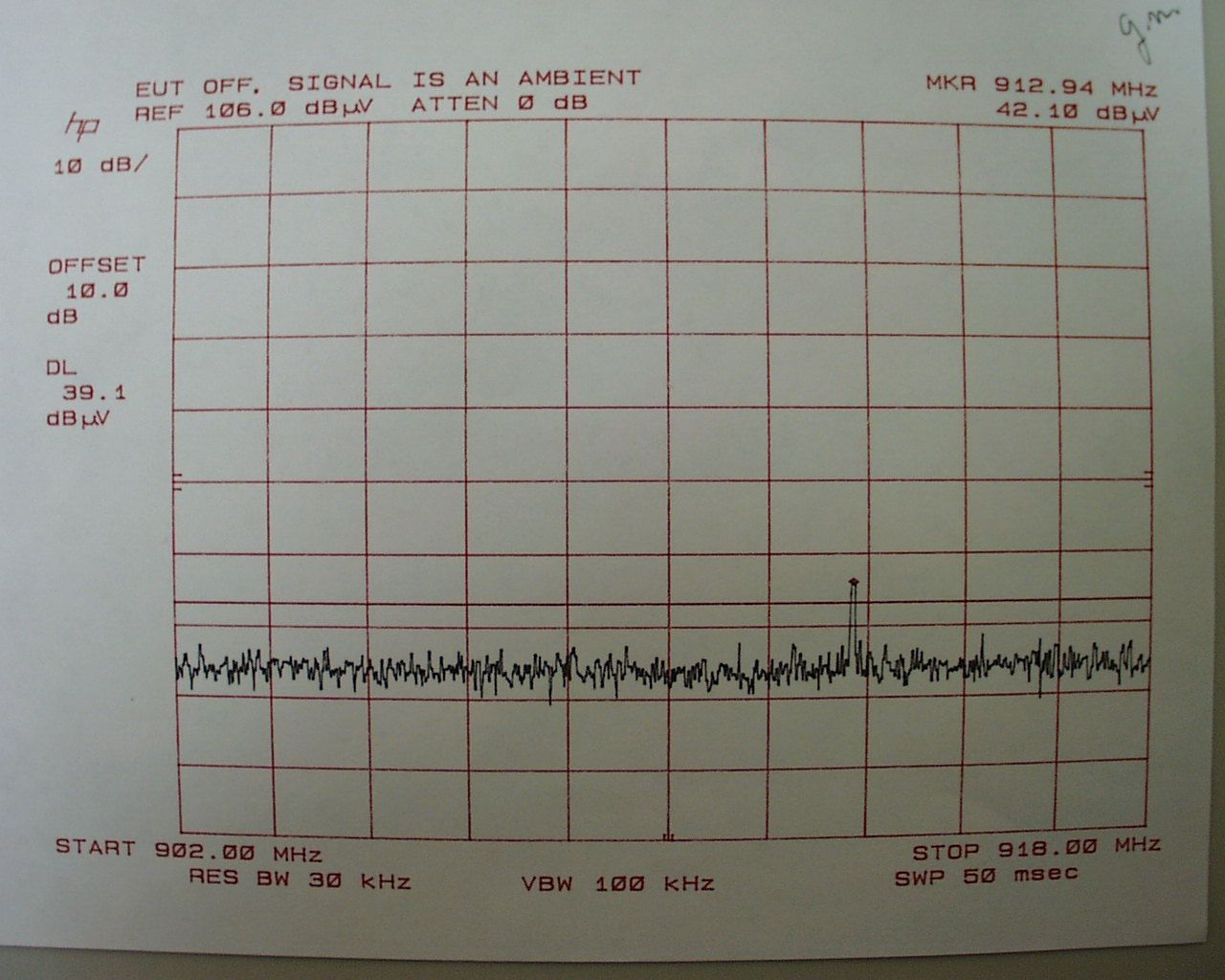

Test Report

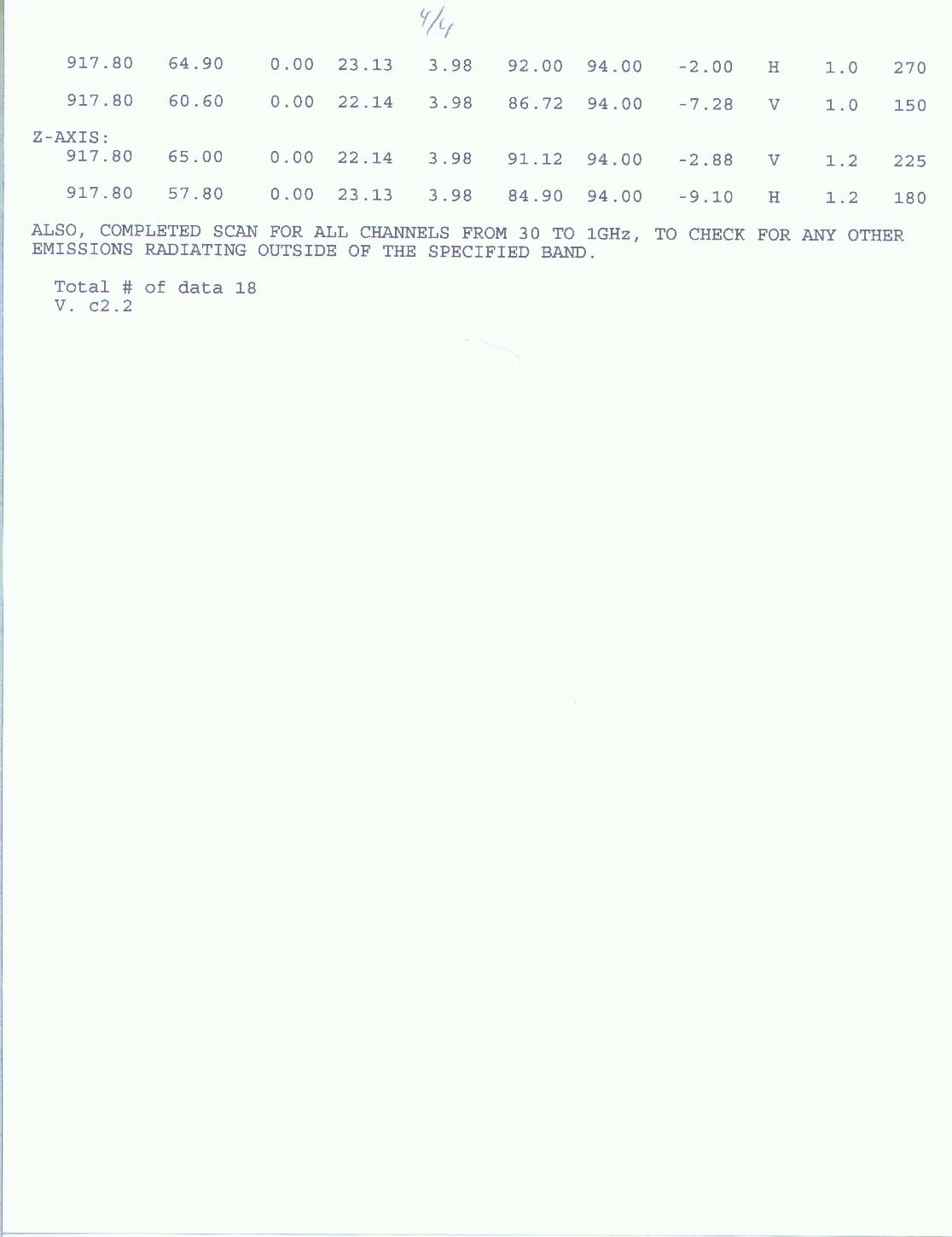

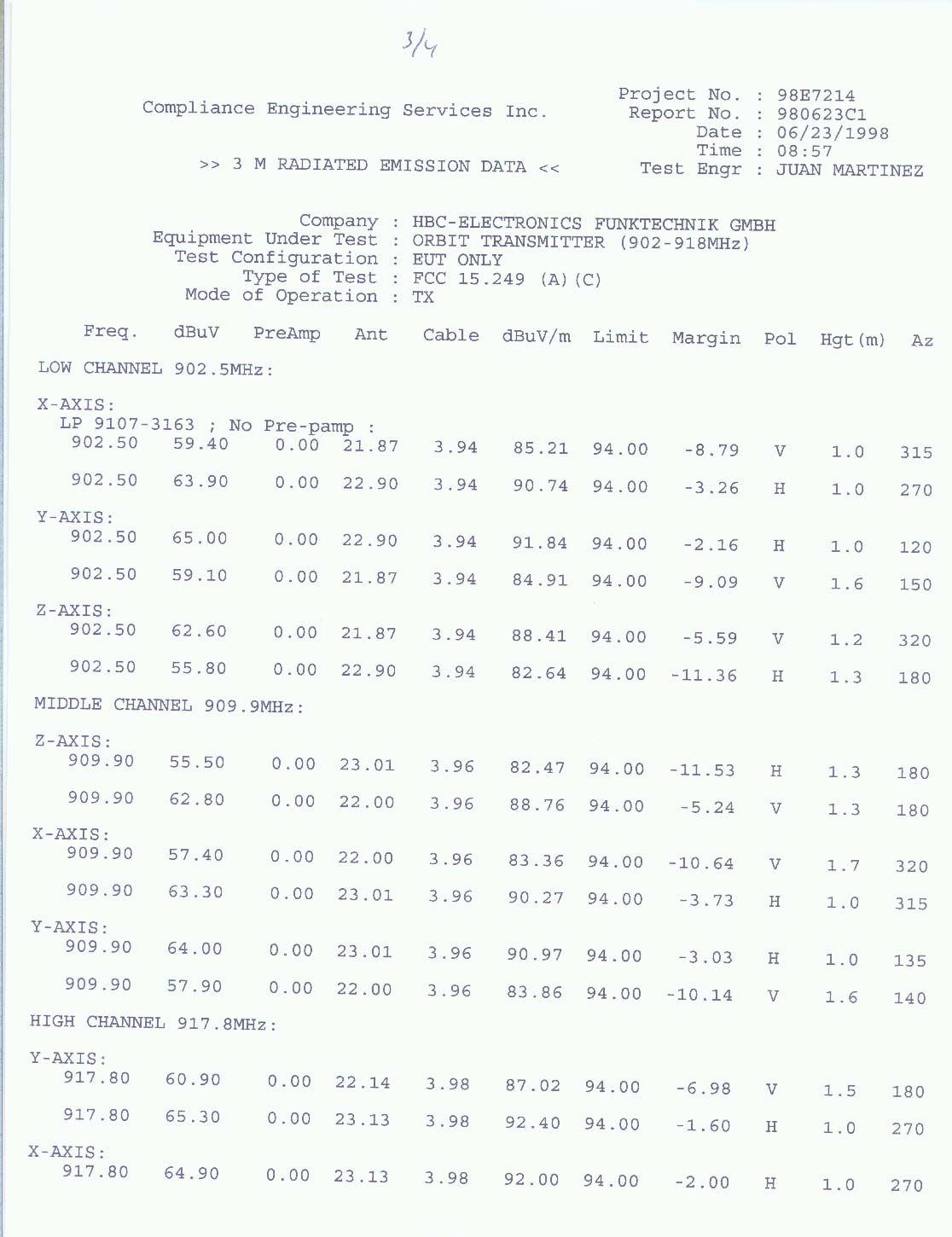

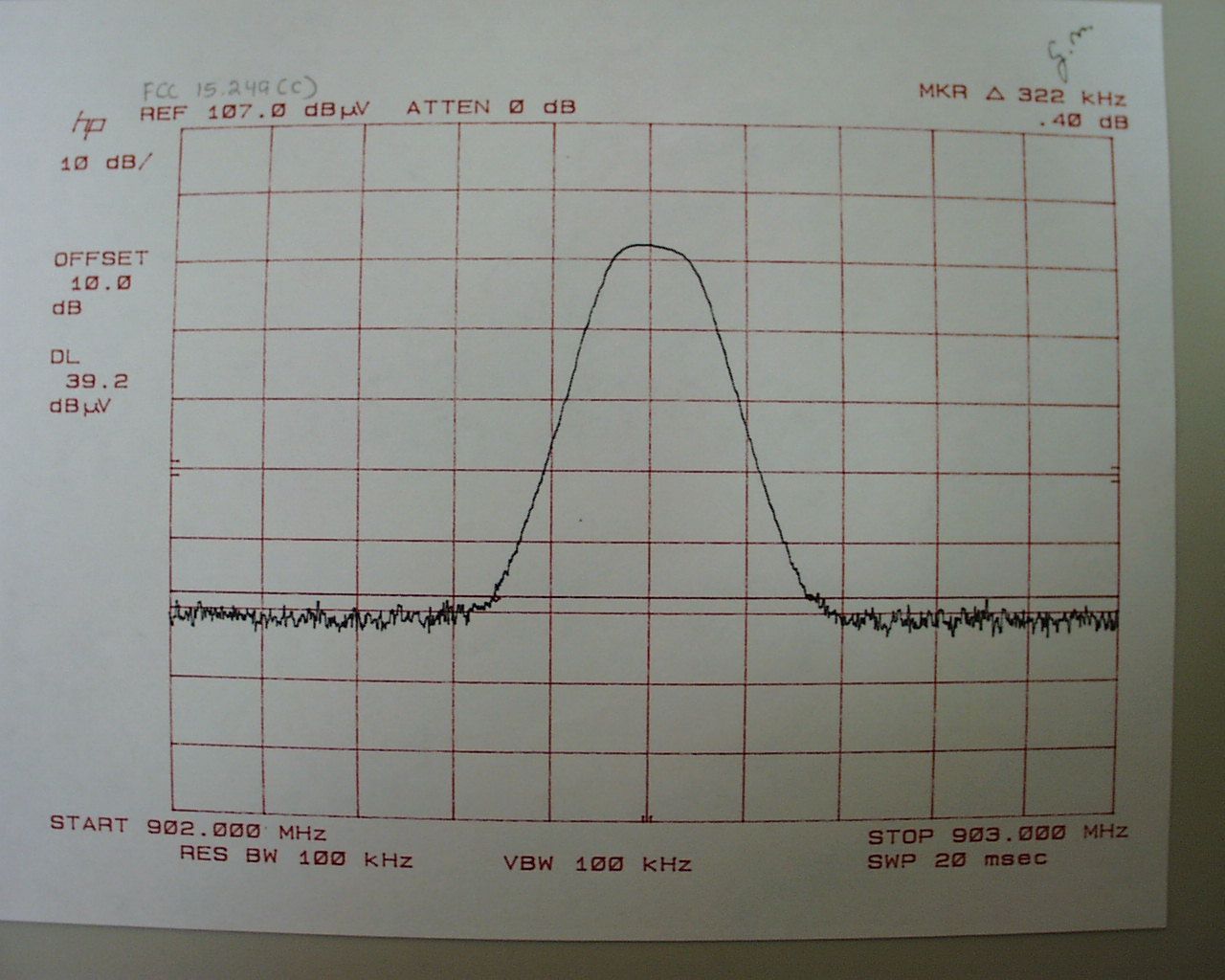

HBC-ELECTRONIC FUNKTECHNIK GMBHFCC ID:NO9O10004 EUT:ORBIT TRANSMITTER PAGE 1 OF 8 COMPLIANCE CERTIFICATION SERVICESCCS DOCUMENT NO:UP40035A.DOC 1366 BORDEAUX DRIVE, SUNNYVALE CA 94089TEL: (408)752-8166 FAX: (408)752-8168 This report shall not be reproduced except in full, without the written approval of CCS. ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT OF FCC ID:NO9O10004 ORBIT TRANSMITTER (902 – 918 MHz) MODEL NO:ORBIT SERIAL NO: 707-l4233/1 REPORT NO: 98E7214 SEPTEMBER 8,1998 Prepared for HBC ELECTRONIC FUNKTECHNIK GMBH HALLER STRASSE 49-53 CRAILSHEIM 74564, GERMANY Prepared by COMPLIANCE CERTIFICATION SERVICES, INC. 1366 BORDEAUX DRIVE SUNNYVALE, CA 94089, U.S.A. TEL: (408) 752-8166 FAX: (408) 752-8168 HBC-ELECTRONIC FUNKTECHNIK GMBHFCC ID:NO9O10004 EUT:ORBIT TRANSMITTER PAGE 2 OF 8 COMPLIANCE CERTIFICATION SERVICESCCS DOCUMENT NO:UP40035A.DOC 1366 BORDEAUX DRIVE, SUNNYVALE CA 94089TEL: (408)752-8166 FAX: (408)752-8168 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS PAGE NO 1. VERIFICATION OF COMPLIANCE.....................................................................3 2. DESCRIPTION OF EQUIPMENT UNDER TEST (EUT)....................................4 3. TEST LOCATION....................................................................................................4 4. TEST RESULT SUMMARY....................................................................................5 Test Data 5. EUT SETUP PHOTO................................................................................................8 Attachment #1 EUT Photographs Attachment #2 Proposed FCC ID Label Format Attachment #3 Schematic Diagram Attachment #4 User’s Manual HBC-ELECTRONIC FUNKTECHNIK GMBHFCC ID:NO9O10004 EUT:ORBIT TRANSMITTER PAGE 3 OF 8 COMPLIANCE CERTIFICATION SERVICESCCS DOCUMENT NO:UP40035A.DOC 1366 BORDEAUX DRIVE, SUNNYVALE CA 94089TEL: (408)752-8166 FAX: (408)752-8168 This report shall not be reproduced except in full, without the written approval of CCS. 1.VERIFICATION OF COMPLIANCE COMPANY NAME:HBC ELECTRONIC FUNKTECHNIK GMBH HALLER STRASSE 49-53 CRAILSHEIM 74564 GERMANY CONTACT PERSON:WOLFGANG BRENDEL / PRESIDENT TELEPHONE NO:(01149)7951-393-855 EUT DESCRIPTION:ORBIT TRANSMITTER MODEM NAME:ORBIT DATE TESTED :SEPTERMBER 8, 1998 LIMITS APPLY TO: FCC PART 15 SECTION 15.249 TECHNICAL LIMITSTEST RESULT Radiated Emission of fundamental FrequencyPASSED Radiated Emission of Harmonic FrequencyPASSED Radiated Emission Outside the BandPASSED The above equipment was tested by Compliance Certification Services Inc. for compliance with the requirements set forth in CFR 47 PART 15 SUBPART C. This said equipment in the configuration described in this report shows the maximum emission levels emanating from equipment are within the compliance requirements. MIKE C.I. KUO / VICE PRESIDENT COMPLIANCE CERTIFICATION SERVICES, INC. HBC-ELECTRONIC FUNKTECHNIK GMBHFCC ID:NO9O10004 EUT:ORBIT TRANSMITTER PAGE 4 OF 8 COMPLIANCE CERTIFICATION SERVICESCCS DOCUMENT NO:UP40035A.DOC 1366 BORDEAUX DRIVE, SUNNYVALE CA 94089TEL: (408)752-8166 FAX: (408)752-8168 This report shall not be reproduced except in full, without the written approval of CCS. 2. DESCRIPTION OF EQUIPMENT UNDER TEST (EUT) CHASSIS TYPE PLASTIC Frequency Range 902 - 918 MHz Synthesizer FUS 680 Transmitter with high integrated synthesizer MB1511 (IC1) Type of Transmitter Frequency Modulated Antenna Requirement Permanently Attached ( Internal) DC voltage 6V DC Emission Designator F2D 3. TEST LOCATION All emissions tests were performed at: Compliance Consulting Services 561F Monterey Road Morgan Hill, CA 95087 CCS has site descriptions on file with the FCC for 10 and 3 meter site configurations. CCS is a NVLAP accredited facility. HBC-ELECTRONIC FUNKTECHNIK GMBHFCC ID:NO9O10004 EUT:ORBIT TRANSMITTER PAGE 5 OF 8 COMPLIANCE CERTIFICATION SERVICESCCS DOCUMENT NO:UP40035A.DOC 1366 BORDEAUX DRIVE, SUNNYVALE CA 94089TEL: (408)752-8166 FAX: (408)752-8168 This report shall not be reproduced except in full, without the written approval of CCS. 4. TEST RESULT SUMMARY Radiated Emissions Test Requirement: 15.249 Field Strength of Fundamental Frequency and Harmonics Measurement Equipment Used: HP 8563EM Spectrum Analyzer HP 8449B Preamplifier, 1 - 26 GHz EMCO 3146 Antenna, 200 - 1000MHz ARA DRG-118/A Double Ridged Horn antenna, 1 - 18 GHz QIM “The Workhorse” low loss cable, 9ft (loss: 0.85 dB/ft@ 26 GHz) Microlab 150HX High Pass Filter (fo = 2100 MHz), 400Hx (fo=4000 Mhz) Test Set-Up Ground plane d: 1 METER high pass filter d 1-2 meters EUT turntable preamplifier horn antenna spectrum analyzer Test Procedures 1. The EUT was placed on a wooden table on the outdoor ground plane. The search antenna was placed 1 METER from the EUT. The EUT was placed in X,Y, and Z positions to simulate actual usage. 2. The turntable was slowly rotated to locate the direction of maximum emission at each emission falling in the restricted bands of 15.205. 3. Once maximum direction was determined, the search antenna was raised and lowered in both vertical and horizontal polarization. The maximum readings so obtained are recorded in the data listed below. 4. High Pass Filter is used for measurement above 1000mhz. No Pre-Amp is used for fundamental Frequency measurement. HBC-ELECTRONIC FUNKTECHNIK GMBHFCC ID:NO9O10004 EUT:ORBIT TRANSMITTER PAGE 6 OF 8 COMPLIANCE CERTIFICATION SERVICESCCS DOCUMENT NO:UP40035A.DOC 1366 BORDEAUX DRIVE, SUNNYVALE CA 94089TEL: (408)752-8166 FAX: (408)752-8168 This report shall not be reproduced except in full, without the written approval of CCS. 5. Since EUT actual tuning range is over 10 Mhz, three fundamental frequencies are selected : 902, 909 and 917 MHz. Test Results: Refer to attached tabular data sheets. HBC-ELECTRONIC FUNKTECHNIK GMBHFCC ID:NO9O10004 EUT:ORBIT TRANSMITTER PAGE 7 OF 8 COMPLIANCE CERTIFICATION SERVICESCCS DOCUMENT NO:UP40035A.DOC 1366…

Text truncated - open the document above for the full version.
